Toyota Coaster

1977-08 → 1982-04 · chassis RB1#,BB10 · catalogue 811210 · Europe

Discontinued model Data version 1982-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

15 part groups · 2 illustrations

Illustrations

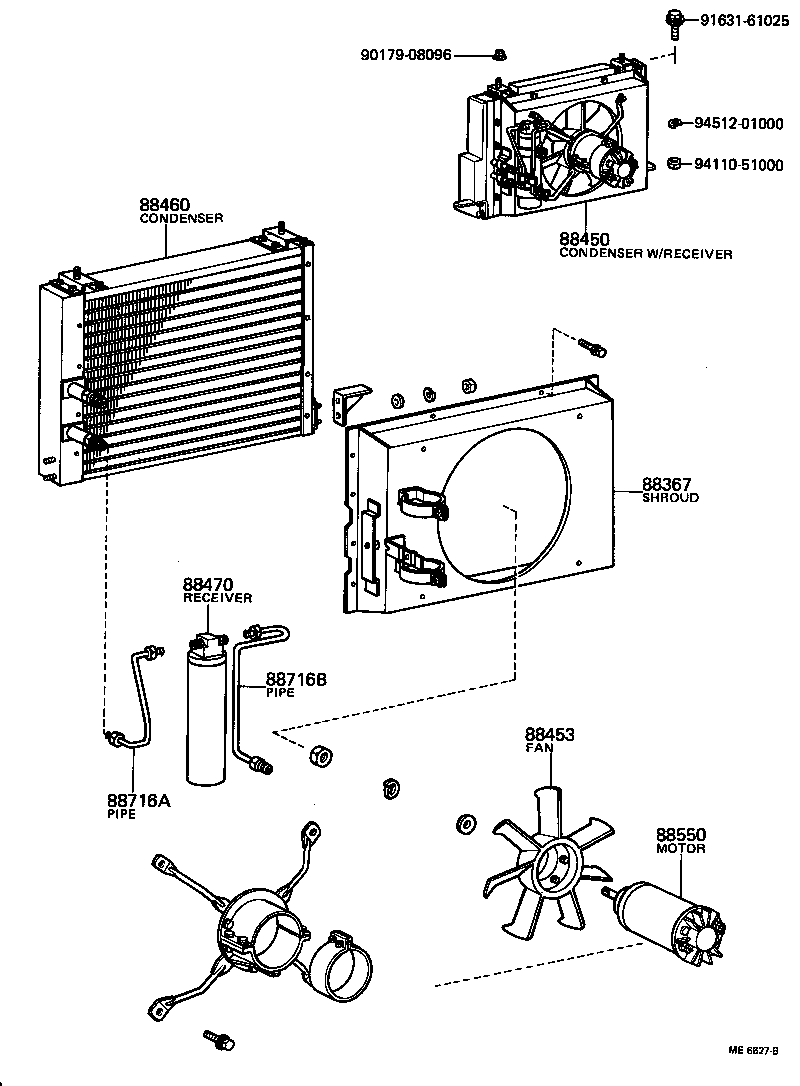

Figure ME6626B ME6626B 1977-08 → — Figure ME6627B ME6627B 1977-08 → —

Part groups

PNCDescription
88367 Shroud, Cooler Blower Fan
88450 Condenser Assy, W/Receiver
88453 Fan, Cooling (FOR CONDENSER)
88460 Condenser Assy, Cooler
88470 Receiver & Dryer Assy, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717E Pipe, Cooler Refrigerant Suction, E
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
