Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

43 part groups · 9 illustrations

Illustrations

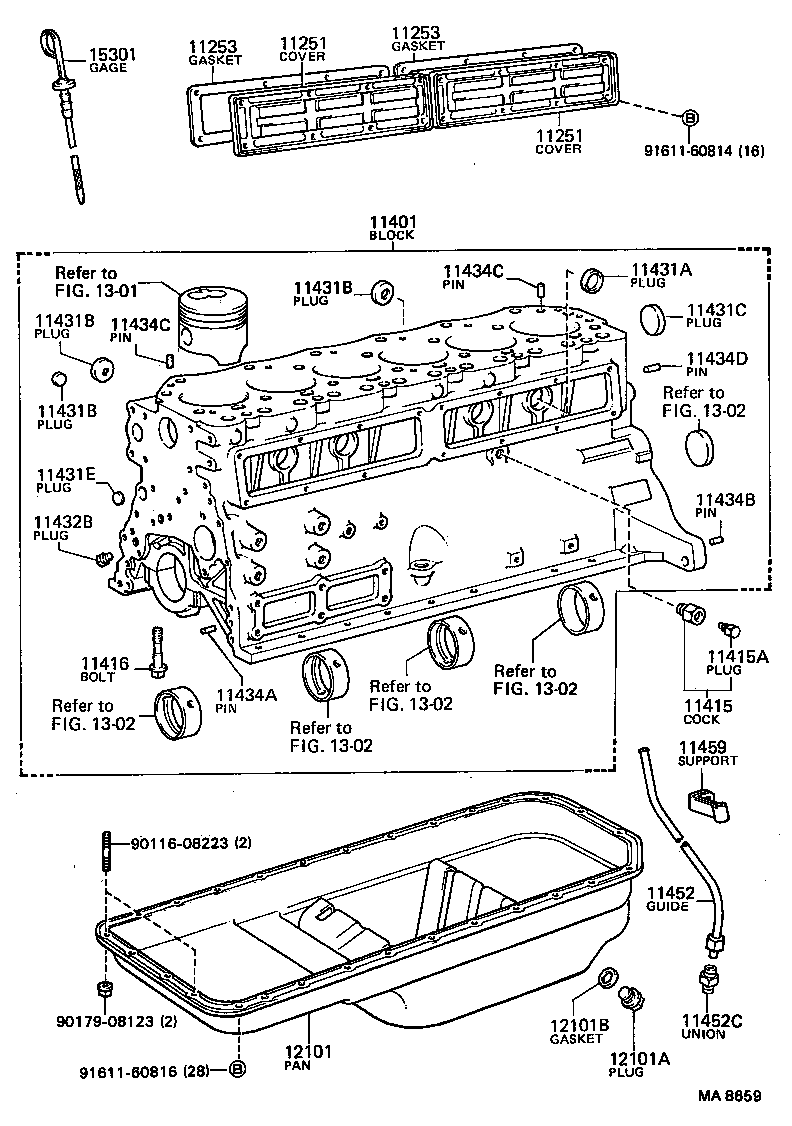

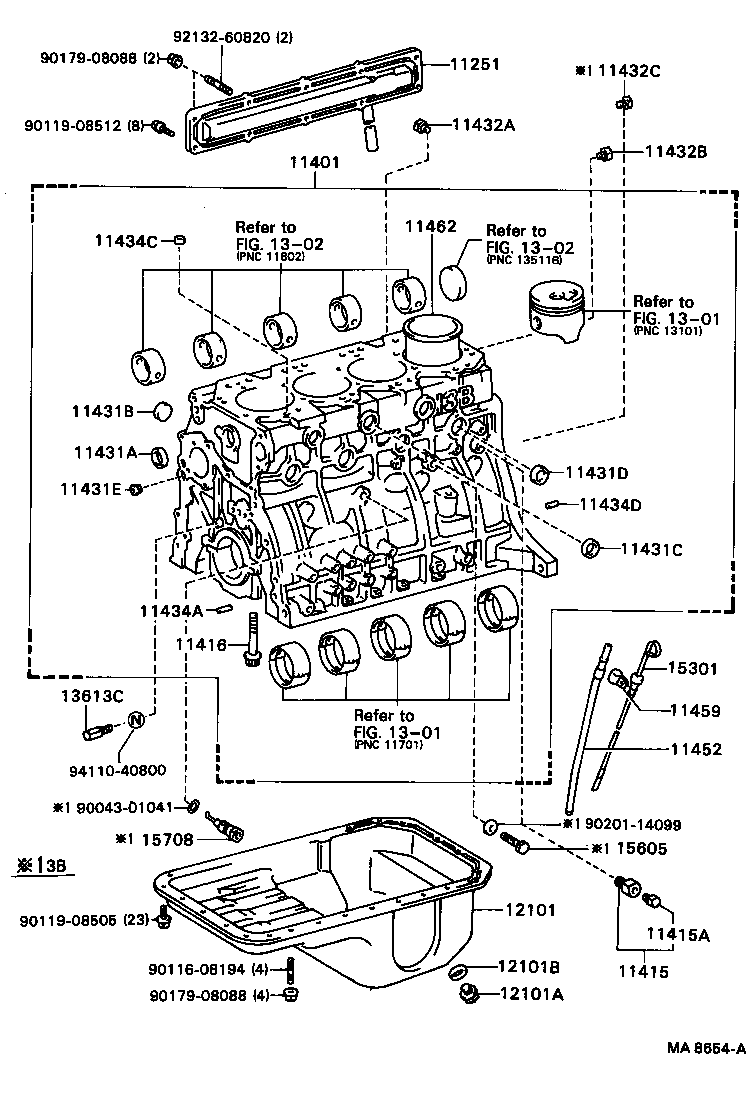

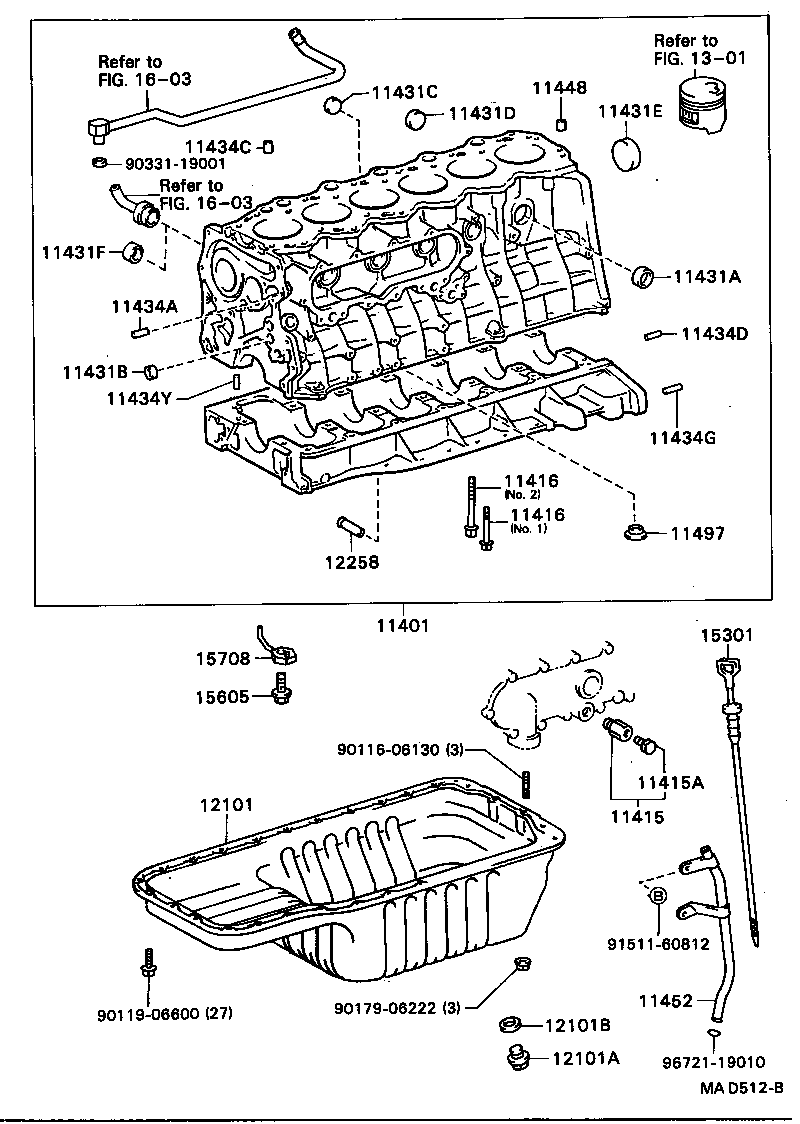

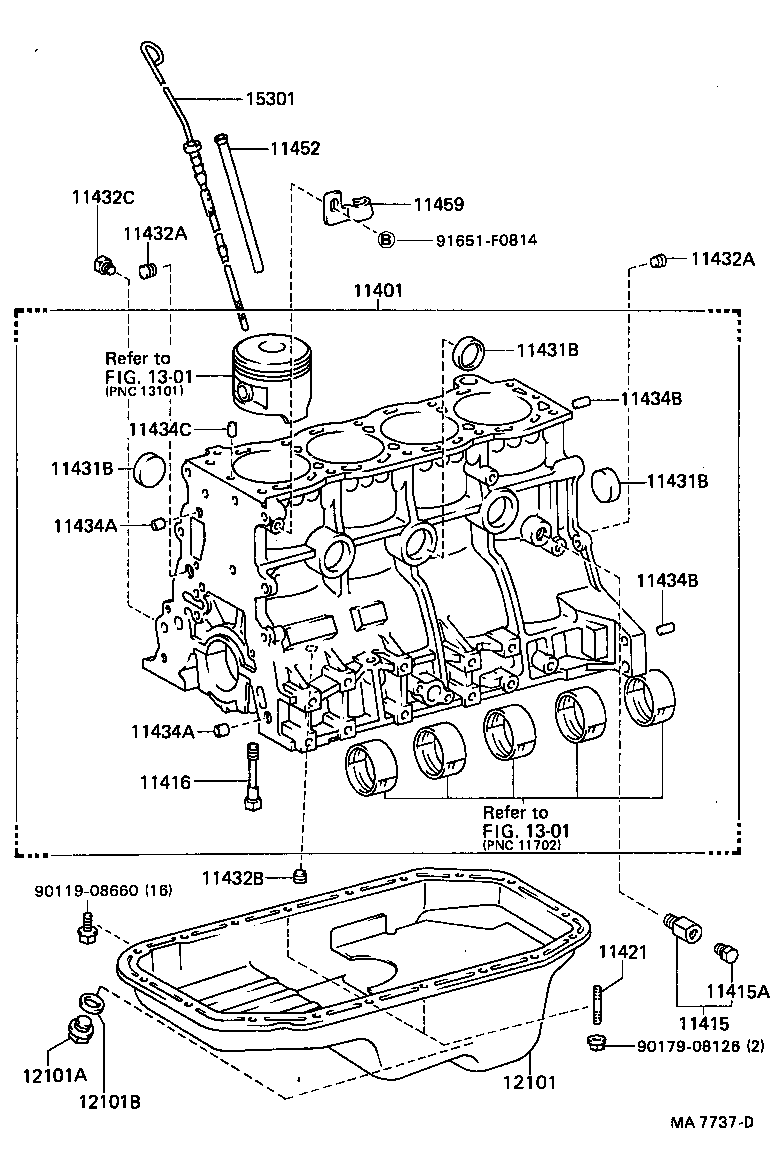

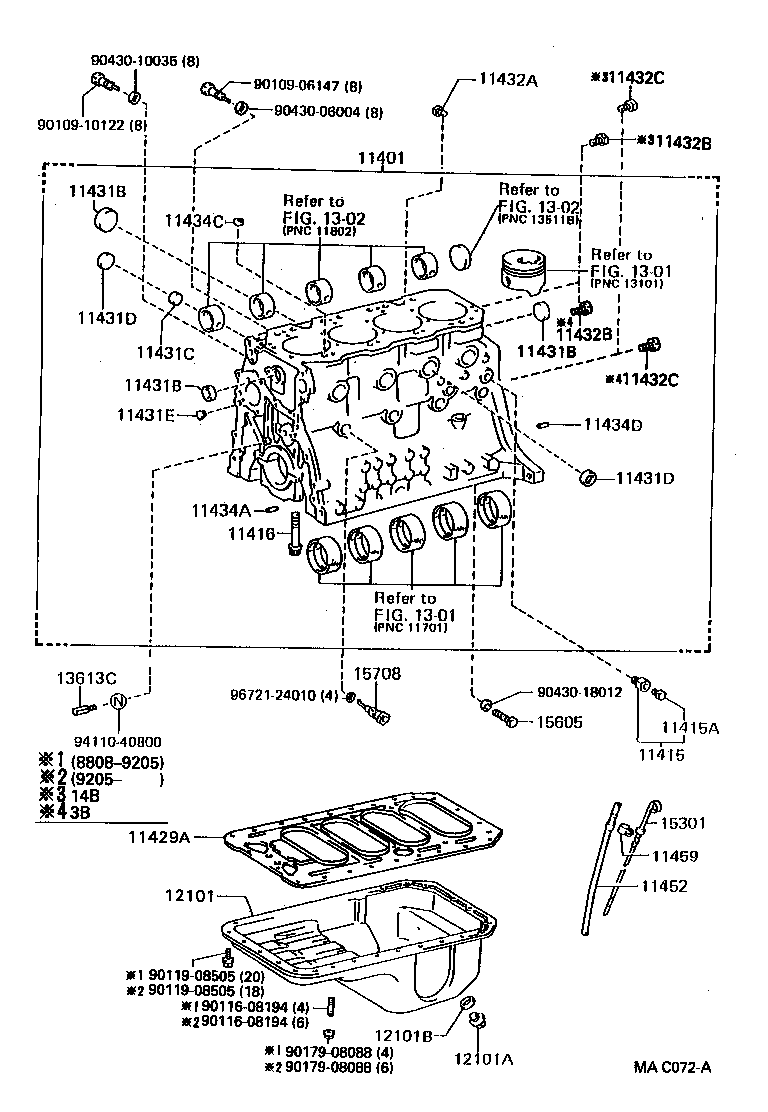

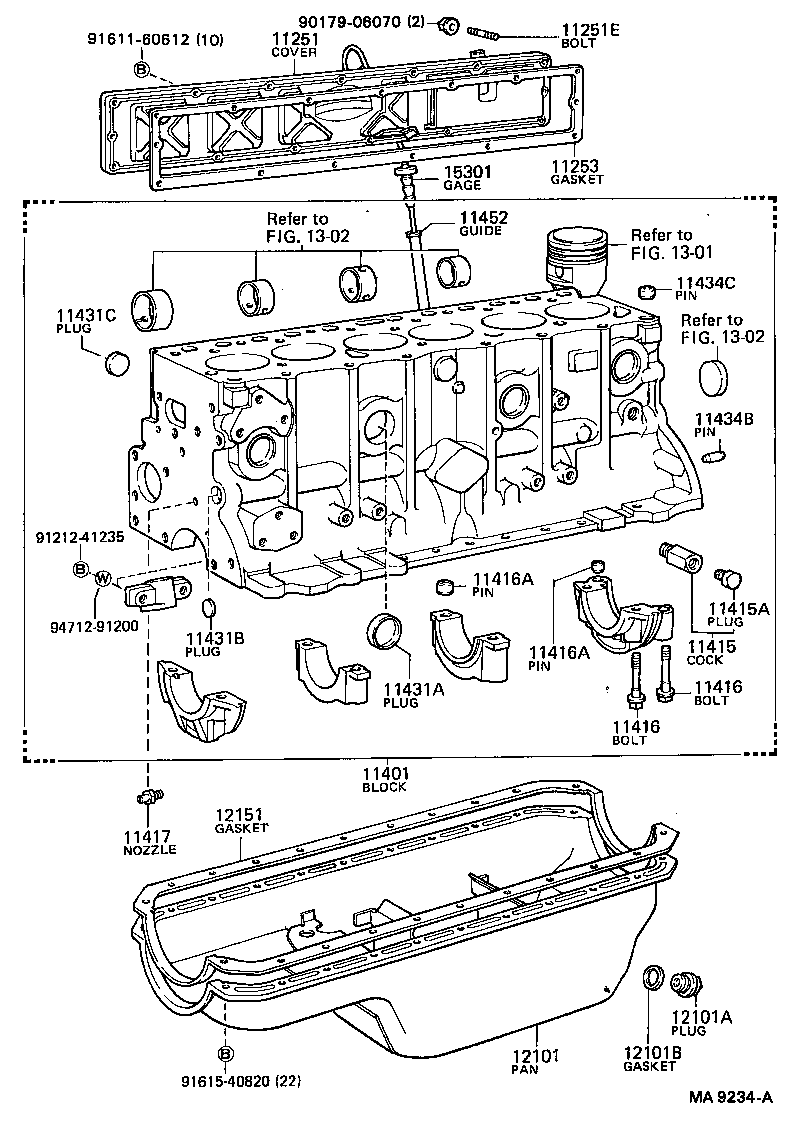

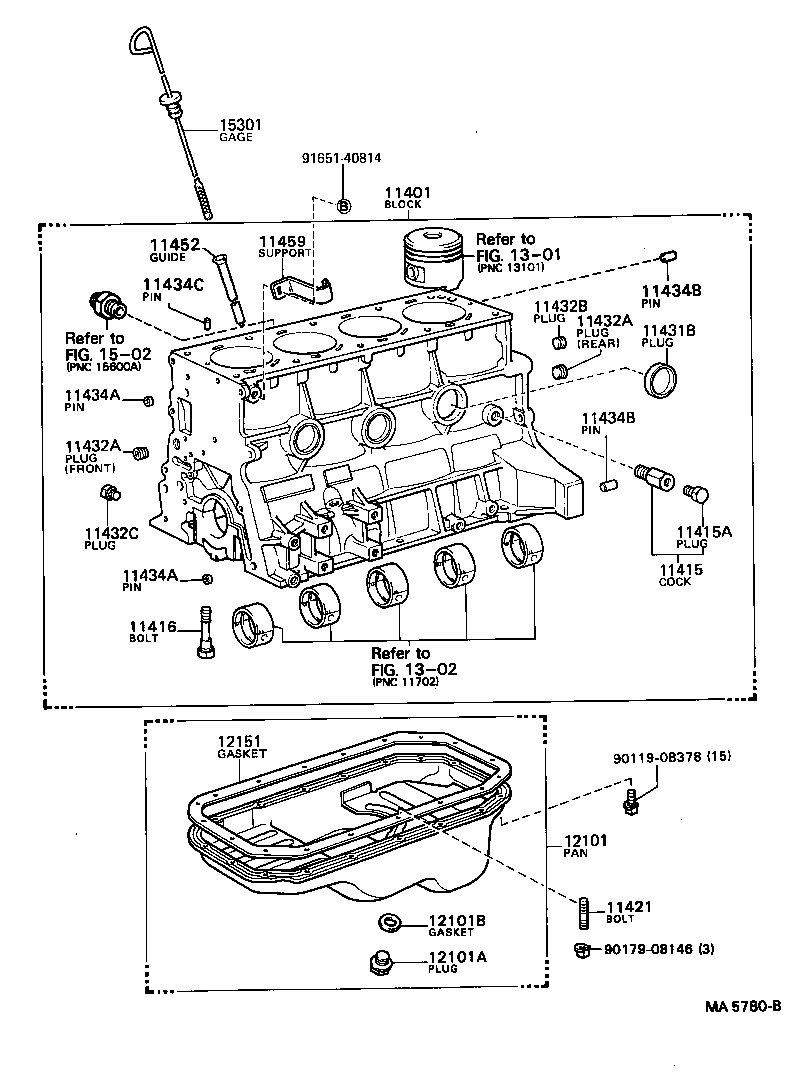

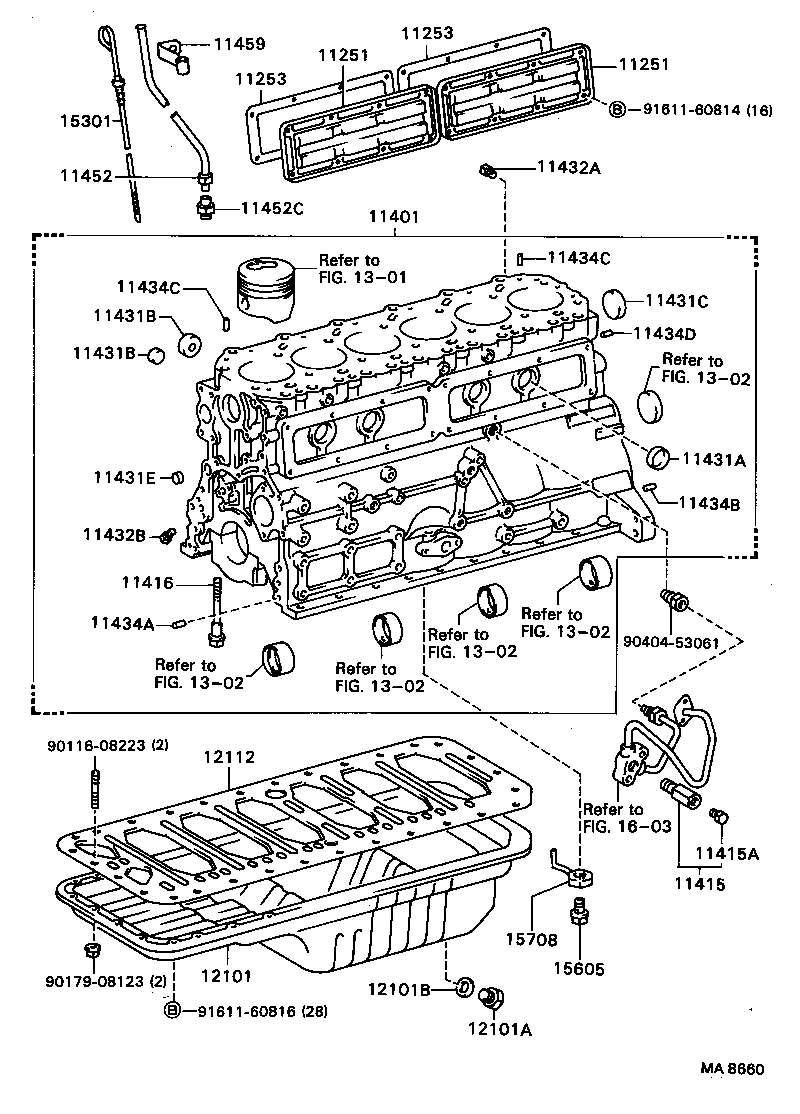

Figure MA5788G MA5788G 1982-05 → 1985-10 Figure MA8654A MA8654A 1985-10 → 1988-08 Figure MAC072A MAC072A 1988-08 → — Figure MA9234A MA9234A 1986-10 → — Figure MA8659 MA8659 1986-10 → 1990-01 Figure MA8660 MA8660 1986-10 → 1990-01 Figure MAD512B MAD512B 1990-01 → — Figure MA5780B MA5780B 1982-05 → 1984-08 Figure MA7737D MA7737D 1984-08 → —

Part groups

PNCDescription
11251 Cover, Valve Push Rod
11251E Bolt, Stud(FOR VALVE PUSH ROD COVER)
11253 Gasket, Valve Push Rod Cover
11401 Block Sub-assy, Cylinder
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11416A Pin, Ring(FOR CRANKSHAFT BEARING CAP SET)
11417 Nozzle, Oil
11421 Bolt, Stud(FOR OIL PAN)
11429A Plate, Cylinder Block Stiffening
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11431D Plug, Tight, NO.4(FOR CYLINDER BLOCK)
11431E Plug, Tight, NO.5(FOR CYLINDER BLOCK)
11431F Plug, Tight, NO.6(FOR CYLINDER BLOCK)
11432A Plug, W/Head Taper Screw, NO.1
11432B Plug, W/Head Taper Screw, NO.2
11432C Plug, W/Head Taper Screw, NO.3
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434G Pin, Straight(FOR END PLATE)
11434Y Pin, Straight(FOR OIL PAN)
11448 Orifice, Cylinder Block Oil
11452 Guide, Oil Level Gage
11452C Union(FOR OIL LEVEL GAGE GUIDE)
11459 Support, Oil Level Gage Guide
11462 Liner, Cylinder
11475 Shim, Cylinder Liner
11497 Gasket, Cylinder Block Oil Hole
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12112 Pan, Oil NO.2
12151 Gasket, Oil Pan
12258 Pipe, Oil Return
13613C Nozzle, Oil
15301 Gage Sub-assy, Oil Level
15605 Valve Sub-assy, Oil Check
15708 Nozzle Sub-assy, Oil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
