Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

15 part groups · 5 illustrations

Illustrations

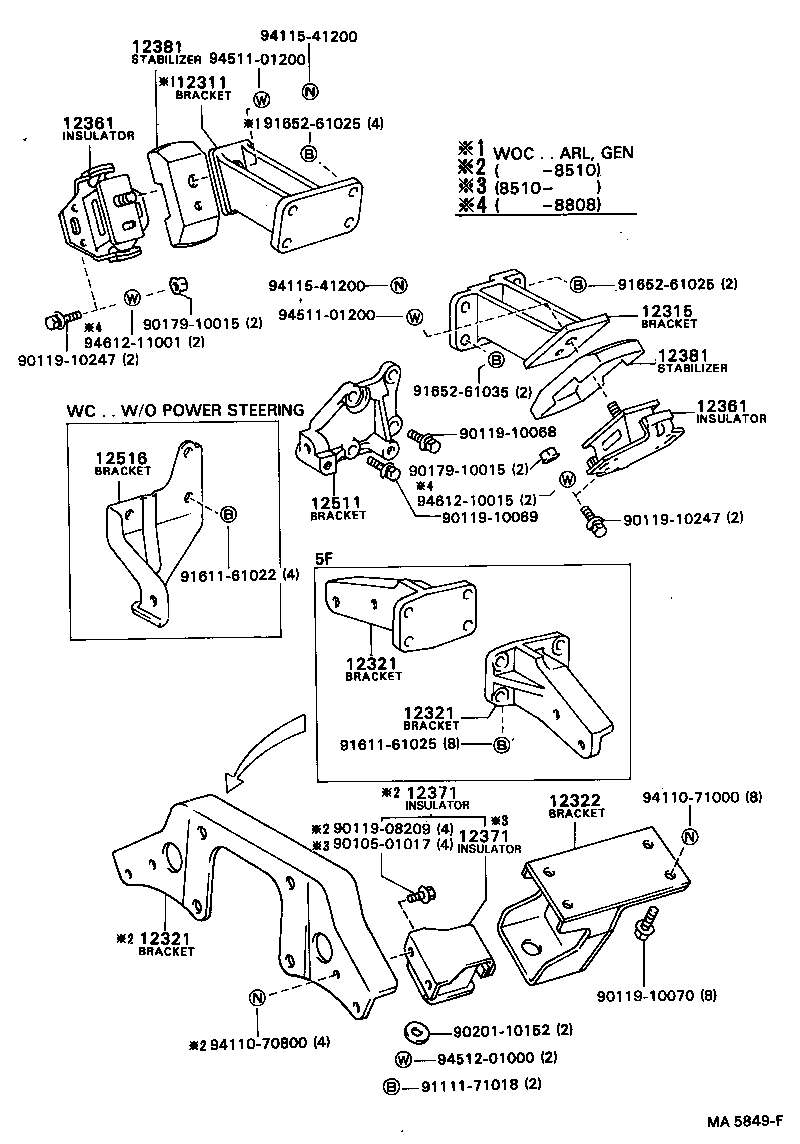

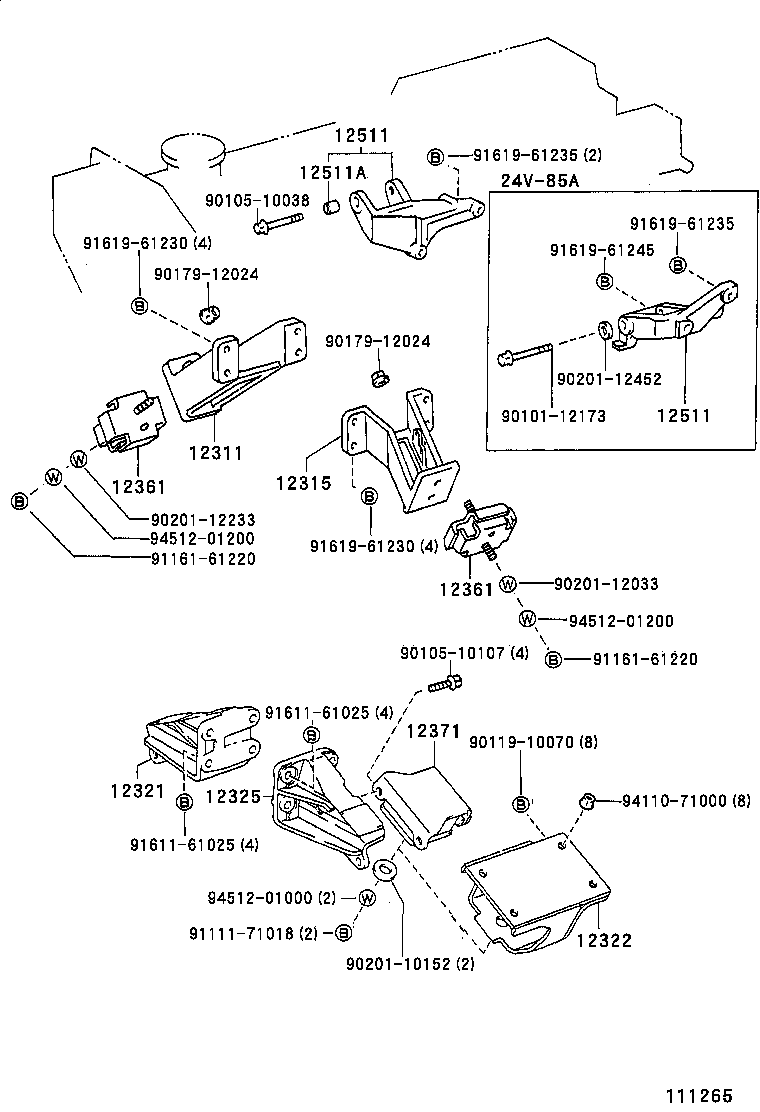

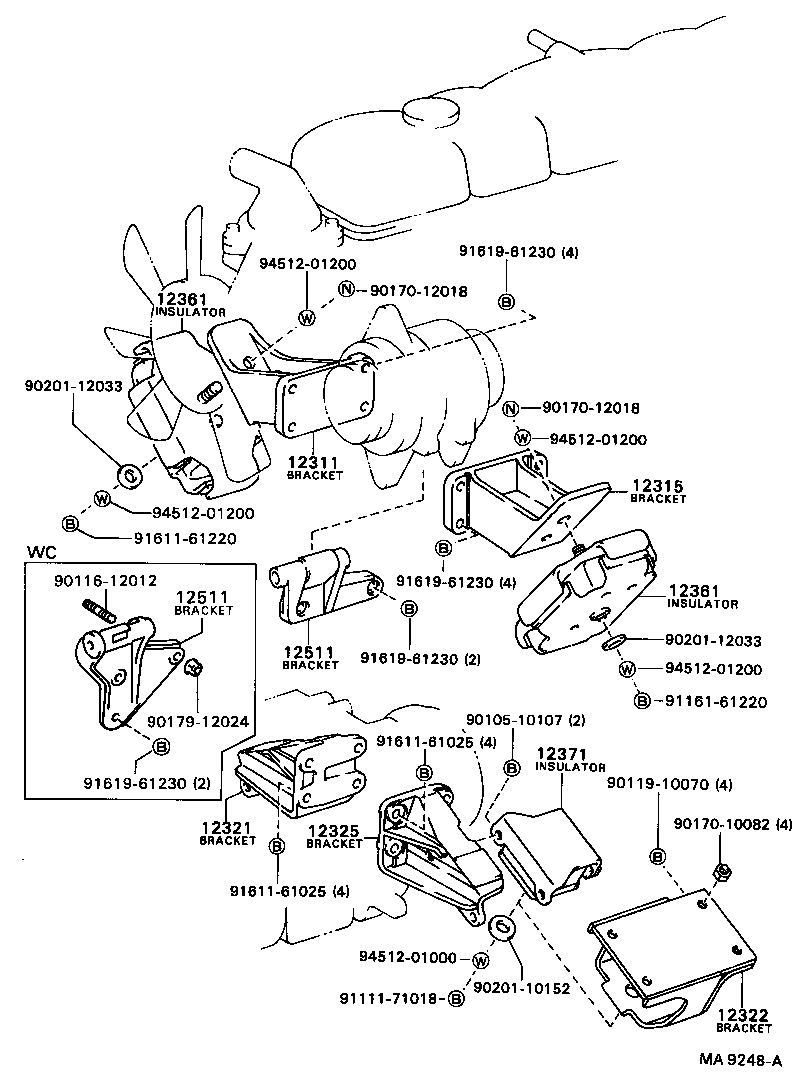

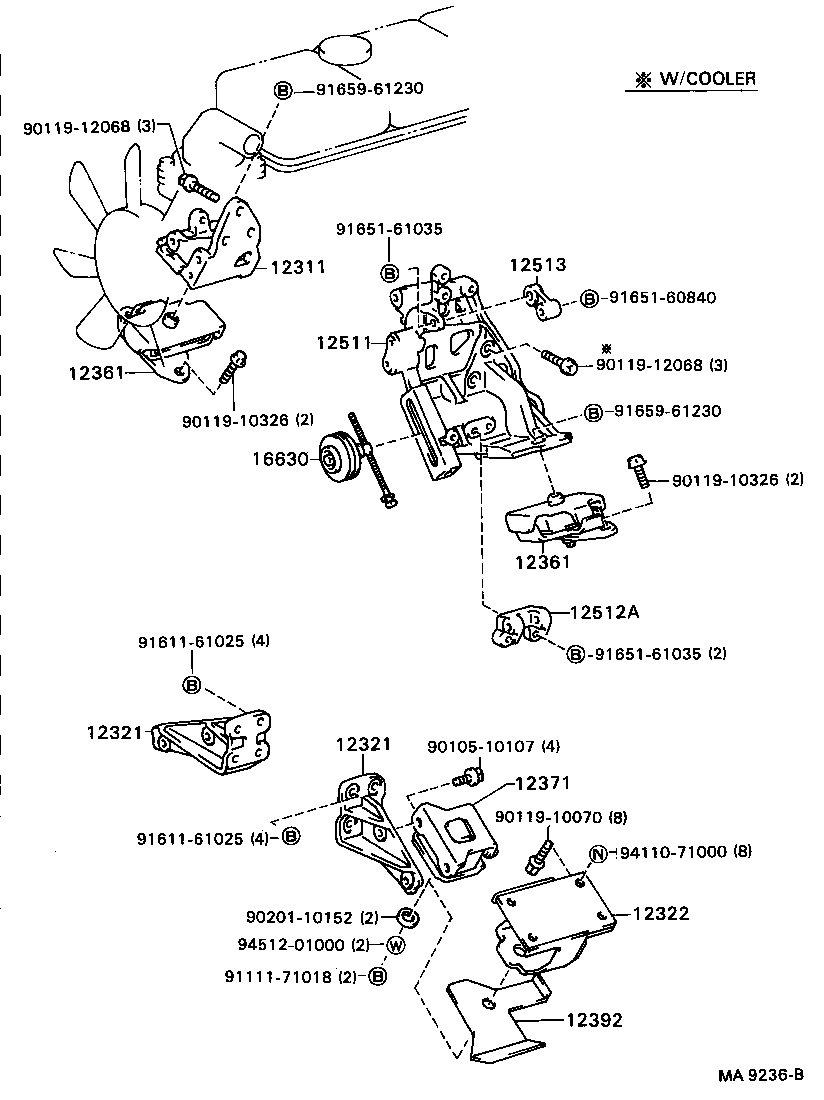

Figure MA5790E MA5790E 1982-05 → — Figure MA9236B MA9236B 1986-10 → — Figure MA9248A MA9248A 1986-10 → 1990-01 Figure 111265 111265 1990-01 → — Figure MA5849F MA5849F 1982-05 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12325 Bracket, Engine Mounting, NO.3
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12392 Insulator, Engine Mounting Heat, Front LH
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
12512A Bracket, Alternator, NO.2
12513 Bracket, Alternator, NO.3
12516 Bracket, Alternator, NO.2
16630 Pulley Assy, Idler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
