Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

15 part groups · 6 illustrations

Illustrations

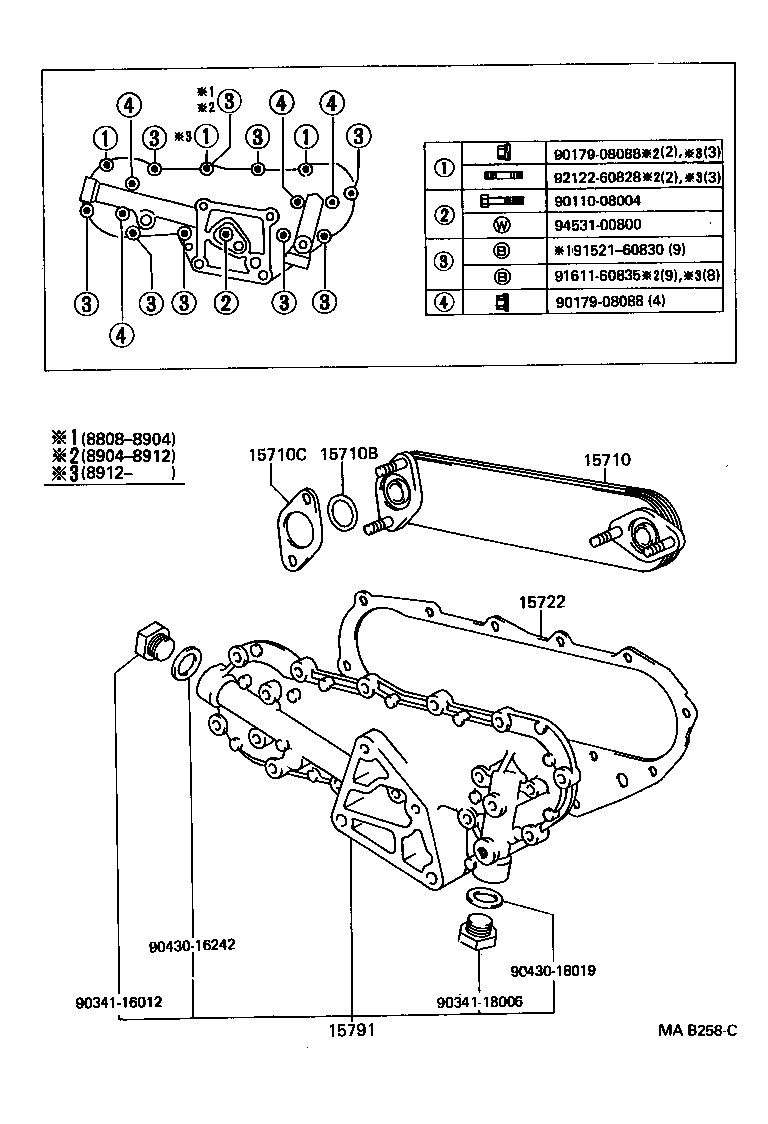

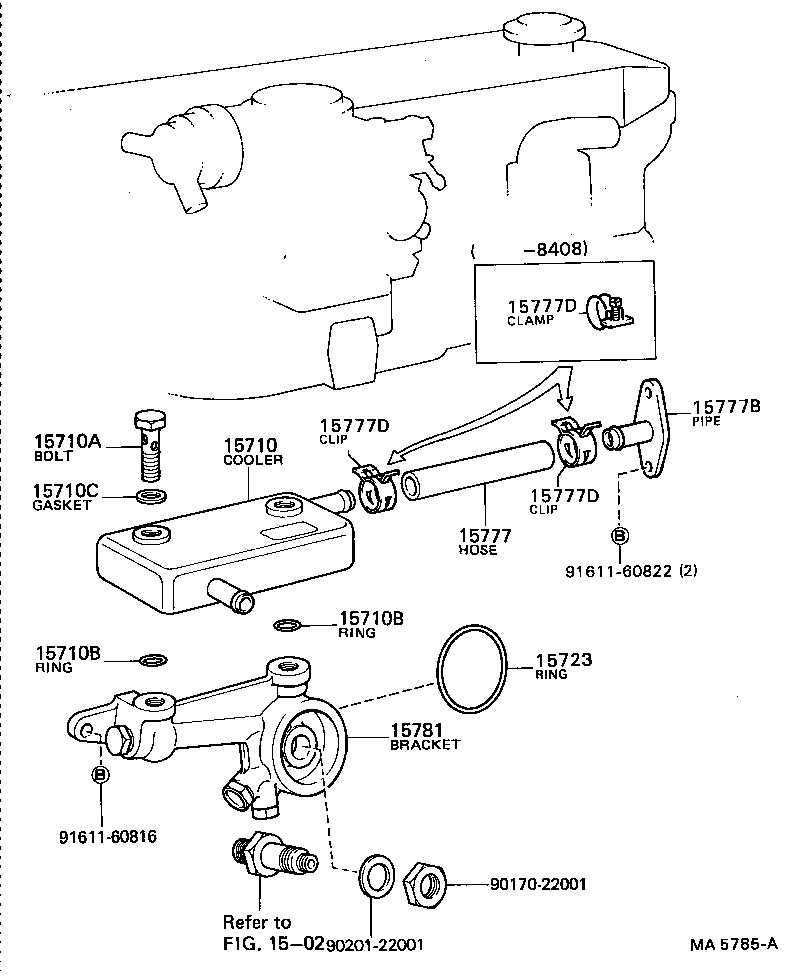

Figure MAA652A MAA652A 1982-05 → 1988-08 Figure MAB258C MAB258C 1988-08 → — Figure MA9239D MA9239D 1986-10 → — Figure MA4865B MA4865B 1986-10 → 1990-01 Figure MAD466B MAD466B 1990-01 → — Figure MA5785A MA5785A 1982-05 → —

Part groups

PNCDescription
15690 Valve Assy, Oil Cooler Relief
15710 Cooler Assy, Oil
15710A Bolt, Union(FOR OIL COOLER)
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15722 Gasket, Oil Cooler
15723 Ring, O
15777 Hose, Oil Cooler
15777A Hose, Oil Cooler
15777B Pipe, Oil Cooler
15777C Hose, Oil Cooler
15777D Clamp OR Clip, Hose(FOR OIL COOLER HOSE)
15781 Bracket, Oil Cooler, NO.1
15785 Gasket, Oil Cooler
15791 Case, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
