Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

55 part groups · 8 illustrations

Illustrations

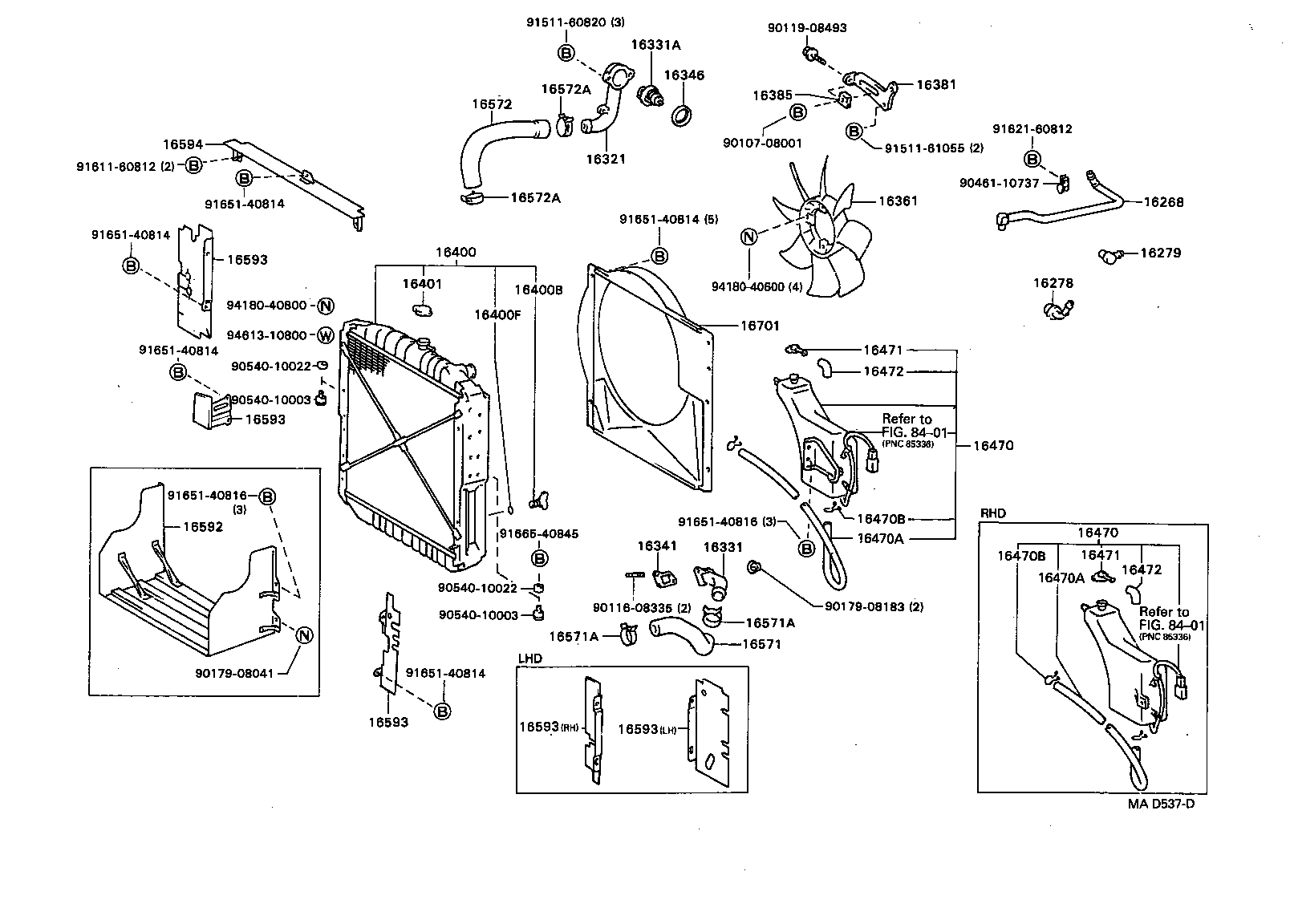

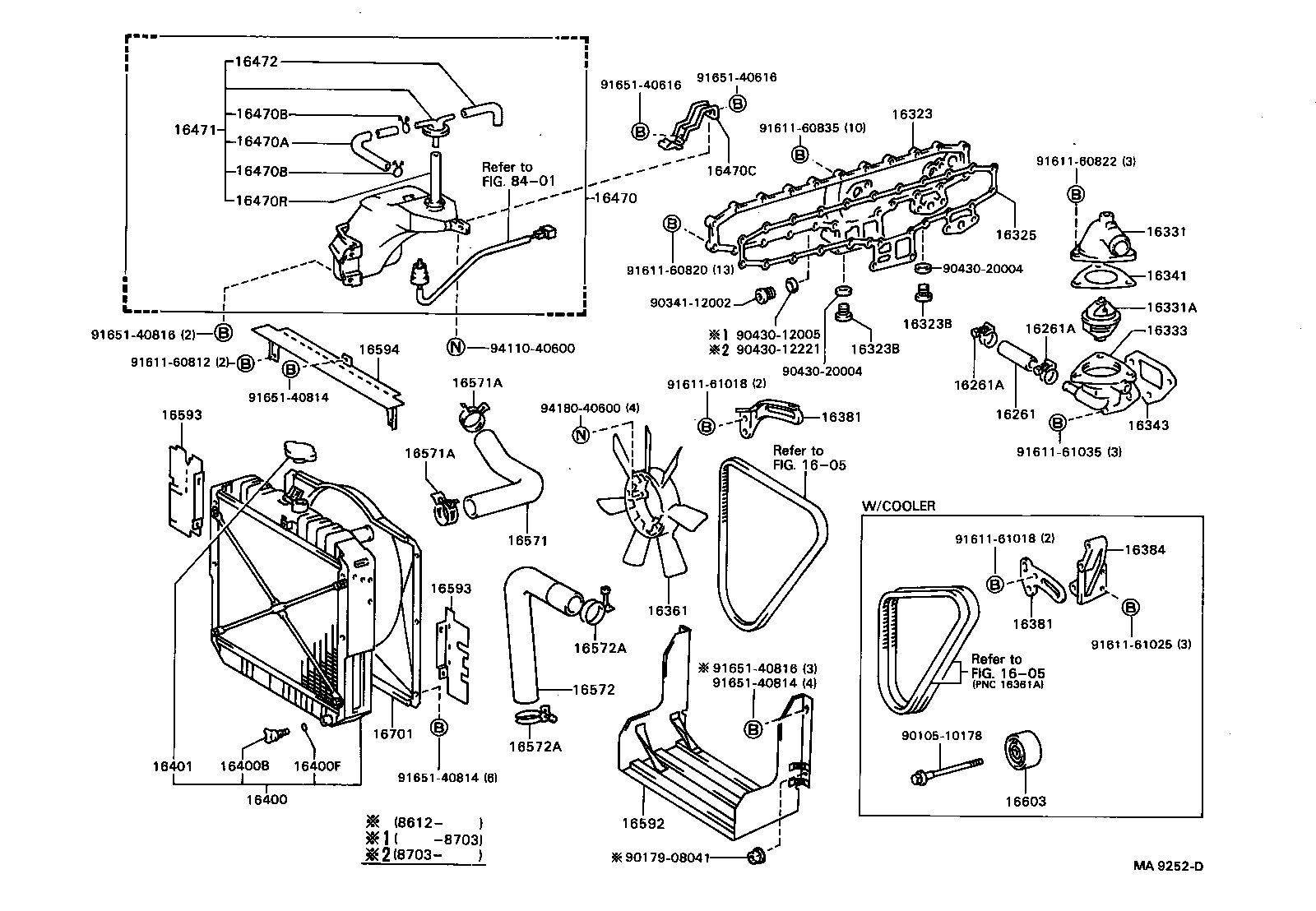

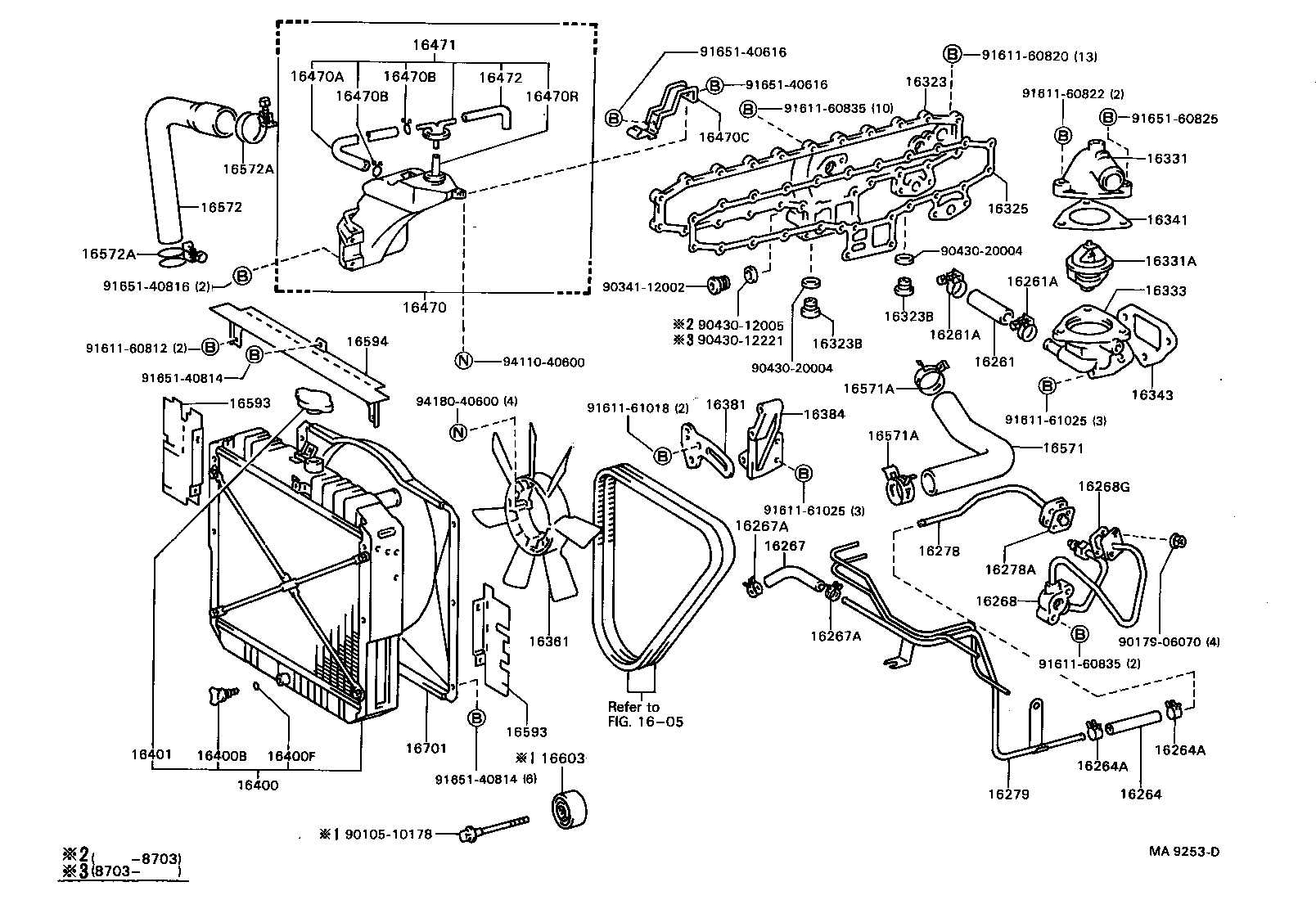

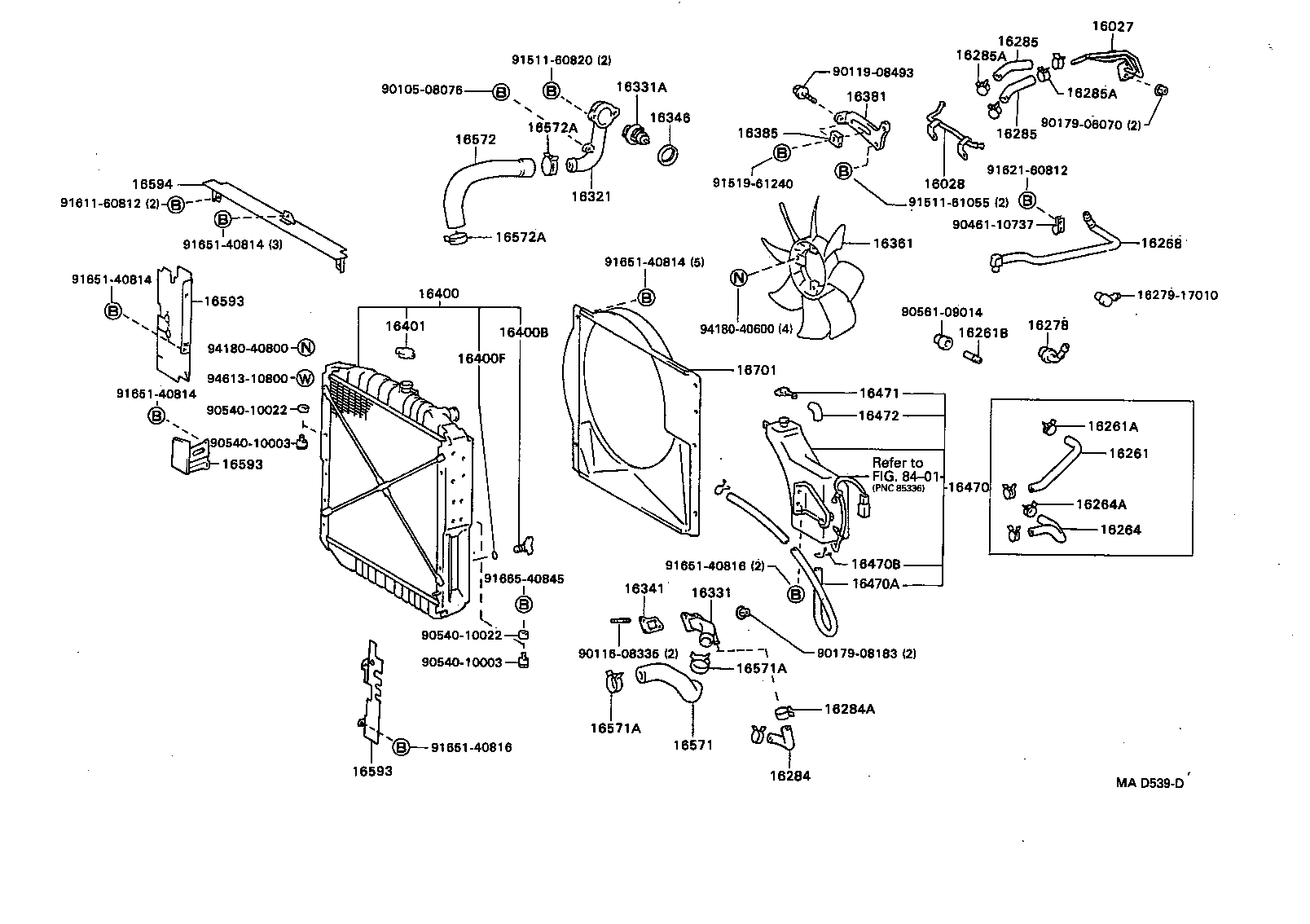

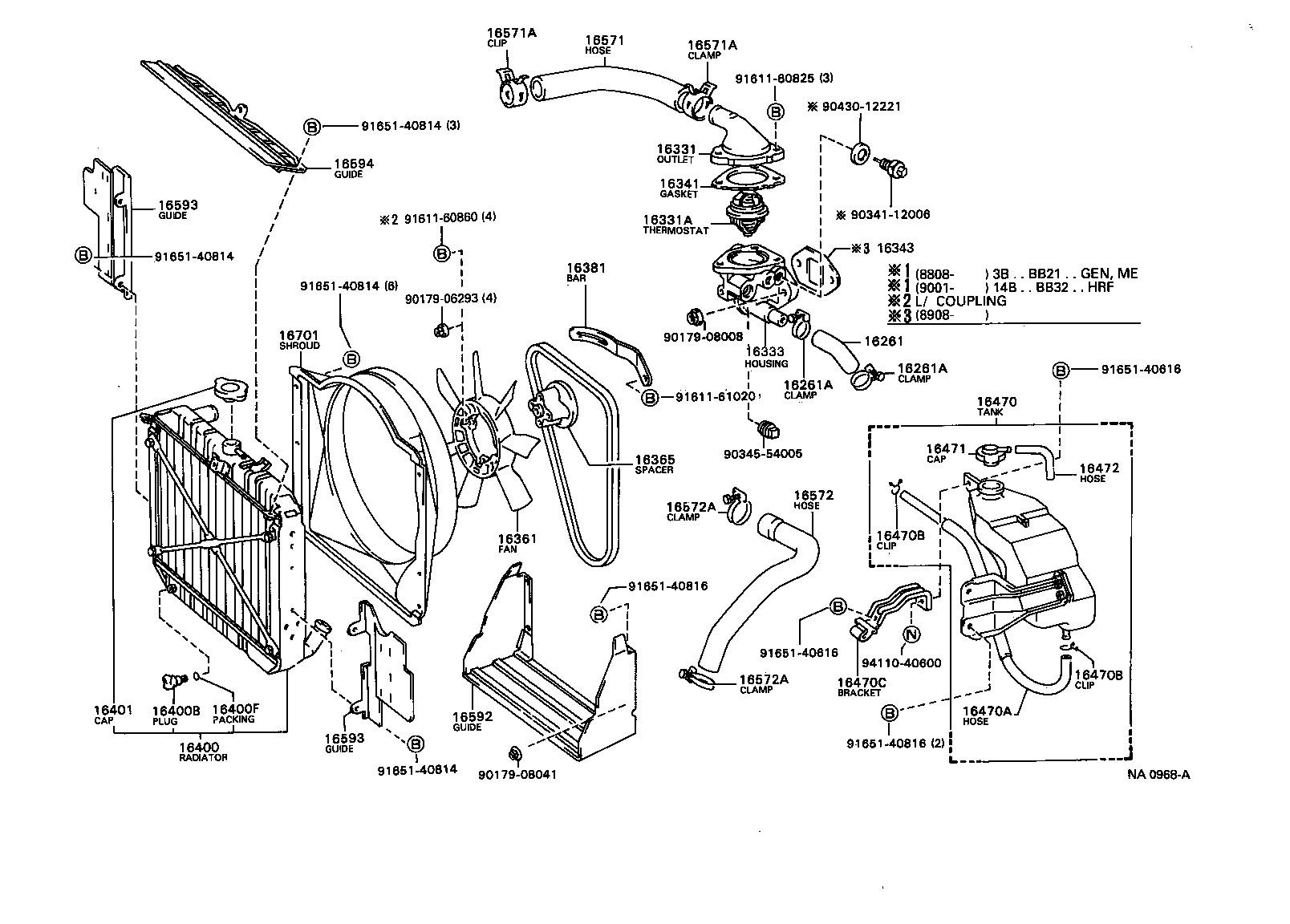

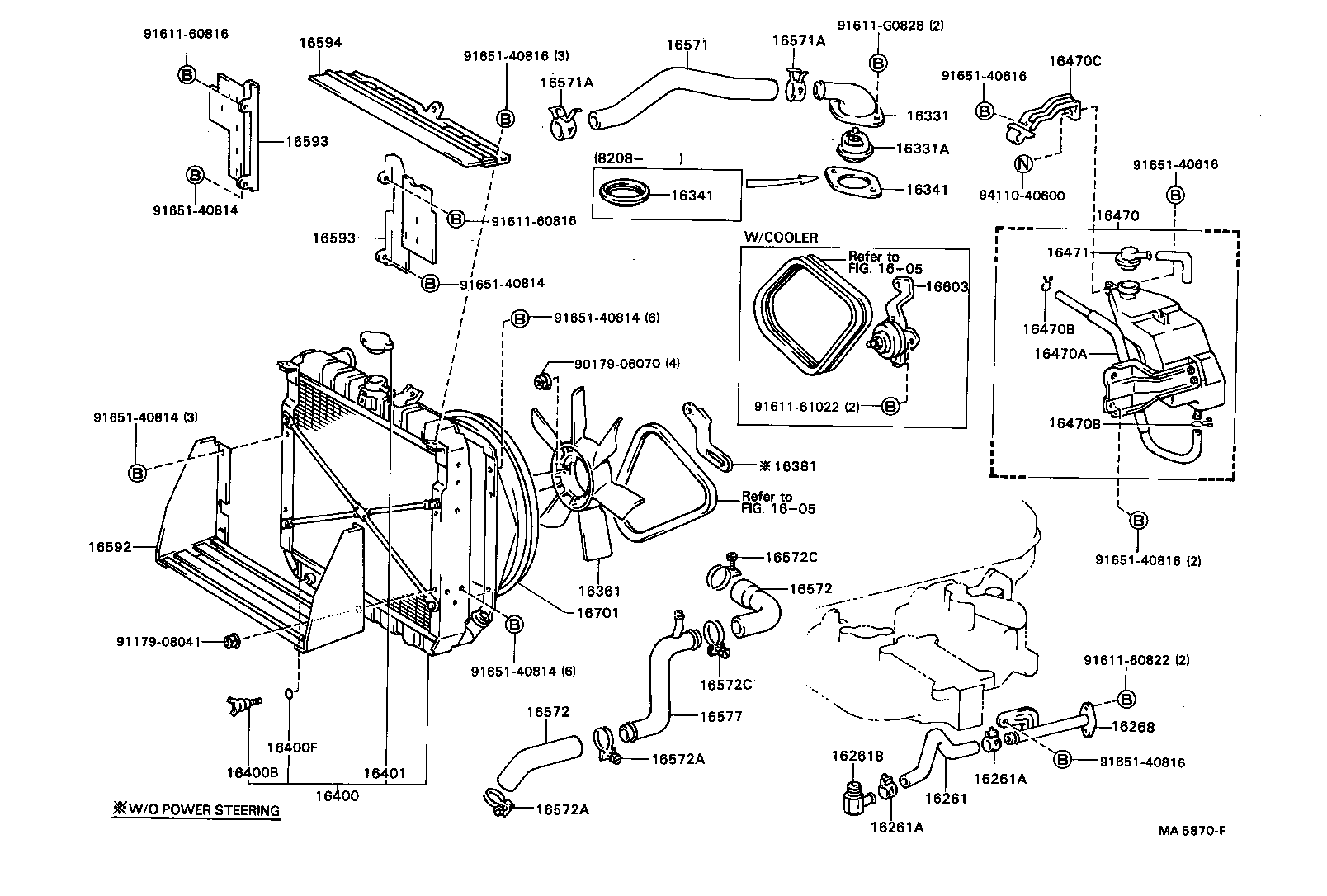

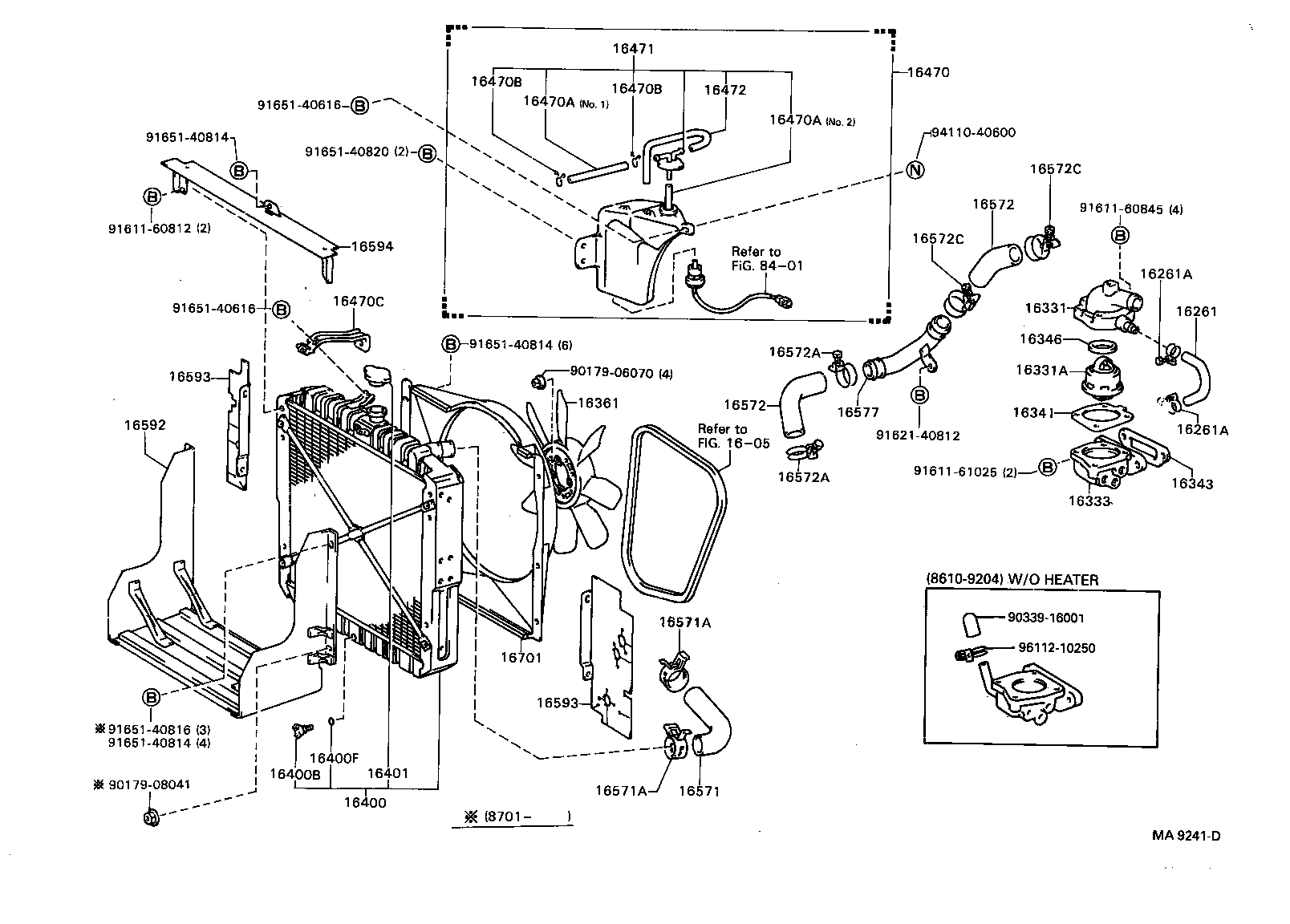

Figure MA5795I MA5795I 1982-05 → — Figure NA0968A NA0968A 1988-08 → — Figure MA9241D MA9241D 1986-10 → — Figure MA9252D MA9252D 1986-10 → 1990-01 Figure MA9253D MA9253D 1986-10 → 1990-01 Figure MAD537D MAD537D 1990-01 → — Figure MAD539D MAD539D 1990-01 → — Figure MA5870F MA5870F 1982-05 → —

Part groups

PNCDescription
16027 Pipe Sub-assy, Turbo Water, NO.1
16028 Pipe Sub-assy, Turbo Water, NO.2
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261B Union(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16268G Gasket(FOR WATER BY-PASS PIPE)
16278 Pipe, Water By-pass, NO.2
16278A Gasket, Water By-pass
16279 Pipe, Water By-pass, NO.3
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16321 Inlet, Water
16323 Housing, Water Inlet
16323B Plug(FOR WATER INLET HOUSING)
16325 Gasket, Water Inlet Housing, NO.1
16331 Outlet, Water
16331A Thermostat
16333 Housing, Water Outlet
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16346 Gasket, Thermostat
16361 Fan
16365 Spacer, Fan
16381 Bar, Fan Belt Adjusting
16384 Bracket, Fan Belt Adjusting Bar
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16470C Bracket(FOR RADIATOR RESERVE TANK)
16470R Hose, NO.2(FOR RADIATOR RESERVE TANK)
16471 Cap Sub-assy, Reserve Tank
16472 Hose, Breather
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572C Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.2)
16577 Pipe, Radiator, NO.7
16592 Guide, Radiator Air, NO.3
16593 Guide, Radiator Air, NO.1
16594 Guide, Radiator Air, NO.2
16603 Pulley Sub-assy, Idler, NO.1
16701 Shroud Sub-assy, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
