Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

56 part groups · 12 illustrations

Illustrations

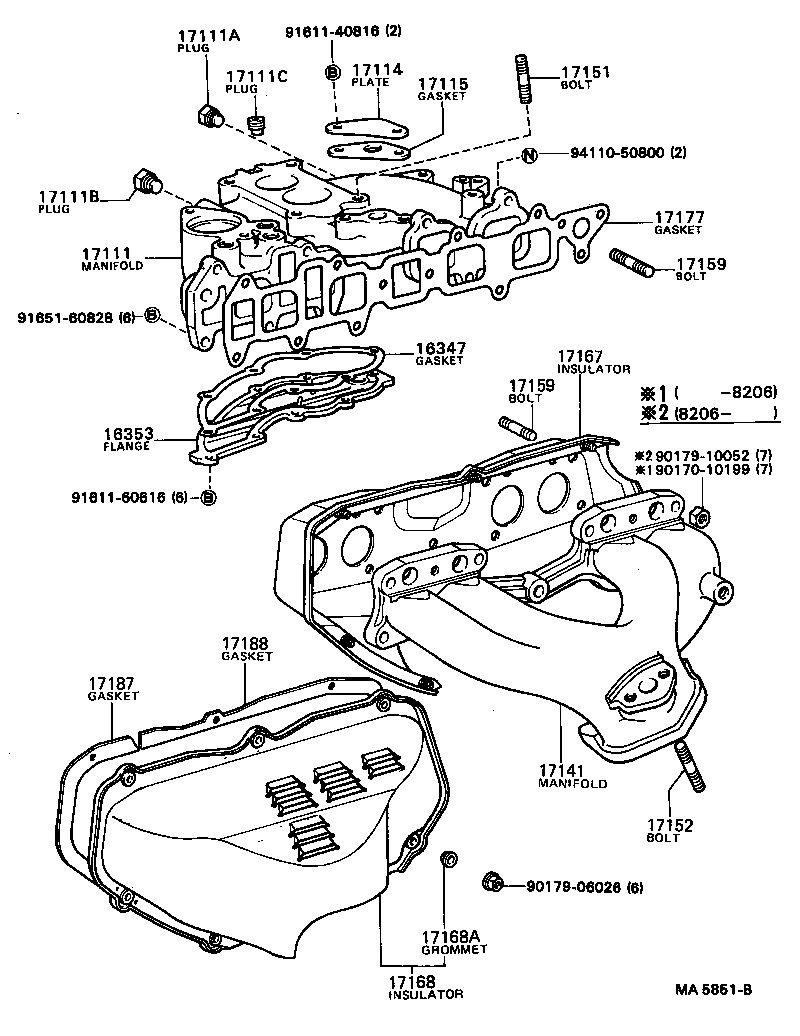

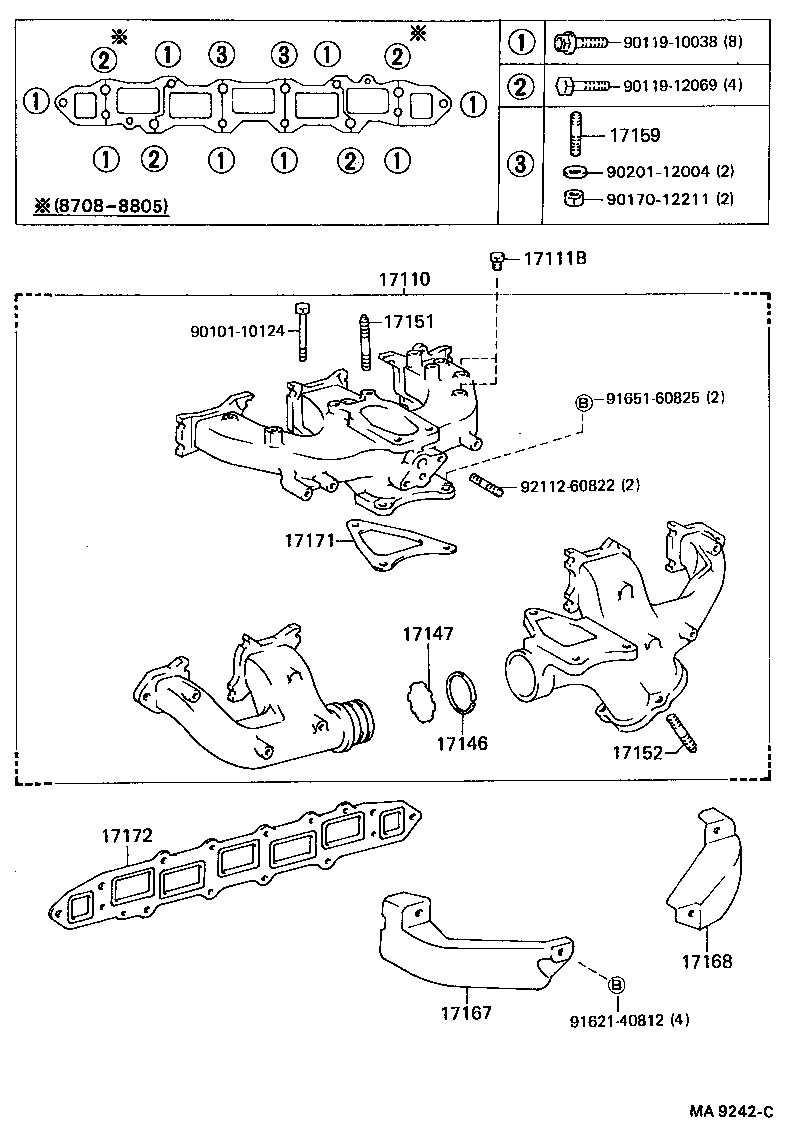

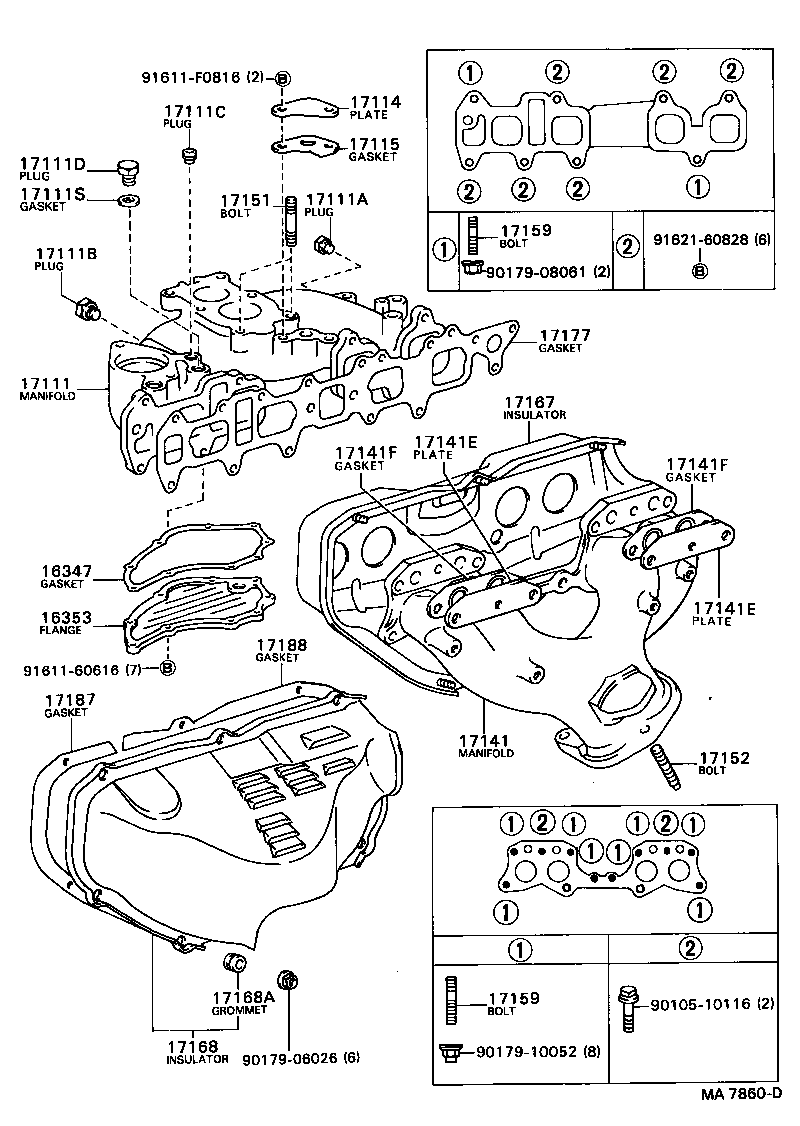

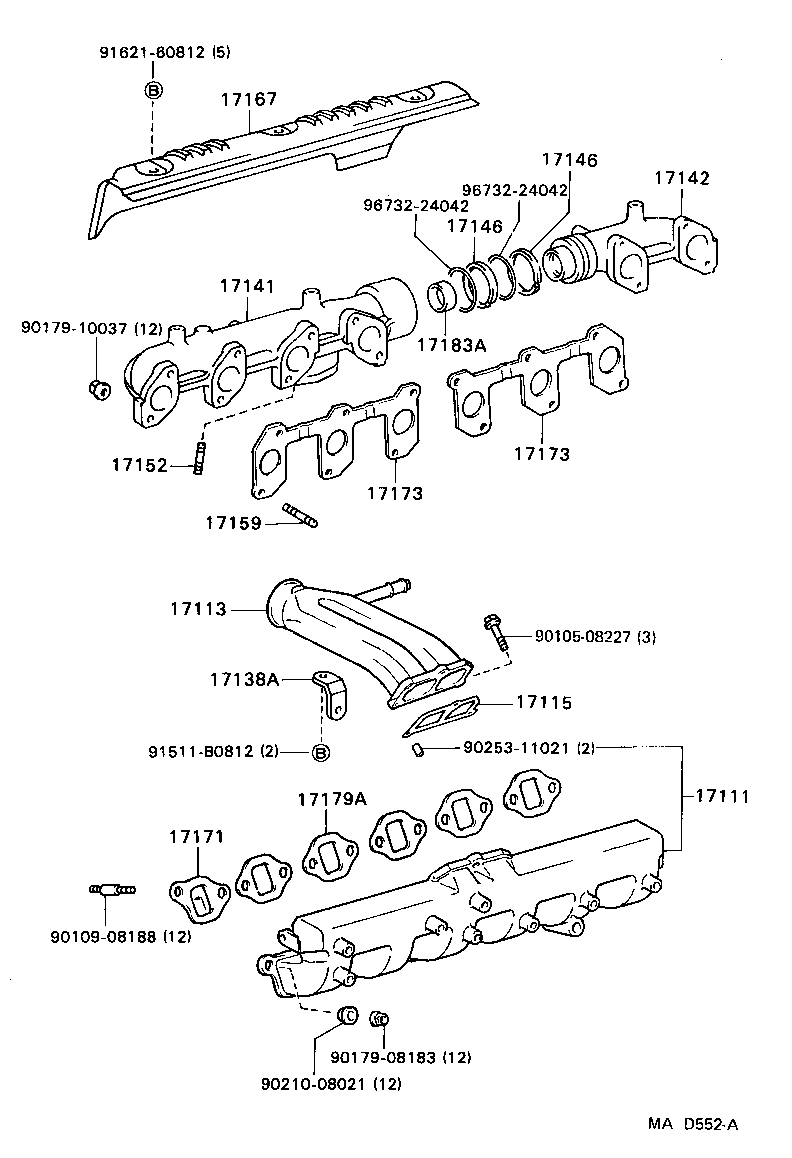

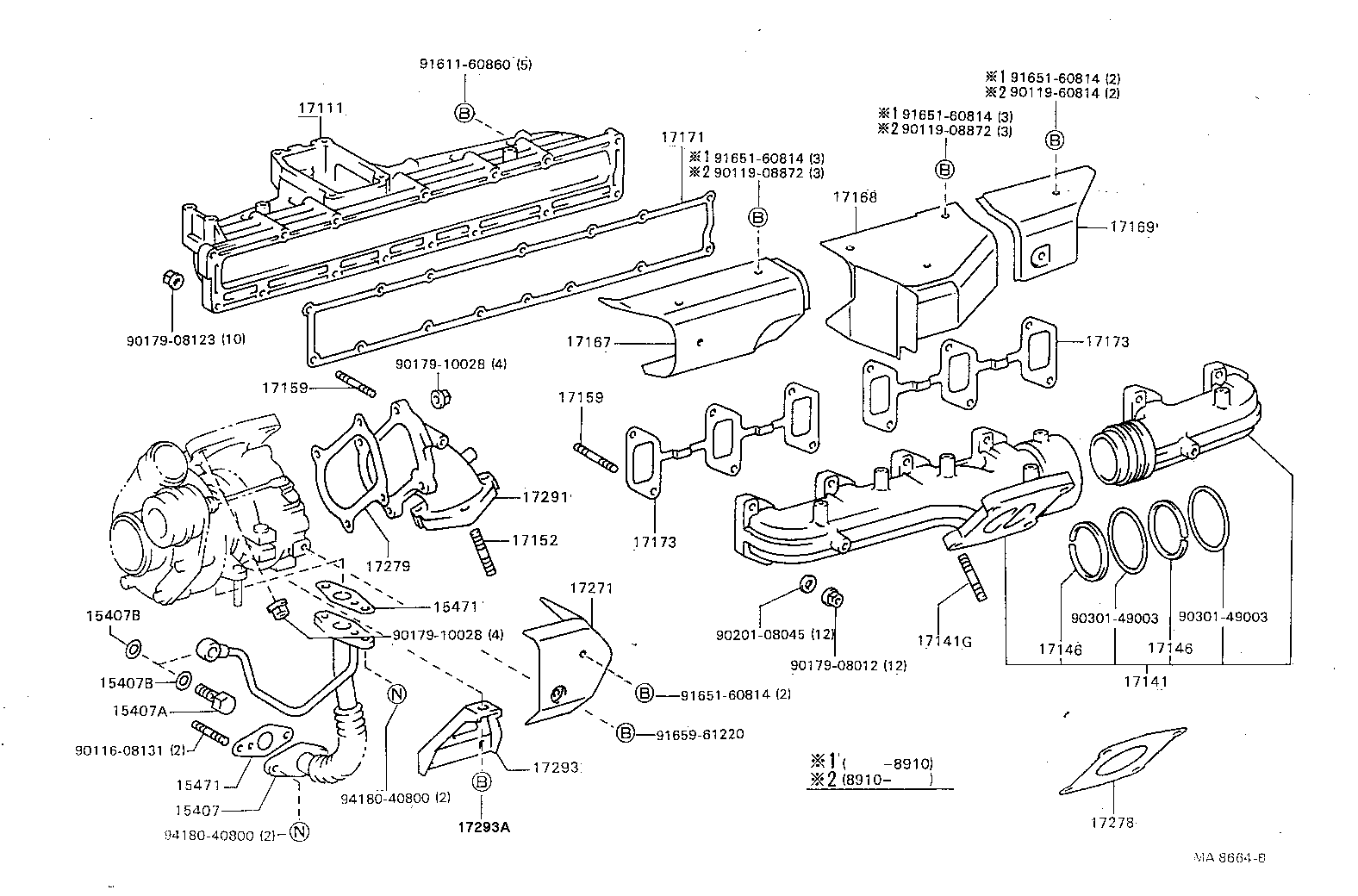

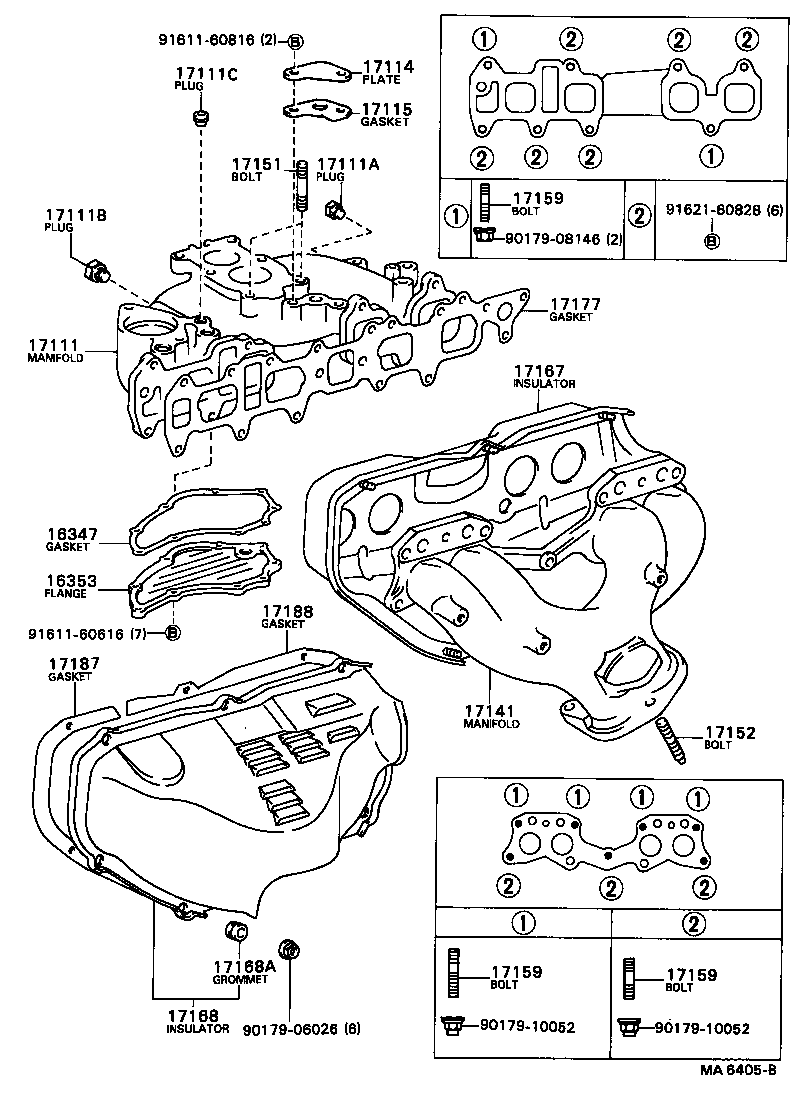

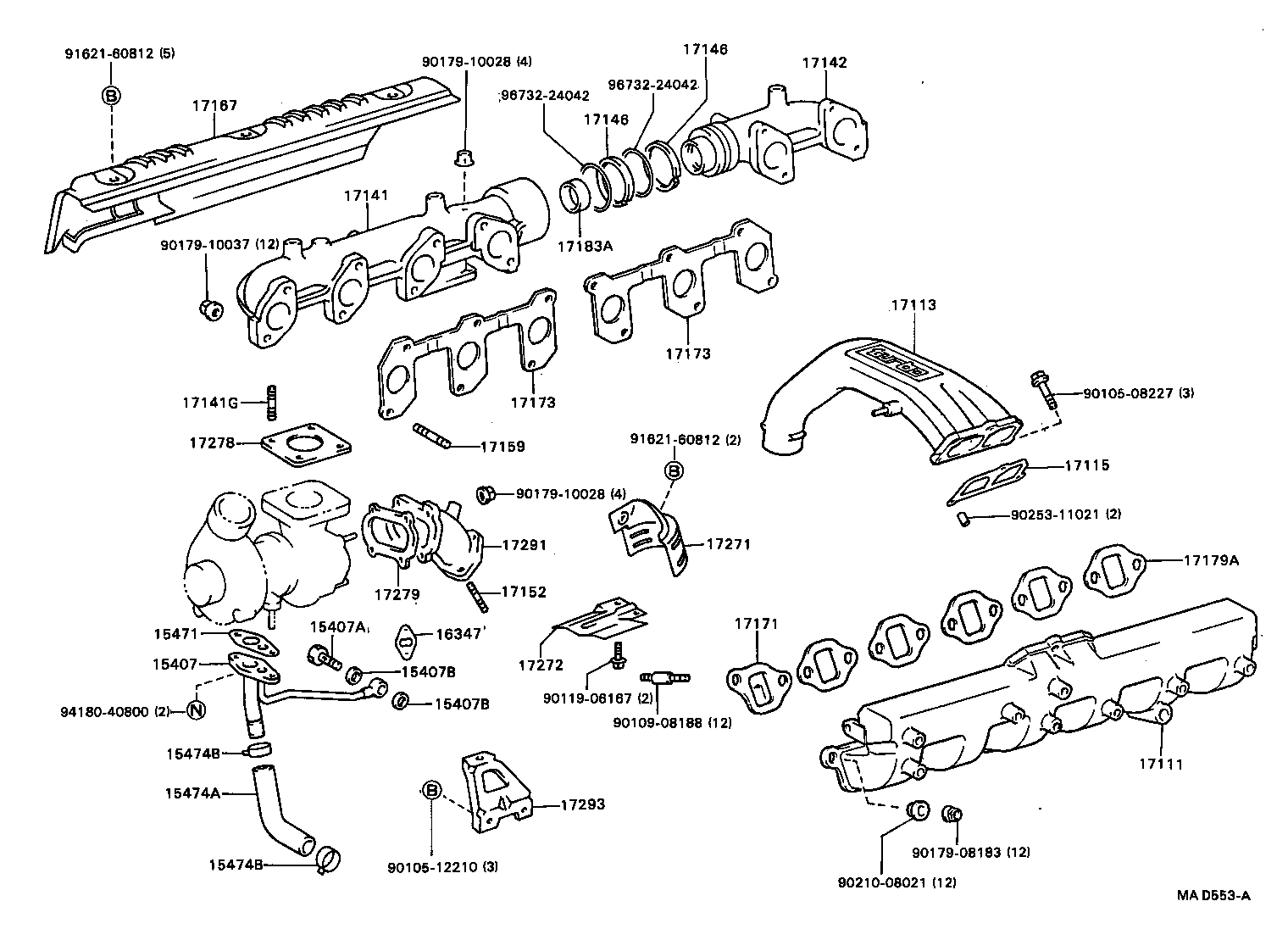

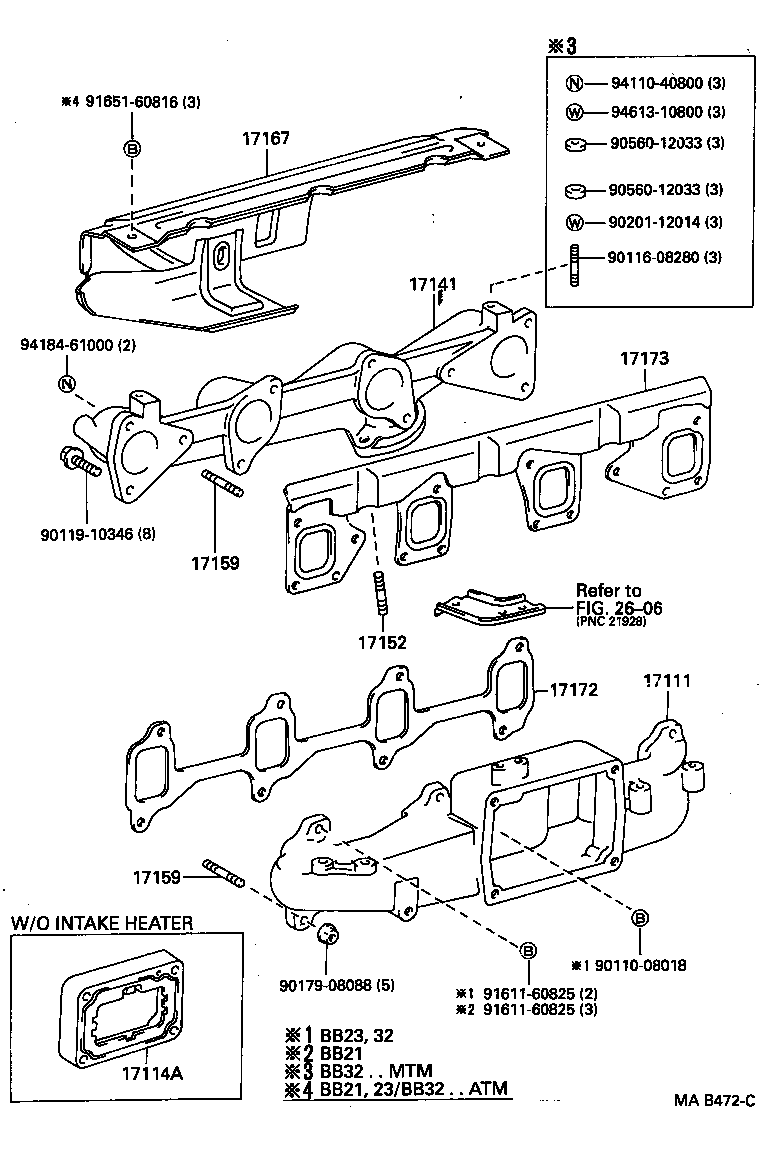

Figure MA6498B MA6498B 1982-05 → 1988-08 Figure MAB472C MAB472C 1988-08 → — Figure MA9242C MA9242C 1986-10 → — Figure MA7934A MA7934A 1986-10 → 1990-01 Figure MA8664B MA8664B 1986-10 → 1990-01 Figure MA8665B MA8665B 1986-10 → 1990-01 Figure MAD552A MAD552A 1990-01 → — Figure MAD553A MAD553A 1990-01 → — Figure MAD783A MAD783A 1990-01 → — Figure MA5851B MA5851B 1982-05 → 1982-08 Figure MA6405B MA6405B 1982-08 → 1984-08 Figure MA7860D MA7860D 1984-08 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
16347 Gasket, Water By-pass
16353 Flange, Water By-pass
17021A Bolt, Stud(FOR BEARING HOUSING)
17021B Bolt, Stud
17025A Bolt, Stud(FOR TURBINE HOUSING)
17110 Manifold Assy
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111C Plug, NO.3
17111D Plug, NO.4
17111S Gasket(FOR MANIFOLD PLUG)
17113 Pipe, Intake
17114 Plate, Intake Manifold Hole Cover
17114A Flange, Intake
17115 Gasket, Intake Manifold Hole Cover
17138A Stay, Intake Pipe
17141 Manifold, Exhaust
17141E Plate, Exhaust Manifold
17141F Gasket(FOR EXHAUST MANIFOLD PLATE)
17141G Bolt, Stud(FOR TURBOCHARGER)
17142 Case, Exhaust Manifold, NO.2
17146 Ring, Exhaust Manifold
17147 Spring, Exhaust Manifold
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17168A Grommet(FOR EXHAUST MANIFOLD HEAT INSULATOR)
17169 Insulator, Exhaust Manifold Heat, NO.3
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17183A Collar, Manifold
17187 Gasket, Heat Insulator, NO.1
17188 Gasket, Heat Insulator, NO.2
17201 Turbocharger Sub-assy
17271 Insulator, Turbo, NO.1
17272 Insulator, Turbo, NO.2
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17293A Bolt, Stud(FOR TURBOCHARGER STAY)
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
