Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

22 part groups · 7 illustrations

Illustrations

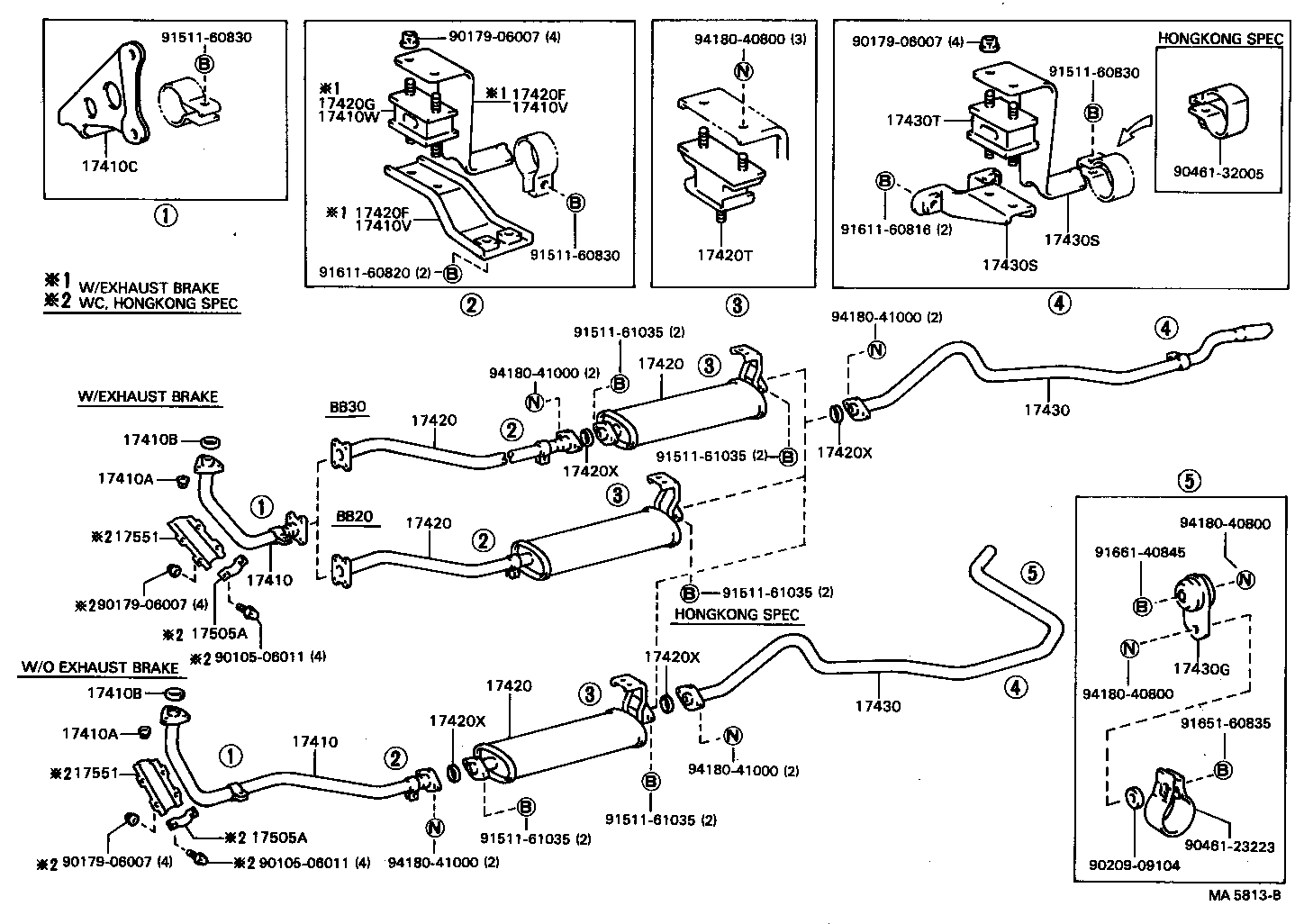

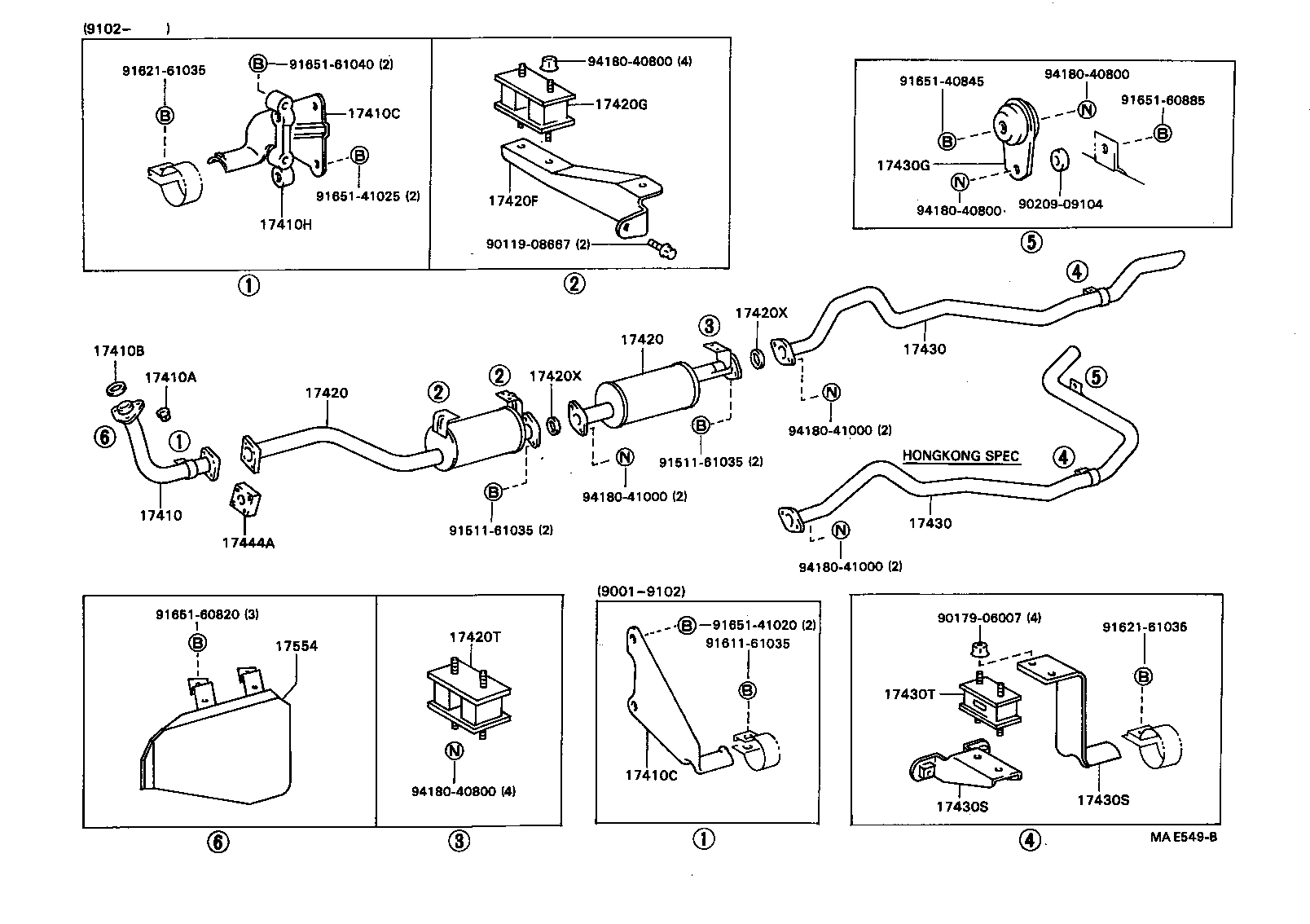

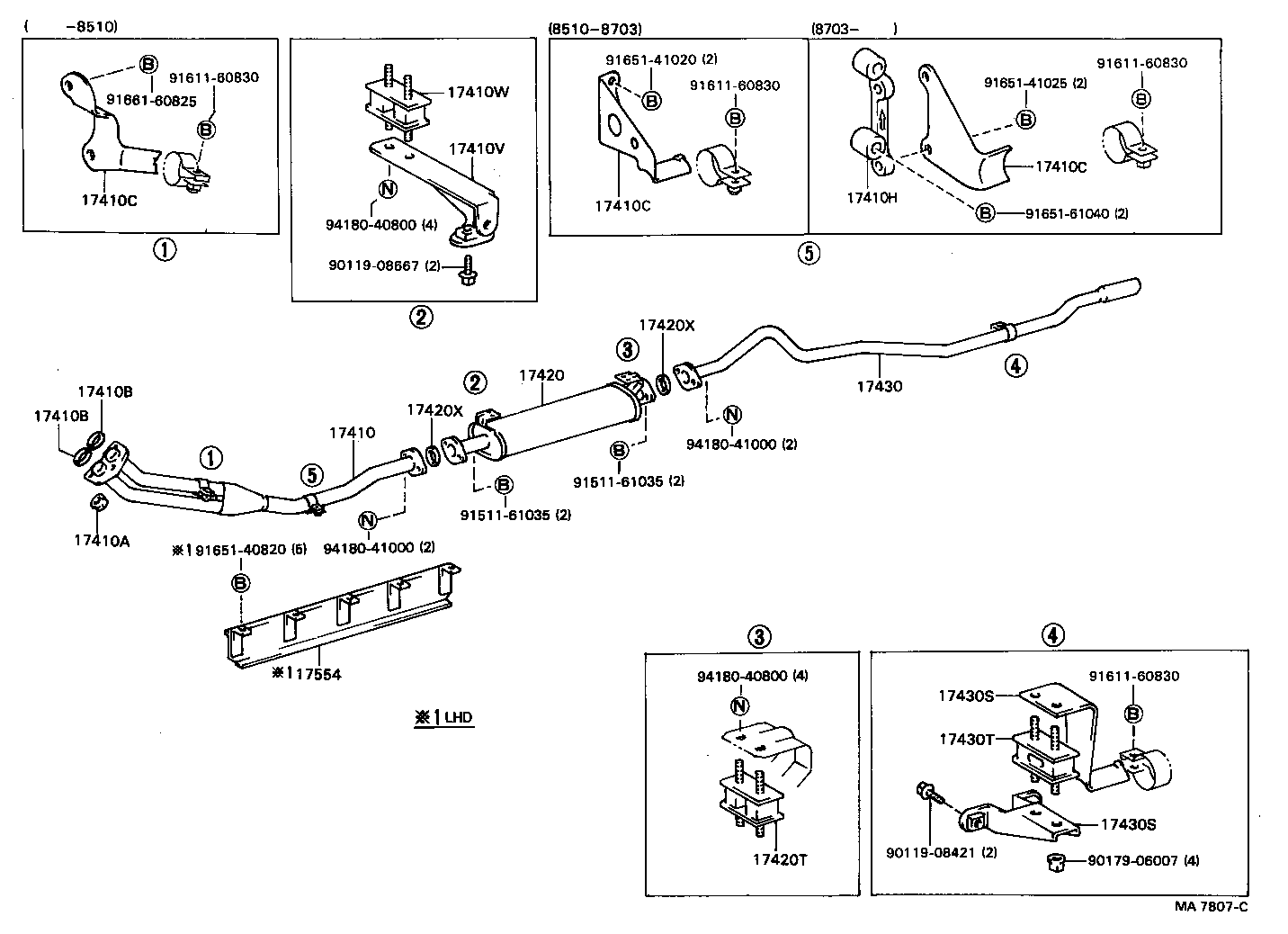

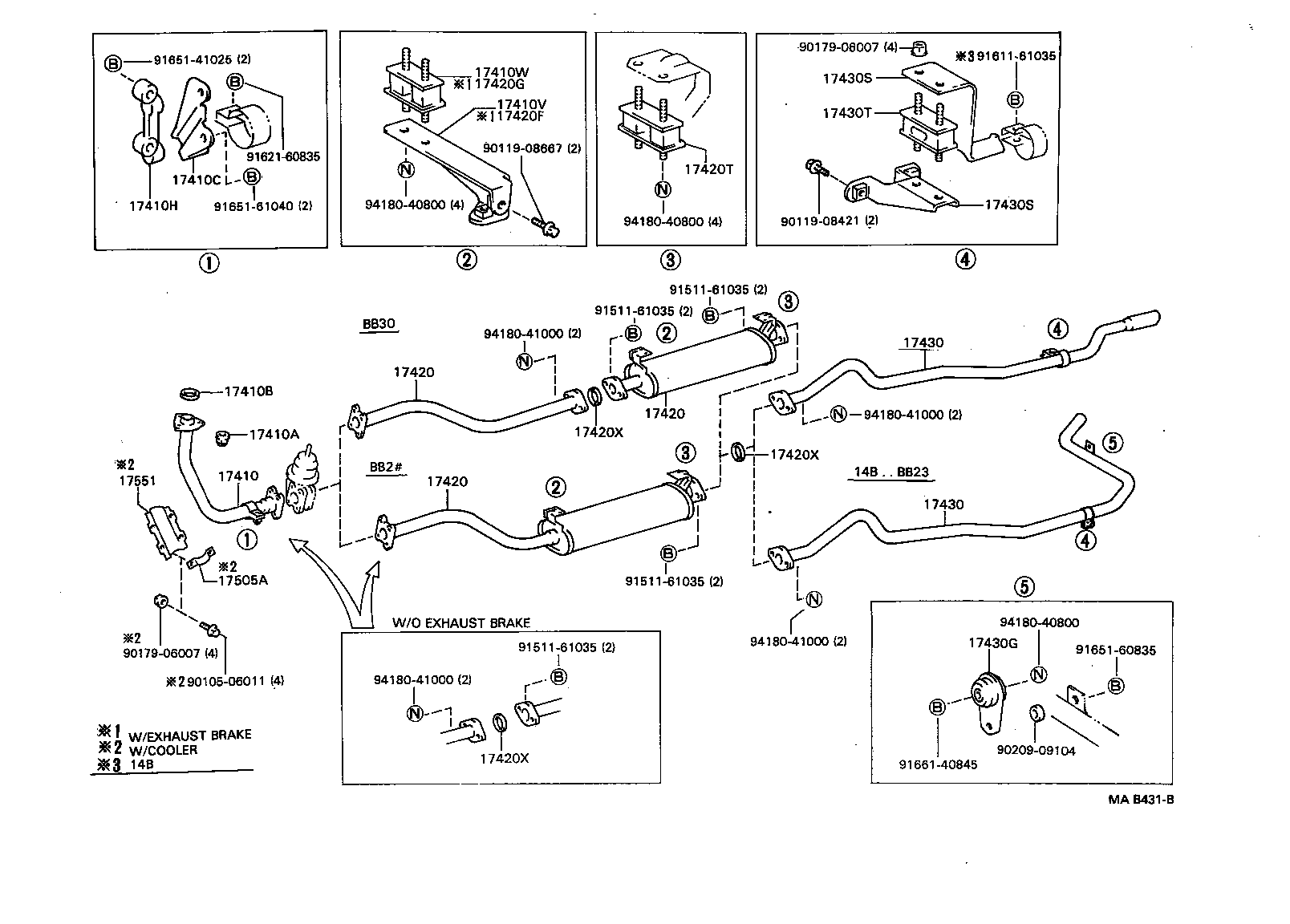

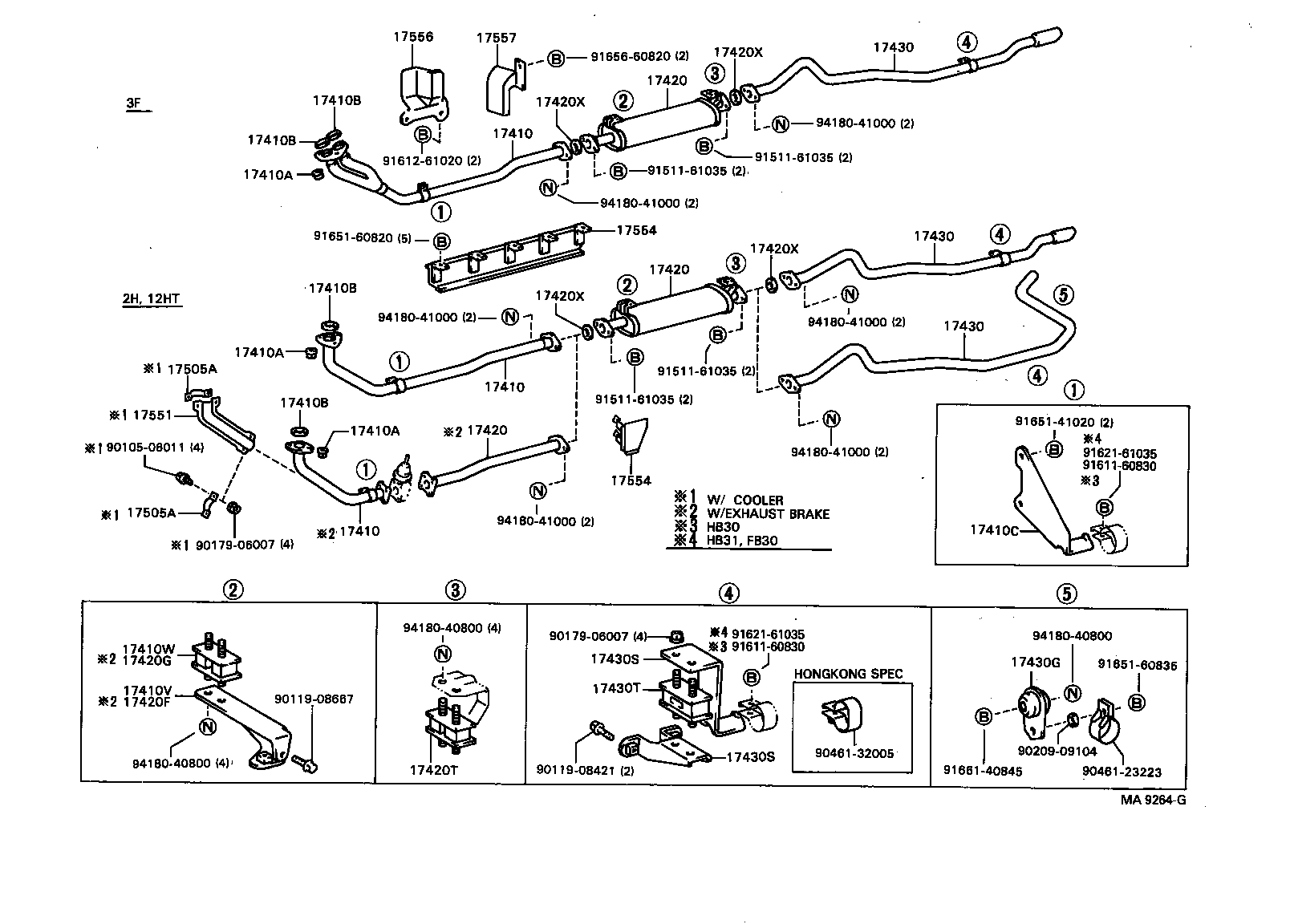

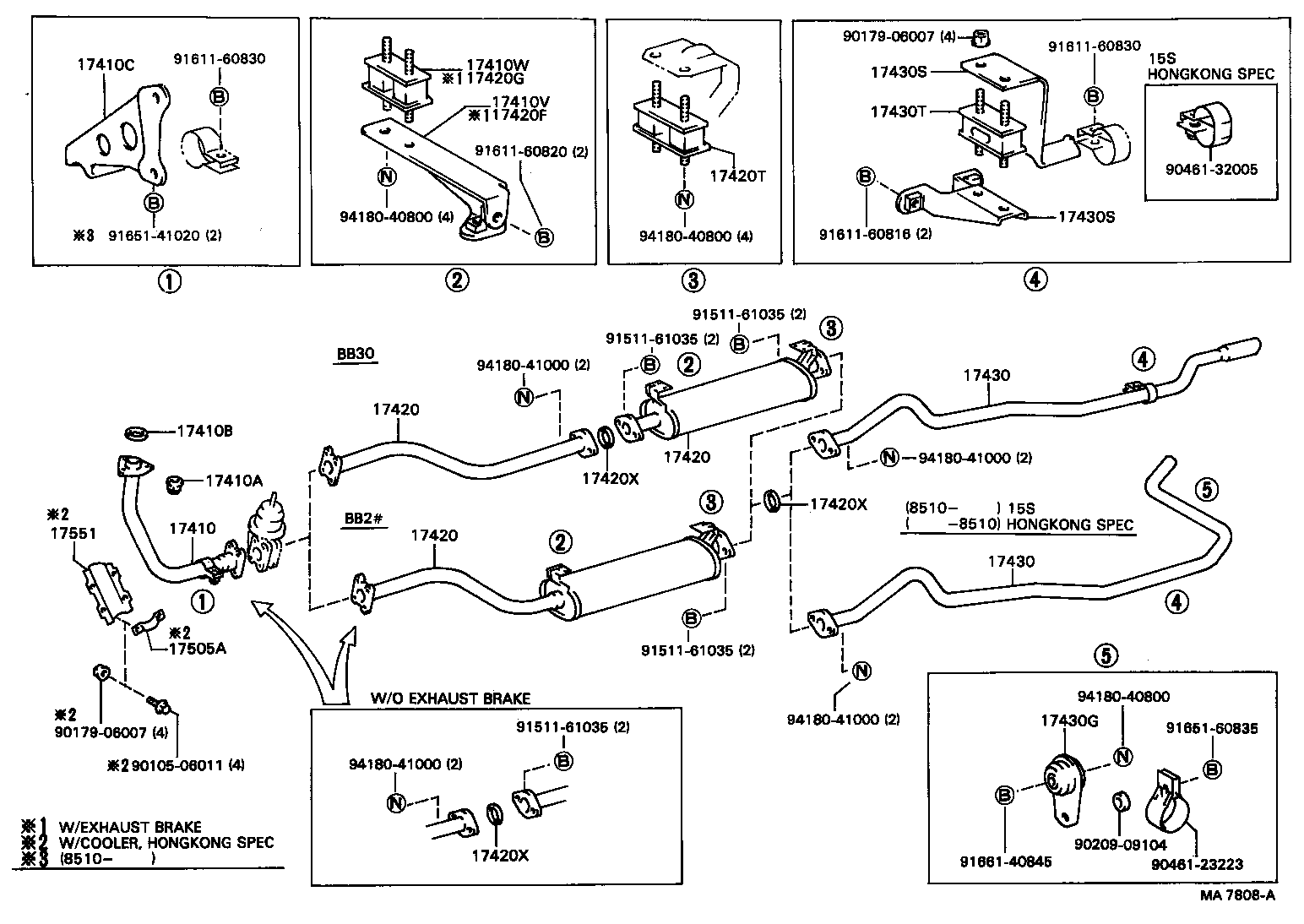

Figure MA5852B MA5852B 1982-05 → 1984-08 Figure MA7807C MA7807C 1984-08 → — Figure MA5813B MA5813B 1982-05 → 1984-08 Figure MA7808A MA7808A 1984-08 → 1988-08 Figure MAB431B MAB431B 1988-08 → — Figure MA9264G MA9264G 1986-10 → — Figure MAE549B MAE549B 1990-01 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410H Bracket, Exhaust Pipe Front (FOR CENTER)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17410W Cushion, Exhaust Pipe Front (FOR REAR)
17420 Pipe Assy, Exhaust, Center
17420F Bracket, Exhaust Pipe, Center
17420G Cushion, Exhaust Pipe Center, Center
17420T Cushion, Exhaust Pipe Center, Rear
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17444A Spacer, Exhaust Front Pipe
17505A Clamp, Exhaust Pipe(FOR HEAT INSULATOR)
17551 Insulator, Exhaust Pipe Heat, NO.1
17554 Insulator, Exhaust Pipe Heat, Front
17556 Insulator, Exhaust Pipe Heat, NO.6
17557 Insulator, Exhaust Pipe Heat, NO.7
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
