Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

40 part groups · 24 illustrations

Illustrations

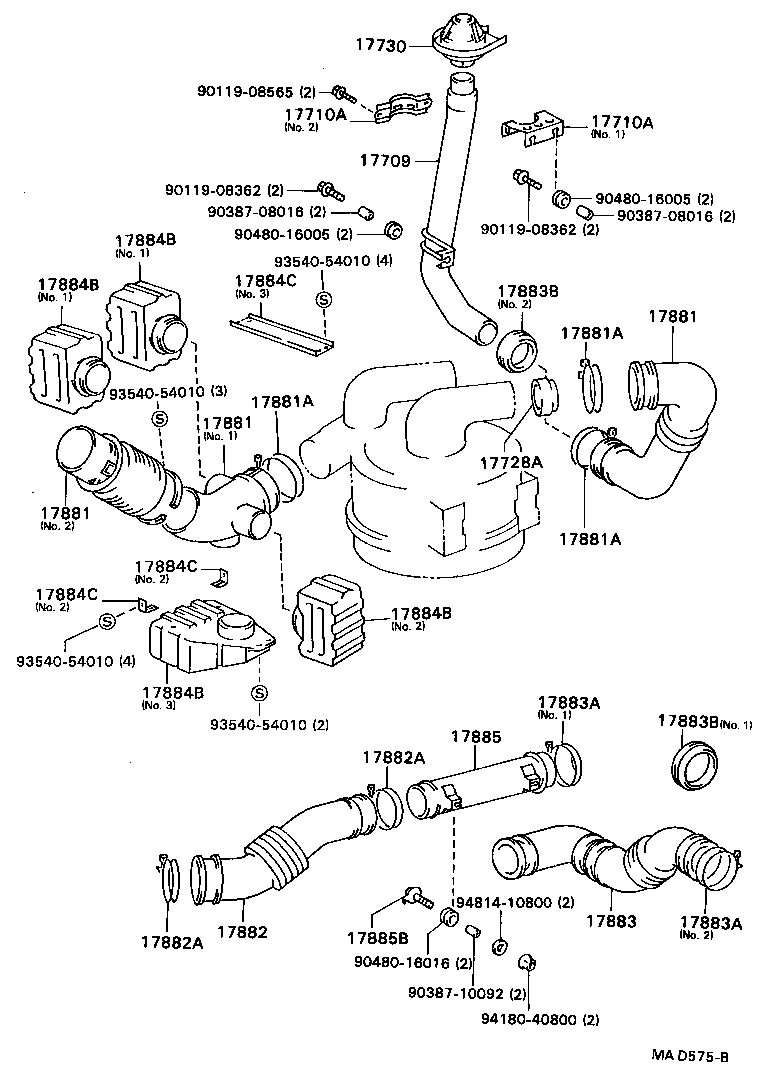

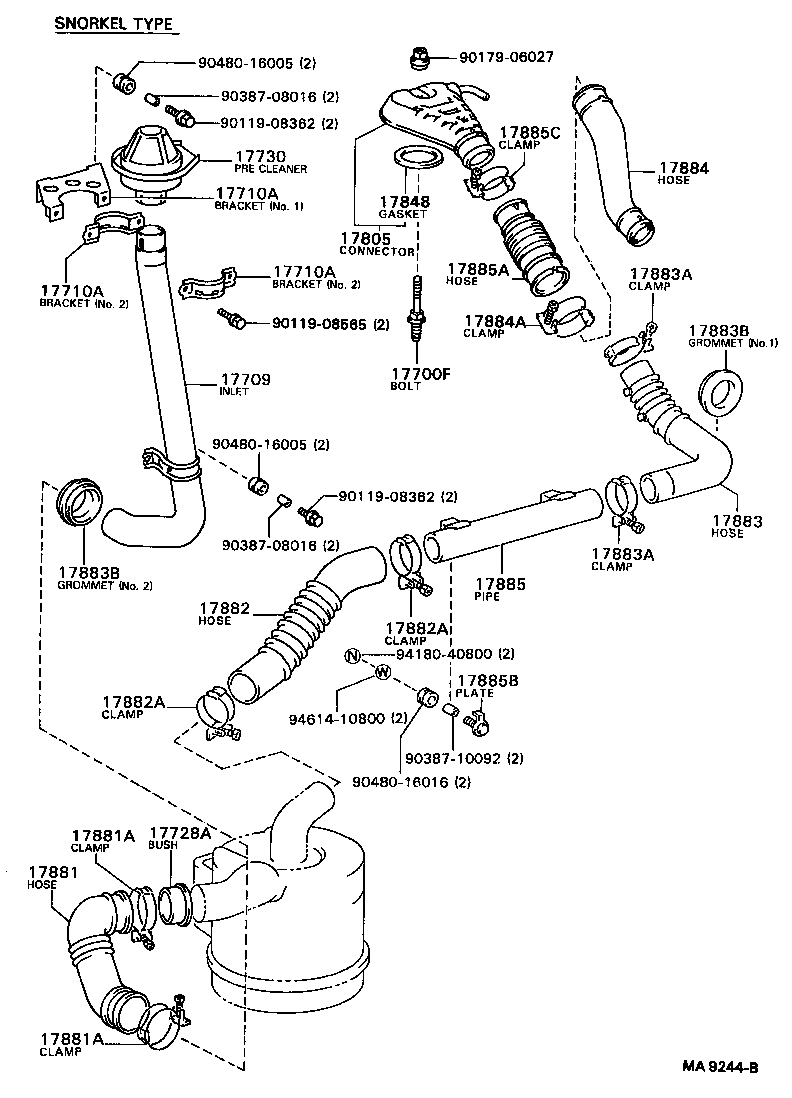

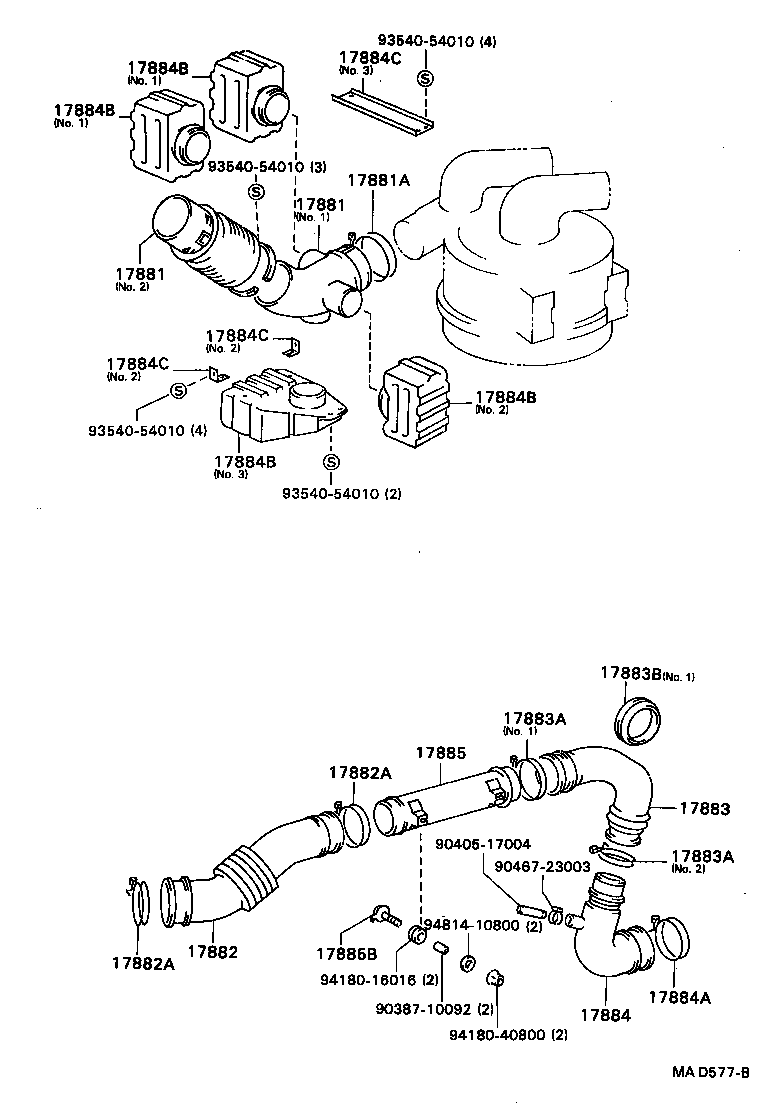

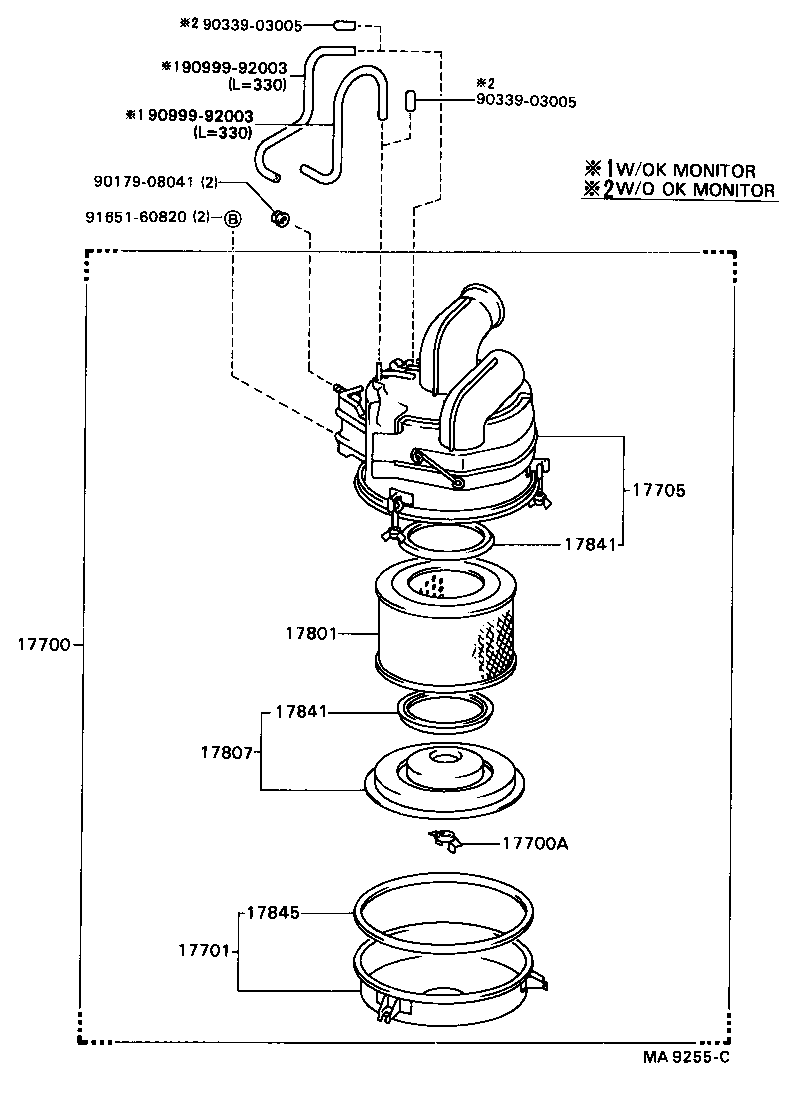

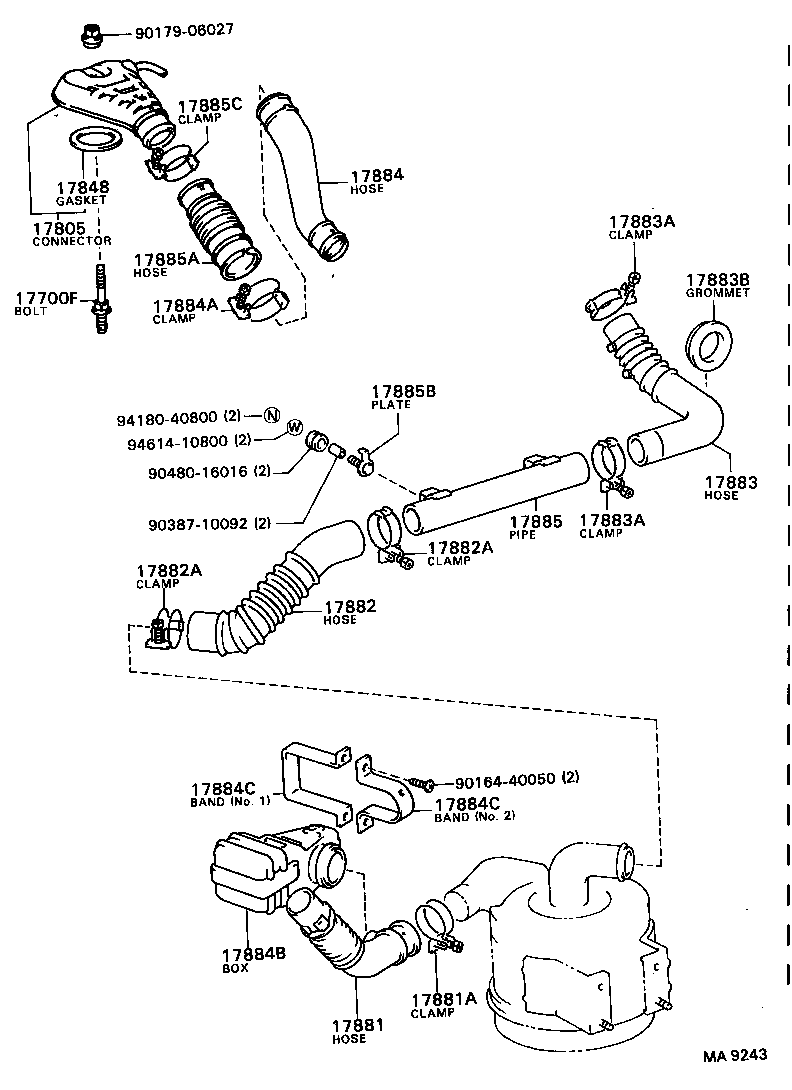

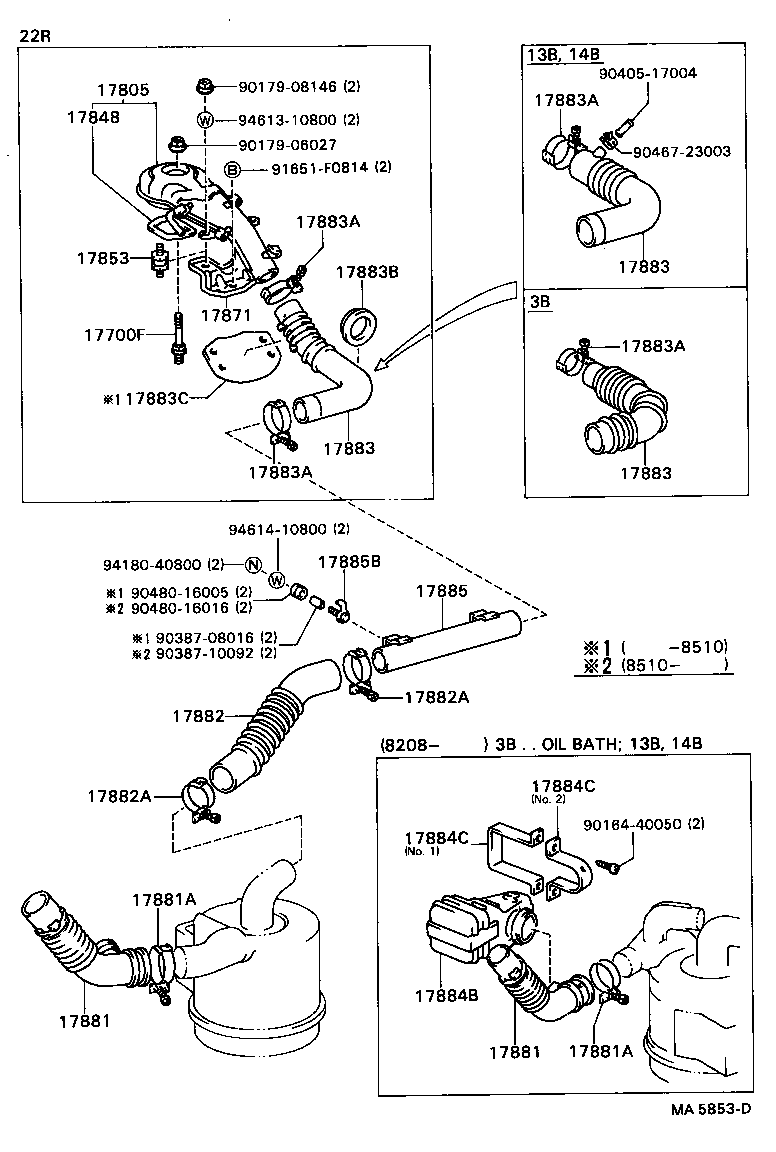

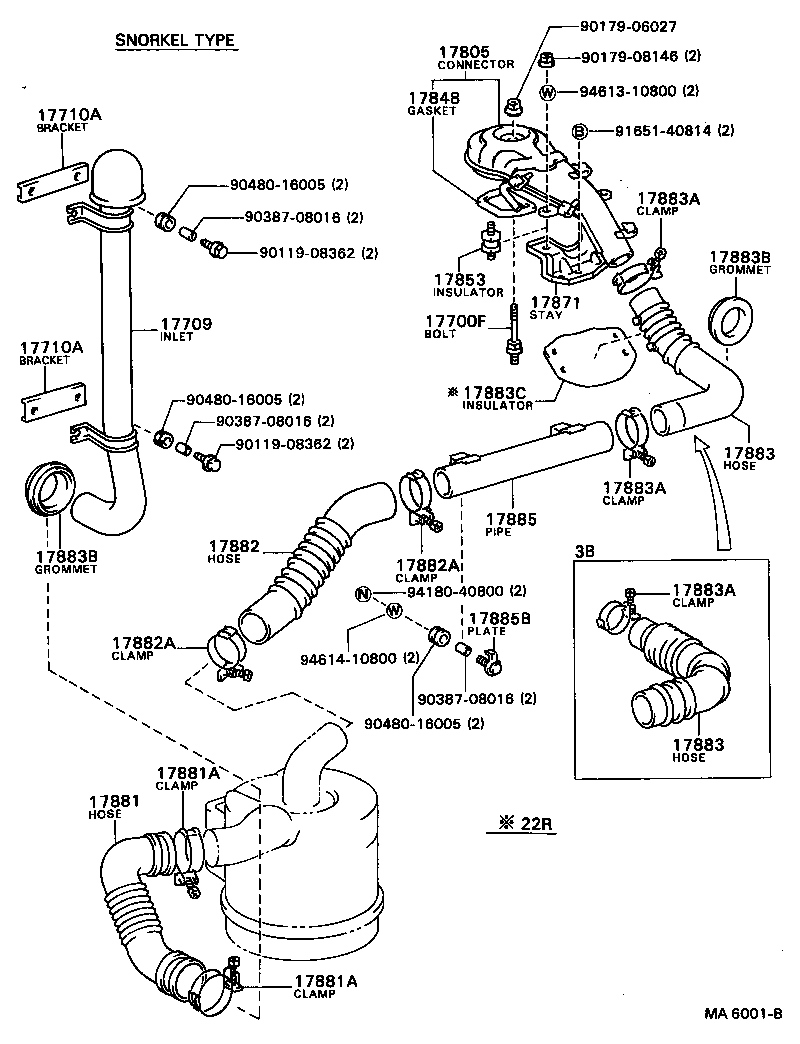

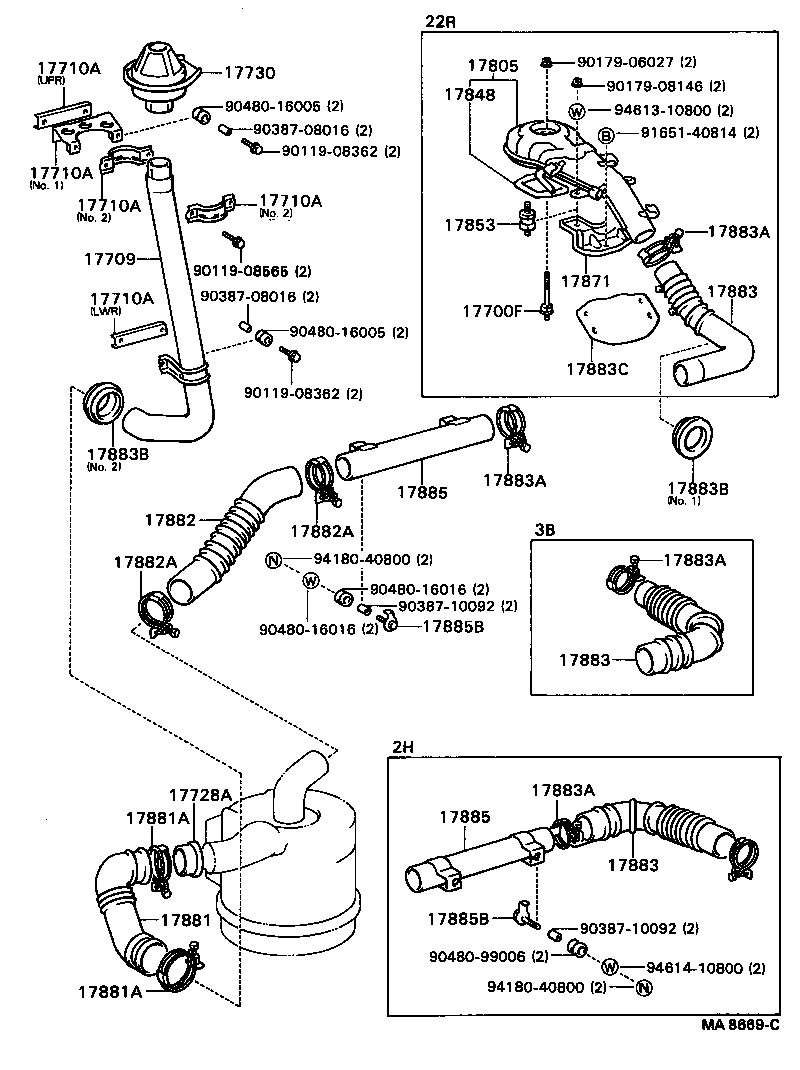

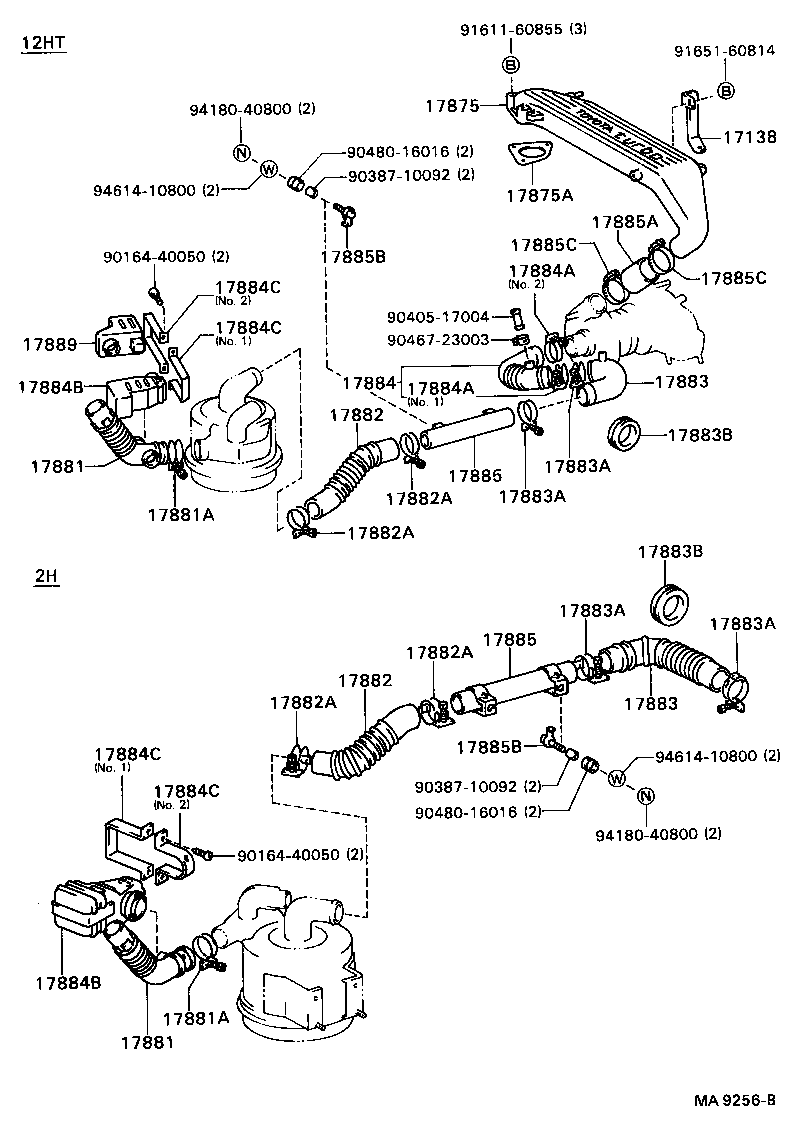

Figure MA5798G MA5798G 1982-05 → — Figure MA5854C MA5854C 1982-05 → — Figure MA5853D MA5853D 1982-05 → — Figure MA6001B MA6001B 1982-08 → 1983-08 Figure MA6001B MA6001B 1983-08 → 1985-10 Figure MA8669C MA8669C 1985-10 → — Figure MA5798G MA5798G 1982-05 → — Figure MA9243 MA9243 1986-10 → — Figure MA9244B MA9244B 1986-10 → — Figure MA9254B MA9254B 1986-10 → 1990-01 Figure MA9255C MA9255C 1986-10 → 1990-01 Figure MA5854C MA5854C 1982-05 → — Figure MA9256B MA9256B 1986-10 → 1990-01 Figure MA8669C MA8669C 1986-10 → 1990-01 Figure MAD574A MAD574A 1990-01 → — Figure MAD575B MAD575B 1990-01 → — Figure MAD576A MAD576A 1990-01 → — Figure MAD577B MAD577B 1990-01 → — Figure MA5798G MA5798G 1982-05 → — Figure MA5854C MA5854C 1982-05 → — Figure MA5853D MA5853D 1982-05 → — Figure MA6001B MA6001B 1982-08 → 1983-08 Figure MA6001B MA6001B 1983-08 → 1985-10 Figure MA8669C MA8669C 1985-10 → —

Part groups

PNCDescription
17138 Stay, Intake Pipe OR Hose
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17709 Inlet Sub-assy, Air Cleaner
17710A Bracket Sub-assy, Air Cleaner Inlet Duct
17728A Bush
17730 Precleaner Assy, Air W/Hose
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17853 Insulator, Air Cleaner Bracket
17871 Stay, Air Connector
17875 Pipe, Intake Air Connector
17875A Gasket, Intake Pipe
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17883B Grommet, Air Cleaner Hose
17883C Insulator, Air Cleaner Heat
17884 Hose, Air Cleaner, NO.4
17884A Clamp(FOR AIR CLEANER HOSE, NO.4)
17884B Box, Air Cleaner, NO.1
17884C Band, Air Cleaner Box
17885 Pipe, Air Cleaner
17885A Hose, Air Cleaner, NO.5
17885B Plate, Pipe Support
17885C Clamp(FOR AIR CLEANER HOSE, NO.5)
17889 Box, Air Cleaner Hose, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
