Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

10 part groups · 9 illustrations

Illustrations

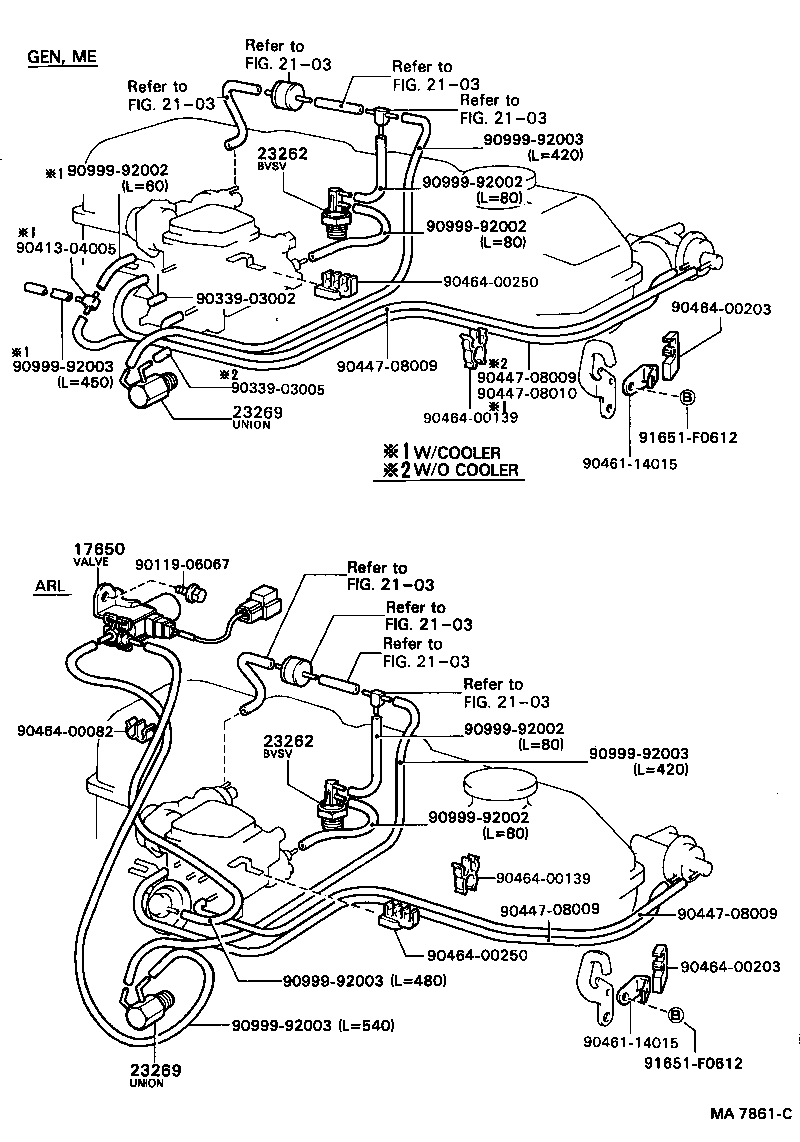

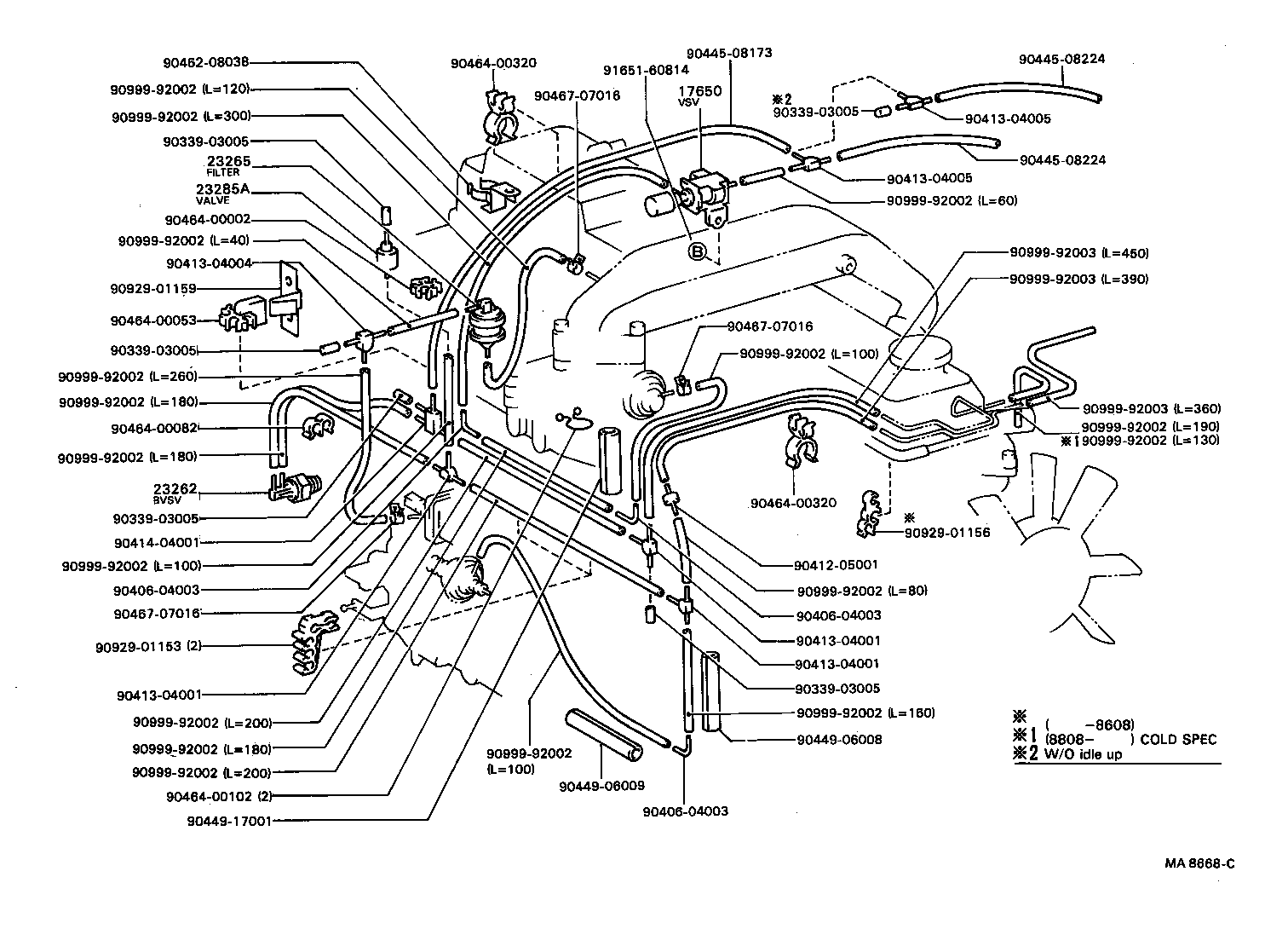

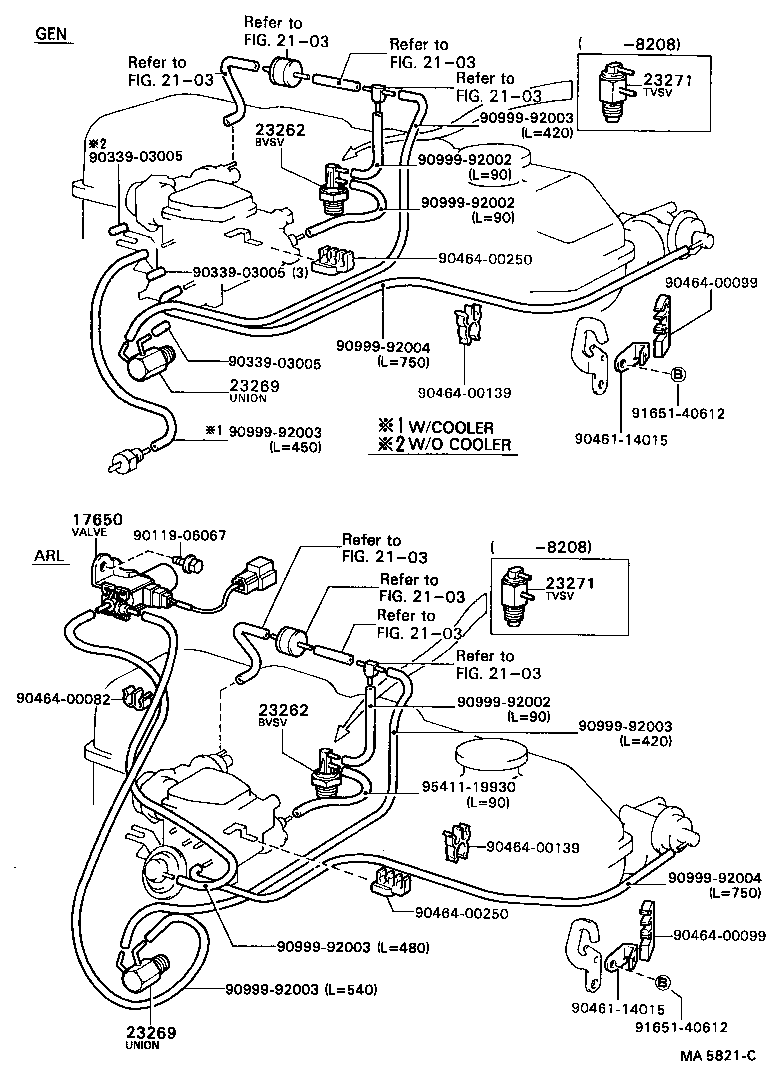

Figure MA9504B MA9504B 1982-05 → — Figure MA8657C MA8657C 1985-10 → — Figure MA9260B MA9260B 1986-10 → — Figure MA8668C MA8668C 1986-10 → 1990-01 Figure MAD567 MAD567 1990-01 → — Figure MAD568B MAD568B 1990-01 → — Figure MA9504B MA9504B 1982-05 → — Figure MA5821C MA5821C 1982-05 → 1984-08 Figure MA7861C MA7861C 1984-08 → —

Part groups

PNCDescription
17303E Hose, NO.1(FOR AIR PIPE)
17650 Valve Assy, Vacuum Switching
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
23271 Valve, Thermostatic Vacuum Switching, NO.1
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
