Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

11 part groups · 6 illustrations

Illustrations

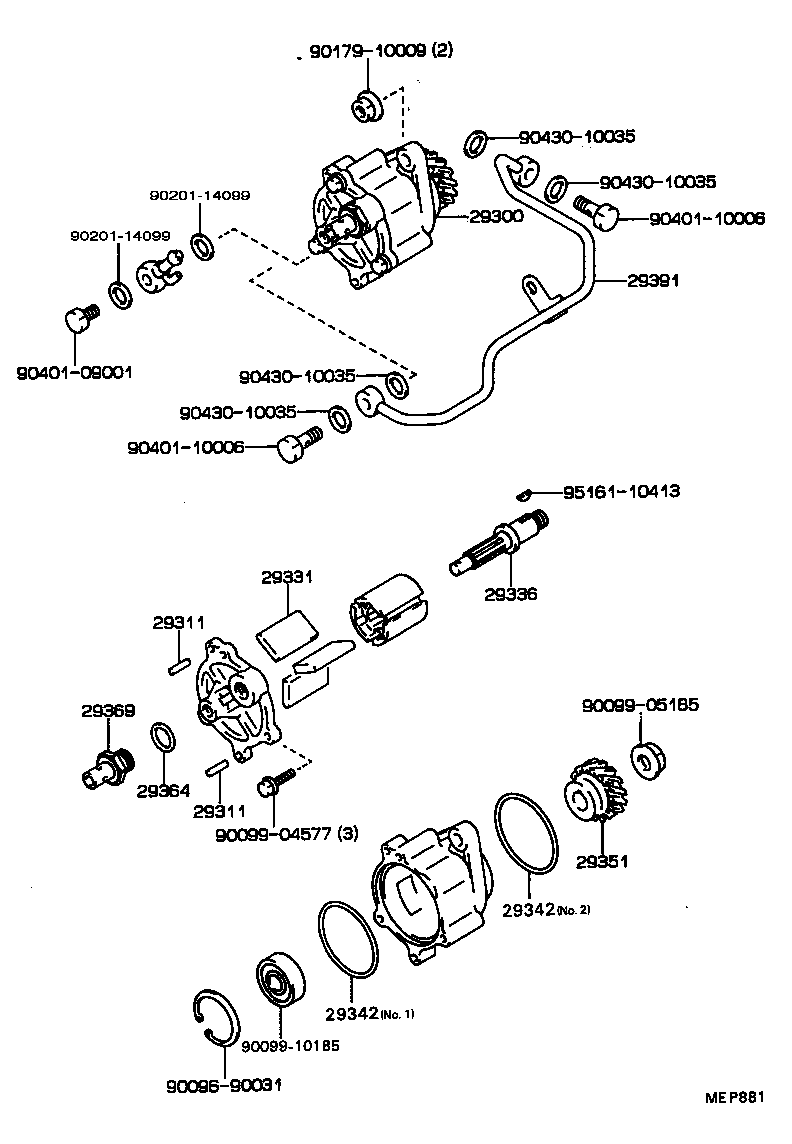

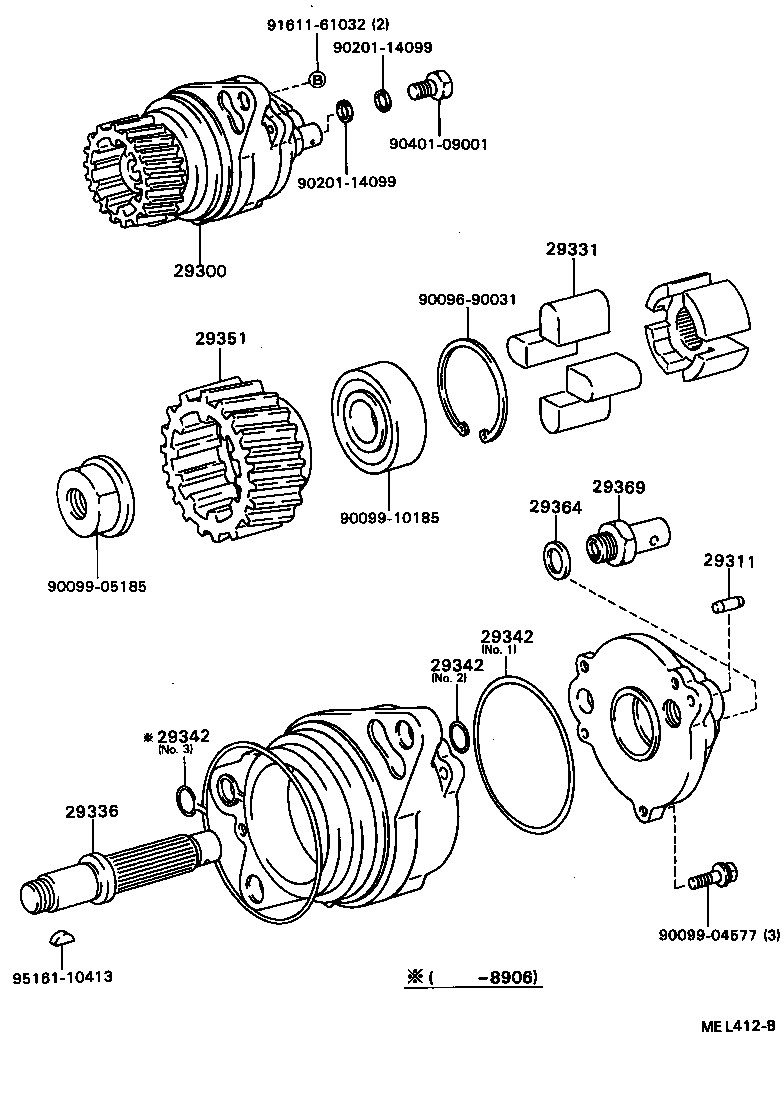

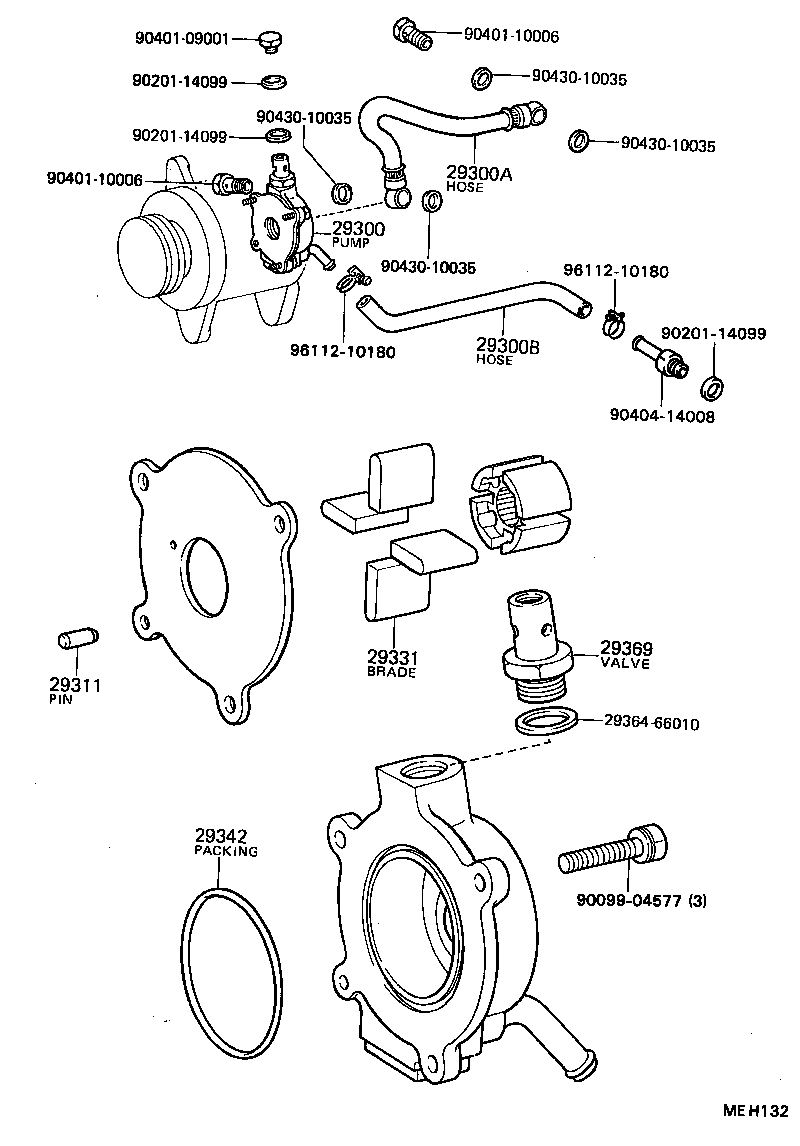

Figure MEB699D MEB699D 1982-05 → 1988-08 Figure MEB699D MEB699D 1986-10 → 1990-01 Figure MEB699D MEB699D 1988-08 → 1990-01 Figure MEH132 MEH132 1986-10 → 1990-01 Figure MEL412B MEL412B 1988-08 → — Figure MEP881 MEP881 1990-01 → —

Part groups

PNCDescription
29300 Pump Assy, Vacuum
29300A Hose, Vacuum Pump Oil Inlet
29300B Hose, Vacuum Pump Oil Outlet
29311 Pin, Vacuum Pump Dowel, NO.1
29331 Blade, Vacuum Pump, A
29336 Shaft, Vacuum Pump
29342 Packing, Vacuum Pump
29351 Gear, Vacuum Pump
29364 Washer, Vacuum Pump
29369 Valve Sub-assy, Check
29391 Tube, Vacuum Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
