Factory parts data · Europe

Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

5 part groups · 2 illustrations

Illustrations

Figure MF3893A

MF3893A 1986-10 → —

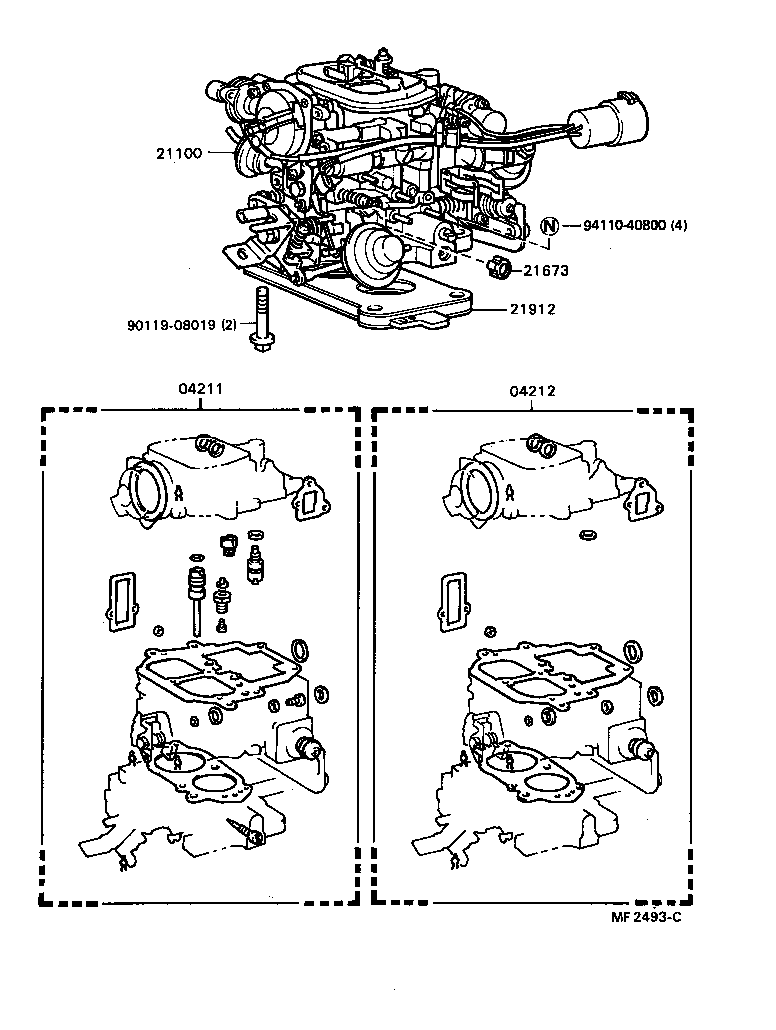

Figure MF2493C

MF2493C 1982-05 → —

Part groups

PNC	Description
04211	Carburetor Kit
04212	Gasket Kit, Carburetor
21100	Carburetor Assy
21673	Cap, Idle Limit
21912	Insulator, Carburetor Heat

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
