Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Nozzle

25 part groups · 8 illustrations

Illustrations

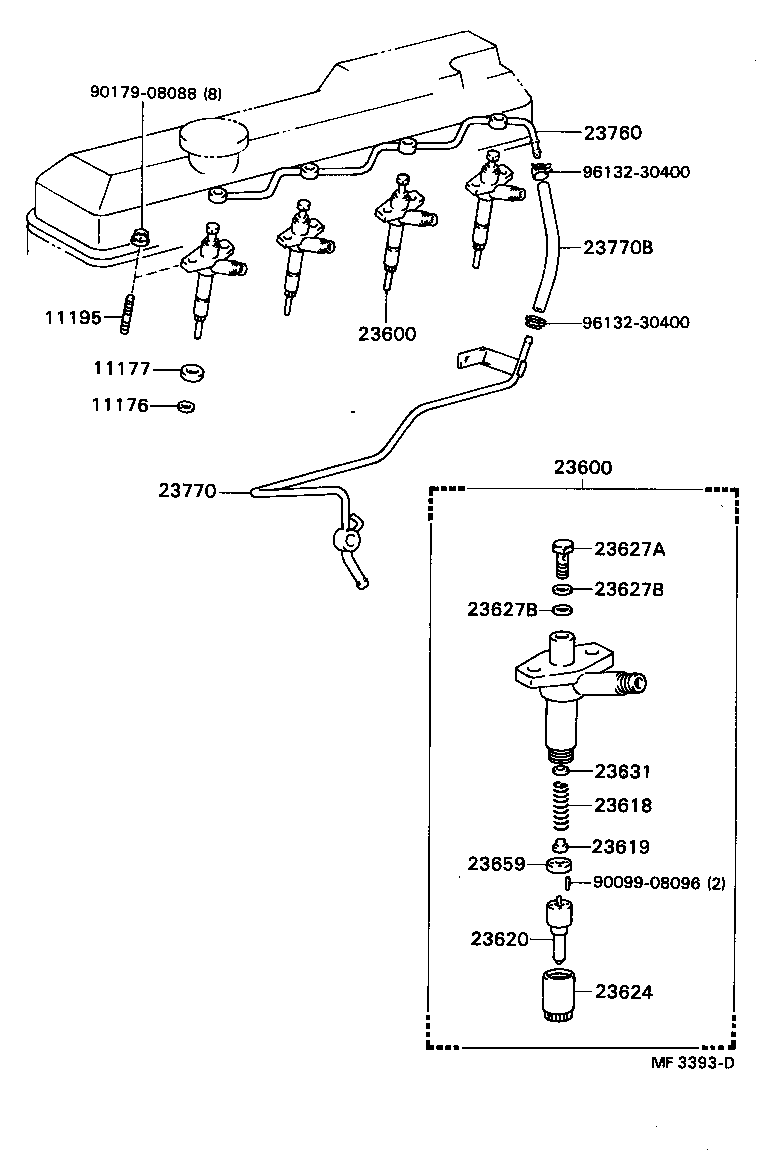

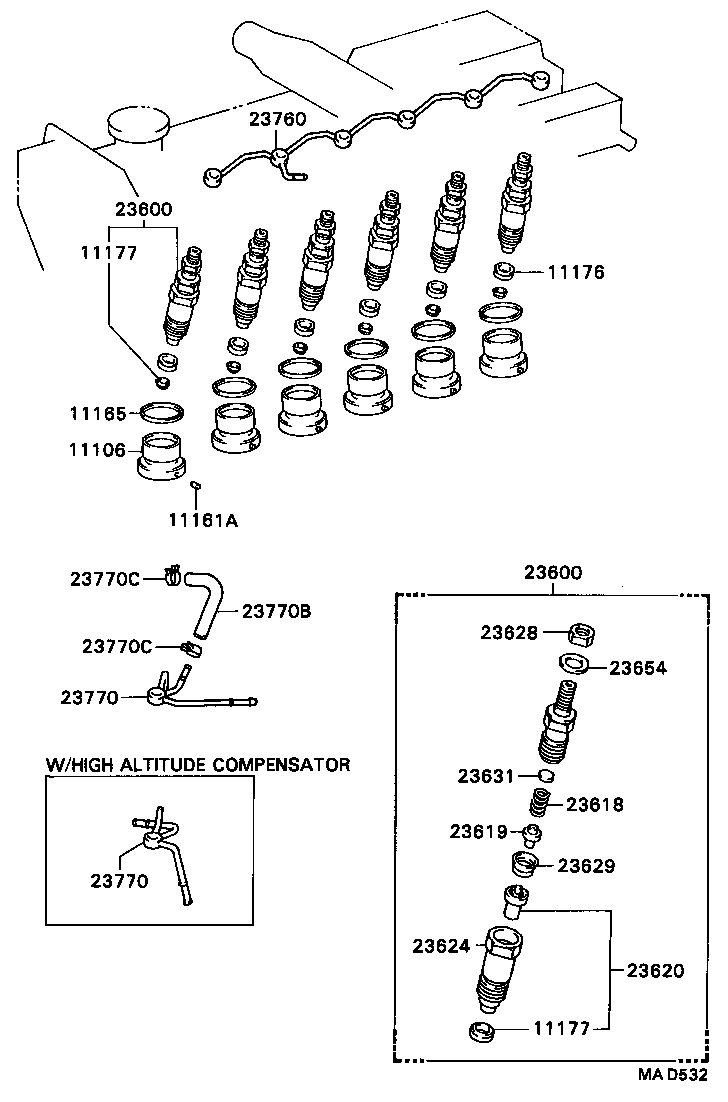

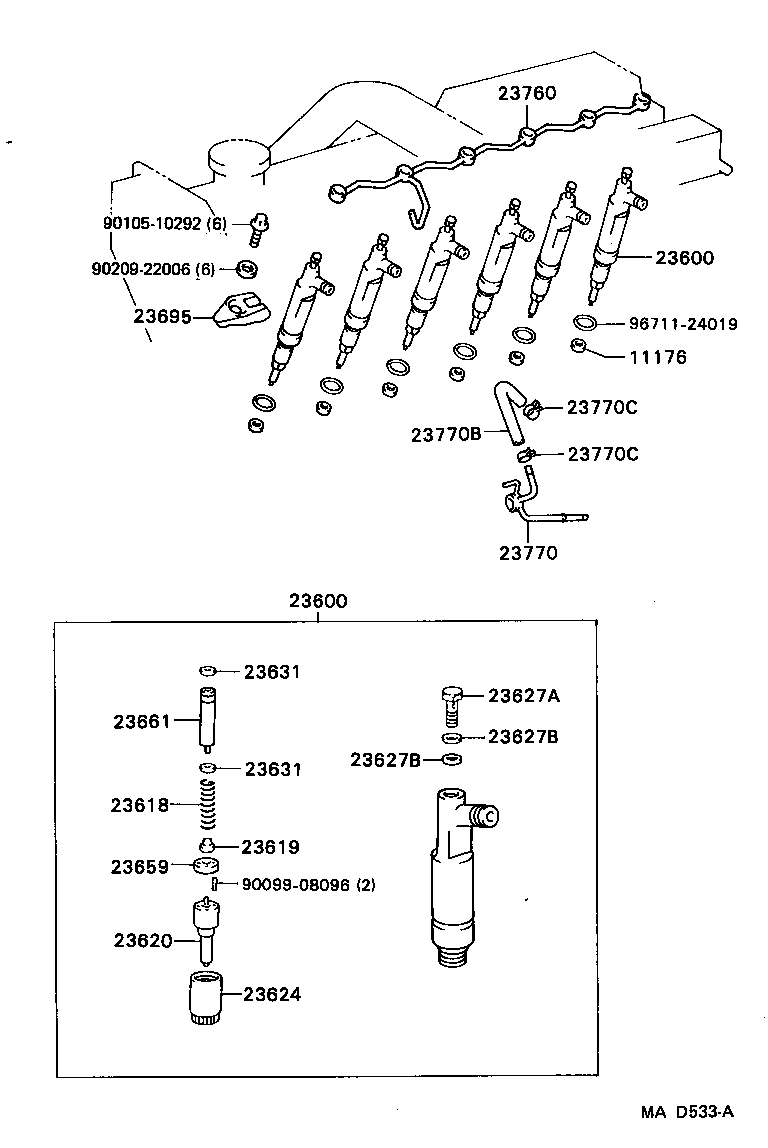

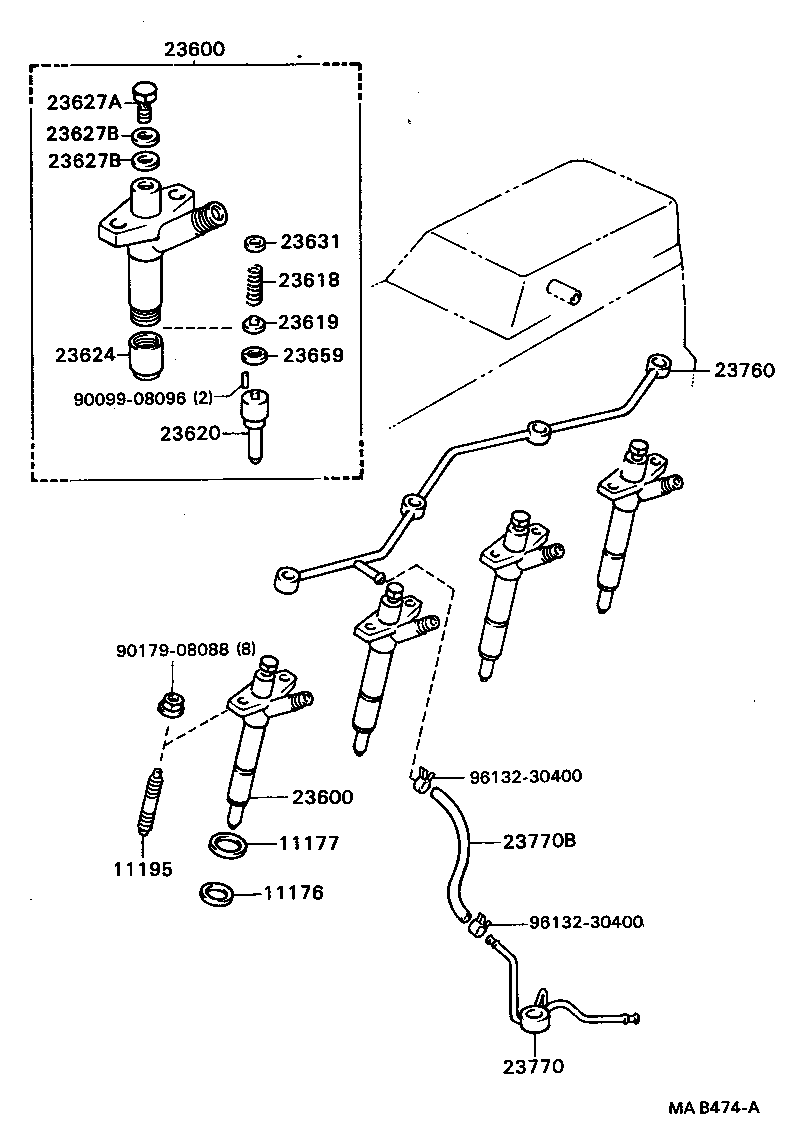

Figure MF2552B MF2552B 1982-05 → 1988-08 Figure MF3392 MF3392 1988-08 → — Figure MF3393D MF3393D 1985-10 → 1988-08 Figure MAB474A MAB474A 1988-08 → — Figure MF2816 MF2816 1986-10 → 1990-01 Figure MF3721A MF3721A 1986-10 → 1990-01 Figure MAD532 MAD532 1990-01 → — Figure MAD533A MAD533A 1990-01 → —

Part groups

PNCDescription
11106 Chamber Sub-assy, Combustion
11161A Pin, Straight(FOR COMBUSTION CHAMBER)
11165 Shim(FOR COMBUSTION CHAMBER)
11176 Seat, Injection Nozzle
11177 Gasket, Injection Nozzle Seat
11195 Bolt, Nozzle Set, Stud
23600 Holder & Nozzle Set, Nozzle
23618 Spring, Nozzle Holder Pressure
23619 Pin, Nozzle Holder Pressure
23620 Nozzle Assy
23624 Nut, Nozzle Retaining
23627A Screw, Follow(FOR NOZZLE)
23627B Washer, Copper Plate(FOR NOZZLE)
23628 Nut(FOR RING PACKING SETTING)
23629 Piece, Distance(FOR NOZZLE)
23631 Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
23654 Washer(FOR RING PACKING)
23659 Packing, Tip(FOR NOZZLE)
23661 Capsule Sub-assy
23695 Clamp, Nozzle Holder, NO.1
23760 Pipe Assy, Nozzle Leakage
23770 Pipe Assy, Nozzle Leakage, NO.2
23770A Clamp OR Clip(FOR NOZZLE LEAKAGE PIPE SET)
23770B Hose, Fuel
23770C Clamp OR Clip(FOR FUEL HOSE SET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
