Toyota Coaster
1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe
Discontinued model
Data version 1994-03

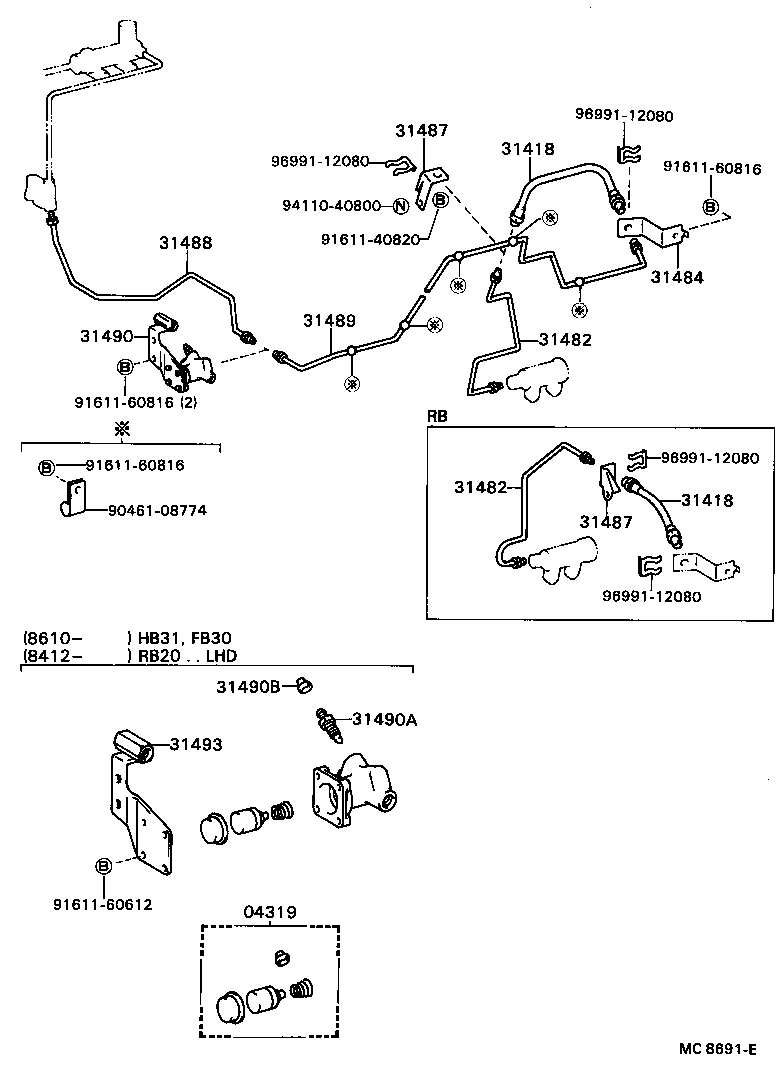

Clutch Pedal & Flexible Hose
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04319 | Cup Kit, Clutch Accumulator |
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301F | Bolt(FOR CLUTCH PEDAL STOPPER) |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31418 | Hose, Clutch |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31484 | Bracket, Flexible Hose(FOR CLUTCH) |
| 31487 | Plate, Release Tube Set |
| 31488 | Tube, Connector TO Tube Connector |
| 31489 | Tube, Tube Connector TO Flexible Hose |
| 31490 | Accumulator Assy, Clutch |
| 31490A | Plug, Bleeder(FOR CLUTCH ACCUMULATOR) |
| 31490B | Cap, Bleeder Plug(FOR CLUTCH ACCUMULATOR) |
| 31493 | Bracket, Clutch Accumulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
