Toyota Coaster
1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe
Discontinued model
Data version 1994-03

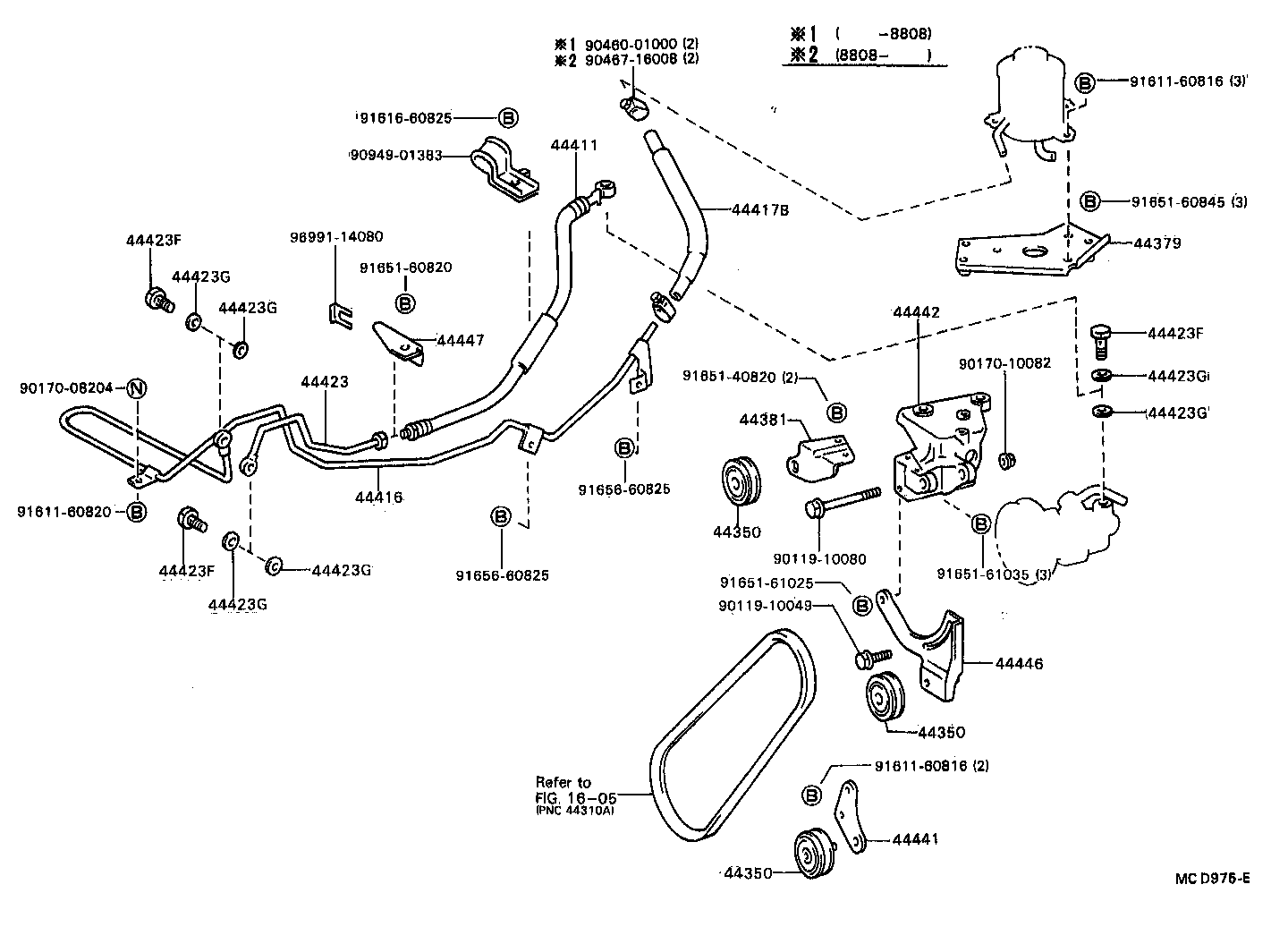

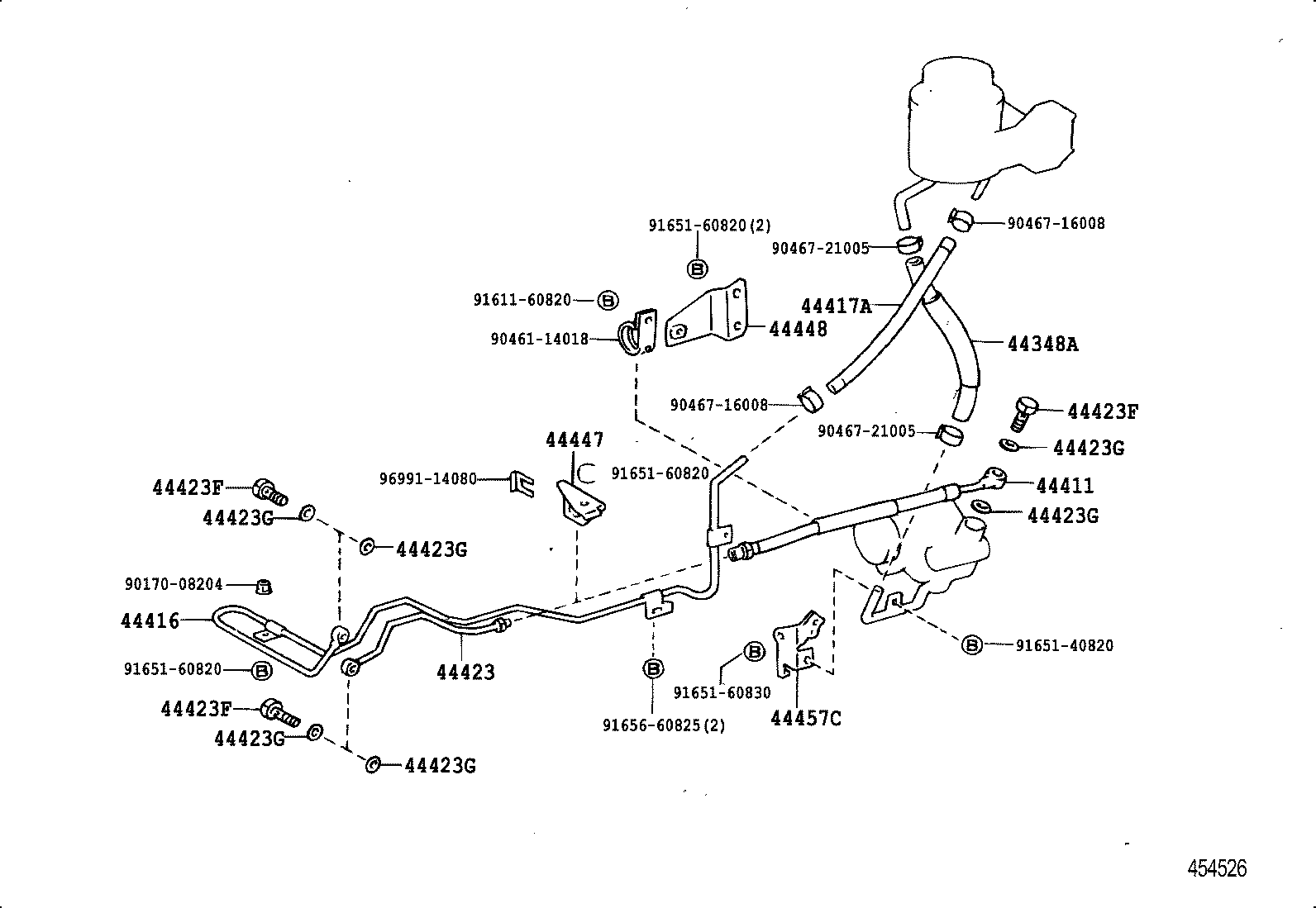

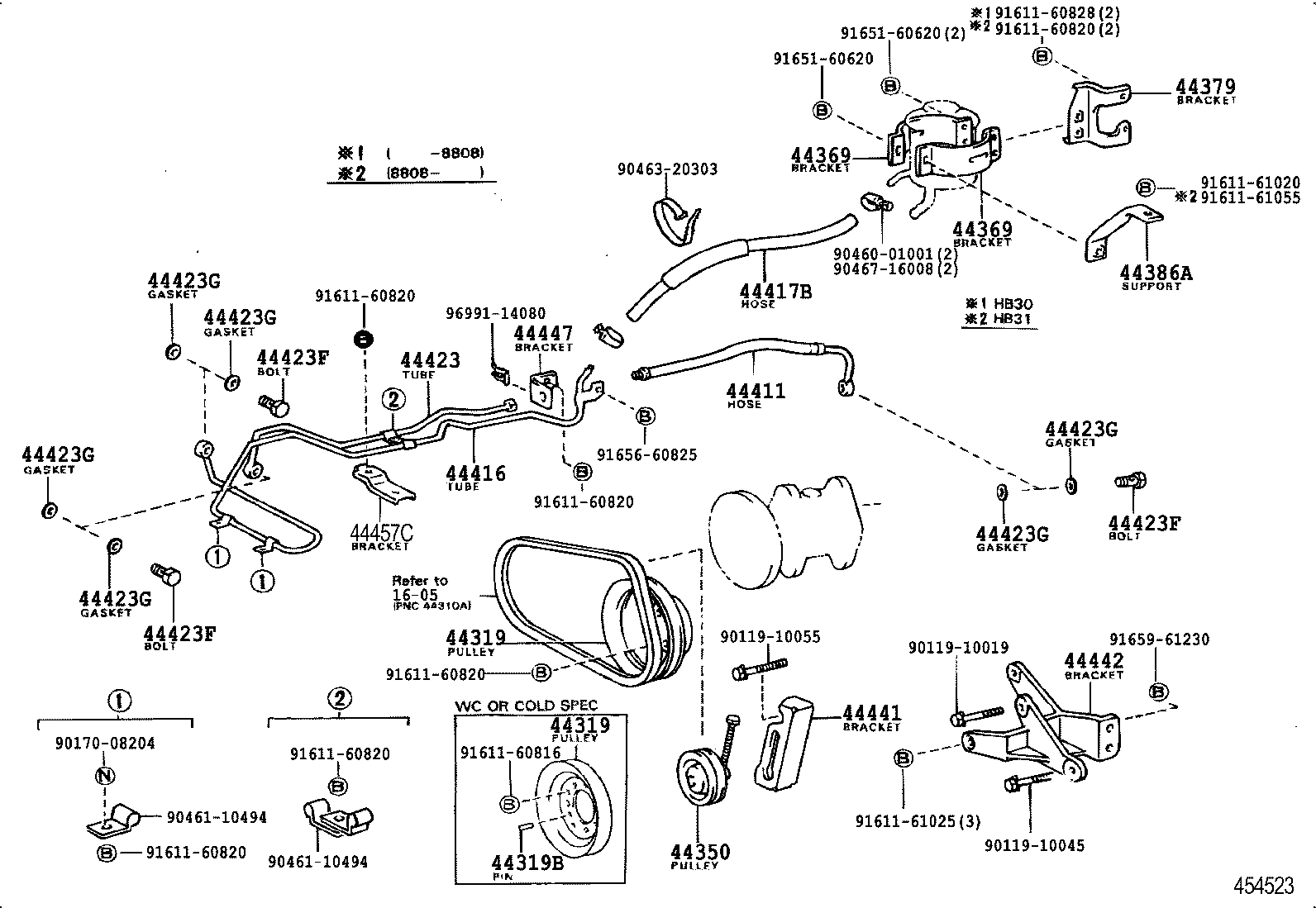

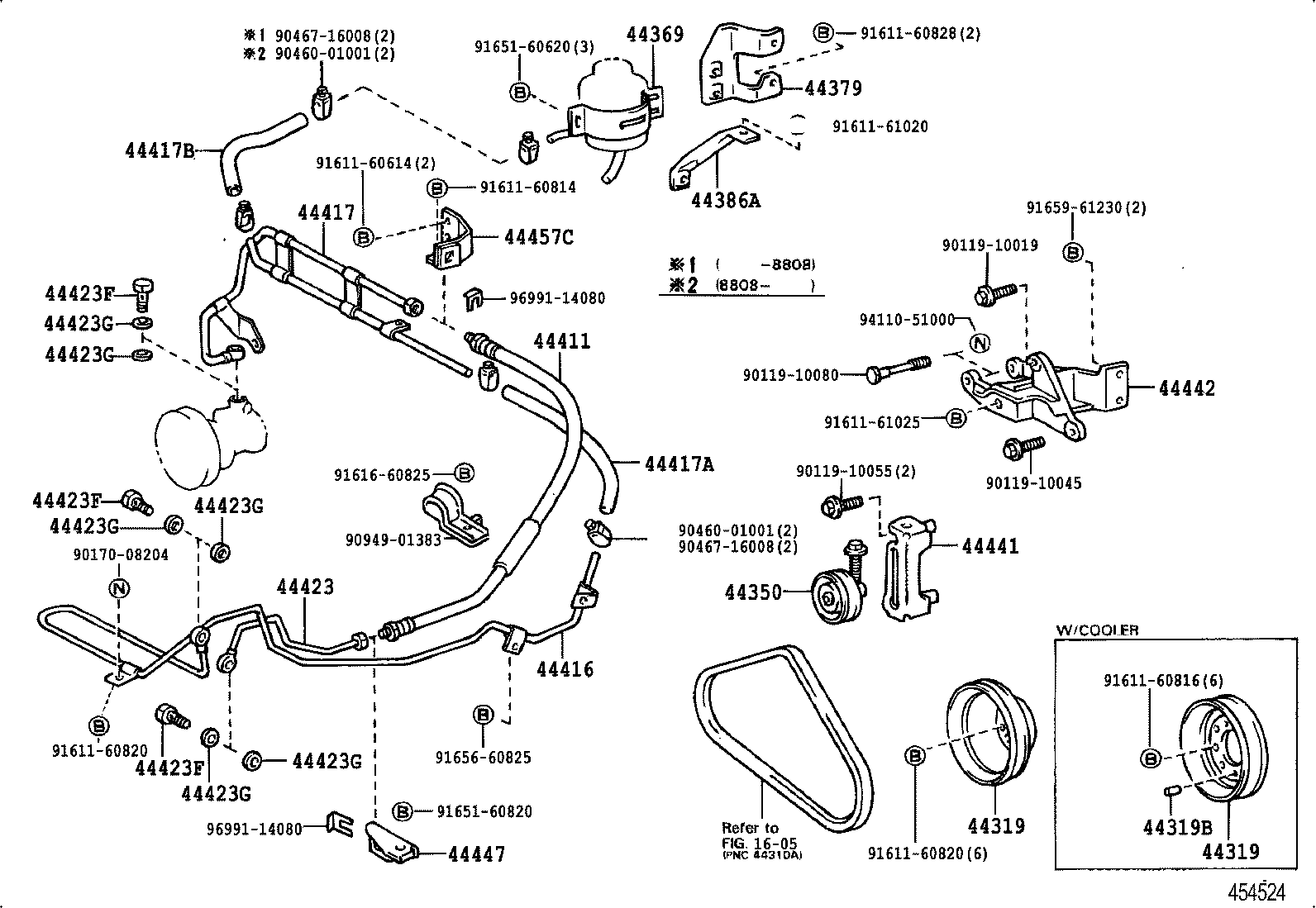

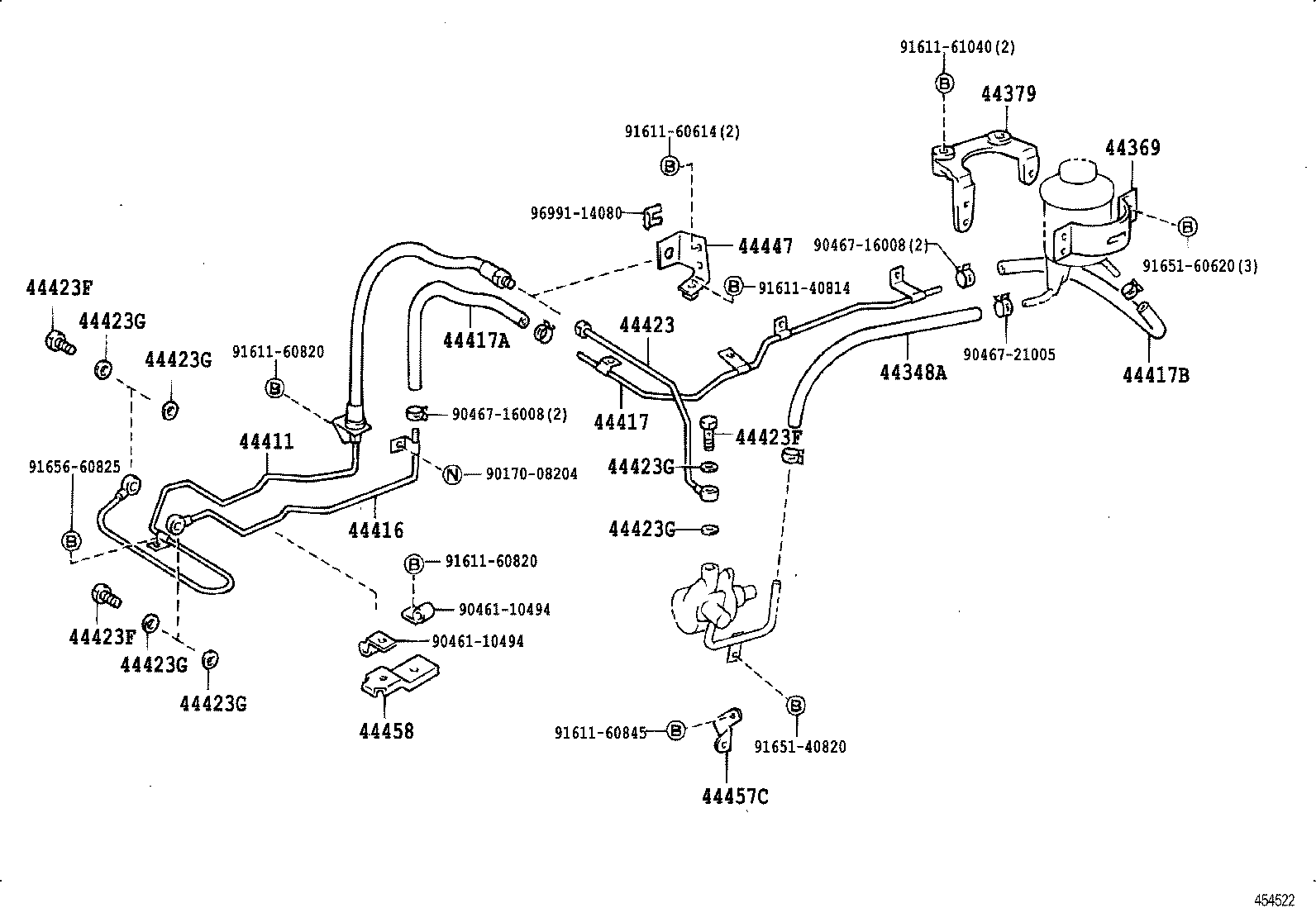

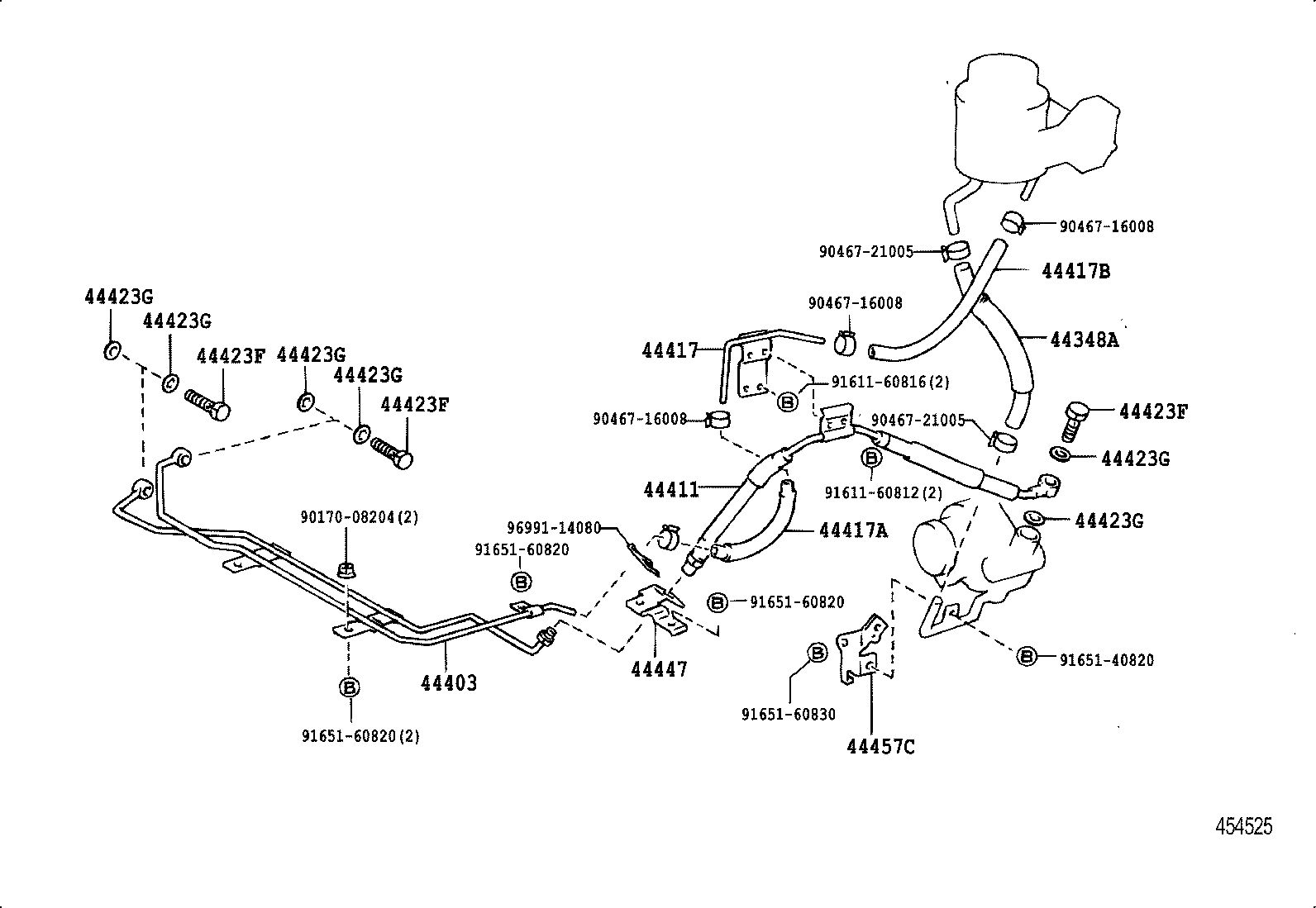

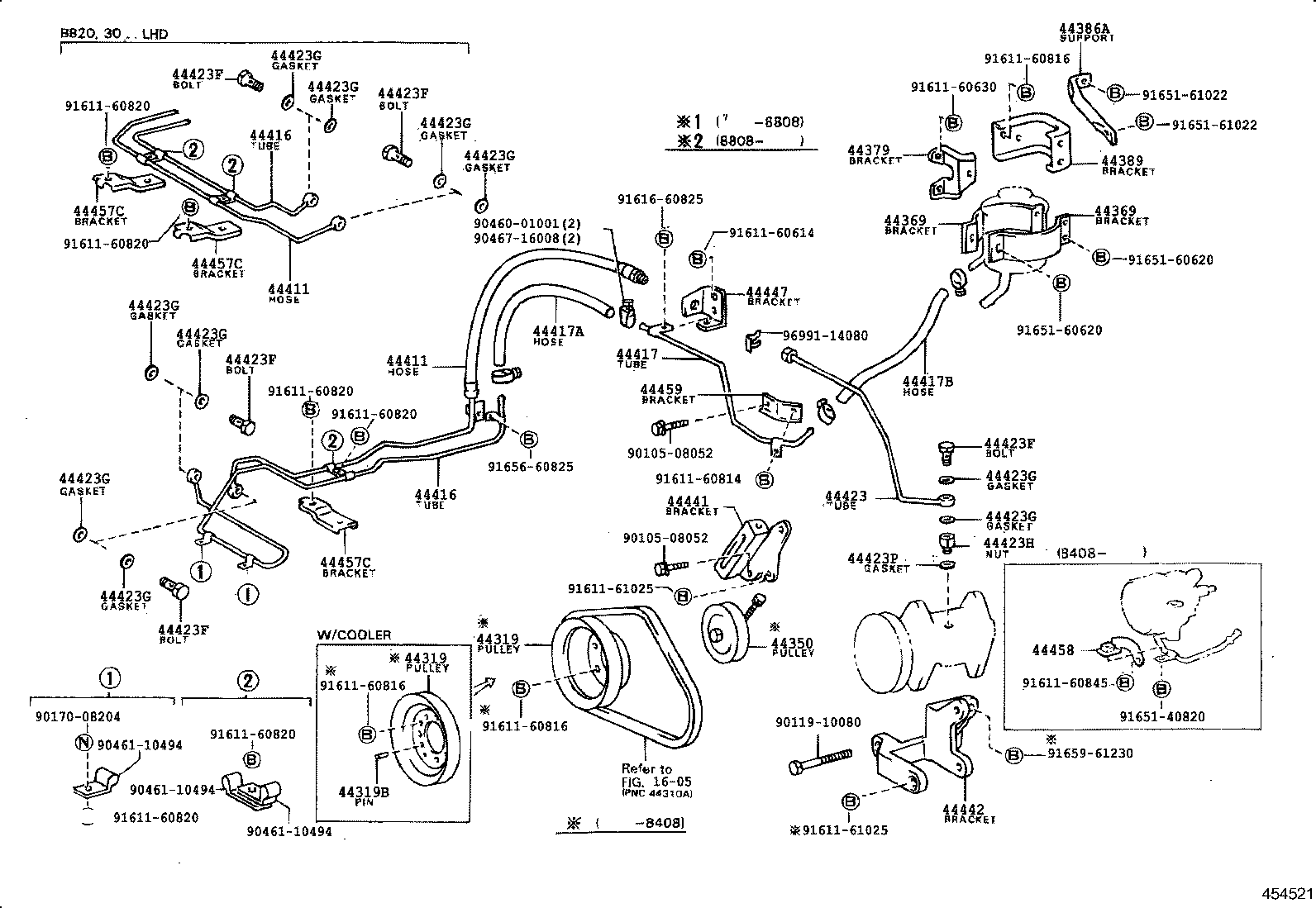

Power Steering Tube
31 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 44318 | Spacer, Vane Pump Drive Pulley |
| 44319 | Pulley, Vane Pump Drive |
| 44319B | Pin(FOR VANE PUMP DRIVE PULLEY) |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44350 | Pulley Assy, Power Steering Idle |
| 44369 | Bracket, Oil Reservoir, NO.1 |
| 44379 | Bracket, Oil Reservoir, NO.2 |
| 44381 | Bracket, Power Steering Idle Pulley |
| 44386A | Support, Oil Reservoir |
| 44387 | Support, Oil Reservoir, NO.2 |
| 44389 | Bracket, Oil Reservoir, NO.3 |
| 44403 | Tube Sub-assy, Pressure Feed, NO.1 |
| 44411 | Hose, Pressure Feed |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44417 | Tube, Return, NO.2 |
| 44417A | Hose, Return Tube (FOR RETURN TUBE TO RETURN TUBE NO.2) |
| 44417B | Hose, Return Tube(FOR RETURN TUBE TO VANE PUMP) |
| 44423 | Tube, Oil Pump TO Gear Box |
| 44423F | Bolt, Union |
| 44423G | Gasket, Union Bolt |
| 44423H | Nut, Union |
| 44423P | Gasket, Union Nut |
| 44441 | Bracket, Pump, Front |
| 44441A | Spacer(FOR PUMP BRACKET, FRONT) |
| 44442 | Bracket, Pump, Rear |
| 44446 | Strut, Adjusting |
| 44447 | Bracket, Power Steering Oil Cooler Tube Support |
| 44448 | Bracket, Pressure Feed Hose Support, NO.1 |
| 44457C | Bracket, Power Steering Tube Support, NO.1 |
| 44458 | Bracket, Tube Support, NO.2 |
| 44459 | Bracket, Tube Support, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
