Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

50 part groups · 14 illustrations

Illustrations

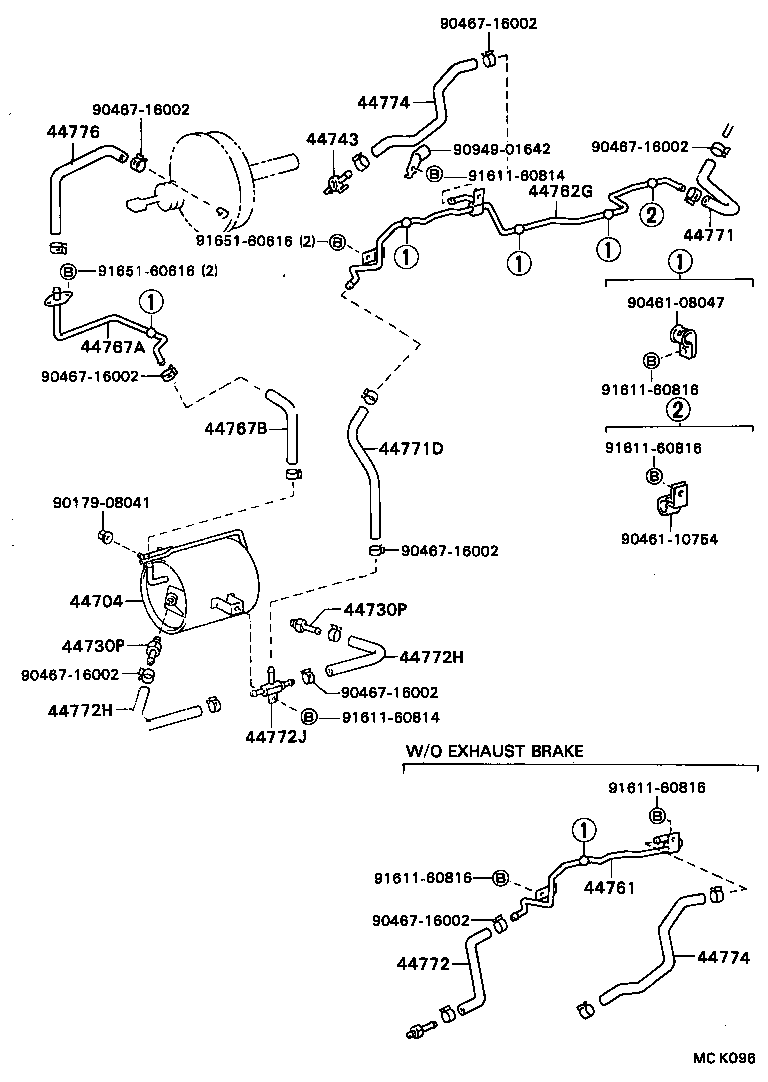

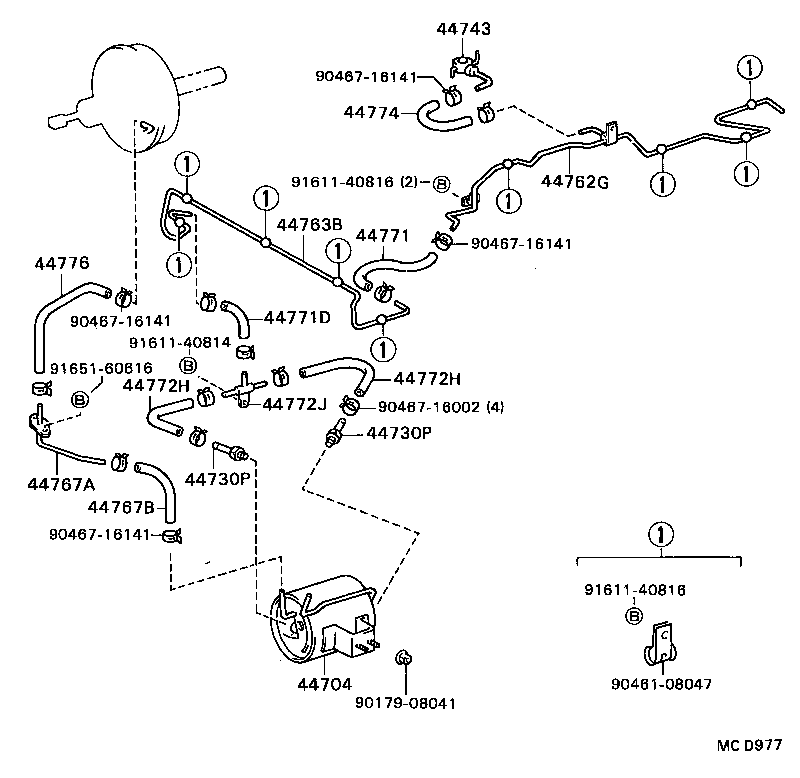

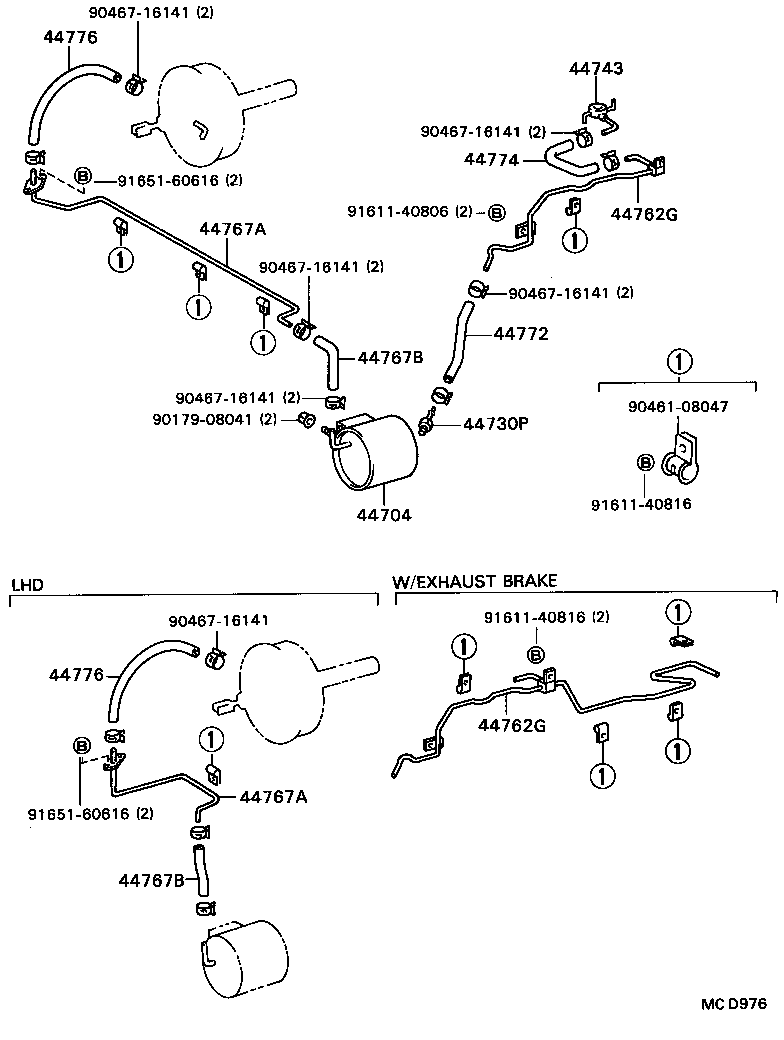

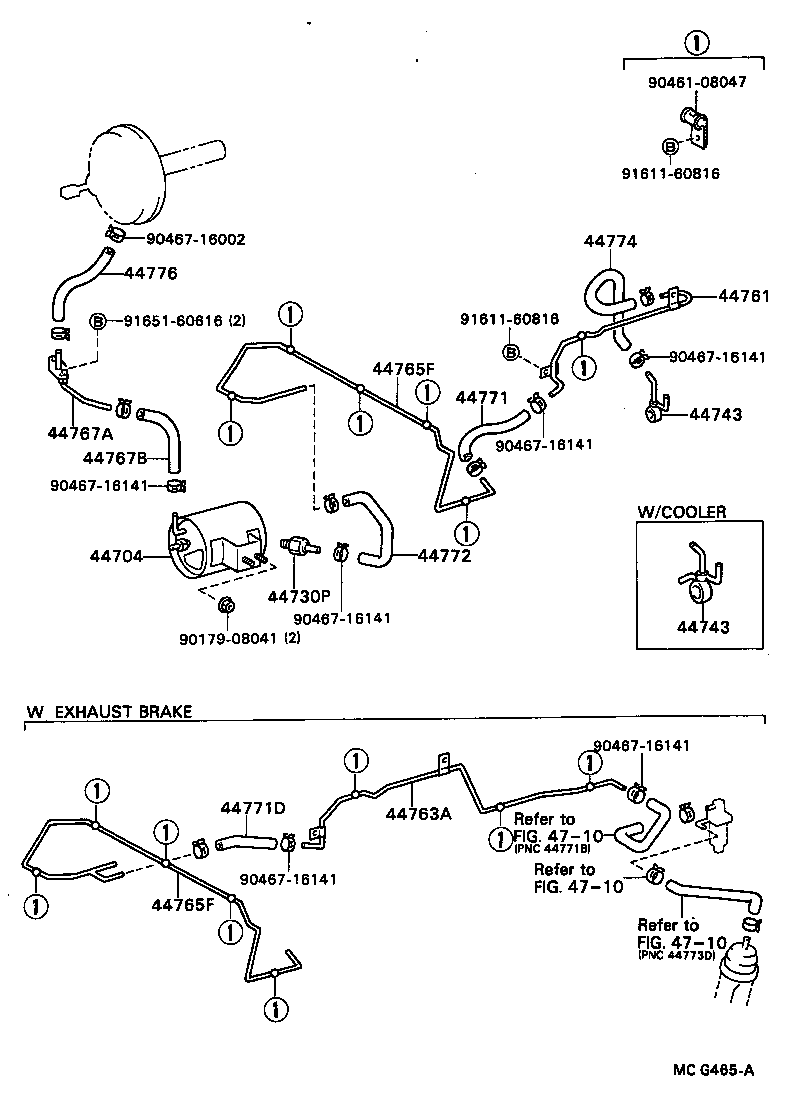

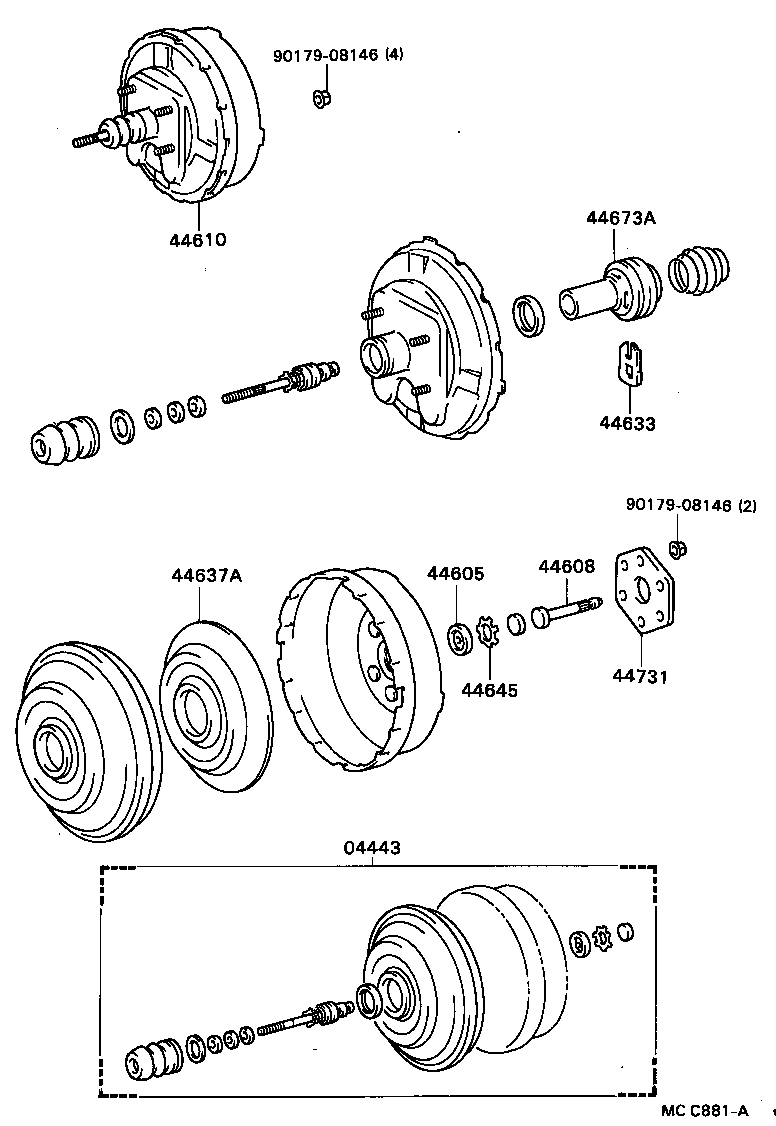

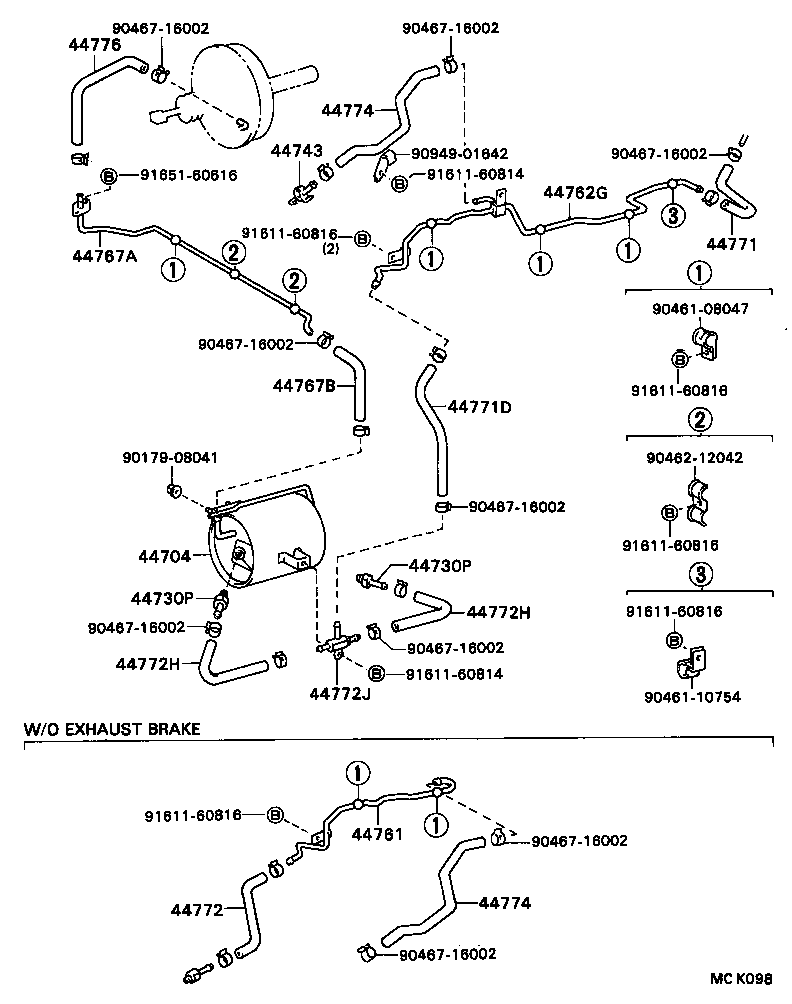

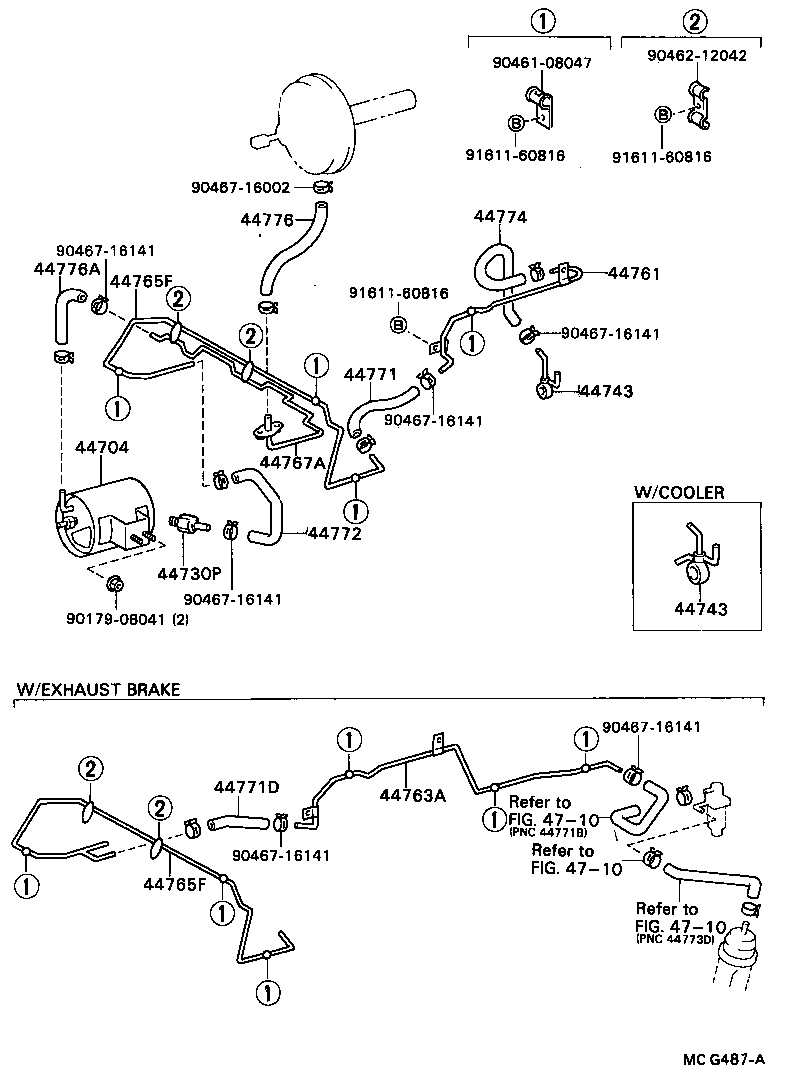

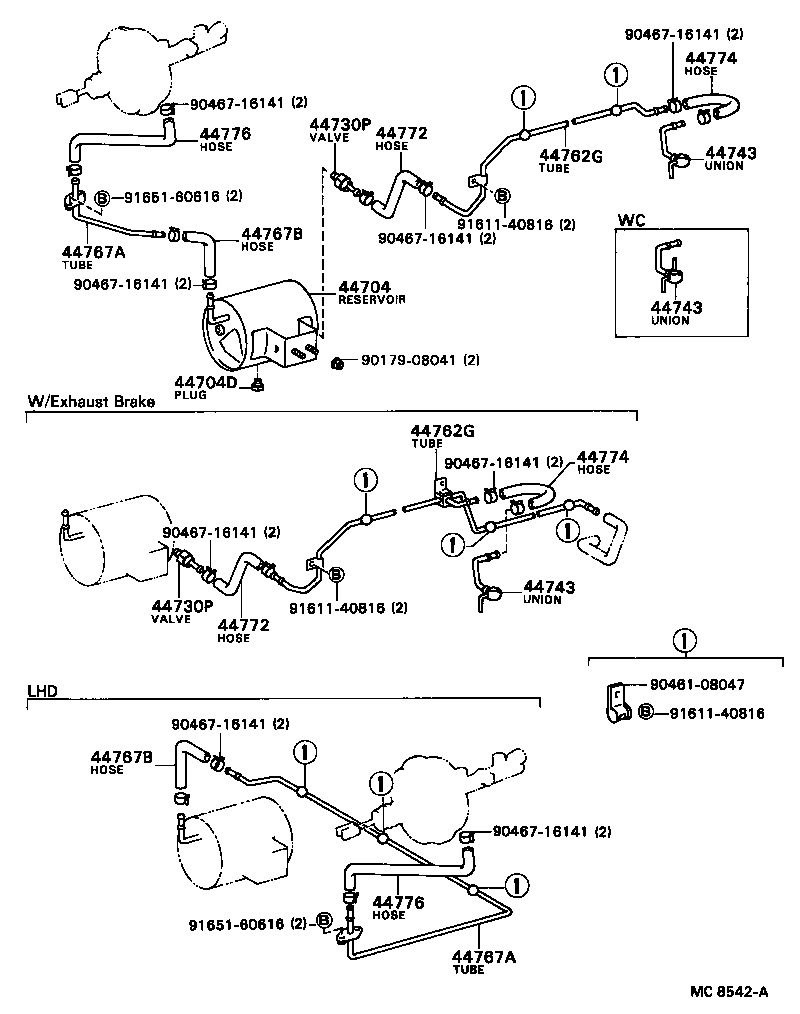

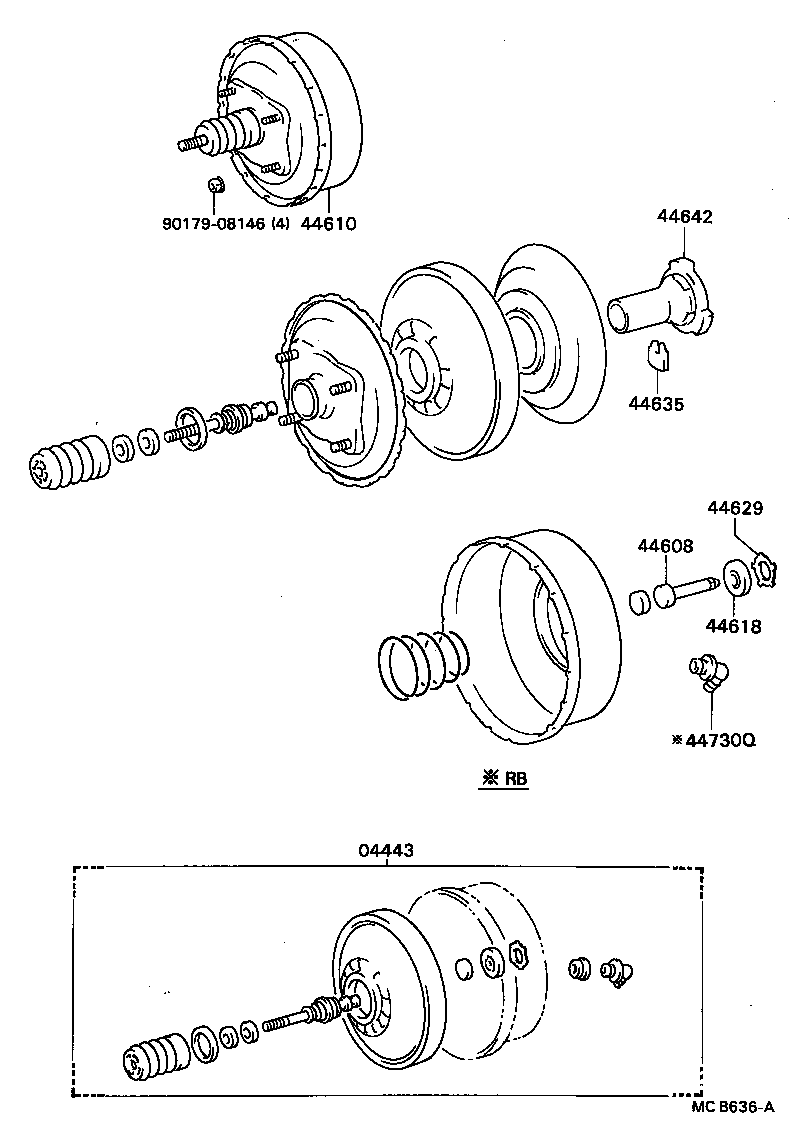

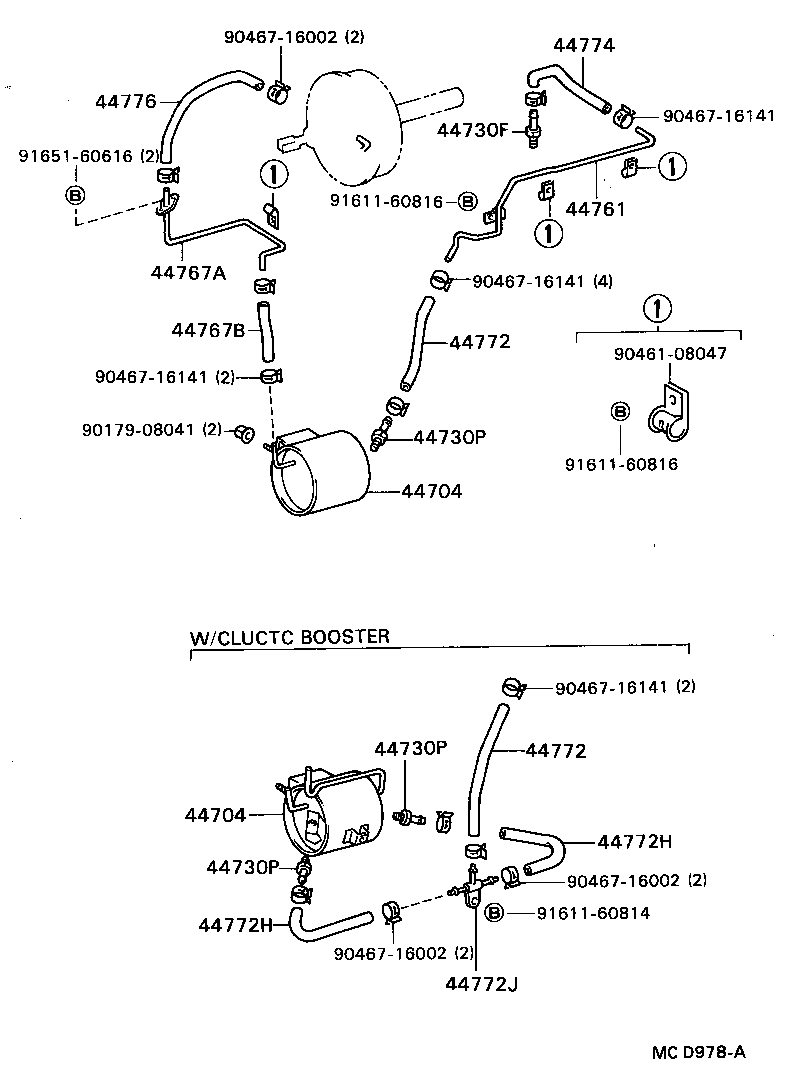

Figure MC8562A MC8562A 1982-05 → 1984-08 Figure MCB636A MCB636A 1984-08 → 1985-10 Figure MCB636A MCB636A 1985-10 → — Figure MCC881A MCC881A 1985-10 → — Figure MC8540A MC8540A 1982-05 → — Figure MC8541B MC8541B 1982-05 → — Figure MC8542A MC8542A 1982-05 → 1988-08 Figure MCG465A MCG465A 1988-08 → — Figure MCD976 MCD976 1986-10 → 1990-01 Figure MCG487A MCG487A 1988-08 → — Figure MCD977 MCD977 1986-10 → 1990-01 Figure MCD978A MCD978A 1986-10 → — Figure MCK098 MCK098 1990-01 → — Figure MCK096 MCK096 1990-01 → —

Part groups

PNCDescription
04443 Booster Kit, Brake
44601 Band Sub-assy, Booster Body
44605 Plate & Seal Sub-assy, Booster
44608 Push Rod Sub-assy, Booster
44610 Booster Assy, Brake
44618 Seal, Booster Body
44626 Retainer, Booster Rod Cup
44629 Ring, Circular Internal
44633 Key, Booster Valve Plunger
44635 Retainer, Hydraulic Valve
44637A Plate, Booster Diaphragm
44642 Piston, Brake Booster
44643 Retainer, Diaphragm
44645 Retainer, Booster Push Rod Seal
44657A Ring, Snap(FOR BOOSTER AIR VALVE STOPPER)
44662 Retainer, Reaction, NO.1
44662A Retainer, Reaction, NO.2
44662B Lever, Reaction
44662C Plate, Reaction, NO.1
44662E Roller(FOR REACTION LEVER)
44662F Washer(FOR REACTION LEVER)
44662G Ring, Snap(FOR REACTION RETAINER)
44673A Body, Booster Valve
44696 Grommet, Check Valve
44697 Screw, Booster Band Set
44697A Nut(FOR BOOSTER BAND SET)
44704 Reservoir Sub-assy, Vacuum
44704D Plug, W/Head Taper Screw, NO.1
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730P Valve Assy, Vacuum Check, NO.1
44730Q Valve Assy, Vacuum Check, NO.2
44731 Bracket, Brake Booster, Front
44743 Union(FOR VACUUM PUMP)
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44762G Tube, Vacuum Check Valve TO Connector
44763A Tube, Hose TO Hose, NO.1
44763B Tube, Tube Connector TO Tube Connector
44764G Tube, Connector TO Brake Booster
44764H Hose(FOR CONNECTOR TO BRAKE BOOSTER TUBE)
44765F Tube, Connector TO Check Valve
44767A Tube, Vacuum Reservoir TO Brake Booster
44767B Hose(FOR VACUUM RESERVOIR TO BRAKE BOOSTER TUBE)
44771 Hose, Vacuum Tube Connector
44771D Hose, Vacuum Tube Connector
44772 Hose, Check Valve TO Connector Tube
44772H Hose, Check Valve TO 3 Way
44772J Way, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE)
44774 Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44776A Hose, Vacuum Reservoir TO Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
