Toyota Coaster
1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe
Discontinued model
Data version 1994-03

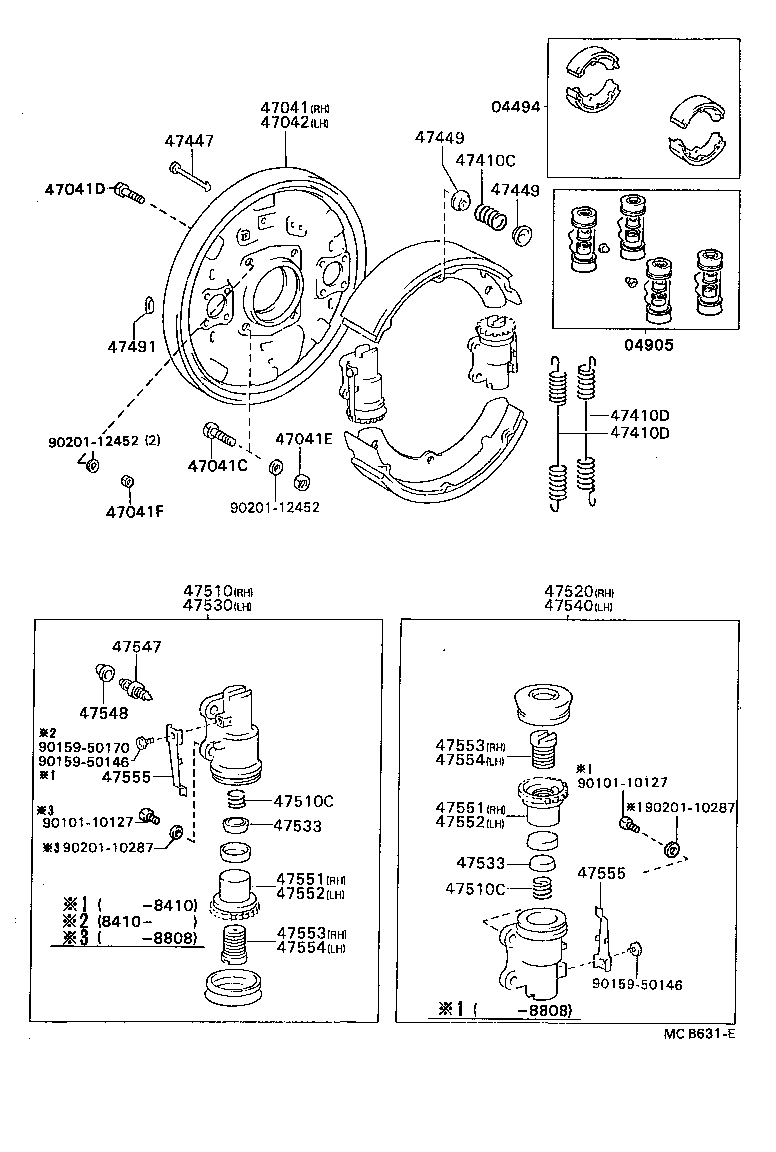

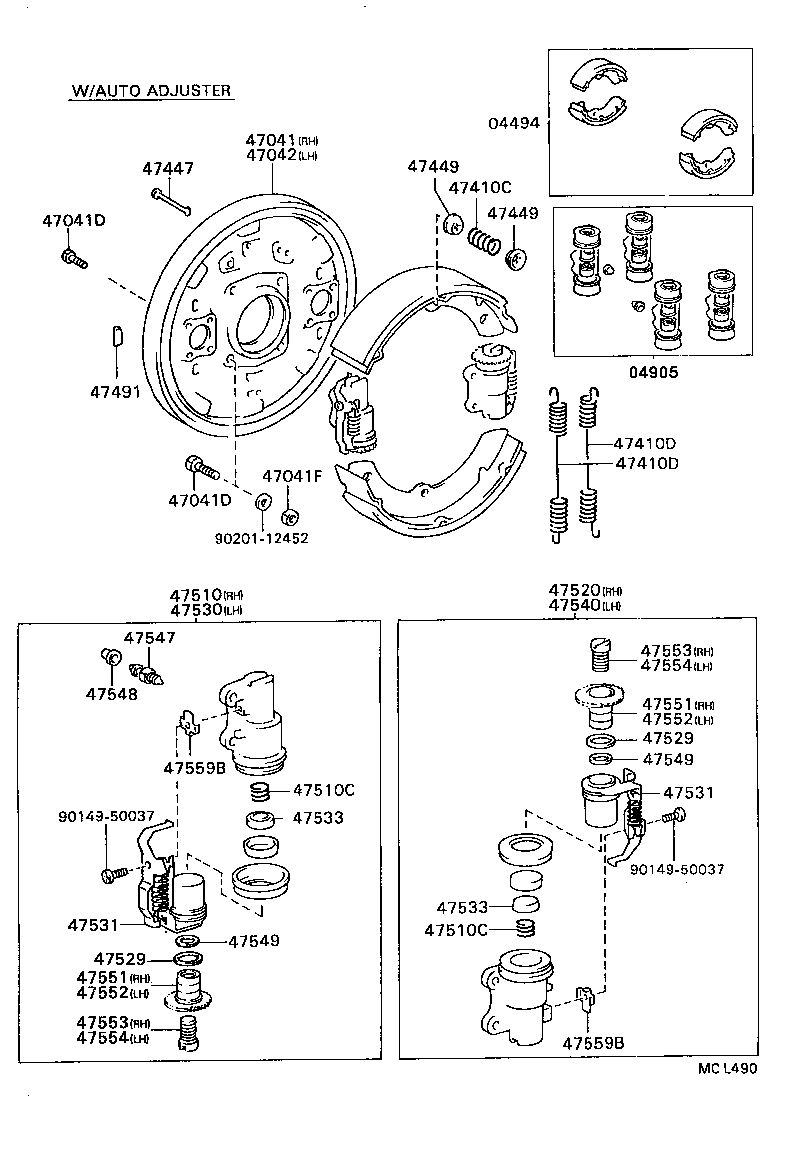

Front Drum Brake Wheel Cylinder & Backing Plate
33 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04494 | Shoe Kit, Front Brake |
| 04905 | Cup Kit, Front Wheel Cylinder |
| 47041 | Plate Sub-assy, Brake Backing, Front RH |
| 47041C | Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) |
| 47041D | Bolt(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) |
| 47041E | Nut(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) |
| 47041F | Nut(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) |
| 47042 | Plate Sub-assy, Brake Backing, Front LH |
| 47410C | Spring(FOR FRONT BRAKE SHOE HOLD DOWN) |
| 47410D | Spring, Tension(FOR FRONT BRAKE SHOE RETURN) |
| 47410H | Rivet, Brake Lining(FOR FRONT BRAKE) |
| 47447 | Pin, Shoe Hold Down Spring(FOR FRONT BRAKE) |
| 47449 | Cup, Shoe Hold Down Spring(FOR FRONT BRAKE) |
| 47491 | Plug, Hole(FOR FRONT BRAKE) |
| 47510 | Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER) |
| 47510C | Spring, Compression(FOR FRONT WHEEL BRAKE CYLINDER) |
| 47520 | Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER) |
| 47529 | Seal, Front Wheel Brake Cylinder Adjust Dust |
| 47530 | Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER) |
| 47531 | Piston, Wheel Brake Cylinder(FOR FRONT BRAKE) |
| 47533 | Seat, Wheel Cylinder Piston Spring(FOR FRONT BRAKE) |
| 47540 | Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER) |
| 47547 | Plug, Bleeder(FOR FRONT DRUM BRAKE) |
| 47548 | Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT) |
| 47549 | Seat, Front Brake Automatic Adjust Nut |
| 47551 | Nut, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE) |
| 47552 | Nut, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE) |
| 47553 | Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE) |
| 47554 | Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE) |
| 47555 | Spring, Adjuster Lock(FOR FRONT BRAKE) |
| 47559B | Sping, Front Automatic Adjust Lever Support |
| 47651 | Lining, Front Brake Shoe(FOR FRONT OR UPPER) |
| 47652 | Lining, Front Brake Shoe(FOR REAR OR LOWER) |
