Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

61 part groups · 19 illustrations

Illustrations

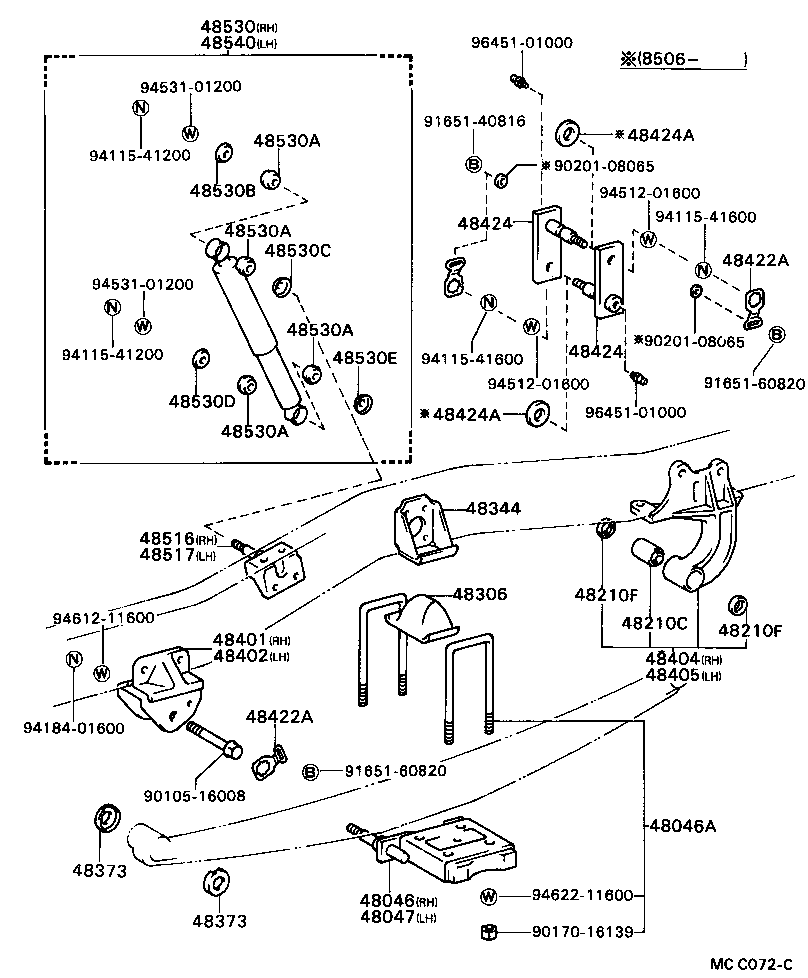

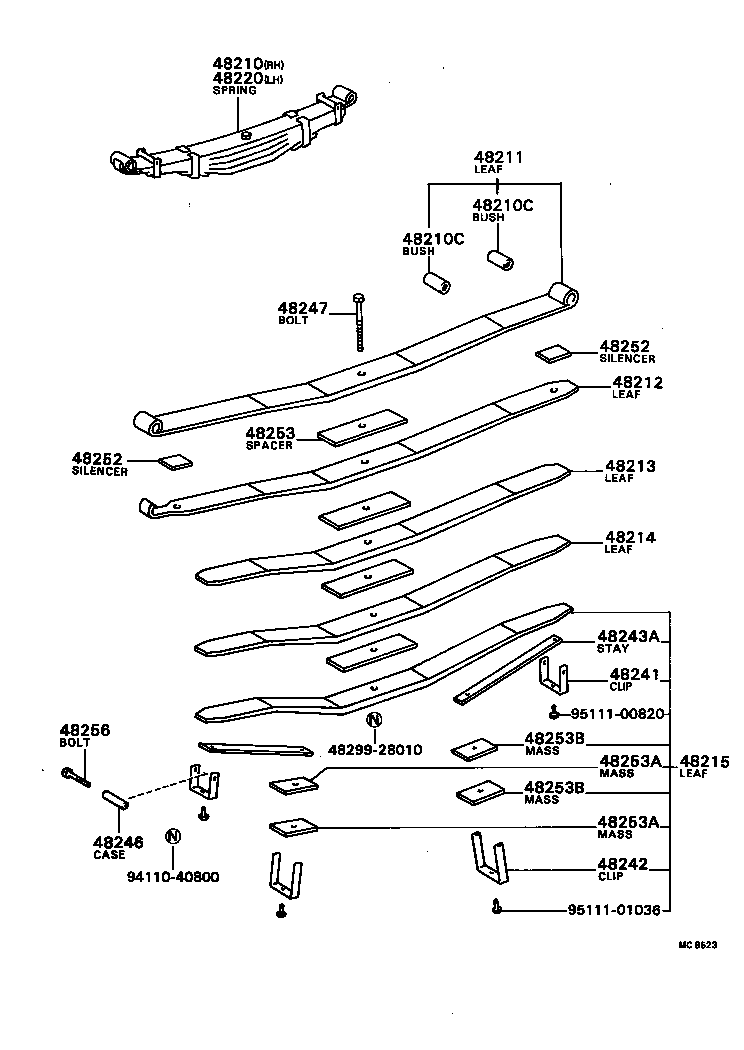

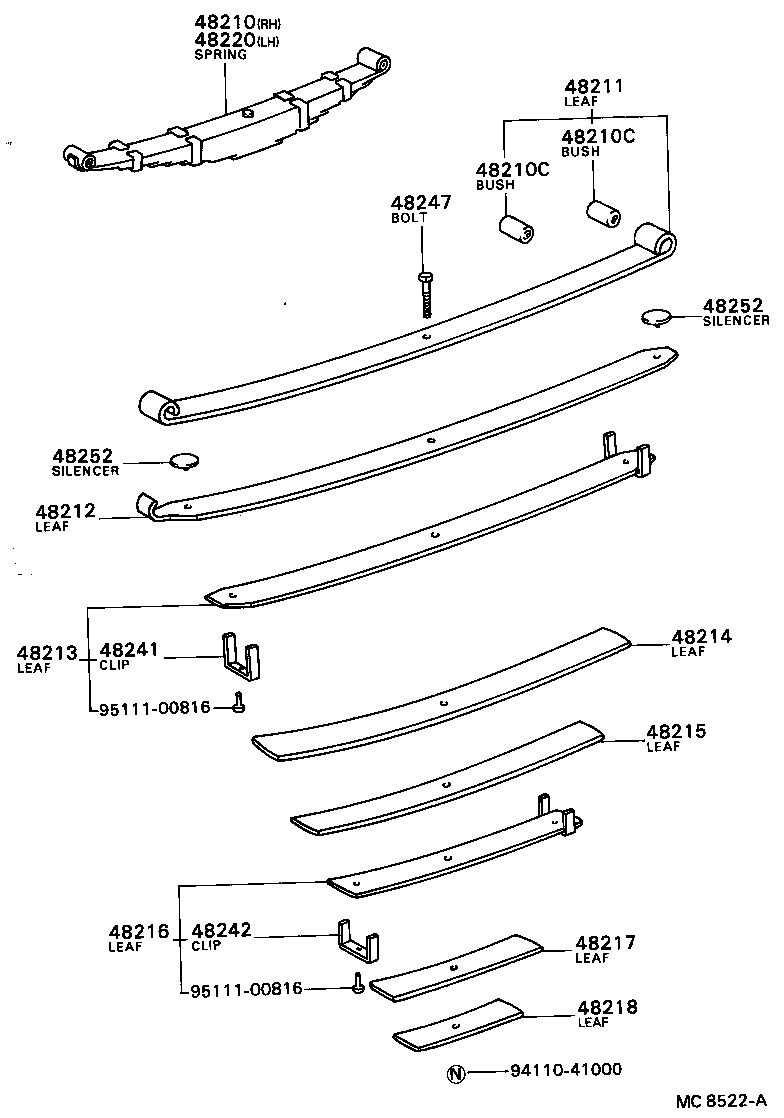

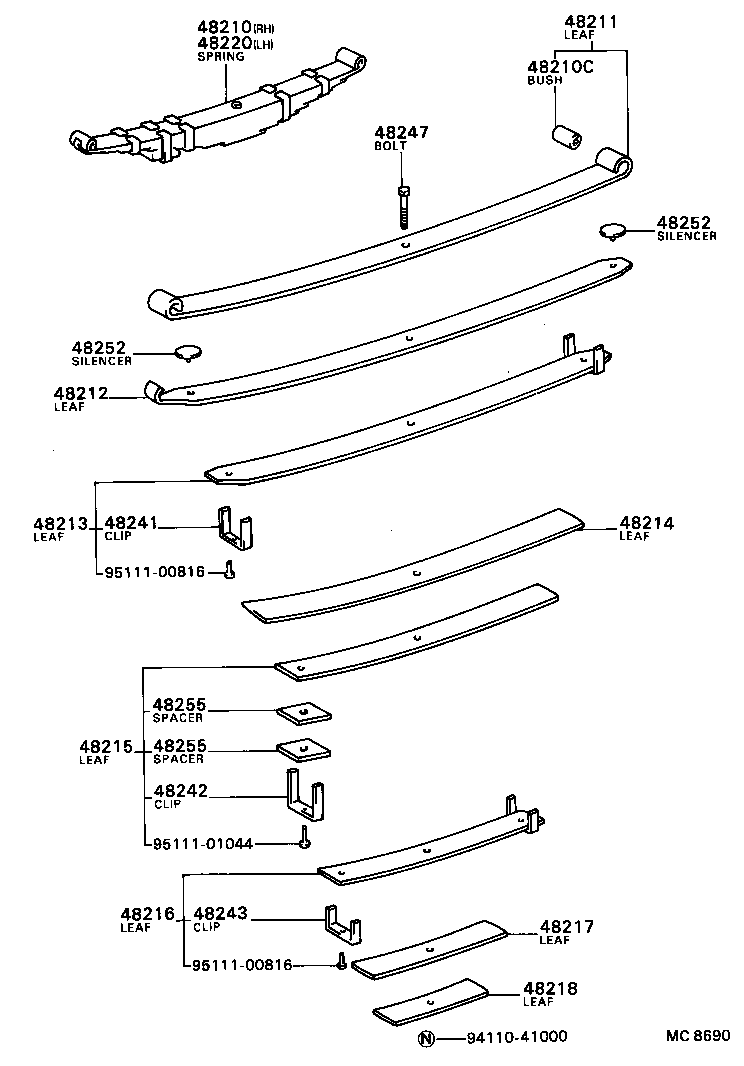

Figure MC8521B MC8521B 1982-05 → 1984-09 Figure MC8521B MC8521B 1984-09 → — Figure MCC072C MCC072C 1982-05 → — Figure MCC072C MCC072C 1988-08 → — Figure MC8522A MC8522A 1982-05 → — Figure MC8522A MC8522A 1986-10 → — Figure MC8690 MC8690 1982-05 → — Figure MC8523 MC8523 1982-05 → — Figure MCA517 MCA517 1982-05 → 1984-09 Figure MCA517 MCA517 1984-09 → — Figure MCA517 MCA517 1985-10 → — Figure MCA517 MCA517 1988-08 → — Figure MCC073A MCC073A 1983-06 → — Figure MCC073A MCC073A 1990-01 → — Figure MCD982 MCD982 1986-10 → — Figure MC8524C MC8524C 1982-05 → — Figure MC8524C MC8524C 1984-09 → — Figure MC8524C MC8524C 1986-10 → — Figure MC8524C MC8524C 1990-01 → —

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210C Bush(FOR REAR SPRING LEAF)
48210F Seal, Dust(FOR REAR SPRING PIN)
48210G Bush(FOR REAR SPRING SHACKLE LOWER)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48218 Leaf, Rear Spring, NO.8
48219 Leaf, Rear Spring, NO.9
48220 Spring Assy, Rear LH
48221 Leaf, Rear Spring, NO.10
48241 Clip, Rear Spring, NO.1
48242 Clip, Rear Spring, NO.2
48243 Clip, Rear Spring, NO.3
48243A Stay, Rear Spring Clip Damper
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48252 Silencer, Rear Spring
48253 Spacer, Rear Spring, NO.1
48253A Mass Damper, Rear Spring, NO.1
48253B Mass Damper, Rear Spring, NO.2
48255 Spacer, Rear Spring Leaf
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48306 Bumper Sub-assy, Rear Spring
48344 Stopper, Bumper, Rear
48373 Spacer, Rear Spring
48401 Bracket Sub-assy, Rear Spring, Front RH
48402 Bracket Sub-assy, Rear Spring, Front LH
48404 Bracket Sub-assy, Rear Spring, Rear RH
48405 Bracket Sub-assy, Rear Spring, Rear LH
48422A Support, Rear Spring Pin
48424 Pin, Spring Bracket, NO.2
48424A Washer, Spring Shackle(FOR SPRING SHACKLE PIN)
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48540 Absorber Assy, Shock, Rear LH
48802 Link Sub-assy, Stabilizer
48802D Bush, Stabilizer Link
48802E Spacer(FOR REAR STABILIZER BAR)
48805 Bar Sub-assy, Rear Stabilizer
48812 Bar, Stabilizer, Rear
48815R Bush, Stabilizer(FOR REAR)
48817R Cushion, Stabilizer(FOR REAR)
48817S Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR)
48823R Cover, Stabilizer Link(FOR REAR)
48836R Bracket, Rear Stabilizer End, RH
48837R Bracket, Rear Stabilizer End, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
