Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Support & Wind Guide

8 part groups · 2 illustrations

Illustrations

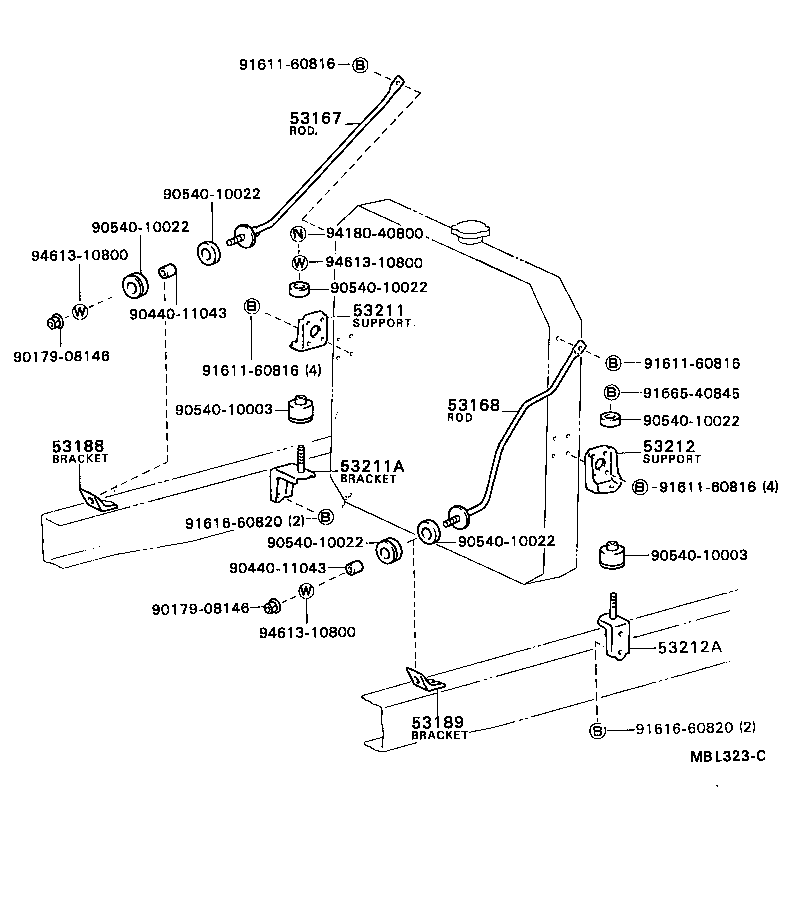

Figure MBD820C MBD820C 1982-05 → — Figure MBL323C MBL323C 1986-10 → —

Part groups

PNCDescription
53167 Rod, Radiator Brace, RH
53168 Rod, Radiator Brace, LH
53188 Bracket, Radiator Brace Rod, RH
53189 Bracket, Radiator Brace Rod, LH
53211 Support, Radiator, RH
53211A Bracket, Radiator Support, RH
53212 Support, Radiator, LH
53212A Bracket, Radiator Support, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
