Toyota Coaster
1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe
Discontinued model
Data version 1994-03
Instrument Panel & Glove Compartment

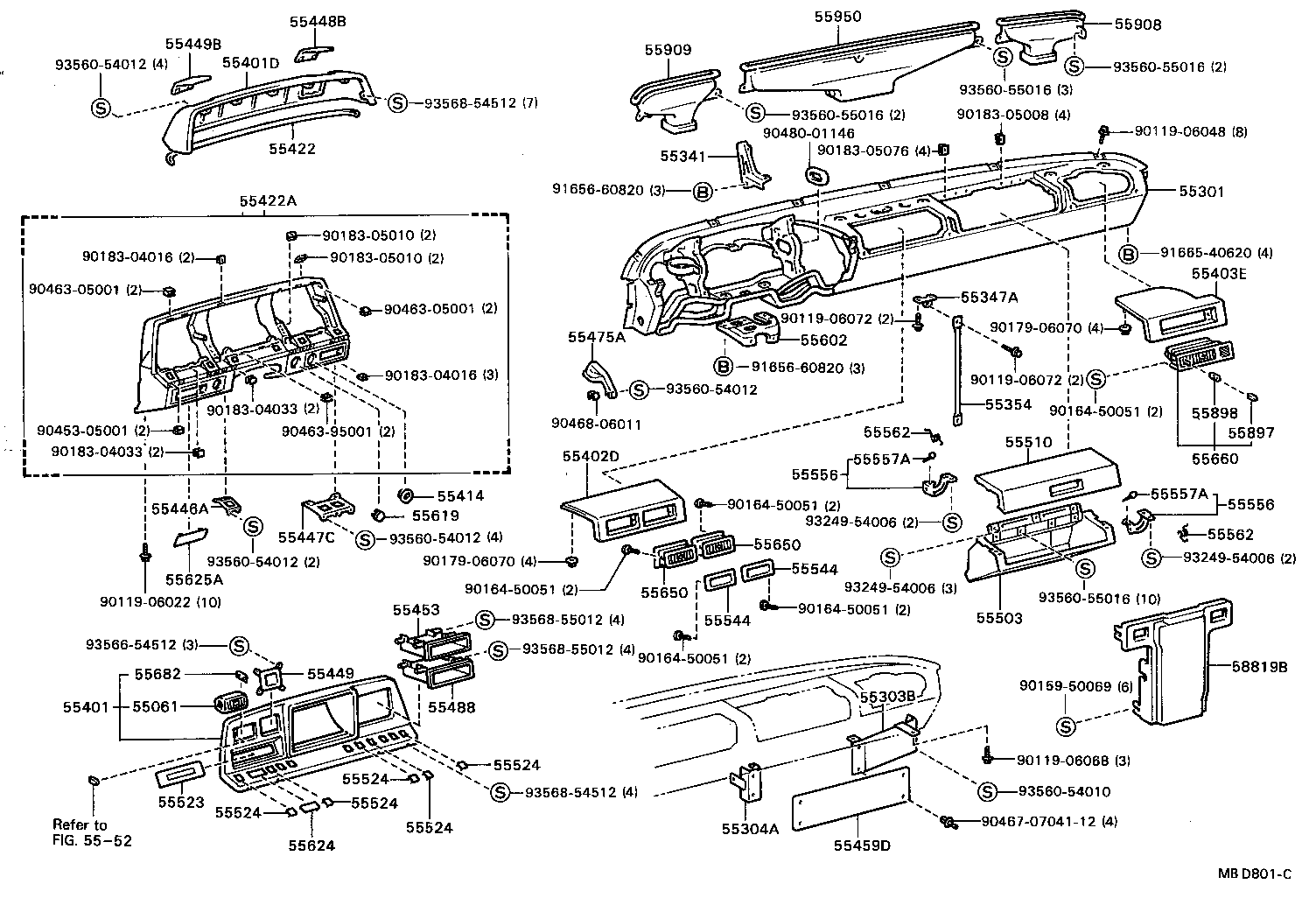

44 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55061 | Register Sub-assy, Instrument Panel, NO.1 |
| 55301 | Panel Sub-assy, Instrument |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55304A | Stay Sub-assy, Instrument Panel, Center |
| 55341 | Brace, Instrument Panel, NO.1 |
| 55347A | Bracket, Instrument Panel Brace Mounting, NO.1 |
| 55354 | Brace, Instrument Panel TO Floor |
| 55401 | Panel Sub-assy, Instrument Cluster Finish |
| 55401D | Panel, Instrument Cluster Finish, Upper |
| 55402D | Pad Sub-assy, Instrument Panel Safety, NO.1 |
| 55403E | Pad Sub-assy, Instrument Panel Safety, NO.2 |
| 55414 | Bezel, Cigar Lighter Hole |
| 55422 | Ornament, Instrument Panel Meter, Upper |
| 55422A | Panel, Instrument Cluster Finish, Lower |
| 55446A | Base, Switch Hole, NO.1 |
| 55447C | Base, Switch Hole, NO.2 |
| 55448B | Cover, Oil Reservoir Tank, RH |
| 55449 | Cover, Cooler Switch Hole |
| 55449B | Cover, Oil Reservoir Tank, LH |
| 55453 | Cover, Radio Tuner Opening |
| 55459D | Cover, Instrument, Lower LH |
| 55475A | Garnish, Instrument Cluster Finish Panel, NO.2 |
| 55488 | Cover, Stereo Opening |
| 55503 | Compartment Sub-assy, Glove |
| 55510 | Door Assy, Glove Compartment |
| 55523 | Cover, Heater Control Opening |
| 55524 | Cover, Switch Bace Hole |
| 55544 | Cover, Instrument Panel Register Hole |
| 55556 | Arm, Glove Compartment Door Check |
| 55557A | Cushion, Glove Compartment Door Check |
| 55562 | Spring, Glove Compartment Door Stop |
| 55602 | Stay Sub-assy, Steering Column, Upper |
| 55619 | Cover, Switch Hole |
| 55624 | Cover, Thermometer Hole |
| 55625A | Cover, Front Ash Receptacle |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55682 | Spring, Instrument Panel Register Support |
| 55897 | Knob, Air Damper Control Lever |
| 55898 | Retainer, Air Damper Control Lever Knob |
| 55908 | Nozzle Sub-assy, Defroster, RH |
| 55909 | Nozzle Sub-assy, Defroster, LH |
| 55950 | Nozzle Assy, Defroster |
| 58819B | Cover, Front Heater |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
