Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Ventilator

7 part groups · 2 illustrations

Illustrations

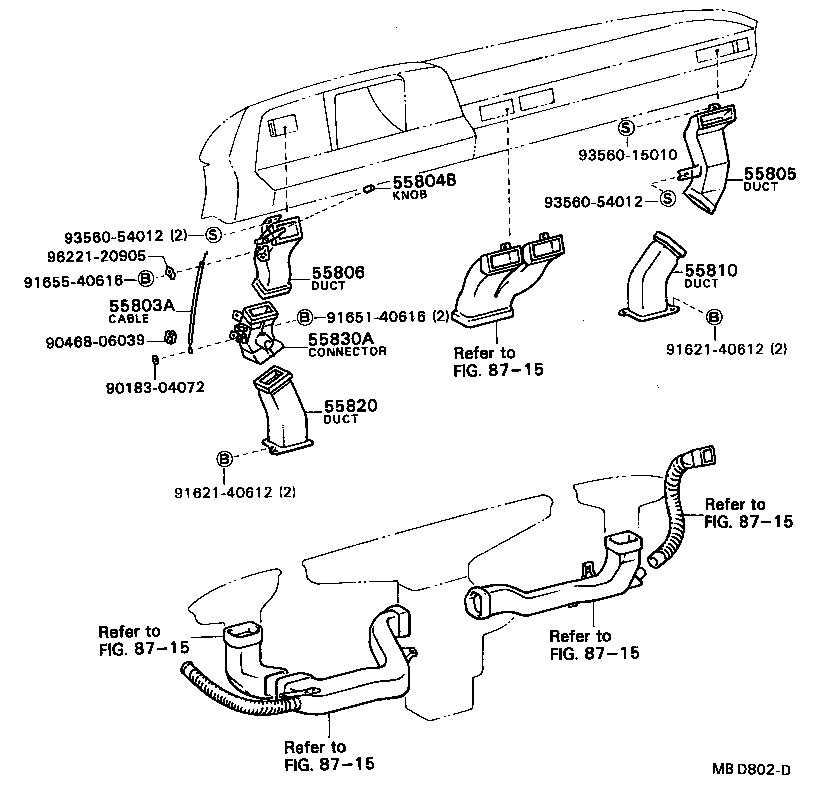

Figure MBD743D MBD743D 1982-05 → — Figure MBD802D MBD802D 1982-05 → —

Part groups

PNCDescription
55803A Cable Sub-assy, Front Side Ventilator Control
55804B Knob Sub-assy, Air Damper Control
55805 Duct Sub-assy, Side Ventilator, NO.2 RH
55806 Duct Sub-assy, Side Ventilator, NO.2 LH
55810 Duct Assy, Side Ventilator, RH
55820 Duct Assy, Side Ventilator, LH
55830A Connector Assy, Front Side Ventilator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
