Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

89 part groups · 12 illustrations

Illustrations

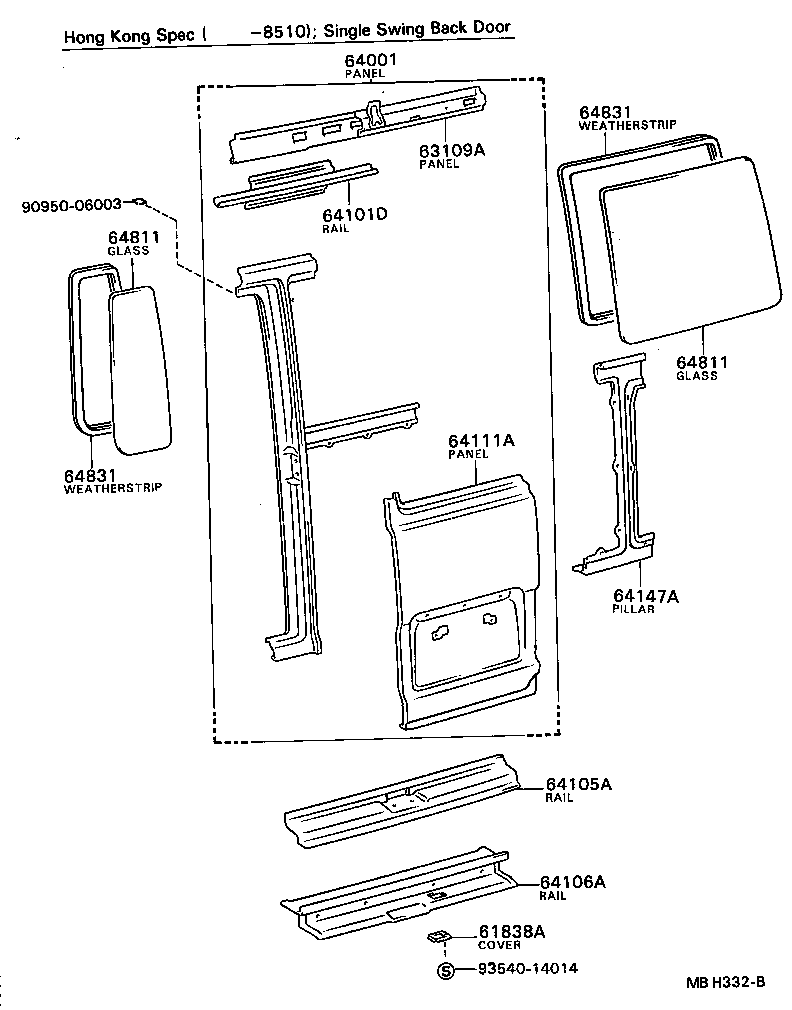

MBH332B 1984-05 → 1985-10

Part groups

PNC	Description
61838A	Cover, Rail Lower Back Inner Service Hole
63023B	Strength Sub-assy, Roof Panel, Center NO.2
63024B	Strength Sub-assy, Roof Panel, Center NO.4
63025C	Strength Sub-assy, Roof Panel, Center NO.6
63026C	Strength Sub-assy, Roof Panel, Center NO.7
63027A	Strength Sub-assy, Roof Panel, Center NO.8
63031B	Strength Sub-assy, Roof Panel, Center RH NO.1
63032B	Strength Sub-assy, Roof Panel, Center LH, NO.1
63033B	Bracket Sub-assy, Room Lamp, NO.1
63034B	Bracket Sub-assy, Room Lamp, NO.2
63035	Bracket, Room Lamp, NO.3
63036	Bracket Sub-assy, Room Lamp, NO.4
63037A	Bracket Sub-assy, Room Lamp, NO.5
63102A	Panel Sub-assy, Windshield Header
63103D	Reinforcement Sub-assy, Roof Panel, NO.3
63109A	Panel Sub-assy, Back Window, Upper
63111B	Panel, Roof, NO.1
63112A	Panel, Roof, NO.2
63113A	Panel, Roof, NO.3
63114B	Panel, Roof, NO.4
63115A	Panel, Roof, NO.5
63116A	Panel, Roof, NO.6
63141G	Reinforcement, Roof Panel, NO.1
63148A	Reinforcement, Roof Panel, NO.7
63149D	Reinforcement, Roof Panel, NO.8
63191	Retainer, Roof Panel
63211D	Bracket, Roof Reinforcement, Inner, NO.1
63214G	Bracket, Roof Reinforcement, Inner, NO.4
63216C	Bracket, Roof Reinforcement, Inner, NO.6
63231	Bracket, Room Lamp
63235B	Bracket, Room Speaker
63251D	Strength, Roof Panel, Center NO.1
63252G	Strength, Roof Panel, Center NO.2
63253H	Strength, Roof Panel, Center NO.3
63255E	Strength, Roof Panel, Center NO.5
63256E	Strength, Roof Panel, Center NO.6
63257D	Strength, Roof Panel, Center NO.7 RH
63258F	Strength, Roof Panel, Center NO.8
63259E	Strength, Roof Panel, Center NO.9
63262C	Strength, Roof Panel, Center NO.2 LH
63264C	Strength, Roof Panel, Center NO.4 LH
63266B	Strength, Roof Panel, Center NO.6 LH
63271C	Strength, Roof Panel, NO.1 RH
63272A	Strength, Roof Panel, NO.2 RH
63273H	Strength, Roof Panel, NO.3
63274B	Strength, Roof Panel, NO.4 RH
63275B	Strength, Roof Panel, NO.5
63276B	Strength, Roof Panel, NO.6 RH
63277F	Strength, Roof Panel, NO.7 RH
63279E	Strength, Roof Panel, NO.9 RH
63281E	Strength, Roof Panel, NO.1 LH
63282E	Strength, Roof Panel, NO.2 LH
63284B	Strength, Roof Panel, NO.4 LH
63286D	Strength, Roof Panel, NO.6 LH
63287C	Strength, Roof Panel, NO.7 LH
63289A	Strength, Roof Panel, NO.9 LH
63291C	Strength, Roof Panel, NO.10
63293C	Strength, Roof Panel, NO.11 RH
63294C	Strength, Roof Panel, NO.11 LH
63295C	Strength, Roof Panel, NO.12 RH
63296C	Strength, Roof Panel, NO.12 LH
63401A	Frame Sub-assy, Roof Rack
63403	Deck Sub-assy, Roof Rack
63427A	Bracket, Room Rack Flame
63486	Cushion, Roof Rack Leg
63507	Frame Sub-assy, Guide Indication Trim
63508	Board Assy, Guide Indication Trim A
63702	Bracket Sub-assy, Roof Lining Rear
63705	Ladder Sub-assy, Rack
63711	Bracket, Roof Lining, Front RH
63721A	Bracket, Roof Lining, Front LH
63768	Retainer, Roof Panel, NO.2
63770	Step Assy, Rack
63961	Cover, Roof Guide Indication
63965	Glass, Roof Guide Indication
64001	Panel Sub-assy, Back
64013A	Rail Sub-assy, Back
64014A	Rail Sub-assy, Upper Back
64101D	Rail Sub-assy, Upper Back, Outer
64105A	Rail Sub-assy, Lower Back, Outer
64106A	Rail Sub-assy, Lower Back, Inner
64111A	Panel, Back
64147A	Pillar, Lower Back, Inner RH
64811	Glass, Back Window
64831	Weatherstrip, Back Window Glass
64834B	Weatherstrip, Back Window Glass, Inner
64855	Handle, Back Window Glass
68163D	Weatherstrip, Center Door Glass, Outer
68173A	Weatherstrip, Center Door Glass, Inner

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
