Toyota Coaster
1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe
Discontinued model
Data version 1994-03

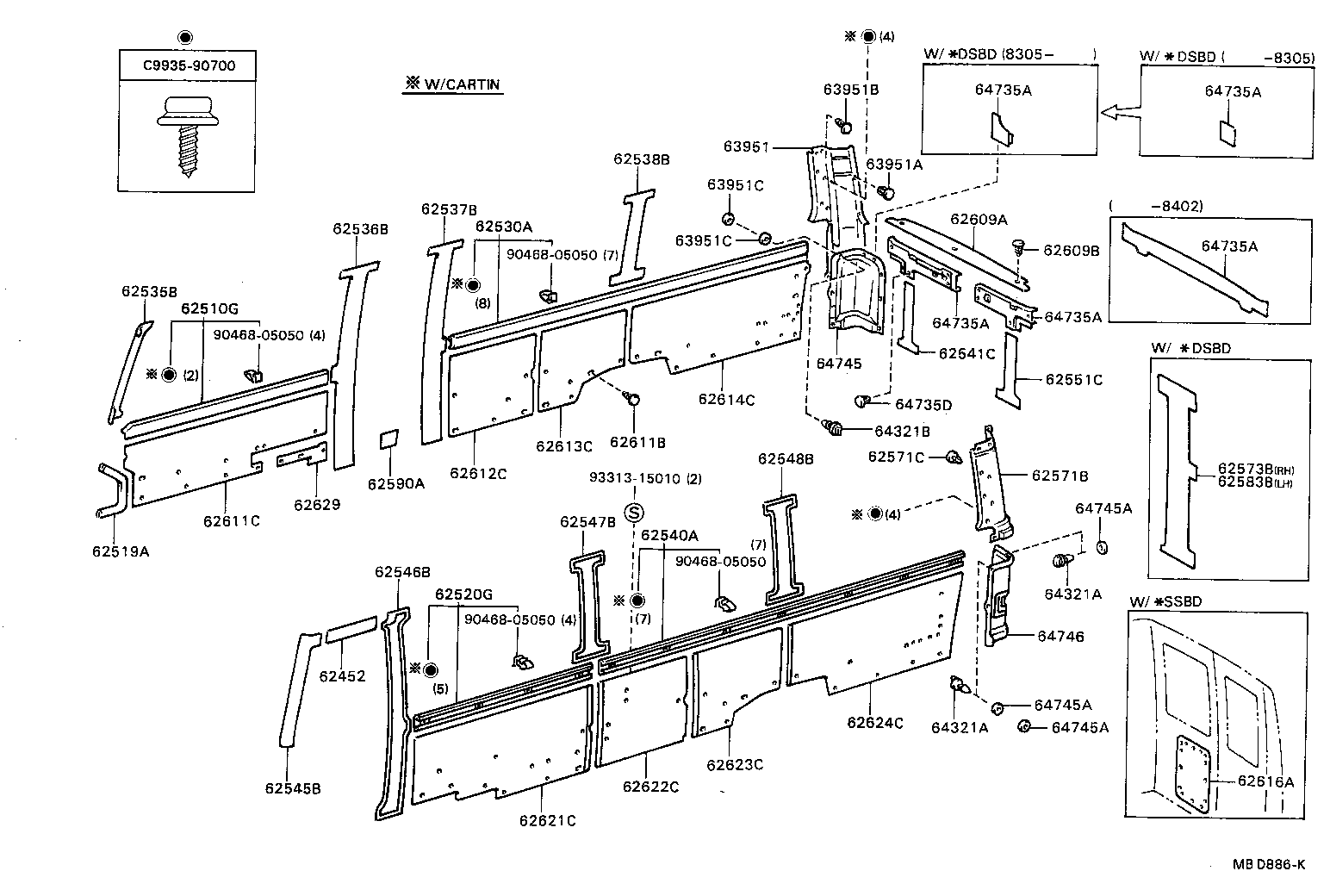

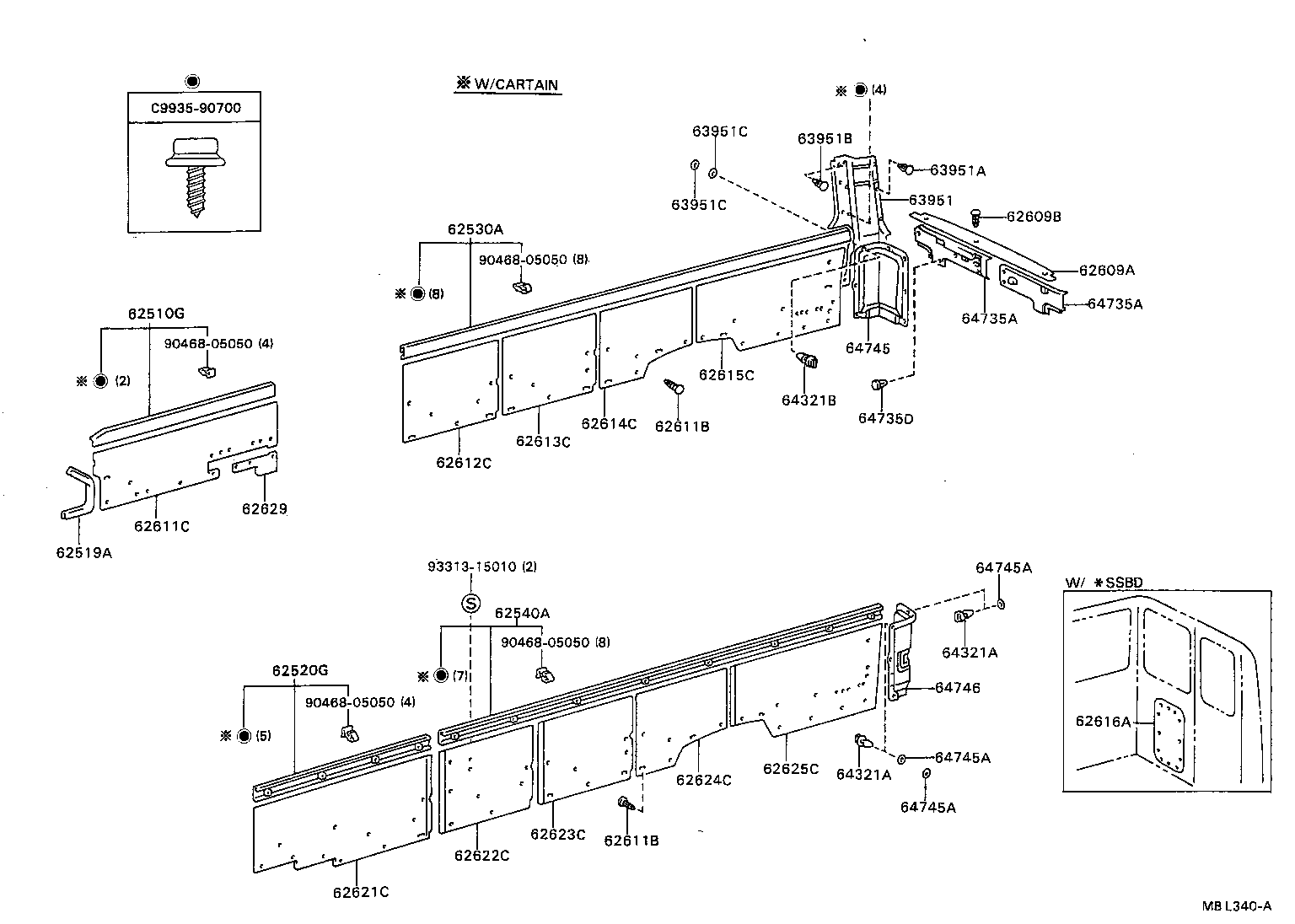

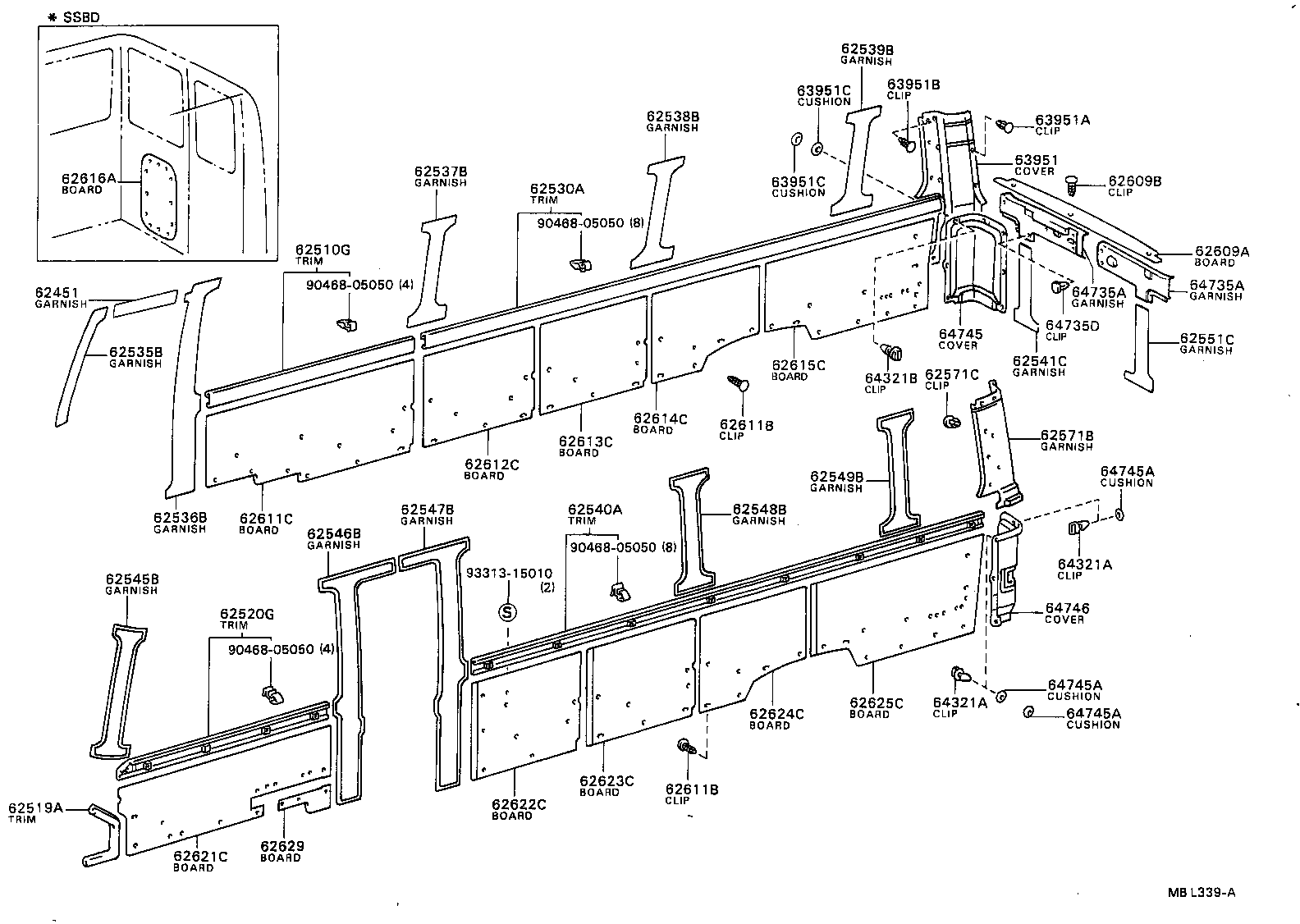

Inside Trim Board
50 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 62451 | Garnish, Roof Side Inner, RH |
| 62452 | Garnish, Roof Side Inner, LH |
| 62510G | Trim Assy, Side NO.1, RH |
| 62519A | Trim, Side Lower Window |
| 62520G | Trim Assy, Side NO.1, LH |
| 62530A | Trim Assy, Side NO.2, RH |
| 62535B | Garnish, Pillar NO.1, RH |
| 62536B | Garnish, Pillar NO.2, RH |
| 62537B | Garnish, Pillar NO.3, RH |
| 62538B | Garnish, Pillar NO.4, RH |
| 62539B | Garnish, Pillar NO.5, RH |
| 62540A | Trim Assy, Side NO.2, LH |
| 62541C | Garnish, Pillar NO.6, RH |
| 62545B | Garnish, Pillar NO.1, LH |
| 62546B | Garnish, Pillar NO.2, LH |
| 62547B | Garnish, Pillar NO.3, LH |
| 62548B | Garnish, Pillar NO.4, LH |
| 62549B | Garnish, Pillar NO.5, LH |
| 62551C | Garnish, Pillar NO.6, LH |
| 62571B | Garnish, NO.9 Pillar, LH |
| 62571C | Clip (FOR NO.9 PILLAR GARNISH) |
| 62573B | Garnish, Pillar, NO.11 RH |
| 62583B | Garnish, Pillar, NO.11 LH |
| 62590A | Garnish Assy, Center Door Lower Pillar |
| 62609A | Board Sub-assy, Luggage Partition |
| 62609B | Clip (FOR LUGGAGE PARTITION BOARD) |
| 62611B | Clip (FOR SIDE TRIM BOARD) |
| 62611C | Board, Side Trim NO.1, RH |
| 62612C | Board, Side Trim NO.2, RH |
| 62613C | Board, Side Trim NO.3, RH |
| 62614C | Board, Side Trim NO.4, RH |
| 62615C | Board, Side Trim NO.5, RH |
| 62616A | Board, Side Trim NO.6 |
| 62621C | Board, Side Trim NO.1, LH |
| 62622C | Board, Side Trim NO.2, LH |
| 62623C | Board, Side Trim NO.3, LH |
| 62624C | Board, Side Trim NO.4, LH |
| 62625C | Board, Side Trim NO.5, LH |
| 62629 | Board, Side Trim, Lower NO.1 A |
| 63951 | Cover, Cooler Pipe |
| 63951A | Clip(FOR COOLER PIPE COVER) NO.1 |
| 63951B | Clip(FOR COOLER PIPE COVER) NO.2 |
| 63951C | Cushion(FOR COOLER PIPE COVER) |
| 64321A | Clip, Rear Combination Cover |
| 64321B | Clip, Cooler Pipe Cover |
| 64735A | Garnish, Center Back Rail Inner |
| 64735D | Clip(FOR CENTER BACK RAIL INNER GARNISH) |
| 64745 | Cover, Rear Combination Lamp Service, RH |
| 64745A | Cushion(FOR REAR COMBINATION LAMP SERVICE COVER) |
| 64746 | Cover, Rear Combination Lamp Service, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
