Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

57 part groups · 13 illustrations

Illustrations

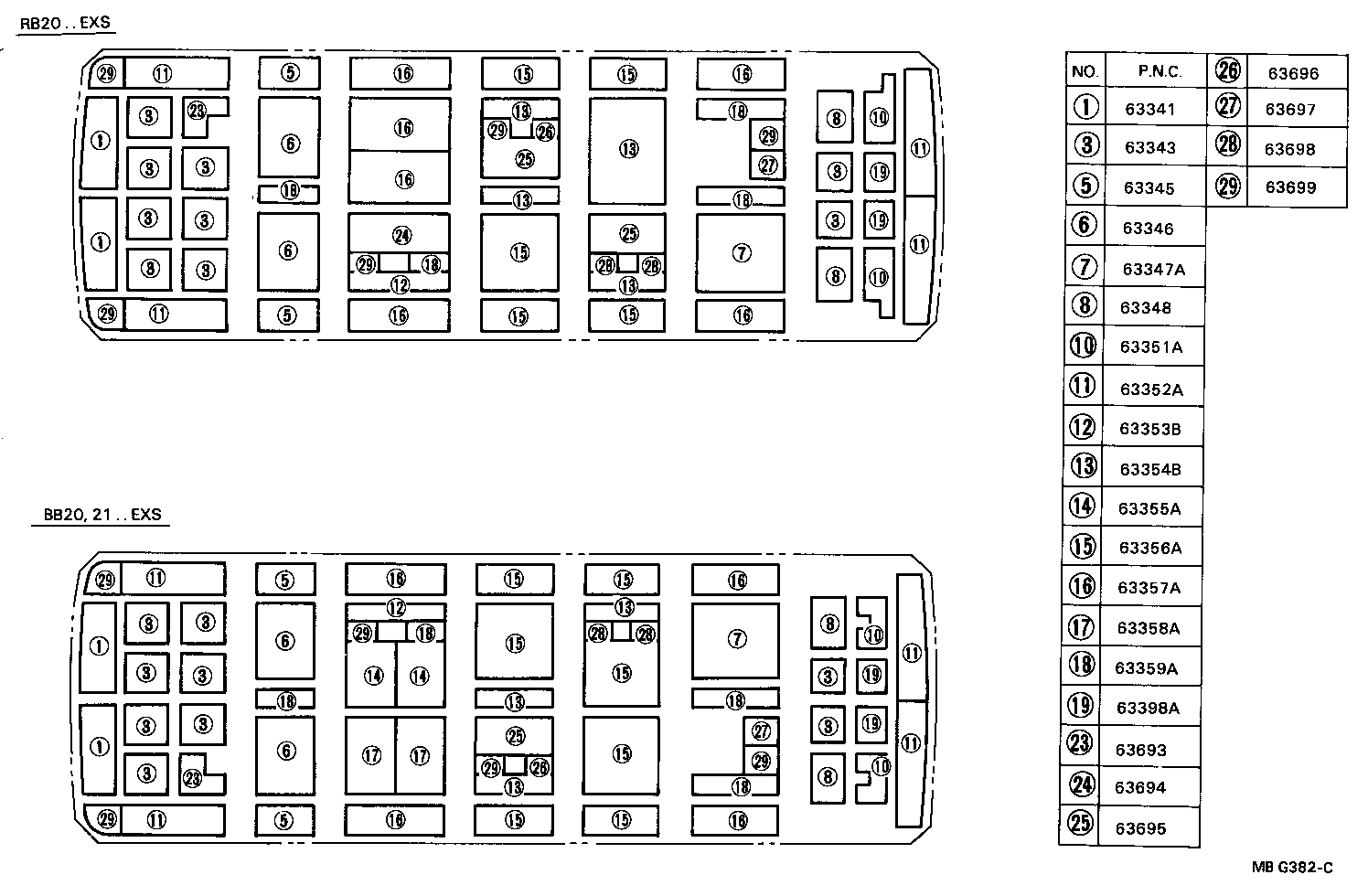

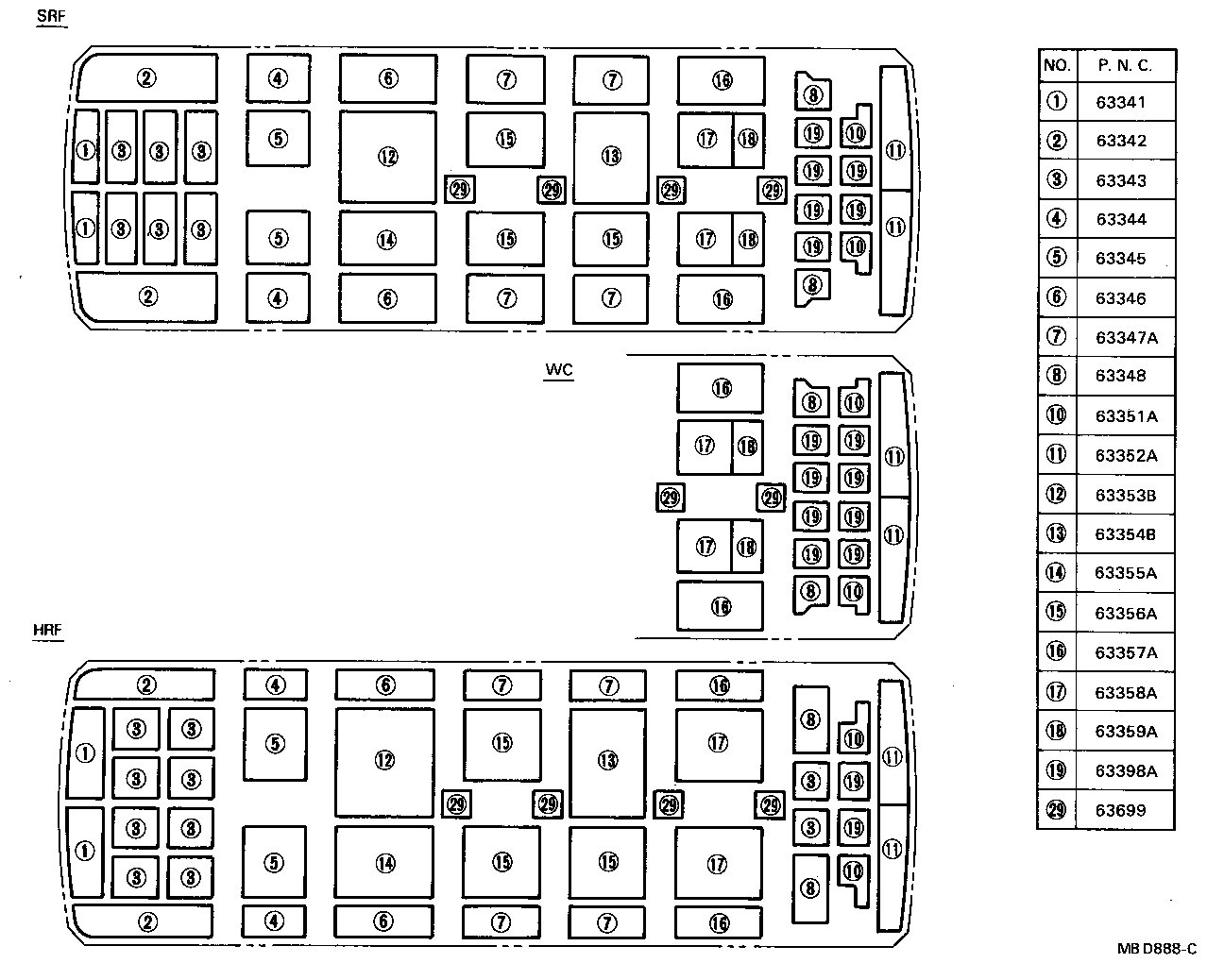

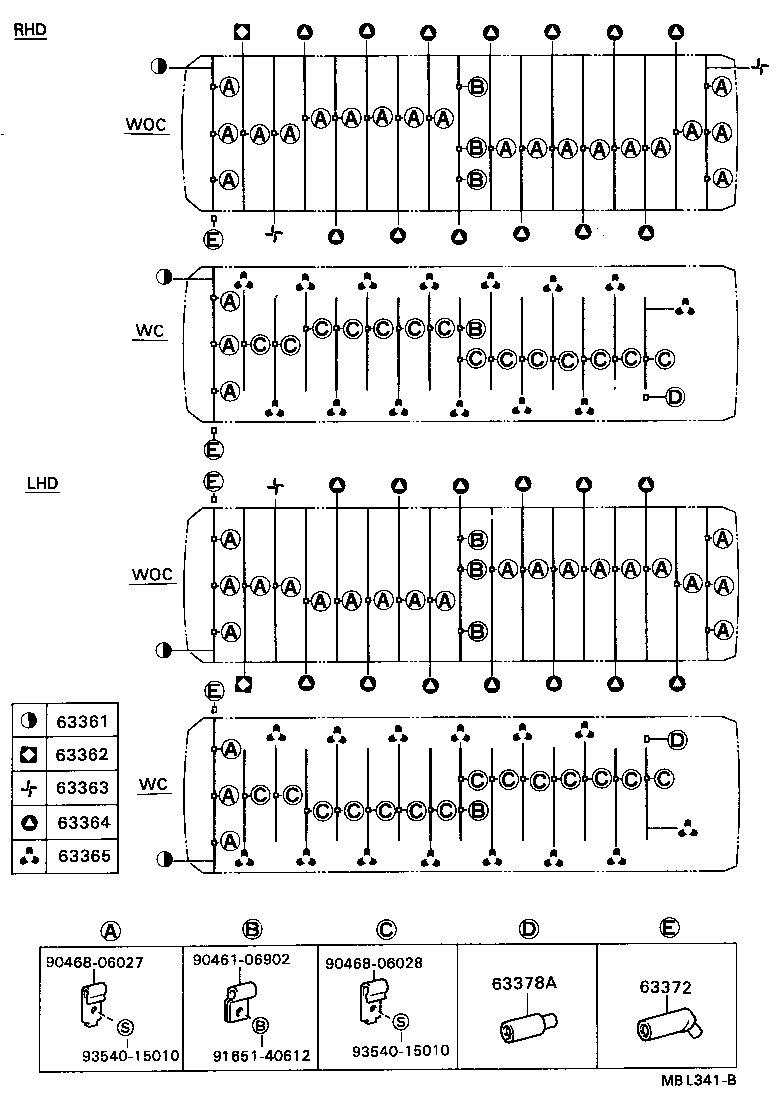

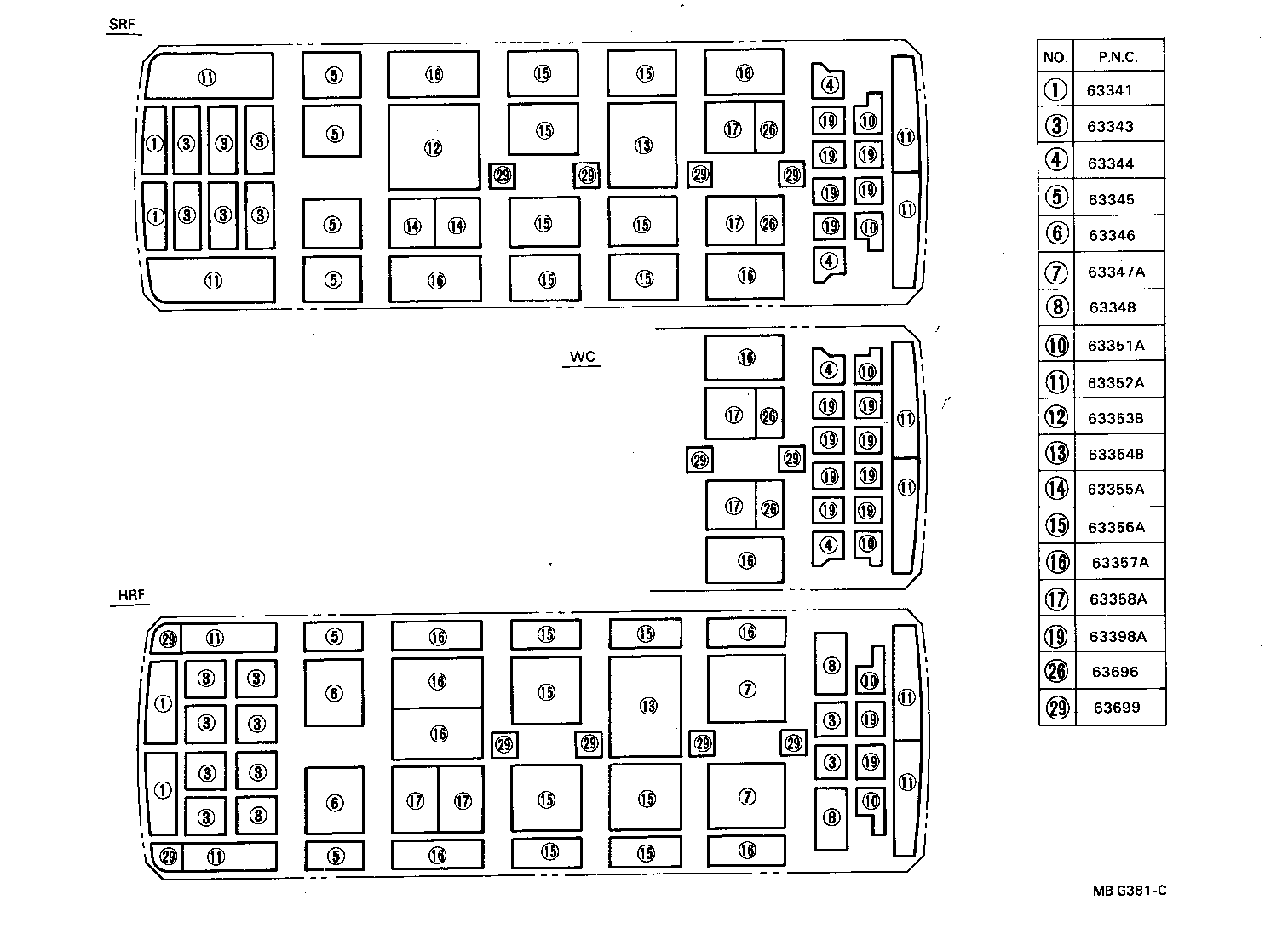

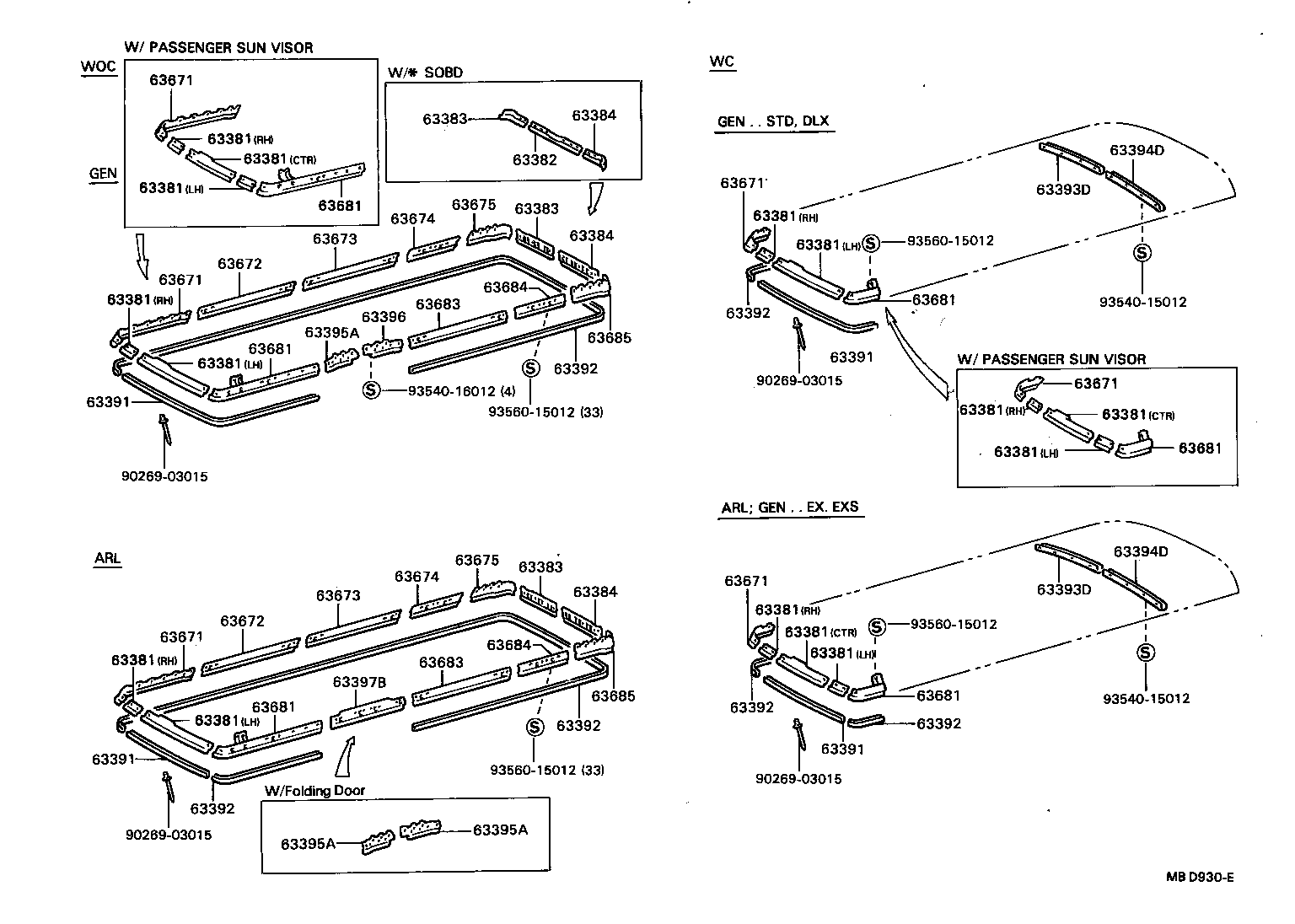

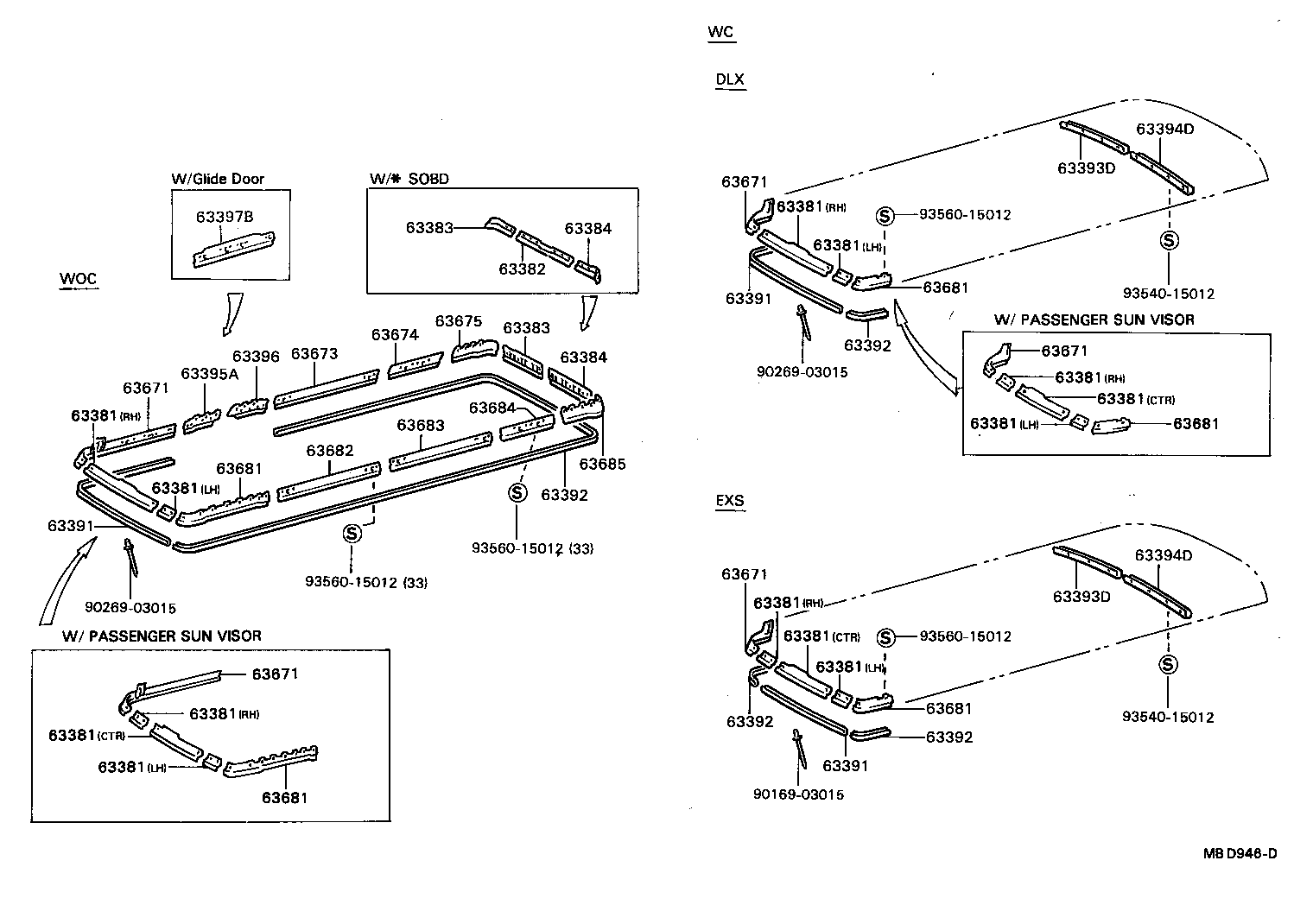

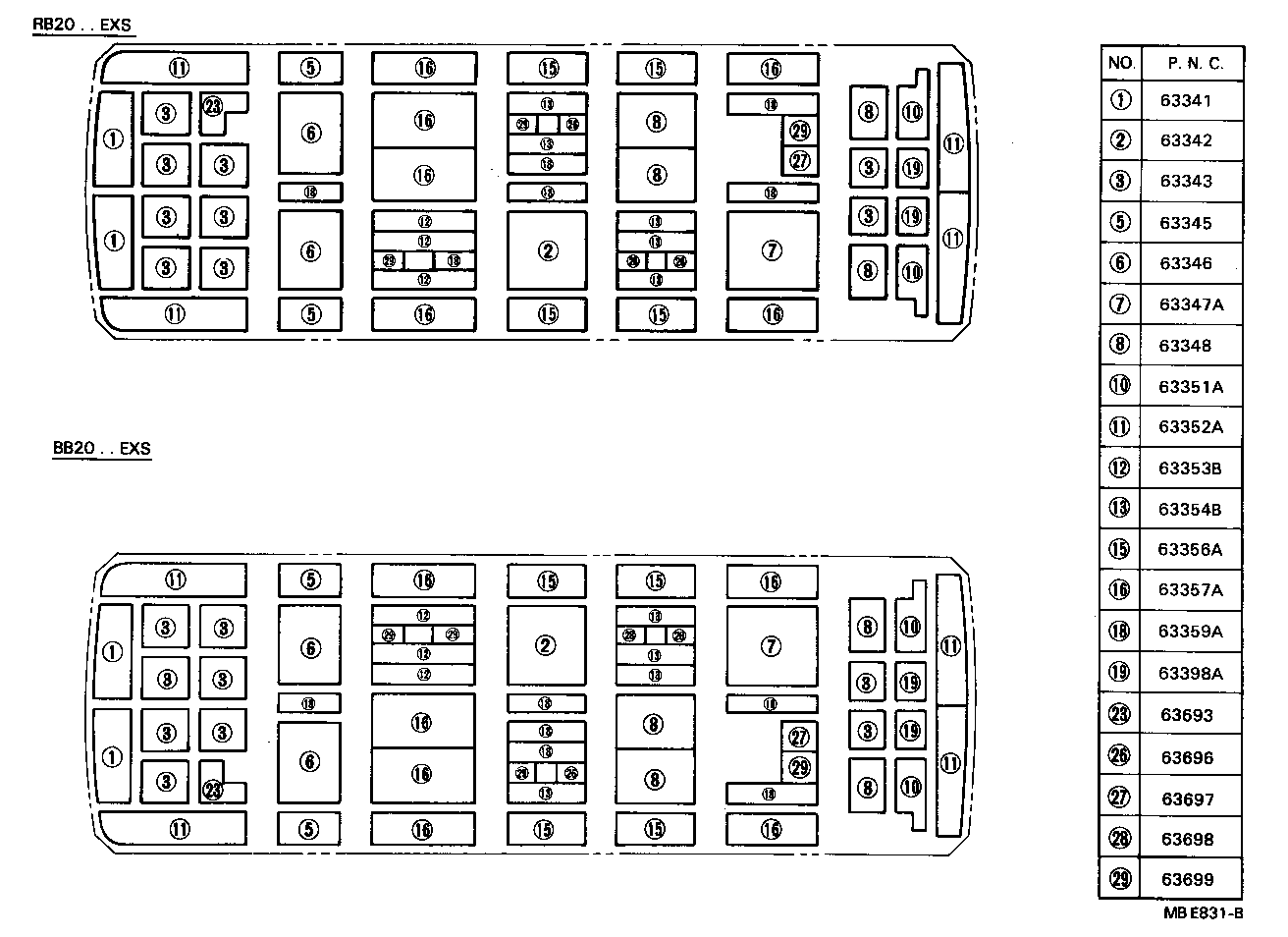

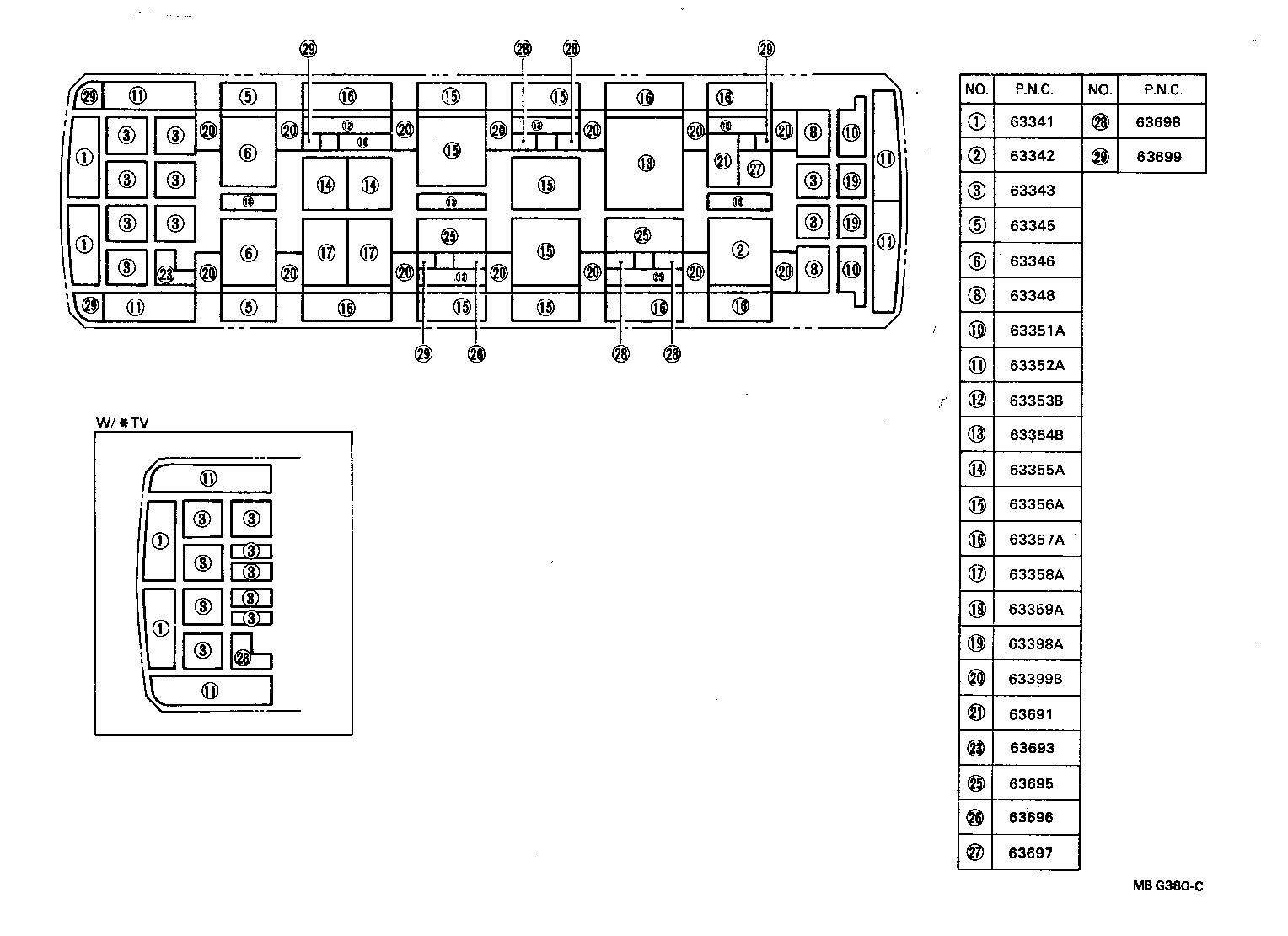

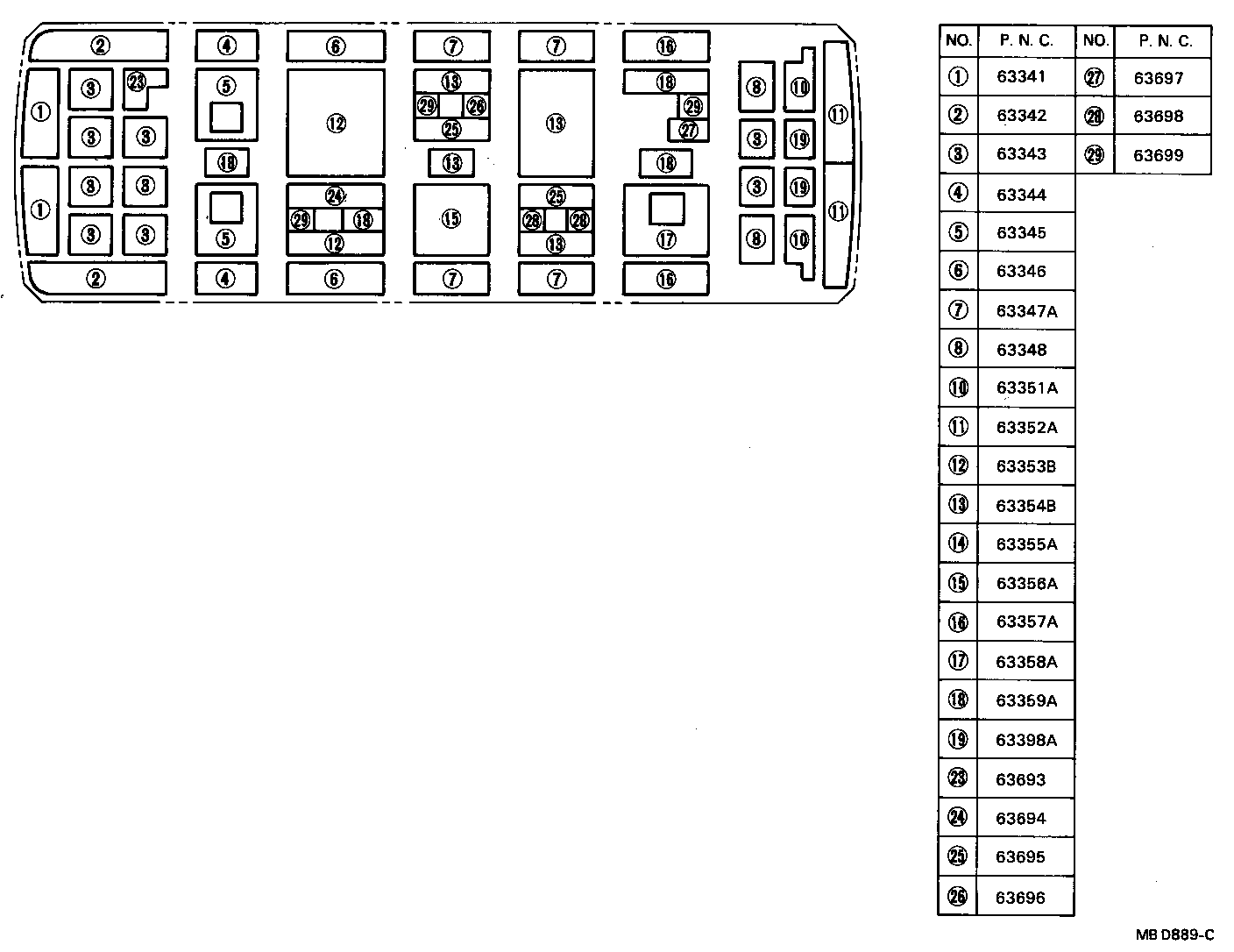

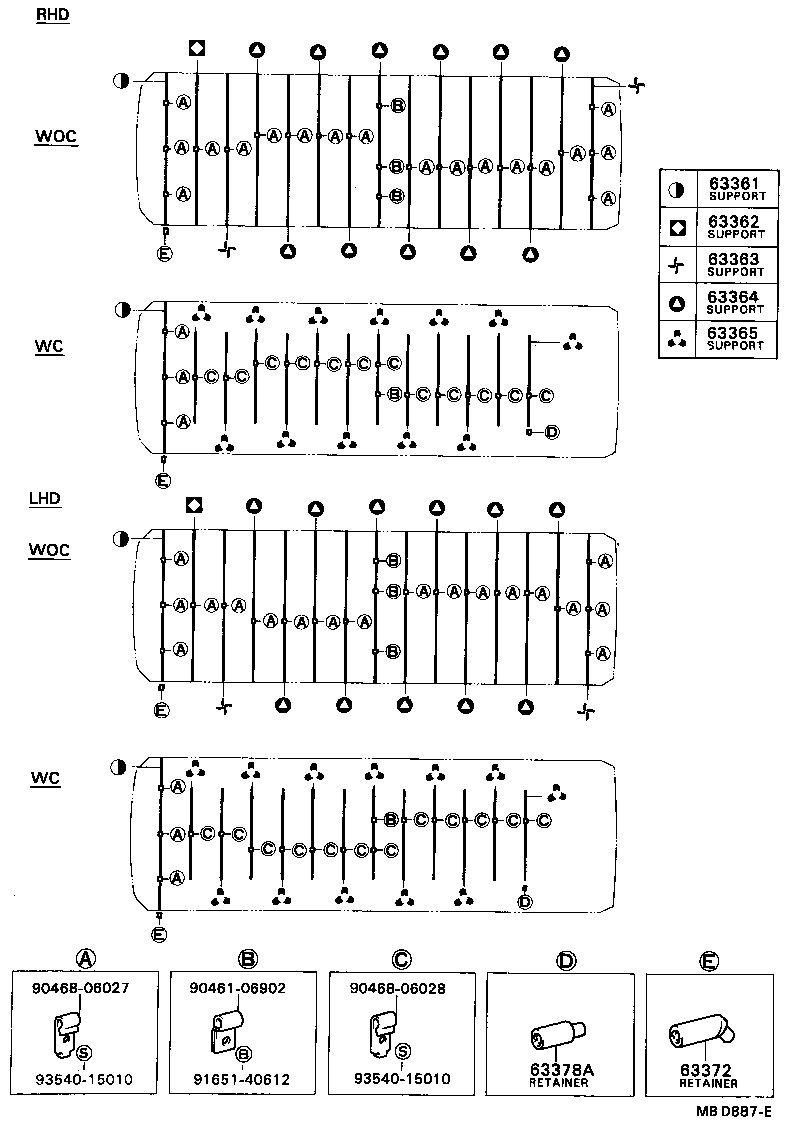

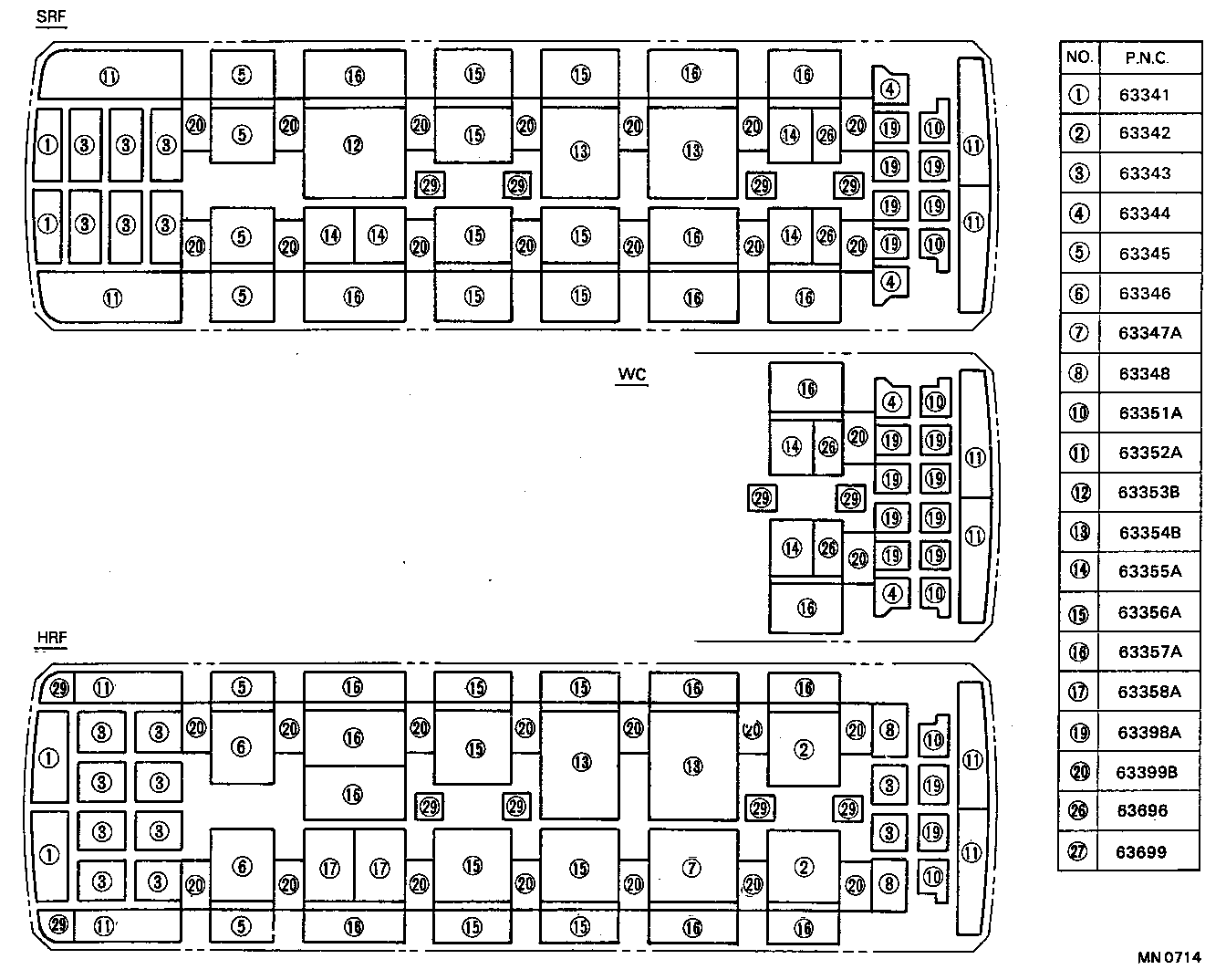

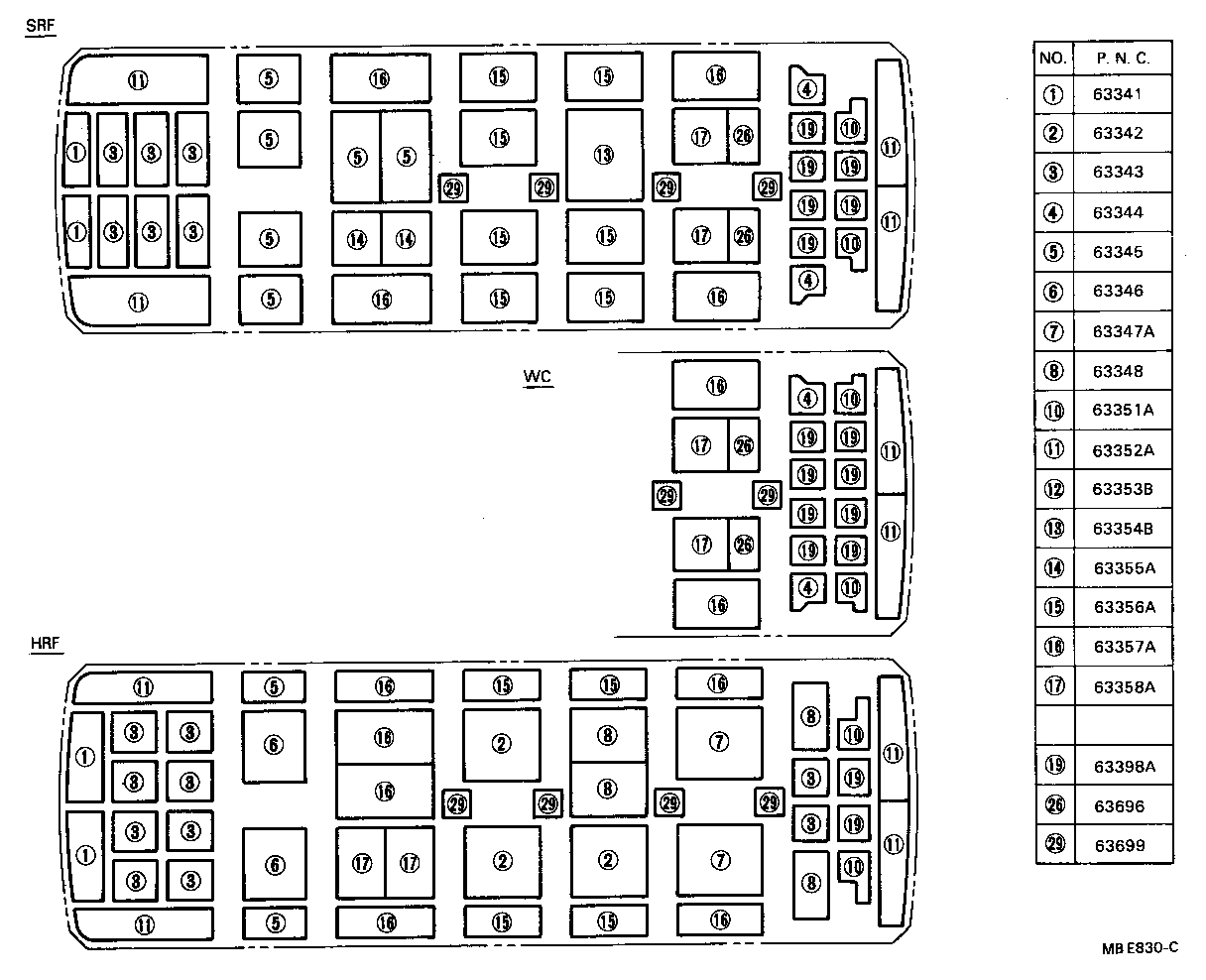

Figure MBH333B MBH333B 1982-05 → — Figure MBD887E MBD887E 1982-05 → — Figure MBL341B MBL341B 1986-10 → — Figure MBD888C MBD888C 1982-05 → 1982-09 Figure MBE830C MBE830C 1982-09 → 1983-06 Figure MBG381C MBG381C 1983-06 → — Figure MBD889C MBD889C 1982-05 → 1982-09 Figure MBE831B MBE831B 1982-09 → 1983-06 Figure MBG382C MBG382C 1983-06 → — Figure MN0714 MN0714 1986-10 → — Figure MBG380C MBG380C 1986-10 → — Figure MBD930E MBD930E 1982-05 → — Figure MBD946D MBD946D 1982-05 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63345 Pad, Roof Silencer, NO.5
63346 Pad, Roof Silencer, NO.6
63347A Pad, Roof Silencer, NO.7
63348 Pad, Roof Silencer, NO.8
63351A Pad, Roof Silencer, NO.10
63352A Pad, Roof Silencer, NO.11
63353B Pad, Roof Silencer, NO.12
63354B Pad, Roof Silencer, NO.13
63355A Pad, Roof Silencer, NO.14
63356A Pad, Roof Silencer, NO.15
63357A Pad, Roof Silencer, NO.16
63358A Pad, Roof Silencer, NO.17
63359A Pad, Roof Silencer, NO.18
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63365 Support, Roof Headlining, NO.5
63372 Retainer, Headlining Support
63378A Retainer, Roof Headlining Support, NO.2
63381 Retainer, Headlining, Front
63382 Retainer, Headlining, Rear Center
63383 Retainer, Roof Headlining, Rear RH
63384 Retainer, Roof Headlining, Rear LH
63391 Trim, Roof Headlining, Front
63392 Trim, Roof Headlining, Rear
63393D Retainer, Roof Headlining Welt, NO.6 RH
63394D Retainer, Roof Headlining Welt, NO.6 LH
63395A Retainer, Roof Headlining Center Door, Front
63396 Retainer, Roof Headlining Center Door, Rear
63397B Retainer, Roof Headlining Center Door, Center
63398A Pad, Roof Silencer, NO.19
63399B Pad, Roof Silencer, NO.20
63671 Retainer, Roof Headlining, NO.1 RH
63672 Retainer, Roof Headlining, NO.2 RH
63673 Retainer, Roof Headlining, NO.3 RH
63674 Retainer, Roof Headlining, NO.4 RH
63675 Retainer, Roof Headlining, NO.5 RH
63681 Retainer, Roof Headlining, NO.1 LH
63682 Retainer, Roof Headlining, NO.2 LH
63683 Retainer, Roof Headlining, NO.3 LH
63684 Retainer, Roof Headlining, NO.4 LH
63685 Retainer, Roof Headlining, NO.5 LH
63691 Pad, Roof Silencer, NO.21
63693 Pad, Roof Silencer, NO.23
63694 Pad, Roof Silencer, NO.24
63695 Pad, Roof Silencer, NO.25
63696 Pad, Roof Silencer, NO.26
63697 Pad, Roof Silencer, NO.27
63698 Pad, Roof Silencer, NO.28
63699 Pad, Roof Silencer, NO.29
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
