Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Room Curtain & Room Rack

22 part groups · 9 illustrations

Illustrations

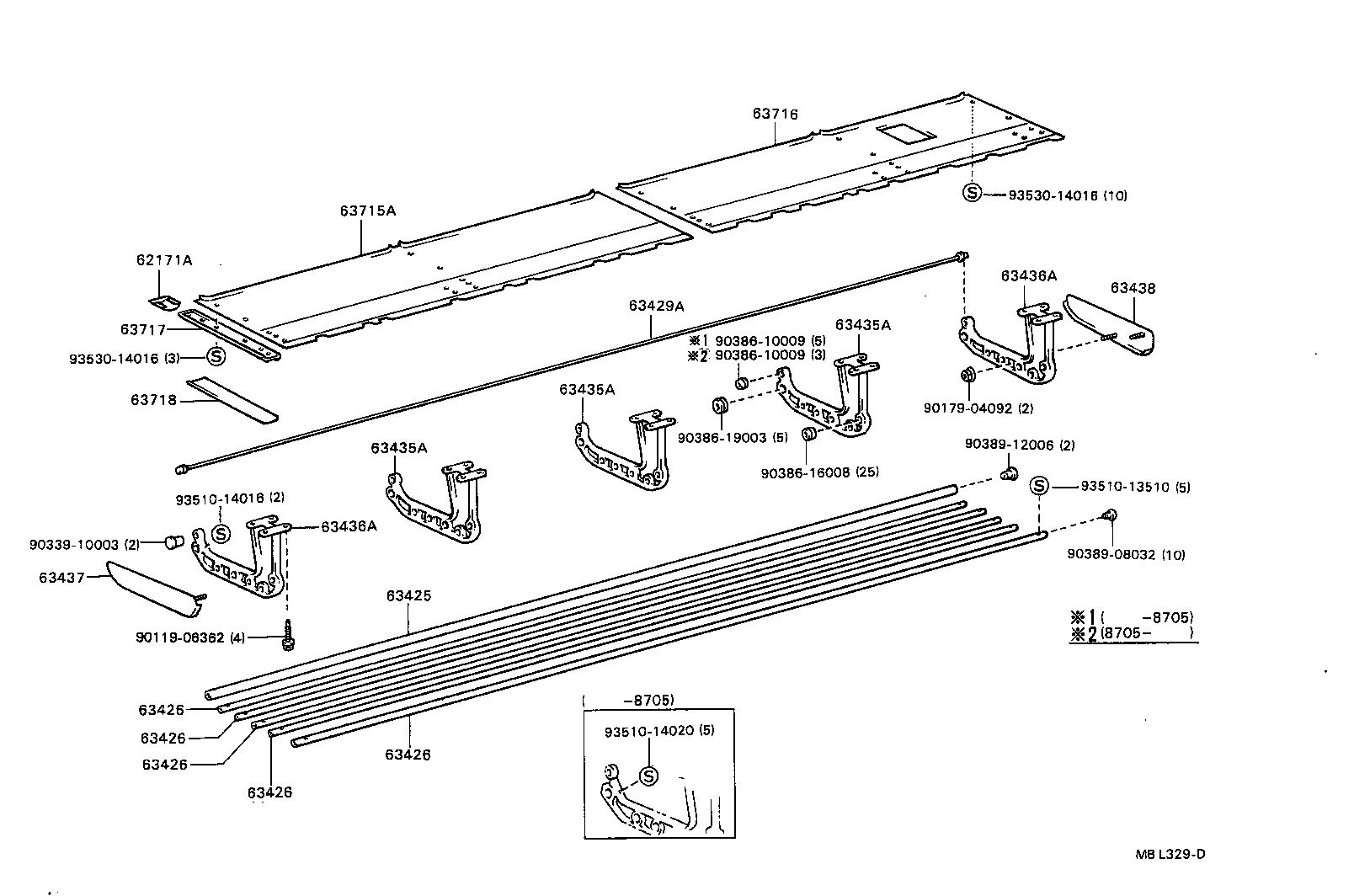

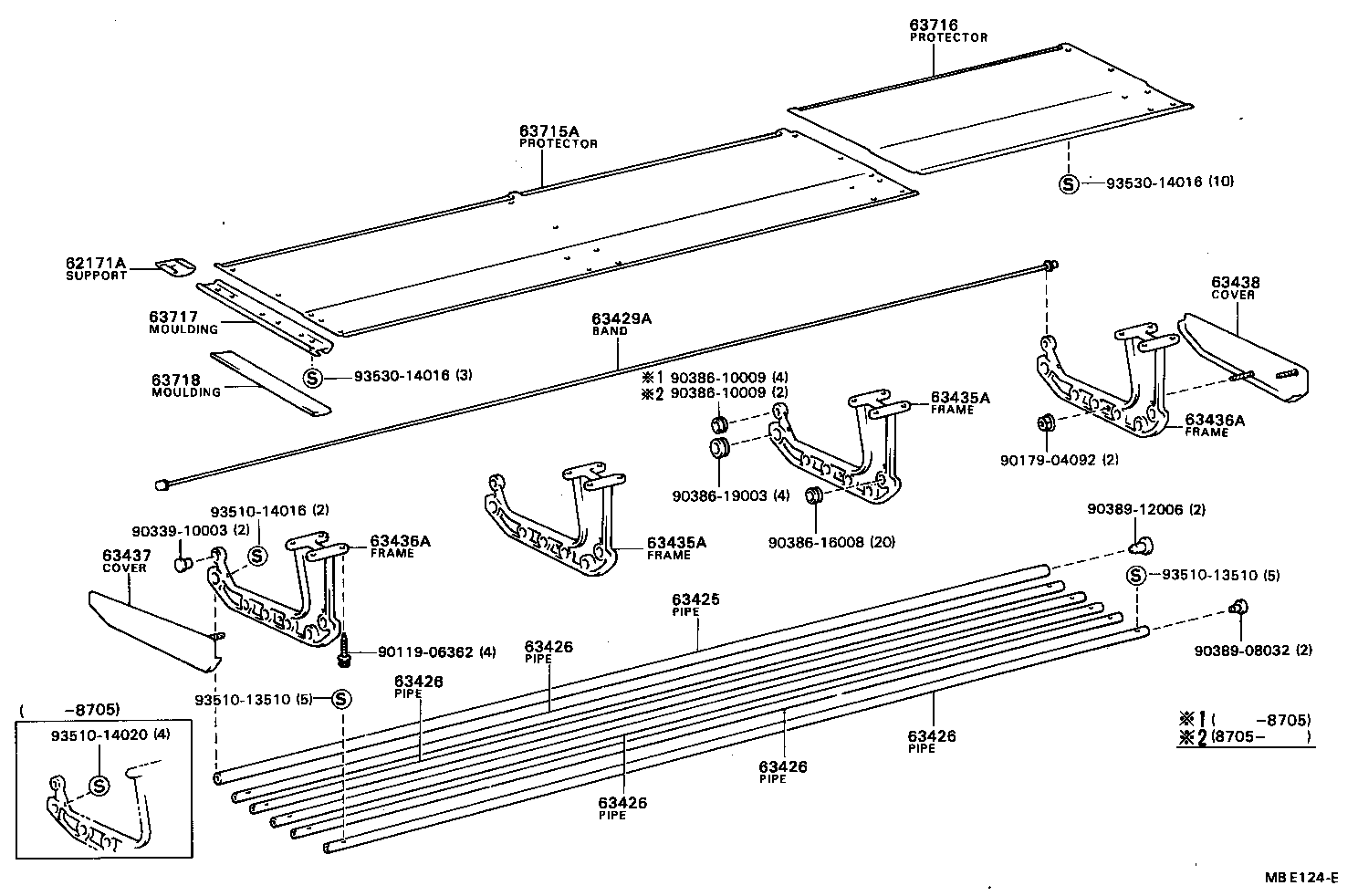

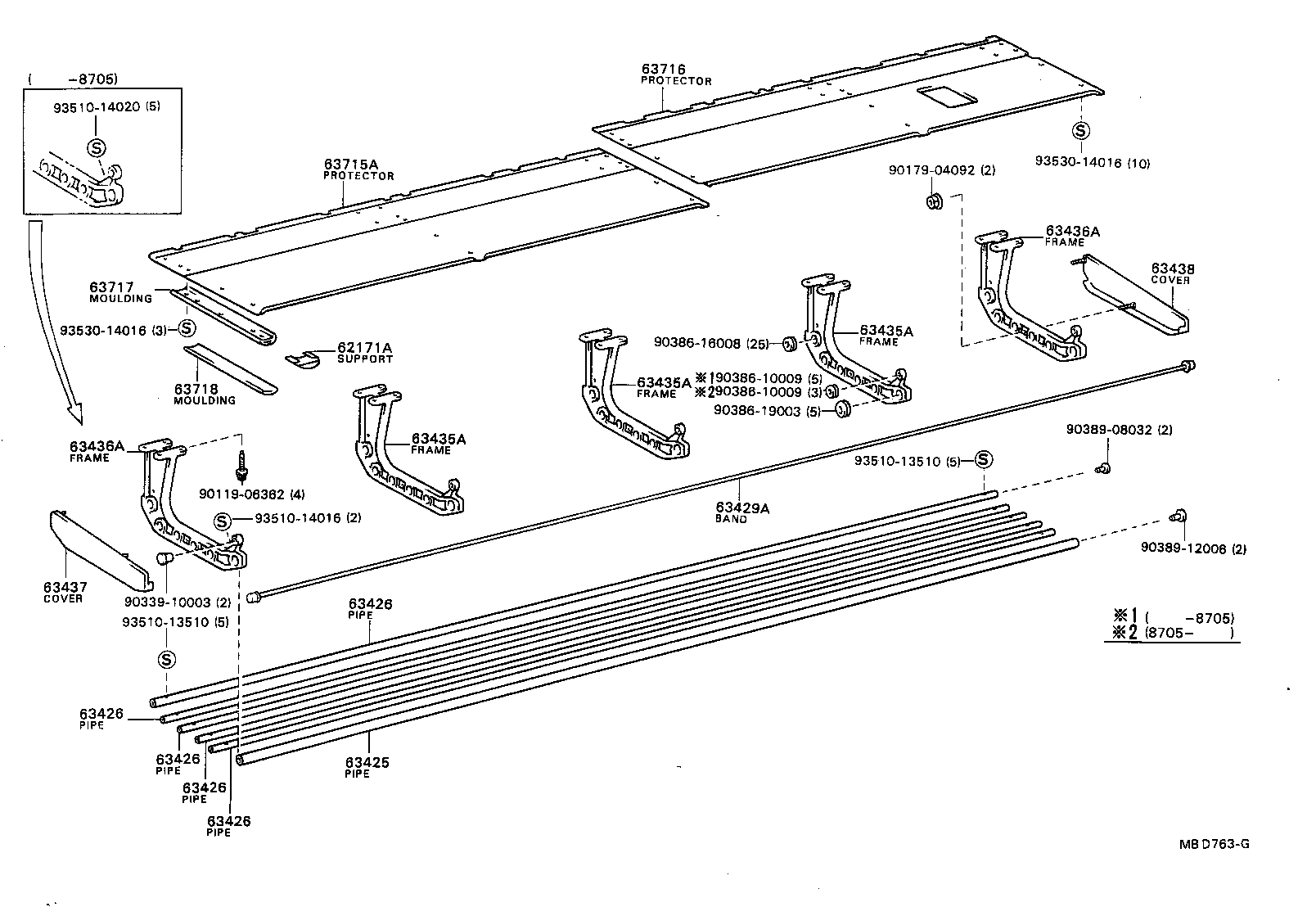

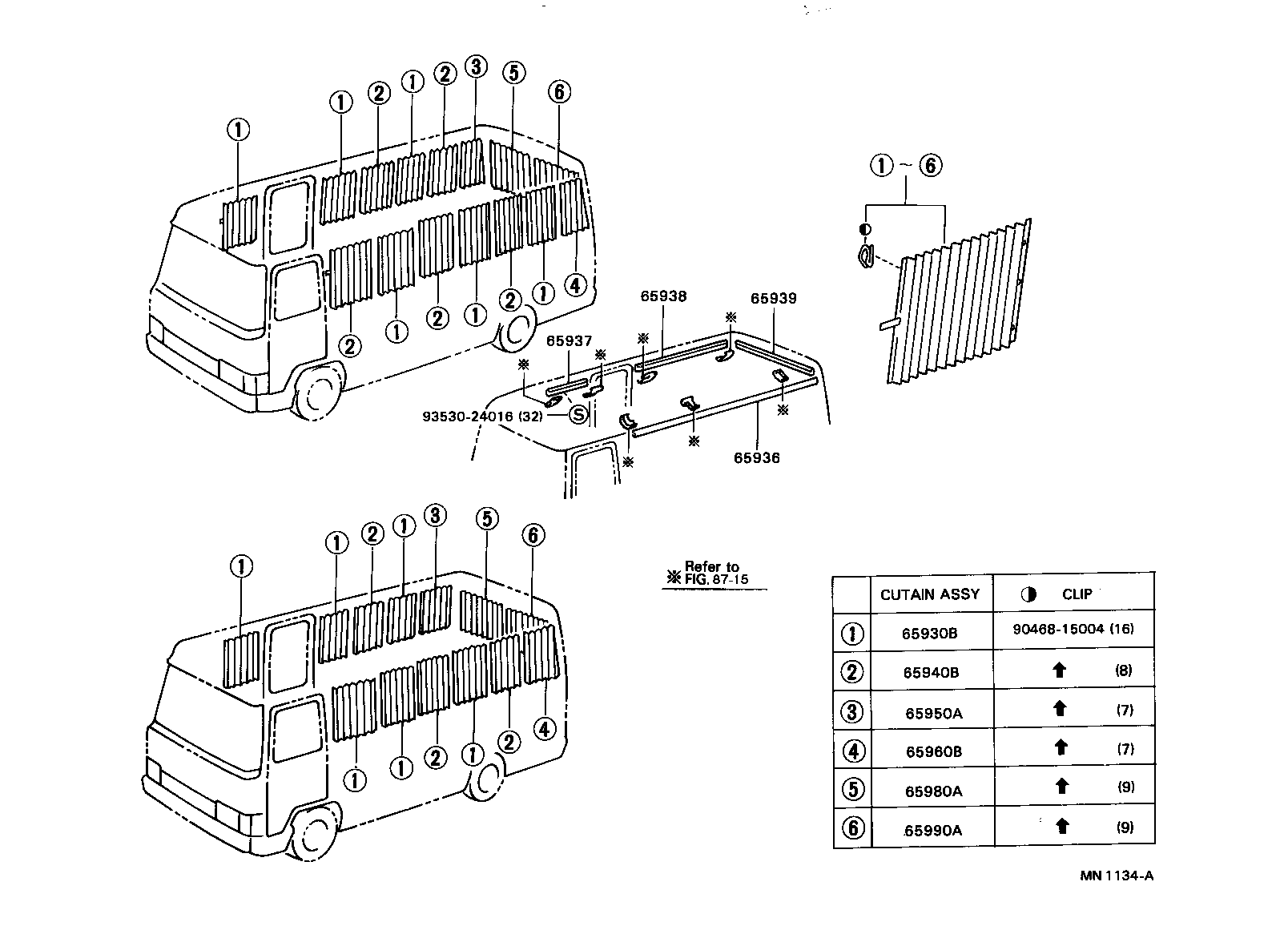

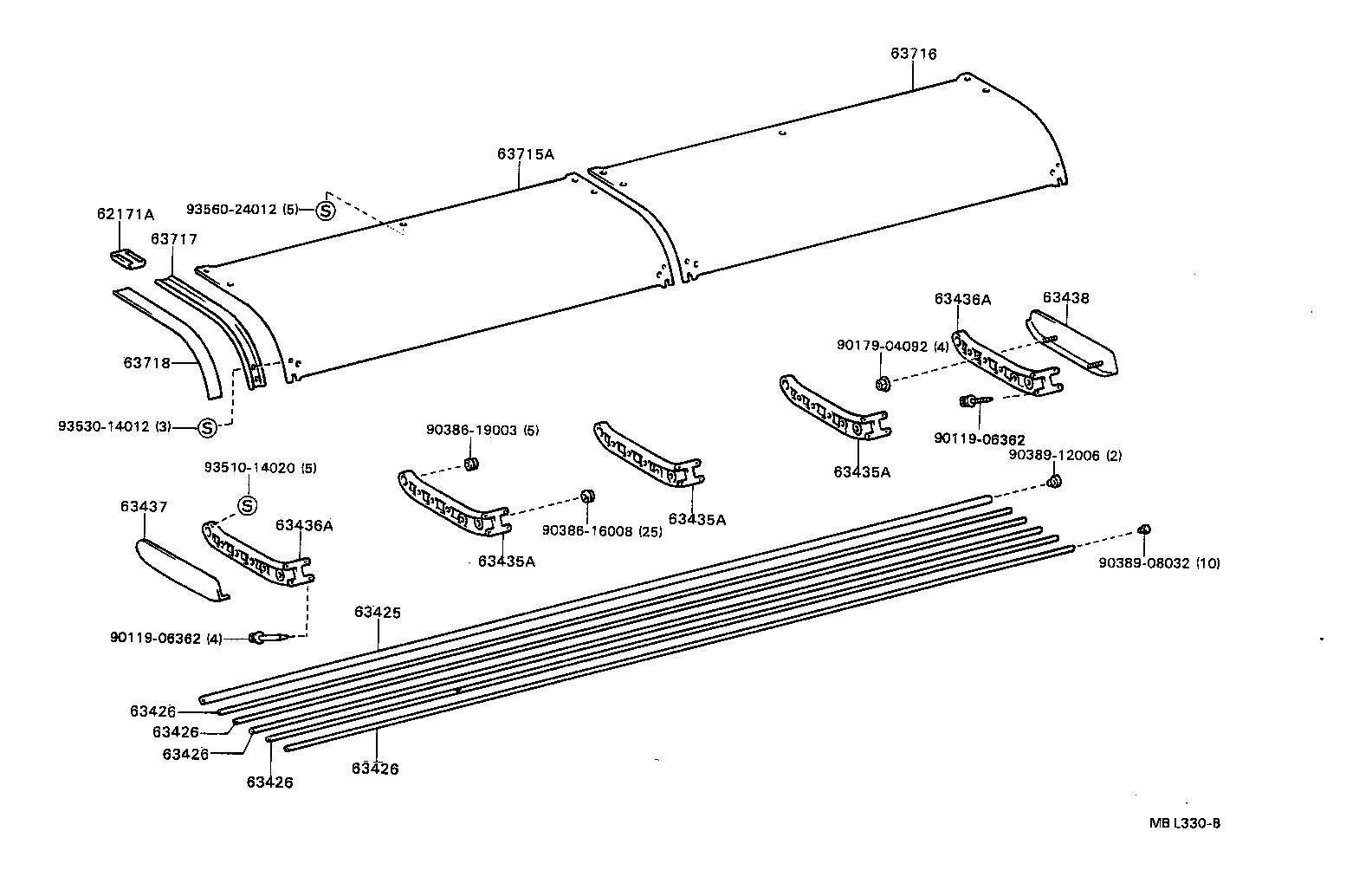

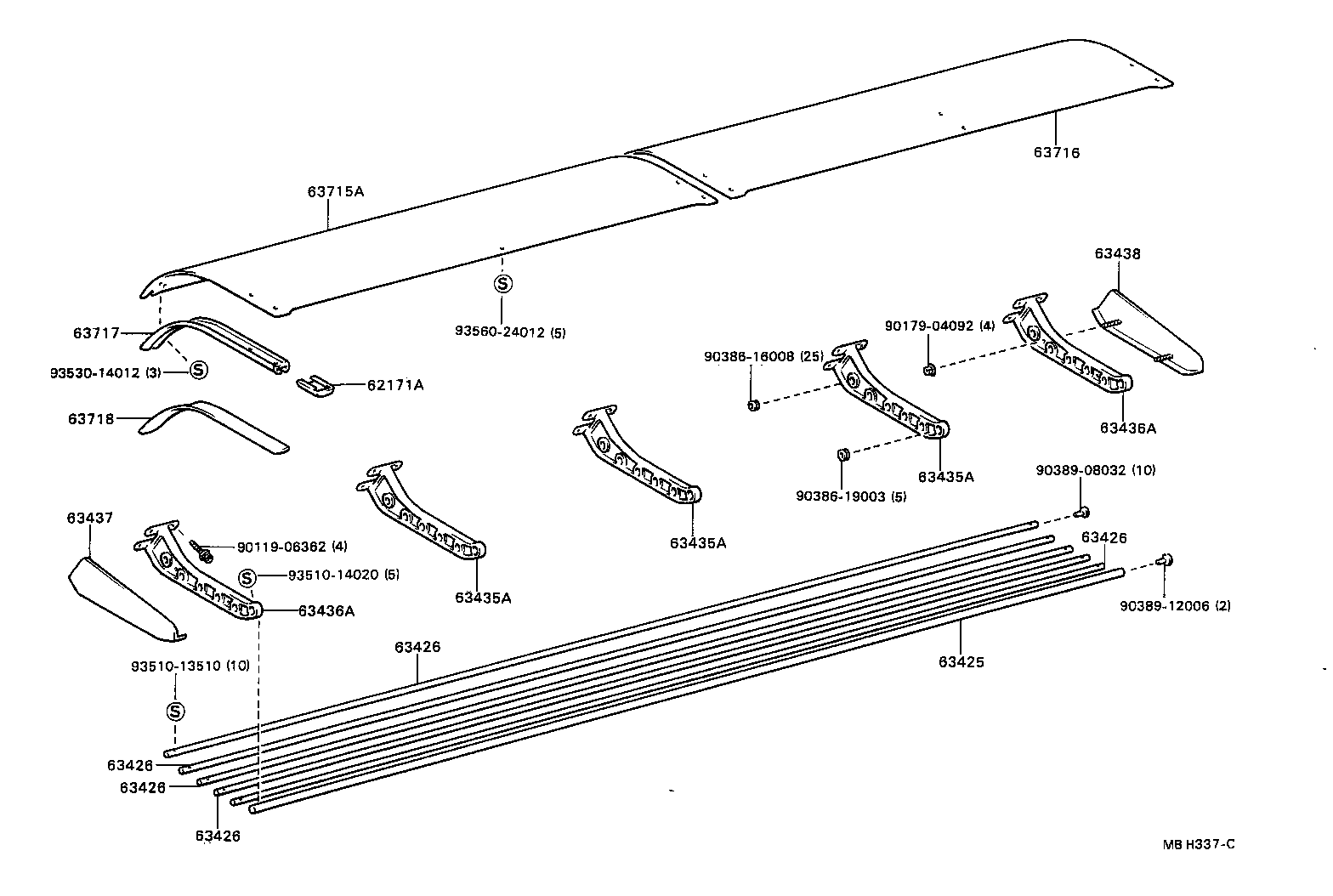

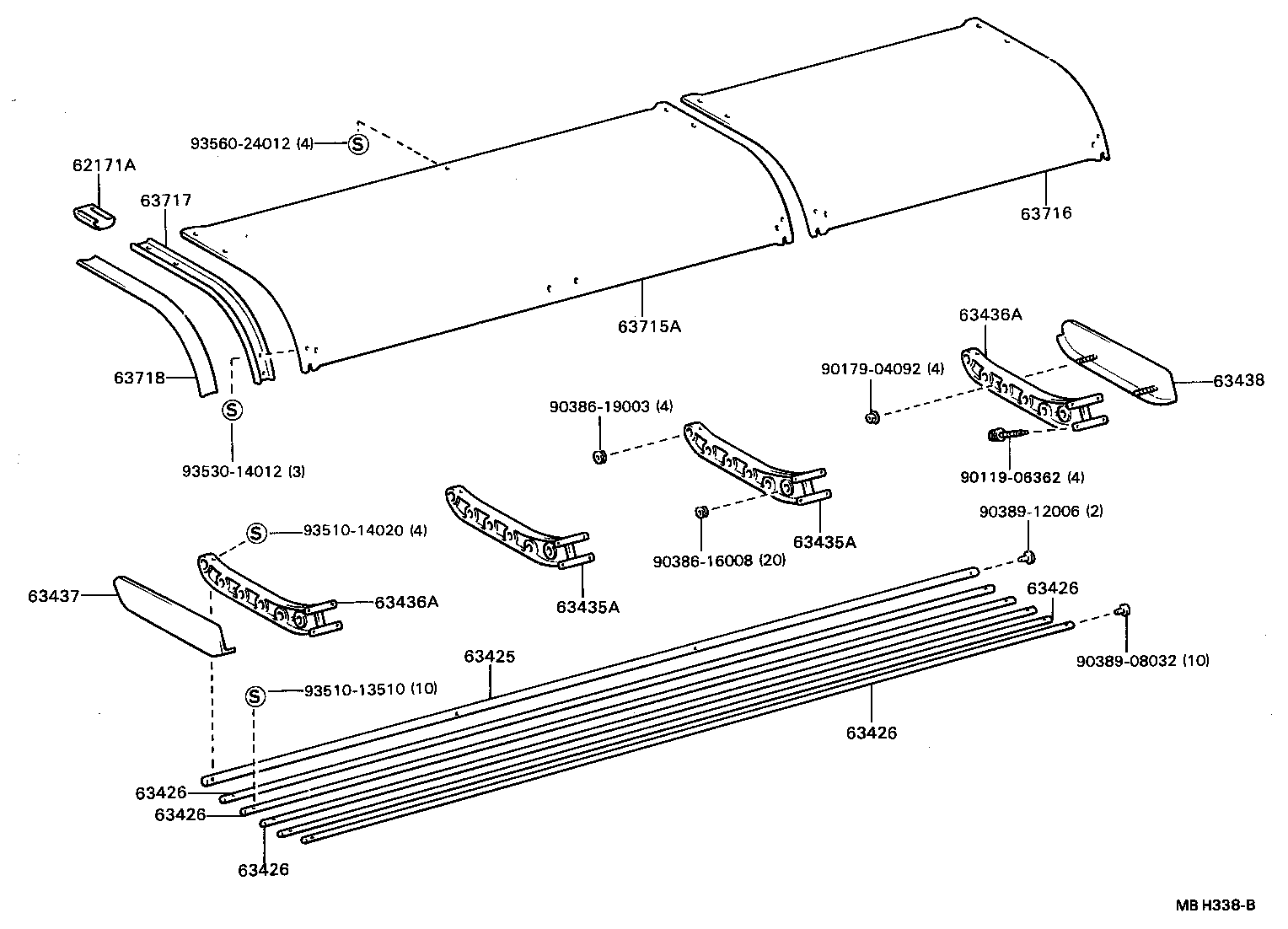

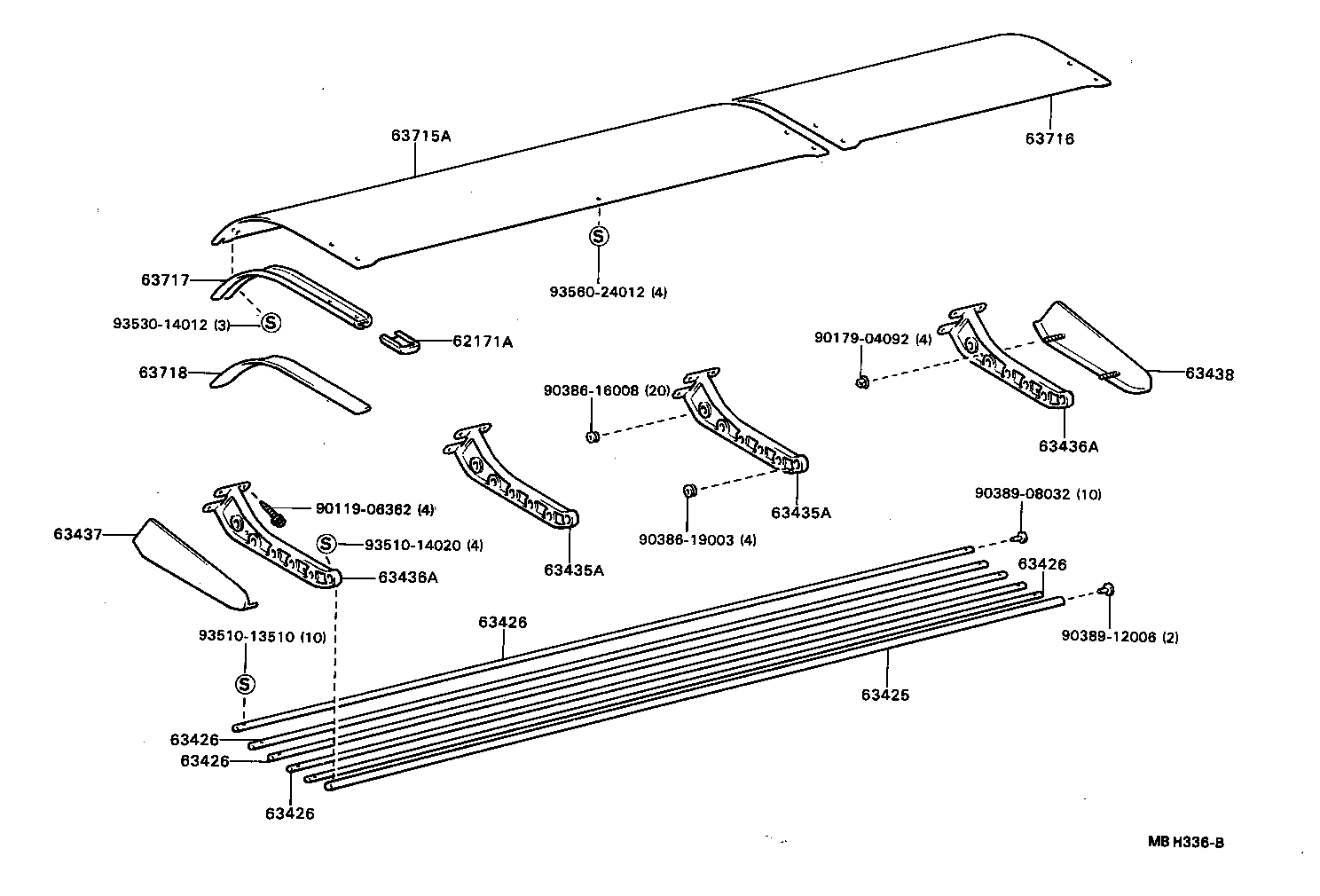

Figure MBD762G MBD762G 1982-05 → — Figure MBH336B MBH336B 1984-08 → — Figure MBE124E MBE124E 1982-05 → — Figure MBH338B MBH338B 1984-08 → — Figure MBD763G MBD763G 1986-10 → — Figure MBH337C MBH337C 1986-10 → — Figure MBL329D MBL329D 1986-10 → — Figure MBL330B MBL330B 1986-10 → — Figure MN1134A MN1134A 1991-02 → —

Part groups

PNCDescription
62171A Support, Roof Lining Protector Moulding
63425 Pipe, Room Rack, NO.1
63426 Pipe, Room Rack, NO.2
63429A Band, Room Rack Guard
63435A Frame, Room Rack, NO.1
63436A Frame, Room Rack, NO.2
63437 Cover, Room Rack Frame, Front
63438 Cover, Room Rack Frame, Rear
63715A Protector, Roof Lining, Front
63716 Protector, Roof Lining, Rear
63717 Moulding, Roof Lining Protector, NO.1
63718 Moulding, Roof Lining Protector, NO.2
65930B Curtain Assy, Side Window, Front RH
65936 Rail, Curtain, NO.1
65937 Rail, Curtain, NO.2
65938 Rail, Curtain, NO.3
65939 Rail, Curtain, NO.4
65940B Curtain Assy, Side Window, Front LH
65950A Curtain Assy, Side Window, Rear RH
65960B Curtain Assy, Side Window, Rear LH
65980A Curtain Assy, Back Window, RH
65990A Curtain Assy, Back Window, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
