Toyota Coaster
1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe
Discontinued model
Data version 1994-03

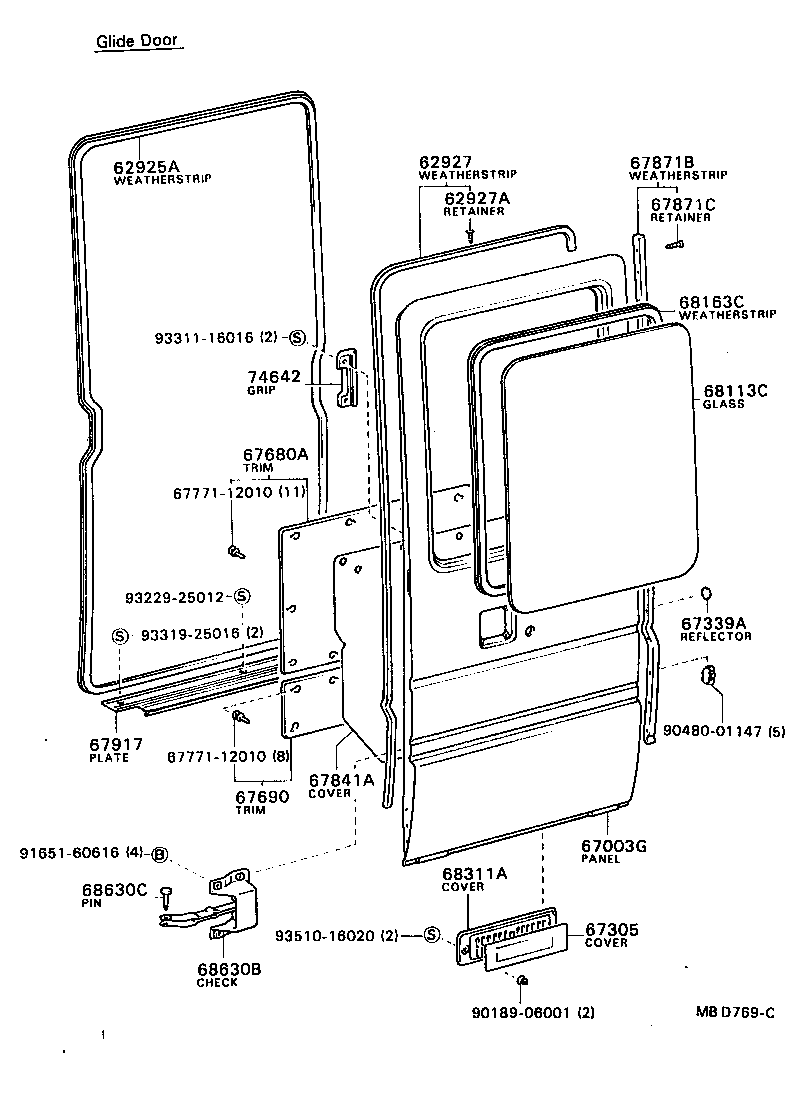

Center Door Panel & Glass
45 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 62925A | Weatherstrip, Glide Door Side |
| 62927 | Weatherstrip, Glide Door Outer |
| 62927A | Retainer(FOR GLIDE DOOR OUTER WEATHERSTRIP) |
| 67003F | Panel Sub-assy, Center Door, Front |
| 67003G | Panel Sub-assy, Slide Door |
| 67004C | Panel Sub-assy, Center Door, Rear |
| 67103 | Hinge Sub-assy, Center Door, Outer |
| 67103A | Packing, Center Door Hinge |
| 67171 | Weatherstrip, Center Door Glass, Outer |
| 67172 | Weatherstrip, Center Door Glass, Inner |
| 67219 | Bush, Center Door Upper Bearing Case |
| 67225 | Case, Center Door Lower Bearing, Front |
| 67229 | Moulding, Center Door, Upper |
| 67234 | Roller, Center Door Upper Guide |
| 67235 | Piece, Center Door Under Stopper |
| 67238 | Cushion, Center Door |
| 67279 | Cushion, Center Door Guide |
| 67294 | Ball, Center Door Front Lower Bearing |
| 67305 | Cover Sub-assy, Glide Door Ventilator |
| 67308 | Case Sub-assy, Center Door Upper Bearing |
| 67339A | Reflector, Glide Door |
| 67680A | Trim Assy, Gride Door |
| 67690 | Trim Assy, Gride Door, Lower |
| 67745 | Moulding, Center Door Trim |
| 67841A | Cover, Glide Door Service Hole |
| 67851 | Weatherstrip, Center Door, Side, Front |
| 67852 | Weatherstrip, Center Door, Side, Rear |
| 67853 | Weatherstrip, Center Door, Center |
| 67854 | Weatherstrip, Center Door Upper |
| 67854A | Clip, Center Door Upper Weatherstrip |
| 67856 | Clip, Center Door Weatherstrip |
| 67871B | Weatherstrip, Glide Door |
| 67871C | Retainer(FOR GLIDE DOOR WEATHERSTRIP) |
| 67895 | Seal, Center Door Dust |
| 67897A | Plate, Center Door Dust Seal, Front |
| 67898A | Plate, Center Door Dust Seal, Rear |
| 67907 | Plate Sub-assy, Center Door Scuff |
| 67917 | Plate, Glide Door Scuff |
| 68111 | Glass, Center Door |
| 68113C | Glass, Glide Door |
| 68163C | Weatherstrip, Glide Door Glass |
| 68311A | Cover, Glide Door Ventilator Hole |
| 68630B | Check Assy, Glide Door |
| 68630C | Pin(FOR GLIDE DOOR CHECK) |
| 74642 | Grip, Glide Door Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
