Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Door Lock & Hinge

39 part groups · 8 illustrations

Illustrations

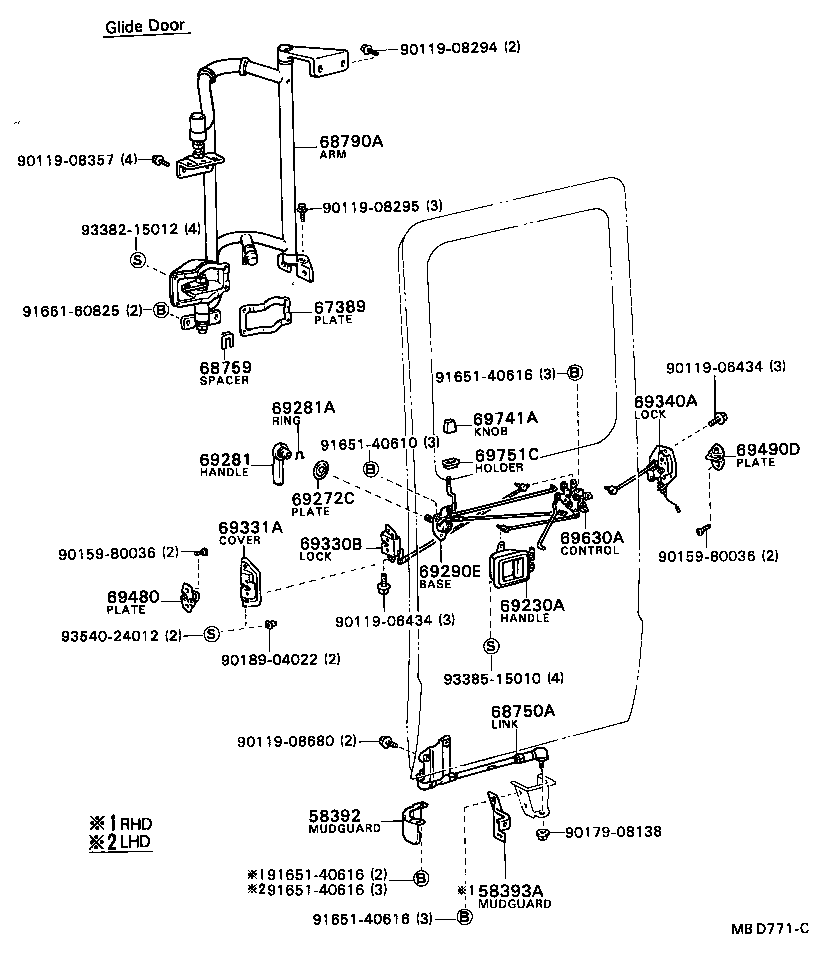

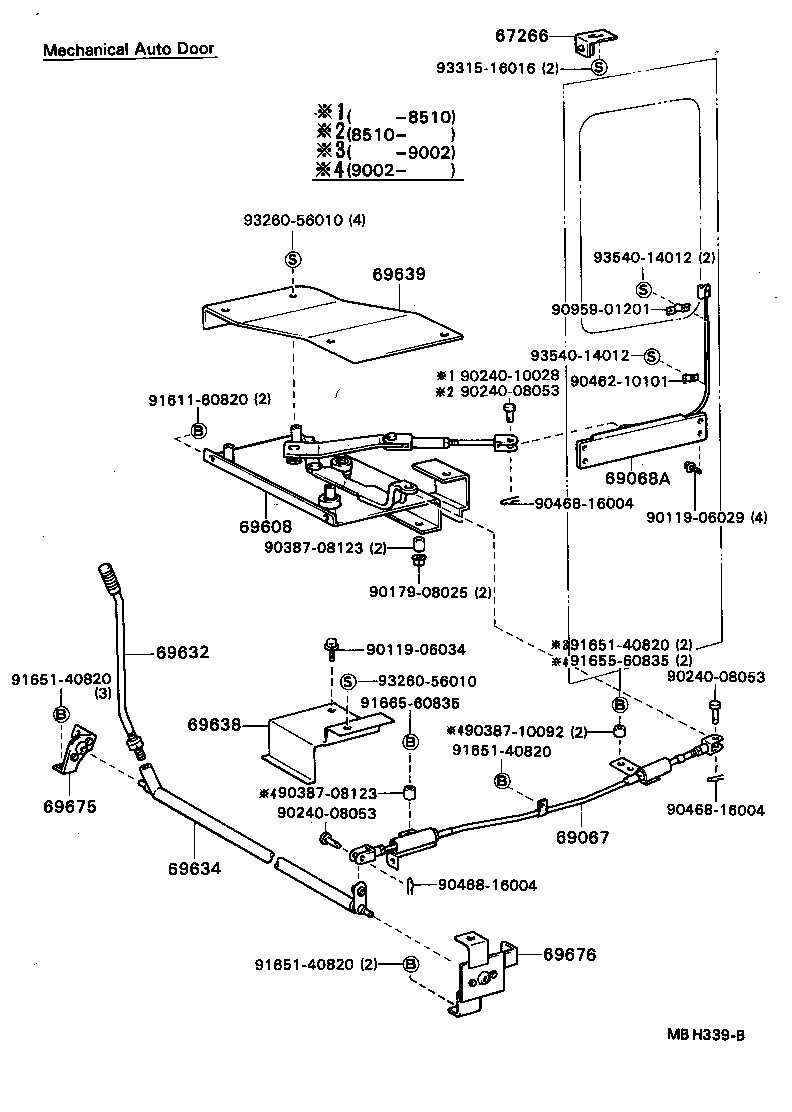

Figure MBD823D MBD823D 1982-05 → — Figure MBD823D MBD823D 1982-06 → — Figure MBH339B MBH339B 1984-05 → 1985-10 Figure MBH339B MBH339B 1985-10 → — Figure MBH339B MBH339B 1988-10 → — Figure MBD771C MBD771C 1982-05 → 1984-08 Figure MBD771C MBD771C 1983-10 → — Figure MBD771C MBD771C 1984-08 → —

Part groups

PNCDescription
58392 Mudguard, Glide Door Link, Front
58393A Mudguard, Glide Door Link, Rear
62099 Cover Sub-assy, Center Door Lock
62988 Bracket, Center Door Cover, NO.2
67205 Handle Sub-assy, Center Door Inside Pull
67206 Lock Sub-assy, Center Door Inside Handle
67232 Stopper, Center Door Open
67232A Plate, Center Door Open Stopper
67242 Stopper, Center Door, Lower
67255 Stopper, Center Inside Lock
67261 Cover, Center Door Slide Rail
67266 Stopper, Center Door Rail
67389 Plate, Glide Door Check Boot
67873A Weatherstrip, Center Door, Upper NO.1
68750A Link Assy, Glide Door
68759 Spacer, Glide Door Arm
68790A Arm Assy, Glide Door
69067 Cable Sub-assy, Center Door Remote Control, NO.1
69068A Cable Sub-assy, Center Door Remote Control, NO.2
69230A Handle Assy, Glide Door Outside
69272C Plate, Glide Door Inside Handle
69281 Handle, Glide Door Inside
69281A Ring, Shaft Snap(FOR GLIDE DOOR INSIDE HANDLE)
69290E Base Assy, Glide Door Inside Handle
69330B Lock Assy, Glide Door, Front
69331A Cover, Glide Door Lock
69340A Lock Assy, Glide Door, Rear
69480 Plate Assy, Glide Door Lock Striker, Front
69490D Plate Assy, Glide Door Lock Striker, Rear
69608 Link Sub-assy, Center Door Remote Control
69630A Control Assy, Glide Door Lock Remote
69632 Lever, Center Door Remote Control
69634 Rod, Center Door Remote Control
69638 Cover, Center Door Remote Control, NO.1
69639 Cover, Center Door Remote Control, NO.2
69675 Base, Center Door Remote Control, NO.1
69676 Base, Center Door Remote Control, NO.2
69741A Knob, Back Door Lock Control
69751C Holder, Door Lock Control Knob(FOR GLIDE DOOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
