Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

29 part groups · 4 illustrations

Illustrations

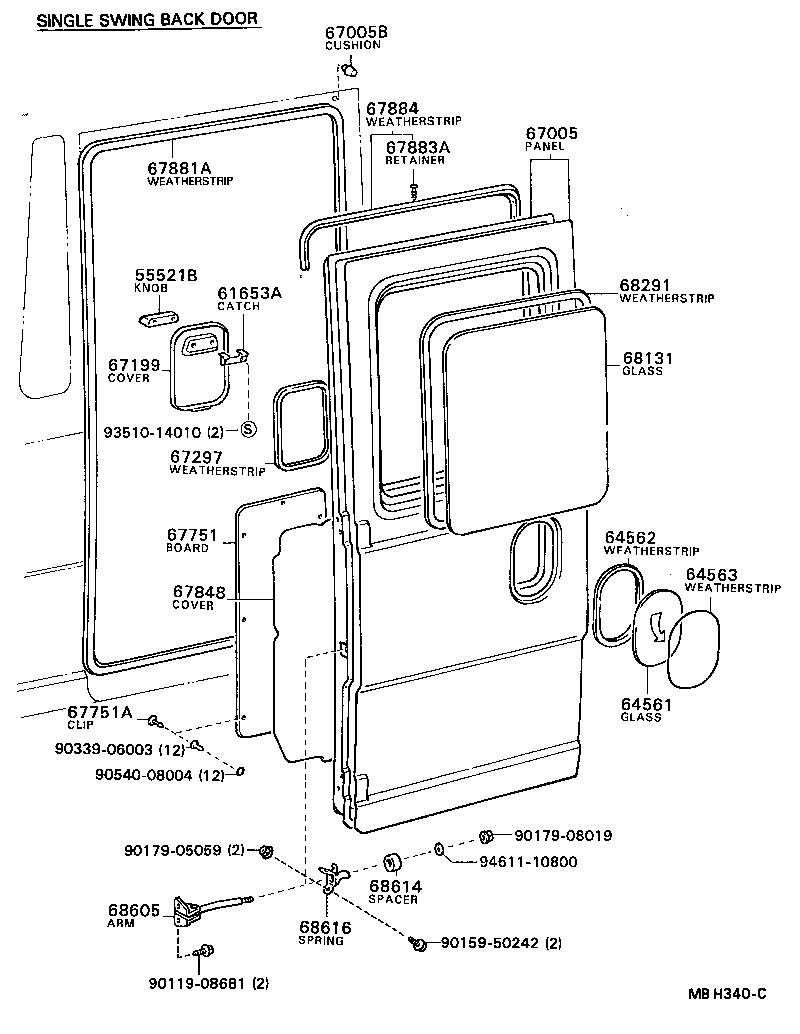

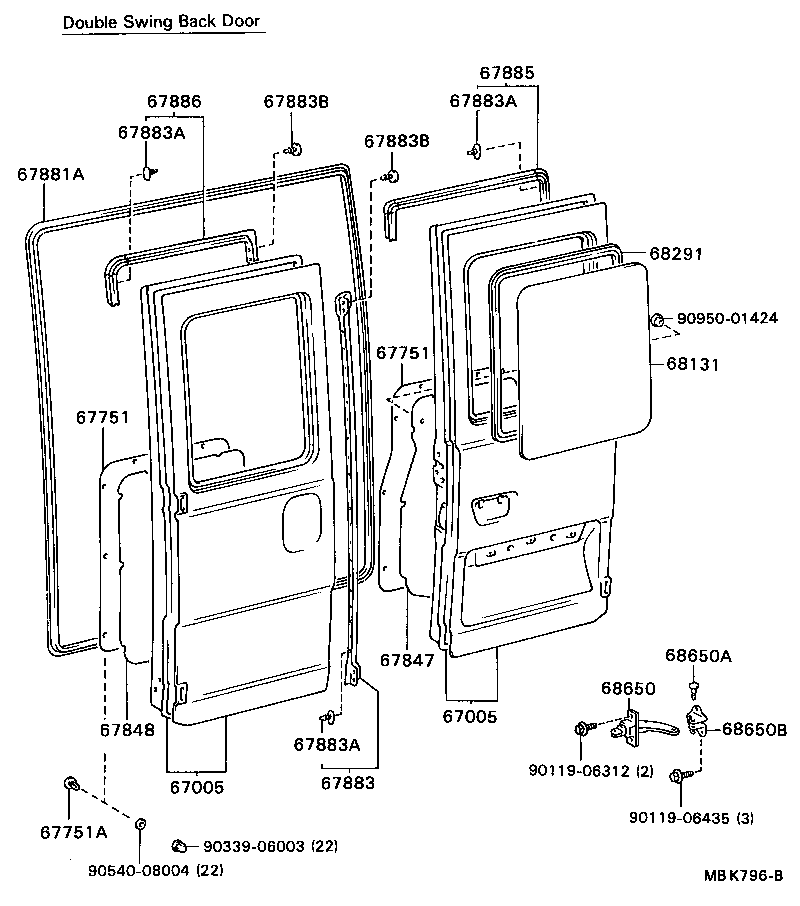

Figure MBD772B MBD772B 1982-05 → — Figure MBK796B MBK796B 1983-02 → — Figure MBH340C MBH340C 1984-05 → 1985-10 Figure MBH340C MBH340C 1985-10 → —

Part groups

PNCDescription
55521B Knob, Back Door Handle Cover
61653A Catch, Back Door Handle Cover
64561 Glass, Emergency Back Door Windshield
64562 Weatherstrip, Back Door Window Emergency Glass, Outer
64563 Weatherstrip, Back Door Window Emergency Glass, Inner
64904B Clip(FOR BACK DOOR WEATHERSTRIP)
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67199 Cover, Back Door Handle
67297 Weatherstrip, Back Door Cover
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67847 Cover, Back Door Service Hole, RH
67848 Cover, Back Door Service Hole, LH
67881A Weatherstrip, Back Door
67883 Weatherstrip, Back Door, Center
67883A Retainer, Back Door Weatherstrip
67883B Clip, Back Door Weatherstrip
67884 Weatherstrip, Back Door, Center Upper
67885 Weatherstrip, Back Door, RH
67886 Weatherstrip, Back Door, LH
68131 Glass, Back Door
68291 Weatherstrip, Back Door Glass
68605 Arm Sub-assy, Back Door Check
68614 Spacer, Back Door Check Arm
68616 Spring, Back Door Check
68650 Check Assy, Back Door
68650A Pin(FOR BACK DOOR CHECK)
68650B Base, Base Door Check
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
