Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Hinge

30 part groups · 4 illustrations

Illustrations

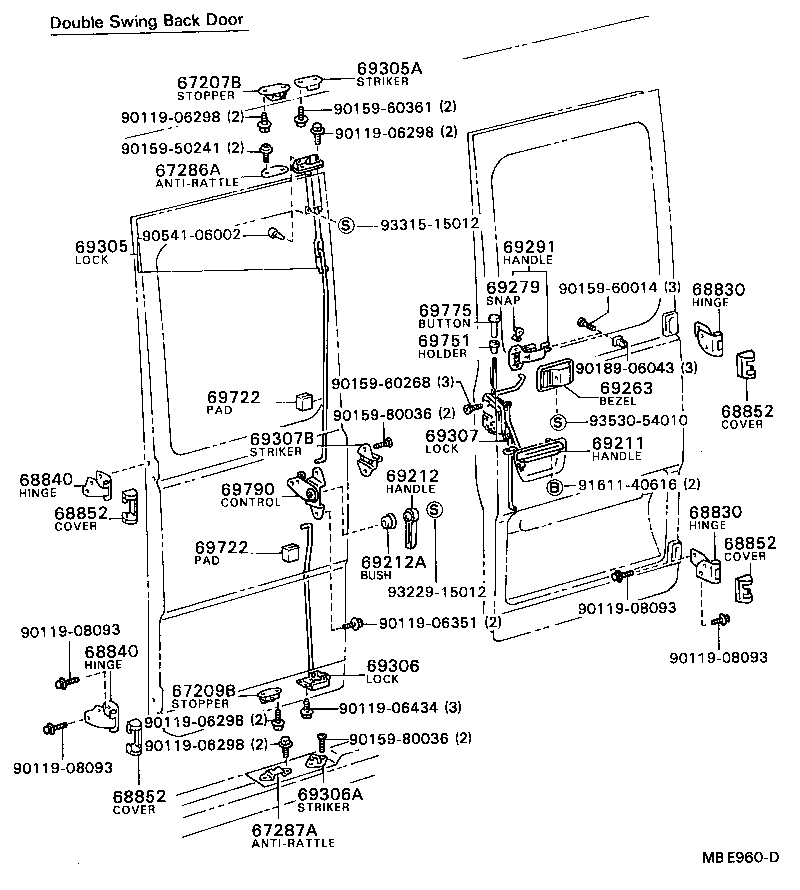

Figure MBD774A MBD774A 1982-05 → — Figure MBE960D MBE960D 1983-02 → — Figure MBH342C MBH342C 1984-05 → 1985-10 Figure MBH342C MBH342C 1985-10 → —

Part groups

PNCDescription
64530 Hinge Assy, Back Door, Upper
64570 Hinge Assy, Back Door, Lower
67207B Stopper Sub-assy, Back Door, Upper
67209B Stopper Sub-assy, Back Door, Lower
67286A Anti-rattle, Back Door, Upper
67287A Anti-rattle, Back Door, Lower
68830 Hinge Assy, Back Door, RH
68840 Hinge Assy, Back Door, LH
68852 Cover, Back Door Hinge
68970 Stay Assy, Back Door, RH
69211 Handle, Back Door Outside, RH
69212 Handle, Back Door Outside, LH
69212A Bush
69263 Bezel, Back Door Inside Handle
69279 Snap(FOR BACK DOOR INSIDE HANDLE)
69291 Handle Assy, Back Door Inside
69305 Lock Sub-assy, Back Door, Upper
69305A Striker Assy, Back Door, Upper
69306 Lock Sub-assy, Back Door, Lower
69306A Striker Assy, Back Door, Lower
69307 Lock Sub-assy, Back Door, Center
69307B Striker Assy, Back Door, Center
69350 Lock Assy, Back Door
69350Q Lock Assy, Back Door, Upper
69451 Striker, Back Door Upper Lock
69490 Striker Assy, Back Door Lock
69722 Pad, Back Door Lock Control
69751 Holder, Door Lock Control Knob
69775 Button, Door Locking(FOR BACK DOOR)
69790 Control Assy, Back Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
