Toyota Coaster
1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe
Discontinued model
Data version 1994-03

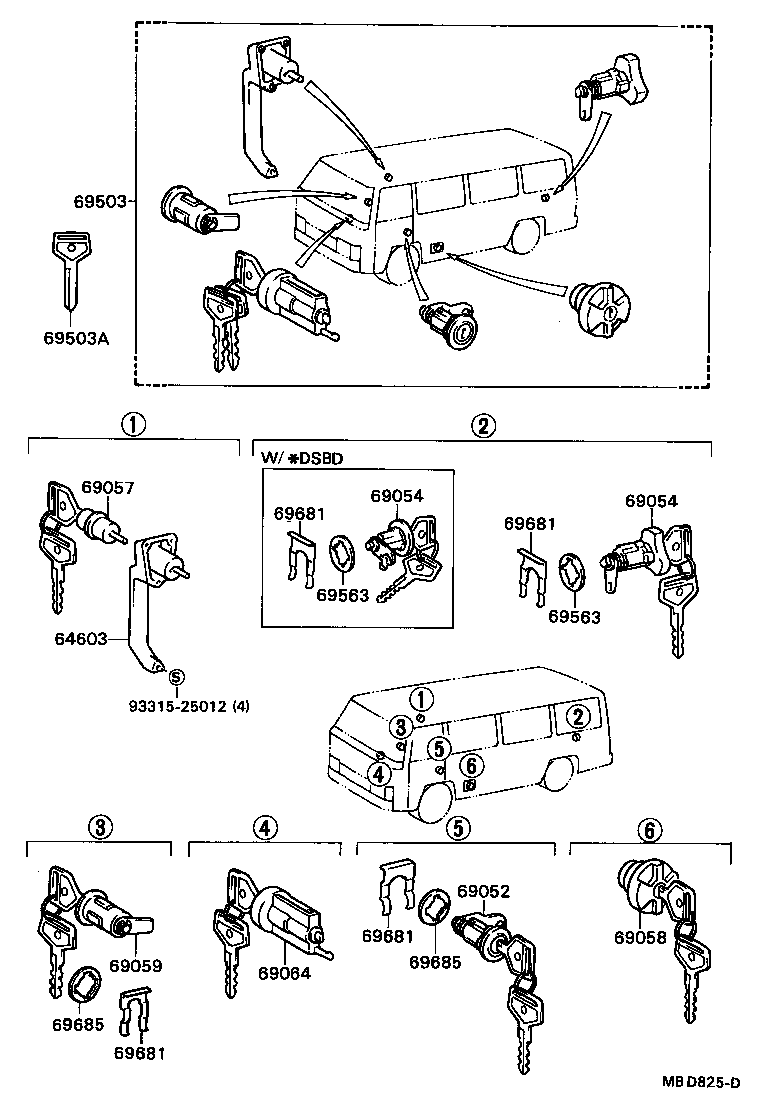

Lock Cylinder Set
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64603 | Lock Set, Door |
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69054 | Cylinder & Key Set, Back Door Lock |
| 69057 | Cylinder & Key Set, Center Door Lock |
| 69058 | Cylinder & Key Set, Fuel Filler Lid |
| 69059 | Cylinder & Key Set, Battery Service Opening Lid |
| 69064 | Cylinder & Key Set, Ignition Switch Lock |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69563 | Pad, Back Door Lock Cylinder |
| 69681 | Clamp, Door Lock Cylinder & Sleeve |
| 69685 | Pad, Lock Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
