Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

272 part groups · 32 illustrations

Illustrations

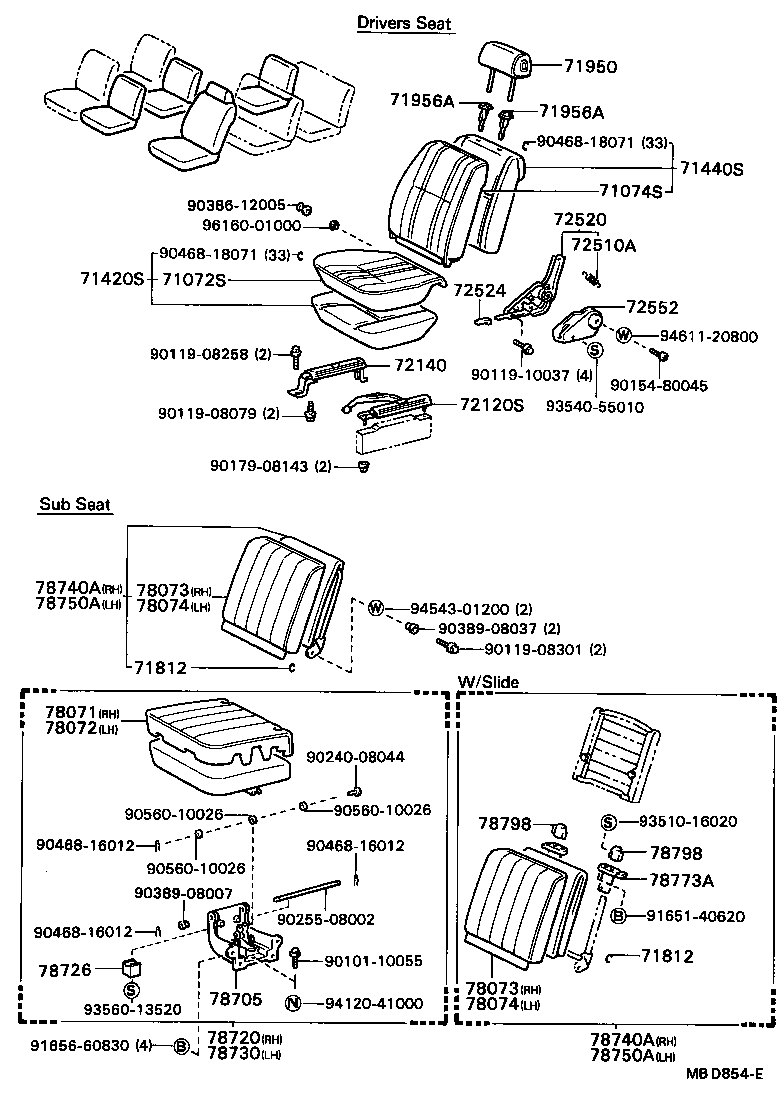

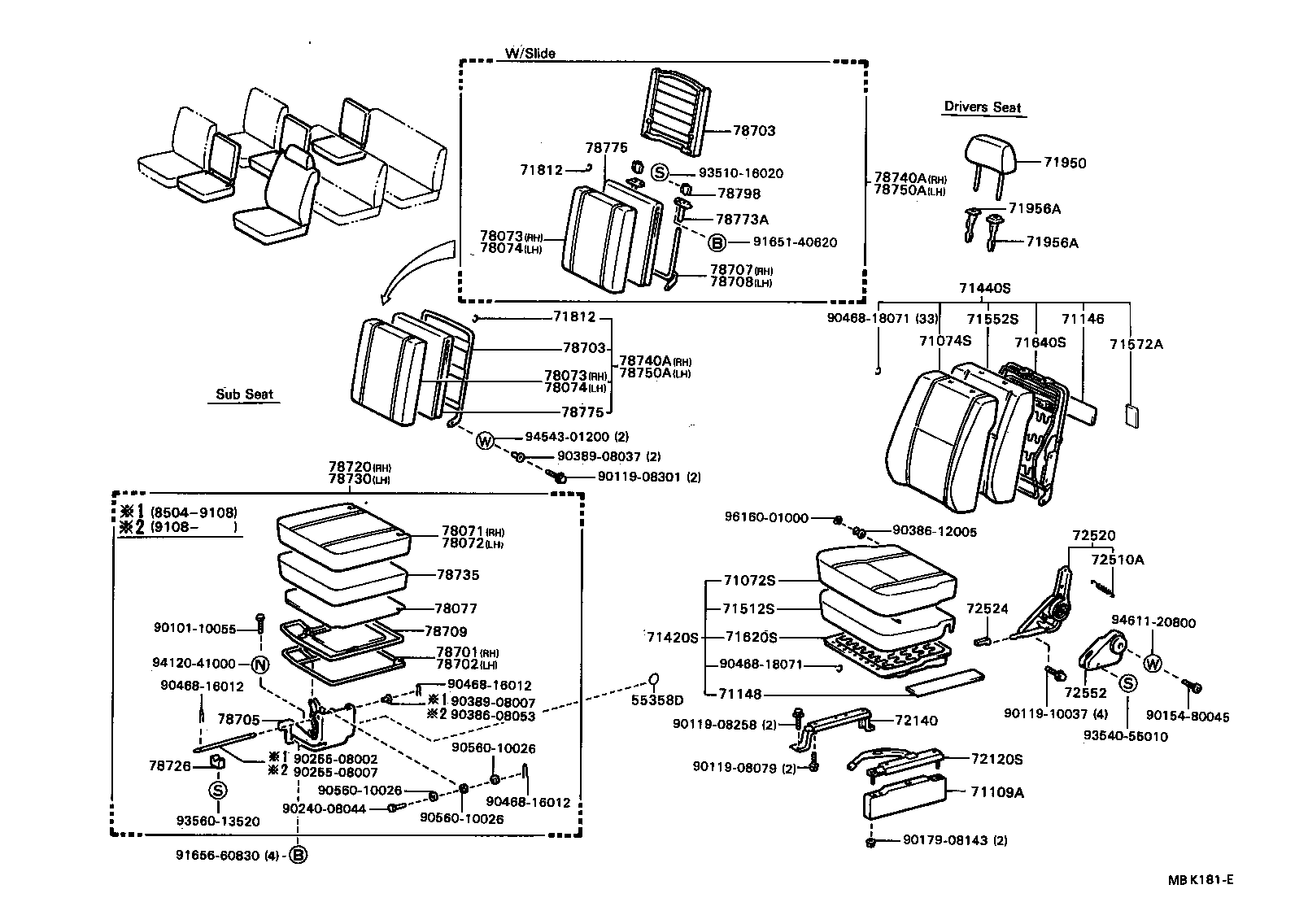

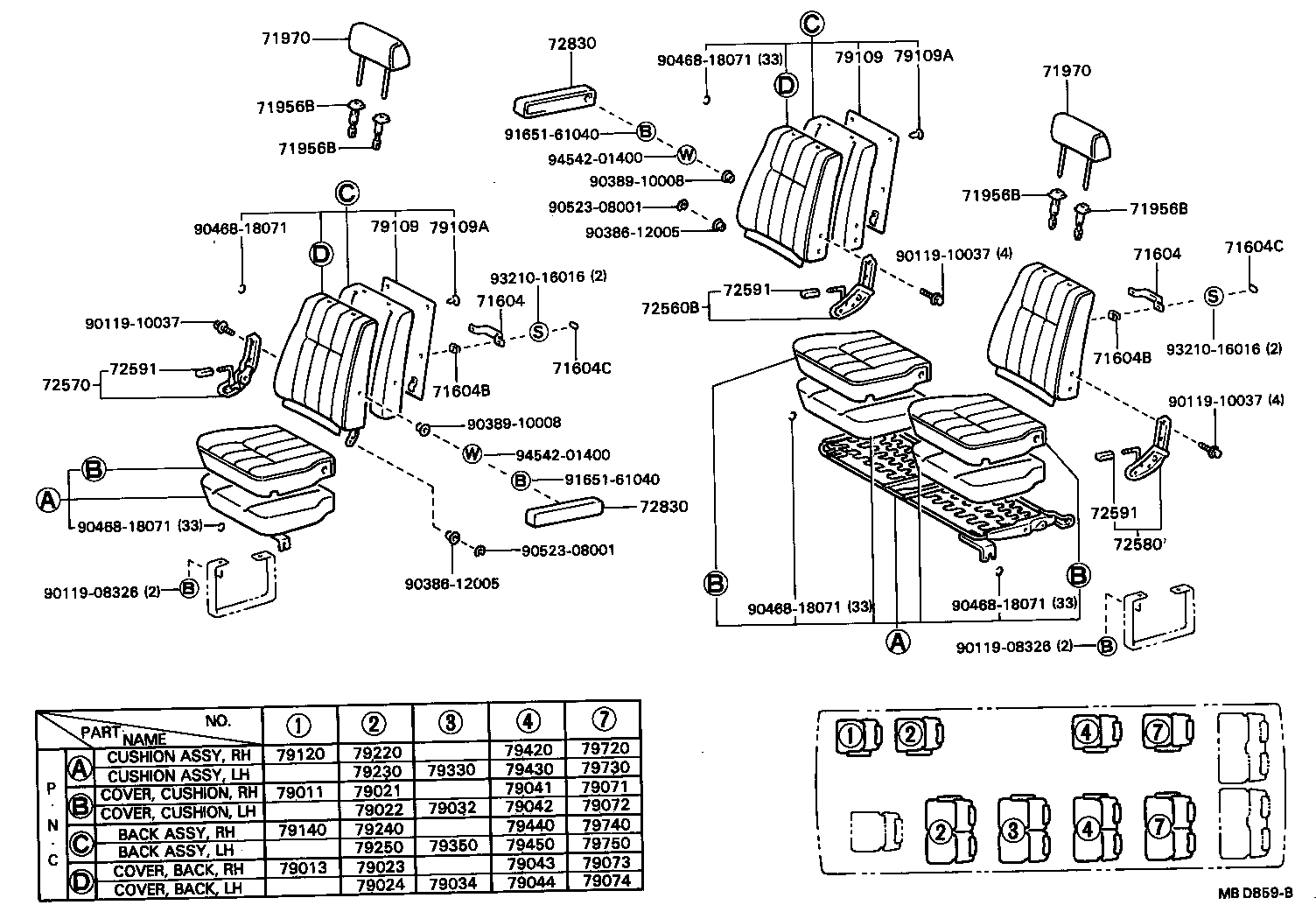

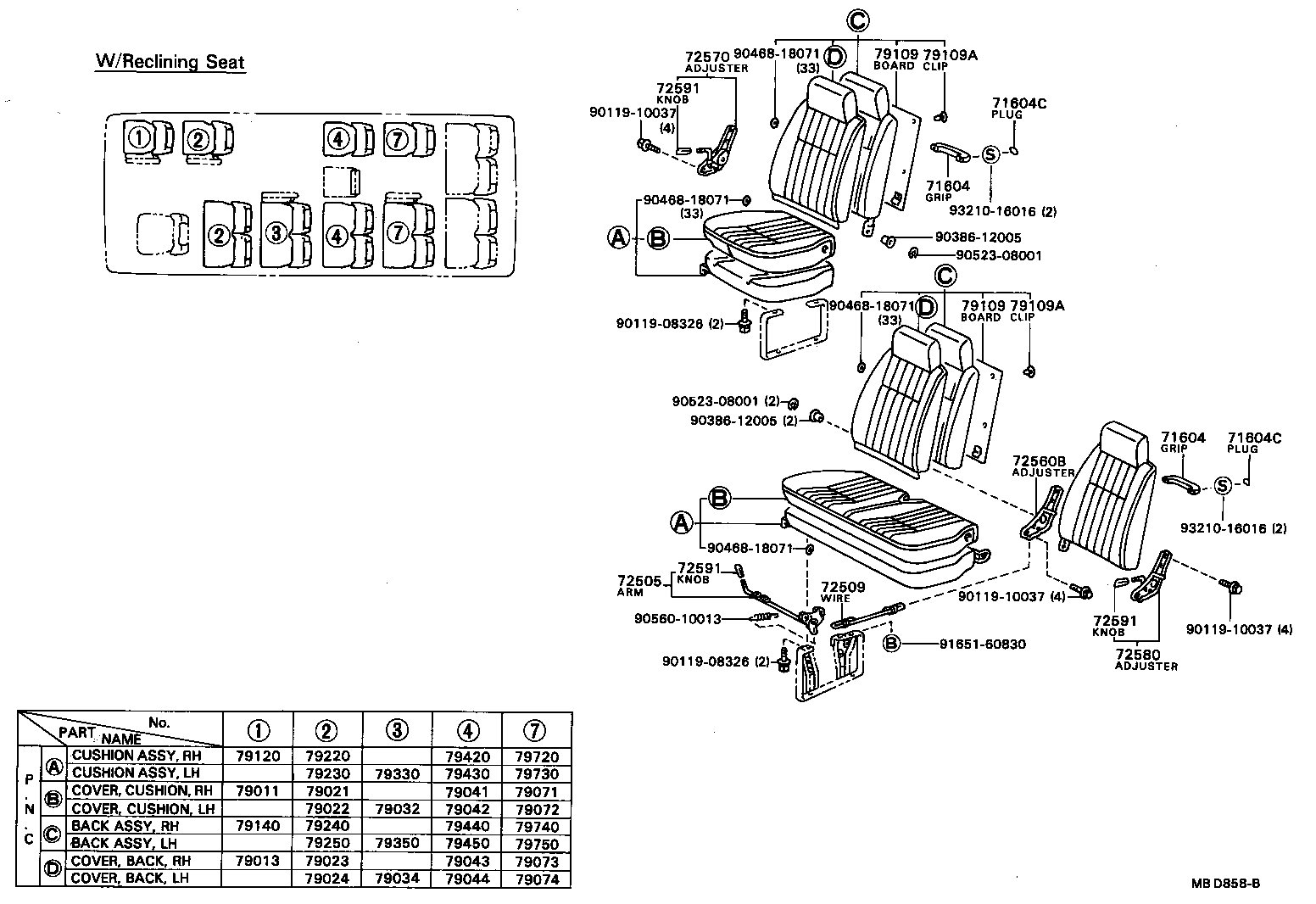

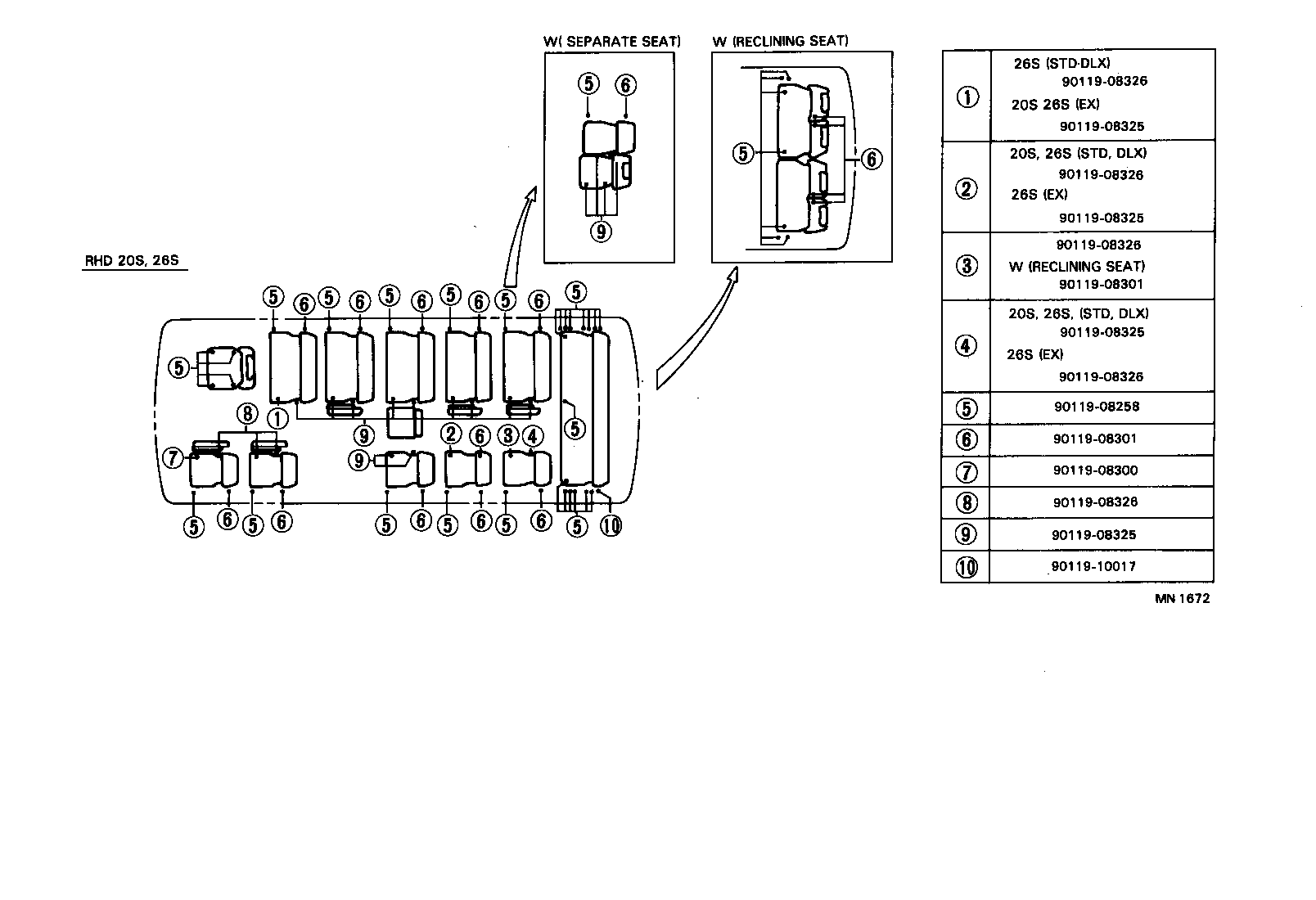

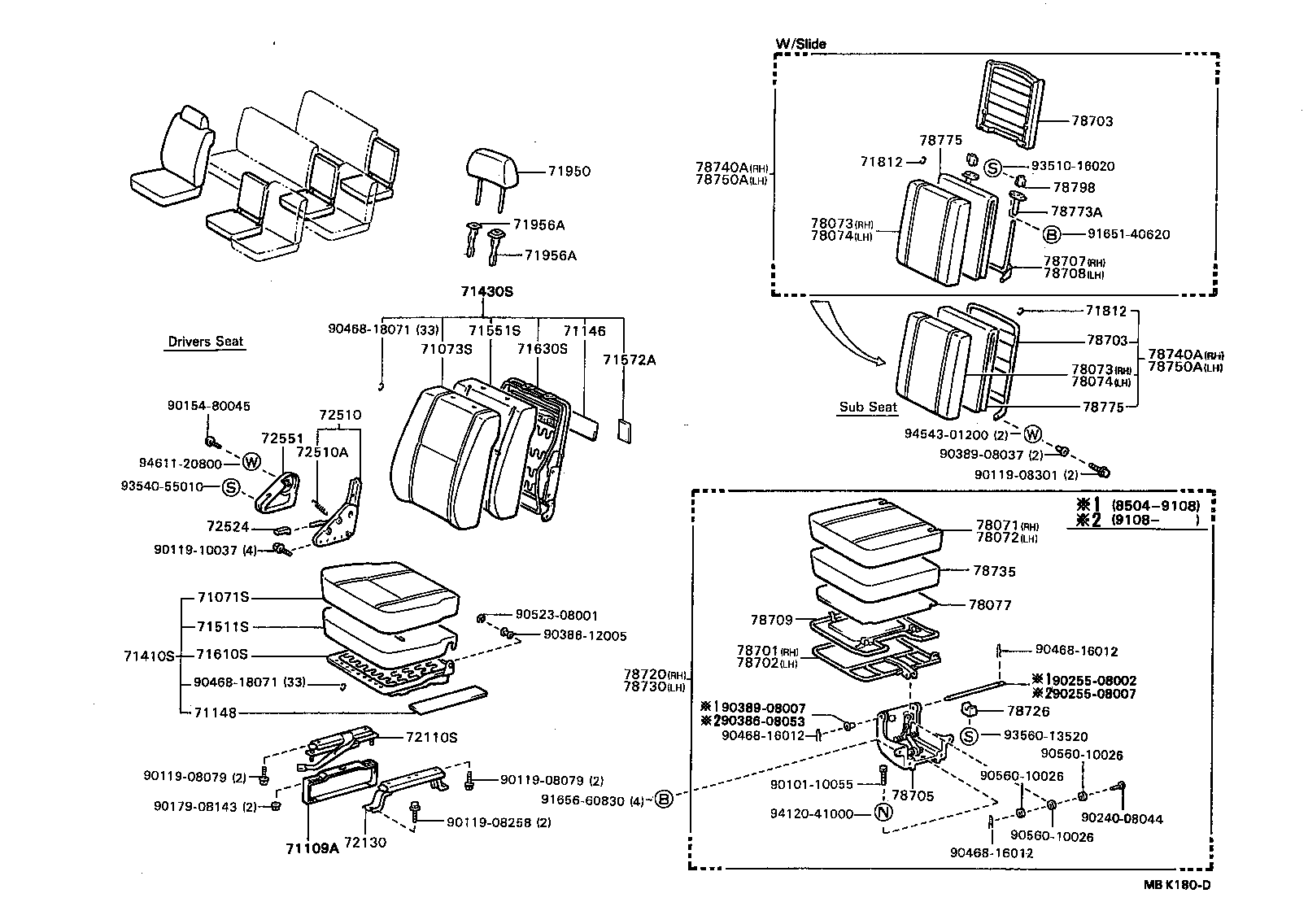

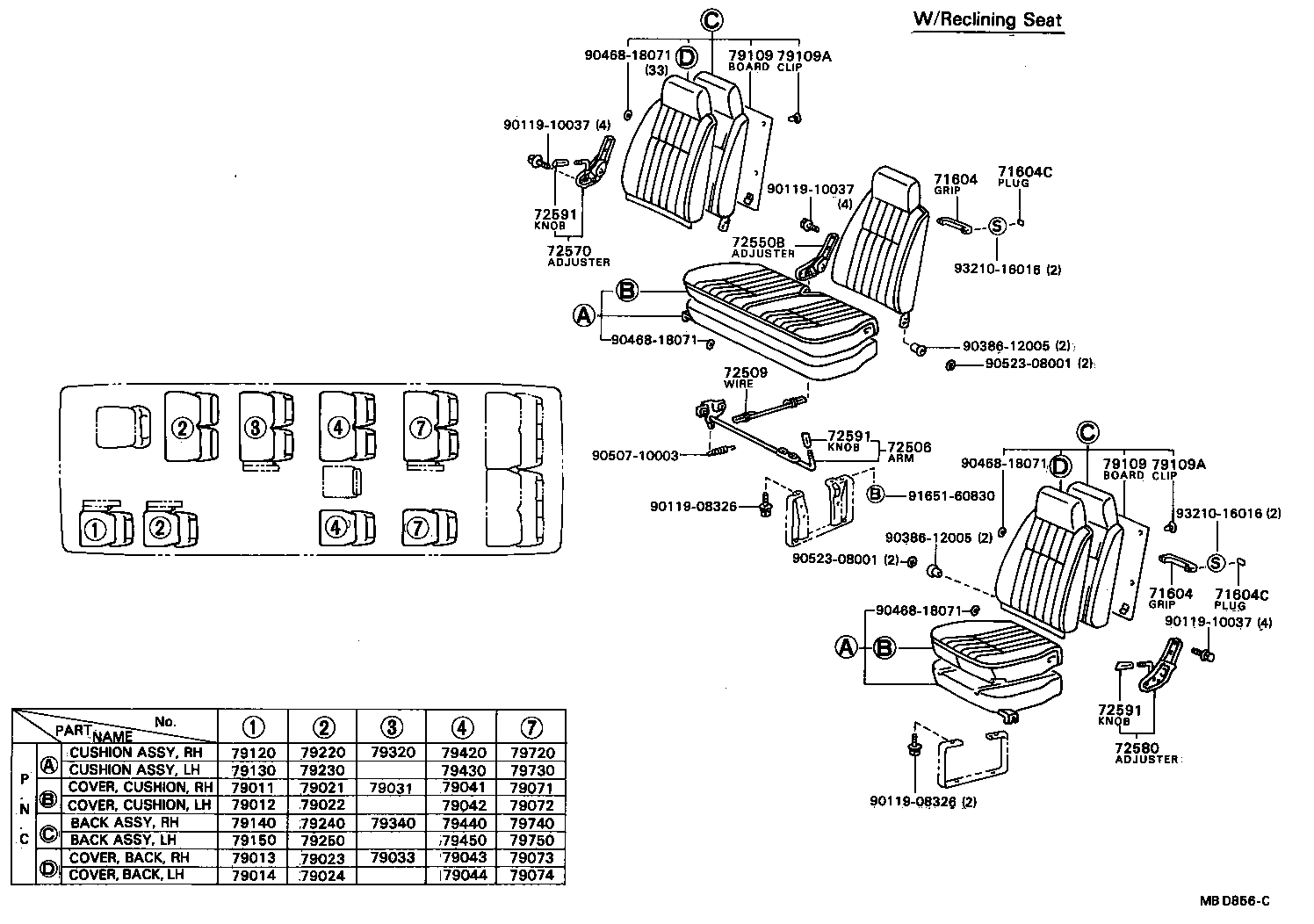

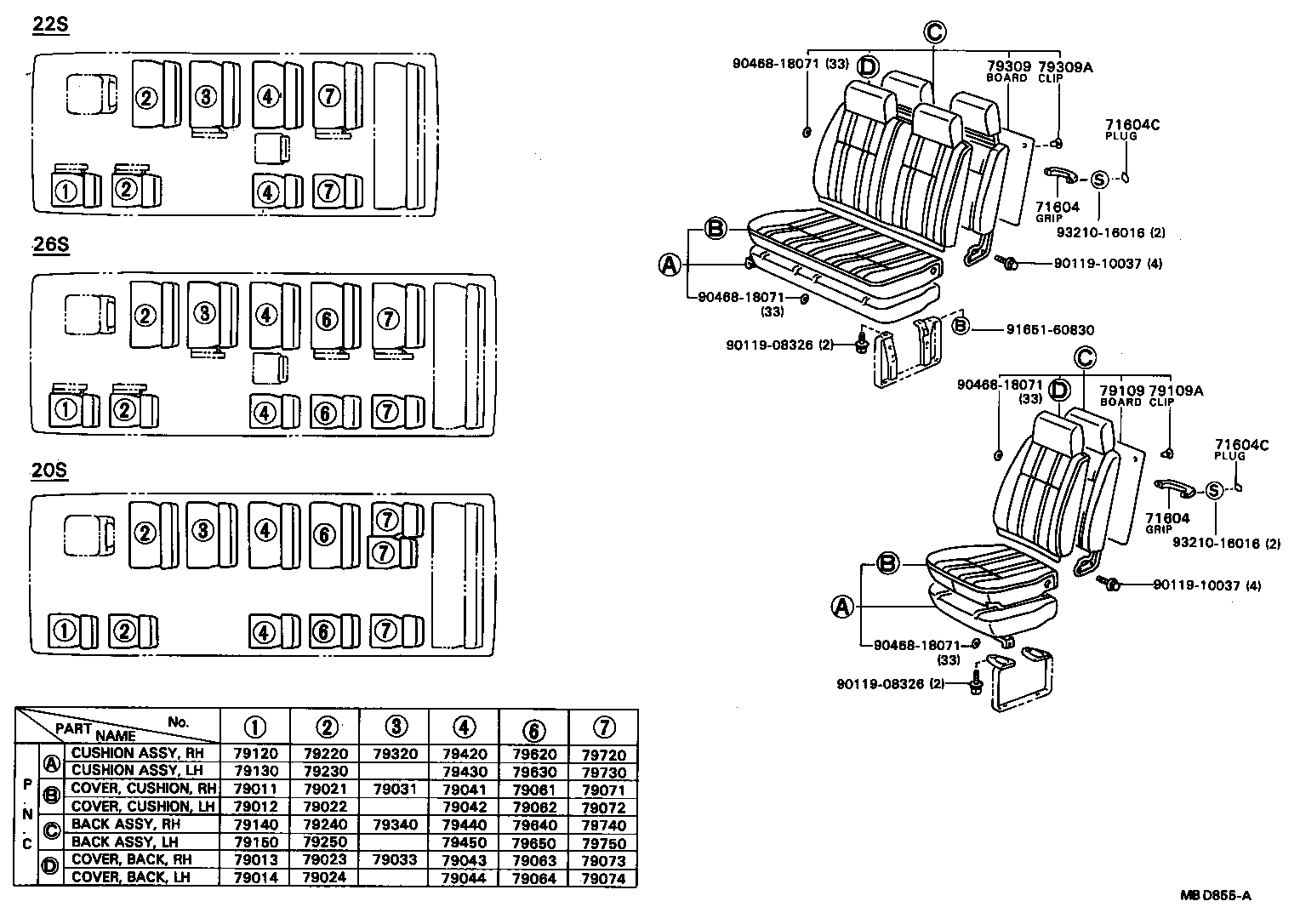

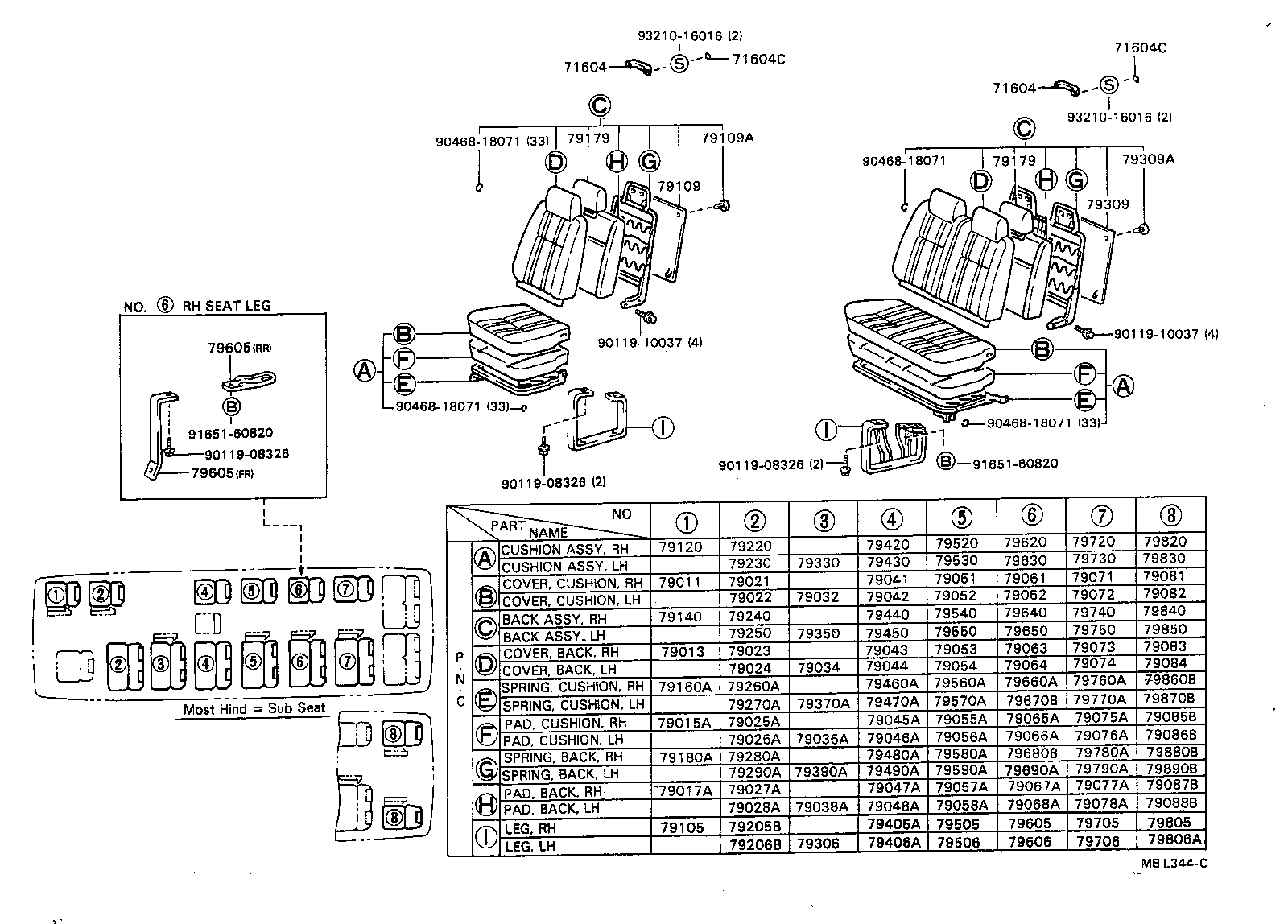

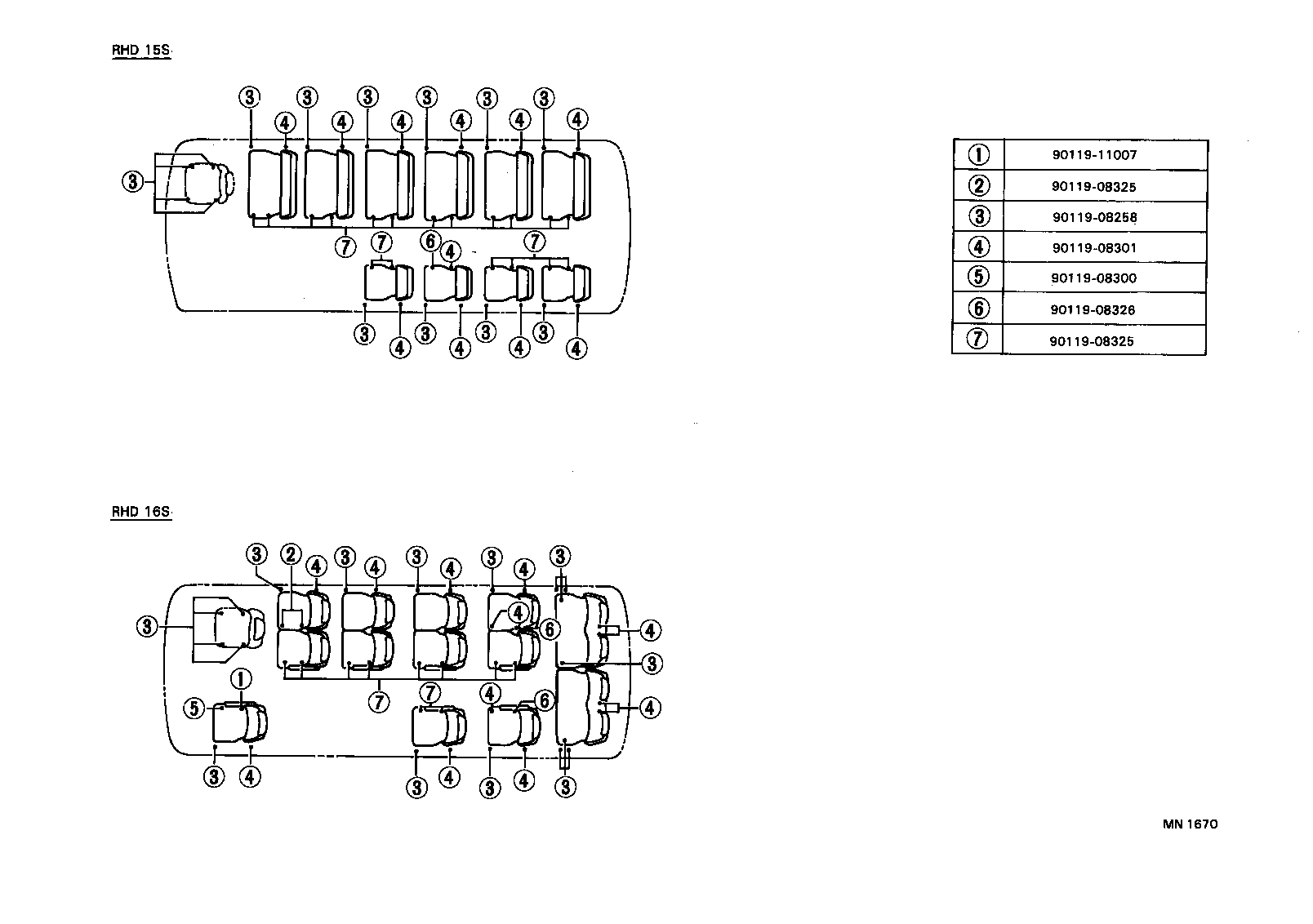

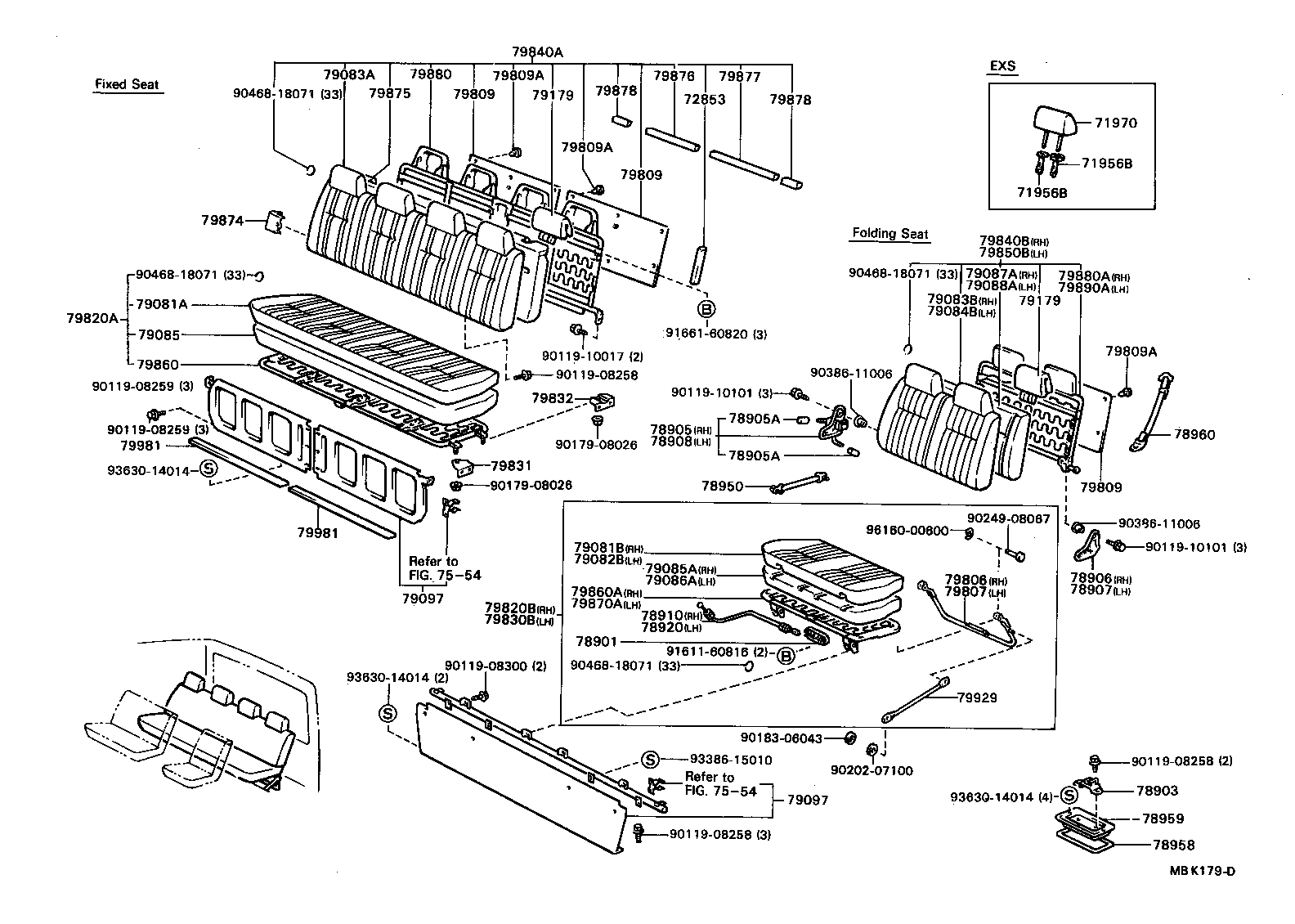

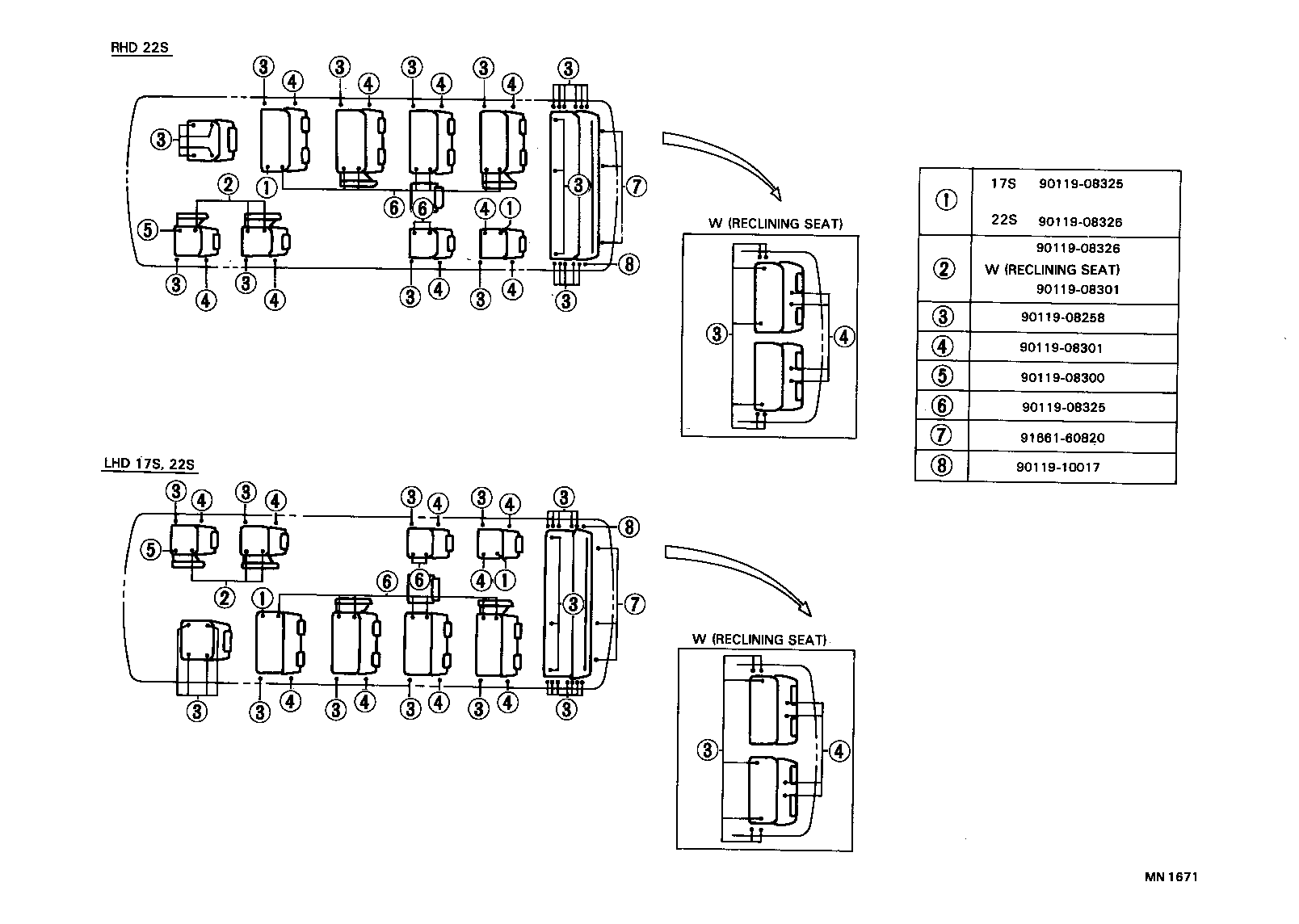

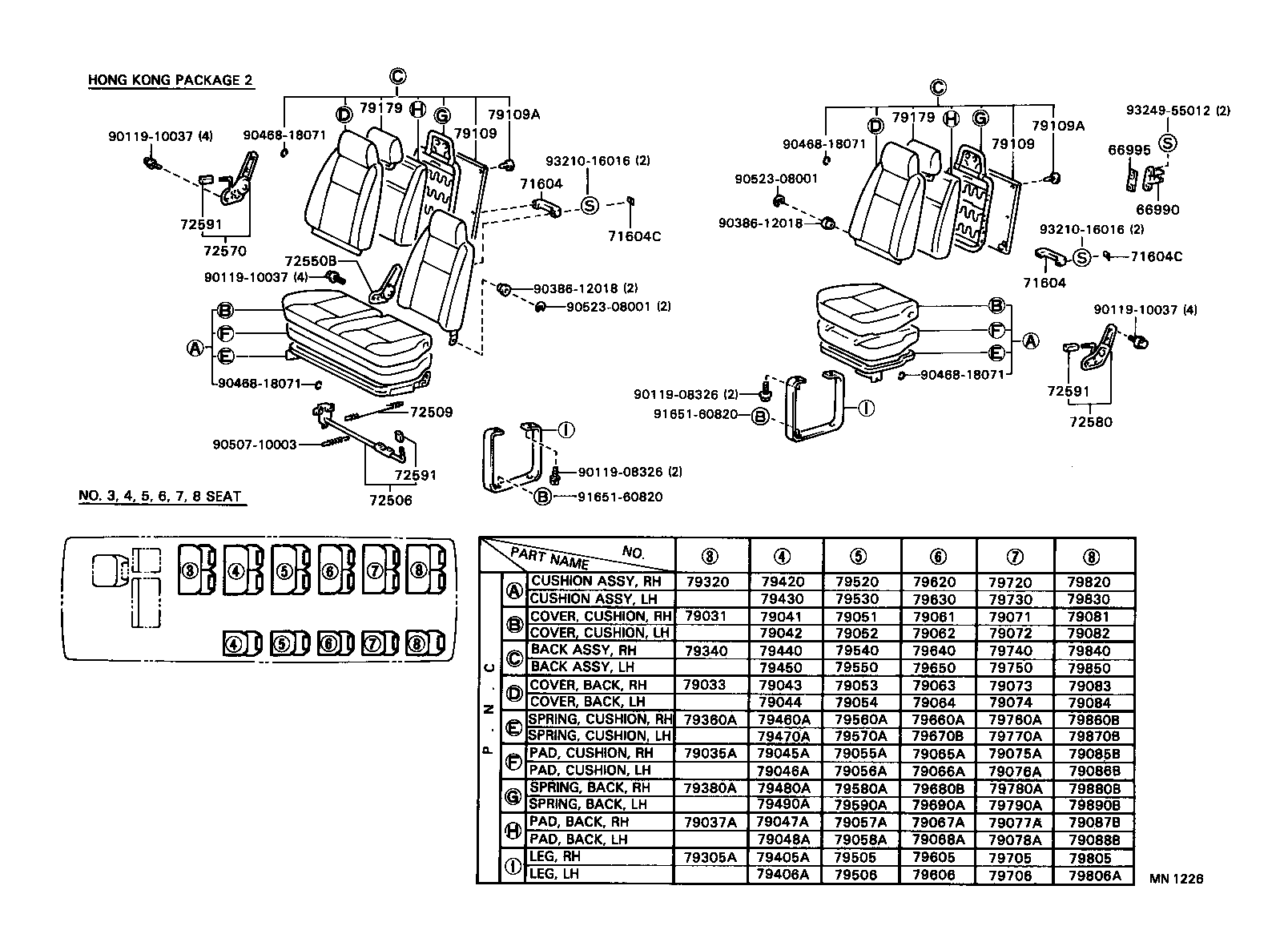

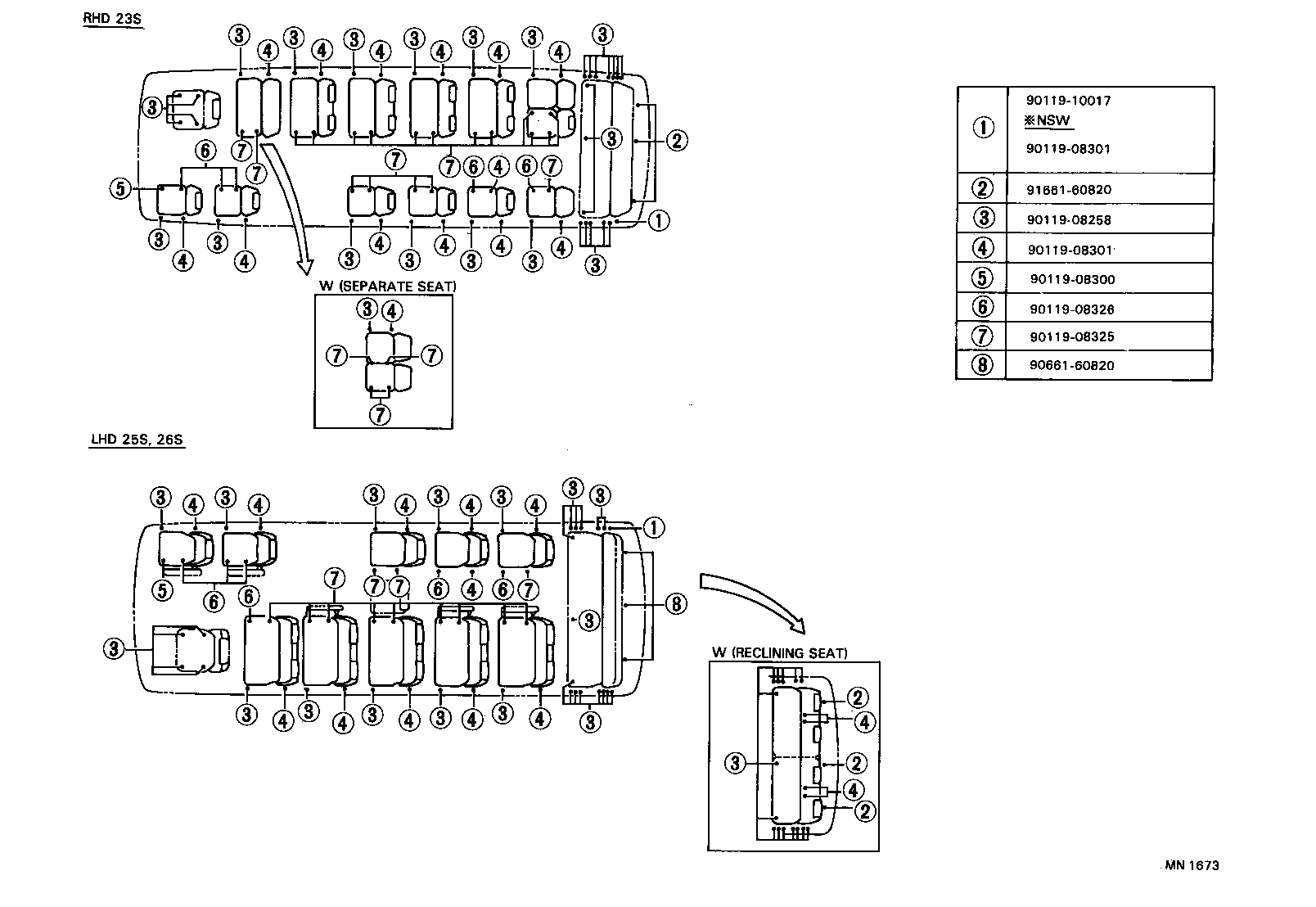

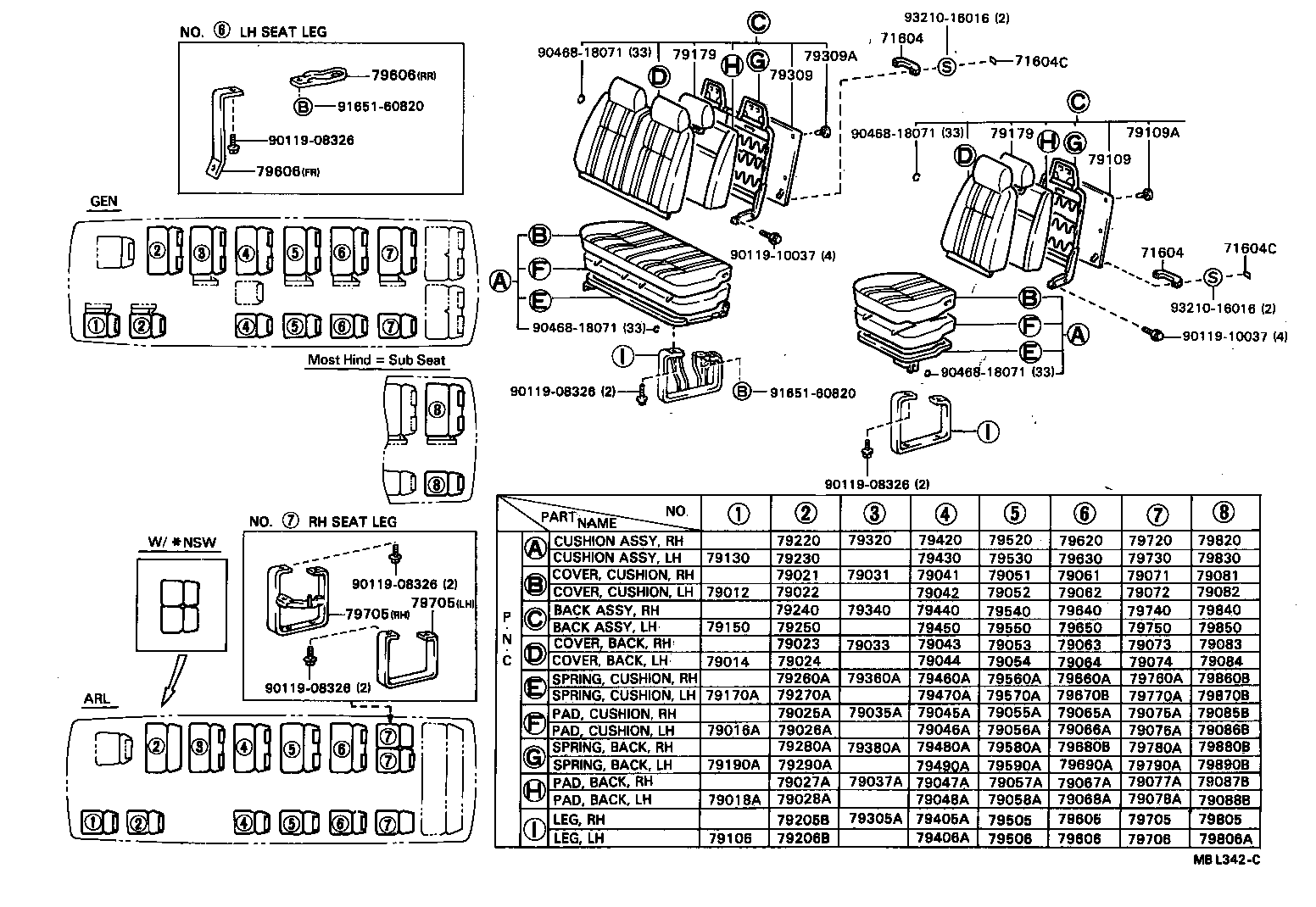

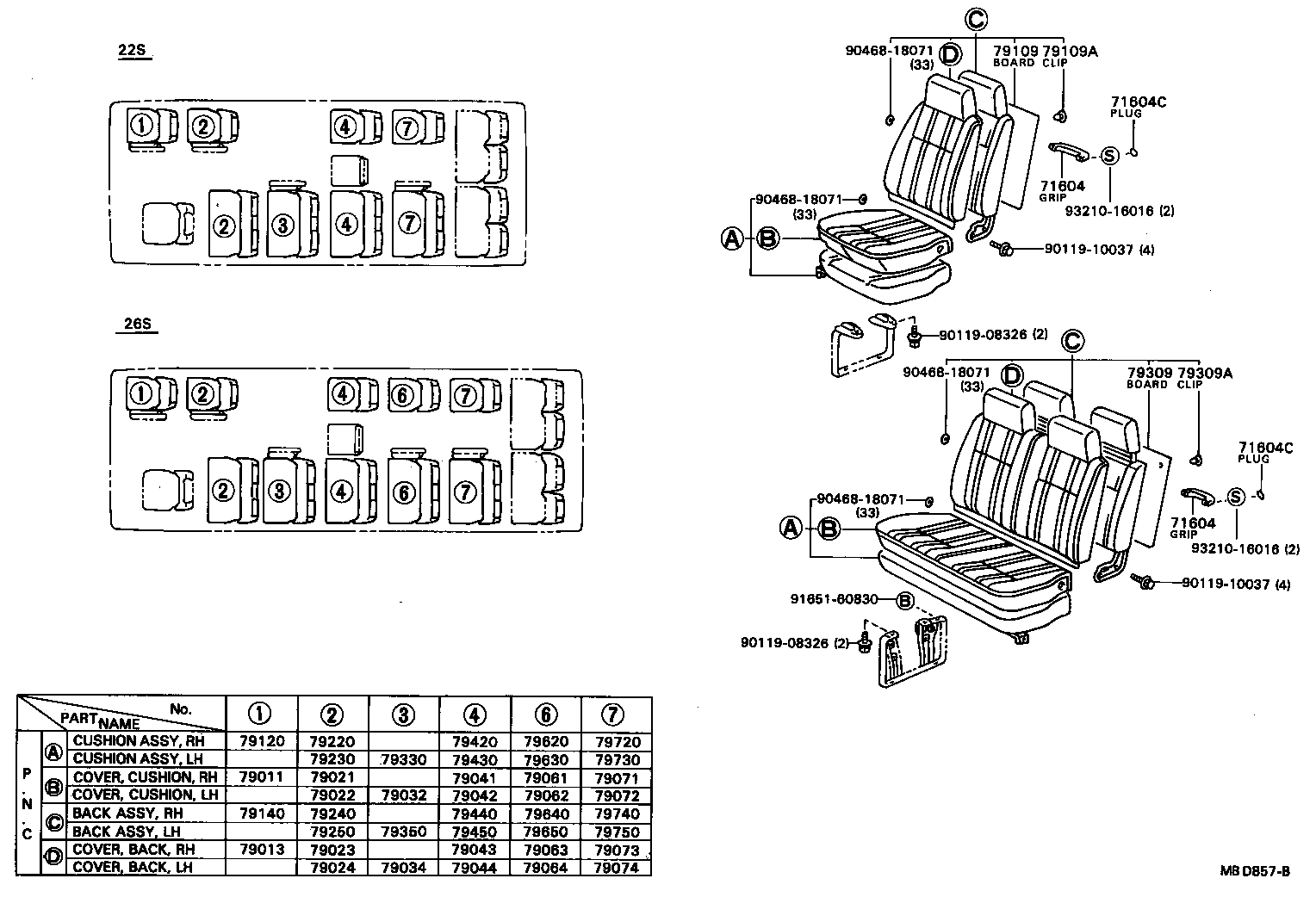

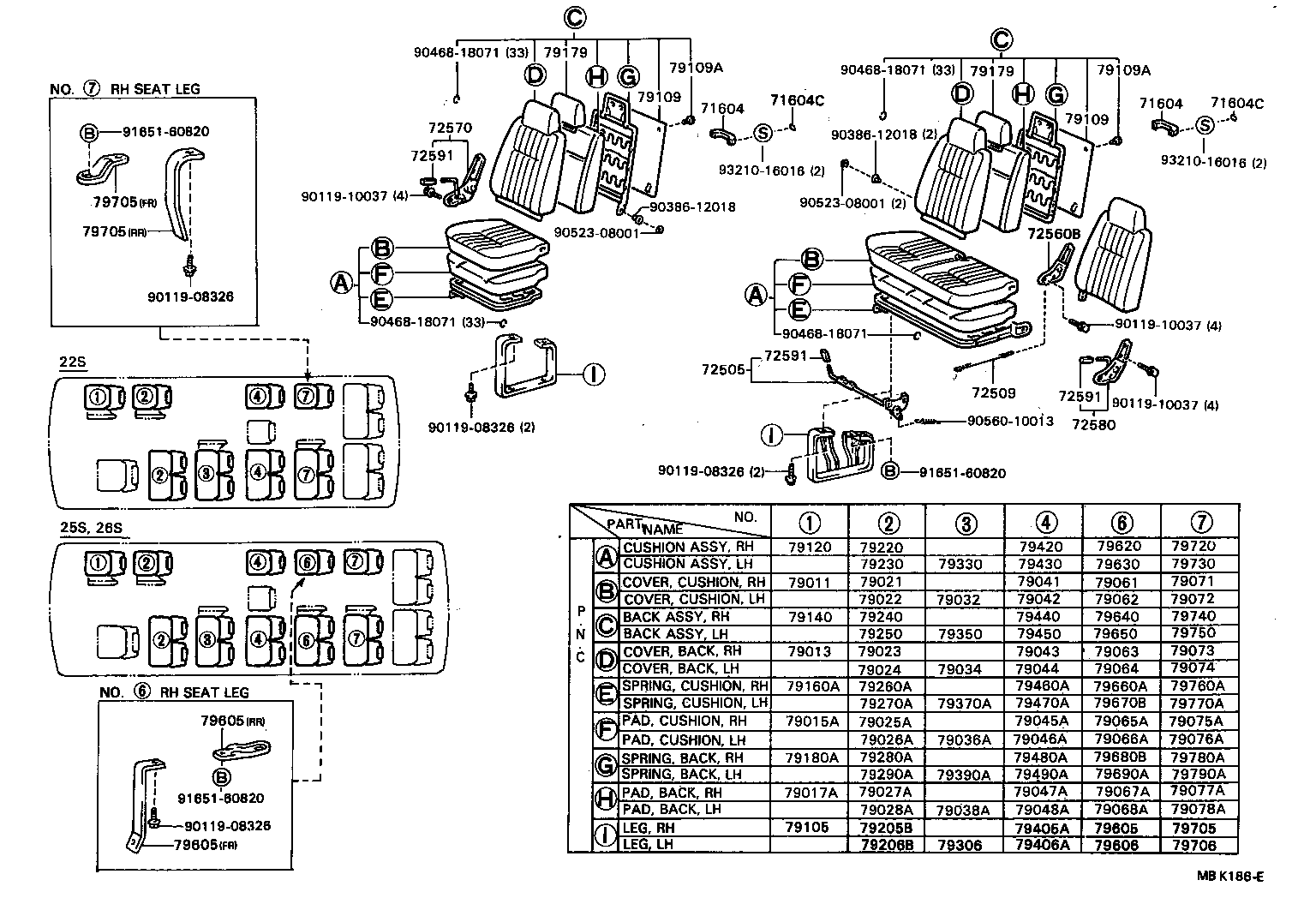

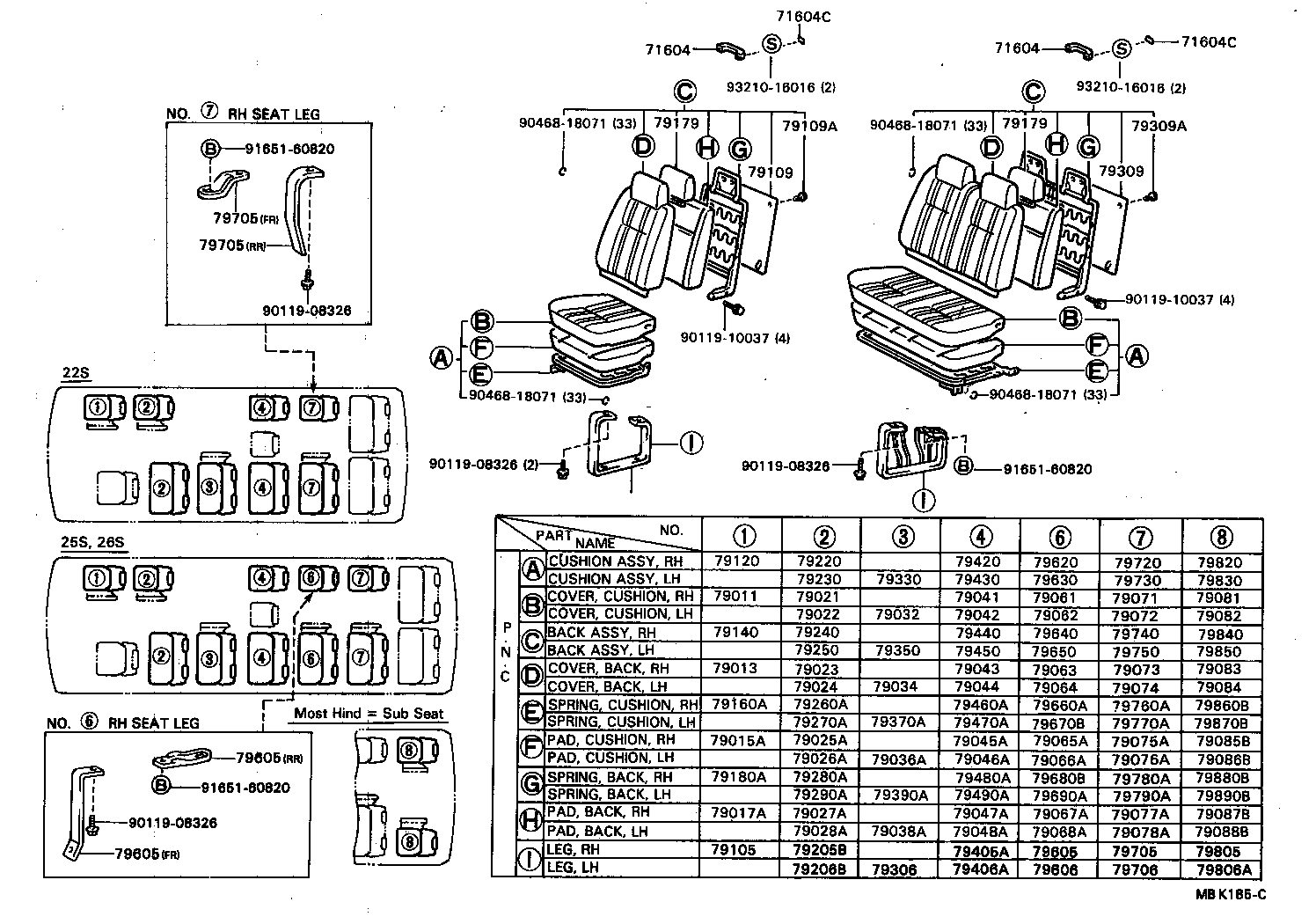

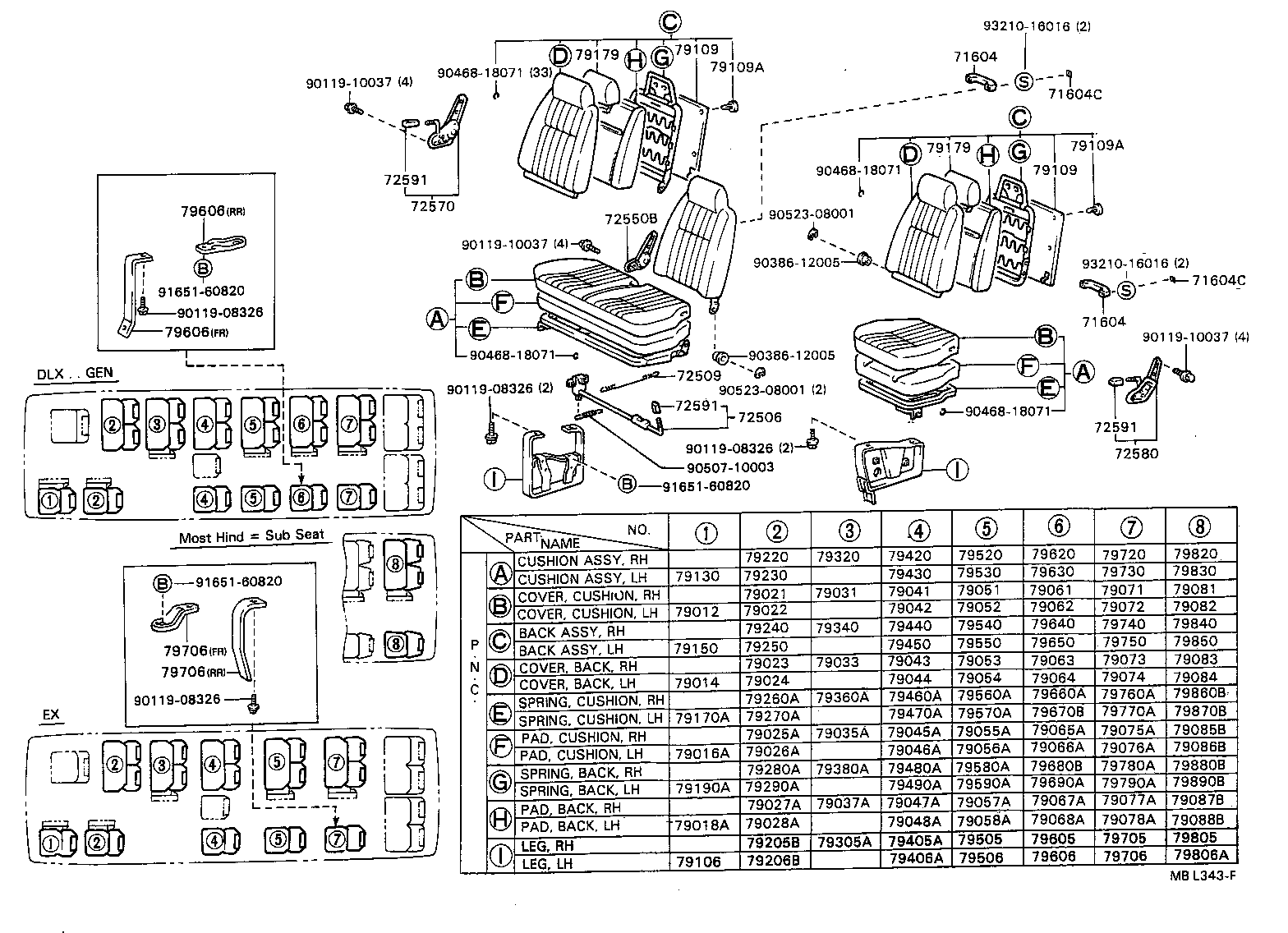

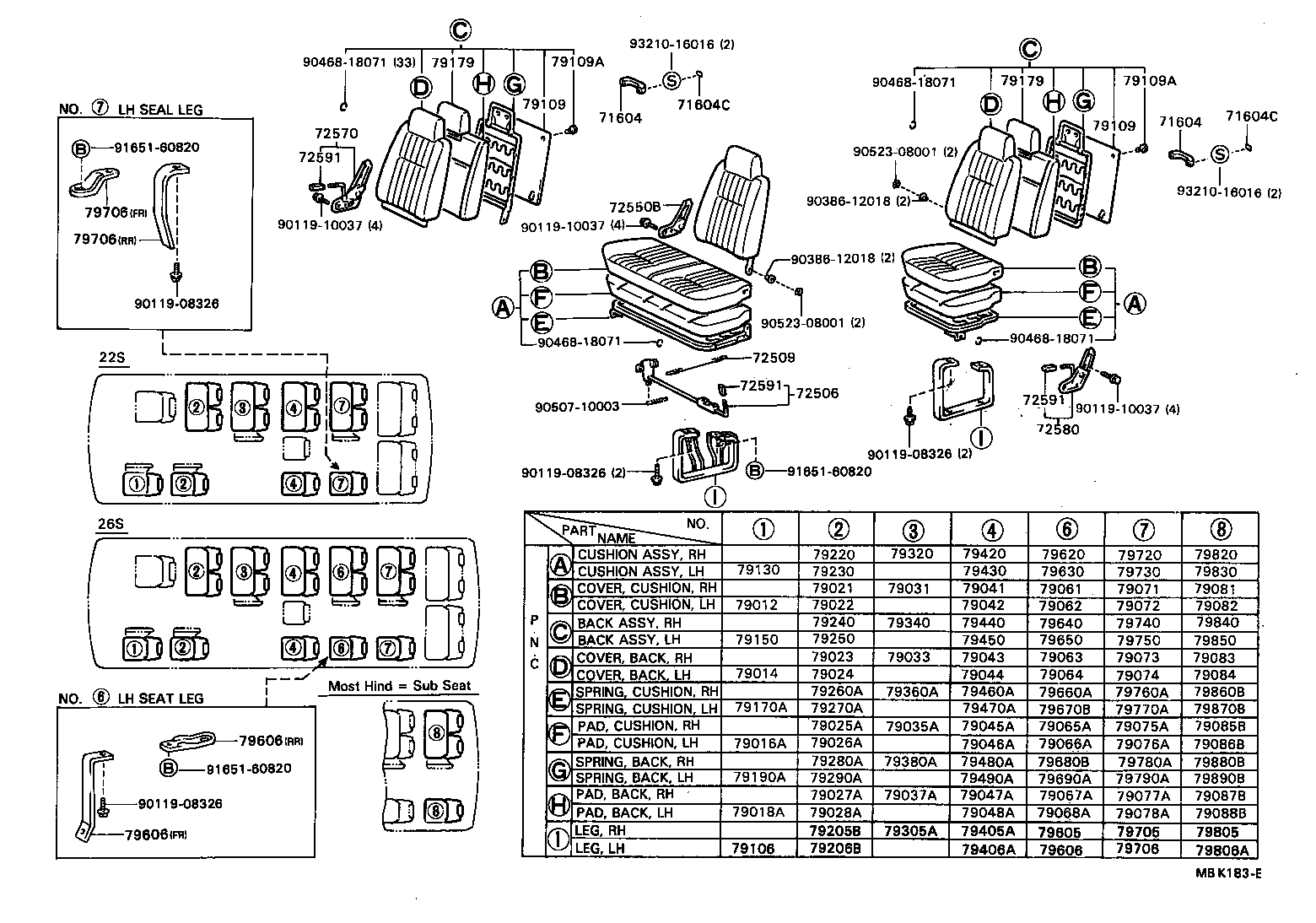

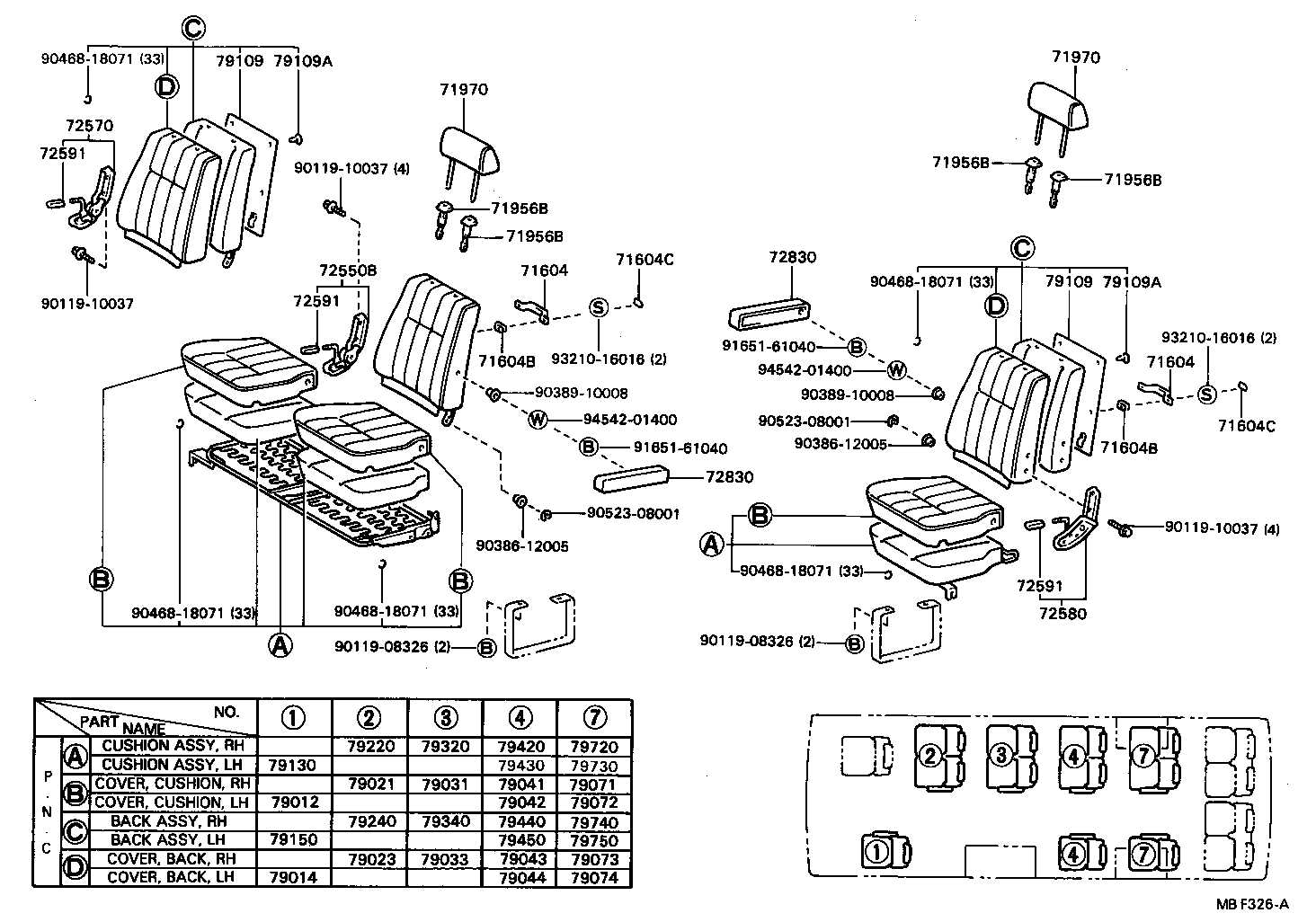

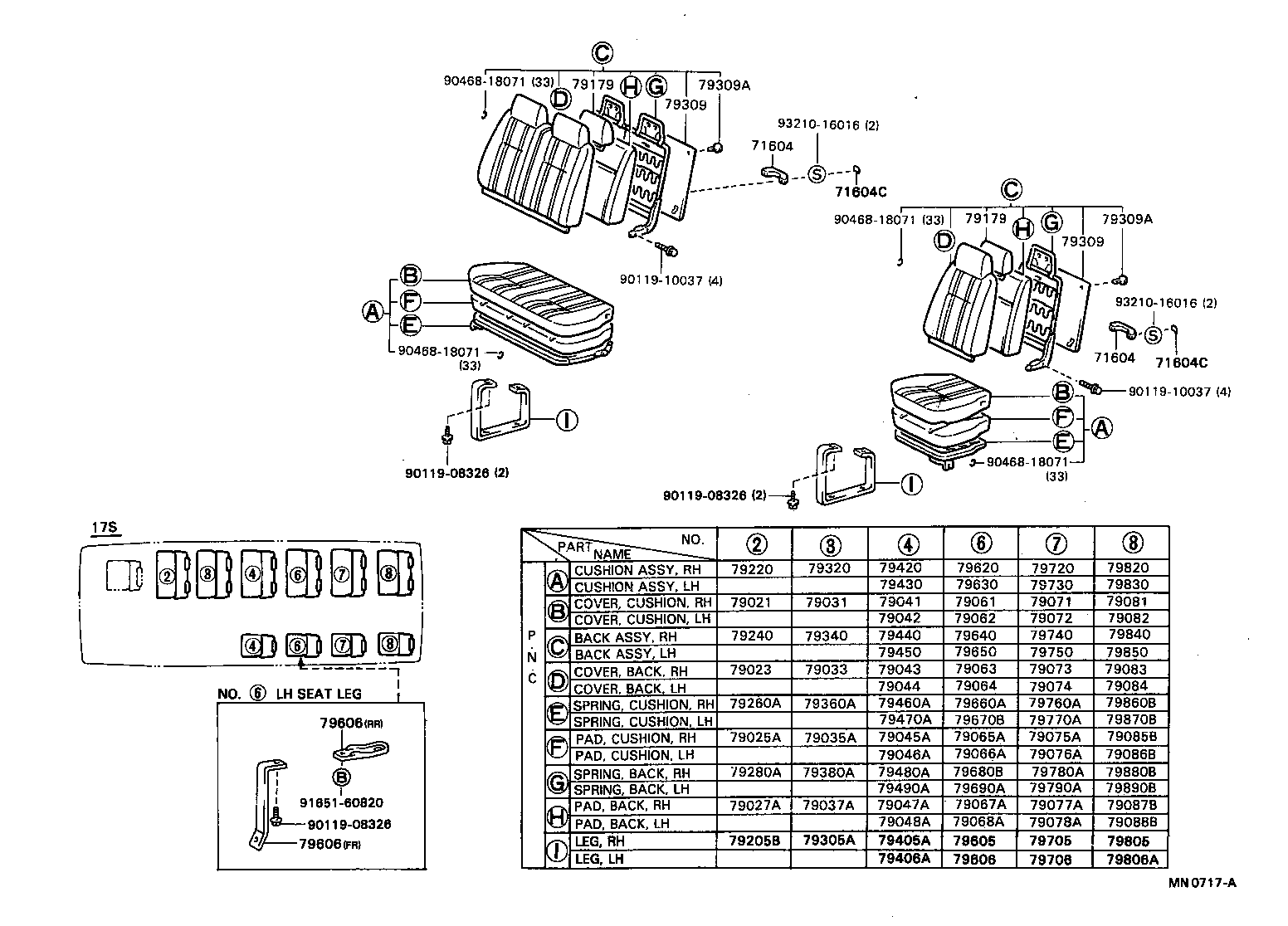

Figure MBD860F MBD860F 1982-05 → 1985-04 Figure MBD854E MBD854E 1982-05 → 1985-04 Figure MBD855A MBD855A 1982-05 → 1985-04 Figure MBD856C MBD856C 1982-05 → 1985-04 Figure MBF326A MBF326A 1983-03 → 1985-04 Figure MBD857B MBD857B 1982-05 → 1985-04 Figure MBD858B MBD858B 1982-05 → 1985-04 Figure MBD859B MBD859B 1982-05 → 1985-04 Figure MBD853C MBD853C 1982-05 → 1985-04 Figure MBK180D MBK180D 1985-04 → — Figure MBK181E MBK181E 1985-04 → — Figure MBK182D MBK182D 1985-04 → — Figure MN0717A MN0717A 1989-02 → — Figure MBK183E MBK183E 1985-04 → 1985-10 Figure MBK183E MBK183E 1985-10 → — Figure MBK184B MBK184B 1985-04 → — Figure MBK185C MBK185C 1985-04 → — Figure MBK186E MBK186E 1985-04 → — Figure MBK186E MBK186E 1985-10 → — Figure MBK187A MBK187A 1985-04 → — Figure MBL342C MBL342C 1986-10 → — Figure MBL343F MBL343F 1986-10 → — Figure MBL344C MBL344C 1986-10 → — Figure MBL345C MBL345C 1986-10 → — Figure MN1225 MN1225 1990-12 → — Figure MN1226 MN1226 1990-12 → — Figure MBK179D MBK179D 1985-04 → — Figure MN1670 MN1670 1990-01 → — Figure MN1671 MN1671 1990-01 → — Figure MN1672 MN1672 1990-01 → — Figure MN1673 MN1673 1990-01 → — Figure MN1674 MN1674 1990-01 → —

Part groups

PNCDescription
55358D Protector, Edge
66990 Holder Assy, Cup
66995 Retainer, Cup Holder
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71109A Leg Sub-assy, Front Seat
71146 Silencer, Front Seatback
71148 Silencer, Front Seat Cushion
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71572A Pad, Front Seatback Silencer, B
71604 Grip Sub-assy, Assist(FOR SEATBACK)
71604B Support, Assist Grip
71604C Plug, Hole(FOR ASSIST GRIP)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71950 Headrest Assy, Front Seat
71956A Support, Front Seat Headrest
71956B Support, Rear Seat Headrest
71970 Headrest Assy, Rear Seat
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120S Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130 Track Assy, RH Seat, Inner
72140 Track Assy, LH Seat, Inner
72505 Arm Sub-assy, Reclining Adjuster, Center RH
72506 Arm Sub-assy, Reclining Adjuster, Center LH
72509 Wire Sub-assy, Adjuster Equlizing
72510 Adjuster Assy, Reclining Seatback, RH
72510A Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER)
72520 Adjuster Assy, Reclining Seatback, LH
72524 Handle, Reclining Adjuster Release
72550B Adjuster Assy, Reclining Seat, Center RH
72551 Cover, Reclining Hinge, NO.1
72552 Cover, Reclining Hinge, NO.2
72560B Adjuster Assy, Reclining Seat, Center LH
72570 Adjuster Assy, Rear Reclining Seat, RH
72580 Adjuster Assy, Rear Reclining Seat, LH
72591 Knob, Reclining Remote Control Lever
72830 Armrest Assy, Rear Seat, Center
72853 Pad, Junior Seat Armrest
78071 Cover Sub-assy, Sub Seat Cushion, RH
78072 Cover Sub-assy, Sub Seat Cushion, LH
78073 Cover Sub-assy, Sub Seatback, RH
78074 Cover Sub-assy, Sub Seatback, LH
78077 Board Sub-assy, Sub Seat Cushion
78701 Frame Sub-assy, Sub Seat Cushion, RH
78702 Frame Sub-assy, Sub Seat Cushion, LH
78703 Frame Sub-assy, Sub Seatback
78705 Bracket Sub-assy, Sub Seat Cushion
78707 Frame Sub-assy, Sub Seatback, Lower RH
78708 Frame Sub-assy, Sub Seatback, Lower LH
78709 Panel Sub-assy, Sub Seat Cushion
78720 Cushion Assy, Sub Seat, RH
78726 Cushion, Sub Seat Cushion Frame
78730 Cushion Assy, Sub Seat, LH
78735 Pad, Sub Seat Cushion
78740A Back Assy, Sub Seat, RH
78750A Back Assy, Sub Seat, LH
78773A Hoop, Sub Seatback Guide
78775 Pad, Sub Seatback
78798 Spacer, Sub Seatback Frame
78901 Lock Sub-assy, Fold Seat Leg
78903 Striker Sub-assy, Fold Seat Leg Lock
78905 Lock Sub-assy, Fold RH Seatback, RH
78905A Knob, Folding Seatback Lock
78906 Lock Sub-assy, Fold RH Seatback, LH
78907 Lock Sub-assy, Fold LH Seatback, RH
78908 Lock Sub-assy, Fold LH Seatback, LH
78910 Cable Assy, Fold Seat Lock Control, NO.1
78920 Cable Assy, Fold Seat Lock Control, NO.2
78950 Band Assy, Fold Seat Stopper, NO.1
78958 Seal, Rear Floor Fold Striker Base
78959 Plate, Rear Floor Fold Striker Base
78960 Band Assy, Fold Seat Stopper, NO.2
79011 Cover Sub-assy, NO.1 Seat Cushion, RH
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79013 Cover Sub-assy, NO.1 Seatback, RH
79014 Cover Sub-assy, NO.1 Seatback, LH
79015A Pad Sub-assy, NO.1 Seat Cushion, RH
79016A Pad Sub-assy, NO.1 Seat Cushion, LH
79017A Pad Sub-assy, NO.1 Seatback, RH
79018A Pad Sub-assy, NO.1 Seatback, LH
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023 Cover Sub-assy, NO.2 Seatback, RH
79024 Cover Sub-assy, NO.2 Seatback, LH
79025A Pad Sub-assy, NO.2 Seat Cushion, RH
79026A Pad Sub-assy, NO.2 Seat Cushion, LH
79027A Pad Sub-assy, NO.2 Seatback, RH
79028A Pad Sub-assy, NO.2 Seatback, LH
79031 Cover Sub-assy, NO.3 Seat Cushion, RH
79032 Cover Sub-assy, NO.3 Seat Cushion, LH
79033 Cover Sub-assy, NO.3 Seatback, RH
79034 Cover Sub-assy, NO.3 Seatback, LH
79035A Pad Sub-assy, NO.3 Seat Cushion, RH
79036A Pad, Sub-assy, NO.3 Seat Cushion, LH
79037A Pad Sub-assy, NO.3 Seatback, RH
79038A Pad Sub-assy, NO.3 Seatback, LH
79041 Cover Sub-assy, NO.4 Seat Cushion, RH
79042 Cover Sub-assy, NO.4 Seat Cushion, LH
79043 Cover Sub-assy, NO.4 Seatback, RH
79044 Cover Sub-assy, NO.4 Seatback, LH
79045A Pad Sub-assy, NO.4 Seat Cushion, RH
79046A Pad Sub-assy, NO.4 Seat Cushion, LH
79047A Pad Sub-assy, NO.4 Seatback, RH
79048A Pad Sub-assy, NO.4 Seatback, LH
79051 Cover Sub-assy, NO.5 Seat Cushion, RH
79052 Cover Sub-assy, NO.5 Seat Cushion, LH
79053 Cover Sub-assy, NO.5 Seatback, RH
79054 Cover Sub-assy, NO.5 Seatback, LH
79055A Pad Sub-assy, NO.5 Seat Cushion, RH
79056A Pad Sub-assy, NO.5 Seat Cushion, LH
79057A Pad Sub-assy, NO.5 Seatback, RH
79058A Pad Sub-assy, NO.5 Seatback, LH
79061 Cover Sub-assy, NO.6 Seat Cushion, RH
79062 Cover Sub-assy, NO.6 Seat Cushion, LH
79063 Cover Sub-assy, NO.6 Seatback, RH
79064 Cover Sub-assy, NO.6 Seatback, LH
79065A Pad Sub-assy, NO.6 Seat Cushion, RH
79066A Pad Sub-assy, NO.6 Seat Cushion, LH
79067A Pad Sub-assy, NO.6 Seatback, RH
79068A Pad Sub-assy, NO.6 Seatback, LH
79071 Cover Sub-assy, NO.7 Seat Cushion, RH
79072 Cover Sub-assy, NO.7 Seat Cushion, LH
79073 Cover Sub-assy, NO.7 Seatback, RH
79074 Cover Sub-assy, NO.7 Seatback, LH
79075A Pad Sub-assy, NO.7 Seat Cushion, RH
79076A Pad Sub-assy, NO.7 Seat Cushion
79077A Pad Sub-assy, NO.7 Seatback, RH
79078A Pad Sub-assy, NO.7 Seatback, LH
79081 Cover Sub-assy, NO.8 Seat Cushion, RH
79081A Cover Sub-assy, NO.8 Seat Cushion
79081B Cover Sub-assy, Fold Seat Cushion, RH
79082 Cover Sub-assy, NO.8 Seat Cushion, LH
79082B Cover Sub-assy, Fold Seat Cushion, LH
79083 Cover Sub-assy, NO.8 Seatback, RH
79083A Cover Sub-assy, NO.8 Seatback
79083B Cover Sub-assy, Fold Seatback, RH
79084 Cover Sub-assy, NO.8 Seatback, LH
79084B Cover Sub-assy, Fold Seatback, LH
79085 Pad Sub-assy, NO.8 Seat Cushion
79085A Pad Sub-assy, Fold Seat Cushion, RH
79085B Pad Sub-assy, NO.8 Seat Cushion, RH
79086A Pad Sub-assy, Fold Seat Cushion, LH
79086B Pad Sub-assy, NO.8 Seat Cushion, LH
79087A Pad Sub-assy, Fold Seatback, RH
79087B Pad Sub-assy, NO.8 Seatback, RH
79088A Pad Sub-assy, Fold Seatback, LH
79088B Pad Sub-assy, NO.8 Seatback, LH
79097 Partition Sub-assy, Luggage Compartment Wall
79105 Leg Sub-assy, NO.1 Seat, RH
79106 Leg Sub Assy, NO.1 Seat, LH
79109 Board Sub-assy, NO.1 Seatback
79109A Clip (FOR NO.1 SEATBACK BOARD)
79120 Cushion Assy, NO.1 Seat, RH
79130 Cushion Assy, NO.1 Seat, LH
79140 Back Assy, NO.1 Seat, RH
79150 Back Assy, NO.1 Seat, LH
79160A Spring Assy, NO.1 Seat Cushion, RH
79170A Spring Assy, NO.1 Seat Cusuion, LH
79179 Pad, NO.1 Seatback Headrest
79180A Spring Assy, NO.1 Seatback, RH
79190A Spring Assy, NO.1 Seatback, LH
79202 Frame Sub-assy, NO.2 Seat Cushion, LH
79205B Leg Sub-assy, NO.2 Seat, RH
79206B Leg Sub-assy, NO.2 Seat, LH
79220 Cushion Assy, NO.2 Seat, RH
79230 Cushion Assy, NO.2 Seat, LH
79240 Back Assy, NO.2 Seat, RH
79250 Back Assy, NO.2 Seat, LH
79260A Spring Assy, NO.2 Seat Cushion, RH
79270A Spring Assy, NO.2 Seat Cushion, LH
79280A Spring Assy, NO.2 Seatback, RH
79290A Spring Assy, NO.2 Seatback, LH
79305A Leg Sub-assy, NO.3 Seat, RH
79306 Leg Sub Assy, NO.3 Seat, LH
79309 Board Sub-assy, NO.3 Seatback
79309A Clip (FOR NO.3 SEATBACK BOARD)
79320 Cushion Assy, NO.3 Seat, RH
79330 Cushion Assy, NO.3 Seat, LH
79340 Back Assy, NO.3 Seat, RH
79350 Back Assy, NO.3 Seat, LH
79360A Spring Assy, NO.3 Seat Cushion, RH
79370A Spring Assy, NO.3 Seat Cushion, LH
79380A Spring Assy, NO.3 Seatback, RH
79390A Spring Assy, NO.3 Seatback, LH
79405A Leg Sub-assy, NO.4 Seat, RH
79406A Leg Sub-assy, NO.4 Seat, LH
79420 Cushion Assy, NO.4 Seat, RH
79430 Cushion Assy, NO.4 Seat, LH
79440 Back Assy, NO.4 Seat, RH
79450 Back Assy, NO.4 Seat, LH
79460A Spring Assy, NO.4 Seat Cushion, RH
79470A Spring Assy, NO.4 Seat Cushion, LH
79480A Spring Assy, NO.4 Seatback, RH
79490A Spring Assy, NO.4 Seatback, LH
79505 Leg Sub-assy, NO.5 Seat, RH
79506 Leg Sub-assy, NO.5 Seat, LH
79520 Cushion Assy, NO.5 Seat, RH
79530 Cushion Assy, NO.5 Seat, LH
79540 Back Assy, NO.5 Seat, RH
79550 Back Assy, NO.5 Seat, LH
79560A Spring Assy, NO.5 Seat Cushion, RH
79570A Spring Assy, NO.5 Seat Cushion, LH
79580A Spring Assy, NO.5 Seatback, RH
79590A Spring Assy, NO.5 Seatback, LH
79605 Leg Sub-assy, NO.6 Seat, RH
79606 Leg Sub-assy, NO.6 Seat, LH
79620 Cushion Assy, NO.6 Seat, RH
79630 Cushion Assy, NO.6 Seat, LH
79640 Back Assy, NO.6 Seat, RH
79650 Back Assy, NO.6 Seat, LH
79660A Spring Assy, NO.6 Seat Cushion, RH
79670B Spring Assy, NO.6 Seat Cushion, LH
79680B Spring Assy, NO.6 Seatback, RH
79690A Spring Assy, NO.6 Seatback, LH
79705 Leg Sub-assy, NO.7 Seat, RH
79706 Leg Sub-assy, NO.7 Seat, LH
79720 Cushion Assy, NO.7 Seat, RH
79730 Cushion Assy, NO.7 Seat, LH
79740 Back Assy, NO.7 Seat, RH
79750 Back Assy, NO.7 Seat, LH
79760A Spring Assy, NO.7 Seat Cushion, RH
79770A Spring Assy, NO.7 Seat Cushion, LH
79780A Spring Assy, NO.7 Seatback, RH
79790A Spring Assy, NO.7 Seatback, LH
79805 Leg Sub-assy, NO.8 Seat, RH
79806 Leg Sub-assy, Fold Seat, Rear RH
79806A Leg Sub-assy, NO.8 Seat, LH
79807 Leg Sub-assy, Fold Seat, Rear LH
79809 Board Sub-assy, NO.8 Seatback
79809A Clip (FOR NO.8 SEATBACK BOARD)
79820 Cushion Assy, NO.8 Seat, RH
79820A Cushion Assy, NO.8 Seat
79820B Cushion Assy, Fold Seat, RH
79830 Cushion Assy, NO.8 Seat, LH
79830B Cushion Assy, Fold Seat, LH
79831 Leg, NO.8 Seat, FR
79832 Leg, NO.8 Seat, RR
79840 Back Assy, NO.8 Seat, RH
79840A Back Assy, NO.8 Seat
79840B Back Assy, Fold Seat, RH
79850 Back Assy, NO.8 Seat, LH
79850B Back Assy, Fold Seat, LH
79860 Spring Assy, NO.8 Seat Cushion
79860A Spring Assy, Fold Seat Cushion, RH
79860B Spring Assy, NO.8 Seat Cushion, RH
79870A Spring Assy, Fold Seat Cushion, LH
79870B Spring Assy, NO.8 Seat Cushion, LH
79874 Bracket, NO.8 Seatback Set
79875 Pad, NO.8 Seatback
79876 Pad, NO.8 Seatback, A
79877 Pad, NO.8 Seatback, B
79878 Pad, NO.8 Seatback, C
79880 Spring Assy, NO.8 Seatback
79880A Spring Assy, Fold Seatback, RH
79880B Spring Assy, NO.8 Seatback, RH
79890A Spring Assy, Fold Seatback, LH
79890B Spring Assy, NO.8 Seatback, LH
79929 Frame, Fold Seat Leg Stopper

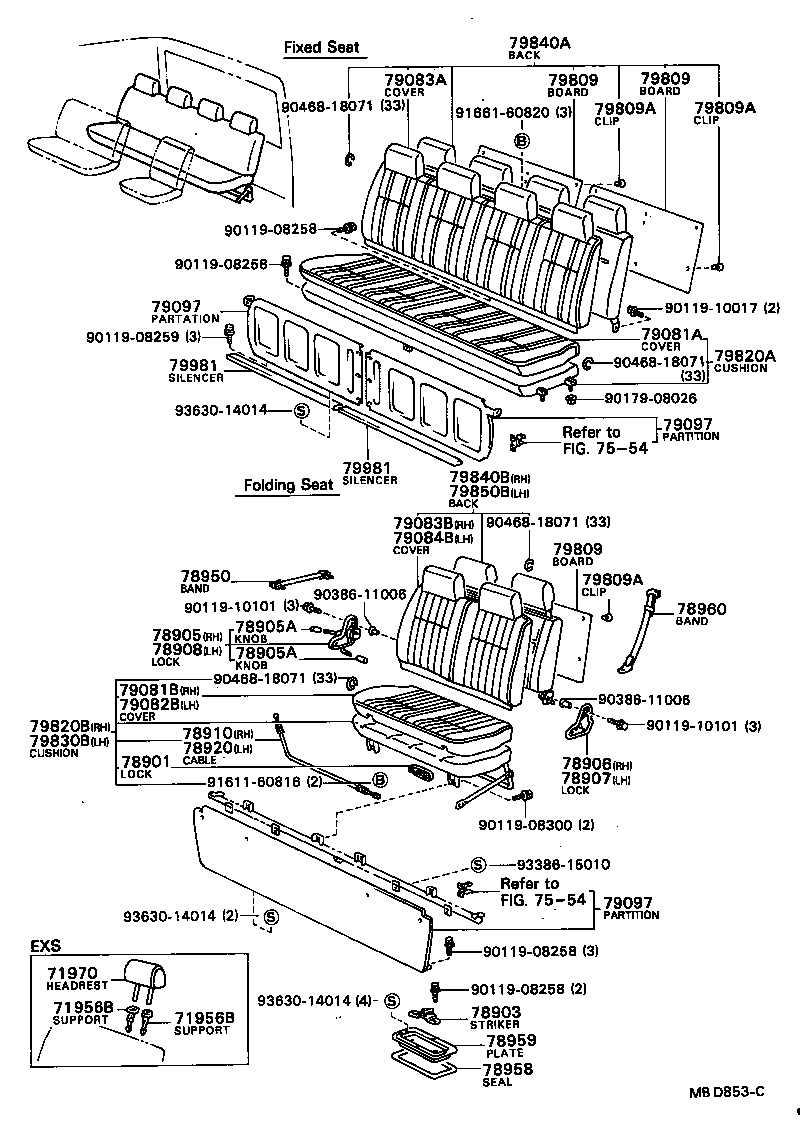

79981 Silencer, Luggage Compartment Wall
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
