Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Protector Pipe, Roll Bar & Handrail

11 part groups · 8 illustrations

Illustrations

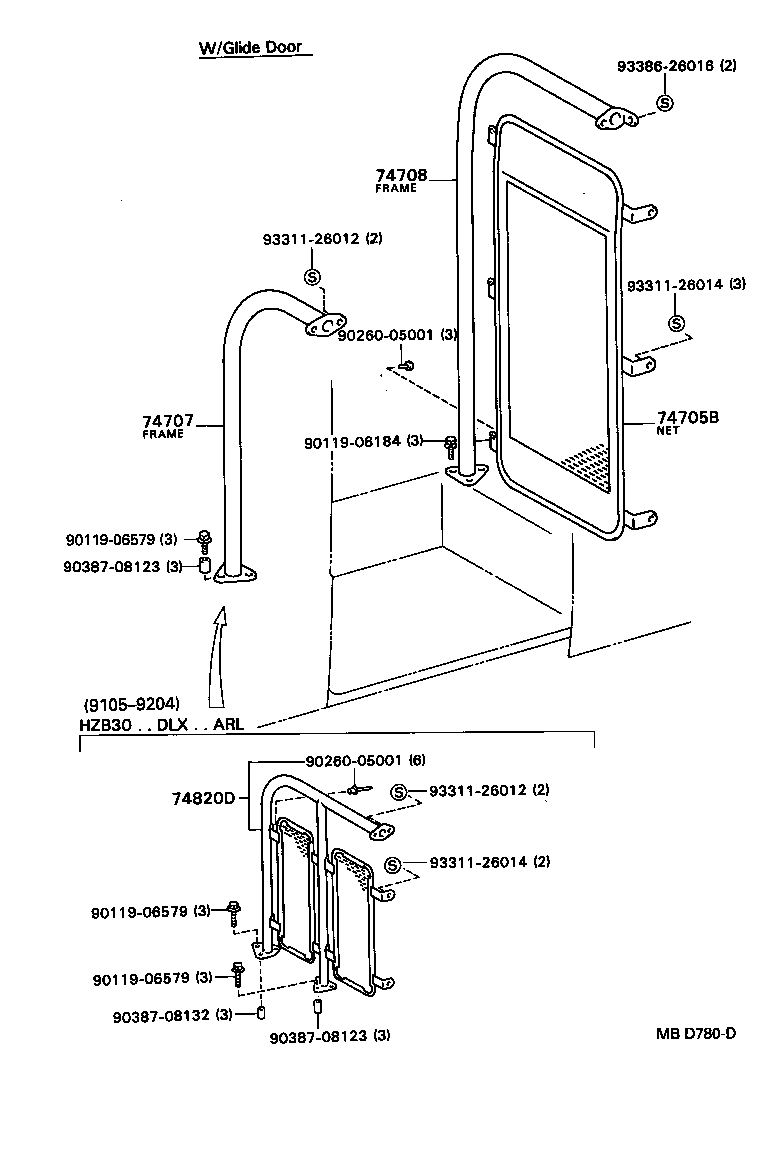

Figure MBD779A MBD779A 1982-05 → 1983-04 Figure MBD779A MBD779A 1982-06 → 1983-04 Figure MBS796A MBS796A 1983-04 → — Figure MBS796A MBS796A 1983-04 → — Figure MBD780D MBD780D 1982-05 → — Figure MBG167A MBG167A 1983-10 → — Figure MBH348B MBH348B 1984-05 → 1985-10 Figure MBH348B MBH348B 1985-10 → —

Part groups

PNCDescription
74075A Frame Sub-assy, Hand Grip, Front
74622 Bracket, Hand Grip
74703 Frame Sub-assy, Hand Grip Side
74705B Net Sub-assy, Hand Grip Protector
74707 Frame Sub-assy, Hand Grip, NO.1
74708 Frame Sub-assy, Hand Grip, NO.2
74730 Frame Assy, Hand Grip
74803A Pipe Sub-assy, Front Protector Vertical, RH
74807B Pipe Sub-assy, Center Protector
74820D Trim Assy, Separator, Upper Rear
74827A Bracket, Front Protector Pipe, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
