Toyota Coaster
1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe
Discontinued model
Data version 1994-03

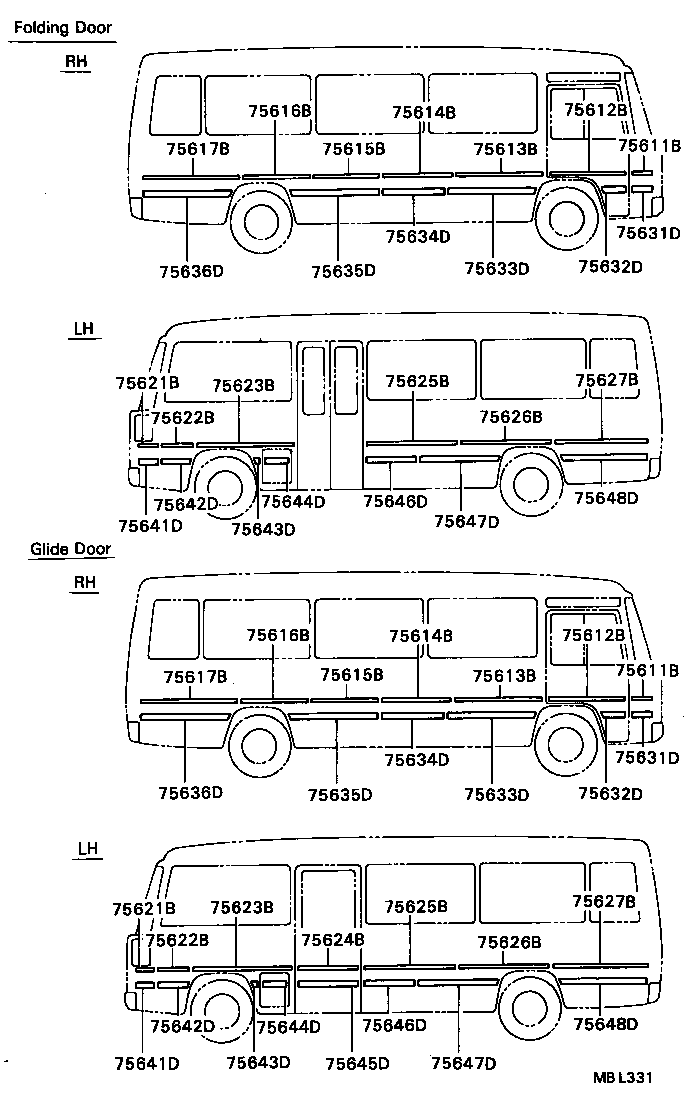

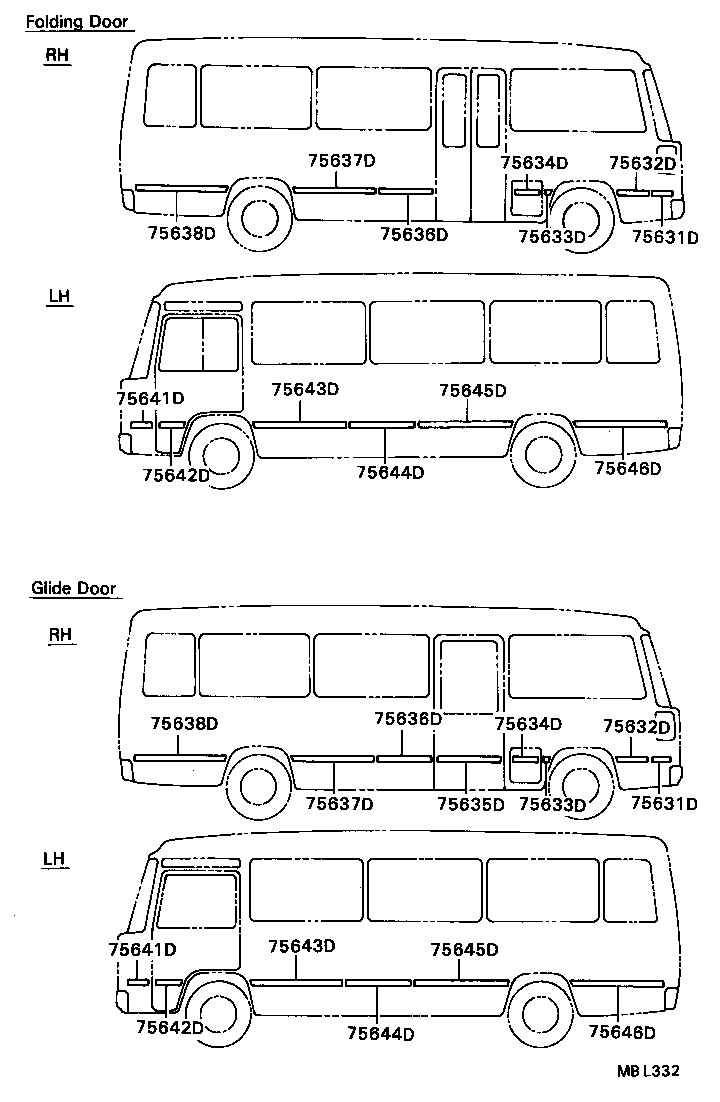

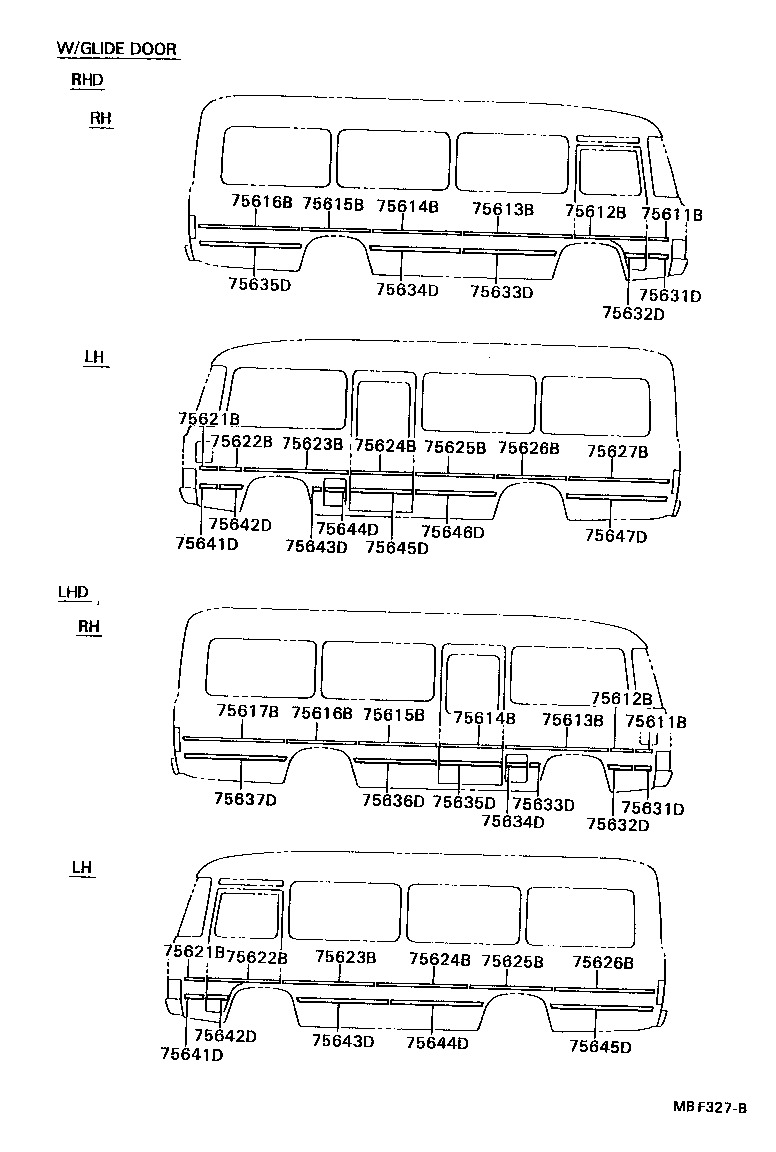

Moulding
30 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 75611B | Moulding, Side Panel, NO.1 RH |
| 75612B | Moulding, Side Panel, NO.2 RH |
| 75613B | Moulding, Side Panel, NO.3 RH |
| 75614B | Moulding, Side Panel, NO.4 RH |
| 75615B | Moulding, Side Panel, NO.5 RH |
| 75616B | Moulding, Side Panel, NO.6 RH |
| 75617B | Moulding, Side Panel, NO.7 RH |
| 75621B | Moulding, Side Panel, NO.1 LH |
| 75622B | Moulding, Side Panel, NO.2 LH |
| 75623B | Moulding, Side Panel, NO.3 LH |
| 75624B | Moulding, Side Panel, NO.4 LH |
| 75625B | Moulding, Side Panel, NO.5 LH |
| 75626B | Moulding, Side Panel, NO.6 LH |
| 75627B | Moulding, Side Panel, NO.7 LH |
| 75631D | Moulding, Side Panel, Lower NO.1 RH |
| 75632D | Moulding, Side Panel, Lower NO.2 RH |
| 75633D | Moulding, Side Panel, Lower NO.3 RH |
| 75634D | Moulding, Side Panel, Lower NO.4 RH |
| 75635D | Moulding, Side Panel, Lower NO.5 RH |
| 75636D | Moulding, Side Panel, Lower NO.6 RH |
| 75637D | Moulding, Side Panel, Lower NO.7 RH |
| 75638D | Moulding, Side Panel, Lower NO.8 RH |
| 75641D | Moulding, Side Panel, Lower NO.1 LH |
| 75642D | Moulding, Side Panel, Lower NO.2 LH |
| 75643D | Moulding, Side Panel, Lower NO.3 LH |
| 75644D | Moulding, Side Panel, Lower NO.4 LH |
| 75645D | Moulding, Side Panel, Lower NO.5 LH |
| 75646D | Moulding, Side Panel, Lower NO.6 LH |
| 75647D | Moulding, Side Panel, Lower NO.7 LH |
| 75648D | Moulding, Side Panel, Lower NO.8 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
