Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

38 part groups · 22 illustrations

Illustrations

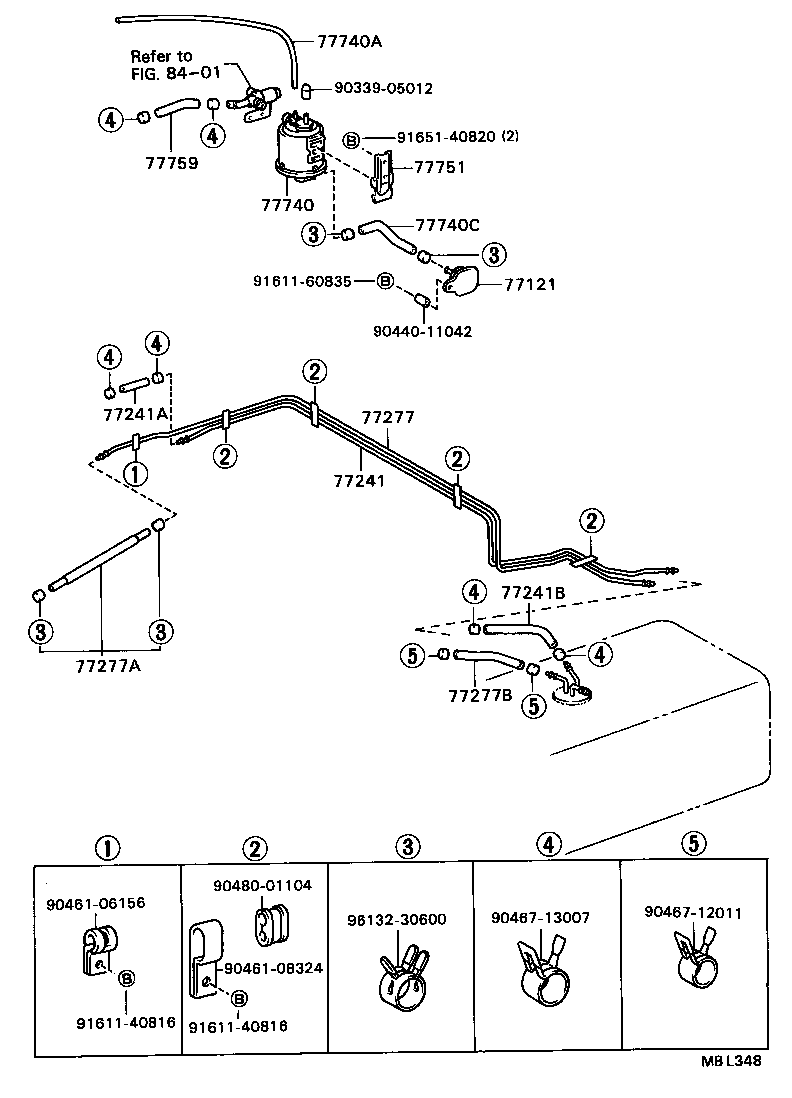

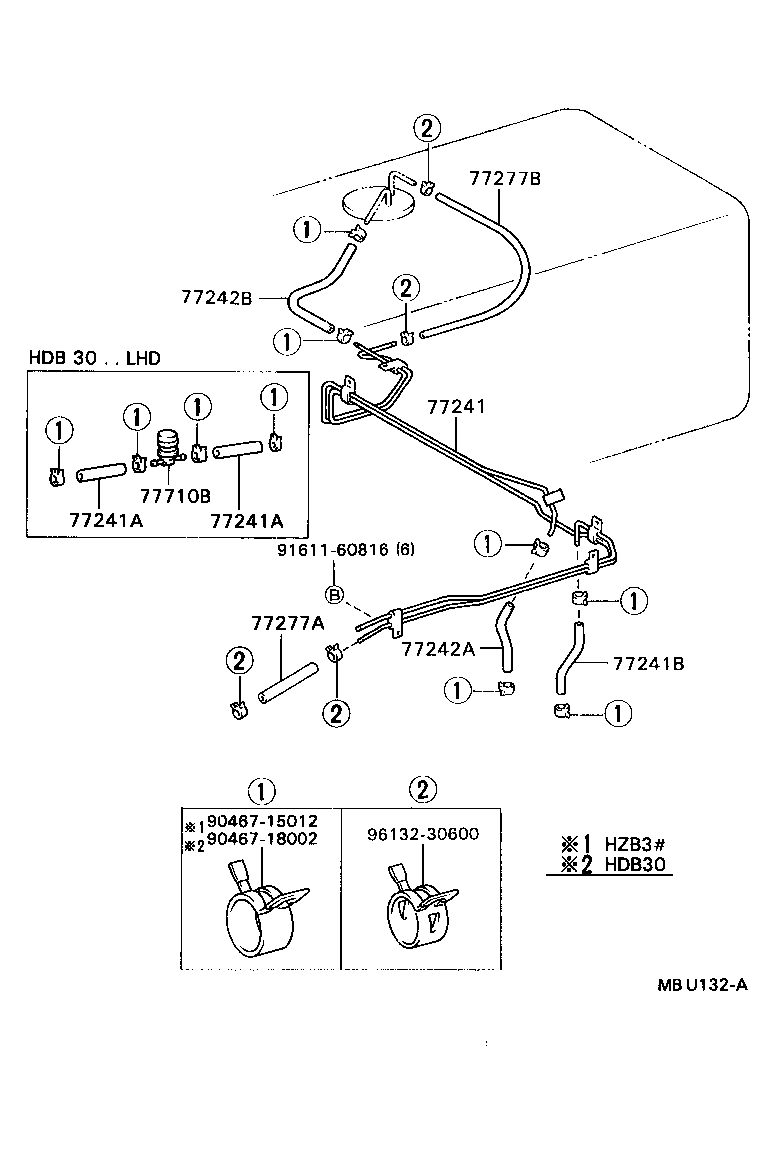

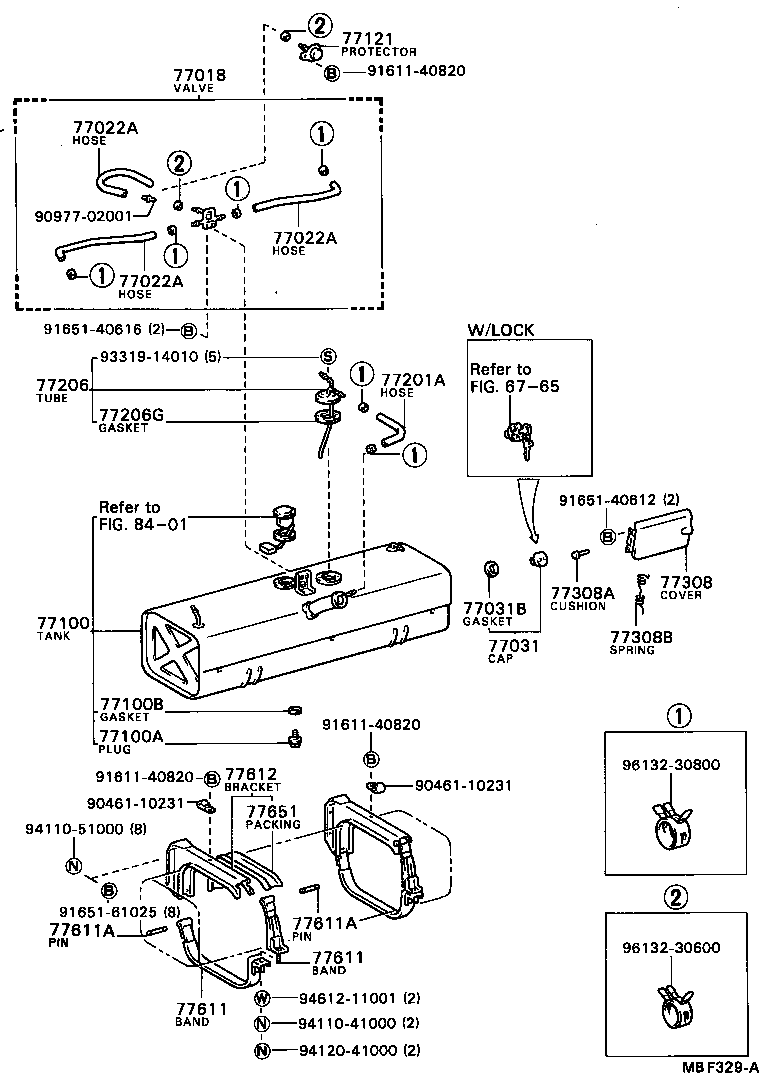

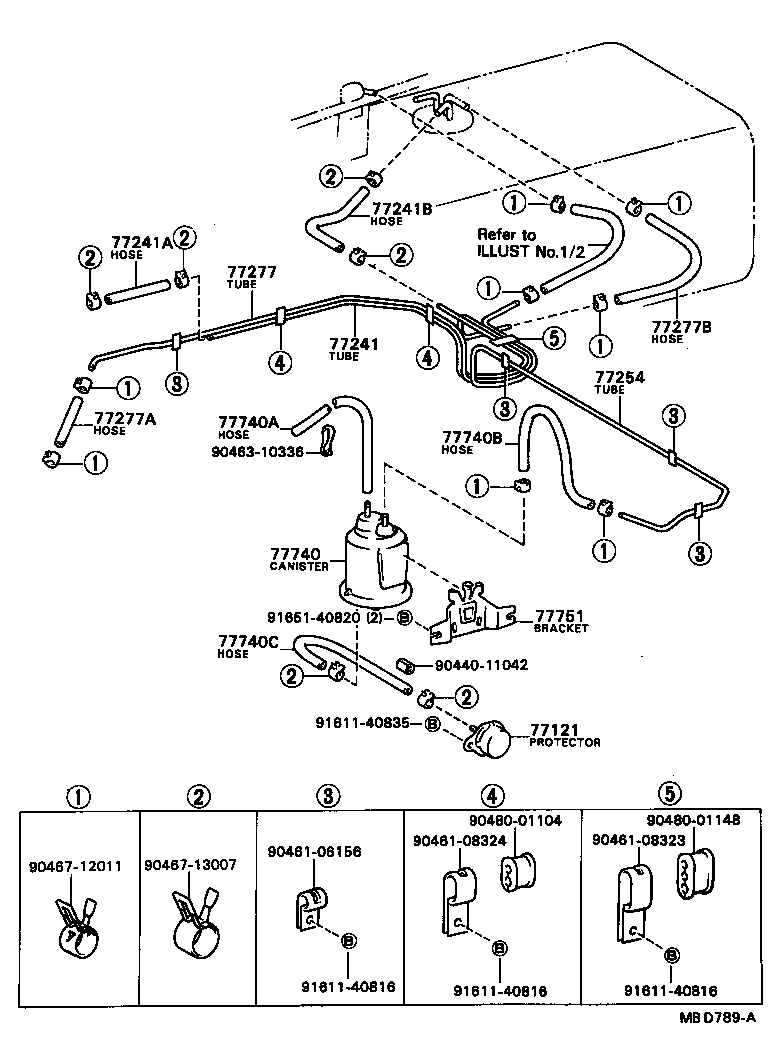

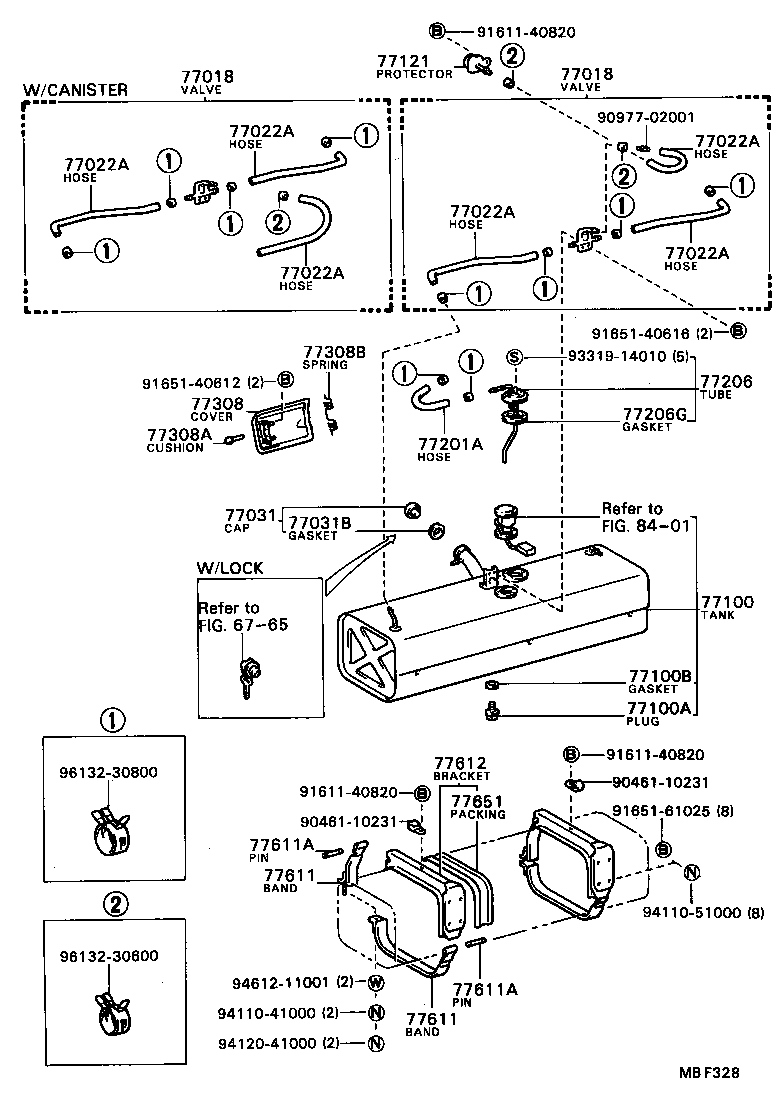

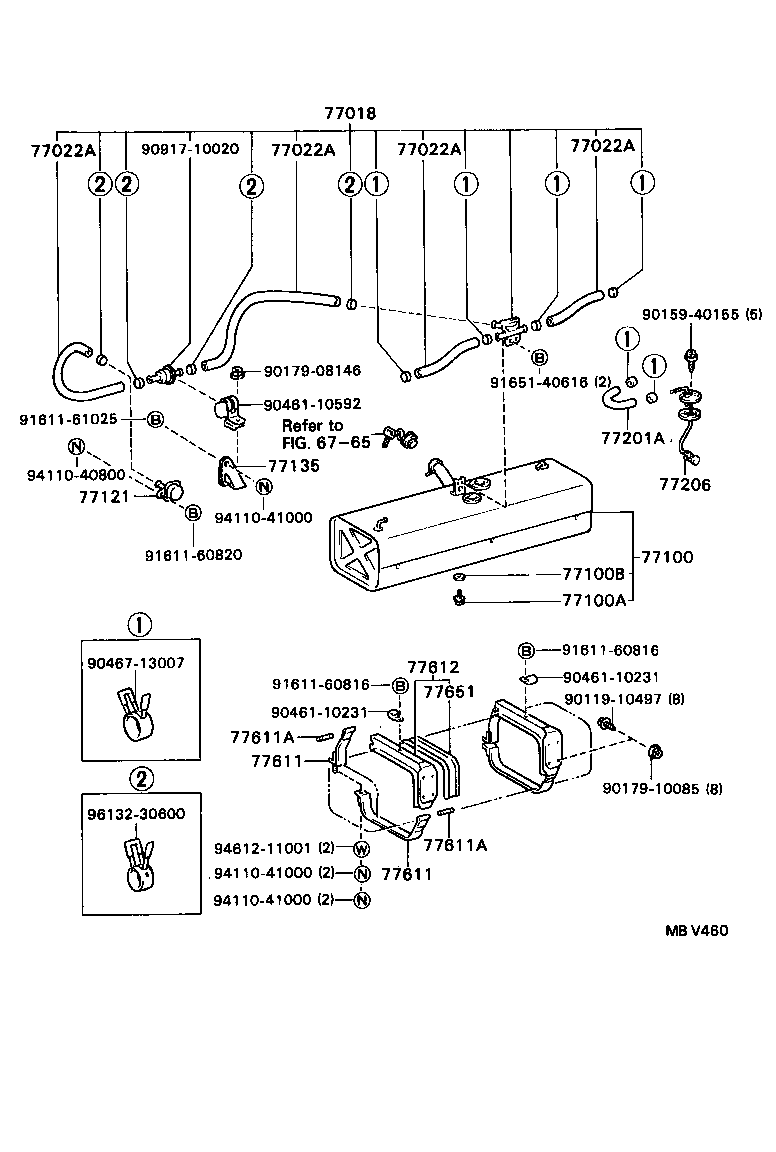

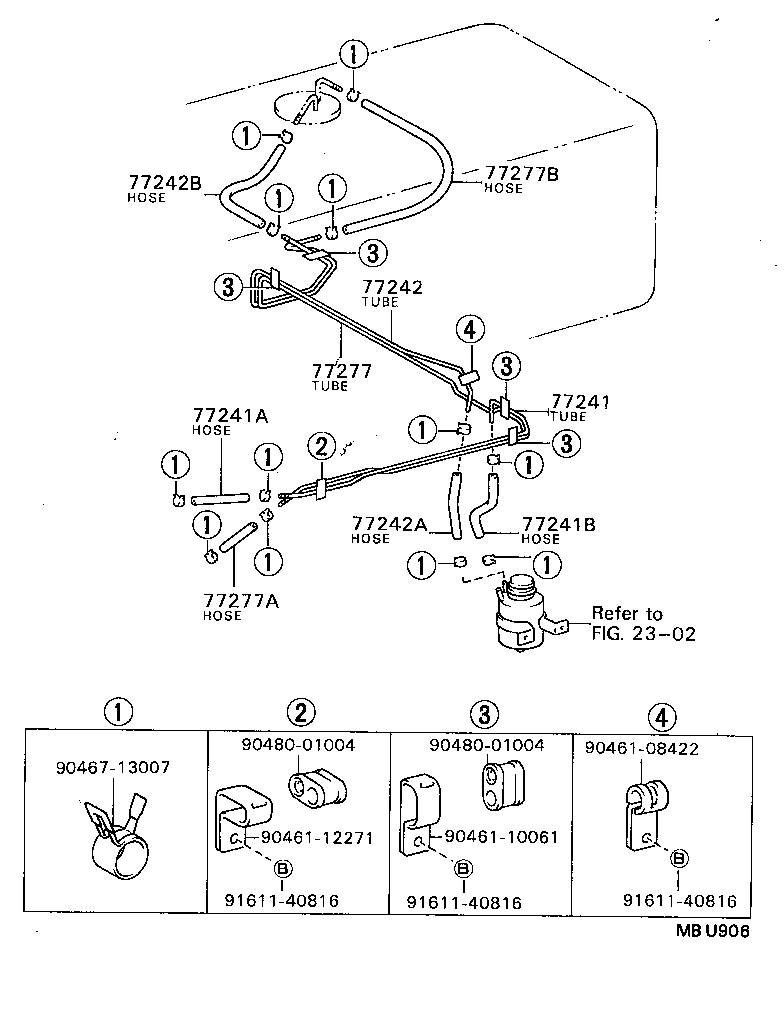

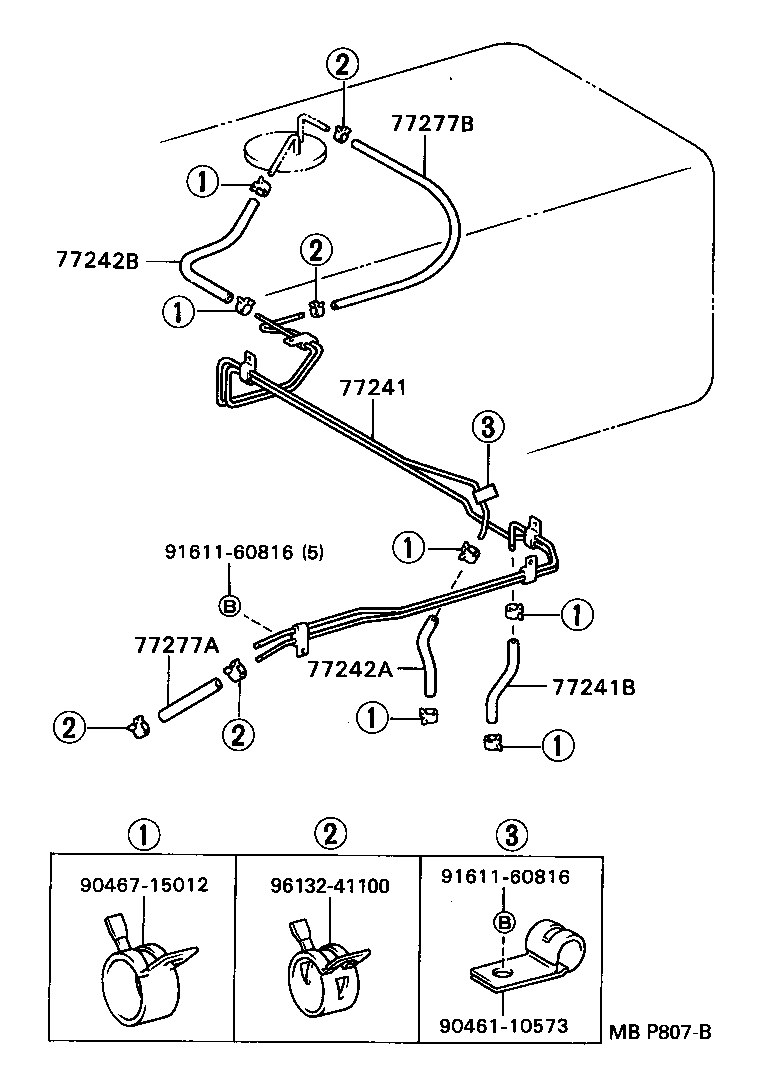

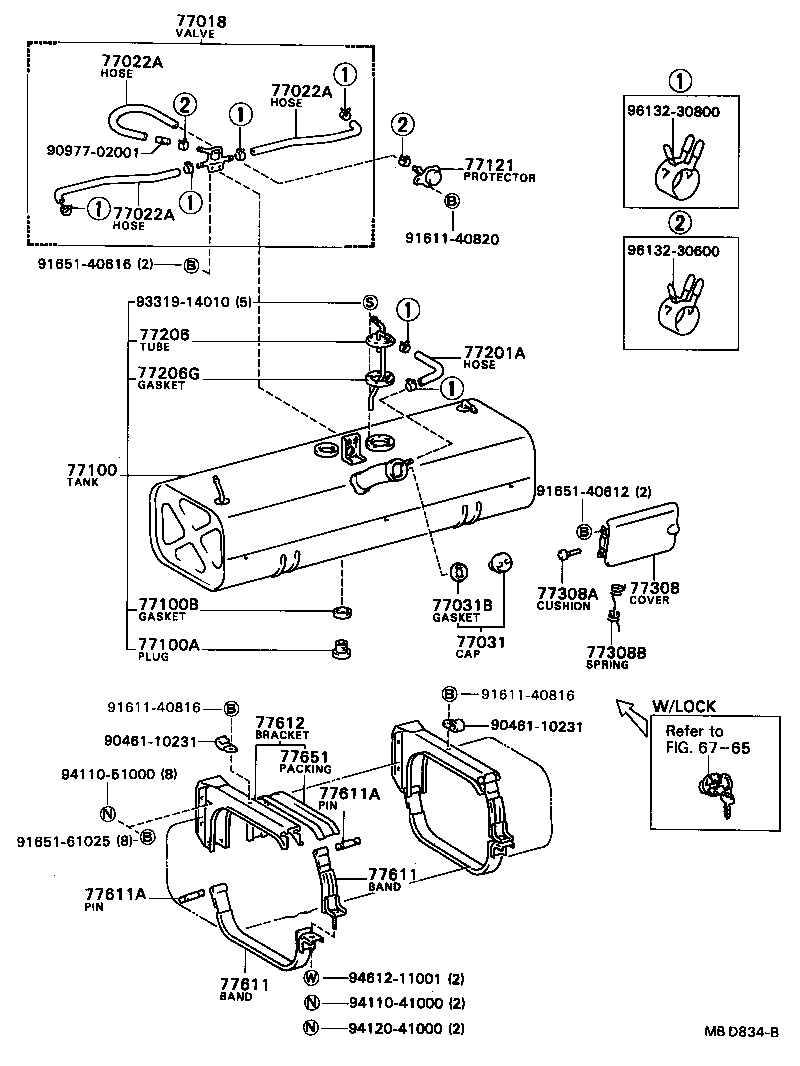

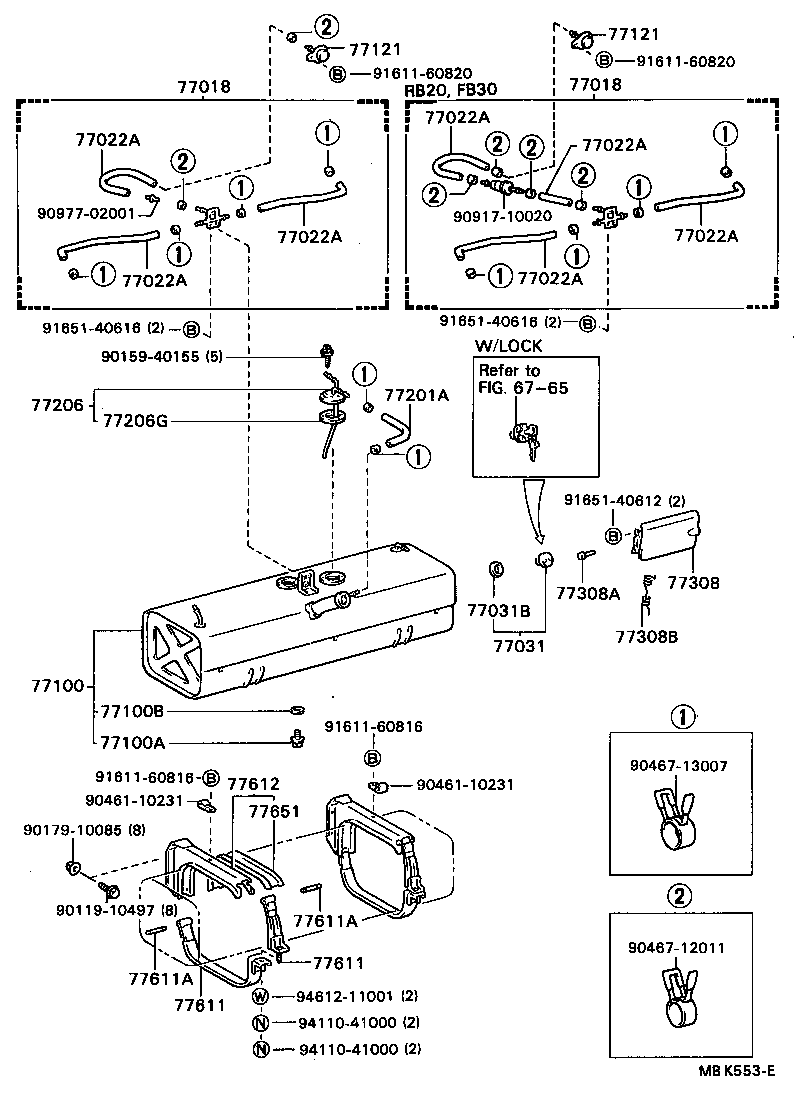

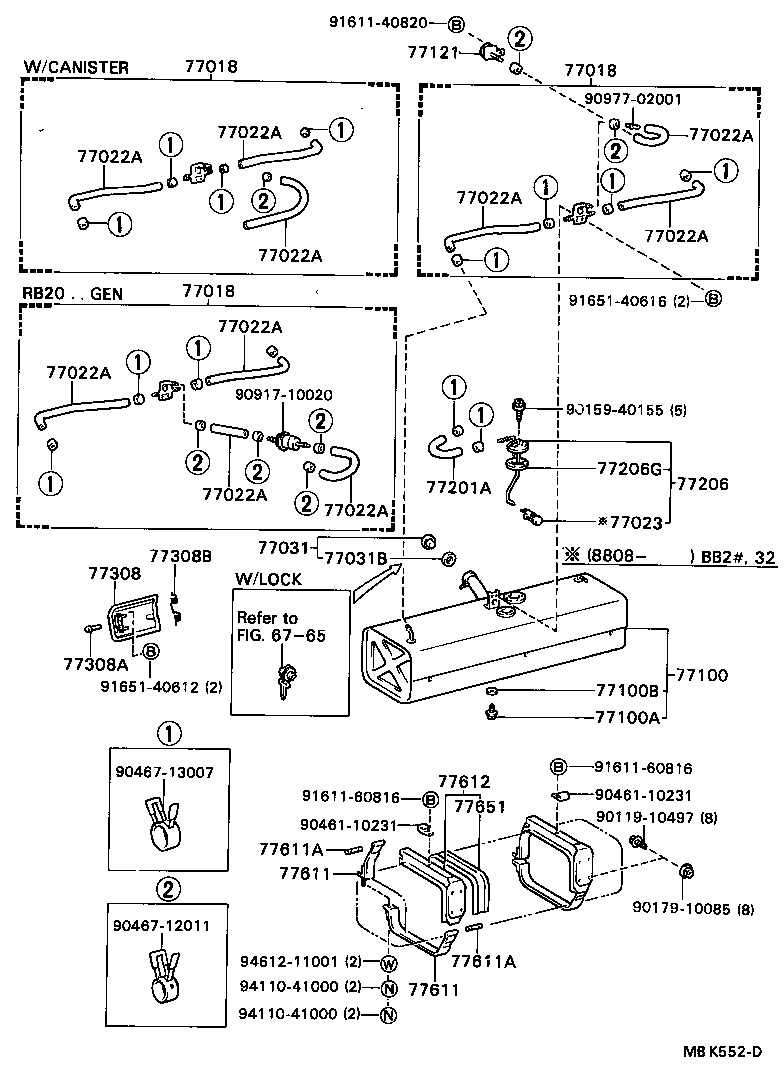

Figure MBD833B MBD833B 1982-05 → 1983-02 Figure MBF328 MBF328 1983-02 → 1985-10 Figure MBK552D MBK552D 1985-10 → — Figure MBD834B MBD834B 1982-05 → 1983-02 Figure MBF329A MBF329A 1983-02 → 1985-10 Figure MBK553E MBK553E 1985-10 → — Figure MBV460 MBV460 1991-09 → — Figure MBD835A MBD835A 1982-05 → — Figure MBD789A MBD789A 1982-05 → — Figure MBD836A MBD836A 1982-05 → — Figure MBD837A MBD837A 1982-05 → 1988-08 Figure MBD838A MBD838A 1982-05 → 1988-08 Figure MBU906 MBU906 1985-10 → 1988-08 Figure MBP807B MBP807B 1988-08 → — Figure MBP810C MBP810C 1988-08 → — Figure MBL346A MBL346A 1986-10 → 1990-01 Figure MBL347A MBL347A 1986-10 → 1990-01 Figure MBK193A MBK193A 1986-10 → 1990-01 Figure MBL348 MBL348 1986-10 → — Figure MBU132A MBU132A 1990-01 → — Figure MBU132A MBU132A 1991-09 → — Figure MBU133A MBU133A 1990-01 → —

Part groups

PNCDescription
77018 Valve Sub-assy, Fuel Vapour Separate
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77121 Protector, Fuel Tube
77135 Bracket, Check Valve
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77206 Tube Sub-assy, Fuel Tank Suction
77206G Gasket (FOR FUEL TANK SUCTION TUBE)
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77241C Hose, Fuel, NO.3 (FOR MAIN TUBE, NO.1)
77242 Tube, Fuel Main, NO.2
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77242B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
77254 Tube, Fuel Emission, NO.1
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77308 Cover Sub-assy, Fuel Inlet Box
77308A Cushion(FOR FUEL INLET BOX COVER)
77308B Spring, Torsion(FOR FUEL INLET BOX COVER)
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77612 Bracket Sub-assy, Fuel Tank
77651 Packing, Fuel Tank Bracket
77710B Valve Assy, Fuel Tank Solenoid Main
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740B Hose, Fuel, NO.2(FOR CHARCOAL CANISTER)
77740C Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
77759 Hose, Charcoal Canister
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
