Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

27 part groups · 16 illustrations

Illustrations

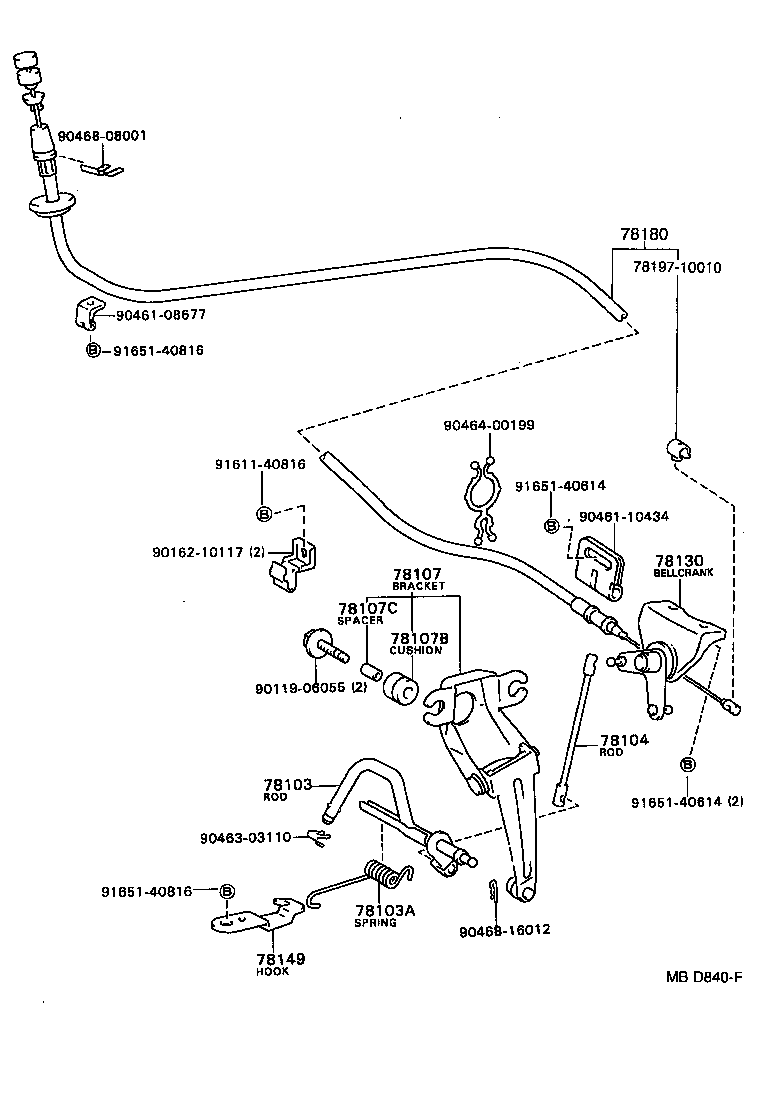

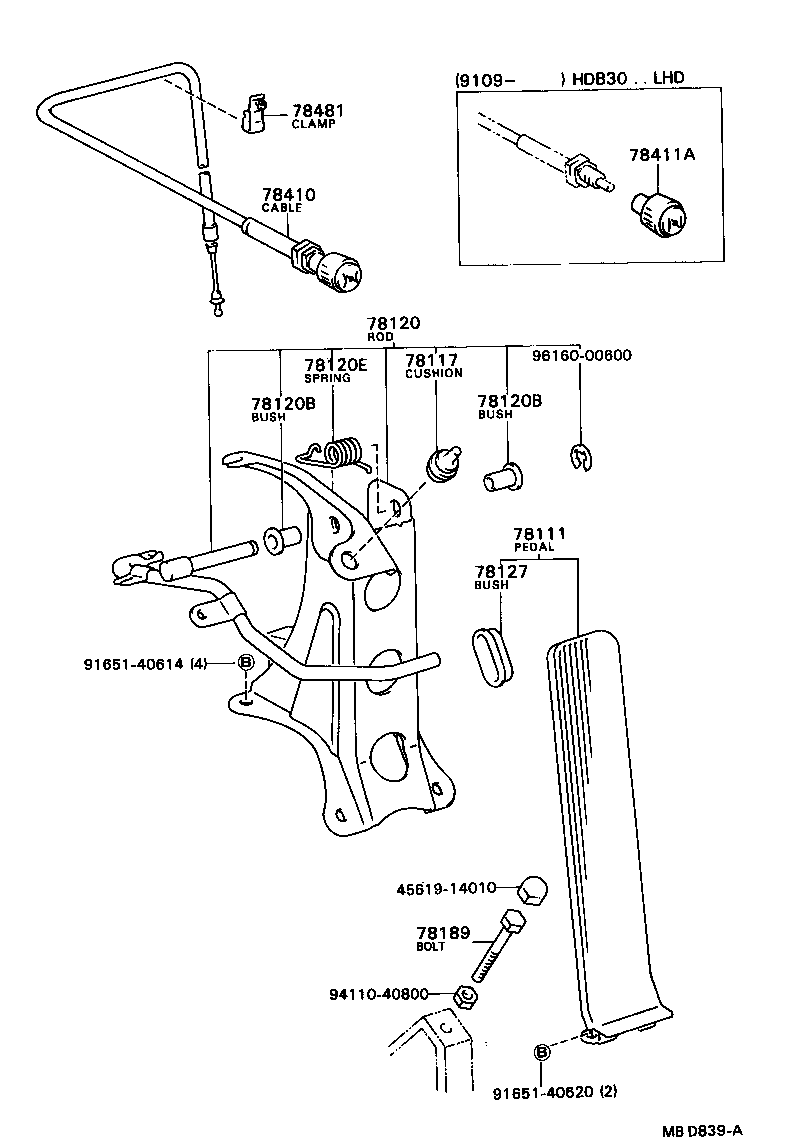

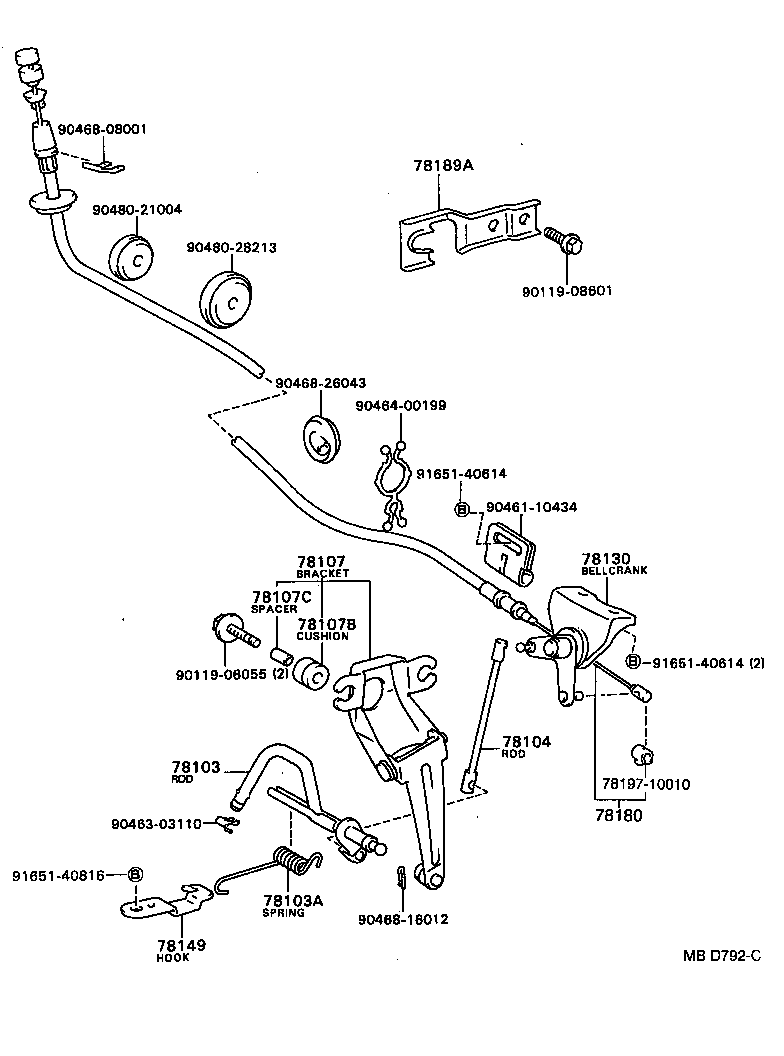

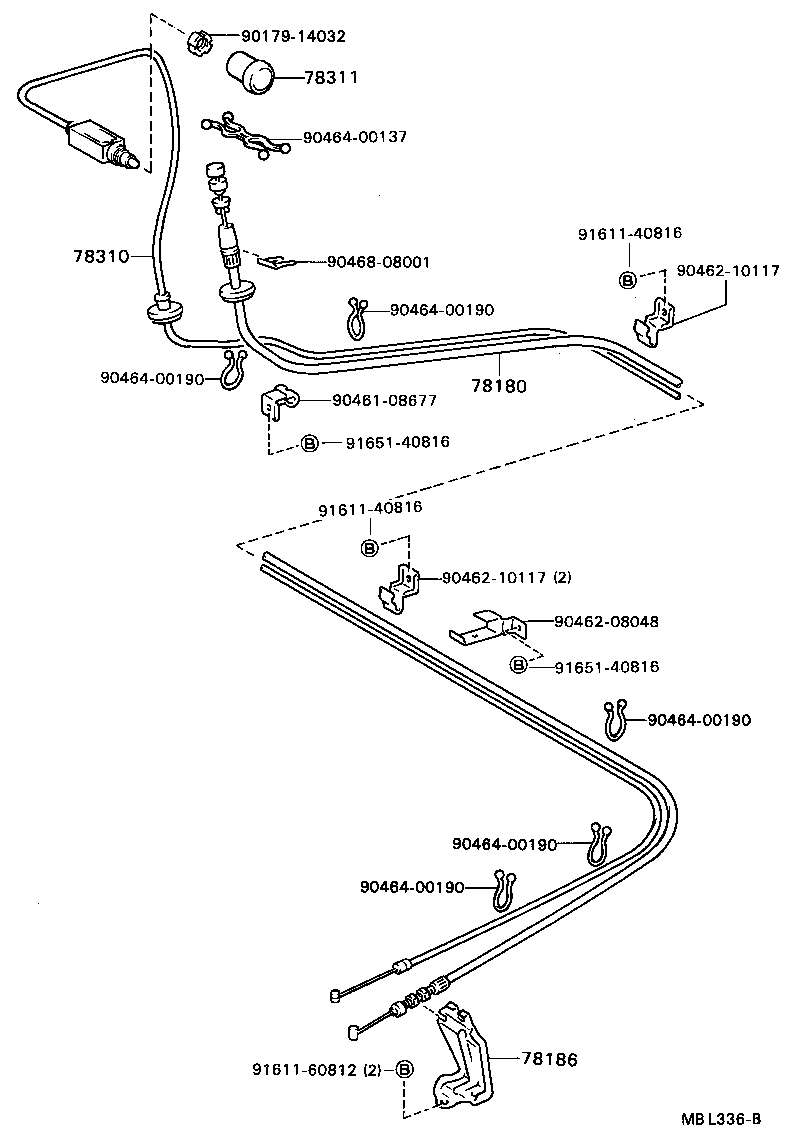

Figure MBD791 MBD791 1982-05 → — Figure MBD839A MBD839A 1982-05 → — Figure MBD792C MBD792C 1982-05 → — Figure MBD840F MBD840F 1982-05 → — Figure MBL333A MBL333A 1982-05 → — Figure MBD841E MBD841E 1982-05 → — Figure MBK161B MBK161B 1985-10 → 1988-08 Figure MBP808 MBP808 1988-08 → — Figure MBD794B MBD794B 1986-10 → 1990-01 Figure MBL335B MBL335B 1986-10 → 1990-01 Figure MBL334C MBL334C 1986-10 → 1990-01 Figure MBL336B MBL336B 1986-10 → — Figure MBU115B MBU115B 1990-01 → — Figure MBY304 MBY304 1990-01 → — Figure MBU114B MBU114B 1990-01 → — Figure MBU113A MBU113A 1990-01 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78103A Spring (FOR ACCELERATOR CONNECTING ROD, NO.1)
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78107 Bracket Sub-assy, Accelerator Torque Rod
78107B Cushion (FOR ACCELERATOR TORQUE ROD BRACKET)
78107C Spacer (FOR ACCELERATOR TORQUE ROD BRACKET)
78111 Pedal, Accelerator
78117 Cushion (FOR ACCELERATOR ROD)
78120 Rod, Accelerator Link
78120B Bush (FOR ACCELERATOR LINK ROD)
78120E Spring, Tension (FOR ACCELERATOR LINK ROD)
78127 Bush, Accelerator Pedal, NO.2
78130 Bellcrank Assy, Accelerator
78149 Hook, Accelerator Torque Rod Spring
78169 Hanger, Accelerator Spring
78180 Wire Assy, Accelerator
78183B Clamp, Accelerator Control Cable
78186 Support, Accelerator Control Cable, NO.1
78189 Bolt, Accelerator Pedal Stopper
78189A Support, Accelerator Control Cable, NO.2
78195 Bracket, Accelerator Link
78310 Cable Assy, Choke
78311 Knob, Choke Control Cable
78410 Cable Assy, Throttle Control
78411A Knob, Throttle Control Cable
78481 Clamp, Throttle Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
