Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

52 part groups · 8 illustrations

Illustrations

Figure MEG679E

MEG679E 1982-05 → —

Figure MEJ222

MEJ222 1982-05 → —

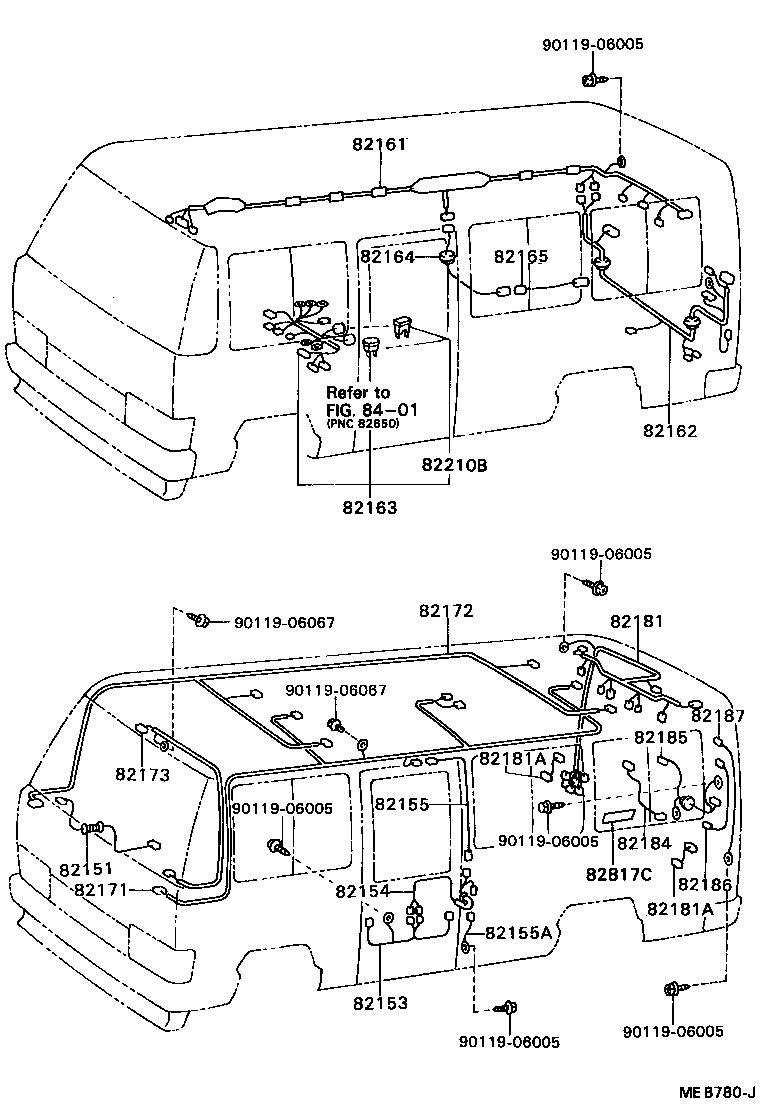

Figure MEB780J

MEB780J 1982-05 → —

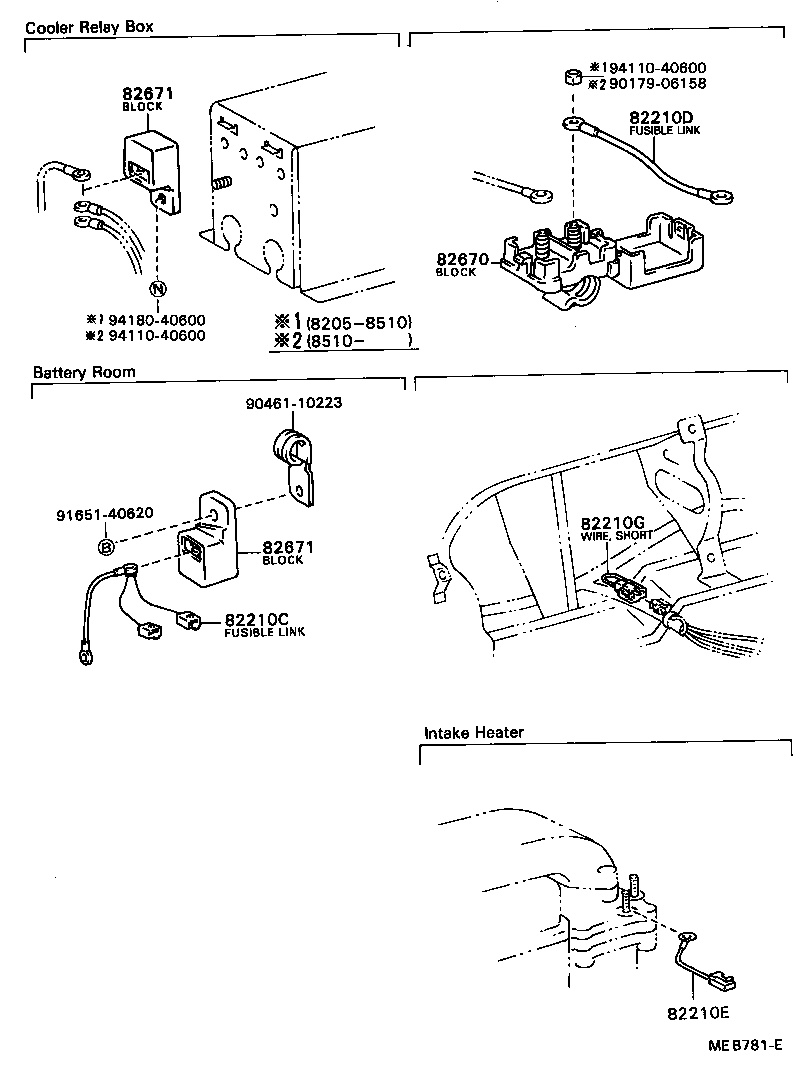

Figure MEB781E

MEB781E 1982-05 → —

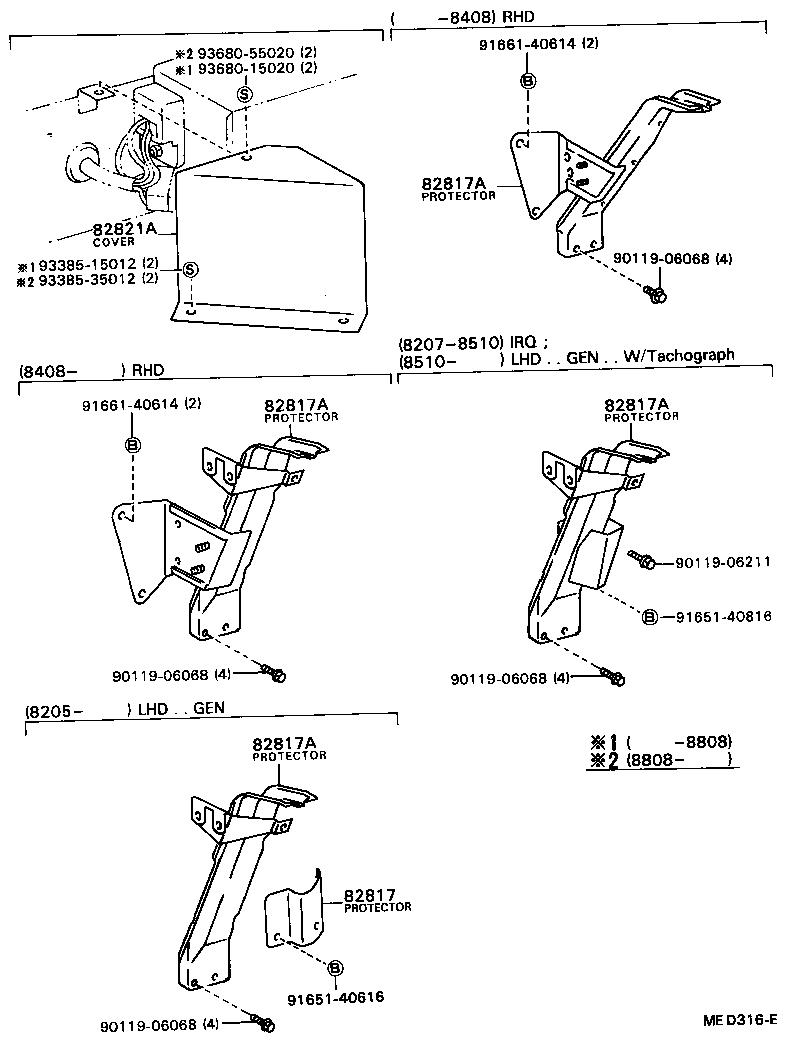

Figure MED316E

MED316E 1982-05 → —

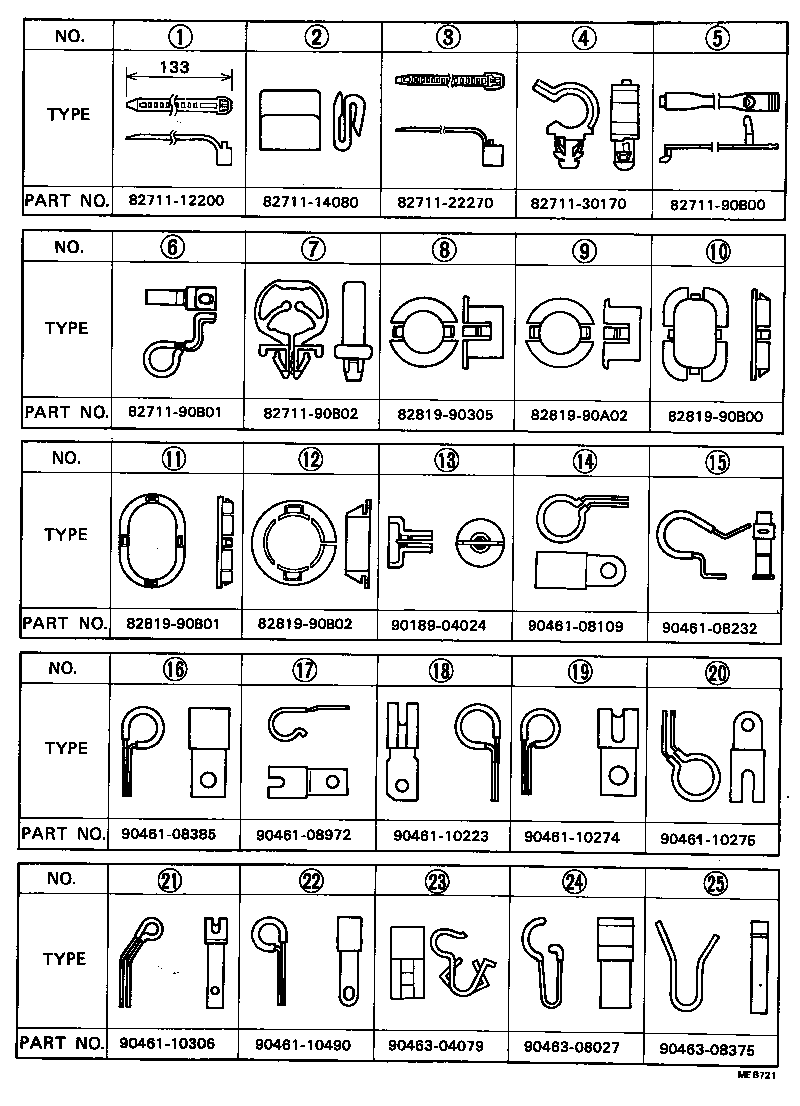

Figure MEB721

MEB721 1982-05 → —

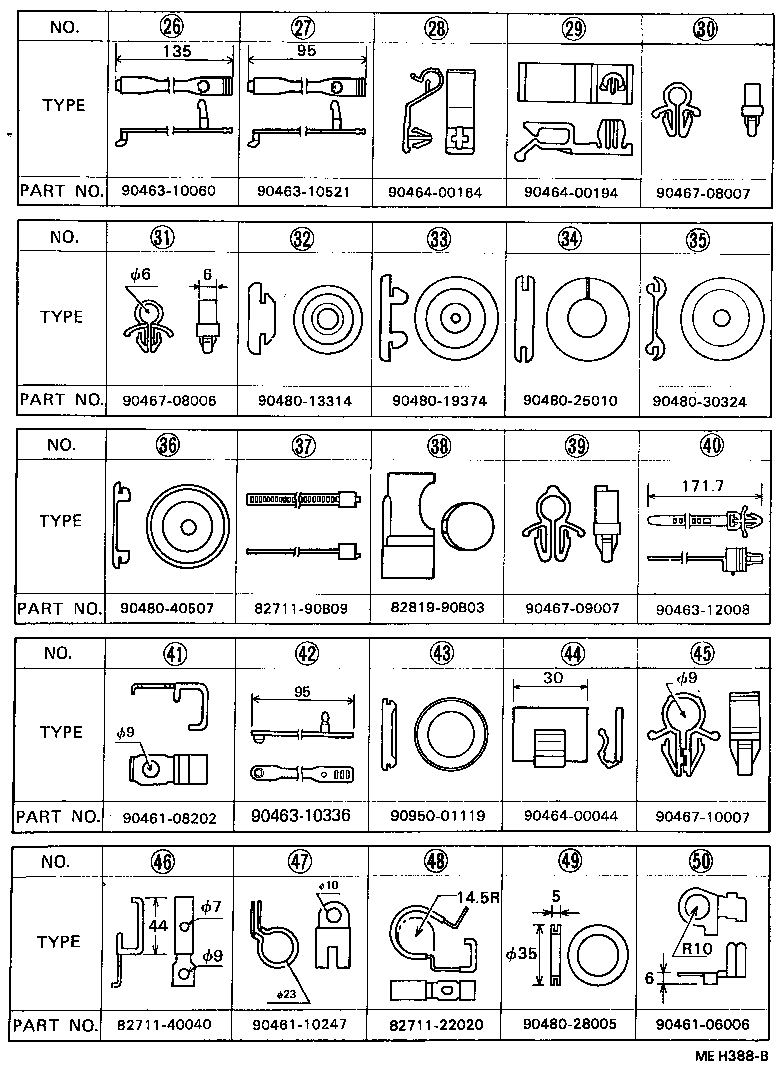

Figure MEH388B

MEH388B 1982-05 → —

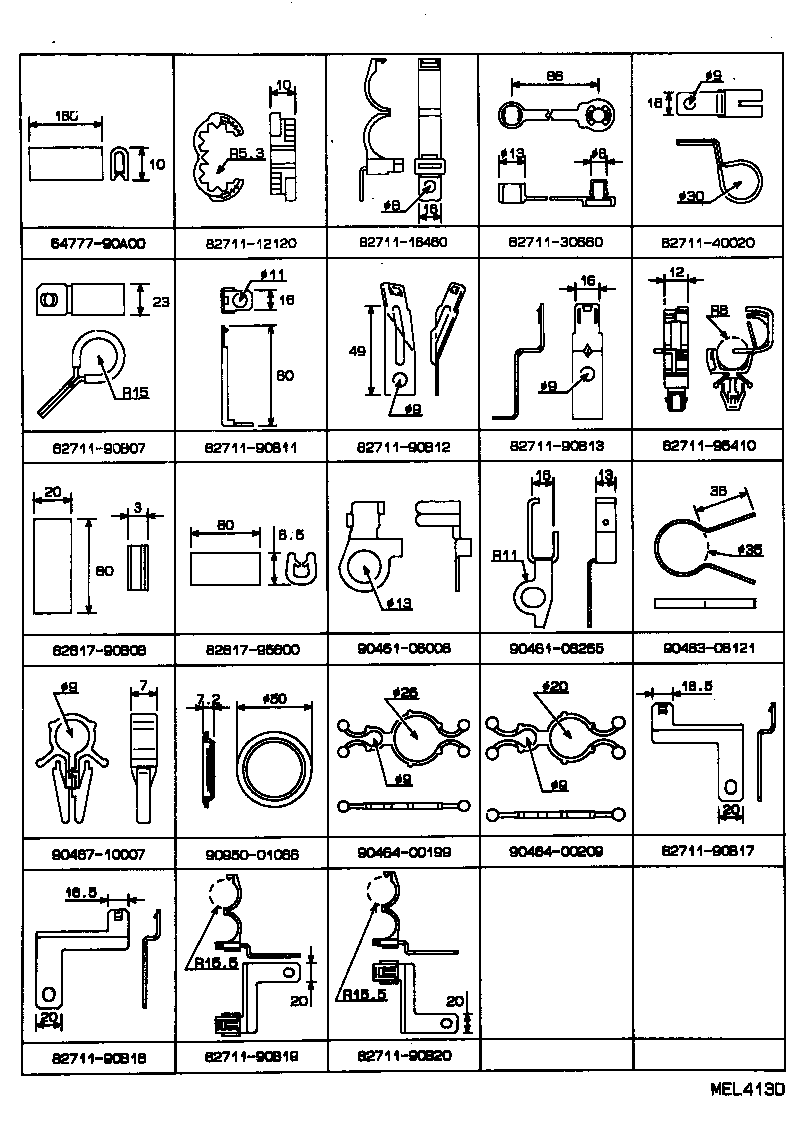

Figure MEL413D

MEL413D 1982-05 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82111	Wire, Engine Room Main
82112	Wire, Engine Room, NO.2
82114	Wire, Engine Room, NO.4
82121	Wire, Engine
82122	Wire, Engine, NO.2
82123	Wire, Engine, NO.3
82124	Wire, Engine, NO.4
82125	Wire, Transmission
82131	Wire, Cowl
82132	Wire, Cowl, NO.2
82133	Wire, Cowl, NO.3
82134	Wire, Cowl, NO.4
82141	Wire, Instrument Panel
82142	Wire, Instrument Panel, NO.2
82143	Wire, Instrument Panel, NO.3
82151	Wire, Front Door, RH
82153	Wire, Rear Door, NO.1
82154	Wire, Rear Door, NO.2
82155	Wire, Center Piller, NO.1
82155A	Wire, Center Piller, NO.2
82161	Wire, Floor
82162	Wire, Floor, NO.2
82163	Wire, Floor, NO.3
82164	Wire, Frame
82165	Wire, Frame, NO.2
82171	Wire, Roof, NO.1
82172	Wire, Roof, NO.2
82173	Wire, Roof, NO.3
82181	Wire, Luggage Room, NO.1
82181A	Wire, Luggage Room, NO.2
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2
82186	Wire, Rear Window, NO.1
82187	Wire, Rear Window, NO.2
82210B	Fusible Link
82210C	Fusible Link
82210D	Fusible Link
82210E	Fusible Link
82210G	Wire, Short
82219A	Wire, Sensor
82233	Wire, Computer
82291	Wiring, TO Solenoid
82345	Diode
82355	Wire, Parking Lamp Switch
82670	Block Assy, Junction, NO.1
82671	Block, Junction
82817	Protector, Wiring Harness, NO.1
82817A	Protector, Wiring Harness, NO.2
82817B	Protector, Wiring Harness, NO.3
82817C	Protector, Wiring Harness, NO.4
82821A	Cover, Connector

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
