Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Automatic Door

23 part groups · 5 illustrations

Illustrations

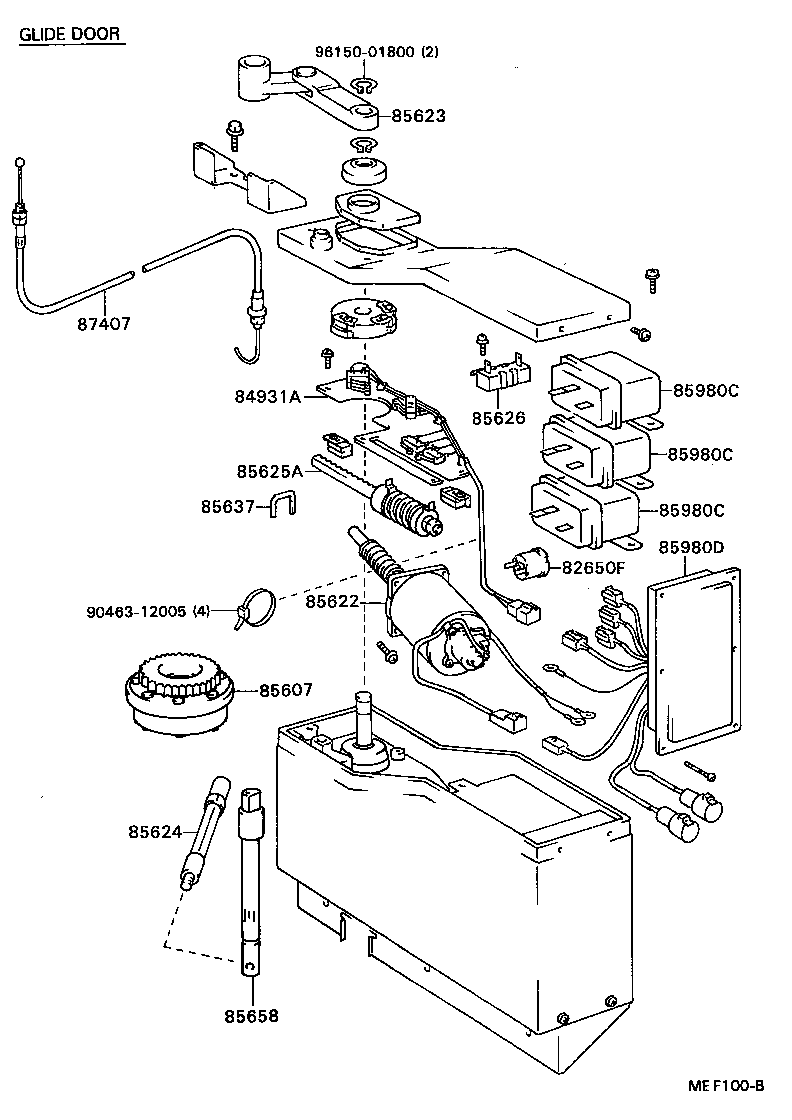

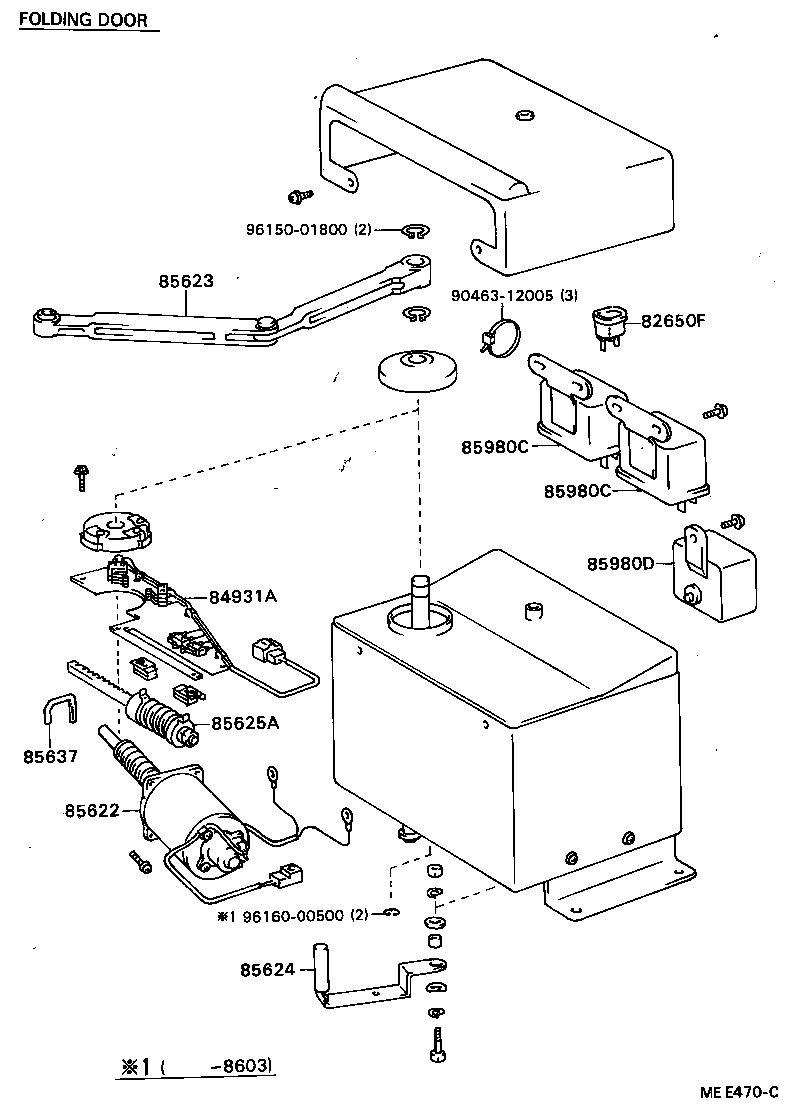

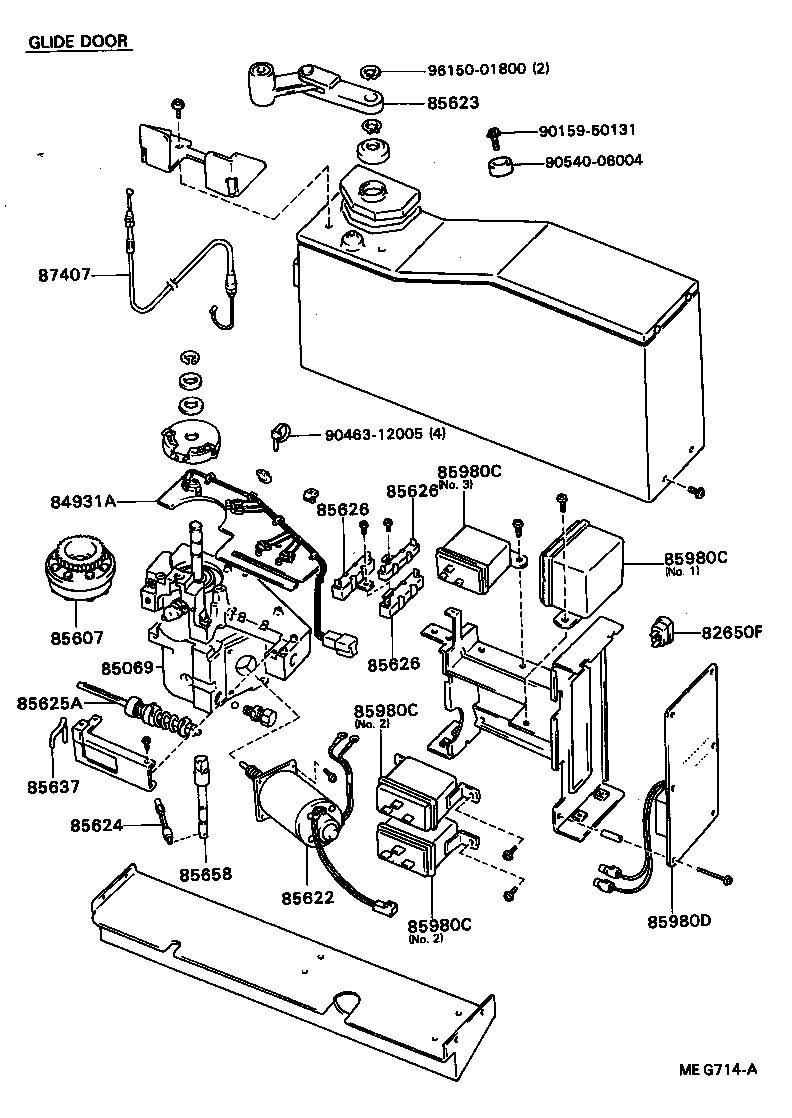

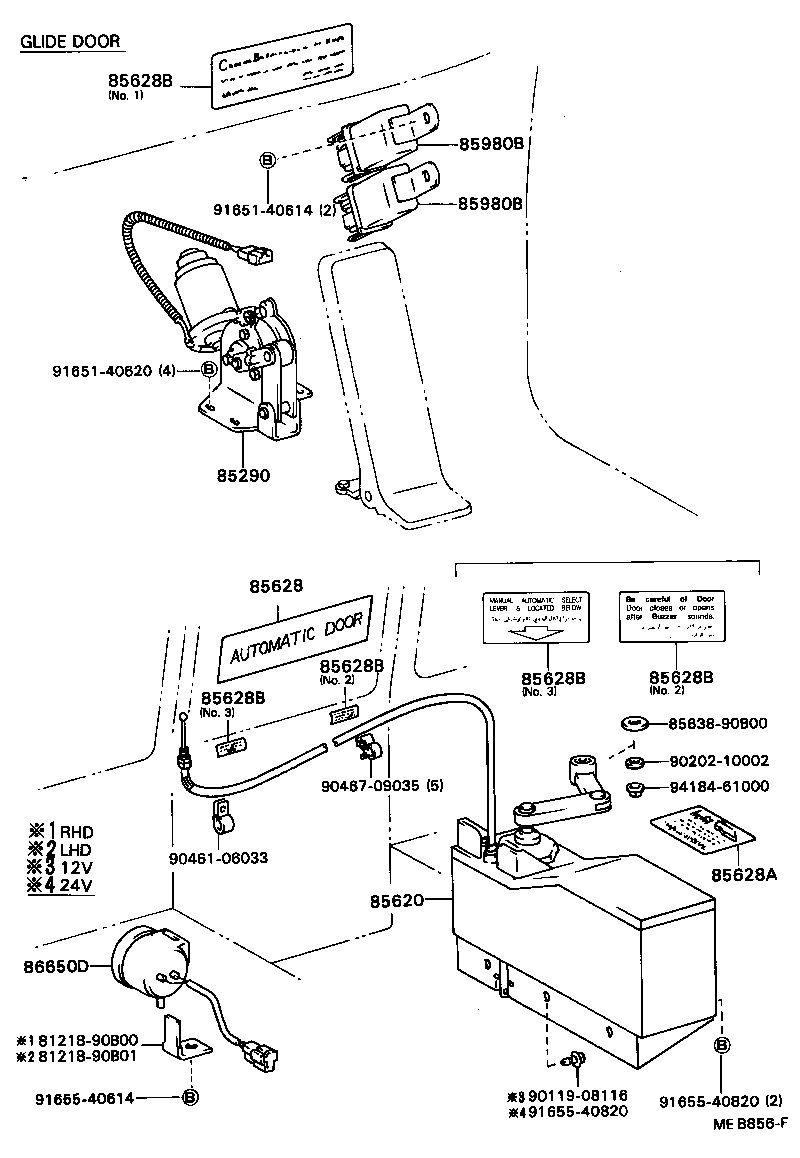

Figure MEC787E MEC787E 1982-05 → — Figure MEE470C MEE470C 1983-11 → — Figure MEB856F MEB856F 1982-05 → — Figure MEF100B MEF100B 1983-11 → 1985-10 Figure MEG714A MEG714A 1985-10 → —

Part groups

PNCDescription
82650F Breaker Assy, Wiring Circuit
84931A Switch, Automatic Door Control
85069 Housing Sub-assy, Auto Door
85290 Actuator Assy, Accel Intor Lock
85607 Gear Sub-assy, Idle
85620 Motor Assy, Automatic Door Regulator
85622 Motor & Gear, Automatic Door Regulator
85623 Link, Automatic Door Regulator
85624 Lever, Automatic Door Regulator, NO.1
85625A Rack, Automatic Door
85626 Resister, Automatic Door
85627 Stay, Automatic Door Regulator
85628 Label, Automatic Door, NO.1
85628A Label, Automatic Door, NO.2
85628B Label, Automatic Door, NO.3
85629 Holder, Automatic Door
85637 Remover, Automatic Door
85658 Shaft, Guide Roller
85980B Relay Assy, Door Control (FOR AUTOMATIC DOOR)
85980C Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
85980D Relay Assy, Door Control, NO.3 (FOR AUTOMATIC DOOR)
86650D Buzzer Assy
87407 Cable Sub-assy, Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
