Toyota Coaster
1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe
Discontinued model
Data version 1994-03

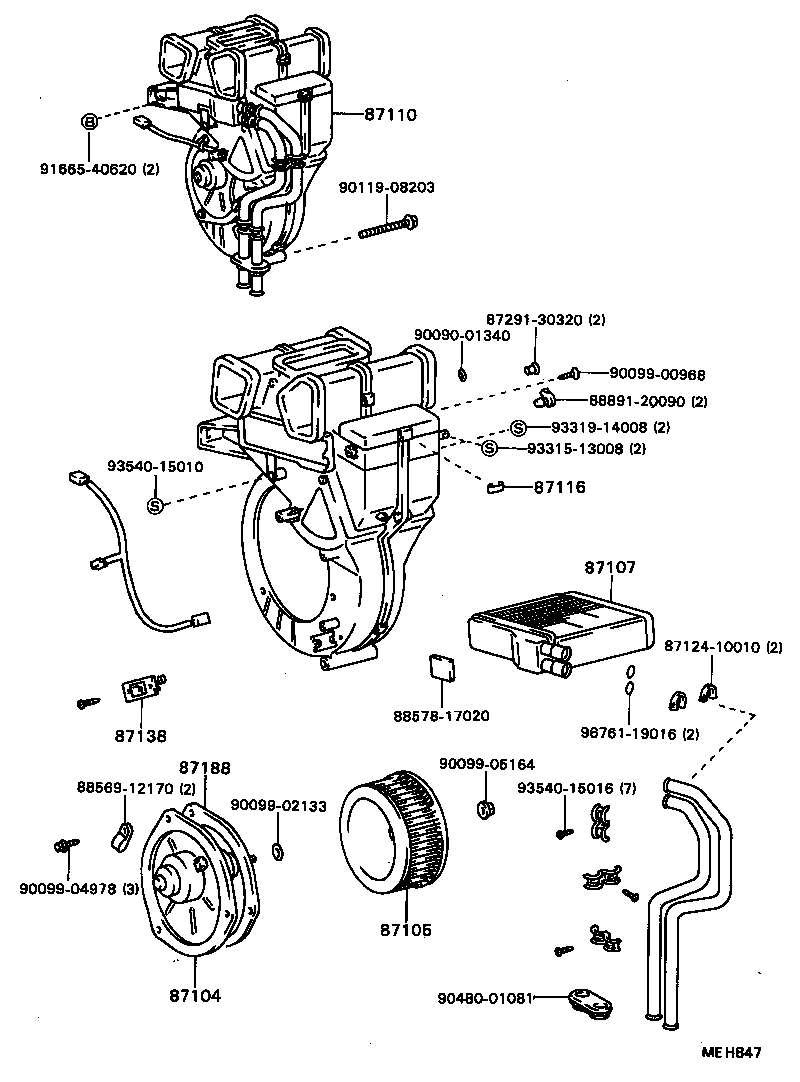

Heating & Air Conditioning - Heater Unit & Blower
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87104 | Motor Sub-assy, Heater Blower |
| 87104R | Motor Sub-assy, Rear Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87105R | Fan Sub-assy, Rear Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87107R | Unit Sub-assy, Rear Heater |
| 87110 | Heater Assy |
| 87116 | Spring, Heater Case Fastening |
| 87120 | Heater Assy, Rear |
| 87138 | Resistor, Heater Blower |
| 87138R | Resistor, Rear Heater Blower |
| 87188 | Packing, Heater Blower Motor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
