Toyota Coaster
1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe
Discontinued model
Data version 1994-03

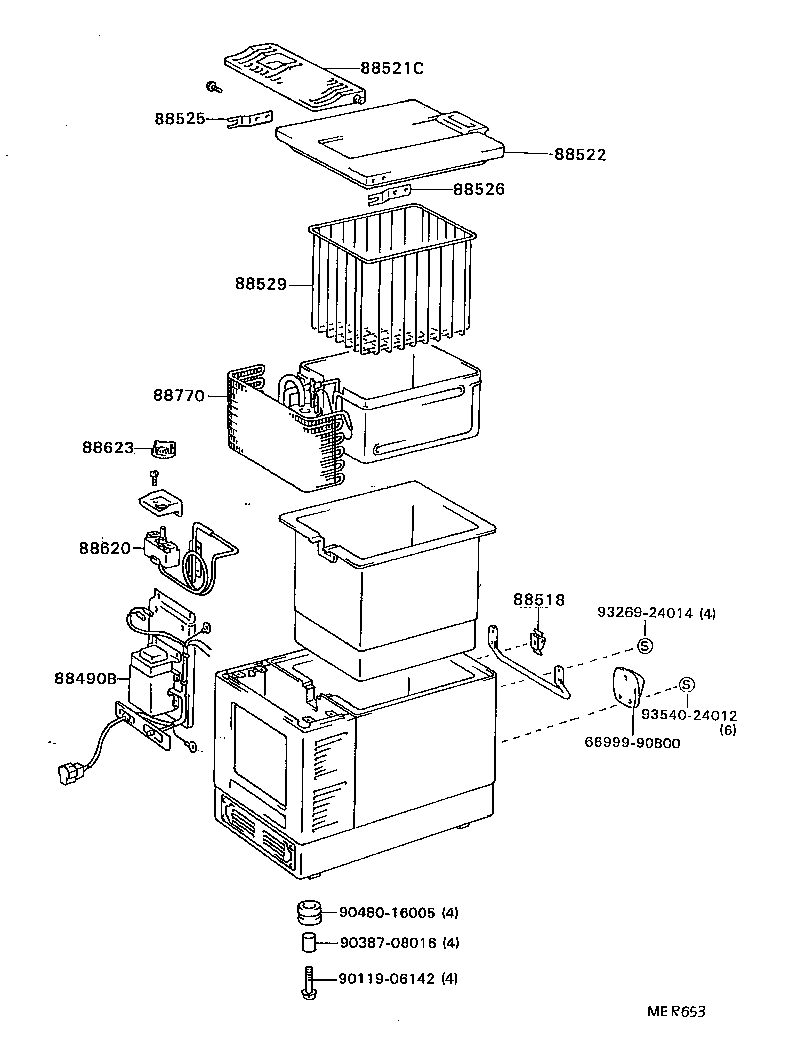

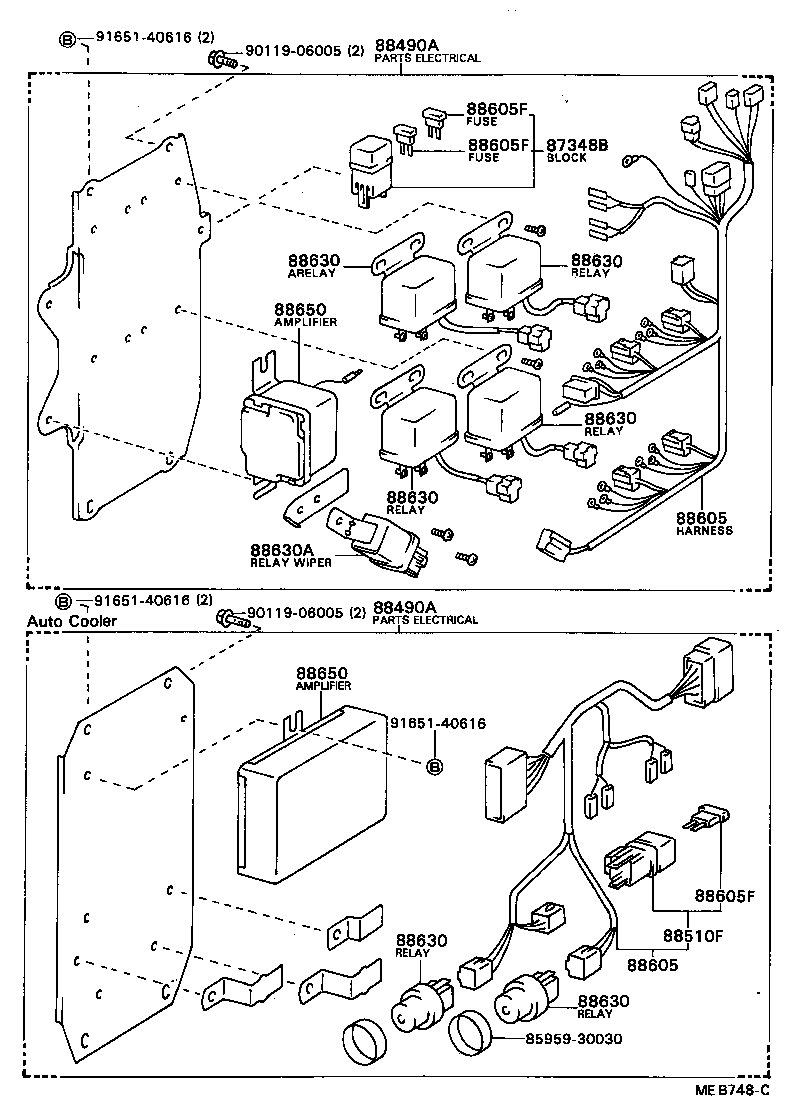

Heating & Air Conditioning - Cooler Unit
40 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87348B | Block, Fuse |
| 88306 | Motor Sub-assy, Cooler Blower, NO.1 |
| 88361 | Fan, Cooler Blower, NO.1 |
| 88371 | Fan, Cooler Blower, NO.2 |
| 88490A | Parts Assy, Electrical |
| 88490B | Parts Assy, Electrical (FOR COOLING BOX) |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88510 | Unit Assy, Cooler |
| 88510F | Holder, Fuse |
| 88515 | Valve, Cooler Expansion |
| 88518 | Holder, Cooling Unit Door |
| 88521C | Case, Cooling Unit |
| 88522 | Door, Cooling Unit |
| 88525 | Hinge, Cooling Case, RH |
| 88526 | Hinge, Cooling Case, LH |
| 88529 | Tray, Cooling Box |
| 88536 | Bracket, Cooling Unit, NO.1 |
| 88536A | Bracket, Cooling Unit, NO.2 |
| 88536B | Bracket, Cooling Unit, NO.3 |
| 88536C | Bracket, Cooling Unit, NO.4 |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88540 | Blower Assy, Cooler |
| 88561 | Cover, Cooler Unit |
| 88566 | Duct, Cooler Air, NO.1 |
| 88567R | Moulding, Evaporator Cover |
| 88568 | Filter, Cooler Unit Cover |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88605F | Fuse(FOR COOLER WIRING HARNESS) |
| 88620 | Thermostat Sub-assy |
| 88623 | Dial, Cooler Thermostat |
| 88625 | Thermistor, Cooler, NO.1 |
| 88630 | Relay Assy, Cooler |
| 88630A | Relay Assy, Cooler |
| 88635 | Resistor, Cooler Unit Blower |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88669B | Hose, Cooler Air |
| 88716F | Pipe, Cooler Refrigerant Liquid, F |
| 88717F | Pipe, Cooler Refrigerant Suction, F |
| 88770 | Unit Assy, Drive Mechanish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
