Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

36 part groups · 24 illustrations

Illustrations

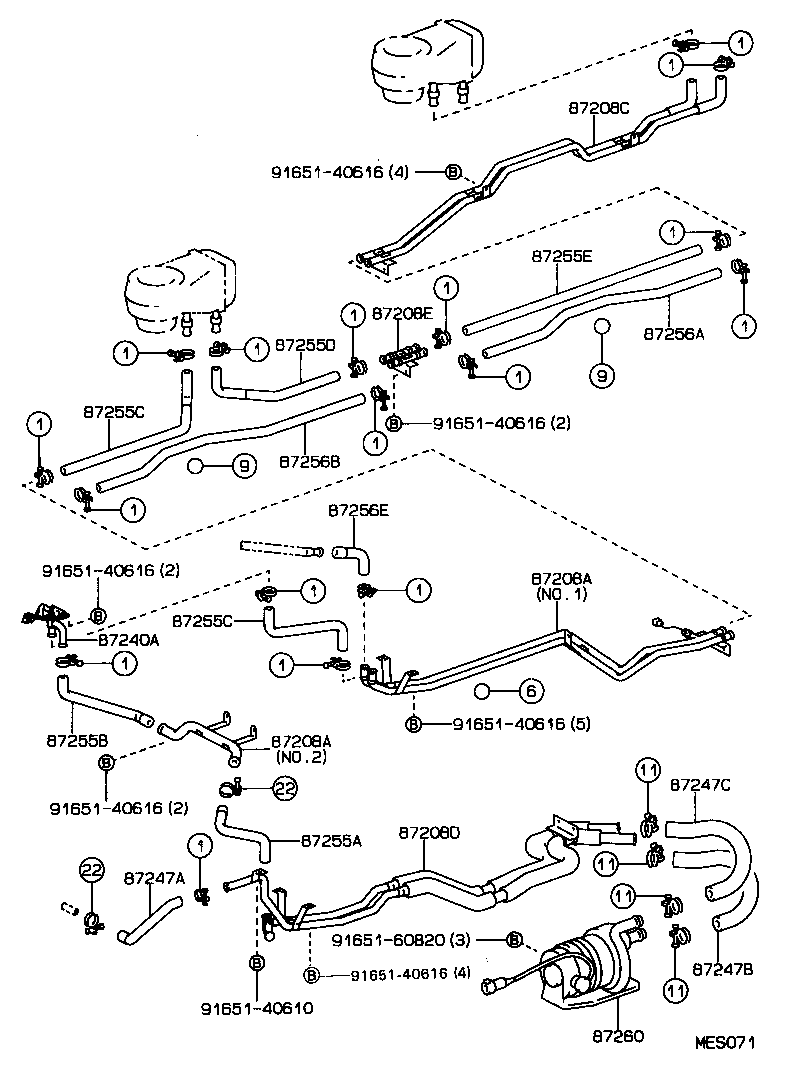

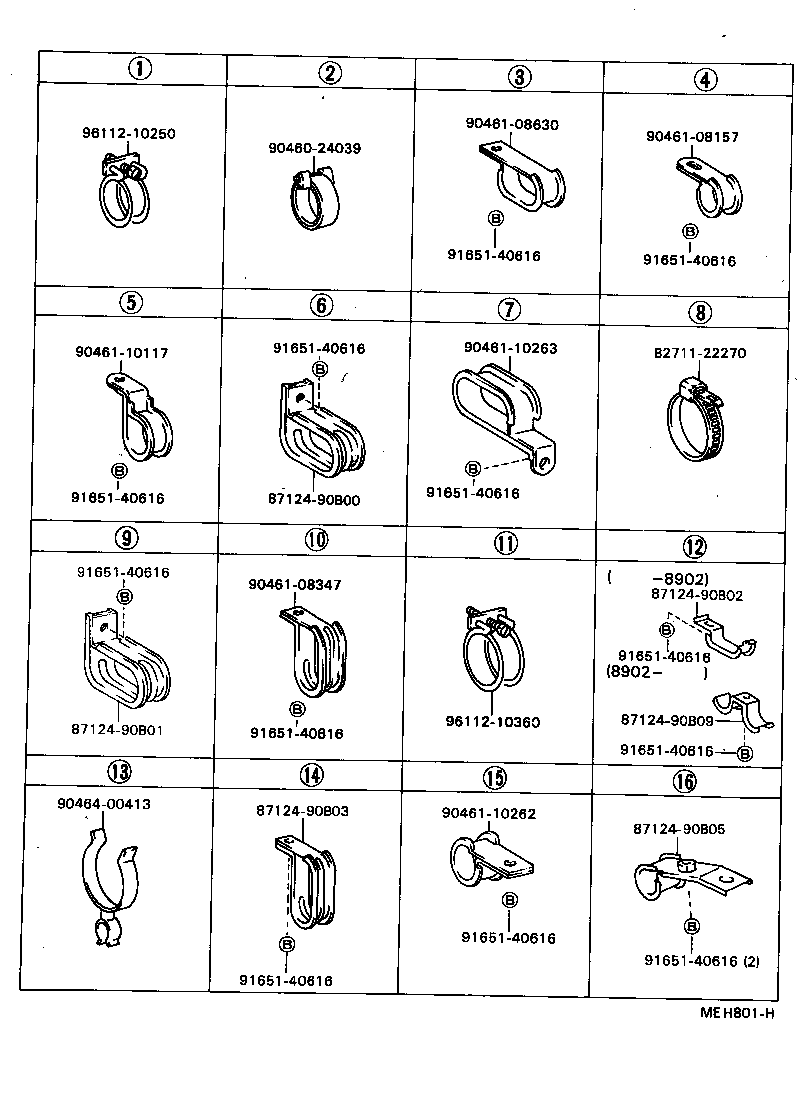

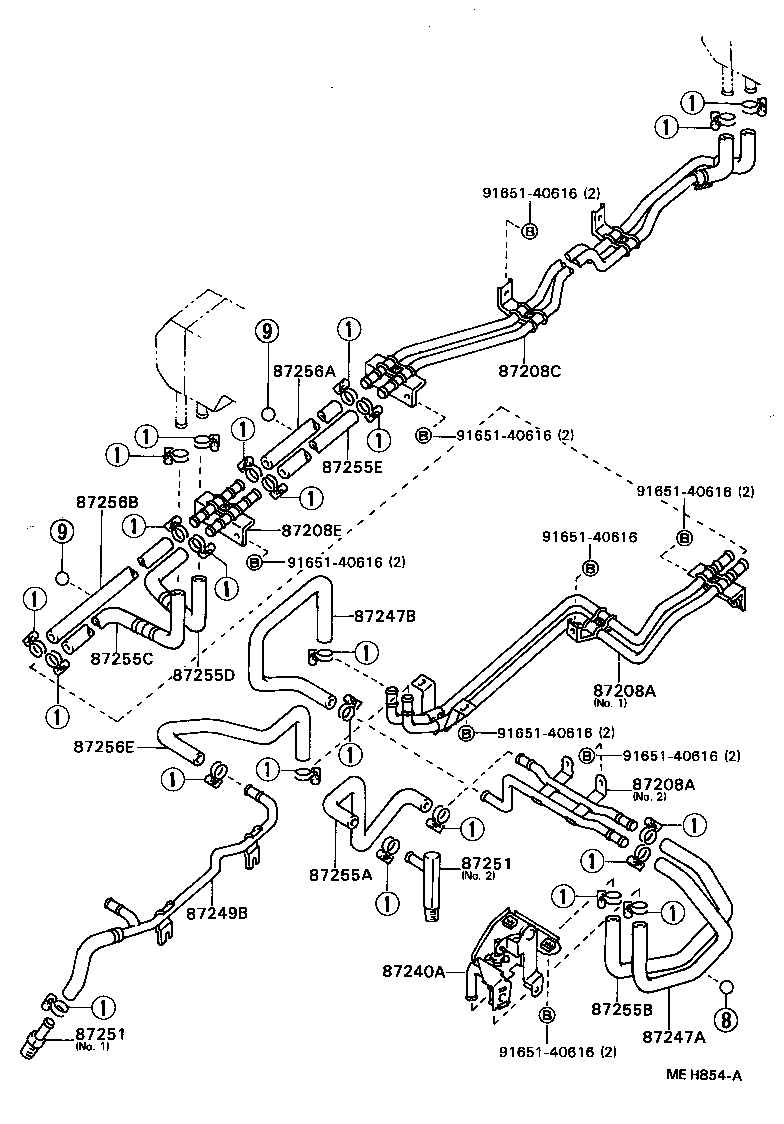

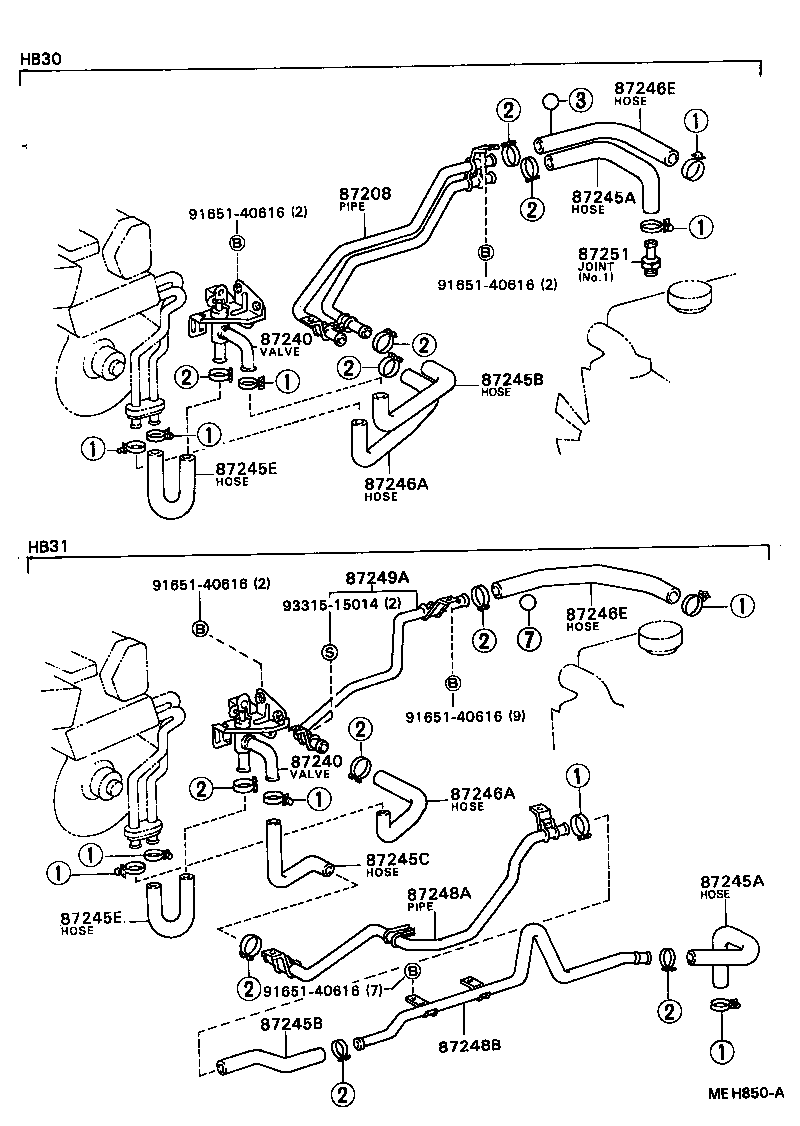

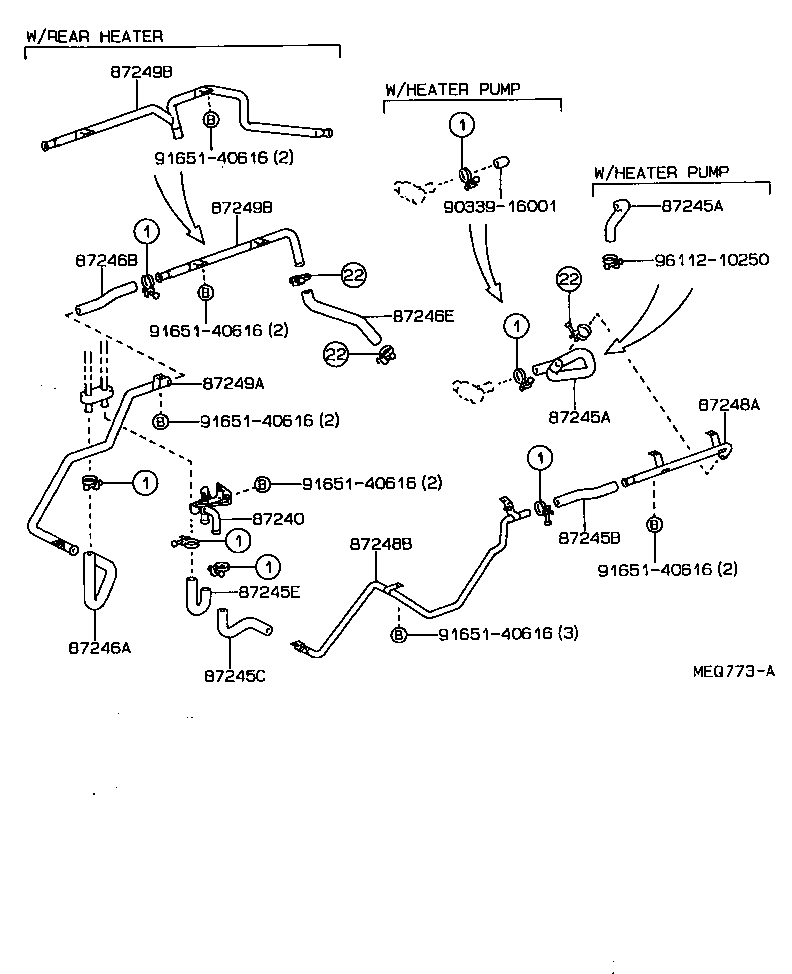

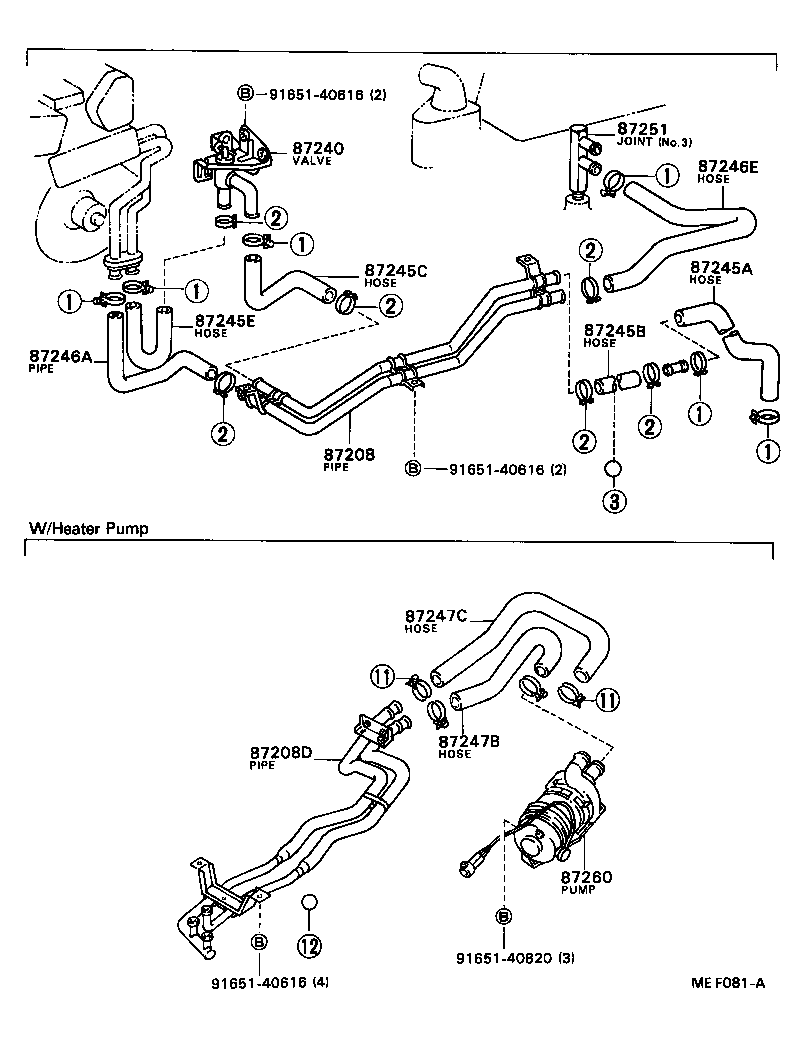

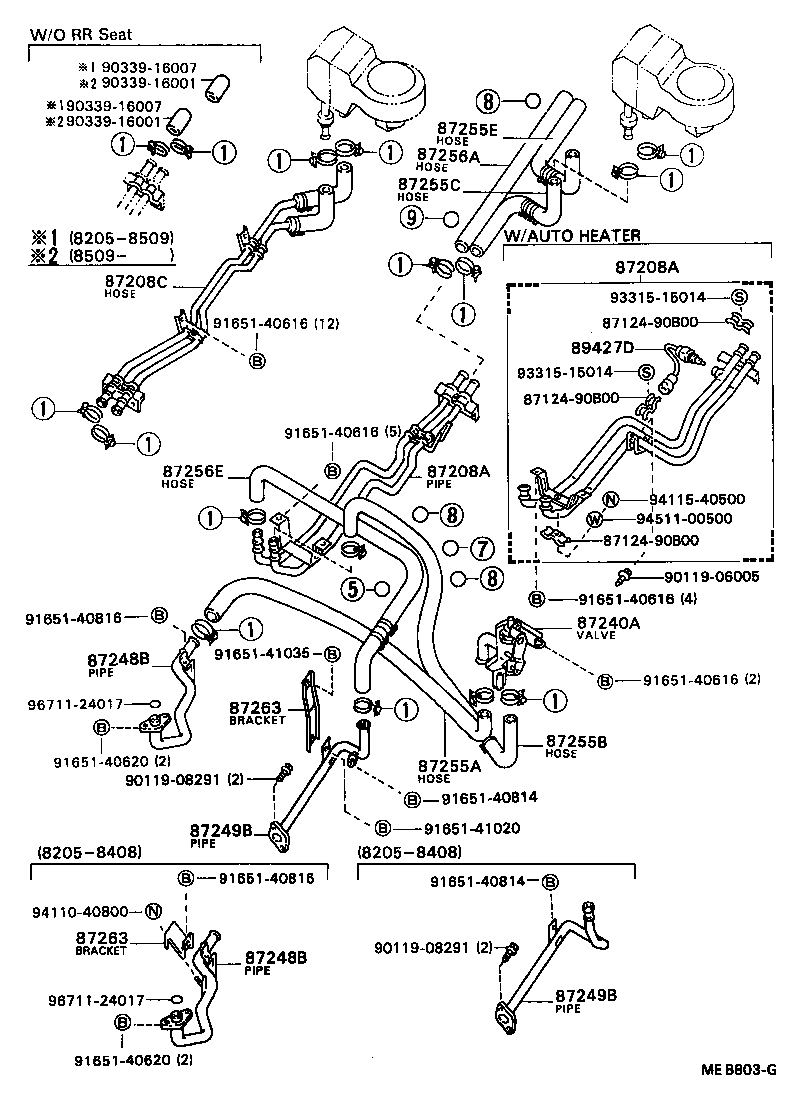

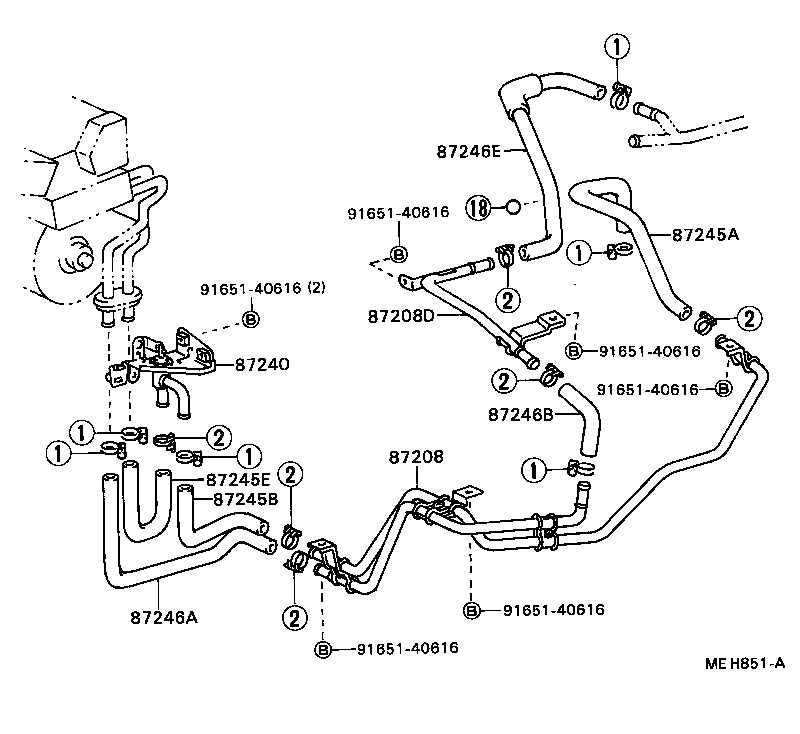

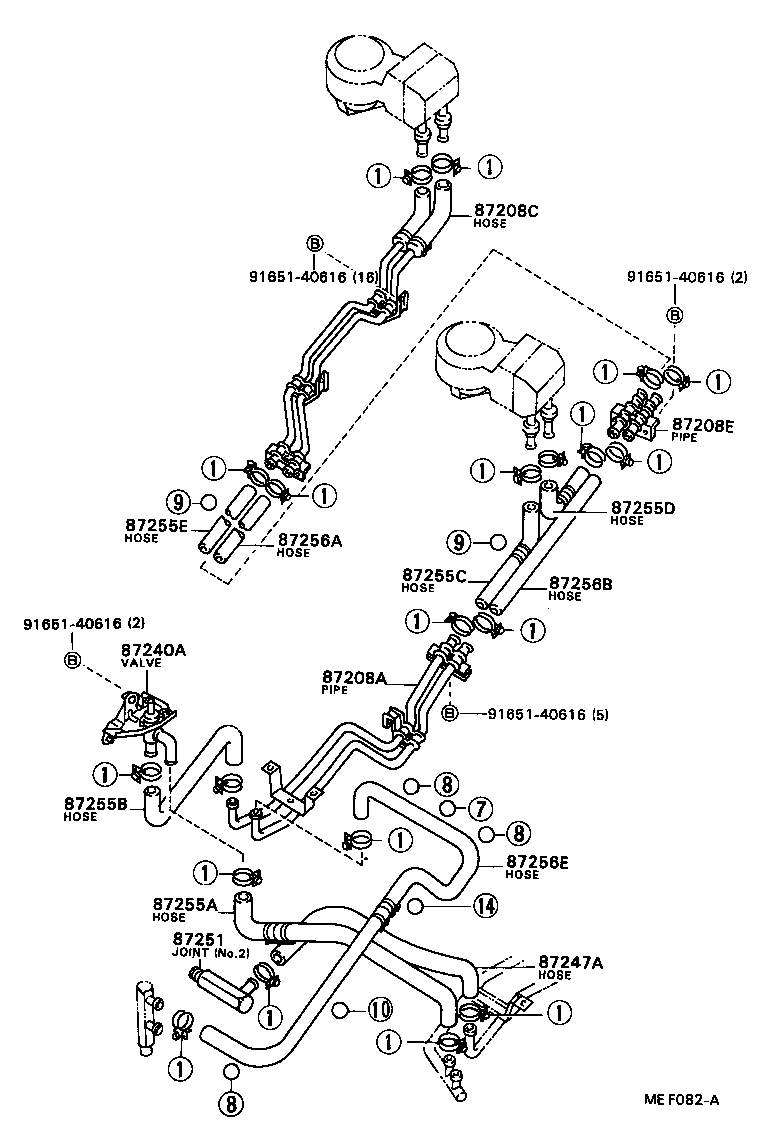

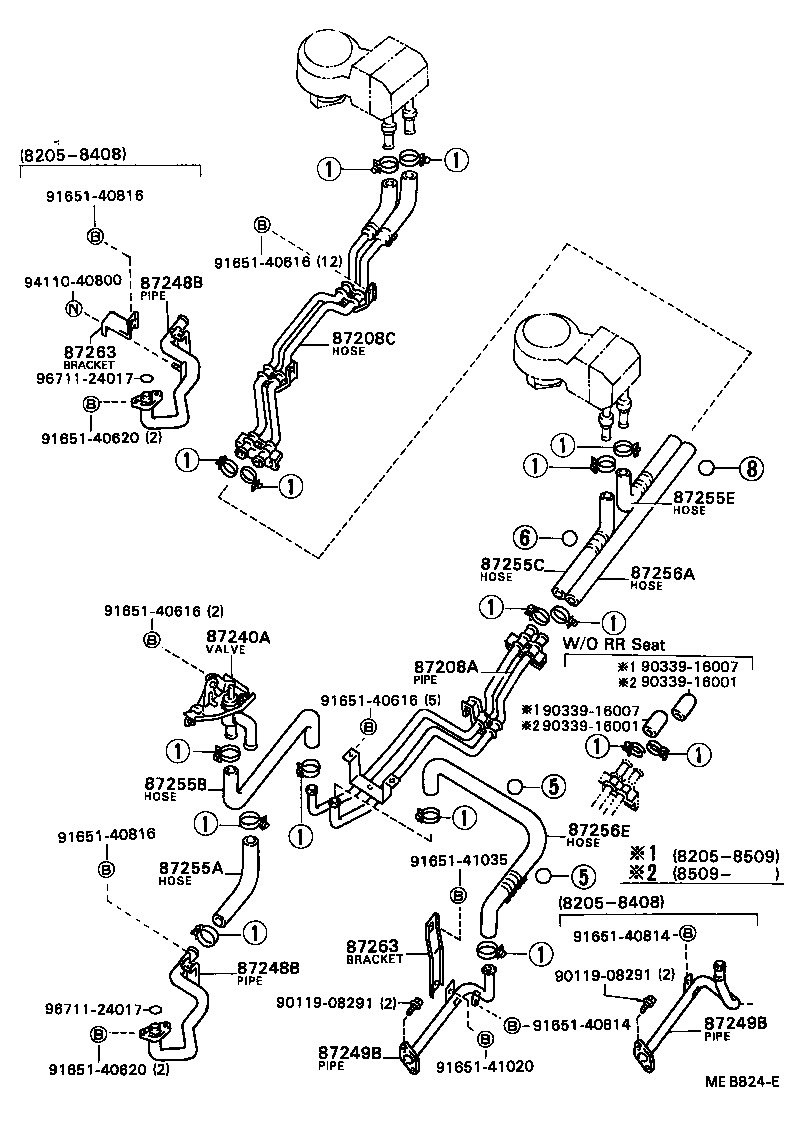

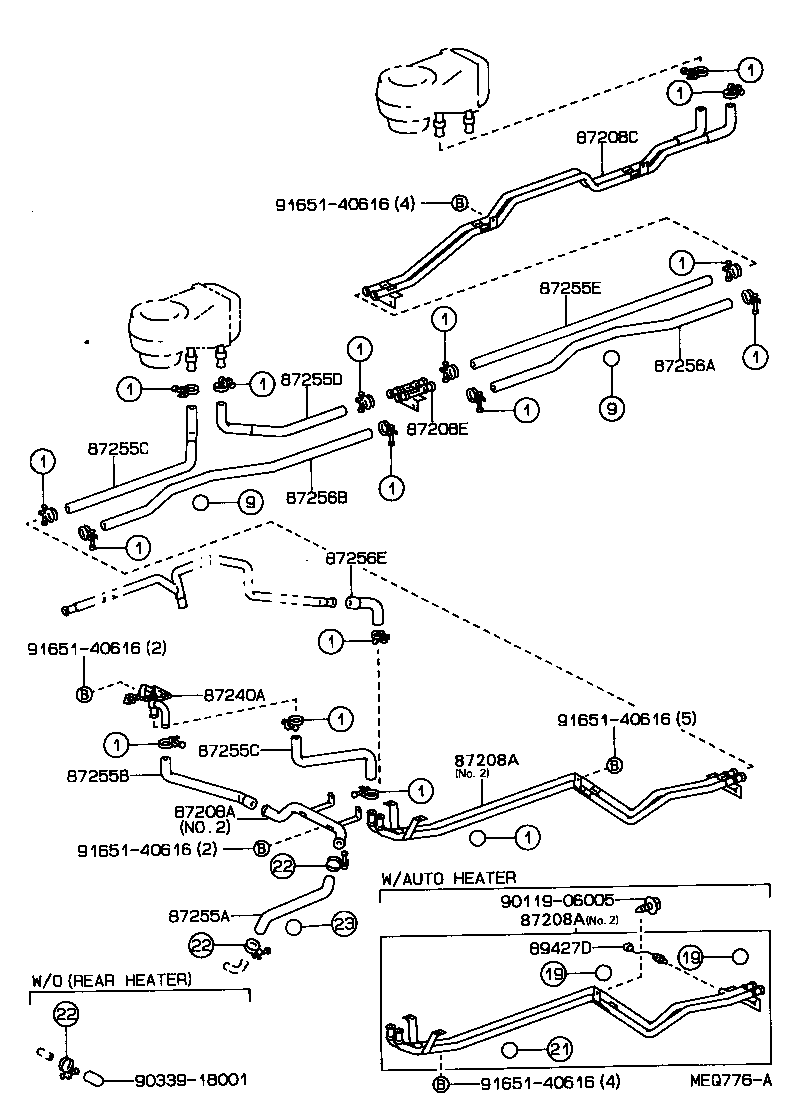

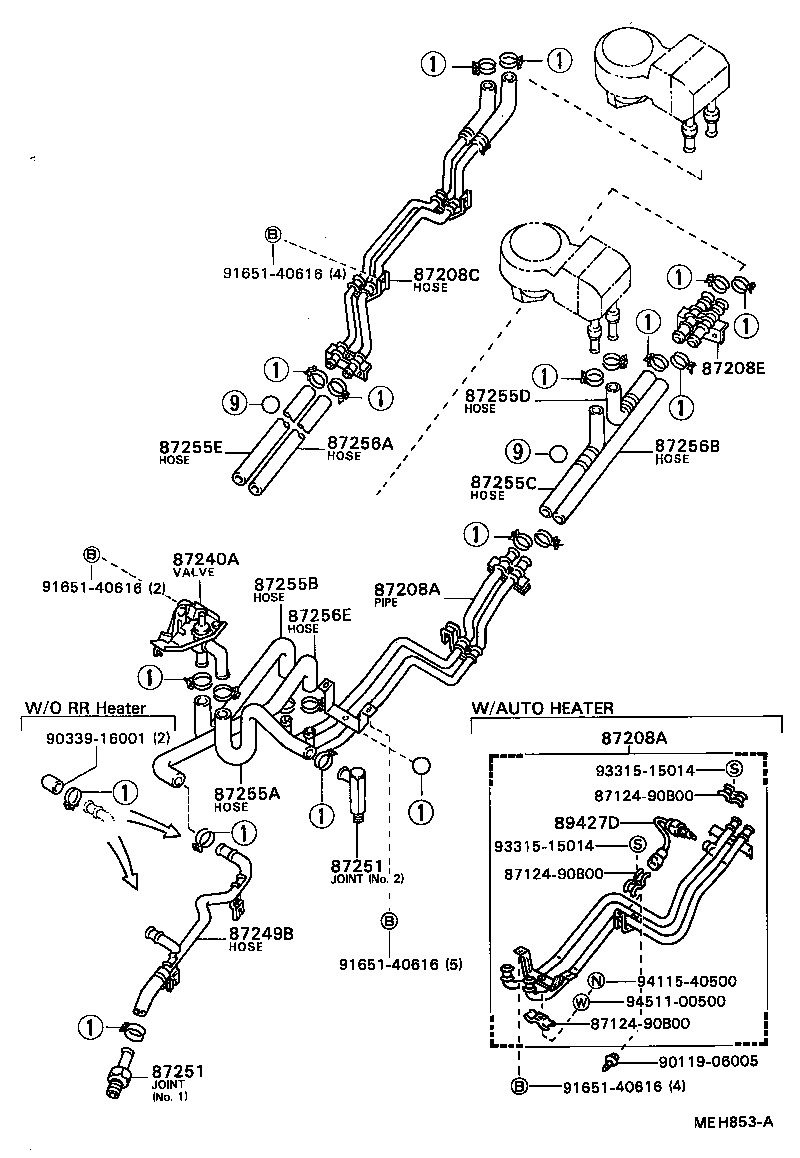

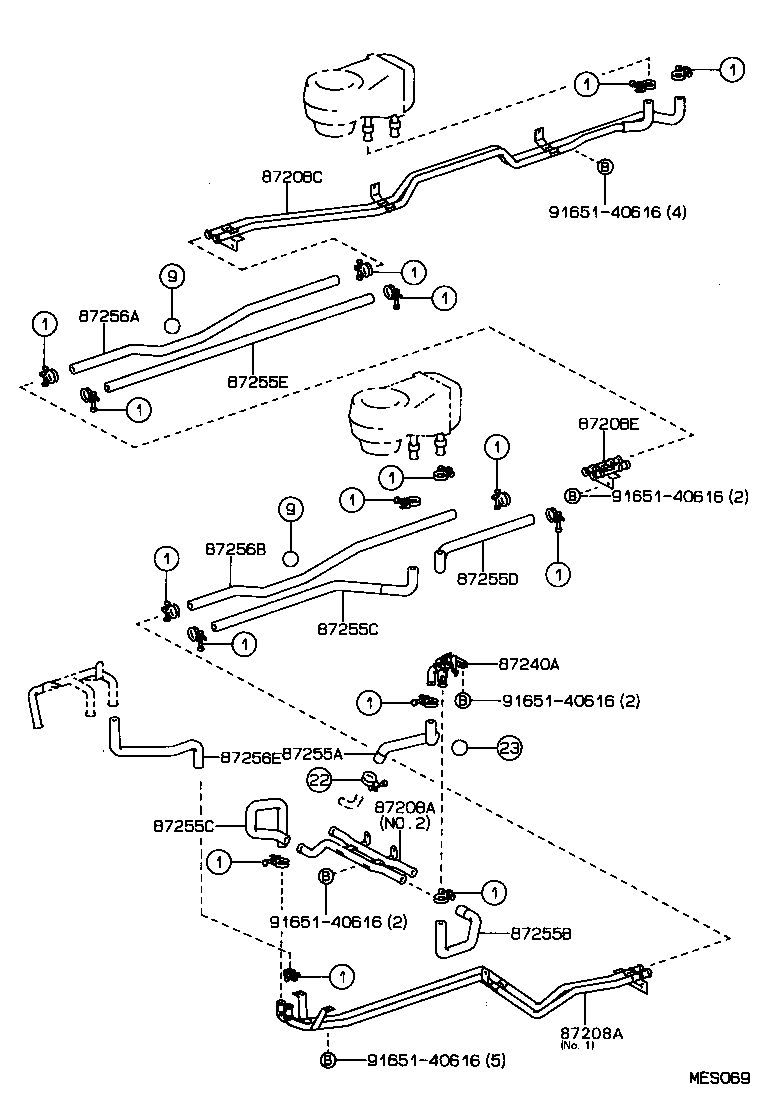

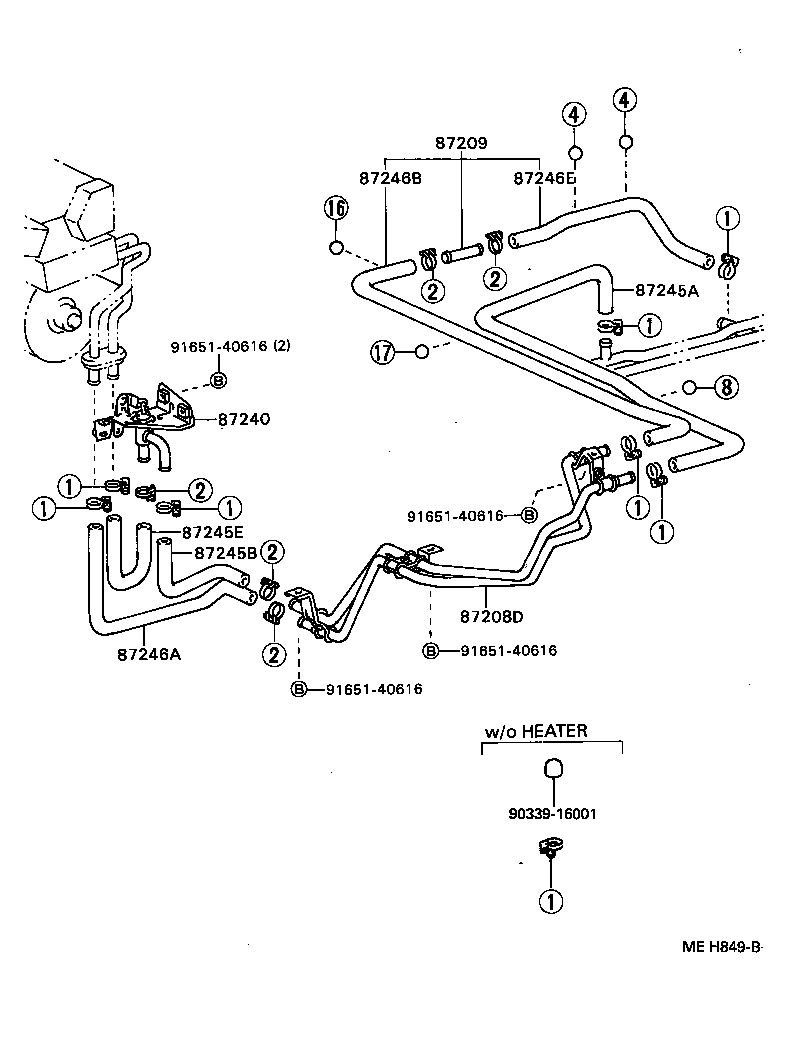

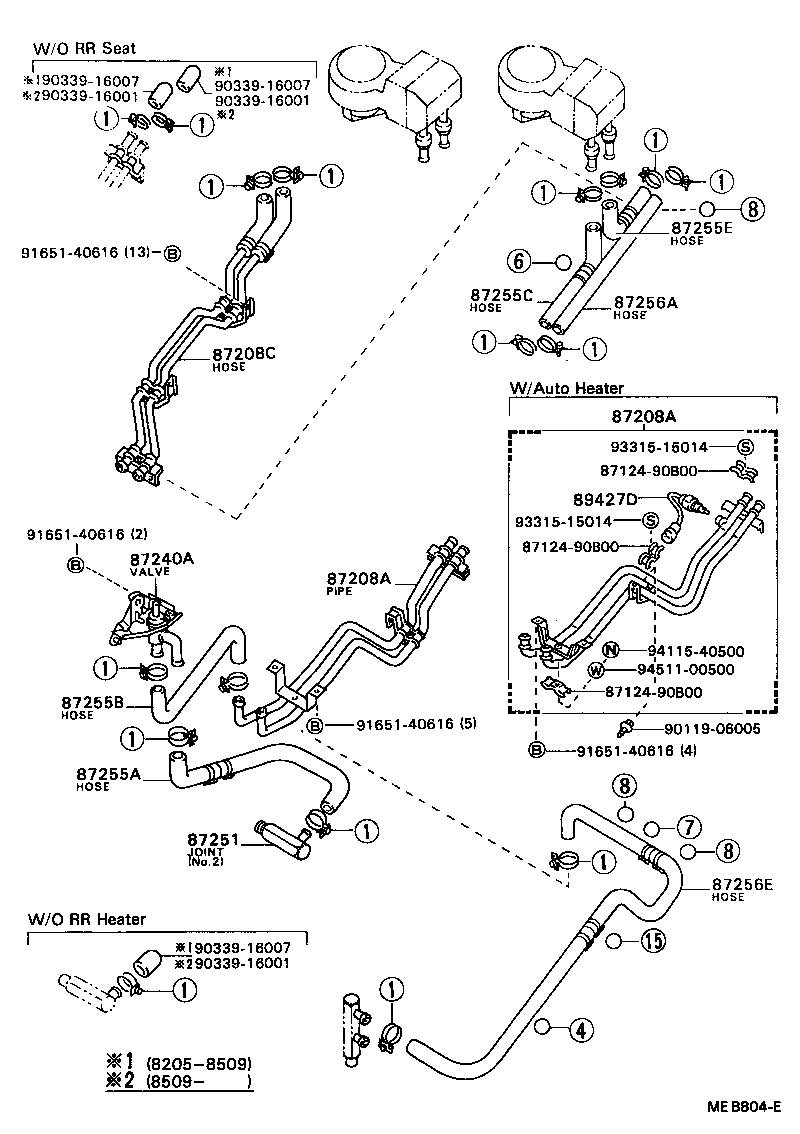

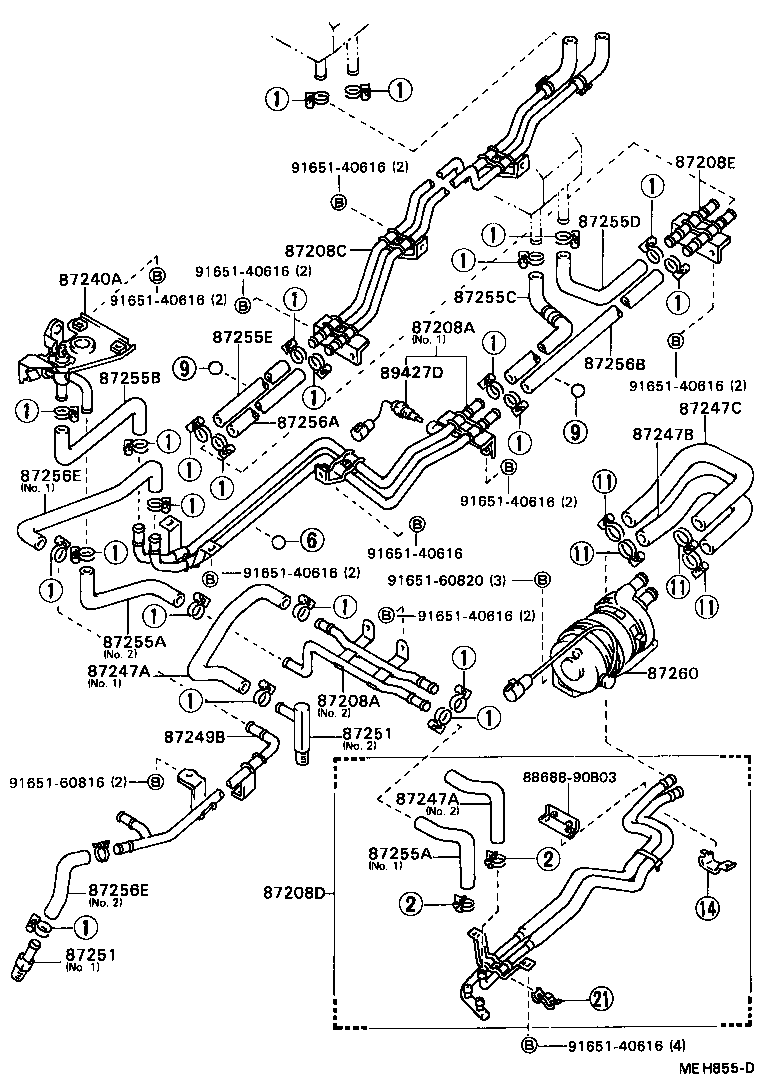

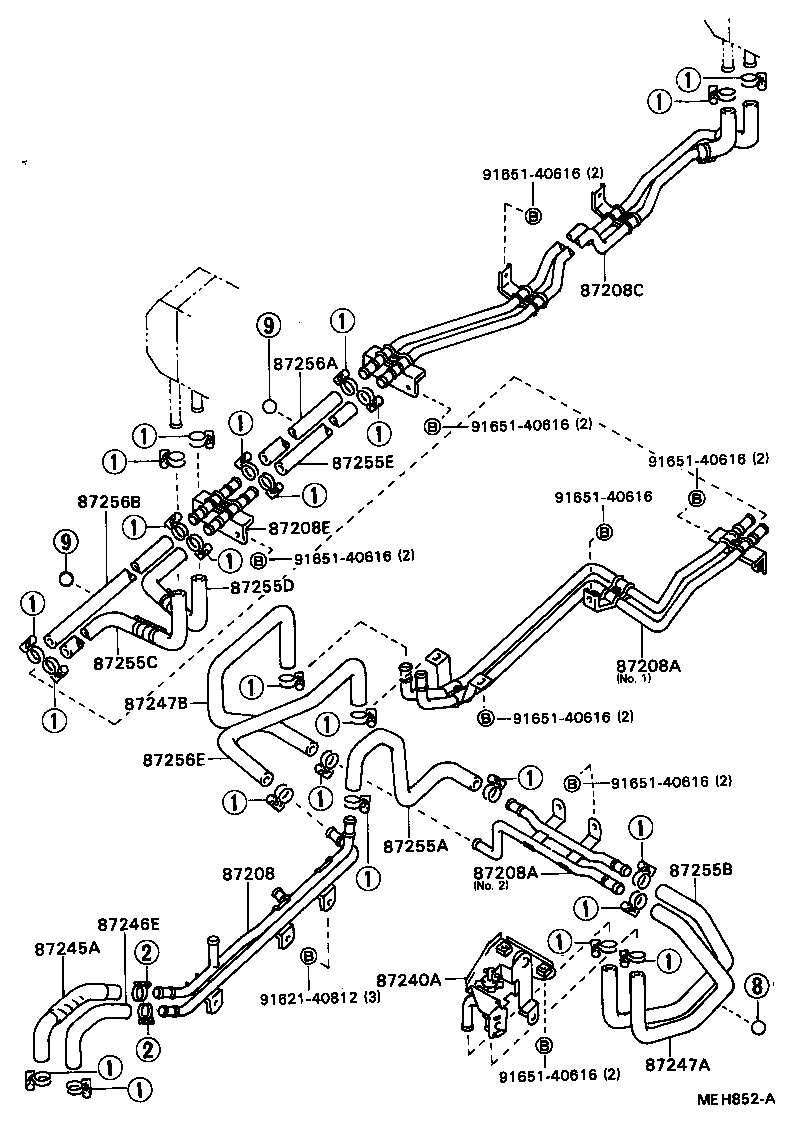

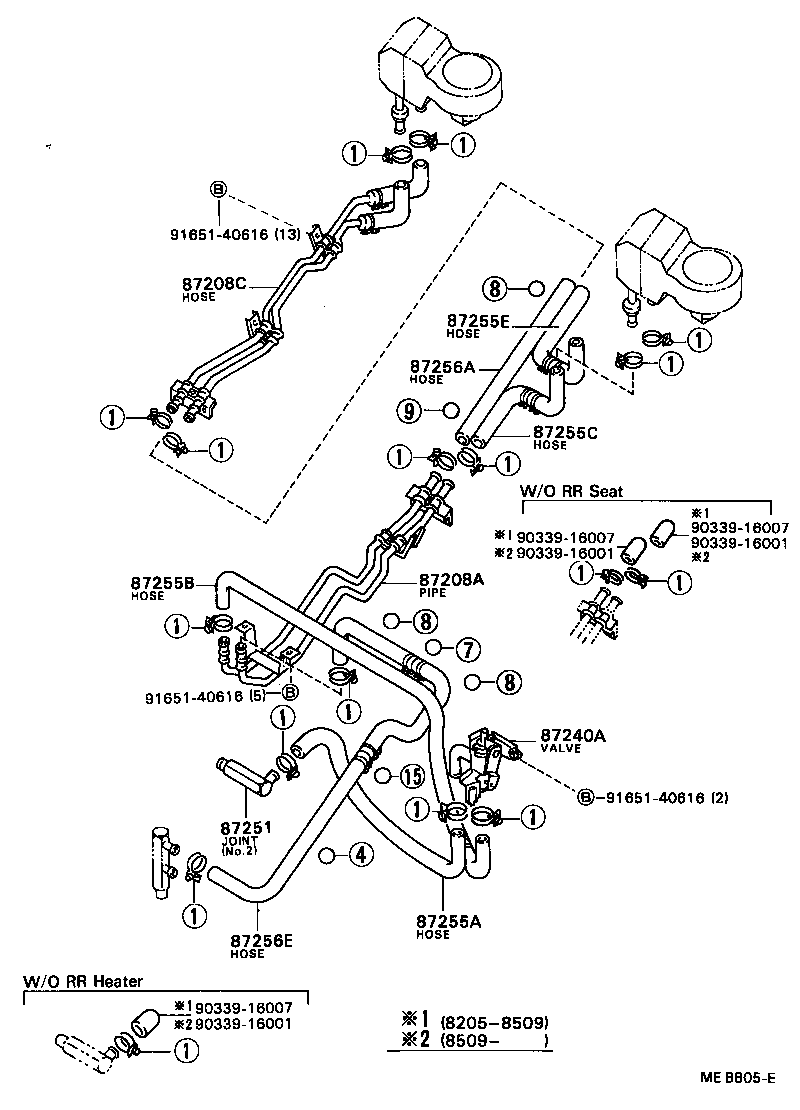

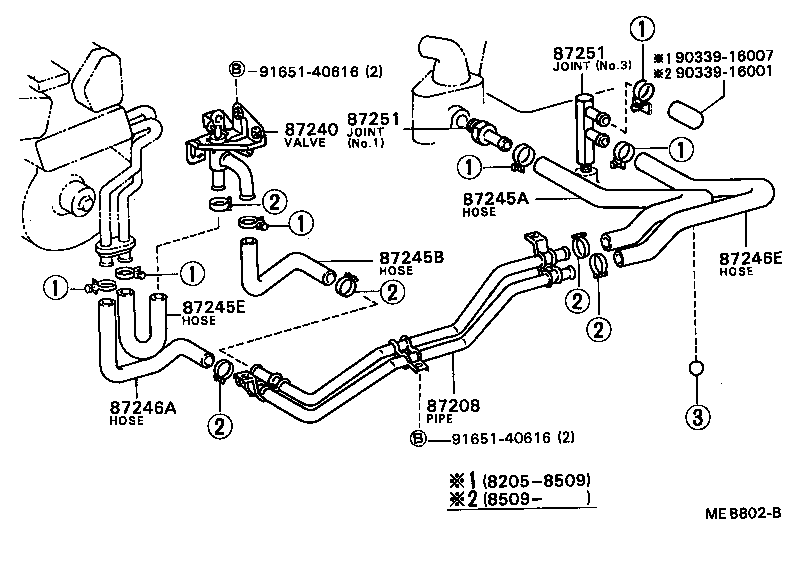

Figure MEH848A MEH848A 1982-05 → — Figure MEH849B MEH849B 1986-10 → — Figure MEB802B MEB802B 1982-05 → — Figure MEB802B MEB802B 1983-06 → — Figure MEF081A MEF081A 1984-08 → — Figure MEH850A MEH850A 1986-10 → 1990-01 Figure MEH851A MEH851A 1986-10 → 1990-01 Figure MEQ773A MEQ773A 1990-01 → — Figure MEQ779A MEQ779A 1990-01 → — Figure MEB824E MEB824E 1982-05 → — Figure MEB803G MEB803G 1982-05 → — Figure MEH852A MEH852A 1986-10 → — Figure MEB804E MEB804E 1982-05 → — Figure MEB805E MEB805E 1982-05 → — Figure MEF082A MEF082A 1984-08 → — Figure MEH853A MEH853A 1986-10 → 1990-01 Figure MEH854A MEH854A 1986-10 → 1990-01 Figure MEH855D MEH855D 1986-10 → 1990-01 Figure MES071 MES071 1990-01 → — Figure MEQ776A MEQ776A 1990-01 → — Figure MES069 MES069 1990-01 → — Figure MEQ780A MEQ780A 1991-09 → — Figure MEH801H MEH801H 1982-05 → — Figure MEJ042B MEJ042B 1982-05 → —

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87208C Pipe Sub-assy, Heater Water, C
87208D Pipe Sub-assy, Heater Water, D
87208E Pipe Sub-assy, Heater Water, E
87209 Hose Sub-assy, Water
87240 Valve Assy, Heater Water
87240A Valve Assy, Rear Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87247A Hose, Heater Water, A
87247B Hose, Heater Water, B
87247C Hose, Heater Water, C
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87251 Joint OR Union, Water Hose Through
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255D Hose, Rear Heater Water Inlet, D
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87260 Pump Assy, Heater
87263 Bracket, Heater Water Pipe, NO.1
89427D Switch, Temperature
