Toyota Coaster
1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe
Discontinued model
Data version 1994-03

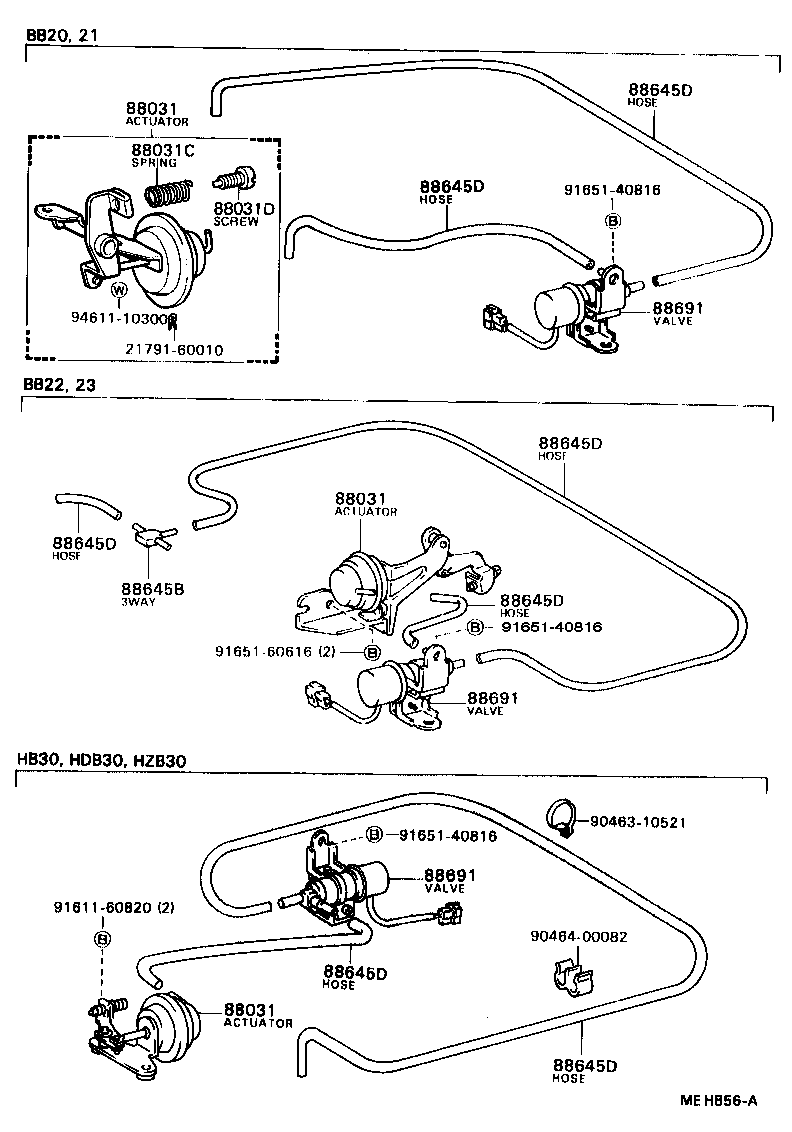

Heating & Air Conditioning - Vacuum Piping
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88031 | Actuator Set, Idle-up |
| 88031C | Spring(FOR IDLE-UP ACTUATOR) |
| 88031D | Screw, Throttle Adjusting(FOR IDLE-UP ACTUATOR) |
| 88645B | Joint, NO.1 (FOR IDLE UP DIVICE) |
| 88645D | Hose (FOR IDLE UP DEVICE) |
| 88691 | Valve, Magnet (FOR IDLE UP DEVICE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
