Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

40 part groups · 7 illustrations

Illustrations

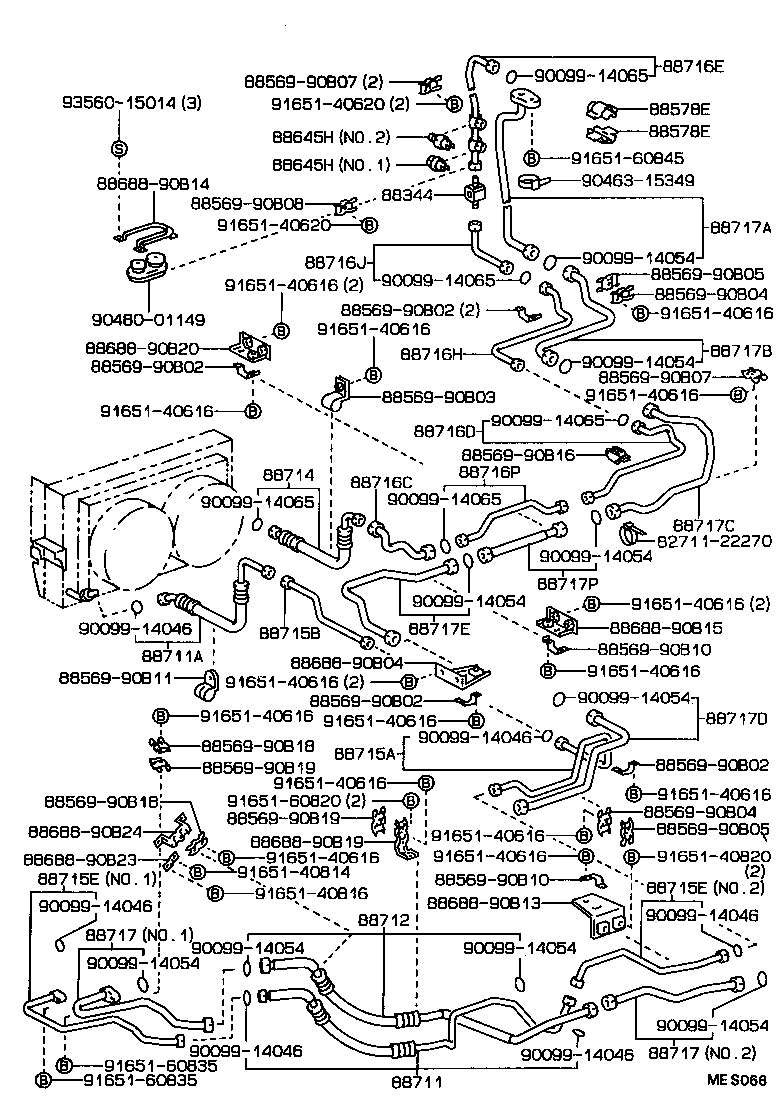

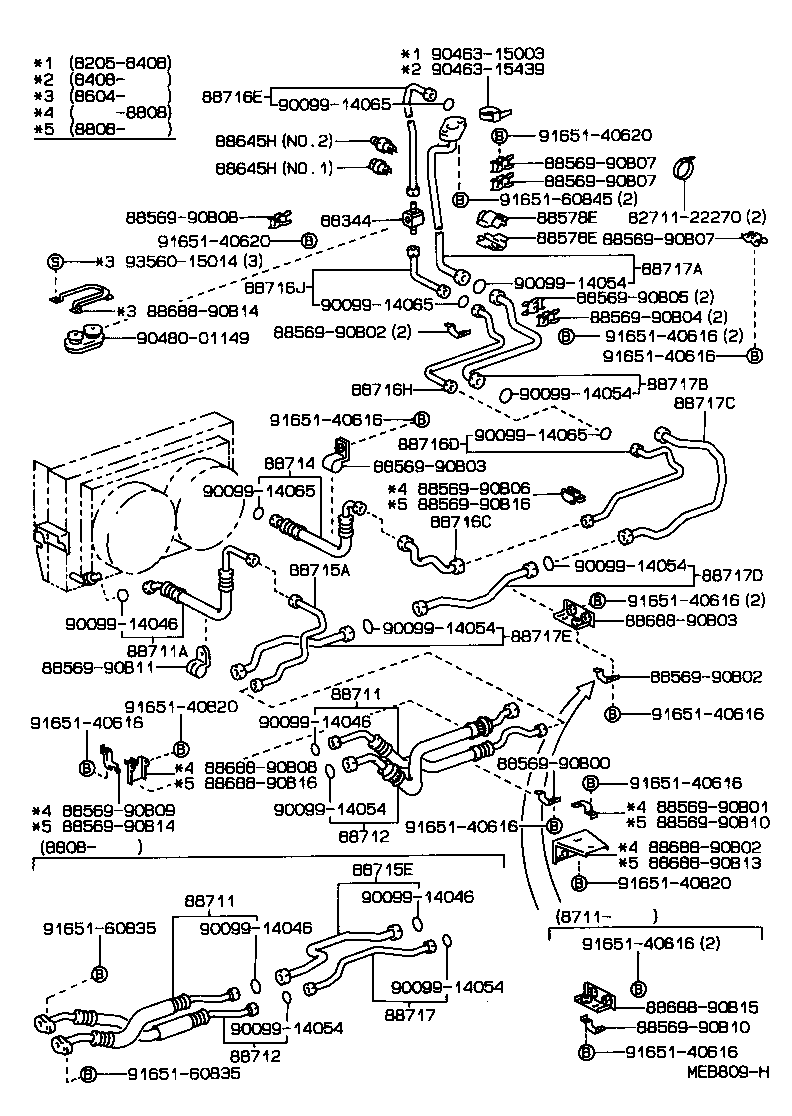

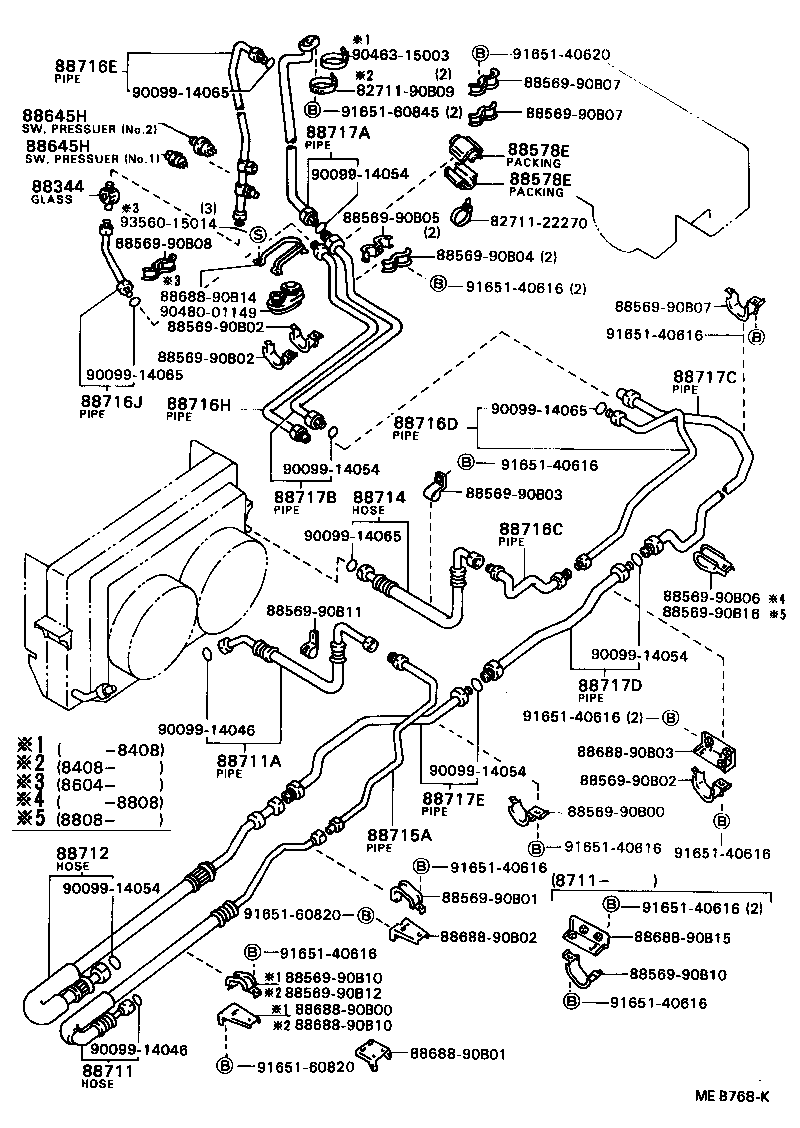

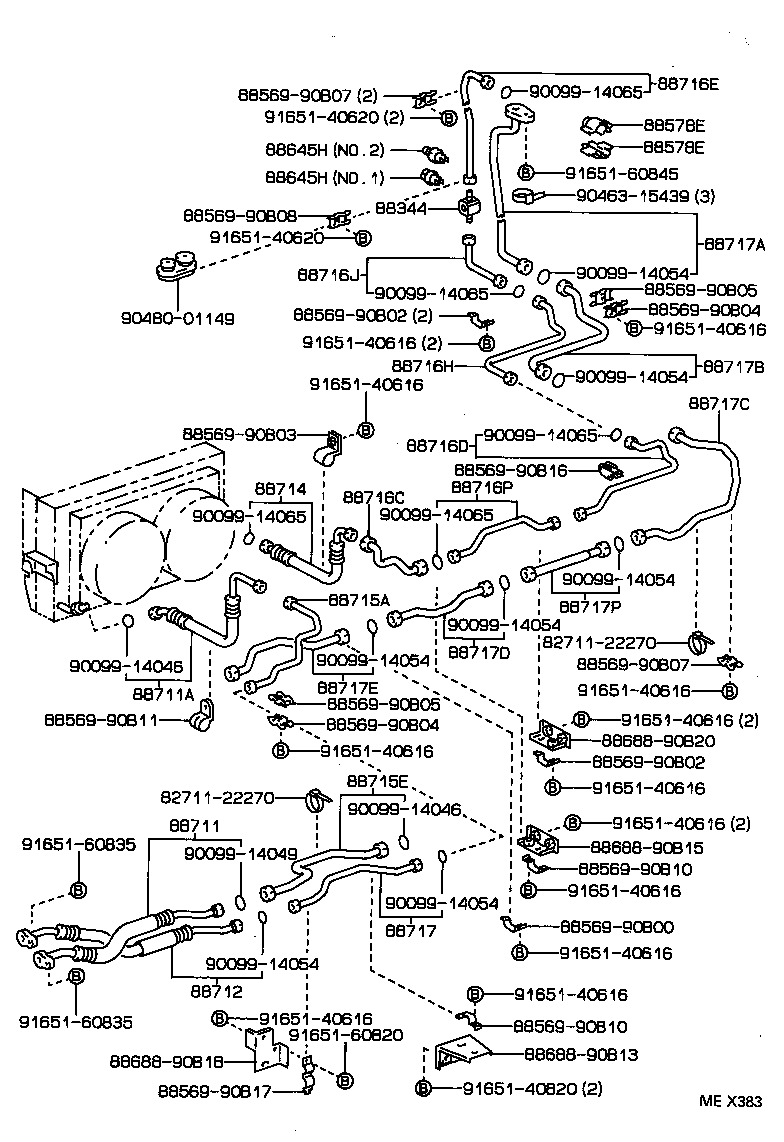

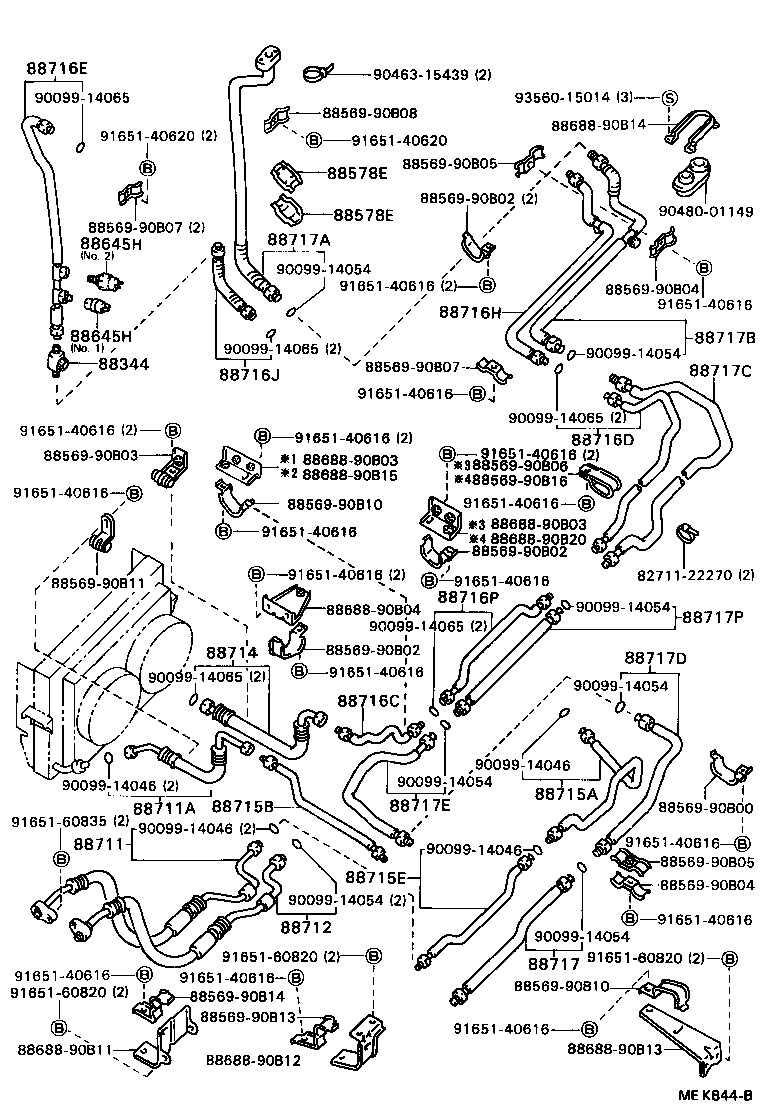

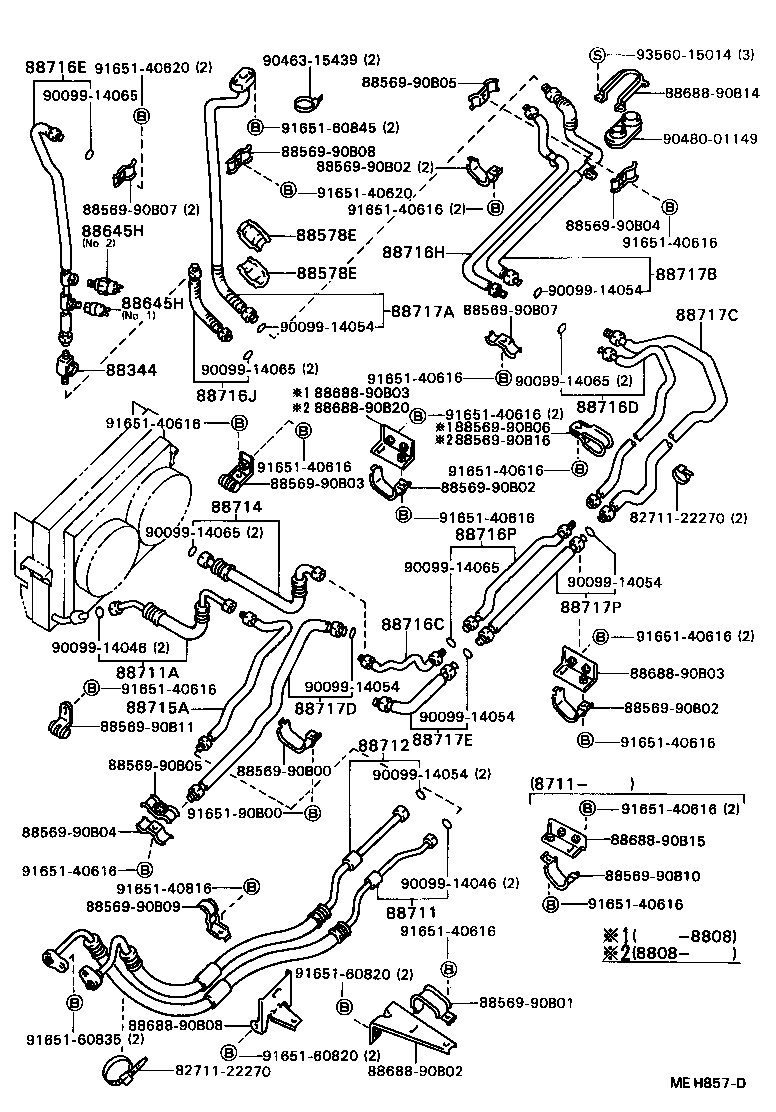

Figure MEB767E MEB767E 1982-05 → — Figure MEB768K MEB768K 1982-05 → — Figure MEH857D MEH857D 1986-10 → — Figure MEB809H MEB809H 1982-05 → — Figure MEK844B MEK844B 1986-10 → 1990-01 Figure MEX383 MEX383 1990-01 → — Figure MES066 MES066 1991-09 → —

Part groups

PNCDescription
88344 Glass Sub-assy, Sight
88367 Shroud, Cooler Blower Fan
88415C Cover, Dust, NO.1
88415D Cover, Dust, NO.2
88415E Cover, Dust, NO.3
88450 Condenser Assy, W/Receiver
88453 Fan, Cooling (FOR CONDENSER)
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88470 Receiver & Dryer Assy, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88578E Packing, Cooler Pipe, NO.2
88645H Switch, Pressure NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88712 Hose, Cooler Refrigerant Suction, NO.1
88714 Hose, Cooler Refrigerant Liquid, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715E Pipe, Cooler Refrigerant Discharge, E
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88716P Pipe, Cooler Refrigerant Liquid, P
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D
88717E Pipe, Cooler Refrigerant Suction, E
88717P Pipe, Cooler Refrigerant Suction, P
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88891C Packing C (FOR COOLER)
88891D Packing D (FOR COOLER)
88891E Packing E (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
