Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

52 part groups · 13 illustrations

Illustrations

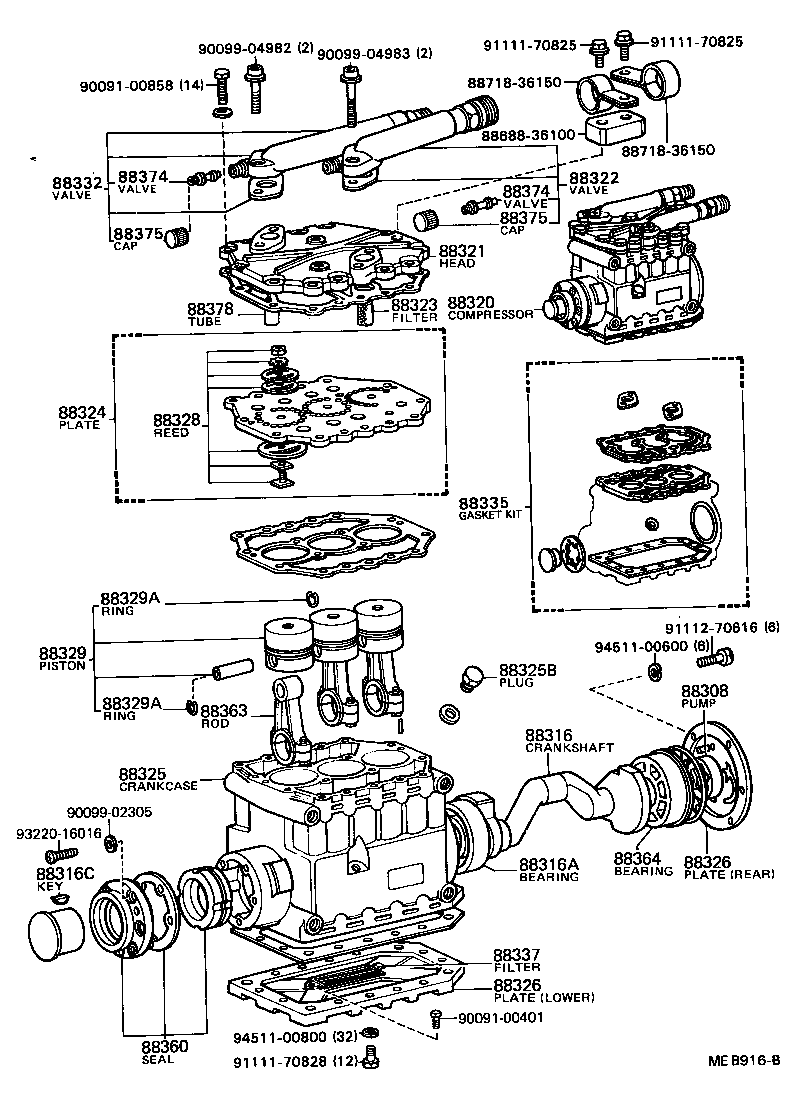

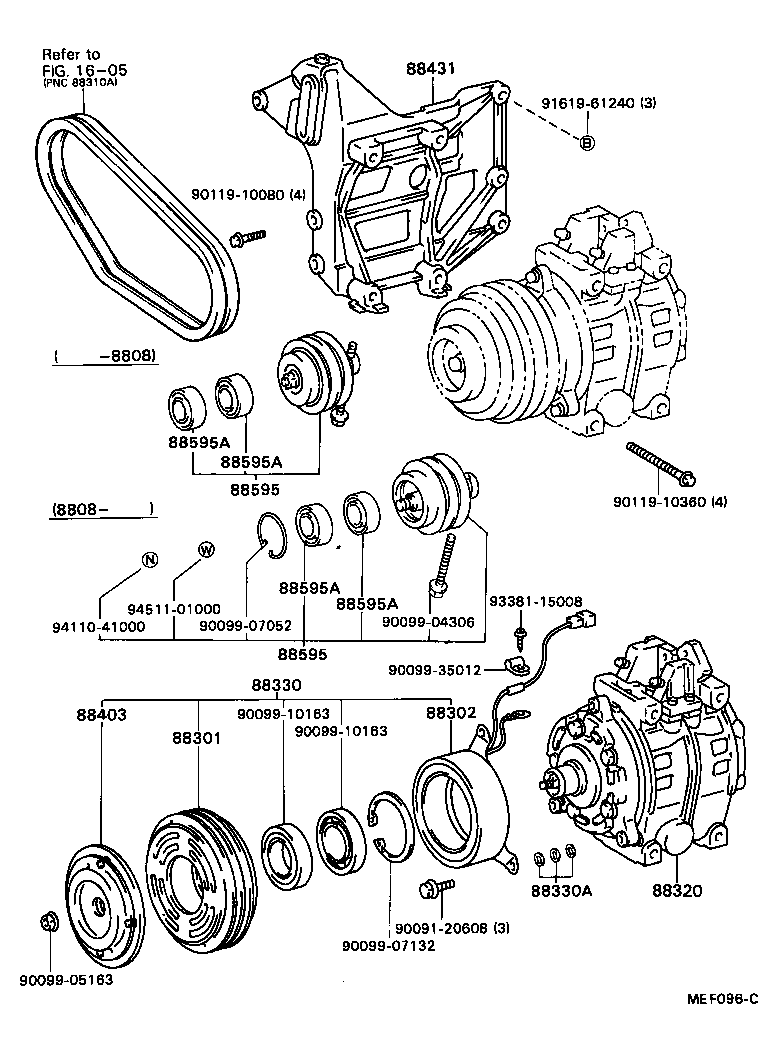

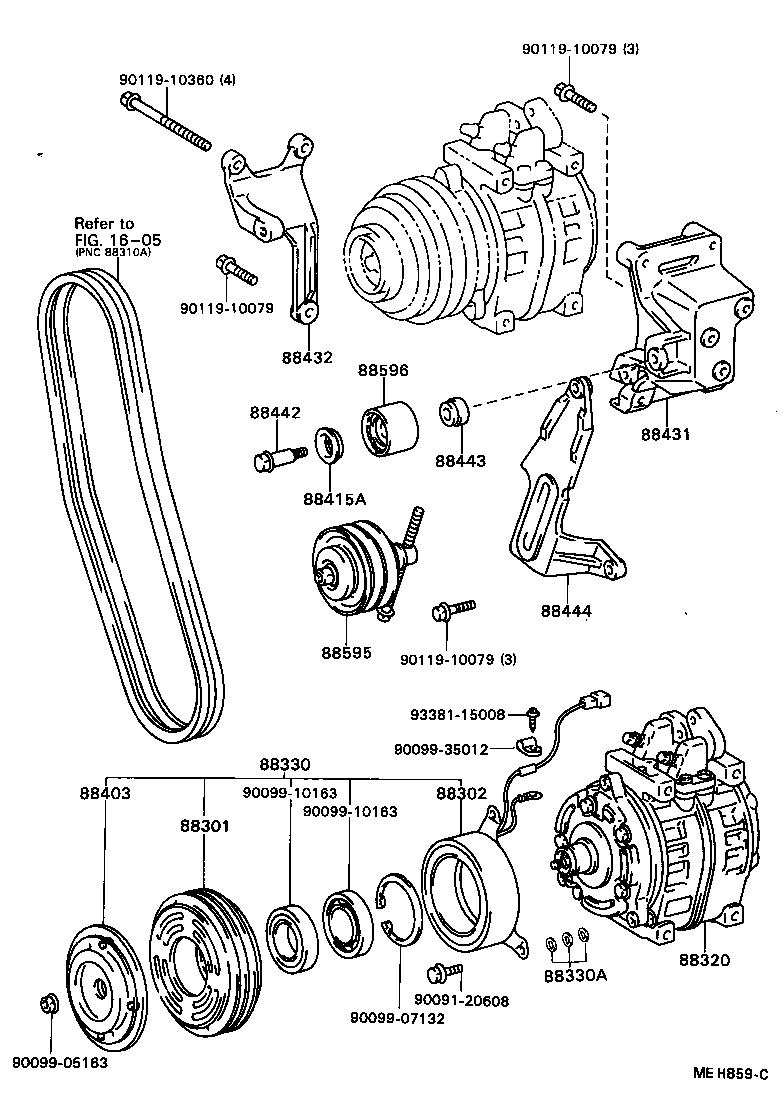

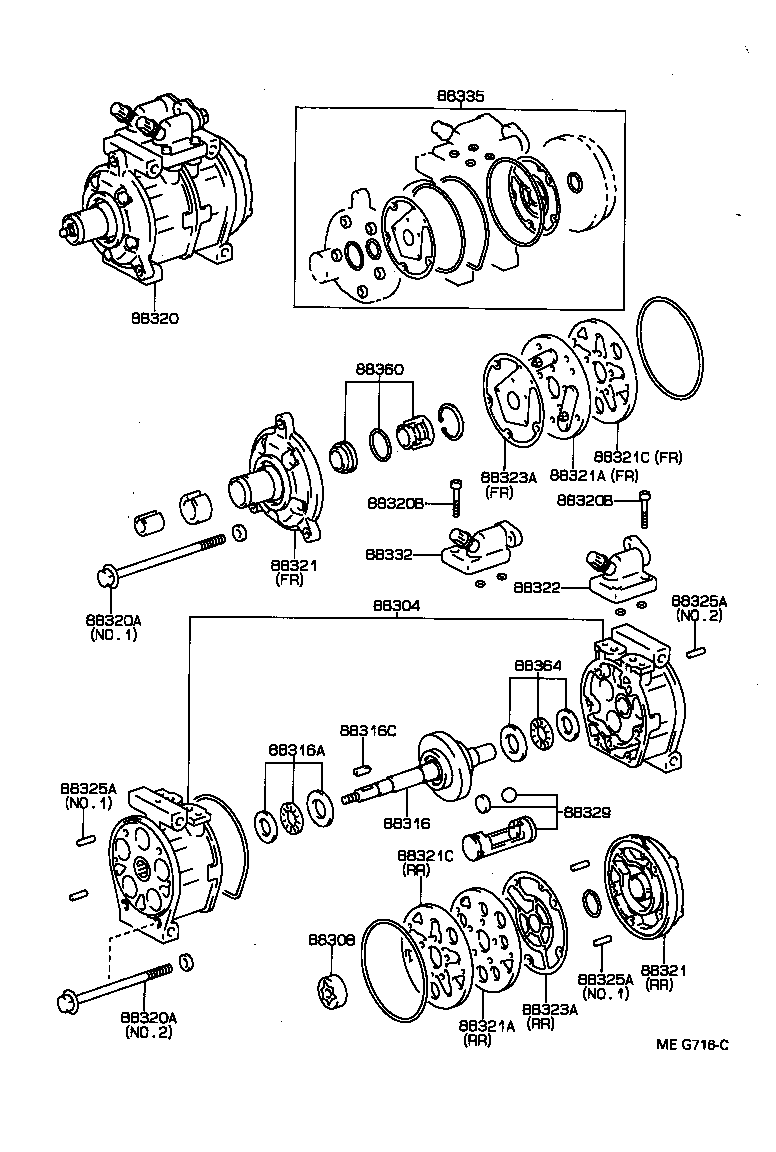

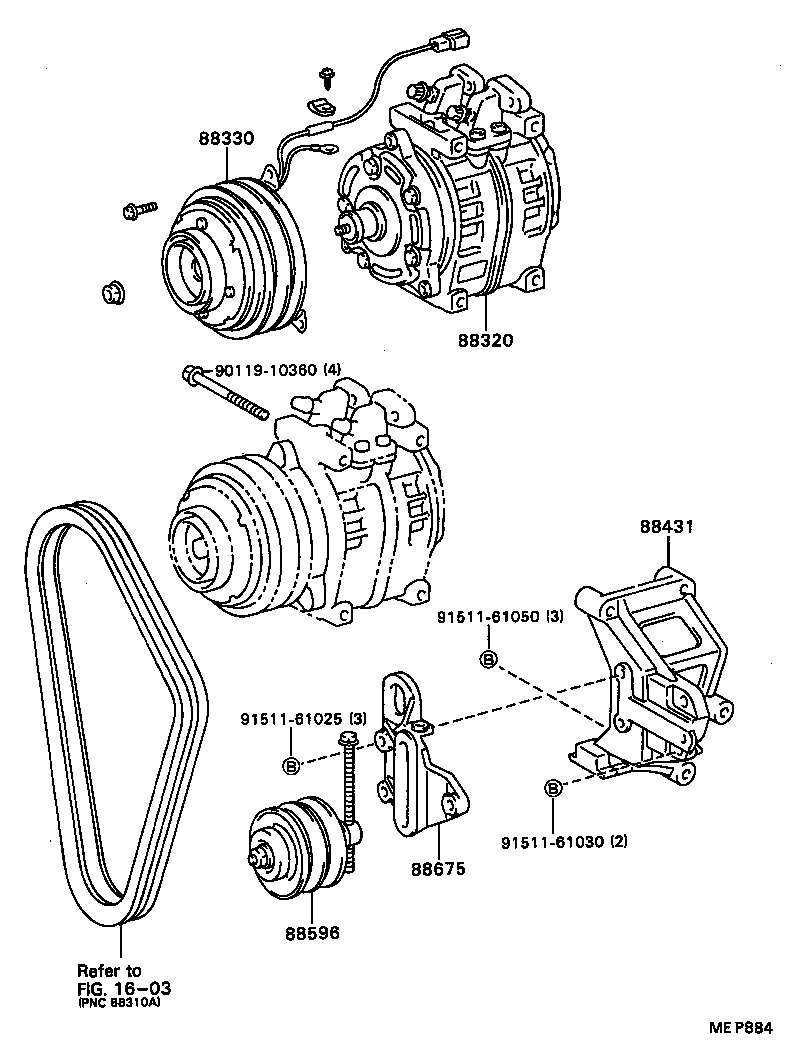

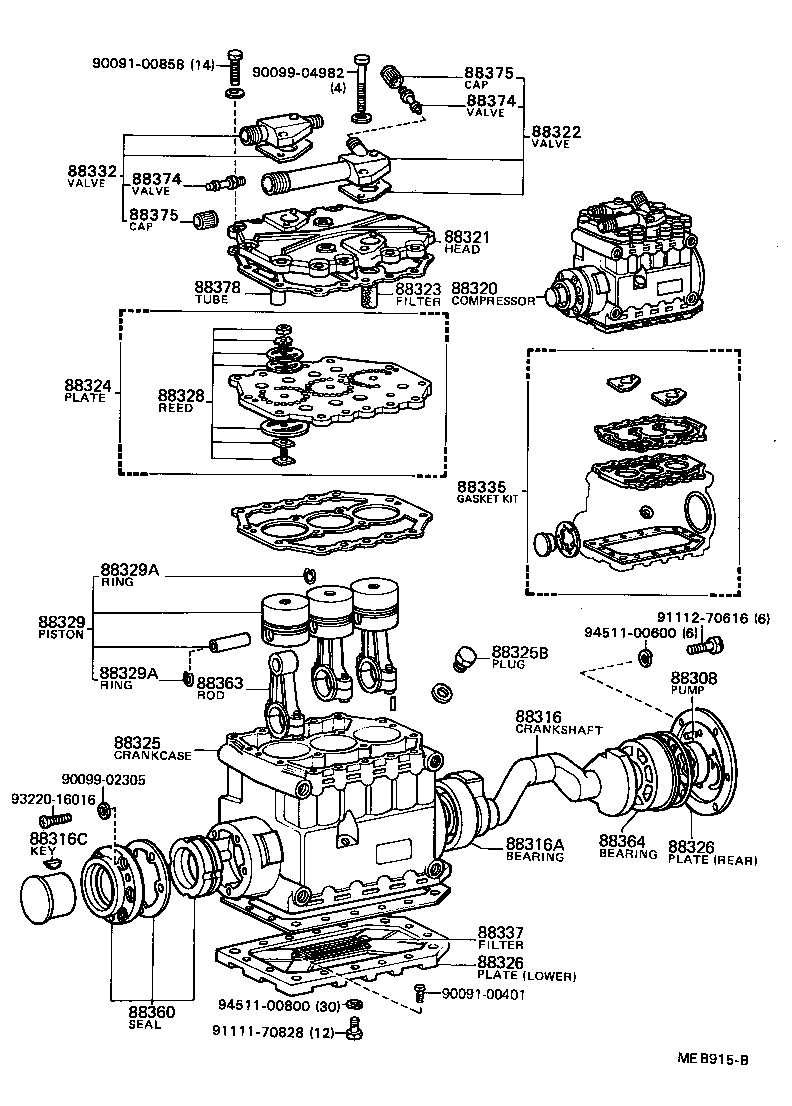

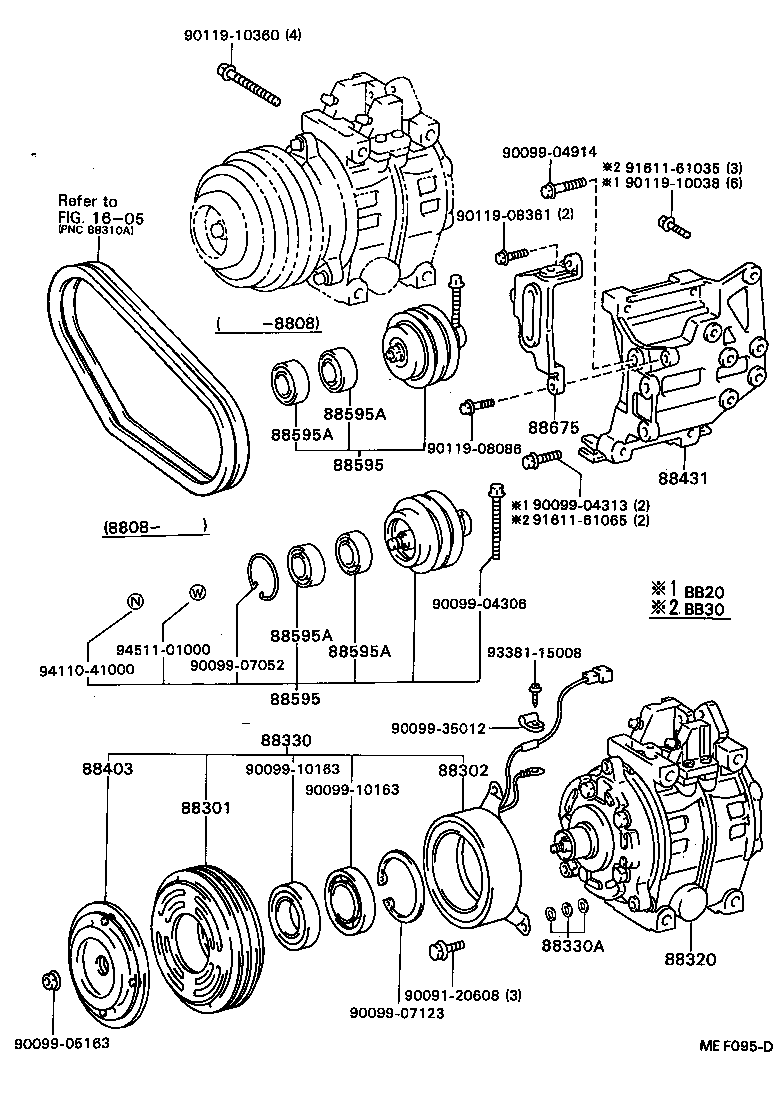

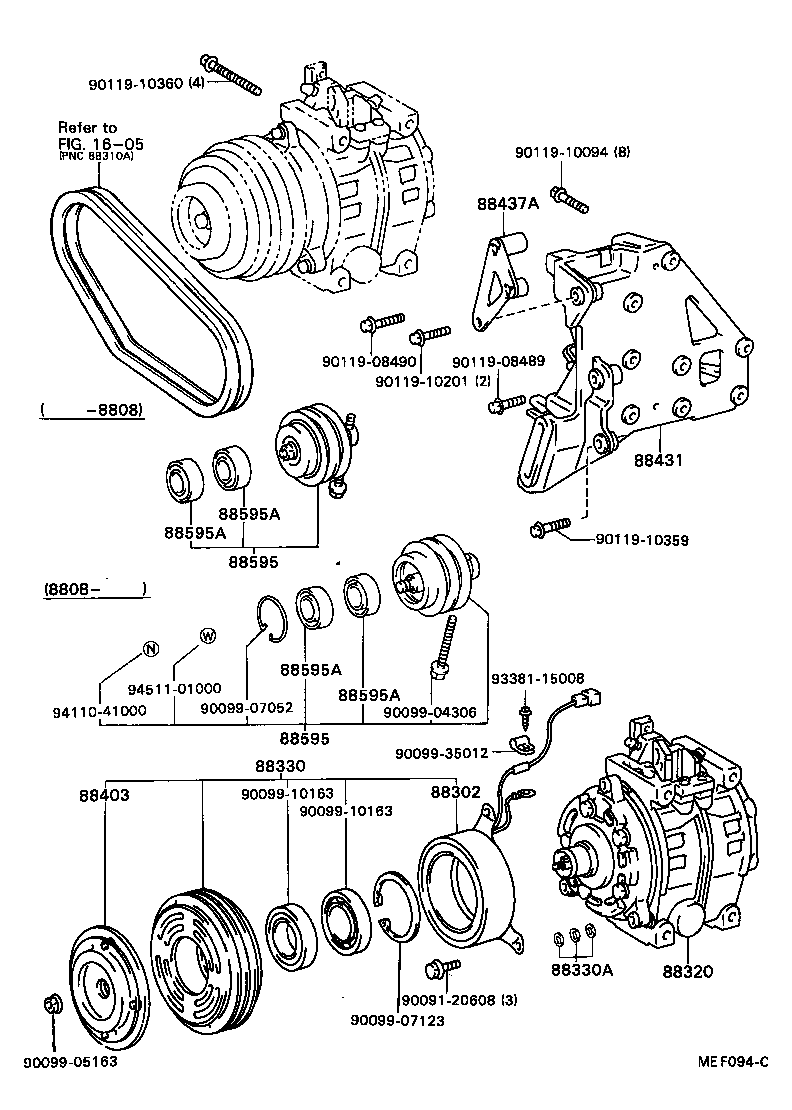

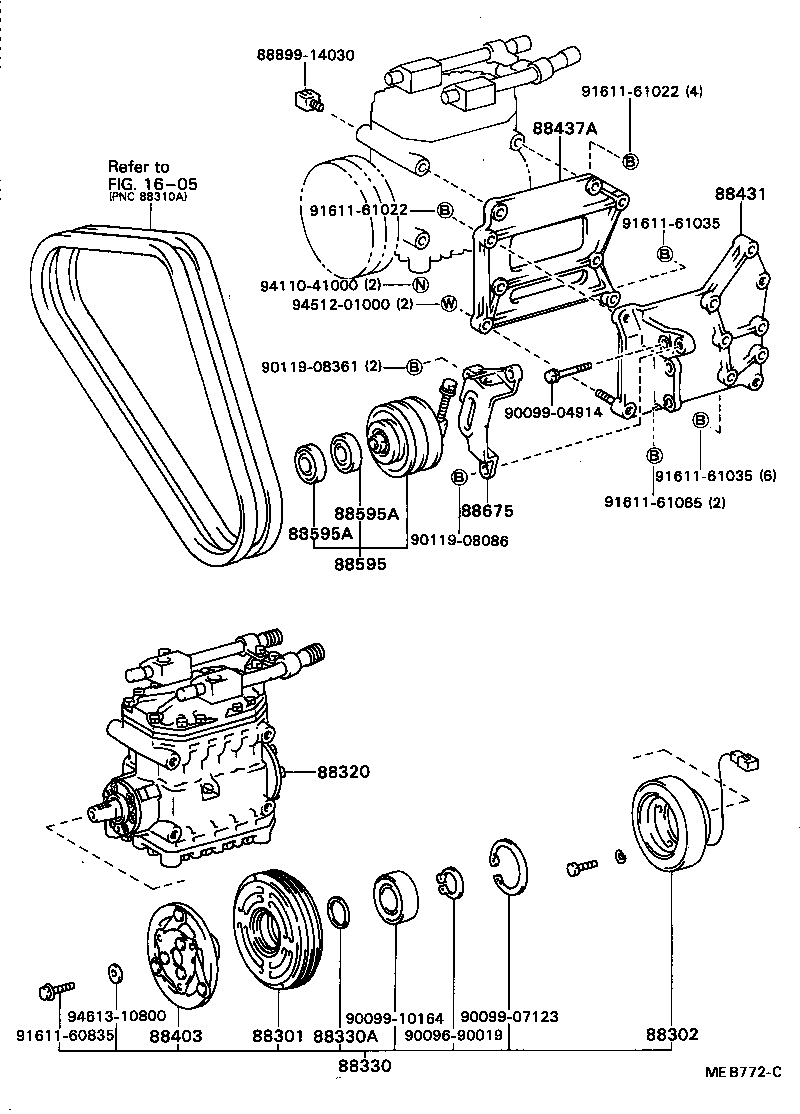

Figure MEB771D MEB771D 1982-05 → 1984-08 Figure MEF094C MEF094C 1984-08 → 1993-01 Figure MEH859C MEH859C 1986-10 → 1993-01 Figure MEB772C MEB772C 1982-05 → 1984-08 Figure MEF095D MEF095D 1984-03 → — Figure MEF095D MEF095D 1984-08 → — Figure MEF096C MEF096C 1986-10 → 1990-01 Figure MEP884 MEP884 1990-01 → 1993-01 Figure MEP884 MEP884 1991-09 → 1993-01 Figure MEB915B MEB915B 1982-05 → 1984-08 Figure MEB916B MEB916B 1982-05 → 1984-08 Figure MEG716C MEG716C 1984-08 → 1988-08 Figure 87A039 87A039 1988-08 → 1993-01

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88304 Cylinder Sub-assy, Cooler Compressor
88308 Pump Assy, Cooler Compressor
88316 Crankshaft, Cooler Compressor
88316A Bearing, Compressor Crankshaft, Front
88316C Key, Compressor Crankshaft
88320 Compressor Assy, Cooler
88320A Bolt, Through
88320B Bolt, Service Valve
88321 Head, Cooler Compressor Cylinder
88321A Plate Sub-assy, Valve
88321C Reed, Suction Valve
88322 Valve, Cooler Compressor Suction Service
88323 Filter, Cooler Compressor Refrigerant
88323A Gasket, Compressor
88324 Plate Sub-assy, Cooler Compressor Valve
88325 Crankcase, Cooler Compressor
88325A Pin, Cylinder Block
88325B Plug, Cylinder Block Oil
88326 Plate, Cooler Compressor Bottom
88328 Reed Sub-assy, Cooler Compressor Valve
88329 Piston Sub-assy, Cooler Compressor
88329A Ring, Compressor Piston Snap
88330 Clutch Assy, Magnet
88330A Washer (FOR MAGNET CLUTCH)
88332 Valve, Cooler Compressor Discharge Service
88335 Gasket Kit, Overhaul
88337 Filter, Oil
88360 Seal Assy, Cooler Compressor Shaft
88363 Rod Sub-assy, Cooler Compressor Connecting
88364 Bearing, Compressor Crankshaft, Rear
88374 Valve, Cooler Compressor Service
88375 Cap, Cooler Compressor Service Valve
88378 Tube, Discharge
88403 Hub Sub-assy, Magnet Clutch
88415A Cover, Dust
88431 Bracket, Compressor Mounting, NO.1
88432 Bracket, Compressor Mounting, NO.2
88433 Bracket, Compressor Mounting, NO.3
88434 Bracket, Compressor Mounting, NO.4
88435 Bracket, Compressor Mounting, NO.5
88437A Attachment, Compressor
88437B Attachment, Compressor, NO.1
88437C Attachment, Compressor, NO.2
88442 Shaft, Idle Pulley
88443 Collar, Idle Pulley
88444 Bracket, Idle Pulley
88595 Pulley, Cooler Compressor Idle
88595A Bearing (FOR COOLER IDLE PULLEY)
88596 Pulley Assy, Idle, NO.2
88675 Bracket, Idler Pulley (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
