Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

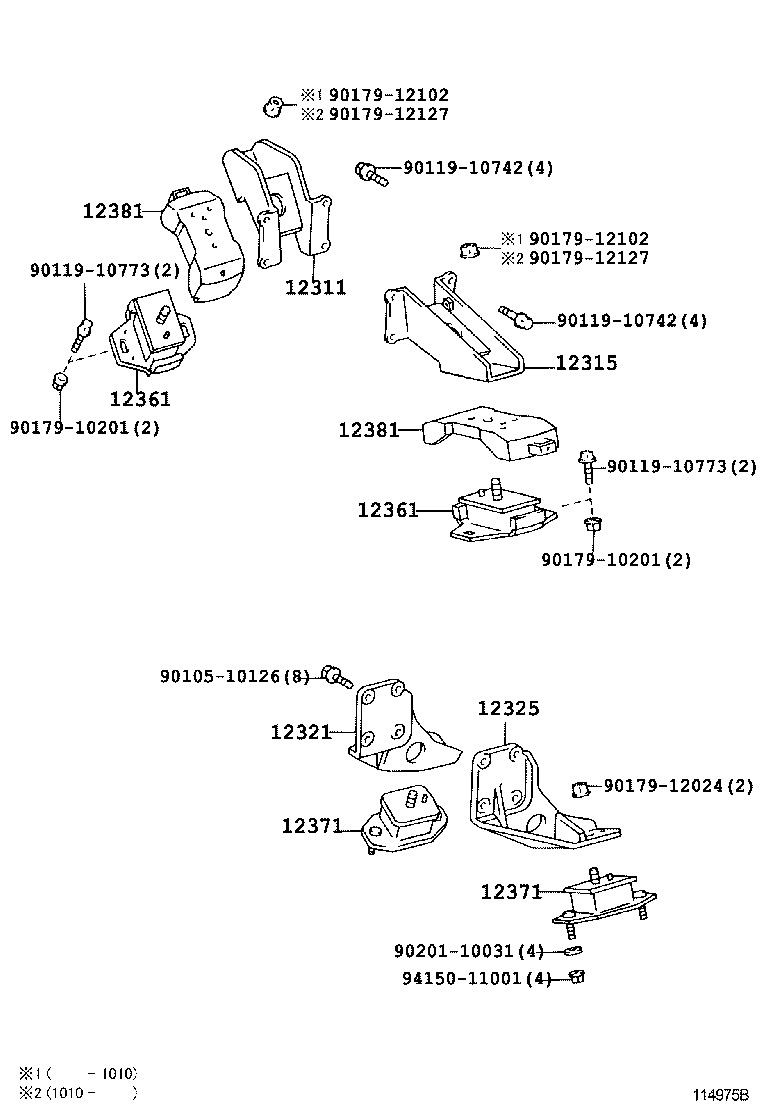

Exploded illustration 114975B 12381 — STABILIZER, ENGINE MOUNTING (27 parts) 9011910773 — not listed in this catalogue 12361 — INSULATOR, ENGINE MOUNTING, FRONT (36 parts) 9017910201 — not listed in this catalogue 12371 — INSULATOR, ENGINE MOUNTING, REAR NO.1 (22 parts) 12321 — BRACKET, ENGINE MOUNTING, REAR, NO.1 (30 parts) 9010510126 — not listed in this catalogue 12311 — BRACKET, ENGINE MOUNTING, FRONT NO.1 RH (27 parts) 12381 — STABILIZER, ENGINE MOUNTING (27 parts) 12361 — INSULATOR, ENGINE MOUNTING, FRONT (36 parts) 9011910742 — not listed in this catalogue 9017912102 — not listed in this catalogue 9017912127 — not listed in this catalogue 9017912102 — not listed in this catalogue 9017912127 — not listed in this catalogue 9011910742 — not listed in this catalogue 12315 — BRACKET, ENGINE MOUNTING, FRONT NO.1 LH (27 parts) 9011910773 — not listed in this catalogue 9017910201 — not listed in this catalogue 12325 — BRACKET, ENGINE MOUNTING, NO.3 (30 parts) 9017912024 — not listed in this catalogue 12371 — INSULATOR, ENGINE MOUNTING, REAR NO.1 (22 parts) 9020110031 — not listed in this catalogue 9415011001 — not listed in this catalogue
114975B · 10 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
199 parts on this figure
Part number Description Fitment Price
12311 — Bracket, Engine Mounting, Front NO.1 RH
12311-17040 Bracket, Engine Mounting, Front NO.1 RH
1993-01 → 1998-12 ended
1HZ# HZB50 —
12311-17041 Bracket, Engine Mounting, Front NO.1 RH
1998-12 → 1999-07 ended
1HZ HZB50 —
12311-58080 Bracket, Engine Mounting, Front NO.1 RH
1993-01 → 1999-07 ended
14B,15BFT,3B BB4#,5# —
12311-75030 Bracket, Engine Mounting, Front NO.1 RH
1993-09 → 1999-07 ended
3RZF RZB40,50 —
12311-17041 Bracket, Engine Mounting, Front NO.1 RH
1999-07 → 2001-08 ended
1HZ HZB50 RHD SRF;1HZ +8 —
12311-17041 Bracket, Engine Mounting, Front NO.1 RH
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
12311-17041 Bracket, Engine Mounting, Front NO.1 RH
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
12311-58080 Bracket, Engine Mounting, Front NO.1 RH
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
12311-58080 Bracket, Engine Mounting, Front NO.1 RH
1999-07 → 2004-08 ended
14B WOC;15BFTE,1BZFPE BB42 BB5#,BZB40,50;15BFT +17 —
12311-58080 Bracket, Engine Mounting, Front NO.1 RH
1999-07 → 2002-11 ended
15BFT BB50 CHI —
12311-58080 Bracket, Engine Mounting, Front NO.1 RH
1999-07 → 2001-08 ended
14B .WOC;14B,15BFT BB42 BB4#,50 +12 —
12311-75030 Bracket, Engine Mounting, Front NO.1 RH
1999-07 → 2004-08 ended
3RZFE RZB40,50 —
12311-17041 Bracket, Engine Mounting, Front NO.1 RH
2004-08 → 2015-01 ended
1HZ HZB50 —
12311-58080 Bracket, Engine Mounting, Front NO.1 RH
2004-08 → 2006-08 ended
15BFTE BB5#;1BZFPE BZB50 EX —
12311-58080 Bracket, Engine Mounting, Front NO.1 RH
2004-08 → 2011-08 ended
14B,15BFT,1BZFPE BB42,50,BZB40,50 STD —
12311-58081 Bracket, Engine Mounting, Front NO.1 RH
2011-08 → 2015-01 ended
14B,15BFT,1BZFPE BB42,50,BZB40,50 —
12311-75030 Bracket, Engine Mounting, Front NO.1 RH
2004-08 → 2007-08 ended
3RZFE RZB40,50 —
12311-75030 Bracket, Engine Mounting, Front NO.1 RH
2007-08 → 2015-01 ended
2TRFE TRB40,50 —
12311-78102 Bracket, Engine Mounting, Front NO.1 RH
2006-08 → 2008-03 ended
N04C XZB50 STD GEN —
12311-78102 Bracket, Engine Mounting, Front NO.1 RH
2006-08 → 2009-08 ended
N04C XZB40,59;N04C XZB50 20S,21S —
12311-78102 Bracket, Engine Mounting, Front NO.1 RH
2006-08 → 2010-03 ended
N04C XZB50 IV —
12311-78120 Bracket, Engine Mounting, Front NO.1 RH
2009-08 → 2015-01 ended
N04C XZB40,5# ARL,GEN,TAIW —
12311-78120 Bracket, Engine Mounting, Front NO.1 RH
2010-03 → 2013-11 ended
N04C XZB50 IV —
12311-17041 Bracket, Engine Mounting, Front NO.1 RH
2015-01 → —
1HZ HZB50 —
12311-58081 Bracket, Engine Mounting, Front NO.1 RH
2015-01 → —
14B,1BZFPE BB42,BZB40,50 —
12311-75030 Bracket, Engine Mounting, Front NO.1 RH
2015-01 → —
2TRFE TRB40,50 —
12311-E0180 Bracket, Engine Mounting, Front NO.1 RH
2015-01 → —
N04C XZB40,5# —
12315 — Bracket, Engine Mounting, Front NO.1 LH
12315-17040 Bracket, Engine Mounting, Front NO.1 LH
1993-01 → 1998-12 ended
1HZ# HZB50 —
12315-17041 Bracket, Engine Mounting, Front NO.1 LH
1998-12 → 1999-07 ended
1HZ HZB50 —
12315-58040 Bracket, Engine Mounting, Front NO.1 LH
1993-01 → 1999-07 ended
14B,15BFT,3B BB4#,5# —
12315-75030 Bracket, Engine Mounting, Front NO.1 LH
1993-09 → 1999-07 ended
3RZF RZB40,50 —
12315-17041 Bracket, Engine Mounting, Front NO.1 LH
1999-07 → 2001-08 ended
1HZ HZB50 RHD SRF;1HZ +8 —
12315-17041 Bracket, Engine Mounting, Front NO.1 LH
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
12315-17041 Bracket, Engine Mounting, Front NO.1 LH
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
12315-58040 Bracket, Engine Mounting, Front NO.1 LH
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
12315-58040 Bracket, Engine Mounting, Front NO.1 LH
1999-07 → 2004-08 ended
14B WOC;15BFTE,1BZFPE BB42 BB5#,BZB40,50;15BFT +17 —
12315-58040 Bracket, Engine Mounting, Front NO.1 LH
1999-07 → 2002-11 ended
15BFT BB50 CHI —
12315-58040 Bracket, Engine Mounting, Front NO.1 LH
1999-07 → 2001-08 ended
14B .WOC;14B,15BFT BB42 BB4#,50 +12 —
12315-75030 Bracket, Engine Mounting, Front NO.1 LH
1999-07 → 2004-08 ended
3RZFE RZB40,50 —
12315-17041 Bracket, Engine Mounting, Front NO.1 LH
2004-08 → 2015-01 ended
1HZ HZB50 —
12315-58040 Bracket, Engine Mounting, Front NO.1 LH
2004-08 → 2011-08 ended
14B,15BFT,1BZFPE BB42,50,BZB40,50 STD —
12315-58040 Bracket, Engine Mounting, Front NO.1 LH
2004-08 → 2006-08 ended
15BFTE BB5#;1BZFPE BZB50 EX —
12315-58041 Bracket, Engine Mounting, Front NO.1 LH
2011-08 → 2015-01 ended
14B,15BFT,1BZFPE BB42,50,BZB40,50 —
12315-75030 Bracket, Engine Mounting, Front NO.1 LH
2007-08 → 2015-01 ended
2TRFE TRB40,50 —
12315-75030 Bracket, Engine Mounting, Front NO.1 LH
2004-08 → 2007-08 ended
3RZFE RZB40,50 —
12315-78082 Bracket, Engine Mounting, Front NO.1 LH
2006-08 → 2008-03 ended
N04C XZB50 STD GEN —
12315-78082 Bracket, Engine Mounting, Front NO.1 LH
2006-08 → 2009-08 ended
N04C XZB40,59;N04C XZB50 20S,21S —
12315-78082 Bracket, Engine Mounting, Front NO.1 LH
2006-08 → 2010-03 ended
N04C XZB50 IV —
12315-78100 Bracket, Engine Mounting, Front NO.1 LH
2010-03 → 2013-11 ended
N04C XZB50 IV —
12315-78100 Bracket, Engine Mounting, Front NO.1 LH
2009-08 → 2015-01 ended
N04C XZB40,5# ARL,GEN,TAIW —
12315-17041 Bracket, Engine Mounting, Front NO.1 LH
2015-01 → —
1HZ HZB50 —
12315-58041 Bracket, Engine Mounting, Front NO.1 LH
2015-01 → —
14B,1BZFPE BB42,BZB40,50 —
12315-75030 Bracket, Engine Mounting, Front NO.1 LH
2015-01 → —
2TRFE TRB40,50 —
12315-E0100 Bracket, Engine Mounting, Front NO.1 LH
2015-01 → —
N04C XZB40,5# —
12321 — Bracket, Engine Mounting, Rear, NO.1
12321-17020 Bracket, Engine Mounting, Rear, NO.1
1993-01 → 1999-07 ended
14B,15BFT,3B BB4#,5# —
12321-17020 Bracket, Engine Mounting, Rear, NO.1
1993-01 → 1999-07 ended
1HZ# HZB50 5F —
12321-17030 Bracket, Engine Mounting, Rear, NO.1
1993-01 → 1999-07 ended
1HZ HZB50 4FC —
12321-75010 Bracket, Engine Mounting, Rear, NO.1
1993-09 → 1999-07 ended
3RZF RZB40,50 —
12321-17020 Bracket, Engine Mounting, Rear, NO.1
1999-07 → 2004-08 ended
14B WOC;15BFT BB42 BB50 +18 —
12321-17020 Bracket, Engine Mounting, Rear, NO.1
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
12321-17020 Bracket, Engine Mounting, Rear, NO.1
1999-07 → 2002-11 ended
15BFT BB50 CHI —
12321-17020 Bracket, Engine Mounting, Rear, NO.1
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
12321-17020 Bracket, Engine Mounting, Rear, NO.1
1999-07 → 2001-08 ended
14B .WOC;14B,15BFT BB42 BB4# +12 —
12321-17020 Bracket, Engine Mounting, Rear, NO.1
1999-07 → 2001-08 ended
1HZ HZB50 RHD EX;1HZ +7 —
12321-17020 Bracket, Engine Mounting, Rear, NO.1
1999-07 → 2001-05 ended
15BFT BB50 STD WC +2 —
12321-17030 Bracket, Engine Mounting, Rear, NO.1
1999-07 → 2001-08 ended
1HZ HZB50 4FC —
12321-17040 Bracket, Engine Mounting, Rear, NO.1
1999-07 → 2001-08 ended
15BFT BB50 CBU 6F —
12321-17040 Bracket, Engine Mounting, Rear, NO.1
1999-07 → 2001-05 ended
15BFT BB50 IV 6F —
12321-17040 Bracket, Engine Mounting, Rear, NO.1
1999-07 → 2004-08 ended
15BFTE BB50,58 6F —
12321-75010 Bracket, Engine Mounting, Rear, NO.1
1999-07 → 2001-08 ended
3RZFE RZB40 WOC GCC;3RZFE +3 —
12321-75010 Bracket, Engine Mounting, Rear, NO.1
1999-07 → 2002-11 ended
3RZFE RZB40,50 CHI —
12321-75010 Bracket, Engine Mounting, Rear, NO.1
1999-07 → 2004-08 ended
3RZFE RZB40 WOC GEN;3RZFE +4 —
12321-17020 Bracket, Engine Mounting, Rear, NO.1
2004-08 → 2015-01 ended
1HZ HZB50 —
12321-17020 Bracket, Engine Mounting, Rear, NO.1
2004-08 → 2015-01 ended
14B,15B#,1BZFPE BB42,50,59,BZB40,50 5F —
12321-17040 Bracket, Engine Mounting, Rear, NO.1
2004-08 → 2006-08 ended
15BFTE BB50,58 6F —
12321-75010 Bracket, Engine Mounting, Rear, NO.1
2007-08 → 2015-01 ended
2TRFE TRB40,50 —
12321-75010 Bracket, Engine Mounting, Rear, NO.1
2004-08 → 2007-08 ended
3RZFE RZB40,50 —
12321-78380 Bracket, Engine Mounting, Rear, NO.1
2006-08 → 2015-01 ended
N04C XZB40,5# 5F —
12321-78400 Bracket, Engine Mounting, Rear, NO.1
2007-08 → 2015-01 ended
N04C XZB50 4FC —
12321-17020 Bracket, Engine Mounting, Rear, NO.1
2015-01 → 2016-12 ended
1HZ HZB50 —
12321-17020 Bracket, Engine Mounting, Rear, NO.1
2015-01 → 2016-12 ended
14B,1BZFPE BB42,BZB40,50 —
12321-75010 Bracket, Engine Mounting, Rear, NO.1
2015-01 → 2016-12 ended
2TRFE TRB40,50 —
12321-78380 Bracket, Engine Mounting, Rear, NO.1
2015-01 → 2016-12 ended
N04C XZB40,5# 5F —
12321-78400 Bracket, Engine Mounting, Rear, NO.1
2015-01 → 2016-12 ended
N04C XZB50 4FC —
12325 — Bracket, Engine Mounting, NO.3
12325-17020 Bracket, Engine Mounting, NO.3
1993-01 → 1999-07 ended
14B,15BFT,3B BB4#,5# —
12325-17020 Bracket, Engine Mounting, NO.3
1993-01 → 1999-07 ended
1HZ# HZB50 5F —
12325-17030 Bracket, Engine Mounting, NO.3
1993-01 → 1999-07 ended
1HZ HZB50 4FC —
12325-75010 Bracket, Engine Mounting, NO.3
1993-09 → 1999-07 ended
3RZF RZB40,50 —
12325-17020 Bracket, Engine Mounting, NO.3
1999-07 → 2004-08 ended
14B WOC;15BFT BB42 BB50 +18 —
12325-17020 Bracket, Engine Mounting, NO.3
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
12325-17020 Bracket, Engine Mounting, NO.3
1999-07 → 2002-11 ended
15BFT BB50 CHI —
12325-17020 Bracket, Engine Mounting, NO.3
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
12325-17020 Bracket, Engine Mounting, NO.3
1999-07 → 2001-08 ended
14B .WOC;14B,15BFT BB42 BB4# +12 —
12325-17020 Bracket, Engine Mounting, NO.3
1999-07 → 2001-08 ended
1HZ HZB50 RHD EX;1HZ +7 —
12325-17020 Bracket, Engine Mounting, NO.3
1999-07 → 2001-05 ended
15BFT BB50 STD WC +2 —
12325-17030 Bracket, Engine Mounting, NO.3
1999-07 → 2001-08 ended
1HZ HZB50 4FC —
12325-17040 Bracket, Engine Mounting, NO.3
1999-07 → 2001-08 ended
15BFT BB50 CBU 6F —
12325-17040 Bracket, Engine Mounting, NO.3
1999-07 → 2004-08 ended
15BFTE BB50,58 6F —
12325-17040 Bracket, Engine Mounting, NO.3
1999-07 → 2001-05 ended
15BFT BB50 IV 6F —
12325-75010 Bracket, Engine Mounting, NO.3
1999-07 → 2002-11 ended
3RZFE RZB40,50 CHI —
12325-75010 Bracket, Engine Mounting, NO.3
1999-07 → 2001-08 ended
3RZFE RZB40 WOC GCC;3RZFE +3 —
12325-75010 Bracket, Engine Mounting, NO.3
1999-07 → 2004-08 ended
3RZFE RZB40 WOC GEN;3RZFE +4 —
12325-17020 Bracket, Engine Mounting, NO.3
2004-08 → 2015-01 ended
1HZ HZB50 —
12325-17020 Bracket, Engine Mounting, NO.3
2004-08 → 2015-01 ended
14B,15B#,1BZFPE BB42,50,59,BZB40,50 5F —
12325-17040 Bracket, Engine Mounting, NO.3
2004-08 → 2006-08 ended
15BFTE BB50,58 6F —
12325-75010 Bracket, Engine Mounting, NO.3
2004-08 → 2007-08 ended
3RZFE RZB40,50 —
12325-75010 Bracket, Engine Mounting, NO.3
2007-08 → 2015-01 ended
2TRFE TRB40,50 —
12325-78360 Bracket, Engine Mounting, NO.3
2006-08 → 2015-01 ended
N04C XZB40,5# 5F —
12325-78380 Bracket, Engine Mounting, NO.3
2007-08 → 2015-01 ended
N04C XZB50 4FC —
12325-17020 Bracket, Engine Mounting, NO.3
2015-01 → 2016-12 ended
1HZ HZB50 —
12325-17020 Bracket, Engine Mounting, NO.3
2015-01 → 2016-12 ended
14B,1BZFPE BB42,BZB40,50 —
12325-75010 Bracket, Engine Mounting, NO.3
2015-01 → 2016-12 ended
2TRFE TRB40,50 —
12325-78360 Bracket, Engine Mounting, NO.3
2015-01 → 2016-12 ended
N04C XZB40,5# 5F —
12325-78380 Bracket, Engine Mounting, NO.3
2015-01 → 2016-12 ended
N04C XZB50 4FC —
12361 — Insulator, Engine Mounting, Front
12361-17030 Insulator, Engine Mounting, Front
1993-01 → 1993-06 ended
1HZ# HZB50 —
12361-17031 Insulator, Engine Mounting, Front
1993-06 → 1999-07 ended
1HZ# HZB50 —
12361-58080 Insulator, Engine Mounting, Front
1993-01 → 1993-11 ended
14B,3B BB4# —
12361-58081 Insulator, Engine Mounting, Front
1993-11 → 1999-07 ended
14B,15BFT,3B BB4#,5# —
12361-75020 Insulator, Engine Mounting, Front
1993-09 → 1999-07 ended
3RZF RZB40,50 —
12361-17032 Insulator, Engine Mounting, Front
1999-07 → 2001-08 ended
1HZ HZB50 RHD SRF;1HZ +8 —
12361-17032 Insulator, Engine Mounting, Front
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
12361-17032 Insulator, Engine Mounting, Front
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
12361-58082 Insulator, Engine Mounting, Front
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
12361-58082 Insulator, Engine Mounting, Front
1999-07 → 2001-08 ended
14B .WOC;14B,15BFT BB42 BB4#,50 +12 —
12361-58082 Insulator, Engine Mounting, Front
1999-07 → 2002-11 ended
15BFT BB50 CHI —
12361-58082 Insulator, Engine Mounting, Front
1999-07 → 2004-08 ended
14B WOC;15BFTE,1BZFPE BB42 BB5#,BZB40,50;15BFT +17 —
12361-75020 Insulator, Engine Mounting, Front
1999-07 → 2004-08 ended
3RZFE RZB40,50 —
12361-17032 Insulator, Engine Mounting, Front
2004-08 → 2009-09 ended
1HZ HZB50 —
12361-17033 Insulator, Engine Mounting, Front
2009-10 → 2011-06 ended
1HZ HZB50 —
12361-17034 Insulator, Engine Mounting, Front
2011-07 → 2015-01 ended
1HZ HZB50 —
12361-58082 Insulator, Engine Mounting, Front
2004-08 → 2006-08 ended
15BFTE BB5#;1BZFPE BZB50 EX —
12361-58082 Insulator, Engine Mounting, Front
2004-08 → 2009-09 ended
14B,15BFT,1BZFPE BB42,50,BZB40,50 STD —
12361-58083 Insulator, Engine Mounting, Front
2009-10 → 2011-06 ended
14B,15BFT,1BZFPE BB42,50,BZB40,50 —
12361-58084 Insulator, Engine Mounting, Front
2011-07 → 2015-01 ended
14B BB42 RHD;14B BB42 +3 —
12361-58084 Insulator, Engine Mounting, Front
2011-07 → 2011-08 ended
14B BB42 LHD HRF —
12361-75020 Insulator, Engine Mounting, Front
2007-08 → 2010-09 ended
2TRFE TRB40,50 —
12361-75020 Insulator, Engine Mounting, Front
2004-08 → 2007-08 ended
3RZFE RZB40,50 —
12361-75021 Insulator, Engine Mounting, Front
2010-09 → 2015-01 ended
2TRFE TRB40,50 —
12361-78140 Insulator, Engine Mounting, Front
2006-10 → 2011-05 ended
N04C XZB40,59;N04C XZB50 IV;N04C +3 —
12361-78140 Insulator, Engine Mounting, Front
2006-10 → 2009-08 ended
N04C XZB50 WOC CBU —
12361-78140 Insulator, Engine Mounting, Front
2006-10 → 2008-03 ended
N04C XZB50 STD GEN —
12361-78140 Insulator, Engine Mounting, Front
2006-08 → 2006-10 ended
N04C XZB5# GEN —
12361-78140 Insulator, Engine Mounting, Front
2006-08 → 2006-09 ended
N04C XZB50 —
12361-78141 Insulator, Engine Mounting, Front
2011-06 → 2011-07 ended
N04C XZB40,5# —
12361-78142 Insulator, Engine Mounting, Front
2011-07 → 2015-01 ended
N04C XZB40,5# ARL,GEN,TAIW —
12361-78142 Insulator, Engine Mounting, Front
2011-07 → 2013-11 ended
N04C XZB50 IV —
12361-17034 Insulator, Engine Mounting, Front
2015-01 → —
1HZ HZB50 —
12361-58084 Insulator, Engine Mounting, Front
2015-01 → —
14B,1BZFPE BB42,BZB40,50 —
12361-75021 Insulator, Engine Mounting, Front
2015-01 → —
2TRFE TRB40,50 —
12361-78142 Insulator, Engine Mounting, Front
2015-01 → —
N04C XZB40,5# —
12371 — Insulator, Engine Mounting, Rear NO.1
12371-17040 Insulator, Engine Mounting, Rear NO.1
1993-01 → 1999-07 ended
1HZ# HZB50 —
12371-17040 Insulator, Engine Mounting, Rear NO.1
1993-01 → 1999-07 ended
14B,15BFT,3B BB4#,5# —
12371-17040 Insulator, Engine Mounting, Rear NO.1
1993-09 → 1999-07 ended
3RZF RZB40,50 —
12371-17070 Insulator, Engine Mounting, Rear NO.1
1999-07 → 2004-08 ended
3RZFE RZB40 WOC GEN;3RZFE +4 —
12371-17070 Insulator, Engine Mounting, Rear NO.1
1999-07 → 2004-08 ended
14B WOC;15BFTE,1BZFPE BB42 BB5#,BZB40,50;15BFT +17 —
12371-17070 Insulator, Engine Mounting, Rear NO.1
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
12371-17070 Insulator, Engine Mounting, Rear NO.1
1999-07 → 2002-11 ended
15BFT BB50 CHI —
12371-17070 Insulator, Engine Mounting, Rear NO.1
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
12371-17070 Insulator, Engine Mounting, Rear NO.1
1999-07 → 2002-11 ended
3RZFE RZB40,50 CHI —
12371-17070 Insulator, Engine Mounting, Rear NO.1
1999-07 → 2001-08 ended
1HZ HZB50 RHD SRF;1HZ +8 —
12371-17070 Insulator, Engine Mounting, Rear NO.1
1999-07 → 2001-08 ended
14B .WOC;14B,15BFT BB42 BB4#,50 +12 —
12371-17070 Insulator, Engine Mounting, Rear NO.1
1999-07 → 2001-08 ended
3RZFE RZB40 WOC GCC;3RZFE +3 —
12371-17070 Insulator, Engine Mounting, Rear NO.1
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
12371-17070 Insulator, Engine Mounting, Rear NO.1
2004-08 → 2007-08 ended
3RZFE RZB40,50 —
12371-17070 Insulator, Engine Mounting, Rear NO.1
2004-08 → 2015-01 ended
1HZ HZB50 —
12371-17070 Insulator, Engine Mounting, Rear NO.1
2004-08 → 2015-01 ended
14B,15B#,1BZFPE BB42,5#,BZB40,50 —
12371-17070 Insulator, Engine Mounting, Rear NO.1
2007-08 → 2015-01 ended
2TRFE TRB40,50 —
12371-78030 Insulator, Engine Mounting, Rear NO.1
2006-08 → 2015-01 ended
N04C XZB40,5# —
12371-17070 Insulator, Engine Mounting, Rear NO.1
2015-01 → 2016-12 ended
1HZ HZB50 —
12371-17070 Insulator, Engine Mounting, Rear NO.1
2015-01 → 2016-12 ended
2TRFE TRB40,50 —
12371-17070 Insulator, Engine Mounting, Rear NO.1
2015-01 → 2016-12 ended
14B,1BZFPE BB42,BZB40,50 —
12371-78030 Insulator, Engine Mounting, Rear NO.1
2015-01 → 2016-12 ended
N04C XZB40,5# —
12381 — Stabilizer, Engine Mounting
12381-17020 Stabilizer, Engine Mounting
1993-01 → 1999-07 ended
1HZ# HZB50 —
12381-17020 Stabilizer, Engine Mounting
1993-01 → 1999-07 ended
14B,15BFT,3B BB4#,5# —
12381-65030 Stabilizer, Engine Mounting
1993-09 → 1999-07 ended
3RZF RZB40,50 —
12381-17020 Stabilizer, Engine Mounting
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
12381-17020 Stabilizer, Engine Mounting
1999-07 → 2001-08 ended
14B .WOC;14B,15BFT BB42 BB4#,50 +12 —
12381-17020 Stabilizer, Engine Mounting
1999-07 → 2001-08 ended
1HZ HZB50 RHD SRF;1HZ +8 —
12381-17020 Stabilizer, Engine Mounting
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
12381-17020 Stabilizer, Engine Mounting
1999-07 → 2002-11 ended
15BFT BB50 CHI —
12381-17020 Stabilizer, Engine Mounting
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
12381-17020 Stabilizer, Engine Mounting
1999-07 → 2004-08 ended
14B WOC;15BFTE,1BZFPE BB42 BB5#,BZB40,50;15BFT +17 —
12381-65030 Stabilizer, Engine Mounting
1999-07 → 2004-08 ended
3RZFE RZB40,50 —
12381-17020 Stabilizer, Engine Mounting
2004-08 → 2006-08 ended
15BFTE BB5#;1BZFPE BZB50 EX —
12381-17020 Stabilizer, Engine Mounting
2004-08 → 2009-09 ended
1HZ HZB50 —
12381-17020 Stabilizer, Engine Mounting
2004-08 → 2009-09 ended
14B,15BFT,1BZFPE BB42,50,BZB40,50 STD —
12381-17021 Stabilizer, Engine Mounting
2009-10 → 2015-01 ended
14B BB42 RHD;14B BB42 +3 —
12381-17021 Stabilizer, Engine Mounting
2009-10 → 2015-01 ended
1HZ HZB50 —
12381-17021 Stabilizer, Engine Mounting
2009-10 → 2011-08 ended
14B BB42 LHD HRF —
12381-65030 Stabilizer, Engine Mounting
2004-08 → 2007-08 ended
3RZFE RZB40,50 —
12381-65030 Stabilizer, Engine Mounting
2007-08 → 2015-01 ended
2TRFE TRB40,50 —
12381-78050 Stabilizer, Engine Mounting
2006-08 → 2006-10 ended
N04C XZB5# GEN —
12381-78050 Stabilizer, Engine Mounting
2006-08 → 2006-09 ended
N04C XZB50 —
12381-78070 Stabilizer, Engine Mounting
2006-10 → 2009-12 ended
N04C XZB40,5# —
12381-78071 Stabilizer, Engine Mounting
2010-01 → 2015-01 ended
N04C XZB40,5# —
12381-17021 Stabilizer, Engine Mounting
2015-01 → —
1HZ HZB50 —
12381-17021 Stabilizer, Engine Mounting
2015-01 → —
14B,1BZFPE BB42,BZB40,50 —
12381-65030 Stabilizer, Engine Mounting
2015-01 → —
2TRFE TRB40,50 —
12381-78071 Stabilizer, Engine Mounting
2015-01 → —
N04C XZB40,5# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
