Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

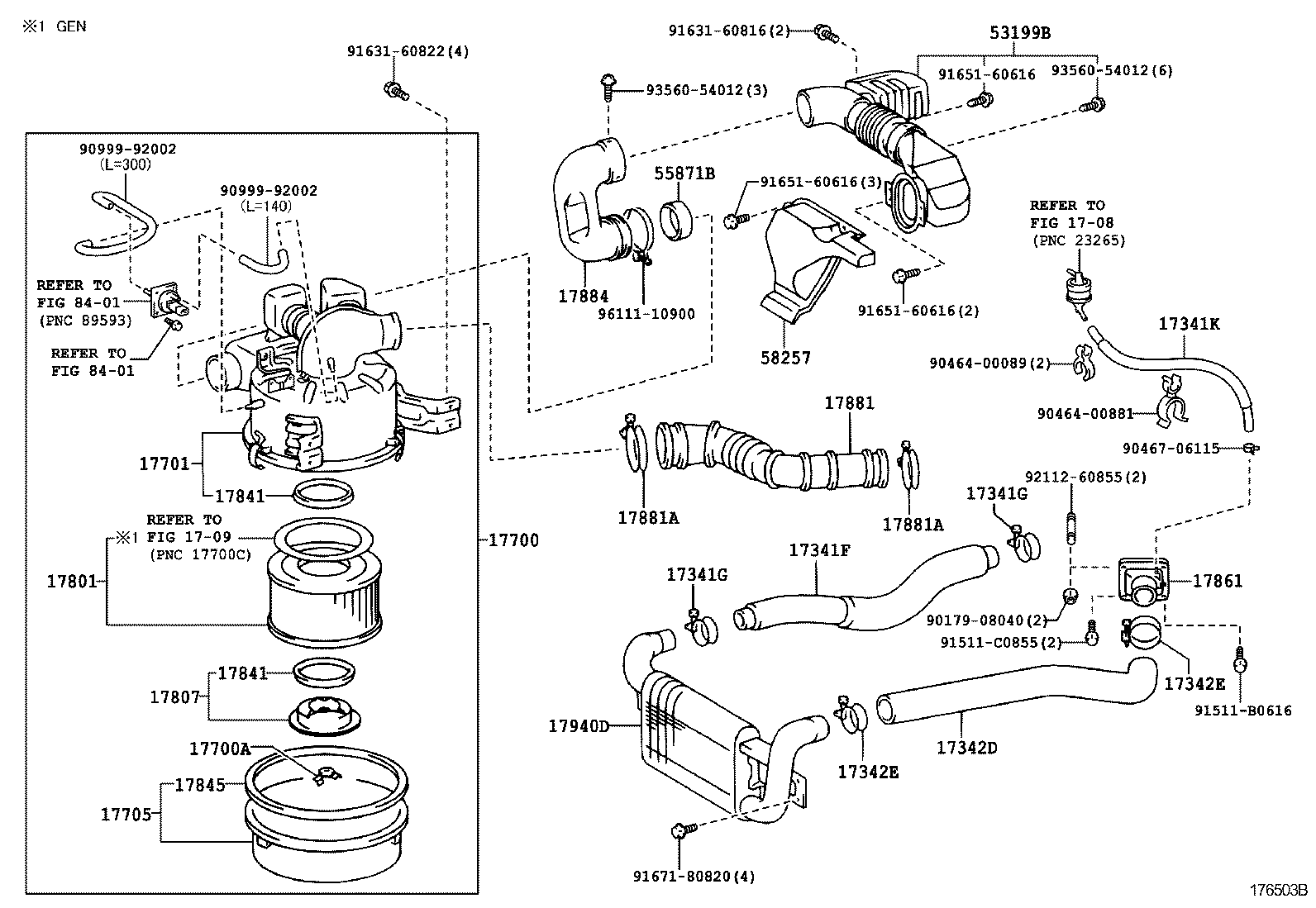

Exploded illustration 176503B 8401 — not listed in this catalogue 8401 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 17341K — HOSE, AIR, NO.1(FOR INTERCOOLER) (10 parts) 9046706115 — not listed in this catalogue 9163160822 — not listed in this catalogue 17700 — CLEANER ASSY, AIR (53 parts) 17701 — CASE SUB-ASSY, AIR CLEANER (28 parts) 17841 — GASKET, FILTER ELEMENT (34 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (41 parts) 17884 — HOSE, AIR CLEANER, NO.4 (22 parts) 9611110900 — not listed in this catalogue 55871B — SEAL, AIR DUCT (28 parts) 9356054012 — not listed in this catalogue 9356054012 — not listed in this catalogue 9163160816 — not listed in this catalogue 58257 — PLATE, AIR CLEANER HOUSE (37 parts) 9165160616 — not listed in this catalogue 9165160616 — not listed in this catalogue 9046400089 — not listed in this catalogue 9046400881 — not listed in this catalogue 53199B — DUCT SUB-ASSY, COOL AIR INTAKE (57 parts) 17881 — HOSE, AIR CLEANER, NO.1 (36 parts) 9211260855 — not listed in this catalogue 91511B0616 — not listed in this catalogue 17341G — CLAMP OR CLIP(FOR AIR HOSE, NO.1) (26 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (54 parts) 17341F — HOSE, AIR, NO.1 (35 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (54 parts) 17341G — CLAMP OR CLIP(FOR AIR HOSE, NO.1) (26 parts) 9017908040 — not listed in this catalogue 17342E — CLAMP OR CLIP(FOR AIR HOSE, NO.2) (23 parts) 17342D — HOSE, AIR, NO.2 (22 parts) 17940D — INTERCOOLER ASSY (14 parts) 17342E — CLAMP OR CLIP(FOR AIR HOSE, NO.2) (23 parts) 91511C0855 — not listed in this catalogue 9167180820 — not listed in this catalogue 17861 — CONNECTOR, INTAKE AIR (15 parts) 1709 — not listed in this catalogue 17841 — GASKET, FILTER ELEMENT (34 parts) 17807 — PLATE SUB-ASSY, AIR CLEANER FILTER SET (34 parts) 17700A — NUT, WING(FOR AIR CLEANER) (38 parts) 17845 — GASKET, AIR CLEANER CAP (39 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (43 parts) 9165160616 — not listed in this catalogue
176503B · 25 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
689 parts on this figure
Part number Description Fitment Price
17341F — Hose, Air, NO.1
17341-58080 Hose, Air, NO.1
1996-05 → 1999-07 ended
15BFT BB50 RHD IV —
17341-58090 Hose, Air, NO.1
1996-05 → 1999-07 ended
15BFT BB50 LHD EUR —
17341-58111 Hose, Air, NO.1
1997-05 → 1999-06 ended
15BFT BB43,50 RHD CBU —
17341-58121 Hose, Air, NO.1
1997-05 → 1999-06 ended
15BFT BB5# STD GEN —
17341-58170 Hose, Air, NO.1
1999-06 → 1999-07 ended
15BFT BB43,50 RHD CBU —
17341-58180 Hose, Air, NO.1
1999-06 → 1999-07 ended
15BFT BB5# STD GEN —
17341-75050 Hose, Air, NO.1
1993-09 → 1999-07 ended
3RZF RZB40,50 —
17341-48020 Hose, Air, NO.1
2001-08 → 2004-08 ended
1BZFPE BZB40,50 —
17341-58160 Hose, Air, NO.1
1999-07 → 2004-08 ended
15BFTE BB50,58 LHD —
17341-58170 Hose, Air, NO.1
1999-07 → 2001-05 ended
15BFT BB50 RHD 6F —
17341-58170 Hose, Air, NO.1
1999-07 → 2001-08 ended
15BFT BB43,50 RHD 5F —
17341-58180 Hose, Air, NO.1
1999-07 → 2001-05 ended
15BFT BB50 STD WC +5 —
17341-58180 Hose, Air, NO.1
1999-07 → 2001-08 ended
15BFT BB50 WOC 5F;15BFT +3 —
17341-58180 Hose, Air, NO.1
1999-07 → 2002-11 ended
15BFT BB50 CHI —
17341-58180 Hose, Air, NO.1
1999-07 → 2004-08 ended
15BFT BB50 STD GEN +2 —
17341-58250 Hose, Air, NO.1
2001-05 → 2004-08 ended
15BFTE BB50,59 RHD —
17341-75110 Hose, Air, NO.1
1999-07 → 2001-08 ended
3RZFE RZB40 WOC GCC;3RZFE +3 —
17341-75110 Hose, Air, NO.1
1999-07 → 2002-11 ended
3RZFE RZB40,50 CHI —
17341-75110 Hose, Air, NO.1
1999-07 → 2004-08 ended
3RZFE RZB40 WOC GEN;3RZFE +4 —
17030-78230 Hose, Air, NO.1
2006-08 → 2007-05 ended
N04C XZB5# —
17030-78231 Hose, Air, NO.1
2007-06 → 2008-03 ended
N04C XZB50 STD GEN —
17030-78231 Hose, Air, NO.1
2007-06 → 2009-08 ended
N04C XZB40,59;N04C XZB50 IV;N04C +2 —
17030-78460 Hose, Air, NO.1
2009-08 → 2010-07 ended
N04C XZB40,5# —
17030-78490 Hose, Air, NO.1
2010-08 → 2013-11 ended
N04C XZB50 IV —
17030-78490 Hose, Air, NO.1
2010-08 → 2015-01 ended
N04C XZB40,5# ARL,GEN,TAIW —
17341-48020 Hose, Air, NO.1
2004-08 → 2015-01 ended
1BZFPE BZB40,50 STD —
17341-48020 Hose, Air, NO.1
2004-08 → 2006-08 ended
1BZFPE BZB50 EX —
17341-58160 Hose, Air, NO.1
2004-08 → 2006-08 ended
15BFTE BB50,58 LHD —
17341-58180 Hose, Air, NO.1
2004-08 → 2015-01 ended
15BFT BB50 —
17341-58250 Hose, Air, NO.1
2004-08 → 2006-08 ended
15BFTE BB50,59 RHD —
17341-75110 Hose, Air, NO.1
2004-08 → 2006-02 ended
3RZFE RZB40 HRF GCC —
17341-75110 Hose, Air, NO.1
2004-08 → 2007-08 ended
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 —
17030-78490 Hose, Air, NO.1
2015-01 → —
N04C XZB40,59 HRF;N04C XZB50 +1 —
17030-78750 Hose, Air, NO.1
2015-01 → —
N04C XZB40,50 LHD GEN —
17341-48020 Hose, Air, NO.1
2015-01 → —
1BZFPE BZB40,50 —
17341G — Clamp OR Clip(FOR AIR HOSE, NO.1)
90460-55003 Clamp OR Clip(FOR AIR HOSE, NO.1)
1996-05 → 1999-07 ended
15BFT BB43,5# —
96134-52600 Clamp OR Clip(FOR AIR HOSE, NO.1)
1993-09 → 1999-07 ended
3RZF RZB40,50 —
90460-55003 Clamp OR Clip(FOR AIR HOSE, NO.1)
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
90460-55003 Clamp OR Clip(FOR AIR HOSE, NO.1)
1999-07 → 2001-08 ended
15BFT BB50 WOC 5F;15BFT +6 —
90460-55003 Clamp OR Clip(FOR AIR HOSE, NO.1)
1999-07 → 2002-11 ended
15BFT BB50 CHI —
90460-55003 Clamp OR Clip(FOR AIR HOSE, NO.1)
1999-07 → 2003-01 ended
15BFTE BB50,59 RHD —
90460-55003 Clamp OR Clip(FOR AIR HOSE, NO.1)
1999-07 → 2004-08 ended
15BFT BB50 STD GEN +2 —
90460-67004 Clamp OR Clip(FOR AIR HOSE, NO.1)
1999-07 → 2004-08 ended
15BFTE BB50 LHD WOC;15BFTE +4 —
90460-67004 Clamp OR Clip(FOR AIR HOSE, NO.1)
2003-01 → 2004-08 ended
15BFTE BB50,59 EX;15BFTE BB50 +2 —
90467-38002 Clamp OR Clip(FOR AIR HOSE, NO.1)
1999-07 → 2001-08 ended
3RZFE RZB40 WOC GCC;3RZFE +3 —
90467-38002 Clamp OR Clip(FOR AIR HOSE, NO.1)
1999-07 → 2002-04 ended
3RZFE RZB40 22S CHI;3RZFE +6 —
90467-38003 Clamp OR Clip(FOR AIR HOSE, NO.1)
2002-04 → 2002-11 ended
3RZFE RZB40,50 CHI —
90467-38003 Clamp OR Clip(FOR AIR HOSE, NO.1)
2002-04 → 2004-08 ended
3RZFE RZB40,50 GCC,GEN —
96134-41900 Clamp OR Clip(FOR AIR HOSE, NO.1)
2001-08 → 2004-08 ended
1BZFPE BZB40,50 —
90460-55003 Clamp OR Clip(FOR AIR HOSE, NO.1)
2004-08 → 2015-01 ended
15BFT BB50 —
90460-63011 Clamp OR Clip(FOR AIR HOSE, NO.1)
2006-08 → 2008-03 ended
N04C XZB50 STD GEN —
90460-63011 Clamp OR Clip(FOR AIR HOSE, NO.1)
2006-08 → 2009-08 ended
N04C XZB50 WOC CBU —
90460-63011 Clamp OR Clip(FOR AIR HOSE, NO.1)
2006-08 → 2013-11 ended
N04C XZB50 IV —
90460-63011 Clamp OR Clip(FOR AIR HOSE, NO.1)
2006-08 → 2015-01 ended
N04C XZB40,59;N04C XZB50 (20S,21S) +1 —
90460-67004 Clamp OR Clip(FOR AIR HOSE, NO.1)
2004-08 → 2006-08 ended
15BFTE BB5# —
90467-38003 Clamp OR Clip(FOR AIR HOSE, NO.1)
2004-08 → 2006-02 ended
3RZFE RZB40 HRF GCC —
90467-38003 Clamp OR Clip(FOR AIR HOSE, NO.1)
2004-08 → 2007-08 ended
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 —
96134-41900 Clamp OR Clip(FOR AIR HOSE, NO.1)
2004-08 → 2006-08 ended
1BZFPE BZB50 EX —
96134-41900 Clamp OR Clip(FOR AIR HOSE, NO.1)
2004-08 → 2015-01 ended
1BZFPE BZB40,50 STD —
90460-63011 Clamp OR Clip(FOR AIR HOSE, NO.1)
2015-01 → —
N04C XZB40,5# —
96134-41900 Clamp OR Clip(FOR AIR HOSE, NO.1)
2015-01 → —
1BZFPE BZB40,50 —
17341K — Hose, Air, NO.1(FOR INTERCOOLER)
17341-58210 Hose, Air, NO.1(FOR INTERCOOLER)
2004-08 → 2015-01 ended
15BFT BB50 —
17341-78090 Hose, Air, NO.1(FOR INTERCOOLER)
2006-08 → 2008-03 ended
N04C XZB50 STD GEN —
17341-78090 Hose, Air, NO.1(FOR INTERCOOLER)
2006-08 → 2009-08 ended
N04C XZB40,59;N04C XZB50 RHD +4 —
17341-78120 Hose, Air, NO.1(FOR INTERCOOLER)
2006-08 → 2009-08 ended
N04C XZB50 LHD —
17341-78250 Hose, Air, NO.1(FOR INTERCOOLER)
2009-08 → 2013-11 ended
N04C XZB50 LHD IV —
17341-78250 Hose, Air, NO.1(FOR INTERCOOLER)
2009-08 → 2015-01 ended
N04C XZB50 TAIW —
17341-78260 Hose, Air, NO.1(FOR INTERCOOLER)
2009-08 → 2013-11 ended
N04C XZB50 RHD IV —
17341-78260 Hose, Air, NO.1(FOR INTERCOOLER)
2009-08 → 2015-01 ended
N04C XZB40,5# ARL,GEN —
17341-78250 Hose, Air, NO.1(FOR INTERCOOLER)
2015-01 → —
N04C XZB40,50 LHD —
17341-78260 Hose, Air, NO.1(FOR INTERCOOLER)
2015-01 → —
N04C XZB40,5# RHD —
17342D — Hose, Air, NO.2
17342-58060 Hose, Air, NO.2
1996-05 → 1999-07 ended
15BFT BB50 RHD IV —
17342-58070 Hose, Air, NO.2
1996-05 → 1999-07 ended
15BFT BB50 LHD EUR —
17342-58090 Hose, Air, NO.2
1997-05 → 1999-07 ended
15BFT BB43,50 RHD CBU —
17342-58100 Hose, Air, NO.2
1997-05 → 1999-07 ended
15BFT BB5# STD GEN —
17342-58090 Hose, Air, NO.2
1999-07 → 2001-05 ended
15BFT BB50 RHD 6F —
17342-58090 Hose, Air, NO.2
1999-07 → 2001-08 ended
15BFT BB43,50 RHD 5F —
17342-58100 Hose, Air, NO.2
1999-07 → 2001-05 ended
15BFT BB50 STD WC +5 —
17342-58100 Hose, Air, NO.2
1999-07 → 2001-08 ended
15BFT BB50 WOC 5F;15BFT +3 —
17342-58100 Hose, Air, NO.2
1999-07 → 2002-11 ended
15BFT BB50 CHI —
17342-58100 Hose, Air, NO.2
1999-07 → 2004-08 ended
15BFT BB50 STD GEN +2 —
17342-58140 Hose, Air, NO.2
1999-07 → 2004-08 ended
15BFTE BB50,58 LHD —
17342-58180 Hose, Air, NO.2
2001-05 → 2004-08 ended
15BFTE BB50,59 RHD —
17030-78370 Hose, Air, NO.2
2006-08 → 2008-03 ended
N04C XZB50 STD GEN —
17030-78370 Hose, Air, NO.2
2006-08 → 2009-08 ended
N04C XZB40,59;N04C XZB50 IV;N04C +2 —
17030-78480 Hose, Air, NO.2
2009-08 → 2011-02 ended
N04C XZB40,5# —
17030-78481 Hose, Air, NO.2
2011-03 → 2011-06 ended
N04C XZB40,5# —
17030-78482 Hose, Air, NO.2
2011-07 → 2013-11 ended
N04C XZB50 IV —
17030-78482 Hose, Air, NO.2
2011-07 → 2015-01 ended
N04C XZB40,5# ARL,GEN,TAIW —
17342-58100 Hose, Air, NO.2
2004-08 → 2015-01 ended
15BFT BB50 —
17342-58140 Hose, Air, NO.2
2004-08 → 2006-08 ended
15BFTE BB50,58 LHD —
17342-58180 Hose, Air, NO.2
2004-08 → 2006-08 ended
15BFTE BB50,59 RHD —
17030-78482 Hose, Air, NO.2
2015-01 → —
N04C XZB40,5# —
17342E — Clamp OR Clip(FOR AIR HOSE, NO.2)
90460-65004 Clamp OR Clip(FOR AIR HOSE, NO.2)
1996-05 → 1999-07 ended
15BFT BB43,5# —
90460-65002 Clamp OR Clip(FOR AIR HOSE, NO.2)
1999-07 → 2002-11 ended
15BFT BB50 CHI —
90460-65002 Clamp OR Clip(FOR AIR HOSE, NO.2)
1999-07 → 2004-08 ended
15BFT BB50 STD GEN +2 —
90460-65002 Clamp OR Clip(FOR AIR HOSE, NO.2)
1999-07 → 2003-01 ended
15BFTE BB50,59 RHD —
90460-65002 Clamp OR Clip(FOR AIR HOSE, NO.2)
1999-07 → 2001-08 ended
15BFT BB50 WOC 5F;15BFT +6 —
90460-65002 Clamp OR Clip(FOR AIR HOSE, NO.2)
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
90460-67004 note Clamp OR Clip(FOR AIR HOSE, NO.2)
1999-07 → 2004-08 ended
15BFTE BB50 LHD WOC;15BFTE +4 —
90460-67004 note Clamp OR Clip(FOR AIR HOSE, NO.2)
2003-01 → 2004-08 ended
15BFTE BB50,59 EX;15BFTE BB50 +2 —
90460-74002 note Clamp OR Clip(FOR AIR HOSE, NO.2)
1999-07 → 2004-08 ended
15BFTE BB50 LHD WOC;15BFTE +4 —
90460-74002 note Clamp OR Clip(FOR AIR HOSE, NO.2)
2003-01 → 2004-08 ended
15BFTE BB50,59 EX;15BFTE BB50 +2 —
90460-63011 note Clamp OR Clip(FOR AIR HOSE, NO.2)
2006-08 → 2015-01 ended
N04C XZB40,59;N04C XZB50 (20S,21S) +1 —
90460-63011 note Clamp OR Clip(FOR AIR HOSE, NO.2)
2006-08 → 2008-03 ended
N04C XZB50 STD GEN —
90460-63011 note Clamp OR Clip(FOR AIR HOSE, NO.2)
2006-08 → 2013-11 ended
N04C XZB50 IV —
90460-63011 note Clamp OR Clip(FOR AIR HOSE, NO.2)
2006-08 → 2009-08 ended
N04C XZB50 WOC CBU —
90460-65002 Clamp OR Clip(FOR AIR HOSE, NO.2)
2004-08 → 2015-01 ended
15BFT BB50 —
90460-67004 note Clamp OR Clip(FOR AIR HOSE, NO.2)
2004-08 → 2006-08 ended
15BFTE BB5# —
90460-67008 note Clamp OR Clip(FOR AIR HOSE, NO.2)
2006-08 → 2008-03 ended
N04C XZB50 STD GEN —
90460-67008 note Clamp OR Clip(FOR AIR HOSE, NO.2)
2006-08 → 2013-11 ended
N04C XZB50 IV —
90460-67008 note Clamp OR Clip(FOR AIR HOSE, NO.2)
2006-08 → 2015-01 ended
N04C XZB40,59;N04C XZB50 (20S,21S) +1 —
90460-67008 note Clamp OR Clip(FOR AIR HOSE, NO.2)
2006-08 → 2009-08 ended
N04C XZB50 WOC CBU —
90460-74002 note Clamp OR Clip(FOR AIR HOSE, NO.2)
2004-08 → 2006-08 ended
15BFTE BB5# —
90460-63011 note Clamp OR Clip(FOR AIR HOSE, NO.2)
2015-01 → —
N04C XZB40,5# —
90460-67008 note Clamp OR Clip(FOR AIR HOSE, NO.2)
2015-01 → —
N04C XZB40,5# —
17700 — Cleaner Assy, Air
17700-17150 Cleaner Assy, Air
1993-01 → 1999-07 ended
1HZ HZB50 —
17700-17160 Cleaner Assy, Air
1993-01 → 1996-05 ended
1HZT HZB50 —
17700-58390 Cleaner Assy, Air
1993-01 → 1999-07 ended
14B,3B BB40,42 —
17700-58580 Cleaner Assy, Air
1996-05 → 1999-07 ended
15BFT BB50 EUR —
17700-58630 Cleaner Assy, Air
1997-05 → 1999-07 ended
15BFT BB43,5# GEN —
17700-75060 note Cleaner Assy, Air
1995-05 → 1997-05 ended
3RZF RZB40,50 GEN —
17700-75060 note Cleaner Assy, Air
1993-09 → 1995-05 ended
3RZF RZB50 GEN;3RZF RZB40 +3 —
17700-75060 note Cleaner Assy, Air
1993-09 → 1995-05 ended
3RZF RZB40 HRF GEN;3RZF +3 —
17700-75061 note Cleaner Assy, Air
1997-05 → 1999-07 ended
3RZF RZB40,50 GEN —
17700-75080 Cleaner Assy, Air
1993-09 → 1997-05 ended
3RZF RZB40,50 —
17700-75081 Cleaner Assy, Air
1997-05 → 1999-07 ended
3RZF RZB40,50 —
17700-17240 Cleaner Assy, Air
1999-07 → 2001-05 ended
15BFT BB50 IV 6F —
17700-17240 Cleaner Assy, Air
1999-07 → 2004-08 ended
15BFTE BB50 IV —
17700-17260 Cleaner Assy, Air
1999-07 → 2001-08 ended
1HZ HZB50 RHD SRF;1HZ +8 —
17700-17260 Cleaner Assy, Air
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
17700-17260 Cleaner Assy, Air
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
17700-48140 Cleaner Assy, Air
2001-08 → 2002-03 ended
1BZFPE BZB40 —
17700-48141 Cleaner Assy, Air
2002-03 → 2003-03 ended
1BZFPE BZB40,50 —
17700-48142 Cleaner Assy, Air
2003-03 → 2004-08 ended
1BZFPE BZB40,50 —
17700-58680 Cleaner Assy, Air
1999-07 → 2004-08 ended
15BFTE BB5# ARL,GEN;15BFT BB50 +4 —
17700-58680 Cleaner Assy, Air
1999-07 → 2001-05 ended
15BFT BB50 STD WC +2 —
17700-58680 Cleaner Assy, Air
1999-07 → 2002-11 ended
15BFT BB50 CHI —
17700-58680 Cleaner Assy, Air
1999-07 → 2001-08 ended
15BFT BB50 WOC 5F;15BFT +6 —
17700-58690 Cleaner Assy, Air
1999-07 → 2001-08 ended
14B BB42 22S;14B BB42 +6 —
17700-58690 Cleaner Assy, Air
1999-07 → 2004-08 ended
14B WOC BB42 WC +11 —
17700-75320 Cleaner Assy, Air
1999-07 → 2001-08 ended
3RZFE RZB40 WOC GCC;3RZFE +3 —
17700-75320 Cleaner Assy, Air
1999-07 → 2004-08 ended
3RZFE RZB40 WOC GEN;3RZFE +4 —
17700-75320 Cleaner Assy, Air
1999-07 → 2002-11 ended
3RZFE RZB40,50 CHI —
17700-17240 Cleaner Assy, Air
2004-08 → 2006-08 ended
15BFTE BB50 IV —
17700-17260 Cleaner Assy, Air
2004-08 → 2009-08 ended
1HZ HZB50 —
17700-17261 Cleaner Assy, Air
2009-08 → 2015-01 ended
1HZ HZB50 —
17700-48142 Cleaner Assy, Air
2004-08 → 2013-08 ended
1BZFPE BZB40,50 STD —
17700-48142 Cleaner Assy, Air
2004-08 → 2006-08 ended
1BZFPE BZB50 EX —
17700-48152 Cleaner Assy, Air
2013-08 → 2015-01 ended
1BZFPE BZB40,50 —
17700-58680 Cleaner Assy, Air
2004-08 → 2006-08 ended
15BFTE BB5# ARL,GEN —
17700-58680 Cleaner Assy, Air
2004-08 → 2009-08 ended
15BFT BB50 —
17700-58681 Cleaner Assy, Air
2009-08 → 2015-01 ended
15BFT BB50 —
17700-58690 Cleaner Assy, Air
2004-08 → 2009-08 ended
14B BB42 —
17700-58691 Cleaner Assy, Air
2009-08 → 2015-01 ended
14B BB42 RHD;14B BB42 +2 —
17700-58691 Cleaner Assy, Air
2009-08 → 2011-08 ended
14B BB42 LHD HRF —
17700-75320 Cleaner Assy, Air
2004-08 → 2007-08 ended
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 —
17700-75320 Cleaner Assy, Air
2004-08 → 2006-02 ended
3RZFE RZB40 HRF GCC —
17700-75490 Cleaner Assy, Air
2007-08 → 2015-01 ended
2TRFE TRB40,50 —
17700-78300 Cleaner Assy, Air
2006-08 → 2013-11 ended
N04C XZB50 IV —
17700-78310 Cleaner Assy, Air
2006-08 → 2015-01 ended
N04C XZB40,59;N04C XZB50 (20S,21S) +1 —
17700-78310 Cleaner Assy, Air
2006-08 → 2009-08 ended
N04C XZB50 WOC CBU —
17700-78310 Cleaner Assy, Air
2006-08 → 2008-03 ended
N04C XZB50 STD GEN —
17700-17261 Cleaner Assy, Air
2015-01 → —
1HZ HZB50 —
17700-48152 Cleaner Assy, Air
2015-01 → 2016-12 ended
1BZFPE BZB40,50 —
17700-58691 Cleaner Assy, Air
2015-01 → —
14B BB42 —
17700-75490 Cleaner Assy, Air
2015-01 → —
2TRFE TRB40,50 —
17700-78310 Cleaner Assy, Air
2015-01 → —
N04C XZB40,59 HRF;N04C XZB50 +1 —
17700-78410 Cleaner Assy, Air
2015-01 → —
N04C XZB40,50 LHD GEN —
17700A — Nut, Wing(FOR AIR CLEANER)
90175-08008 Nut, Wing(FOR AIR CLEANER)
1993-01 → 1999-07 ended
1HZ# HZB50 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1993-09 → 1999-07 ended
3RZF RZB40,50 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1993-01 → 1999-07 ended
14B,15BFT,3B BB4#,5# —
90175-06003 note Nut, Wing(FOR AIR CLEANER)
2002-03 → 2003-03 ended
1BZFPE BZB40,50 —
90175-06019 note Nut, Wing(FOR AIR CLEANER)
2003-03 → 2004-08 ended
1BZFPE BZB40,50 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2002-03 → 2004-08 ended
14B,15B# BB42,5# ARL,EUR,GCC,GEN —
90175-08008 note Nut, Wing(FOR AIR CLEANER)
2002-03 → 2004-08 ended
1BZFPE BZB40,50 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1999-07 → 2004-08 ended
3RZFE RZB40 WOC GEN;3RZFE +4 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1999-07 → 2002-11 ended
3RZFE RZB40,50 CHI —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1999-07 → 2002-03 ended
14B WOC;15BFTE,1BZFPE BB42 BB5#,BZB40;15BFT +16 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1999-07 → 2001-08 ended
1HZ HZB50 RHD SRF;1HZ +8 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1999-07 → 2001-08 ended
14B .WOC;14B,15BFT BB42 BB4#,50 +12 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1999-07 → 2001-08 ended
3RZFE RZB40 WOC GCC;3RZFE +3 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2002-03 → 2002-11 ended
15BFT BB50 CHI —
90175-06019 note Nut, Wing(FOR AIR CLEANER)
2004-08 → 2006-08 ended
1BZFPE BZB50 EX —
90175-06019 note Nut, Wing(FOR AIR CLEANER)
2004-08 → 2015-01 ended
1BZFPE BZB40,50 STD —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2006-08 → 2013-11 ended
N04C XZB50 IV —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2007-08 → 2015-01 ended
2TRFE TRB40,50 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2006-08 → 2015-01 ended
N04C XZB40,59;N04C XZB50 (20S,21S) +1 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2004-08 → 2015-01 ended
15BFT BB50;14B BB42 RHD;14B +3 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2004-08 → 2015-01 ended
1HZ HZB50 —
90175-08008 note Nut, Wing(FOR AIR CLEANER)
2004-08 → 2015-01 ended
1BZFPE BZB40,50 STD —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2004-08 → 2011-08 ended
14B BB42 LHD HRF —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2006-08 → 2009-08 ended
N04C XZB50 WOC CBU —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2006-08 → 2008-03 ended
N04C XZB50 STD GEN —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2004-08 → 2007-08 ended
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 —
90175-08008 note Nut, Wing(FOR AIR CLEANER)
2004-08 → 2006-08 ended
1BZFPE BZB50 EX —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2004-08 → 2006-08 ended
15BFTE BB5# —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2004-08 → 2006-02 ended
3RZFE RZB40 HRF GCC —
90175-06019 note Nut, Wing(FOR AIR CLEANER)
2015-01 → —
1BZFPE BZB40,50 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2015-01 → —
14B BB42 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2015-01 → —
N04C XZB40,5# —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2015-01 → —
1HZ HZB50 —
90175-08008 note Nut, Wing(FOR AIR CLEANER)
2015-01 → —
1BZFPE BZB40,50 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2015-01 → —
2TRFE TRB40,50 —
17701 — Case Sub-assy, Air Cleaner
17701-44263 Case Sub-assy, Air Cleaner
1993-01 → 1999-07 ended
14B,3B BB40,42 —
17701-68101 Case Sub-assy, Air Cleaner
1996-05 → 1999-07 ended
15BFT BB43,5# —
17701-68101 Case Sub-assy, Air Cleaner
1993-09 → 1999-07 ended
3RZF RZB40,50 —
17701-68101 Case Sub-assy, Air Cleaner
1993-01 → 1999-07 ended
1HZ# HZB50 —
17701-17160 Case Sub-assy, Air Cleaner
1999-07 → 2001-08 ended
1HZ HZB50 RHD SRF;1HZ +8 —
17701-17160 Case Sub-assy, Air Cleaner
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
17701-17160 Case Sub-assy, Air Cleaner
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
17701-17170 Case Sub-assy, Air Cleaner
1999-07 → 2001-05 ended
15BFT BB50 IV 6F —
17701-17170 Case Sub-assy, Air Cleaner
1999-07 → 2004-08 ended
15BFTE BB50 IV —
17701-58350 Case Sub-assy, Air Cleaner
1999-07 → 2001-05 ended
15BFT BB50 STD WC +2 —
17701-58350 Case Sub-assy, Air Cleaner
1999-07 → 2001-08 ended
15BFT BB50 WOC 5F;15BFT +6 —
17701-58350 Case Sub-assy, Air Cleaner
1999-07 → 2002-11 ended
15BFT BB50 CHI —
17701-58350 Case Sub-assy, Air Cleaner
1999-07 → 2004-08 ended
15BFTE BB5# ARL,GEN;15BFT BB50 +4 —
17701-58360 Case Sub-assy, Air Cleaner
1999-07 → 2001-08 ended
14B BB42 22S;14B BB42 +6 —
17701-58360 Case Sub-assy, Air Cleaner
1999-07 → 2004-08 ended
14B WOC BB42 WC +11 —
17701-75150 Case Sub-assy, Air Cleaner
1999-07 → 2002-11 ended
3RZFE RZB40,50 CHI —
17701-75150 Case Sub-assy, Air Cleaner
1999-07 → 2004-08 ended
3RZFE RZB40 WOC GEN;3RZFE +4 —
17701-75150 Case Sub-assy, Air Cleaner
1999-07 → 2001-08 ended
3RZFE RZB40 WOC GCC;3RZFE +3 —
17701-17160 Case Sub-assy, Air Cleaner
2004-08 → 2015-01 ended
1HZ HZB50 —
17701-17170 Case Sub-assy, Air Cleaner
2004-08 → 2006-08 ended
15BFTE BB50 IV —
17701-58350 Case Sub-assy, Air Cleaner
2004-08 → 2006-08 ended
15BFTE BB5# ARL,GEN —
17701-58350 Case Sub-assy, Air Cleaner
2004-08 → 2015-01 ended
15BFT BB50 —
17701-58360 Case Sub-assy, Air Cleaner
2004-08 → 2015-01 ended
14B BB42 RHD;14B BB42 +2 —
17701-58360 Case Sub-assy, Air Cleaner
2004-08 → 2011-08 ended
14B BB42 LHD HRF —
17701-75150 Case Sub-assy, Air Cleaner
2004-08 → 2007-08 ended
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 —
17701-75150 Case Sub-assy, Air Cleaner
2004-08 → 2006-02 ended
3RZFE RZB40 HRF GCC —
17701-17160 Case Sub-assy, Air Cleaner
2015-01 → —
1HZ HZB50 —
17701-58360 Case Sub-assy, Air Cleaner
2015-01 → —
14B BB42 —
17705 — Cap Sub-assy, Air Cleaner
17705-17060 Cap Sub-assy, Air Cleaner
1997-05 → 1999-07 ended
15BFT BB43,5# GEN —
17705-17060 Cap Sub-assy, Air Cleaner
1993-01 → 1999-07 ended
1HZ HZB50 —
17705-17070 Cap Sub-assy, Air Cleaner
1993-01 → 1996-05 ended
1HZT HZB50 —
17705-17070 Cap Sub-assy, Air Cleaner
1996-05 → 1999-07 ended
15BFT BB50 EUR —
17705-75030 note Cap Sub-assy, Air Cleaner
1995-05 → 1997-05 ended
3RZF RZB40,50 GEN —
17705-75030 note Cap Sub-assy, Air Cleaner
1993-09 → 1995-05 ended
3RZF RZB50 GEN;3RZF RZB40 +3 —
17705-75030 note Cap Sub-assy, Air Cleaner
1993-09 → 1995-05 ended
3RZF RZB40 HRF GEN;3RZF +3 —
17705-75060 Cap Sub-assy, Air Cleaner
1993-09 → 1997-05 ended
3RZF RZB40,50 —
17705-17180 Cap Sub-assy, Air Cleaner
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
17705-17180 Cap Sub-assy, Air Cleaner
1999-07 → 2002-11 ended
3RZFE RZB40,50 CHI —
17705-17180 Cap Sub-assy, Air Cleaner
1999-07 → 2002-11 ended
15BFT BB50 CHI —
17705-17180 Cap Sub-assy, Air Cleaner
1999-07 → 2004-08 ended
3RZFE RZB40 WOC GEN;3RZFE +4 —
17705-17180 Cap Sub-assy, Air Cleaner
1999-07 → 2004-08 ended
15BFTE BB5#;15BFT BB50 STD +3 —
17705-17180 Cap Sub-assy, Air Cleaner
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
17705-17180 Cap Sub-assy, Air Cleaner
1999-07 → 2001-08 ended
15BFT BB50 WOC 5F;15BFT +6 —
17705-17180 Cap Sub-assy, Air Cleaner
1999-07 → 2001-08 ended
1HZ HZB50 RHD SRF;1HZ +8 —
17705-17180 Cap Sub-assy, Air Cleaner
1999-07 → 2001-08 ended
3RZFE RZB40 WOC GCC;3RZFE +3 —
17705-17180 Cap Sub-assy, Air Cleaner
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
17705-48090 Cap Sub-assy, Air Cleaner
2003-03 → 2004-08 ended
1BZFPE BZB40,50 —
17705-58310 Cap Sub-assy, Air Cleaner
2002-03 → 2003-03 ended
1BZFPE BZB40,50 —
17705-58350 Cap Sub-assy, Air Cleaner
1999-07 → 2000-12 ended
14B BB42 —
17705-58360 Cap Sub-assy, Air Cleaner
2000-12 → 2001-08 ended
14B BB42 22S;14B BB42 +6 —
17705-58360 Cap Sub-assy, Air Cleaner
2000-12 → 2004-08 ended
14B WOC BB42 WC +11 —
17705-58360 Cap Sub-assy, Air Cleaner
2000-12 → 2002-03 ended
1BZFPE BZB40 —
17705-17180 Cap Sub-assy, Air Cleaner
2004-08 → 2015-01 ended
1HZ HZB50 —
17705-17180 Cap Sub-assy, Air Cleaner
2004-08 → 2015-01 ended
15BFT BB50 —
17705-17180 Cap Sub-assy, Air Cleaner
2006-08 → 2013-11 ended
N04C XZB50 IV —
17705-17180 Cap Sub-assy, Air Cleaner
2006-08 → 2015-01 ended
N04C XZB40,59;N04C XZB50 (20S,21S) +1 —
17705-17180 Cap Sub-assy, Air Cleaner
2006-08 → 2009-08 ended
N04C XZB50 WOC CBU —
17705-17180 Cap Sub-assy, Air Cleaner
2006-08 → 2008-03 ended
N04C XZB50 STD GEN —
17705-17180 Cap Sub-assy, Air Cleaner
2004-08 → 2007-08 ended
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 —
17705-17180 Cap Sub-assy, Air Cleaner
2004-08 → 2006-08 ended
15BFTE BB5# —
17705-17180 Cap Sub-assy, Air Cleaner
2004-08 → 2006-02 ended
3RZFE RZB40 HRF GCC —
17705-48090 Cap Sub-assy, Air Cleaner
2004-08 → 2015-01 ended
1BZFPE BZB40,50 STD —
17705-48090 Cap Sub-assy, Air Cleaner
2004-08 → 2006-08 ended
1BZFPE BZB50 EX —
17705-58360 Cap Sub-assy, Air Cleaner
2004-08 → 2015-01 ended
14B BB42 RHD;14B BB42 +2 —
17705-58360 Cap Sub-assy, Air Cleaner
2004-08 → 2011-08 ended
14B BB42 LHD HRF —
17705-58360 Cap Sub-assy, Air Cleaner
2007-08 → 2015-01 ended
2TRFE TRB40,50 —
17705-17180 Cap Sub-assy, Air Cleaner
2015-01 → —
N04C XZB40,5# —
17705-17180 Cap Sub-assy, Air Cleaner
2015-01 → —
1HZ HZB50 —
17705-48090 Cap Sub-assy, Air Cleaner
2015-01 → —
1BZFPE BZB40,50 —
17705-58360 Cap Sub-assy, Air Cleaner
2015-01 → —
14B BB42 —
17705-58360 Cap Sub-assy, Air Cleaner
2015-01 → —
2TRFE TRB40,50 —
17801 — Element Sub-assy, Air Cleaner Filter
17801-58010 Element Sub-assy, Air Cleaner Filter
1993-01 → 1999-07 ended
14B,3B BB40,42 —
17801-58030 Element Sub-assy, Air Cleaner Filter
1996-05 → 1999-07 ended
15BFT BB43,5# —
17801-61030 Element Sub-assy, Air Cleaner Filter
1993-01 → 1999-07 ended
1HZ HZB50 —
17801-61030 Element Sub-assy, Air Cleaner Filter
1993-09 → 1999-07 ended
3RZF RZB40,50 —
17801-68030 Element Sub-assy, Air Cleaner Filter
1993-01 → 1996-05 ended
1HZT HZB50 —
17801-58010 Element Sub-assy, Air Cleaner Filter
2001-08 → 2004-08 ended
1BZFPE BZB40,50 —
17801-58010 Element Sub-assy, Air Cleaner Filter
1999-07 → 2001-08 ended
14B BB42 22S;14B BB42 +6 —
17801-58010 Element Sub-assy, Air Cleaner Filter
1999-07 → 2004-08 ended
14B WOC BB42 WC +11 —
17801-58030 Element Sub-assy, Air Cleaner Filter
1999-07 → 2001-05 ended
15BFT BB50 IV 6F —
17801-58030 Element Sub-assy, Air Cleaner Filter
1999-07 → 2004-08 ended
15BFTE BB50 IV —
17801-58040 Element Sub-assy, Air Cleaner Filter
1999-07 → 2004-08 ended
15BFTE BB5# ARL,GEN;15BFT BB50 +4 —
17801-58040 Element Sub-assy, Air Cleaner Filter
1999-07 → 2002-11 ended
15BFT BB50 CHI —
17801-58040 Element Sub-assy, Air Cleaner Filter
1999-07 → 2001-05 ended
15BFT BB50 STD WC +2 —
17801-58040 Element Sub-assy, Air Cleaner Filter
1999-07 → 2001-08 ended
15BFT BB50 WOC 5F;15BFT +6 —
17801-61030 Element Sub-assy, Air Cleaner Filter
1999-07 → 2002-11 ended
3RZFE RZB40,50 CHI —
17801-61030 Element Sub-assy, Air Cleaner Filter
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
17801-61030 Element Sub-assy, Air Cleaner Filter
1999-07 → 2004-08 ended
3RZFE RZB40 WOC GEN;3RZFE +4 —
17801-61030 Element Sub-assy, Air Cleaner Filter
1999-07 → 2001-08 ended
1HZ HZB50 RHD SRF;1HZ +8 —
17801-61030 Element Sub-assy, Air Cleaner Filter
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
17801-61030 Element Sub-assy, Air Cleaner Filter
1999-07 → 2001-08 ended
3RZFE RZB40 WOC GCC;3RZFE +3 —
17801-56050 Element Sub-assy, Air Cleaner Filter
2013-08 → 2015-01 ended
1BZFPE BZB40,50 —
17801-58010 Element Sub-assy, Air Cleaner Filter
2004-08 → 2011-08 ended
14B BB42 LHD HRF —
17801-58010 Element Sub-assy, Air Cleaner Filter
2007-08 → 2015-01 ended
2TRFE TRB40,50 —
17801-58010 Element Sub-assy, Air Cleaner Filter
2004-08 → 2015-01 ended
14B BB42 RHD;14B BB42 +2 —
17801-58010 Element Sub-assy, Air Cleaner Filter
2004-08 → 2013-08 ended
1BZFPE BZB40,50 STD —
17801-58010 Element Sub-assy, Air Cleaner Filter
2004-08 → 2006-08 ended
1BZFPE BZB50 EX —
17801-58030 Element Sub-assy, Air Cleaner Filter
2006-08 → 2013-11 ended
N04C XZB50 IV —
17801-58030 Element Sub-assy, Air Cleaner Filter
2004-08 → 2006-08 ended
15BFTE BB50 IV —
17801-58040 Element Sub-assy, Air Cleaner Filter
2006-08 → 2008-03 ended
N04C XZB50 STD GEN —
17801-58040 Element Sub-assy, Air Cleaner Filter
2006-08 → 2009-08 ended
N04C XZB50 WOC CBU —
17801-58040 Element Sub-assy, Air Cleaner Filter
2004-08 → 2006-08 ended
15BFTE BB5# ARL,GEN —
17801-58040 Element Sub-assy, Air Cleaner Filter
2004-08 → 2015-01 ended
15BFT BB50 —
17801-58040 Element Sub-assy, Air Cleaner Filter
2006-08 → 2015-01 ended
N04C XZB40,59;N04C XZB50 (20S,21S) +1 —
17801-61030 Element Sub-assy, Air Cleaner Filter
2004-08 → 2007-08 ended
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 —
17801-61030 Element Sub-assy, Air Cleaner Filter
2004-08 → 2015-01 ended
1HZ HZB50 —
17801-61030 Element Sub-assy, Air Cleaner Filter
2004-08 → 2006-02 ended
3RZFE RZB40 HRF GCC —
17801-56050 Element Sub-assy, Air Cleaner Filter
2015-01 → —
1BZFPE BZB40,50 —
17801-58010 Element Sub-assy, Air Cleaner Filter
2015-01 → —
2TRFE TRB40,50 —
17801-58010 Element Sub-assy, Air Cleaner Filter
2015-01 → —
14B BB42 —
17801-58040 Element Sub-assy, Air Cleaner Filter
2015-01 → —
N04C XZB40,5# —
17801-61030 Element Sub-assy, Air Cleaner Filter
2015-01 → —
1HZ HZB50 —
17807 — Plate Sub-assy, Air Cleaner Filter Set
17807-56011 Plate Sub-assy, Air Cleaner Filter Set
1993-01 → 1999-07 ended
14B,3B BB40,42 —
17807-68010 Plate Sub-assy, Air Cleaner Filter Set
1993-01 → 1999-07 ended
1HZ# HZB50 —
17807-68010 Plate Sub-assy, Air Cleaner Filter Set
1993-09 → 1999-07 ended
3RZF RZB40,50 —
17807-68010 Plate Sub-assy, Air Cleaner Filter Set
1996-05 → 1999-07 ended
15BFT BB43,5# —
17807-56020 Plate Sub-assy, Air Cleaner Filter Set
2001-08 → 2004-08 ended
1BZFPE BZB40,50 —
17807-56020 Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2001-08 ended
14B BB42 22S;14B BB42 +6 —
17807-56020 Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2004-08 ended
14B WOC BB42 WC +11 —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2001-08 ended
15BFT BB50 WOC 5F;15BFT +6 —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2004-08 ended
15BFTE BB5#;15BFT BB50 STD +3 —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2004-08 ended
3RZFE RZB40 WOC GEN;3RZFE +4 —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2002-11 ended
15BFT BB50 CHI —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2002-11 ended
3RZFE RZB40,50 CHI —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2001-08 ended
1HZ HZB50 RHD SRF;1HZ +8 —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2001-08 ended
3RZFE RZB40 WOC GCC;3RZFE +3 —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
17807-56020 Plate Sub-assy, Air Cleaner Filter Set
2007-08 → 2015-01 ended
2TRFE TRB40,50 —
17807-56020 Plate Sub-assy, Air Cleaner Filter Set
2004-08 → 2015-01 ended
14B BB42 LHD SRF;14B,1BZFPE +3 —
17807-56020 Plate Sub-assy, Air Cleaner Filter Set
2004-08 → 2011-08 ended
14B BB42 LHD HRF —
17807-56020 Plate Sub-assy, Air Cleaner Filter Set
2004-08 → 2006-08 ended
1BZFPE BZB50 EX —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
2006-08 → 2008-03 ended
N04C XZB50 STD GEN —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
2004-08 → 2007-08 ended
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
2004-08 → 2006-02 ended
3RZFE RZB40 HRF GCC —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
2006-08 → 2015-01 ended
N04C XZB40,59;N04C XZB50 (20S,21S) +1 —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
2004-08 → 2015-01 ended
1HZ HZB50 —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
2006-08 → 2013-11 ended
N04C XZB50 IV —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
2004-08 → 2006-08 ended
15BFTE BB5# —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
2006-08 → 2009-08 ended
N04C XZB50 WOC CBU —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
2004-08 → 2015-01 ended
15BFT BB50 —
17807-56020 Plate Sub-assy, Air Cleaner Filter Set
2015-01 → —
2TRFE TRB40,50 —
17807-56020 Plate Sub-assy, Air Cleaner Filter Set
2015-01 → —
14B,1BZFPE BB42,BZB40,50 —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
2015-01 → —
N04C XZB40,5# —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
2015-01 → —
1HZ HZB50 —
17841 — Gasket, Filter Element
17841-44030 Gasket, Filter Element
1993-01 → 1999-07 ended
14B,3B BB40,42 —
17841-68010 Gasket, Filter Element
1993-01 → 1999-07 ended
1HZ# HZB50 —
17841-68010 Gasket, Filter Element
1993-09 → 1999-07 ended
3RZF RZB40,50 —
17841-68010 Gasket, Filter Element
1996-05 → 1999-07 ended
15BFT BB43,5# —
17841-44030 Gasket, Filter Element
1999-07 → 2004-08 ended
14B WOC BB42 WC +11 —
17841-44030 Gasket, Filter Element
2001-08 → 2004-08 ended
1BZFPE BZB40,50 —
17841-44030 Gasket, Filter Element
1999-07 → 2001-08 ended
14B BB42 22S;14B BB42 +6 —
17841-68010 Gasket, Filter Element
1999-07 → 2001-08 ended
1HZ HZB50 RHD SRF;1HZ +8 —
17841-68010 Gasket, Filter Element
1999-07 → 2001-08 ended
3RZFE RZB40 WOC GCC;3RZFE +3 —
17841-68010 Gasket, Filter Element
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
17841-68010 Gasket, Filter Element
1999-07 → 2004-08 ended
15BFTE BB5#;15BFT BB50 STD +3 —
17841-68010 Gasket, Filter Element
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
17841-68010 Gasket, Filter Element
1999-07 → 2004-08 ended
3RZFE RZB40 WOC GEN;3RZFE +4 —
17841-68010 Gasket, Filter Element
1999-07 → 2002-11 ended
15BFT BB50 CHI —
17841-68010 Gasket, Filter Element
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
17841-68010 Gasket, Filter Element
1999-07 → 2002-11 ended
3RZFE RZB40,50 CHI —
17841-68010 Gasket, Filter Element
1999-07 → 2001-08 ended
15BFT BB50 WOC 5F;15BFT +6 —
17841-44030 Gasket, Filter Element
2007-08 → 2015-01 ended
2TRFE TRB40,50 —
17841-44030 Gasket, Filter Element
2004-08 → 2006-08 ended
1BZFPE BZB50 EX —
17841-44030 Gasket, Filter Element
2004-08 → 2011-08 ended
14B BB42 LHD HRF —
17841-44030 Gasket, Filter Element
2004-08 → 2015-01 ended
14B BB42 LHD SRF;14B,1BZFPE +3 —
17841-68010 Gasket, Filter Element
2004-08 → 2006-08 ended
15BFTE BB5# —
17841-68010 Gasket, Filter Element
2006-08 → 2015-01 ended
N04C XZB40,59;N04C XZB50 (20S,21S) +1 —
17841-68010 Gasket, Filter Element
2004-08 → 2015-01 ended
1HZ HZB50 —
17841-68010 Gasket, Filter Element
2004-08 → 2015-01 ended
15BFT BB50 —
17841-68010 Gasket, Filter Element
2006-08 → 2013-11 ended
N04C XZB50 IV —
17841-68010 Gasket, Filter Element
2006-08 → 2009-08 ended
N04C XZB50 WOC CBU —
17841-68010 Gasket, Filter Element
2006-08 → 2008-03 ended
N04C XZB50 STD GEN —
17841-68010 Gasket, Filter Element
2004-08 → 2007-08 ended
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 —
17841-68010 Gasket, Filter Element
2004-08 → 2006-02 ended
3RZFE RZB40 HRF GCC —
17841-44030 Gasket, Filter Element
2015-01 → —
2TRFE TRB40,50 —
17841-44030 Gasket, Filter Element
2015-01 → —
14B,1BZFPE BB42,BZB40,50 —
17841-68010 Gasket, Filter Element
2015-01 → —
N04C XZB40,5# —
17841-68010 Gasket, Filter Element
2015-01 → —
1HZ HZB50 —
17845 — Gasket, Air Cleaner Cap
17845-17010 Gasket, Air Cleaner Cap
1996-05 → 1999-07 ended
15BFT BB43,5# —
17845-17010 Gasket, Air Cleaner Cap
1994-11 → 1999-07 ended
1HZ# HZB50 —
17845-17010 Gasket, Air Cleaner Cap
1994-11 → 1999-07 ended
3RZF RZB40,50 —
17845-56020 Gasket, Air Cleaner Cap
1993-01 → 1999-07 ended
14B,3B BB40,42 —
17845-68020 Gasket, Air Cleaner Cap
1993-01 → 1994-11 ended
1HZ# HZB50 —
17845-68020 Gasket, Air Cleaner Cap
1993-09 → 1994-11 ended
3RZF RZB40,50 —
17845-48020 Gasket, Air Cleaner Cap
2003-03 → 2004-08 ended
1BZFPE BZB40,50 —
17845-56020 Gasket, Air Cleaner Cap
2000-12 → 2004-08 ended
14B WOC BB42 WC +11 —
17845-56020 Gasket, Air Cleaner Cap
2000-12 → 2001-08 ended
14B BB42 22S;14B BB42 +6 —
17845-56020 Gasket, Air Cleaner Cap
2000-12 → 2003-03 ended
1BZFPE BZB40,50 —
17845-58010 Gasket, Air Cleaner Cap
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
17845-58010 Gasket, Air Cleaner Cap
1999-07 → 2004-08 ended
15BFTE BB5#;15BFT BB50 STD +3 —
17845-58010 Gasket, Air Cleaner Cap
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
17845-58010 Gasket, Air Cleaner Cap
1999-07 → 2004-08 ended
3RZFE RZB40 WOC GEN;3RZFE +4 —
17845-58010 Gasket, Air Cleaner Cap
1999-07 → 2002-11 ended
15BFT BB50 CHI —
17845-58010 Gasket, Air Cleaner Cap
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
17845-58010 Gasket, Air Cleaner Cap
1999-07 → 2002-11 ended
3RZFE RZB40,50 CHI —
17845-58010 Gasket, Air Cleaner Cap
1999-07 → 2001-08 ended
15BFT BB50 WOC 5F;15BFT +6 —
17845-58010 Gasket, Air Cleaner Cap
1999-07 → 2001-08 ended
1HZ HZB50 RHD SRF;1HZ +8 —
17845-58010 Gasket, Air Cleaner Cap
1999-07 → 2001-08 ended
3RZFE RZB40 WOC GCC;3RZFE +3 —
17845-48020 Gasket, Air Cleaner Cap
2004-08 → 2015-01 ended
1BZFPE BZB40,50 STD —
17845-48020 Gasket, Air Cleaner Cap
2004-08 → 2006-08 ended
1BZFPE BZB50 EX —
17845-56020 Gasket, Air Cleaner Cap
2007-08 → 2015-01 ended
2TRFE TRB40,50 —
17845-56020 Gasket, Air Cleaner Cap
2004-08 → 2011-08 ended
14B BB42 LHD HRF —
17845-56020 Gasket, Air Cleaner Cap
2004-08 → 2015-01 ended
14B BB42 RHD;14B BB42 +2 —
17845-58010 Gasket, Air Cleaner Cap
2004-08 → 2007-08 ended
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 —
17845-58010 Gasket, Air Cleaner Cap
2006-08 → 2015-01 ended
N04C XZB40,59;N04C XZB50 (20S,21S) +1 —
17845-58010 Gasket, Air Cleaner Cap
2004-08 → 2015-01 ended
1HZ HZB50 —
17845-58010 Gasket, Air Cleaner Cap
2004-08 → 2015-01 ended
15BFT BB50 —
17845-58010 Gasket, Air Cleaner Cap
2004-08 → 2006-02 ended
3RZFE RZB40 HRF GCC —
17845-58010 Gasket, Air Cleaner Cap
2006-08 → 2013-11 ended
N04C XZB50 IV —
17845-58010 Gasket, Air Cleaner Cap
2006-08 → 2009-08 ended
N04C XZB50 WOC CBU —
17845-58010 Gasket, Air Cleaner Cap
2006-08 → 2008-03 ended
N04C XZB50 STD GEN —
17845-58010 Gasket, Air Cleaner Cap
2004-08 → 2006-08 ended
15BFTE BB5# —
17845-48020 Gasket, Air Cleaner Cap
2015-01 → —
1BZFPE BZB40,50 —
17845-56020 Gasket, Air Cleaner Cap
2015-01 → —
14B BB42 —
17845-56020 Gasket, Air Cleaner Cap
2015-01 → —
2TRFE TRB40,50 —
17845-58010 Gasket, Air Cleaner Cap
2015-01 → —
N04C XZB40,5# —
17845-58010 Gasket, Air Cleaner Cap
2015-01 → —
1HZ HZB50 —
17861 — Connector, Intake Air
17861-17010 Connector, Intake Air
1993-01 → 1999-07 ended
1HZ HZB50 —
17861-58030 Connector, Intake Air
1996-05 → 1999-07 ended
15BFT BB43,5# —
17861-17010 Connector, Intake Air
1999-07 → 2001-08 ended
1HZ HZB50 RHD SRF;1HZ +8 —
17861-17010 Connector, Intake Air
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
17861-17010 Connector, Intake Air
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
17861-58030 Connector, Intake Air
1999-07 → 2002-11 ended
15BFT BB50 CHI —
17861-58030 Connector, Intake Air
1999-07 → 2001-08 ended
15BFT BB50 WOC 5F;15BFT +6 —
17861-58030 Connector, Intake Air
1999-07 → 2004-08 ended
15BFT BB50 STD GEN +2 —
17861-58030 Connector, Intake Air
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
17861-17010 Connector, Intake Air
2004-08 → 2015-01 ended
1HZ HZB50 —
17861-58080 Connector, Intake Air
2004-08 → 2015-01 ended
15BFT BB50 —
17861-75130 Connector, Intake Air
2007-08 → 2009-09 ended
2TRFE TRB40,50 —
17861-75131 Connector, Intake Air
2009-10 → 2015-01 ended
2TRFE TRB40,50 —
17861-17010 Connector, Intake Air
2015-01 → —
1HZ HZB50 —
17861-75131 Connector, Intake Air
2015-01 → —
2TRFE TRB40,50 —
17881 — Hose, Air Cleaner, NO.1
17881-17050 Hose, Air Cleaner, NO.1
1993-01 → 1999-07 ended
1HZ# HZB50 —
17881-58200 Hose, Air Cleaner, NO.1
1993-01 → 1999-07 ended
3B BB40 —
17881-58210 Hose, Air Cleaner, NO.1
1993-01 → 1999-07 ended
14B BB42 —
17881-58350 Hose, Air Cleaner, NO.1
1996-05 → 1999-07 ended
15BFT BB43,5# —
17881-75040 Hose, Air Cleaner, NO.1
1993-09 → 1997-05 ended
3RZF RZB40,50 —
17881-75041 Hose, Air Cleaner, NO.1
1997-05 → 1999-05 ended
3RZF RZB40,50 —
17881-75042 Hose, Air Cleaner, NO.1
1999-05 → 1999-07 ended
3RZF RZB40,50 —
17881-17050 Hose, Air Cleaner, NO.1
1999-07 → 2001-08 ended
1HZ HZB50 RHD SRF;1HZ +8 —
17881-17050 Hose, Air Cleaner, NO.1
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
17881-17050 Hose, Air Cleaner, NO.1
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
17881-48060 Hose, Air Cleaner, NO.1
2001-08 → 2003-04 ended
1BZFPE BZB40,50 —
17881-48061 Hose, Air Cleaner, NO.1
2003-04 → 2004-08 ended
1BZFPE BZB40,50 —
17881-58210 Hose, Air Cleaner, NO.1
1999-07 → 2001-08 ended
14B BB42 22S;14B BB42 +6 —
17881-58210 Hose, Air Cleaner, NO.1
1999-07 → 2004-08 ended
14B WOC BB42 WC +11 —
17881-58350 Hose, Air Cleaner, NO.1
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
17881-58350 Hose, Air Cleaner, NO.1
1999-07 → 2001-08 ended
15BFT BB50 WOC 5F;15BFT +6 —
17881-58350 Hose, Air Cleaner, NO.1
1999-07 → 2002-11 ended
15BFT BB50 CHI —
17881-58350 Hose, Air Cleaner, NO.1
1999-07 → 2004-08 ended
15BFTE BB5#;15BFT BB50 STD +3 —
17881-75042 Hose, Air Cleaner, NO.1
1999-07 → 2002-11 ended
3RZFE RZB40,50 CHI —
17881-75042 Hose, Air Cleaner, NO.1
1999-07 → 2004-08 ended
3RZFE RZB40 WOC GEN;3RZFE +4 —
17881-75042 Hose, Air Cleaner, NO.1
1999-07 → 2001-08 ended
3RZFE RZB40 WOC GCC;3RZFE +3 —
17881-17050 Hose, Air Cleaner, NO.1
2004-08 → 2013-07 ended
1HZ HZB50 —
17881-17070 Hose, Air Cleaner, NO.1
2013-07 → 2015-01 ended
1HZ HZB50 —
17881-48061 Hose, Air Cleaner, NO.1
2004-08 → 2006-08 ended
1BZFPE BZB50 EX —
17881-48061 Hose, Air Cleaner, NO.1
2004-08 → 2015-01 ended
1BZFPE BZB40,50 STD —
17881-58210 Hose, Air Cleaner, NO.1
2004-08 → 2011-08 ended
14B BB42 LHD HRF —
17881-58210 Hose, Air Cleaner, NO.1
2004-08 → 2015-01 ended
14B BB42 RHD;14B BB42 +2 —
17881-58350 Hose, Air Cleaner, NO.1
2004-08 → 2006-08 ended
15BFTE BB5# —
17881-58350 Hose, Air Cleaner, NO.1
2004-08 → 2015-01 ended
15BFT BB50 —
17881-75042 Hose, Air Cleaner, NO.1
2004-08 → 2006-02 ended
3RZFE RZB40 HRF GCC —
17881-75042 Hose, Air Cleaner, NO.1
2004-08 → 2007-08 ended
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 —
17881-75230 Hose, Air Cleaner, NO.1
2007-08 → 2015-01 ended
2TRFE TRB40,50 —
17881-17070 Hose, Air Cleaner, NO.1
2015-01 → —
1HZ HZB50 —
17881-48061 Hose, Air Cleaner, NO.1
2015-01 → —
1BZFPE BZB40,50 —
17881-58210 Hose, Air Cleaner, NO.1
2015-01 → —
14B BB42 —
17881-75230 Hose, Air Cleaner, NO.1
2015-01 → —
2TRFE TRB40,50 —
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10650 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1996-05 → 1999-07 ended
15BFT BB43,5# —
96111-10690 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1993-01 → 1999-07 ended
3B BB40 —
96111-10730 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1993-09 → 1999-07 ended
3RZF RZB40,50 —
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1993-01 → 1993-02 ended
14B,3B BB4# —
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1993-02 → 1999-07 ended
14B,3B BB40,42 —
96111-10800 Clamp(FOR AIR CLEANER HOSE, NO.1)
1993-01 → 1999-07 ended
1HZ# HZB50 —
96111-10830 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1993-09 → 1999-07 ended
3RZF RZB40,50 —
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1993-01 → 1999-07 ended
14B BB42 —
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1996-05 → 1999-07 ended
15BFT BB43,5# —
96111-10650 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
96111-10650 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2001-08 ended
15BFT BB50 WOC 5F;15BFT +6 —
96111-10650 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2002-11 ended
15BFT BB50 CHI —
96111-10650 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2004-08 ended
15BFTE BB5#;15BFT BB50 STD +3 —
96111-10730 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2001-08 ended
3RZFE RZB40 WOC GCC;3RZFE +3 —
96111-10730 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2002-11 ended
3RZFE RZB40,50 CHI —
96111-10730 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2004-08 ended
3RZFE RZB40 WOC GEN;3RZFE +4 —
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-08 → 2004-08 ended
1BZFPE BZB40,50 —
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2004-08 ended
14B WOC BB42 WC +11 —
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2001-08 ended
14B BB42 22S;14B BB42 +6 —
96111-10800 Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
96111-10800 Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
96111-10800 Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2001-08 ended
1HZ HZB50 RHD SRF;1HZ +8 —
96111-10830 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2001-08 ended
3RZFE RZB40 WOC GCC;3RZFE +3 —
96111-10830 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2004-08 ended
3RZFE RZB40 WOC GEN;3RZFE +4 —
96111-10830 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2002-11 ended
3RZFE RZB40,50 CHI —
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2002-11 ended
15BFT BB50 CHI —
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2001-08 ended
15BFT BB50 WOC 5F;15BFT +6 —
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2001-08 ended
14B BB42 22S;14B BB42 +6 —
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2004-08 ended
14B WOC BB42 WC +11 —
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2004-08 ended
15BFTE BB5#;15BFT BB50 STD +3 —
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
96111-10650 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → 2015-01 ended
15BFT BB50 —
96111-10650 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → 2006-08 ended
15BFTE BB5# —
96111-10730 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → 2006-02 ended
3RZFE RZB40 HRF GCC —
96111-10730 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → 2007-08 ended
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 —
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → 2006-08 ended
1BZFPE BZB50 EX —
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → 2015-01 ended
1BZFPE BZB40,50 STD —
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → 2011-08 ended
14B BB42 LHD HRF —
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → 2015-01 ended
14B BB42 RHD;14B BB42 +2 —
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2007-08 → 2015-01 ended
2TRFE TRB40,50 —
96111-10800 Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → 2015-01 ended
1HZ HZB50 —
96111-10830 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → 2007-08 ended
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 —
96111-10830 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → 2006-02 ended
3RZFE RZB40 HRF GCC —
96111-10880 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2007-08 → 2015-01 ended
2TRFE TRB40,50 —
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → 2006-08 ended
15BFTE BB5# —
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → 2015-01 ended
15BFT BB50 —
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → 2015-01 ended
14B BB42 RHD;14B BB42 +2 —
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → 2011-08 ended
14B BB42 LHD HRF —
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.1)
2015-01 → —
1BZFPE BZB40,50 —
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2015-01 → —
14B BB42 —
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2015-01 → —
2TRFE TRB40,50 —
96111-10800 Clamp(FOR AIR CLEANER HOSE, NO.1)
2015-01 → —
1HZ HZB50 —
96111-10880 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2015-01 → —
2TRFE TRB40,50 —
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2015-01 → —
14B BB42 —
17884 — Hose, Air Cleaner, NO.4
59132-36010 Hose, Air Cleaner, NO.4
1993-01 → 1999-07 ended
14B,3B BB40,42 —
59132-36020 Hose, Air Cleaner, NO.4
1993-01 → 1999-07 ended
1HZ# HZB50 —
59132-36020 Hose, Air Cleaner, NO.4
1996-05 → 1999-07 ended
15BFT BB43,5# —
59132-36010 Hose, Air Cleaner, NO.4
1999-07 → 2001-08 ended
14B BB42 22S;14B BB42 +6 —
59132-36010 Hose, Air Cleaner, NO.4
1999-07 → 2004-08 ended
14B ZB40,50 BB42 HRF +12 —
59132-36020 Hose, Air Cleaner, NO.4
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
59132-36020 Hose, Air Cleaner, NO.4
1999-07 → 2004-08 ended
15BFTE BB5#;15BFT BB50 STD +3 —
59132-36020 Hose, Air Cleaner, NO.4
1999-07 → 2004-08 ended
1HZ .SRF HZB50 WC +11 —
59132-36020 Hose, Air Cleaner, NO.4
1999-07 → 2002-11 ended
15BFT BB50 CHI —
59132-36020 Hose, Air Cleaner, NO.4
1999-07 → 2002-11 ended
1HZ HZB50 ARL —
59132-36020 Hose, Air Cleaner, NO.4
1999-07 → 2001-08 ended
15BFT BB50 WOC 5F;15BFT +6 —
59132-36020 Hose, Air Cleaner, NO.4
1999-07 → 2001-08 ended
1HZ HZB50 RHD SRF;1HZ +8 —
59132-36010 Hose, Air Cleaner, NO.4
2004-08 → 2006-08 ended
1BZFPE BZB50 EX —
59132-36010 Hose, Air Cleaner, NO.4
2004-08 → 2011-08 ended
14B,1BZFPE BB42,BZB40,50 STD —
59132-36020 Hose, Air Cleaner, NO.4
2006-08 → 2008-03 ended
N04C XZB50 STD GEN —
59132-36020 Hose, Air Cleaner, NO.4
2006-08 → 2013-11 ended
N04C XZB50 IV —
59132-36020 Hose, Air Cleaner, NO.4
2006-08 → 2011-08 ended
N04C XZB40,59;N04C XZB50 (20S,21S) +1 —
59132-36020 Hose, Air Cleaner, NO.4
2004-08 → 2011-08 ended
1HZ HZB50 —
59132-36020 Hose, Air Cleaner, NO.4
2006-08 → 2009-08 ended
N04C XZB50 WOC CBU —
59132-36020 Hose, Air Cleaner, NO.4
2004-08 → 2006-08 ended
15BFTE BB5# —
59132-36020 Hose, Air Cleaner, NO.4
2004-08 → 2011-08 ended
15BFT BB50 —
59132-36050 Hose, Air Cleaner, NO.4
2007-08 → 2011-08 ended
2TRFE TRB40,50 —
17940D — Intercooler Assy
17940-58050 Intercooler Assy
1996-05 → 1999-07 ended
15BFT BB50 EUR —
17940-58070 Intercooler Assy
1997-05 → 1999-07 ended
15BFT BB43,5# GEN —
17940-58070 Intercooler Assy
1999-07 → 2001-05 ended
15BFT BB50 WOC 6F;15BFT +4 —
17940-58070 Intercooler Assy
1999-07 → 2001-08 ended
15BFT BB50 WOC 5F;15BFT +6 —
17940-58070 Intercooler Assy
1999-07 → 2002-11 ended
15BFT BB50 CHI —
17940-58070 Intercooler Assy
1999-07 → 2004-08 ended
15BFT BB50 STD GEN +2 —
17940-58110 Intercooler Assy
1999-07 → 2004-08 ended
15BFTE BB5# —
17940-58070 Intercooler Assy
2004-08 → 2015-01 ended
15BFT BB50 —
17940-58110 Intercooler Assy
2004-08 → 2006-08 ended
15BFTE BB5# —
17940-78090 Intercooler Assy
2006-08 → 2009-08 ended
N04C XZB40,59;N04C XZB50 IV;N04C +2 —
17940-78090 Intercooler Assy
2006-08 → 2008-03 ended
N04C XZB50 STD GEN —
17940-78150 Intercooler Assy
2009-08 → 2013-11 ended
N04C XZB50 IV —
17940-78150 Intercooler Assy
2009-08 → 2015-01 ended
N04C XZB40,5# ARL,GEN,TAIW —
17940-78150 Intercooler Assy
2015-01 → —
N04C XZB40,5# —
53199B — Duct Sub-assy, Cool Air Intake
53207-36020 Duct Sub-assy, Cool Air Intake
1993-01 → 1999-07 ended
BB40,42 —
53207-36030 Duct Sub-assy, Cool Air Intake
1996-05 → 1999-07 ended
BB43,5# —
53207-36030 Duct Sub-assy, Cool Air Intake
1993-01 → 1999-07 ended
HZB50 —
53207-36040 Duct Sub-assy, Cool Air Intake
1993-09 → 1999-07 ended
RZB40,50 —
53207-36050 note Duct Sub-assy, Cool Air Intake
1993-01 → 1995-05 ended
BB42 GCC,GEN —
53207-36060 note Duct Sub-assy, Cool Air Intake
1993-01 → 1995-05 ended
HZB50 GCC,GEN —
53207-36060 note Duct Sub-assy, Cool Air Intake
1993-09 → 1995-05 ended
RZB40,50 —
53207-36080 note Duct Sub-assy, Cool Air Intake
1995-05 → 1999-07 ended
BB42 GCC,GEN —
53207-36090 note Duct Sub-assy, Cool Air Intake
1995-05 → 1999-07 ended
RZB40,50 —
53207-36090 note Duct Sub-assy, Cool Air Intake
1995-05 → 1999-07 ended
HZB50 (20S,30S) (GCC,GEN) —
53207-36020 Duct Sub-assy, Cool Air Intake
1999-07 → 2004-08 ended
BB42 WC WC GCC;BB42 +7 —
53207-36020 Duct Sub-assy, Cool Air Intake
1999-07 → 2001-08 ended
BB42 22S;BB42 WOC GCC;BB42 +3 —
53207-36030 Duct Sub-assy, Cool Air Intake
1999-07 → 2001-08 ended
HZB50 RHD SRF;HZB50 RHD +5 —
53207-36030 Duct Sub-assy, Cool Air Intake
1999-07 → 2001-08 ended
BB50 WOC 5F;BB50 CBU +3 —
53207-36030 Duct Sub-assy, Cool Air Intake
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
53207-36030 Duct Sub-assy, Cool Air Intake
1999-07 → 2004-08 ended
BB58,59;BB50 EX TDEFI;BB50 (EUR,GEN) +4 —
53207-36030 Duct Sub-assy, Cool Air Intake
1999-07 → 2002-11 ended
HZB50 ARL —
53207-36030 Duct Sub-assy, Cool Air Intake
1999-07 → 2002-11 ended
BB50 CHI —
53207-36030 Duct Sub-assy, Cool Air Intake
1999-07 → 2004-08 ended
HZB50 LHD EX;HZB50 LHD +7 —
53207-36040 Duct Sub-assy, Cool Air Intake
1999-07 → 2001-08 ended
RZB40 WOC GCC;RZB40 22S +1 —
53207-36040 Duct Sub-assy, Cool Air Intake
1999-07 → 2004-08 ended
RZB40 WOC GEN;RZB40,50 (17S,26S,30S) +2 —
53207-36040 Duct Sub-assy, Cool Air Intake
1999-07 → 2002-11 ended
RZB40,50 CHI —
53207-36080 note Duct Sub-assy, Cool Air Intake
1999-07 → 2004-08 ended
BB42 WC GCC;BB42 SRF +7 —
53207-36080 note Duct Sub-assy, Cool Air Intake
1999-07 → 2001-08 ended
BB42 22S;BB42 WOC GCC;BB42 +3 —
53207-36090 note Duct Sub-assy, Cool Air Intake
1999-07 → 2002-11 ended
RZB40,50 CHI —
53207-36090 note Duct Sub-assy, Cool Air Intake
1999-07 → 2001-08 ended
HZB50 RHD SRF;HZB50 RHD +5 —
53207-36090 note Duct Sub-assy, Cool Air Intake
1999-07 → 2001-08 ended
RZB40 WOC GCC;RZB40 22S +1 —
53207-36090 note Duct Sub-assy, Cool Air Intake
1999-07 → 2004-08 ended
RZB40 WOC GEN;RZB40,50 (17S,26S,30S) +2 —
53207-36090 note Duct Sub-assy, Cool Air Intake
1999-07 → 2004-08 ended
BB50 STD GEN CBU +2 —
53207-36090 note Duct Sub-assy, Cool Air Intake
1999-07 → 2004-08 ended
HZB50 LHD EX;HZB50 LHD +7 —
53207-36090 note Duct Sub-assy, Cool Air Intake
1999-07 → 2002-11 ended
BB50 CHI —
53207-36020 Duct Sub-assy, Cool Air Intake
2004-08 → 2006-08 ended
BZB50 EX —
53207-36020 Duct Sub-assy, Cool Air Intake
2004-08 → 2011-08 ended
BB42,BZB40,50 STD —
53207-36030 Duct Sub-assy, Cool Air Intake
2004-08 → 2006-08 ended
BB5# TDEFI —
53207-36030 Duct Sub-assy, Cool Air Intake
2006-08 → 2013-11 ended
XZB50 IV —
53207-36030 Duct Sub-assy, Cool Air Intake
2006-08 → 2011-08 ended
XZB40,59;XZB50 (20S,21S) WC —
53207-36030 Duct Sub-assy, Cool Air Intake
2006-08 → 2008-03 ended
XZB50 STD GEN —
53207-36030 Duct Sub-assy, Cool Air Intake
2006-08 → 2009-08 ended
XZB50 WOC CBU —
53207-36030 Duct Sub-assy, Cool Air Intake
2004-08 → 2011-08 ended
BB50 TD —
53207-36030 Duct Sub-assy, Cool Air Intake
2004-08 → 2011-08 ended
HZB50 —
53207-36040 Duct Sub-assy, Cool Air Intake
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
53207-36040 Duct Sub-assy, Cool Air Intake
2004-08 → 2006-02 ended
RZB40 HRF GCC —
53207-36080 note Duct Sub-assy, Cool Air Intake
2004-08 → 2015-01 ended
BB42 WOC;BB42 RHD HRF;BB42 +4 —
53207-36080 note Duct Sub-assy, Cool Air Intake
2004-08 → 2011-08 ended
BB42 LHD HRF —
53207-36080 note Duct Sub-assy, Cool Air Intake
2004-08 → 2007-08 ended
BB42 GCC —
53207-36080 note Duct Sub-assy, Cool Air Intake
2011-08 → 2015-01 ended
BB42 RHD SRF WC —
53207-36090 note Duct Sub-assy, Cool Air Intake
2007-08 → 2015-01 ended
TRB40,50 GEN —
53207-36090 note Duct Sub-assy, Cool Air Intake
2004-08 → 2007-08 ended
HZB50 GCC —
53207-36090 note Duct Sub-assy, Cool Air Intake
2004-08 → 2015-01 ended
HZB50 GEN —
53207-36090 note Duct Sub-assy, Cool Air Intake
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
53207-36090 note Duct Sub-assy, Cool Air Intake
2004-08 → 2006-02 ended
RZB40 HRF GCC —
53207-36090 note Duct Sub-assy, Cool Air Intake
2004-08 → 2015-01 ended
BB50 TD —
53207-36150 Duct Sub-assy, Cool Air Intake
2007-08 → 2011-08 ended
TRB40,50 —
53207-36080 Duct Sub-assy, Cool Air Intake
2015-01 → —
BB42 GEN —
53207-36090 Duct Sub-assy, Cool Air Intake
2015-01 → —
TRB40,50 GEN —
53207-36090 Duct Sub-assy, Cool Air Intake
2015-01 → —
HZB50 GEN —
53207-36090 note Duct Sub-assy, Cool Air Intake
2015-01 → —
XZB40,50 LHD GEN —
55871B — Seal, Air Duct
55871-36020 Seal, Air Duct
1993-01 → 1999-07 ended
HZB50 —
55871-36020 Seal, Air Duct
1993-01 → 1999-07 ended
BB4#,5# —
55871-36020 Seal, Air Duct
1993-09 → 1999-07 ended
RZB40,50 —
55871-36020 Seal, Air Duct
1999-07 → 2004-08 ended
HZB50 LHD EX;HZB50 LHD +7 —
55871-36020 Seal, Air Duct
1999-07 → 2004-08 ended
BB42 .6F WC TDEFI;BB50 +13 —
55871-36020 Seal, Air Duct
1999-07 → 2004-08 ended
RZB40 WOC GEN;RZB40,50 (17S,26S,30S) +2 —
55871-36020 Seal, Air Duct
1999-07 → 2002-11 ended
BB50 CHI —
55871-36020 Seal, Air Duct
1999-07 → 2002-11 ended
HZB50 ARL —
55871-36020 Seal, Air Duct
1999-07 → 2001-08 ended
HZB50 RHD SRF;HZB50 RHD +5 —
55871-36020 Seal, Air Duct
1999-07 → 2001-08 ended
BB50 S WOC 5F;BB50 +8 —
55871-36020 Seal, Air Duct
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
55871-36020 Seal, Air Duct
1999-07 → 2001-08 ended
RZB40 WOC GCC;RZB40 22S +1 —
55871-36020 Seal, Air Duct
1999-07 → 2002-11 ended
RZB40,50 CHI —
55871-36020 Seal, Air Duct
2006-08 → 2013-11 ended
XZB50 IV —
55871-36020 Seal, Air Duct
2007-08 → 2015-01 ended
TRB40,50 —
55871-36020 Seal, Air Duct
2006-08 → 2015-01 ended
XZB40,59;XZB50 (20S,21S) WC —
55871-36020 Seal, Air Duct
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,BZB40,50 +2 —
55871-36020 Seal, Air Duct
2004-08 → 2015-01 ended
HZB50 —
55871-36020 Seal, Air Duct
2004-08 → 2011-08 ended
BB42 LHD HRF —
55871-36020 Seal, Air Duct
2006-08 → 2009-08 ended
XZB50 WOC CBU —
55871-36020 Seal, Air Duct
2006-08 → 2008-03 ended
XZB50 STD GEN —
55871-36020 Seal, Air Duct
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
55871-36020 Seal, Air Duct
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
55871-36020 Seal, Air Duct
2004-08 → 2006-02 ended
RZB40 HRF GCC —
55871-36020 Seal, Air Duct
2015-01 → —
XZB40,5# —
55871-36020 Seal, Air Duct
2015-01 → —
HZB50 —
55871-36020 Seal, Air Duct
2015-01 → —
TRB40,50 —
55871-36020 Seal, Air Duct
2015-01 → —
BB42,BZB40,50 —
58257 — Plate, Air Cleaner House
58257-36020 Plate, Air Cleaner House
1993-01 → 1999-07 ended
HZB50 —
58257-36020 Plate, Air Cleaner House
1996-05 → 1999-07 ended
BB43,5# —
58257-36020 Plate, Air Cleaner House
1993-09 → 1999-07 ended
RZB40,50 —
58257-36030 Plate, Air Cleaner House
1993-01 → 1999-07 ended
BB40,42 —
58257-36020 Plate, Air Cleaner House
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58257-36020 Plate, Air Cleaner House
1999-07 → 2001-08 ended
RZB40 WOC GCC;RZB40 22S +1 —
58257-36020 Plate, Air Cleaner House
1999-07 → 2001-08 ended
HZB50 RHD SRF;HZB50 RHD +5 —
58257-36020 Plate, Air Cleaner House
1999-07 → 2001-08 ended
BB50 WOC 5F;BB50 CBU +3 —
58257-36020 Plate, Air Cleaner House
1999-07 → 2002-11 ended
RZB40,50 CHI —
58257-36020 Plate, Air Cleaner House
1999-07 → 2002-11 ended
HZB50 ARL —
58257-36020 Plate, Air Cleaner House
1999-07 → 2002-11 ended
BB50 CHI —
58257-36020 Plate, Air Cleaner House
1999-07 → 2004-08 ended
RZB40 WOC GEN;RZB40,50 (17S,26S,30S) +2 —
58257-36020 Plate, Air Cleaner House
1999-07 → 2004-08 ended
HZB50 LHD EX;HZB50 LHD +7 —
58257-36020 Plate, Air Cleaner House
1999-07 → 2004-08 ended
BB58,59;BB50 EX TDEFI;BB50 (EUR,GEN) +4 —
58257-36030 Plate, Air Cleaner House
1999-07 → 2001-08 ended
BB42 22S;BB42 WOC GCC;BB42 +3 —
58257-36030 Plate, Air Cleaner House
1999-07 → 2004-08 ended
BB42 WC WC GCC;BB42 +7 —
58257-36020 Plate, Air Cleaner House
2006-08 → 2007-08 ended
XZB5# —
58257-36020 Plate, Air Cleaner House
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58257-36020 Plate, Air Cleaner House
2004-08 → 2007-08 ended
HZB50 —
58257-36020 Plate, Air Cleaner House
2004-08 → 2007-08 ended
BB50 TD —
58257-36020 Plate, Air Cleaner House
2004-08 → 2006-08 ended
BB5# TDEFI —
58257-36020 Plate, Air Cleaner House
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58257-36030 Plate, Air Cleaner House
2004-08 → 2007-08 ended
BB42,BZB40,50 STD —
58257-36030 Plate, Air Cleaner House
2004-08 → 2006-08 ended
BZB50 EX —
58257-36050 Plate, Air Cleaner House
2007-08 → 2015-01 ended
BB50 —
58257-36050 Plate, Air Cleaner House
2007-08 → 2015-01 ended
XZB40,59;XZB50 (20S,21S) WC —
58257-36050 Plate, Air Cleaner House
2007-08 → 2015-01 ended
TRB40,50 —
58257-36050 Plate, Air Cleaner House
2007-08 → 2015-01 ended
HZB50 —
58257-36050 Plate, Air Cleaner House
2007-08 → 2013-11 ended
XZB50 IV —
58257-36050 Plate, Air Cleaner House
2007-08 → 2009-08 ended
XZB50 WOC CBU —
58257-36050 Plate, Air Cleaner House
2007-08 → 2008-03 ended
XZB50 STD GEN —
58257-36070 Plate, Air Cleaner House
2007-08 → 2011-08 ended
BB42 LHD HRF —
58257-36070 Plate, Air Cleaner House
2007-08 → 2015-01 ended
BB42 LHD SRF;BB42,BZB40,50 RHD —
58257-36050 Plate, Air Cleaner House
2015-01 → —
XZB40,5# —
58257-36050 Plate, Air Cleaner House
2015-01 → —
HZB50 —
58257-36050 Plate, Air Cleaner House
2015-01 → —
TRB40,50 —
58257-36070 Plate, Air Cleaner House
2015-01 → —
BB42,BZB40,50 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
