Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe
Discontinued model
Data version 2016-12

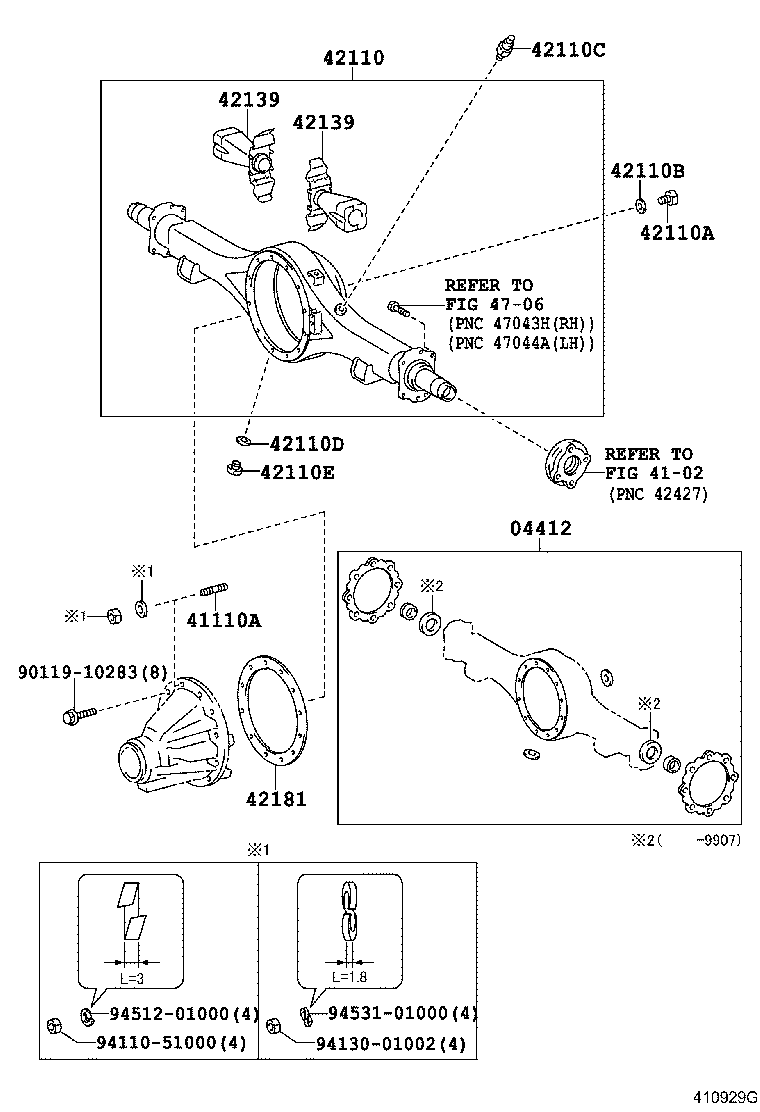

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04412 — Gasket Kit, Rear Differential Carrier | ||||
| 04412-36090 |
Gasket Kit, Rear Differential Carrier
1993-01 → 1999-07
ended
|
BB4#,5#,HZB50,RZB40,50 | — | |
| 04412-36100 |
Gasket Kit, Rear Differential Carrier
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 04412-36100 |
Gasket Kit, Rear Differential Carrier
1999-07 → 2001-08
ended
|
BB50 22S) WOC GEN;BB42,HZB50 +15 | — | |
| 04412-36100 |
Gasket Kit, Rear Differential Carrier
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 04412-36100 |
Gasket Kit, Rear Differential Carrier
1999-07 → 2004-08
ended
|
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 | — | |
| 04412-36120 |
Gasket Kit, Rear Differential Carrier
2004-08 → 2015-01
ended
|
BB42 ZB40 LHD STD +5 | — | |
| 04412-36120 |
Gasket Kit, Rear Differential Carrier
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 04412-36120 |
Gasket Kit, Rear Differential Carrier
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 04412-36120 |
Gasket Kit, Rear Differential Carrier
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 04412-36120 |
Gasket Kit, Rear Differential Carrier
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 04412-36120 |
Gasket Kit, Rear Differential Carrier
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 04412-36120 |
Gasket Kit, Rear Differential Carrier
2004-08 → 2006-08
ended
|
BB59;BB50,58,BZB50 (20S,21S,23S) GEN | — | |
| 04412-36120 |
Gasket Kit, Rear Differential Carrier
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 04412-36120 |
Gasket Kit, Rear Differential Carrier
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# | — | |
| 41110A — Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10082 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
1993-01 → 1999-02
ended
|
BB4#,5#,HZB50,RZB40,50 | — | |
| 90116-10211 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
1999-02 → 1999-07
ended
|
BB4#,5#,HZB50,RZB40,50 | — | |
| 90116-10211 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 90116-10211 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
1999-07 → 2001-08
ended
|
BB50 22S) WOC GEN;BB42,HZB50 +15 | — | |
| 90116-10211 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 90116-10211 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
1999-07 → 2004-08
ended
|
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 | — | |
| 90116-10211 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90116-10211 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2004-08 → 2014-05
ended
|
BB42 ZB40 LHD STD +5 | — | |
| 90116-10211 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 90116-10211 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90116-10211 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90116-10211 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 90116-10211 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 90116-10211 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90116-10226 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2014-06 → 2015-01
ended
|
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# | — | |
| 90116-10226 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# | — | |
| 42110 — Housing Assy, Rear Axle | ||||
| 42110-3B080 |
Housing Assy, Rear Axle
1993-01 → 1999-07
ended
|
BB40,HZB50 19S,22S | — | |
| 42110-3B090 |
Housing Assy, Rear Axle
1993-01 → 1997-05
ended
|
BB42,HZB50,RZB40,50 GCC | — | |
| 42110-3B090 |
Housing Assy, Rear Axle
1997-05 → 1999-07
ended
|
BB50 EX;BB42,43,58,HZB50,RZB40,50 (GCC,GEN,SCO) 5F | — | |
| 42110-3B090 note |
Housing Assy, Rear Axle
1997-05 → 1999-07
ended
|
HZB50 4FC | — | |
| 42110-3B120 |
Housing Assy, Rear Axle
1993-01 → 1999-07
ended
|
BB50,HZB50 IV | — | |
| 42110-3B130 |
Housing Assy, Rear Axle
1993-01 → 1997-05
ended
|
BB42,RZB40,50 GEN,SCO;HZB50 (20S,30S) (GEN,SCO) | — | |
| 42110-3B170 |
Housing Assy, Rear Axle
1997-05 → 1999-07
ended
|
BB50 WC CBU | — | |
| 42110-3B200 |
Housing Assy, Rear Axle
1999-07 → 2003-04
ended
|
BB50 ARL | — | |
| 42110-3B200 |
Housing Assy, Rear Axle
1999-07 → 2001-08
ended
|
HZB50 4FC | — | |
| 42110-3B200 |
Housing Assy, Rear Axle
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 42110-3B210 |
Housing Assy, Rear Axle
1999-07 → 2004-08
ended
|
BB42 RF GCC,GEN;BB42,50 WC +27 | — | |
| 42110-3B210 note |
Housing Assy, Rear Axle
1999-07 → 2001-08
ended
|
HZB50 4FC | — | |
| 42110-3B210 |
Housing Assy, Rear Axle
1999-07 → 2001-08
ended
|
HZB50 N;BB42,HZB50 RHD RHD +10 | — | |
| 42110-3B220 |
Housing Assy, Rear Axle
1999-07 → 2001-08
ended
|
BB50 CBU 6F | — | |
| 42110-3B220 note |
Housing Assy, Rear Axle
2002-11 → 2004-08
ended
|
BB50 ARL | — | |
| 42110-3B220 |
Housing Assy, Rear Axle
1999-07 → 2004-08
ended
|
BB50 GEN 6F TDEFI | — | |
| 42110-3B240 |
Housing Assy, Rear Axle
1999-07 → 2004-08
ended
|
BB50 IV TDEFI | — | |
| 42110-3B240 |
Housing Assy, Rear Axle
1999-07 → 2001-05
ended
|
BB50 IV 6F | — | |
| 42110-3B260 |
Housing Assy, Rear Axle
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 42110-3B260 |
Housing Assy, Rear Axle
1999-07 → 2001-08
ended
|
BB50 WOC 5F | — | |
| 42110-36930 |
Housing Assy, Rear Axle
2004-08 → 2007-08
ended
|
XZB50 STD GEN | — | |
| 42110-36930 |
Housing Assy, Rear Axle
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 | — | |
| 42110-36930 |
Housing Assy, Rear Axle
2005-04 → 2011-08
ended
|
BZB40,50 STD | — | |
| 42110-36930 |
Housing Assy, Rear Axle
2004-08 → 2011-08
ended
|
XZB40,59;XZB50 EX 5F;BB42 LHD +1 | — | |
| 42110-36930 |
Housing Assy, Rear Axle
2004-08 → 2008-01
ended
|
XZB50 GEN 4FC | — | |
| 42110-36930 |
Housing Assy, Rear Axle
2004-08 → 2006-09
ended
|
XZB50 TAIW | — | |
| 42110-36930 |
Housing Assy, Rear Axle
2005-04 → 2005-12
ended
|
BB59;BB50,58,BZB50,RZB40,50 (20S,21S,23S,26S,30S) (GCC,GEN) (EFI,LPG,TDEFI) | — | |
| 42110-36930 |
Housing Assy, Rear Axle
2004-08 → 2004-10
ended
|
BB50,58 17S,20S,23S | — | |
| 42110-36931 |
Housing Assy, Rear Axle
2004-08 → 2006-09
ended
|
XZB50 WOC CBU | — | |
| 42110-36931 |
Housing Assy, Rear Axle
2004-08 → 2004-10
ended
|
BB50 CBU 6F | — | |
| 42110-36931 |
Housing Assy, Rear Axle
2004-08 → 2015-01
ended
|
XZB50 WC ARL | — | |
| 42110-36931 note |
Housing Assy, Rear Axle
2009-08 → 2015-01
ended
|
HZB50,XZB50 LHD HRF WC +1 | — | |
| 42110-36931 |
Housing Assy, Rear Axle
2011-08 → 2015-01
ended
|
BZB40,50,XZB40,5# GEN | — | |
| 42110-36931 note |
Housing Assy, Rear Axle
2012-09 → 2015-01
ended
|
HZB50 WOC;HZB50 SRF WC;HZB50 +2 | — | |
| 42110-3B240 |
Housing Assy, Rear Axle
2004-08 → 2006-08
ended
|
BB50 IV | — | |
| 42110-3B240 |
Housing Assy, Rear Axle
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 42110-3B210 |
Housing Assy, Rear Axle
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 26S,30S | — | |
| 42110-3B220 note |
Housing Assy, Rear Axle
2015-01 → —
|
TRB50 GCC;XZB40,59 HRF;XZB50 (20S,21S) +1 | — | |
| 42110-3B220 note |
Housing Assy, Rear Axle
2015-01 → —
|
HZB50 LHD;XZB50 4FC;BZB40,50,XZB50 STD +1 | — | |
| 42110A — Plug (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
1993-01 → 1999-07
ended
|
BB4#,5#,HZB50,RZB40,50 | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
1999-07 → 2001-08
ended
|
BB50 22S) WOC GEN;BB42,HZB50 +15 | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
1999-07 → 2004-08
ended
|
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2004-08 → 2015-01
ended
|
BB42 ZB40 LHD STD +5 | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# | — | |
| 42110B — Gasket (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
1993-01 → 1999-07
ended
|
BB4#,5#,HZB50,RZB40,50 | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
1999-07 → 2001-08
ended
|
BB50 22S) WOC GEN;BB42,HZB50 +15 | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
1999-07 → 2004-08
ended
|
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2004-08 → 2015-01
ended
|
BB42 ZB40 LHD STD +5 | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# | — | |
| 42110C — Plug, Breather (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
Plug, Breather (FOR REAR AXLE HOUSING)
1993-01 → 1999-07
ended
|
BB4#,5#,HZB50,RZB40,50 | — | |
| 90930-03138 |
Plug, Breather (FOR REAR AXLE HOUSING)
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 90930-03138 |
Plug, Breather (FOR REAR AXLE HOUSING)
1999-07 → 2001-08
ended
|
BB50 22S) WOC GEN;BB42,HZB50 +15 | — | |
| 90930-03138 |
Plug, Breather (FOR REAR AXLE HOUSING)
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 90930-03138 |
Plug, Breather (FOR REAR AXLE HOUSING)
1999-07 → 2004-08
ended
|
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 | — | |
| 90930-03138 |
Plug, Breather (FOR REAR AXLE HOUSING)
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 90930-03138 |
Plug, Breather (FOR REAR AXLE HOUSING)
2004-08 → 2015-01
ended
|
BB42 ZB40 LHD STD +5 | — | |
| 90930-03138 |
Plug, Breather (FOR REAR AXLE HOUSING)
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 90930-03138 |
Plug, Breather (FOR REAR AXLE HOUSING)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90930-03138 |
Plug, Breather (FOR REAR AXLE HOUSING)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90930-03138 |
Plug, Breather (FOR REAR AXLE HOUSING)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90930-03138 |
Plug, Breather (FOR REAR AXLE HOUSING)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 90930-03138 |
Plug, Breather (FOR REAR AXLE HOUSING)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90930-03138 |
Plug, Breather (FOR REAR AXLE HOUSING)
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# | — | |
| 42110D — Gasket (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
1993-01 → 1999-07
ended
|
BB4#,5#,HZB50,RZB40,50 | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
1999-07 → 2001-08
ended
|
BB50 22S) WOC GEN;BB42,HZB50 +15 | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
1999-07 → 2004-08
ended
|
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2004-08 → 2015-01
ended
|
BB42 ZB40 LHD STD +5 | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# | — | |
| 42110E — Plug (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
1993-01 → 1999-07
ended
|
BB4#,5#,HZB50,RZB40,50 | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
1999-07 → 2001-08
ended
|
BB50 22S) WOC GEN;BB42,HZB50 +15 | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
1999-07 → 2004-08
ended
|
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2004-08 → 2015-01
ended
|
BB42 ZB40 LHD STD +5 | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# | — | |
| 42139 — Deflector, Rear Axle Housing Oil | ||||
| 42108-36020 |
Deflector, Rear Axle Housing Oil
1993-01 → 1999-07
ended
|
BB50,HZB50 IV | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
1993-01 → 1997-05
ended
|
BB42,HZB50,RZB40,50 GCC | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
1997-05 → 1999-07
ended
|
BB4#,5#,HZB50,RZB40,50 CBU | — | |
| 42108-36020 |
Deflector, Rear Axle Housing Oil
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 42108-36020 |
Deflector, Rear Axle Housing Oil
1999-07 → 2001-08
ended
|
BB50 WOC 5F | — | |
| 42108-36020 |
Deflector, Rear Axle Housing Oil
1999-07 → 2004-08
ended
|
BB50 IV TDEFI | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
1999-07 → 2004-08
ended
|
BB42 RF RZB50 ,20S,26S) +27 | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
1999-07 → 2001-08
ended
|
BB50 ,HZB50 EX RHD +13 | — | |
| 42108-36020 |
Deflector, Rear Axle Housing Oil
2004-08 → 2006-08
ended
|
BB50 IV | — | |
| 42108-36020 |
Deflector, Rear Axle Housing Oil
2006-08 → 2013-11
ended
|
XZB50 IV | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
2011-08 → 2015-01
ended
|
XZB40,5# GEN | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
2009-08 → 2015-01
ended
|
XZB50 TAIW | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
2006-08 → 2015-01
ended
|
XZB50 WC ARL 5F | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
2005-04 → 2015-01
ended
|
BZB40,50 STD | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;XZB50 +3 | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
2006-08 → 2011-08
ended
|
XZB50 GEN 4FC | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
2004-08 → 2011-08
ended
|
XZB40,59;XZB50 EX 5F;BB42 LHD +1 | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
2005-04 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
2005-04 → 2006-08
ended
|
BB59,BZB50 EX | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
2004-08 → 2006-08
ended
|
BB50,58 CBU TDEFI | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
2005-04 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
2006-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 42108-36050 |
Deflector, Rear Axle Housing Oil
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# | — | |
| 42181 — Gasket, Rear Differential Carrier | ||||
| 42181-36060 |
Gasket, Rear Differential Carrier
1993-01 → 1999-07
ended
|
BB4#,5#,HZB50,RZB40,50 | — | |
| 42181-36060 |
Gasket, Rear Differential Carrier
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 42181-36060 |
Gasket, Rear Differential Carrier
1999-07 → 2004-08
ended
|
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 | — | |
| 42181-36060 |
Gasket, Rear Differential Carrier
1999-07 → 2001-08
ended
|
BB50 22S) WOC GEN;BB42,HZB50 +15 | — | |
| 42181-36060 |
Gasket, Rear Differential Carrier
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 42181-36060 |
Gasket, Rear Differential Carrier
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 42181-36060 |
Gasket, Rear Differential Carrier
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 42181-36060 |
Gasket, Rear Differential Carrier
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 42181-36060 |
Gasket, Rear Differential Carrier
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 42181-36060 |
Gasket, Rear Differential Carrier
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 42181-36060 |
Gasket, Rear Differential Carrier
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 42181-36060 |
Gasket, Rear Differential Carrier
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 42181-36060 |
Gasket, Rear Differential Carrier
2004-08 → 2015-01
ended
|
BB42 ZB40 LHD STD +5 | — | |
| 42181-36060 |
Gasket, Rear Differential Carrier
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
