Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe
Discontinued model
Data version 2016-12

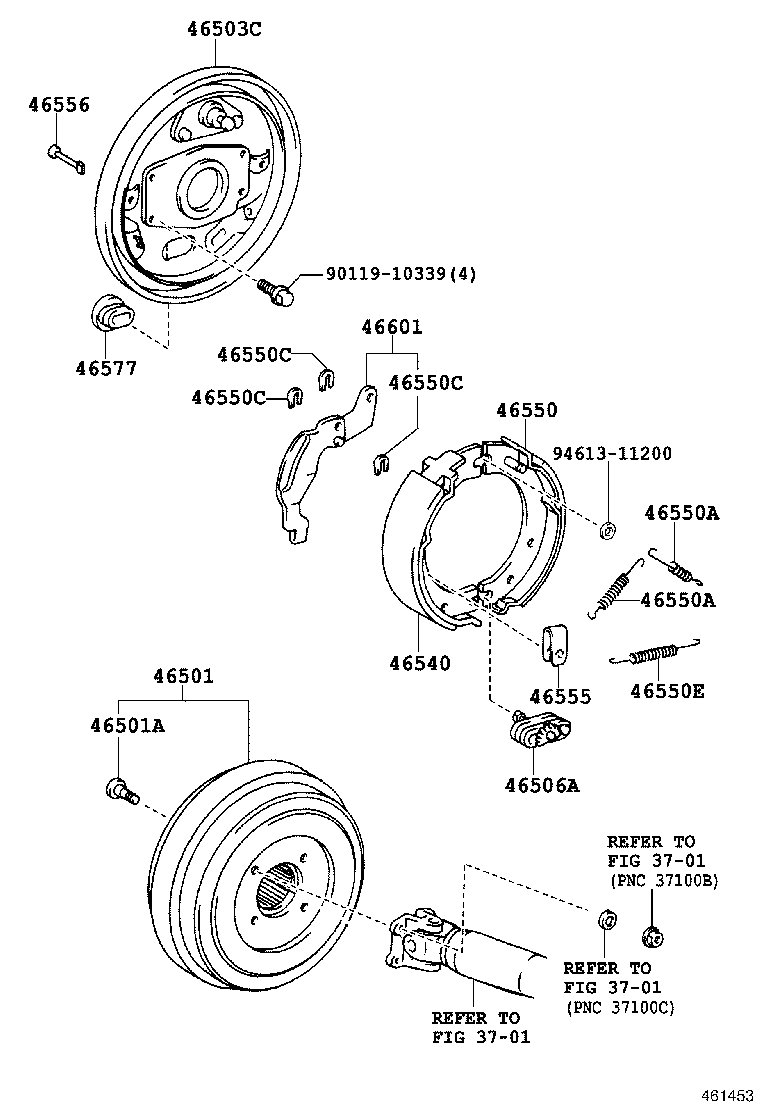

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46501 — Drum Sub-assy, Parking Brake | ||||
| 46501-36170 |
Drum Sub-assy, Parking Brake
1993-01 → 1999-07
ended
|
HZB50 4FC | — | |
| 46501-36190 |
Drum Sub-assy, Parking Brake
1993-01 → 1999-07
ended
|
BB4#,RZB40 | — | |
| 46501-36200 |
Drum Sub-assy, Parking Brake
1993-01 → 1999-07
ended
|
BB5#,HZB50,RZB50 5F | — | |
| 46501-36190 |
Drum Sub-assy, Parking Brake
1999-07 → 2001-08
ended
|
BB42 RHD HRF WOC;BB42,RZB40 +4 | — | |
| 46501-36190 |
Drum Sub-assy, Parking Brake
1999-07 → 2002-11
ended
|
RZB40 CHI | — | |
| 46501-36190 |
Drum Sub-assy, Parking Brake
1999-07 → 2004-08
ended
|
BB42 (17S,26S) WC WC;RZB40 +12 | — | |
| 46501-36210 |
Drum Sub-assy, Parking Brake
1999-07 → 2001-08
ended
|
HZB50 4FC | — | |
| 46501-36220 |
Drum Sub-assy, Parking Brake
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 46501-36220 |
Drum Sub-assy, Parking Brake
1999-07 → 2001-08
ended
|
BB50 EN WOC 5F;BB50 +9 | — | |
| 46501-36220 |
Drum Sub-assy, Parking Brake
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB50 ARL,CHI | — | |
| 46501-36220 |
Drum Sub-assy, Parking Brake
1999-07 → 2004-08
ended
|
HZB50 WC;BB50 (ARL,GEN) LHD +15 | — | |
| 46501-36190 |
Drum Sub-assy, Parking Brake
2004-08 → 2015-01
ended
|
BB42,BZB40,RZB40,TRB40,XZB40 | — | |
| 46501-36210 |
Drum Sub-assy, Parking Brake
2007-08 → 2015-01
ended
|
XZB50 4FC | — | |
| 46501-36220 |
Drum Sub-assy, Parking Brake
2004-08 → 2015-01
ended
|
BB5#,BZB50,HZB50,RZB50,TRB50,XZB5# MTM | — | |
| 46501-36190 |
Drum Sub-assy, Parking Brake
2015-01 → 2016-12
ended
|
XZB40 17S;BB42,BZB40,TRB40 | — | |
| 46501-36210 |
Drum Sub-assy, Parking Brake
2015-01 → 2016-12
ended
|
XZB50 4FC | — | |
| 46501-36220 |
Drum Sub-assy, Parking Brake
2015-01 → 2016-12
ended
|
XZB40 26S;BZB50,HZB50,TRB50,XZB5# 5F | — | |
| 46501A — Bolt, Serration(FOR PARKING BRAKE DRUM) | ||||
| 90114-11124 |
Bolt, Serration(FOR PARKING BRAKE DRUM)
1993-01 → 1999-07
ended
|
BB4#,5#,HZB50,RZB40,50 | — | |
| 90114-11124 |
Bolt, Serration(FOR PARKING BRAKE DRUM)
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 90114-11124 |
Bolt, Serration(FOR PARKING BRAKE DRUM)
1999-07 → 2001-08
ended
|
BB50 22S) WOC GEN;BB42,HZB50 +15 | — | |
| 90114-11124 |
Bolt, Serration(FOR PARKING BRAKE DRUM)
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 90114-11124 |
Bolt, Serration(FOR PARKING BRAKE DRUM)
1999-07 → 2004-08
ended
|
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 | — | |
| 90114-11124 |
Bolt, Serration(FOR PARKING BRAKE DRUM)
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 90114-11124 |
Bolt, Serration(FOR PARKING BRAKE DRUM)
2004-08 → 2015-01
ended
|
BB42 ZB40 LHD STD +5 | — | |
| 90114-11124 |
Bolt, Serration(FOR PARKING BRAKE DRUM)
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 90114-11124 |
Bolt, Serration(FOR PARKING BRAKE DRUM)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90114-11124 |
Bolt, Serration(FOR PARKING BRAKE DRUM)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90114-11124 |
Bolt, Serration(FOR PARKING BRAKE DRUM)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 90114-11124 |
Bolt, Serration(FOR PARKING BRAKE DRUM)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90114-11124 |
Bolt, Serration(FOR PARKING BRAKE DRUM)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90114-11124 |
Bolt, Serration(FOR PARKING BRAKE DRUM)
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# | — | |
| 46503C — Plate Sub-assy, Parking Brake | ||||
| 46503-36022 |
Plate Sub-assy, Parking Brake
1993-01 → 1999-07
ended
|
BB4# RHD | — | |
| 46503-36051 |
Plate Sub-assy, Parking Brake
1993-01 → 1999-07
ended
|
BB42,RZB40 LHD | — | |
| 46503-36060 |
Plate Sub-assy, Parking Brake
1993-01 → 1999-07
ended
|
BB50,HZB50 RHD | — | |
| 46503-36070 |
Plate Sub-assy, Parking Brake
1993-01 → 1996-05
ended
|
HZB50,RZB50 LHD | — | |
| 46503-36071 |
Plate Sub-assy, Parking Brake
1996-05 → 1999-07
ended
|
BB5#,HZB50,RZB50 LHD | — | |
| 46503-36022 |
Plate Sub-assy, Parking Brake
1999-07 → 2004-08
ended
|
BB42 RHD SRF;BB42,BZB40 RHD +1 | — | |
| 46503-36022 |
Plate Sub-assy, Parking Brake
1999-07 → 2001-08
ended
|
BB43;BB42 RHD HRF WOC | — | |
| 46503-36051 |
Plate Sub-assy, Parking Brake
1999-07 → 2004-08
ended
|
BB42 WC GCC;RZB40 WOC +7 | — | |
| 46503-36051 |
Plate Sub-assy, Parking Brake
1999-07 → 2002-11
ended
|
RZB40 CHI | — | |
| 46503-36051 |
Plate Sub-assy, Parking Brake
1999-07 → 2001-08
ended
|
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 | — | |
| 46503-36060 |
Plate Sub-assy, Parking Brake
1999-07 → 2001-08
ended
|
BB50 EX GEN;HZB50 RHD +7 | — | |
| 46503-36060 |
Plate Sub-assy, Parking Brake
1999-07 → 2002-11
ended
|
HZB50 ARL | — | |
| 46503-36060 |
Plate Sub-assy, Parking Brake
1999-07 → 2004-08
ended
|
BB50,59,BZB50 RHD (LPG,TDEFI);HZB50 RHD +5 | — | |
| 46503-36060 |
Plate Sub-assy, Parking Brake
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 46503-36071 |
Plate Sub-assy, Parking Brake
1999-07 → 2004-08
ended
|
BB50 LHD TDEFI;BB50,58,HZB50,RZB50 LHD +2 | — | |
| 46503-36071 |
Plate Sub-assy, Parking Brake
1999-07 → 2001-05
ended
|
BB50 STD WC IV;BB50 +3 | — | |
| 46503-36071 |
Plate Sub-assy, Parking Brake
1999-07 → 2001-08
ended
|
BB50 WOC 5F;BB50 CBU +1 | — | |
| 46503-36071 |
Plate Sub-assy, Parking Brake
1999-07 → 2002-11
ended
|
BB50,RZB50 CHI | — | |
| 46503-36022 |
Plate Sub-assy, Parking Brake
2004-08 → 2015-01
ended
|
BB42,BZB40,XZB40 RHD | — | |
| 46503-36051 |
Plate Sub-assy, Parking Brake
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 46503-36051 |
Plate Sub-assy, Parking Brake
2004-08 → 2015-01
ended
|
TRB40;BB42 LHD SRF | — | |
| 46503-36051 |
Plate Sub-assy, Parking Brake
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 46503-36051 |
Plate Sub-assy, Parking Brake
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 46503-36060 |
Plate Sub-assy, Parking Brake
2004-08 → 2006-08
ended
|
BB50 RHD 6F | — | |
| 46503-36060 |
Plate Sub-assy, Parking Brake
2004-08 → 2005-12
ended
|
BB50,59,BZB50,HZB50 RHD 5F | — | |
| 46503-36071 |
Plate Sub-assy, Parking Brake
2004-08 → 2007-08
ended
|
RZB50 | — | |
| 46503-36071 |
Plate Sub-assy, Parking Brake
2004-08 → 2013-11
ended
|
XZB50 LHD IV | — | |
| 46503-36071 |
Plate Sub-assy, Parking Brake
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 46503-36071 |
Plate Sub-assy, Parking Brake
2004-08 → 2015-01
ended
|
BB50,HZB50,TRB50,XZB50 LHD CBU 5F | — | |
| 46503-37710 |
Plate Sub-assy, Parking Brake
2006-01 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 46503-37710 |
Plate Sub-assy, Parking Brake
2006-01 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 46503-37710 |
Plate Sub-assy, Parking Brake
2006-01 → 2006-08
ended
|
BB59,BZB50 EX;BB50 5F TDEFI | — | |
| 46503-37710 |
Plate Sub-assy, Parking Brake
2006-01 → 2015-01
ended
|
XZB59;BZB50,HZB50 RHD STD;XZB50 RHD +2 | — | |
| 46503-37710 |
Plate Sub-assy, Parking Brake
2006-01 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 46503-36022 |
Plate Sub-assy, Parking Brake
2015-01 → —
|
BB42,BZB40,XZB40 RHD | — | |
| 46503-36051 |
Plate Sub-assy, Parking Brake
2015-01 → —
|
BB42,TRB40 LHD | — | |
| 46503-36071 |
Plate Sub-assy, Parking Brake
2015-01 → —
|
HZB50,TRB50,XZB40,50 LHD | — | |
| 46503-37710 |
Plate Sub-assy, Parking Brake
2015-01 → —
|
BZB50,HZB50,XZB5# RHD | — | |
| 46506A — Adjuster Sub-assy, Parking Brake Shoe | ||||
| 46506-36020 |
Adjuster Sub-assy, Parking Brake Shoe
1993-01 → 1999-07
ended
|
BB4#,RZB40 | — | |
| 46506-36020 |
Adjuster Sub-assy, Parking Brake Shoe
1999-07 → 2001-08
ended
|
BB42 RHD HRF WOC;BB42,RZB40 +4 | — | |
| 46506-36020 |
Adjuster Sub-assy, Parking Brake Shoe
1999-07 → 2002-11
ended
|
BB42 ZB40 WC (17S,26S) +14 | — | |
| 46506-36020 |
Adjuster Sub-assy, Parking Brake Shoe
2002-11 → 2004-08
ended
|
BB42,BZB40,RZB40 | — | |
| 46506-36020 |
Adjuster Sub-assy, Parking Brake Shoe
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 46506-36020 |
Adjuster Sub-assy, Parking Brake Shoe
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 | — | |
| 46506-36020 |
Adjuster Sub-assy, Parking Brake Shoe
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 46506-36020 |
Adjuster Sub-assy, Parking Brake Shoe
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 46506-36020 |
Adjuster Sub-assy, Parking Brake Shoe
2015-01 → —
|
XZB40 17S;BB42,BZB40,TRB40 | — | |
| 46540 — Shoe Assy, Parking Brake, RH OR Center NO.1 | ||||
| 46540-36030 |
Shoe Assy, Parking Brake, RH OR Center NO.1
1993-01 → 1999-07
ended
|
BB4#,RZB40 | — | |
| 46540-37030 |
Shoe Assy, Parking Brake, RH OR Center NO.1
1993-01 → 1999-07
ended
|
BB5#,HZB50,RZB50 | — | |
| 46540-36030 |
Shoe Assy, Parking Brake, RH OR Center NO.1
1999-07 → 2001-08
ended
|
BB42 RHD HRF WOC;BB42,RZB40 +4 | — | |
| 46540-36030 |
Shoe Assy, Parking Brake, RH OR Center NO.1
1999-07 → 2002-11
ended
|
RZB40 CHI | — | |
| 46540-36030 |
Shoe Assy, Parking Brake, RH OR Center NO.1
1999-07 → 2004-08
ended
|
BB42 (17S,26S) WC WC;RZB40 +12 | — | |
| 46540-37030 |
Shoe Assy, Parking Brake, RH OR Center NO.1
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 46540-37030 |
Shoe Assy, Parking Brake, RH OR Center NO.1
1999-07 → 2001-08
ended
|
BB50 50 WOC RHD +12 | — | |
| 46540-37030 |
Shoe Assy, Parking Brake, RH OR Center NO.1
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB50 ARL,CHI | — | |
| 46540-37030 |
Shoe Assy, Parking Brake, RH OR Center NO.1
1999-07 → 2004-08
ended
|
HZB50 WC;BB50 (ARL,GEN) LHD +15 | — | |
| 46540-25010 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 46540-25010 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 | — | |
| 46540-25010 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 46540-25010 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 46540-37030 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2004-08 → 2006-08
ended
|
BB50,58 6F | — | |
| 46540-37030 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2004-08 → 2005-12
ended
|
BB50,59,BZB50,HZB50,RZB50 5F | — | |
| 46540-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2006-01 → 2007-08
ended
|
RZB50 | — | |
| 46540-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2006-01 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 46540-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2006-01 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 46540-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2006-01 → 2013-11
ended
|
XZB50 IV | — | |
| 46540-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2006-01 → 2015-01
ended
|
XZB59;XZB50 (20S,21S) WC;BB50,BZB50,HZB50,TRB50 STD +1 | — | |
| 46540-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2006-01 → 2006-08
ended
|
BB59,BZB50 EX;BB50 5F TDEFI | — | |
| 46540-25010 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2015-01 → —
|
XZB40 17S;BB42,BZB40,TRB40 | — | |
| 46540-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2015-01 → —
|
XZB40 26S;BZB50,HZB50,TRB50,XZB5# | — | |
| 46550 — Shoe Assy, Parking Brake, RH OR Center NO.2 | ||||
| 46550-36030 |
Shoe Assy, Parking Brake, RH OR Center NO.2
1993-01 → 1999-07
ended
|
BB4#,RZB40 | — | |
| 46550-37030 |
Shoe Assy, Parking Brake, RH OR Center NO.2
1993-01 → 1999-07
ended
|
BB5#,HZB50,RZB50 | — | |
| 46550-36030 |
Shoe Assy, Parking Brake, RH OR Center NO.2
1999-07 → 2001-08
ended
|
BB42 RHD HRF WOC;BB42,RZB40 +4 | — | |
| 46550-36030 |
Shoe Assy, Parking Brake, RH OR Center NO.2
1999-07 → 2002-11
ended
|
RZB40 CHI | — | |
| 46550-36030 |
Shoe Assy, Parking Brake, RH OR Center NO.2
1999-07 → 2004-08
ended
|
BB42 (17S,26S) WC WC;RZB40 +12 | — | |
| 46550-37030 |
Shoe Assy, Parking Brake, RH OR Center NO.2
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 46550-37030 |
Shoe Assy, Parking Brake, RH OR Center NO.2
1999-07 → 2001-08
ended
|
BB50 50 WOC RHD +12 | — | |
| 46550-37030 |
Shoe Assy, Parking Brake, RH OR Center NO.2
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB50 ARL,CHI | — | |
| 46550-37030 |
Shoe Assy, Parking Brake, RH OR Center NO.2
1999-07 → 2004-08
ended
|
HZB50 WC;BB50 (ARL,GEN) LHD +15 | — | |
| 46550-25010 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 46550-25010 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 | — | |
| 46550-25010 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 46550-25010 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 46550-37030 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2004-08 → 2006-08
ended
|
BB50,58 6F | — | |
| 46550-37030 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2004-08 → 2005-12
ended
|
BB50,59,BZB50,HZB50,RZB50 5F | — | |
| 46550-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2006-01 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 46550-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2006-01 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 46550-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2006-01 → 2006-08
ended
|
BB59,BZB50 EX;BB50 5F TDEFI | — | |
| 46550-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2006-01 → 2013-11
ended
|
XZB50 IV | — | |
| 46550-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2006-01 → 2015-01
ended
|
XZB59;XZB50 (20S,21S) WC;BB50,BZB50,HZB50,TRB50 STD +1 | — | |
| 46550-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2006-01 → 2007-08
ended
|
RZB50 | — | |
| 46550-25010 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2015-01 → —
|
XZB40 17S;BB42,BZB40,TRB40 | — | |
| 46550-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2015-01 → —
|
XZB40 26S;BZB50,HZB50,TRB50,XZB5# | — | |
| 46550A — Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18012 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
1993-01 → 1999-07
ended
|
BB4#,RZB40 | — | |
| 90905-06020 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
1996-05 → 1999-07
ended
|
BB50 WC CBU;BB50 LHD +1 | — | |
| 90506-18012 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2001-08
ended
|
BB42 RHD HRF WOC;BB42,RZB40 +4 | — | |
| 90506-18012 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2002-11
ended
|
RZB40 CHI | — | |
| 90506-18012 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2004-08
ended
|
BB42 (17S,26S) WC WC;RZB40 +12 | — | |
| 90905-06020 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2001-05
ended
|
BB50 LHD IV 6F | — | |
| 90905-06020 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2001-08
ended
|
BB50 CBU 6F | — | |
| 90905-06020 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2004-08
ended
|
BB50,58 LHD TDEFI | — | |
| 90506-18012 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90506-18012 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 | — | |
| 90506-18012 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90506-18012 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 90905-06020 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90905-06020 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90905-06020 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 90905-06020 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 90905-06020 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2015-01
ended
|
XZB59;XZB50 (20S,21S) WC | — | |
| 90905-06020 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2012-09 → 2015-01
ended
|
BB50,HZB50 LHD | — | |
| 90506-18012 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2015-01 → —
|
XZB40 17S;BB42,BZB40,TRB40 | — | |
| 90905-06020 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2015-01 → —
|
XZB5#;HZB50,XZB40 LHD | — | |
| 46550C — Washer, Type C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
1993-01 → 1999-07
ended
|
BB5#,HZB50,RZB50 | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
1993-01 → 1999-07
ended
|
BB4#,RZB40 | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
1999-07 → 2004-08
ended
|
BB42 (17S,26S) WC WC;RZB40 +12 | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
1999-07 → 2004-08
ended
|
HZB50 WC;BB50 (ARL,GEN) LHD +15 | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
1999-07 → 2002-11
ended
|
RZB40 CHI | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
1999-07 → 2001-08
ended
|
BB42 RHD HRF WOC;BB42,RZB40 +4 | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB50 ARL,CHI | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
1999-07 → 2001-08
ended
|
BB50 50 WOC RHD +12 | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2004-08 → 2015-01
ended
|
XZB59;XZB50 (20S,21S) WC;BB50,BZB50,HZB50,TRB50 STD +1 | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2004-08 → 2007-08
ended
|
RZB50 | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2015-01 → —
|
XZB40 26S;BZB50,HZB50,TRB50,XZB5# | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2015-01 → —
|
XZB40 17S;BB42,BZB40,TRB40 | — | |
| 46550E — Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14048 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1993-01 → 1999-07
ended
|
BB4#,RZB40 | — | |
| 90506-14054 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1993-01 → 1999-07
ended
|
BB50 RHD;BB50 GEN IV;BB58,HZB50,RZB50 | — | |
| 90506-14054 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1996-05 → 1999-07
ended
|
BB50 WC CBU;BB50 LHD +1 | — | |
| 90506-23049 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1996-05 → 1999-07
ended
|
BB50 WC CBU;BB50 LHD +1 | — | |
| 90506-14048 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2001-08
ended
|
BB42 RHD HRF WOC;BB42,RZB40 +4 | — | |
| 90506-14048 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2004-08
ended
|
BB42 (17S,26S) WC WC;RZB40 +12 | — | |
| 90506-14048 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2002-11
ended
|
RZB40 CHI | — | |
| 90506-14054 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2001-08
ended
|
BB50 CBU 6F | — | |
| 90506-14054 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2001-08
ended
|
BB50 22S) WOC GEN +10 | — | |
| 90506-14054 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB50 ARL,CHI | — | |
| 90506-14054 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2001-05
ended
|
BB50 RHD 6F;BB50 STD +3 | — | |
| 90506-14054 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2004-08
ended
|
BB50,58 LHD TDEFI | — | |
| 90506-14054 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2004-08
ended
|
HZB50 WC;BB50 LHD RHD +15 | — | |
| 90506-14054 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2001-05
ended
|
BB50 LHD IV 6F | — | |
| 90506-23049 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2001-08
ended
|
BB50 CBU 6F | — | |
| 90506-23049 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2001-05
ended
|
BB50 LHD IV 6F | — | |
| 90506-23049 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1999-07 → 2004-08
ended
|
BB50,58 LHD TDEFI | — | |
| 90506-14048 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90506-14048 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 | — | |
| 90506-14048 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 90506-14048 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90506-14054 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2015-01
ended
|
TRB50;BZB50,HZB50 RHD STD | — | |
| 90506-14054 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2012-09 → 2015-01
ended
|
BB50,HZB50 LHD | — | |
| 90506-14054 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2015-01
ended
|
XZB59;XZB50 (20S,21S) WC | — | |
| 90506-14054 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 90506-14054 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2012-09
ended
|
BB50,HZB50 LHD 5F | — | |
| 90506-14054 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 90506-14054 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90506-14054 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90506-14054 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2007-08
ended
|
RZB50 | — | |
| 90506-14054 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 90506-23049 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90506-23049 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 90506-23049 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 90506-23049 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2015-01
ended
|
XZB59;XZB50 (20S,21S) WC | — | |
| 90506-23049 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2012-09 → 2015-01
ended
|
BB50,HZB50 LHD | — | |
| 90506-23049 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90506-14048 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2015-01 → —
|
XZB40 17S;BB42,BZB40,TRB40 | — | |
| 90506-14054 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2015-01 → —
|
TRB50;BZB50,HZB50 RHD | — | |
| 90506-14054 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2015-01 → —
|
XZB5#;HZB50,XZB40 LHD | — | |
| 90506-23049 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2015-01 → —
|
XZB5#;HZB50,XZB40 LHD | — | |
| 46555 — Spring, Brake Shoe Hold Down | ||||
| 46555-35010 |
Spring, Brake Shoe Hold Down
1993-01 → 1999-07
ended
|
BB4#,RZB40 | — | |
| 90501-16108 |
Spring, Brake Shoe Hold Down
1993-01 → 1999-07
ended
|
BB5#,HZB50,RZB50 | — | |
| 46555-35010 |
Spring, Brake Shoe Hold Down
1999-07 → 2001-08
ended
|
BB42 RHD HRF WOC;BB42,RZB40 +4 | — | |
| 46555-35010 |
Spring, Brake Shoe Hold Down
1999-07 → 2002-11
ended
|
RZB40 CHI | — | |
| 46555-35010 |
Spring, Brake Shoe Hold Down
1999-07 → 2004-08
ended
|
BB42 (17S,26S) WC WC;RZB40 +12 | — | |
| 90501-16108 |
Spring, Brake Shoe Hold Down
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 90501-16108 |
Spring, Brake Shoe Hold Down
1999-07 → 2001-08
ended
|
BB50 50 WOC RHD +12 | — | |
| 90501-16108 |
Spring, Brake Shoe Hold Down
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB50 ARL,CHI | — | |
| 90501-16108 |
Spring, Brake Shoe Hold Down
1999-07 → 2004-08
ended
|
HZB50 WC;BB50 (ARL,GEN) LHD +15 | — | |
| 46555-35010 |
Spring, Brake Shoe Hold Down
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 | — | |
| 46555-35010 |
Spring, Brake Shoe Hold Down
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 46555-35010 |
Spring, Brake Shoe Hold Down
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 46555-35010 |
Spring, Brake Shoe Hold Down
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 90501-16108 |
Spring, Brake Shoe Hold Down
2004-08 → 2007-08
ended
|
RZB50 | — | |
| 90501-16108 |
Spring, Brake Shoe Hold Down
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90501-16108 |
Spring, Brake Shoe Hold Down
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90501-16108 |
Spring, Brake Shoe Hold Down
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 90501-16108 |
Spring, Brake Shoe Hold Down
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 90501-16108 |
Spring, Brake Shoe Hold Down
2004-08 → 2015-01
ended
|
XZB59;XZB50 (20S,21S) WC;BB50,BZB50,HZB50,TRB50 STD +1 | — | |
| 46555-35010 |
Spring, Brake Shoe Hold Down
2015-01 → —
|
XZB40 17S;BB42,BZB40,TRB40 | — | |
| 90501-16108 |
Spring, Brake Shoe Hold Down
2015-01 → —
|
XZB40 26S;BZB50,HZB50,TRB50,XZB5# | — | |
| 46556 — Pin, Shoe Hold Down Spring | ||||
| 46556-35010 |
Pin, Shoe Hold Down Spring
1993-01 → 1999-07
ended
|
BB4#,RZB40 | — | |
| 47447-20030 |
Pin, Shoe Hold Down Spring
1993-01 → 1999-07
ended
|
BB5#,HZB50,RZB50 | — | |
| 46556-35010 |
Pin, Shoe Hold Down Spring
1999-07 → 2001-08
ended
|
BB42 RHD HRF WOC;BB42,RZB40 +4 | — | |
| 46556-35010 |
Pin, Shoe Hold Down Spring
1999-07 → 2004-08
ended
|
BB42 (17S,26S) WC WC;RZB40 +12 | — | |
| 46556-35010 |
Pin, Shoe Hold Down Spring
1999-07 → 2002-11
ended
|
RZB40 CHI | — | |
| 47447-20030 |
Pin, Shoe Hold Down Spring
1999-07 → 2004-08
ended
|
HZB50 WC;BB50 (ARL,GEN) LHD +15 | — | |
| 47447-20030 |
Pin, Shoe Hold Down Spring
1999-07 → 2001-08
ended
|
BB50 50 WOC RHD +12 | — | |
| 47447-20030 |
Pin, Shoe Hold Down Spring
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 47447-20030 |
Pin, Shoe Hold Down Spring
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB50 ARL,CHI | — | |
| 46556-35010 |
Pin, Shoe Hold Down Spring
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 46556-35010 |
Pin, Shoe Hold Down Spring
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 46556-35010 |
Pin, Shoe Hold Down Spring
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 | — | |
| 46556-35010 |
Pin, Shoe Hold Down Spring
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 47447-20030 |
Pin, Shoe Hold Down Spring
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 47447-20030 |
Pin, Shoe Hold Down Spring
2004-08 → 2015-01
ended
|
XZB59;XZB50 (20S,21S) WC;BB50,BZB50,HZB50,TRB50 STD +1 | — | |
| 47447-20030 |
Pin, Shoe Hold Down Spring
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 47447-20030 |
Pin, Shoe Hold Down Spring
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 47447-20030 |
Pin, Shoe Hold Down Spring
2004-08 → 2007-08
ended
|
RZB50 | — | |
| 47447-20030 |
Pin, Shoe Hold Down Spring
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 46556-35010 |
Pin, Shoe Hold Down Spring
2015-01 → —
|
XZB40 17S;BB42,BZB40,TRB40 | — | |
| 47447-20030 |
Pin, Shoe Hold Down Spring
2015-01 → —
|
XZB40 26S;BZB50,HZB50,TRB50,XZB5# | — | |
| 46577 — Cover, Adjusting Cam Hole | ||||
| 46577-36010 |
Cover, Adjusting Cam Hole
1993-01 → 1999-07
ended
|
BB4#,RZB40 | — | |
| 46577-36010 |
Cover, Adjusting Cam Hole
1999-07 → 2001-08
ended
|
BB42 RHD HRF WOC;BB42,RZB40 +4 | — | |
| 46577-36010 |
Cover, Adjusting Cam Hole
1999-07 → 2002-11
ended
|
BB42 ZB40 WC (17S,26S) +14 | — | |
| 46577-36010 |
Cover, Adjusting Cam Hole
2002-11 → 2004-08
ended
|
BB42,BZB40,RZB40 | — | |
| 46577-36010 |
Cover, Adjusting Cam Hole
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 | — | |
| 46577-36010 |
Cover, Adjusting Cam Hole
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 46577-36010 |
Cover, Adjusting Cam Hole
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 46577-36010 |
Cover, Adjusting Cam Hole
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 46577-36010 |
Cover, Adjusting Cam Hole
2015-01 → —
|
XZB40 17S;BB42,BZB40,TRB40 | — | |
| 46601 — Lever Sub-assy, Parking Brake Shoe | ||||
| 46601-25011 |
Lever Sub-assy, Parking Brake Shoe
1993-01 → 1999-07
ended
|
BB4# RHD | — | |
| 46601-36051 |
Lever Sub-assy, Parking Brake Shoe
1993-01 → 1999-07
ended
|
BB50,HZB50 RHD | — | |
| 46601-36060 |
Lever Sub-assy, Parking Brake Shoe
1993-01 → 1996-05
ended
|
HZB50,RZB50 LHD | — | |
| 46601-36061 |
Lever Sub-assy, Parking Brake Shoe
1996-05 → 1999-07
ended
|
BB5#,HZB50,RZB50 LHD | — | |
| 46601-36070 |
Lever Sub-assy, Parking Brake Shoe
1993-01 → 1999-07
ended
|
BB42,RZB40 LHD | — | |
| 46601-25011 |
Lever Sub-assy, Parking Brake Shoe
1999-07 → 2001-08
ended
|
BB43;BB42 RHD HRF WOC | — | |
| 46601-25011 |
Lever Sub-assy, Parking Brake Shoe
1999-07 → 2004-08
ended
|
BB42 RHD SRF;BB42,BZB40 RHD +1 | — | |
| 46601-36051 |
Lever Sub-assy, Parking Brake Shoe
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 46601-36051 |
Lever Sub-assy, Parking Brake Shoe
1999-07 → 2001-08
ended
|
BB50 EX GEN;HZB50 RHD +7 | — | |
| 46601-36051 |
Lever Sub-assy, Parking Brake Shoe
1999-07 → 2004-08
ended
|
BB50,59,BZB50 RHD (LPG,TDEFI);HZB50 RHD +5 | — | |
| 46601-36051 |
Lever Sub-assy, Parking Brake Shoe
1999-07 → 2002-11
ended
|
HZB50 ARL | — | |
| 46601-36061 |
Lever Sub-assy, Parking Brake Shoe
1999-07 → 2004-08
ended
|
BB50 LHD TDEFI;BB50,58,HZB50,RZB50 LHD +2 | — | |
| 46601-36061 |
Lever Sub-assy, Parking Brake Shoe
1999-07 → 2001-08
ended
|
BB50 WOC 5F;BB50 CBU +1 | — | |
| 46601-36061 |
Lever Sub-assy, Parking Brake Shoe
1999-07 → 2001-05
ended
|
BB50 STD WC IV;BB50 +3 | — | |
| 46601-36061 |
Lever Sub-assy, Parking Brake Shoe
1999-07 → 2002-11
ended
|
BB50,RZB50 CHI | — | |
| 46601-36070 |
Lever Sub-assy, Parking Brake Shoe
1999-07 → 2002-11
ended
|
RZB40 CHI | — | |
| 46601-36070 |
Lever Sub-assy, Parking Brake Shoe
1999-07 → 2001-08
ended
|
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 | — | |
| 46601-36070 |
Lever Sub-assy, Parking Brake Shoe
1999-07 → 2004-08
ended
|
BB42 WC GCC;RZB40 WOC +7 | — | |
| 46601-25011 |
Lever Sub-assy, Parking Brake Shoe
2004-08 → 2015-01
ended
|
BB42,BZB40,XZB40 RHD | — | |
| 46601-36051 |
Lever Sub-assy, Parking Brake Shoe
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 46601-36051 |
Lever Sub-assy, Parking Brake Shoe
2004-08 → 2015-01
ended
|
XZB59;BZB50,HZB50 RHD STD;XZB50 RHD +2 | — | |
| 46601-36051 |
Lever Sub-assy, Parking Brake Shoe
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 46601-36051 |
Lever Sub-assy, Parking Brake Shoe
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 46601-36051 |
Lever Sub-assy, Parking Brake Shoe
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 46601-36061 |
Lever Sub-assy, Parking Brake Shoe
2004-08 → 2007-08
ended
|
RZB50 | — | |
| 46601-36061 |
Lever Sub-assy, Parking Brake Shoe
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 46601-36061 |
Lever Sub-assy, Parking Brake Shoe
2004-08 → 2013-11
ended
|
XZB50 LHD IV | — | |
| 46601-36061 |
Lever Sub-assy, Parking Brake Shoe
2004-08 → 2015-01
ended
|
BB50,HZB50,TRB50,XZB50 LHD CBU 5F | — | |
| 46601-36070 |
Lever Sub-assy, Parking Brake Shoe
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 46601-36070 |
Lever Sub-assy, Parking Brake Shoe
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 46601-36070 |
Lever Sub-assy, Parking Brake Shoe
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 46601-36070 |
Lever Sub-assy, Parking Brake Shoe
2004-08 → 2015-01
ended
|
TRB40;BB42 LHD SRF | — | |
| 46601-25011 |
Lever Sub-assy, Parking Brake Shoe
2015-01 → —
|
BB42,BZB40,XZB40 RHD | — | |
| 46601-36051 |
Lever Sub-assy, Parking Brake Shoe
2015-01 → —
|
BZB50,HZB50,XZB5# RHD | — | |
| 46601-36061 |
Lever Sub-assy, Parking Brake Shoe
2015-01 → —
|
HZB50,TRB50,XZB40,50 LHD | — | |
| 46601-36070 |
Lever Sub-assy, Parking Brake Shoe
2015-01 → —
|
BB42,TRB40 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
