Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

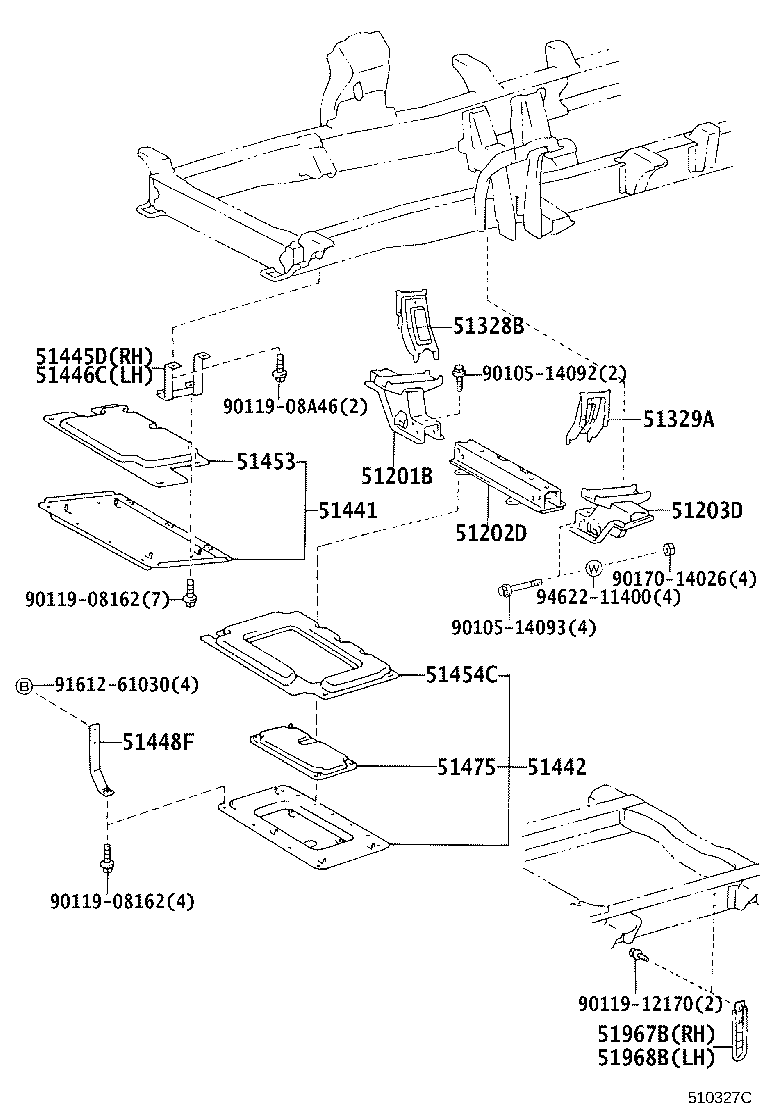

Exploded illustration 510327C 51445D — BRACKET, ENGINE UNDER COVER, RH (9 parts) 51446C — BRACKET, ENGINE UNDER COVER, LH (13 parts) 51453 — SILENCER, ENGINE UNDER COVER, FRONT (8 parts) 51441 — COVER, ENGINE UNDER, NO.1 (38 parts) 51448F — BRACKET, OIL PAN PROTECTOR SIDE (3 parts) 51454C — SILENCER, ENGINE UNDER COVER, REAR (1 parts) 51475 — SILENCER, ENGINE UNDER COVER, NO.5 (1 parts) 51442 — COVER, ENGINE UNDER, NO.2 (6 parts) 9011908162 — not listed in this catalogue 9011908A46 — not listed in this catalogue 51201B — CROSSMEMBER SUB-ASSY, FRONT SUSPENSION, RH (14 parts) 51202D — CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER (18 parts) 51328B — SUPPORT, FRONT SUSPENSION MEMBER, RH (14 parts) 9010514092 — not listed in this catalogue 9010514093 — not listed in this catalogue 51329A — SUPPORT, FRONT SUSPENSION MEMBER, LH (14 parts) 51203D — CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LH (14 parts) 9017014026 — not listed in this catalogue 9462211400 — not listed in this catalogue 9011912170 — not listed in this catalogue 9011908162 — not listed in this catalogue 9161261030 — not listed in this catalogue 51968B — HOOK, TRANSPORT, REAR LH (7 parts) 51967B — HOOK, TRANSPORT, REAR RH (7 parts)
510327C · 15 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
167 parts on this figure
Part number Description Fitment Price
51201B — Crossmember Sub-assy, Front Suspension, RH
51201-36160 Crossmember Sub-assy, Front Suspension, RH
1993-01 → 1999-07 ended
BB50 EX;BB50 LHD;BB4#,58,HZB50,RZB40,50 —
51201-36160 Crossmember Sub-assy, Front Suspension, RH
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
51201-36160 Crossmember Sub-assy, Front Suspension, RH
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
51201-36160 Crossmember Sub-assy, Front Suspension, RH
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
51201-36160 Crossmember Sub-assy, Front Suspension, RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
51201-36160 Crossmember Sub-assy, Front Suspension, RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
51201-36160 Crossmember Sub-assy, Front Suspension, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
51201-36160 Crossmember Sub-assy, Front Suspension, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
51201-36160 Crossmember Sub-assy, Front Suspension, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
51201-36160 Crossmember Sub-assy, Front Suspension, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
51201-36160 Crossmember Sub-assy, Front Suspension, RH
2004-08 → 2013-11 ended
XZB50 IV —
51201-36160 Crossmember Sub-assy, Front Suspension, RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
51201-36160 Crossmember Sub-assy, Front Suspension, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
51201-36160 Crossmember Sub-assy, Front Suspension, RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
51202D — Crossmenber Sub-assy, Front Suspension, Lower
51202-36170 Crossmenber Sub-assy, Front Suspension, Lower
1993-01 → 1999-07 ended
BB50 EX;BB50 LHD;BB4#,58,HZB50,RZB40,50 —
51202-36170 Crossmenber Sub-assy, Front Suspension, Lower
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
51202-36170 Crossmenber Sub-assy, Front Suspension, Lower
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
51202-36170 Crossmenber Sub-assy, Front Suspension, Lower
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
51202-36170 Crossmenber Sub-assy, Front Suspension, Lower
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
51202-36170 Crossmenber Sub-assy, Front Suspension, Lower
2004-08 → 2006-02 ended
RZB40 HRF GCC —
51202-36170 Crossmenber Sub-assy, Front Suspension, Lower
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
51202-36170 Crossmenber Sub-assy, Front Suspension, Lower
2004-08 → 2007-07 ended
RZB40 DSL,EFI,LPG,TD) SRF GCC;RZB40,XZB5# +3 —
51202-36171 Crossmenber Sub-assy, Front Suspension, Lower
2007-08 → 2015-01 ended
XZB50 21S WC —
51202-36171 Crossmenber Sub-assy, Front Suspension, Lower
2007-08 → 2013-11 ended
XZB50 IV —
51202-36171 Crossmenber Sub-assy, Front Suspension, Lower
2007-08 → 2011-08 ended
BB42 LHD HRF —
51202-36171 Crossmenber Sub-assy, Front Suspension, Lower
2007-08 → 2009-08 ended
XZB50 WOC CBU —
51202-36171 Crossmenber Sub-assy, Front Suspension, Lower
2007-08 → 2008-03 ended
XZB50 STD GEN —
51202-36171 Crossmenber Sub-assy, Front Suspension, Lower
2007-08 → 2013-02 ended
BB42 LHD SRF;BB42,XZB50 RHD +1 —
51202-36220 Crossmenber Sub-assy, Front Suspension, Lower
2013-02 → 2015-01 ended
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# GCC,GEN —
51202-36171 Crossmenber Sub-assy, Front Suspension, Lower
2015-01 → —
XZB50 21S —
51202-36171 note Crossmenber Sub-assy, Front Suspension, Lower
2015-01 → —
XZB50 STD GEN —
51202-36220 Crossmenber Sub-assy, Front Suspension, Lower
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# GCC,GEN —
51203D — Crossmenber Sub-assy, Front Suspension, LH
51203-36330 Crossmenber Sub-assy, Front Suspension, LH
1993-01 → 1999-07 ended
BB50 EX;BB50 LHD;BB4#,58,HZB50,RZB40,50 —
51203-36330 Crossmenber Sub-assy, Front Suspension, LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
51203-36330 Crossmenber Sub-assy, Front Suspension, LH
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
51203-36330 Crossmenber Sub-assy, Front Suspension, LH
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
51203-36330 Crossmenber Sub-assy, Front Suspension, LH
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
51203-36330 Crossmenber Sub-assy, Front Suspension, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
51203-36330 Crossmenber Sub-assy, Front Suspension, LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
51203-36330 Crossmenber Sub-assy, Front Suspension, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
51203-36330 Crossmenber Sub-assy, Front Suspension, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
51203-36330 Crossmenber Sub-assy, Front Suspension, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
51203-36330 Crossmenber Sub-assy, Front Suspension, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
51203-36330 Crossmenber Sub-assy, Front Suspension, LH
2004-08 → 2013-11 ended
XZB50 IV —
51203-36330 Crossmenber Sub-assy, Front Suspension, LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
51203-36330 Crossmenber Sub-assy, Front Suspension, LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
51328B — Support, Front Suspension Member, RH
51328-36020 Support, Front Suspension Member, RH
1993-01 → 1999-07 ended
BB50 EX;BB50 LHD;BB4#,58,HZB50,RZB40,50 —
51328-36020 Support, Front Suspension Member, RH
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
51328-36020 Support, Front Suspension Member, RH
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
51328-36020 Support, Front Suspension Member, RH
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
51328-36020 Support, Front Suspension Member, RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
51328-36020 Support, Front Suspension Member, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
51328-36020 Support, Front Suspension Member, RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
51328-36020 Support, Front Suspension Member, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
51328-36020 Support, Front Suspension Member, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
51328-36020 Support, Front Suspension Member, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
51328-36020 Support, Front Suspension Member, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
51328-36020 Support, Front Suspension Member, RH
2004-08 → 2013-11 ended
XZB50 IV —
51328-36020 Support, Front Suspension Member, RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
51328-36020 Support, Front Suspension Member, RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
51329A — Support, Front Suspension Member, LH
51329-36010 Support, Front Suspension Member, LH
1993-01 → 1999-07 ended
BB50 EX;BB50 LHD;BB4#,58,HZB50,RZB40,50 —
51329-36010 Support, Front Suspension Member, LH
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
51329-36010 Support, Front Suspension Member, LH
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
51329-36010 Support, Front Suspension Member, LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
51329-36010 Support, Front Suspension Member, LH
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
51329-36010 Support, Front Suspension Member, LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
51329-36010 Support, Front Suspension Member, LH
2004-08 → 2013-11 ended
XZB50 IV —
51329-36010 Support, Front Suspension Member, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
51329-36010 Support, Front Suspension Member, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
51329-36010 Support, Front Suspension Member, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
51329-36010 Support, Front Suspension Member, LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
51329-36010 Support, Front Suspension Member, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
51329-36010 Support, Front Suspension Member, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
51329-36010 Support, Front Suspension Member, LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
51441 — Cover, Engine Under, NO.1
51410-36010 Cover, Engine Under, NO.1
1997-05 → 1999-07 ended
BB50 WC CBU —
51441-36240 Cover, Engine Under, NO.1
1996-05 → 1999-07 ended
BB50 EUR —
51441-36250 Cover, Engine Under, NO.1
1993-01 → 1993-08 ended
HZB50 —
51441-36250 Cover, Engine Under, NO.1
1993-08 → 1997-05 ended
HZB50,RZB40,50 CBU —
51441-36251 Cover, Engine Under, NO.1
1997-05 → 1999-07 ended
BB50 EX;BB50 GEN IV;BB43,58,HZB50,RZB40,50 —
51441-36280 Cover, Engine Under, NO.1
1993-01 → 1997-05 ended
BB4# —
51441-36281 Cover, Engine Under, NO.1
1997-05 → 1999-07 ended
BB40,42 —
51441-36290 Cover, Engine Under, NO.1
1993-08 → 1996-05 ended
HZB50 TD —
51405-36030 Cover, Engine Under, NO.1
1999-07 → 2001-08 ended
BB50 CBU 6F —
51405-36031 Cover, Engine Under, NO.1
2001-08 → 2004-08 ended
BB50 GEN 6F —
51441-36252 Cover, Engine Under, NO.1
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
51441-36252 Cover, Engine Under, NO.1
1999-07 → 2001-08 ended
BB50 50 WOC RHD +14 —
51441-36252 Cover, Engine Under, NO.1
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
51441-36252 Cover, Engine Under, NO.1
1999-07 → 2004-08 ended
BB50 59,BZB50,RZB50 WC EX +18 —
51441-36282 Cover, Engine Under, NO.1
1999-07 → 2001-08 ended
BB42 22S;BB42 WOC GCC;BB42 +3 —
51441-36282 Cover, Engine Under, NO.1
1999-07 → 2004-08 ended
BB42 WC GCC;BB42 SRF +7 —
51441-36310 Cover, Engine Under, NO.1
1999-07 → 2001-05 ended
BB50 IV 6F —
51441-36310 Cover, Engine Under, NO.1
1999-07 → 2001-08 ended
BB5# TDEFI —
51441-36311 Cover, Engine Under, NO.1
2001-08 → 2004-08 ended
BB58;BB50 ARL,EUR —
51405-36031 Cover, Engine Under, NO.1
2004-08 → 2006-08 ended
BB50 GEN 6F —
51441-36252 Cover, Engine Under, NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
51441-36252 Cover, Engine Under, NO.1
2009-08 → 2015-01 ended
XZB50 GEN 4FC —
51441-36252 Cover, Engine Under, NO.1
2004-08 → 2015-01 ended
XZB50 EX 5F;BB50,HZB50,TRB40,50,XZB40,59 DCR,DSL,EFI,TD —
51441-36252 Cover, Engine Under, NO.1
2004-08 → 2009-08 ended
BZB50 STD —
51441-36252 Cover, Engine Under, NO.1
2004-08 → 2008-03 ended
XZB50 STD GEN —
51441-36252 Cover, Engine Under, NO.1
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
51441-36252 Cover, Engine Under, NO.1
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 5F TDEFI —
51441-36282 Cover, Engine Under, NO.1
2004-08 → 2009-07 ended
XZB50 GEN 4FC —
51441-36282 Cover, Engine Under, NO.1
2004-08 → 2011-08 ended
BB42 LHD HRF —
51441-36282 Cover, Engine Under, NO.1
2004-08 → 2015-01 ended
BB42 LHD SRF;BB42,BZB40 RHD —
51441-36282 Cover, Engine Under, NO.1
2009-08 → 2015-01 ended
BZB50 —
51441-36311 Cover, Engine Under, NO.1
2004-08 → 2009-08 ended
XZB50 WOC CBU —
51441-36311 Cover, Engine Under, NO.1
2004-08 → 2013-11 ended
XZB50 IV —
51441-36311 Cover, Engine Under, NO.1
2004-08 → 2006-08 ended
BB58;BB50 ARL,EUR —
51441-36311 Cover, Engine Under, NO.1
2004-08 → 2015-01 ended
XZB50 21S WC —
51441-36252 Cover, Engine Under, NO.1
2015-01 → —
HZB50,TRB40,50,XZB40,5# GCC,GEN —
51441-36282 Cover, Engine Under, NO.1
2015-01 → —
BB42,BZB40,50 —
51441-36350 Cover, Engine Under, NO.1
2015-01 → —
XZB50 21S —
51442 — Cover, Engine Under, NO.2
51406-36080 Cover, Engine Under, NO.2
1993-04 → 1999-07 ended
HZB50 ARL —
51406-36080 Cover, Engine Under, NO.2
1993-01 → 1993-04 ended
HZB50 ARL,EUR —
51420-36010 Cover, Engine Under, NO.2
1997-05 → 1999-07 ended
BB50 WC CBU —
51442-36020 Cover, Engine Under, NO.2
1996-05 → 1999-07 ended
BB50 EUR —
51442-36030 Cover, Engine Under, NO.2
1993-04 → 1996-05 ended
HZB50 TD —
51406-36080 Cover, Engine Under, NO.2
1999-07 → 2002-11 ended
HZB50 ARL —
51445D — Bracket, Engine Under Cover, RH
51445-36080 Bracket, Engine Under Cover, RH
1996-05 → 1999-07 ended
BB50 EUR;BB50 WC CBU —
51445-36080 Bracket, Engine Under Cover, RH
1999-07 → 2004-08 ended
BB50,58 6F TDEFI —
51445-36080 Bracket, Engine Under Cover, RH
1999-07 → 2001-08 ended
BB50 CBU 6F —
51445-36080 Bracket, Engine Under Cover, RH
1999-07 → 2001-05 ended
BB50 IV 6F —
51445-36080 Bracket, Engine Under Cover, RH
2004-08 → 2006-08 ended
BB50,58 6F —
51445-36080 Bracket, Engine Under Cover, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
51445-36080 Bracket, Engine Under Cover, RH
2004-08 → 2013-11 ended
XZB50 IV —
51445-36080 Bracket, Engine Under Cover, RH
2004-08 → 2015-01 ended
XZB50 21S WC —
51445-36080 Bracket, Engine Under Cover, RH
2015-01 → —
XZB50 21S —
51446C — Bracket, Engine Under Cover, LH
51446-36060 Bracket, Engine Under Cover, LH
1996-05 → 1999-07 ended
BB50 EUR;BB50 WC CBU —
51446-36060 Bracket, Engine Under Cover, LH
1999-07 → 2004-08 ended
BB50,58 6F TDEFI —
51446-36060 Bracket, Engine Under Cover, LH
1999-07 → 2001-08 ended
BB50 CBU 6F —
51446-36060 Bracket, Engine Under Cover, LH
1999-07 → 2001-05 ended
BB50 IV 6F —
51446-36060 Bracket, Engine Under Cover, LH
2004-08 → 2006-08 ended
BB50,58 6F —
51446-36060 Bracket, Engine Under Cover, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
51446-36060 Bracket, Engine Under Cover, LH
2004-08 → 2013-11 ended
XZB50 IV —
51446-36060 Bracket, Engine Under Cover, LH
2004-08 → 2015-01 ended
XZB50 21S WC 5F —
51446-36070 Bracket, Engine Under Cover, LH
2007-08 → 2015-01 ended
XZB50 ARL 4FC —
51446-36080 Bracket, Engine Under Cover, LH
2007-08 → 2015-01 ended
XZB50 GEN 4FC —
51446-36060 Bracket, Engine Under Cover, LH
2015-01 → —
XZB50 21S 5F —
51446-36070 Bracket, Engine Under Cover, LH
2015-01 → —
XZB50 ARL 4FC —
51446-36080 Bracket, Engine Under Cover, LH
2015-01 → —
XZB50 GEN 4FC —
51448F — Bracket, Oil Pan Protector Side
51448-36050 Bracket, Oil Pan Protector Side
1993-01 → 1999-07 ended
HZB50 ARL,EUR —
51448-36060 Bracket, Oil Pan Protector Side
1996-05 → 1999-07 ended
BB50 EUR;BB50 WC CBU —
51448-36050 Bracket, Oil Pan Protector Side
1999-07 → 2002-11 ended
HZB50 ARL —
51453 — Silencer, Engine Under Cover, Front
51453-36030 Silencer, Engine Under Cover, Front
1993-01 → 1993-04 ended
HZB50 ARL,EUR —
51453-36030 Silencer, Engine Under Cover, Front
1993-04 → 1999-07 ended
HZB50 ARL —
51453-36060 Silencer, Engine Under Cover, Front
1996-05 → 1999-07 ended
BB50 EUR;BB50 WC CBU —
51453-36030 Silencer, Engine Under Cover, Front
1999-07 → 2002-11 ended
HZB50 ARL —
51453-36070 Silencer, Engine Under Cover, Front
1999-07 → 2004-08 ended
BB50 IV TDEFI —
51453-36070 Silencer, Engine Under Cover, Front
1999-07 → 2001-05 ended
BB50 IV 6F —
51453-36070 Silencer, Engine Under Cover, Front
2004-08 → 2006-08 ended
BB50 (EUR,GEN) 6F —
51453-36070 Silencer, Engine Under Cover, Front
2004-08 → 2013-11 ended
XZB50 IV —
51454C — Silencer, Engine Under Cover, Rear
51454-36060 Silencer, Engine Under Cover, Rear
1996-05 → 1999-07 ended
BB50 EUR;BB50 WC CBU —
51475 — Silencer, Engine Under Cover, NO.5
51475-36010 Silencer, Engine Under Cover, NO.5
1996-05 → 1999-07 ended
BB50 EUR;BB50 WC CBU —
51967B — Hook, Transport, Rear RH
51963-36060 Hook, Transport, Rear RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
51963-36060 Hook, Transport, Rear RH
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
51963-36060 Hook, Transport, Rear RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
51963-36060 Hook, Transport, Rear RH
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
51963-36060 Hook, Transport, Rear RH
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
51963-36060 Hook, Transport, Rear RH
2004-08 → 2015-01 ended
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# —
51963-36060 Hook, Transport, Rear RH
2015-01 → 2016-12 ended
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
51968B — Hook, Transport, Rear LH
51963-36060 Hook, Transport, Rear LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
51963-36060 Hook, Transport, Rear LH
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
51963-36060 Hook, Transport, Rear LH
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
51963-36060 Hook, Transport, Rear LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
51963-36060 Hook, Transport, Rear LH
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
51963-36060 Hook, Transport, Rear LH
2004-08 → 2015-01 ended
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# —
51963-36060 Hook, Transport, Rear LH
2015-01 → 2016-12 ended
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
