Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

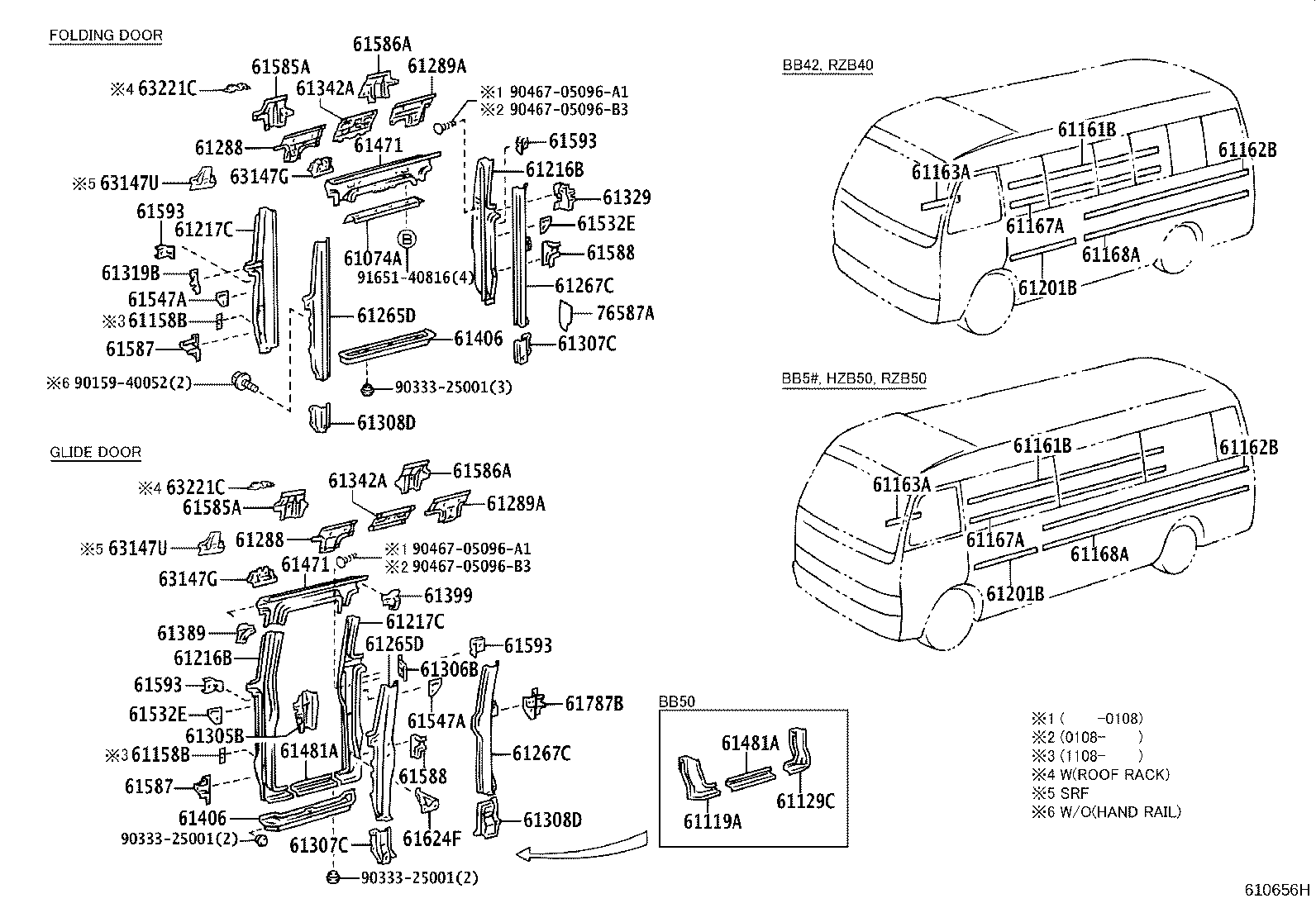

Exploded illustration 610656H 63221C — PANEL, REMOVABLE ROOF (6 parts) 61593 — BRACKET, STIFFENER, NO.3 (12 parts) 61319B — PLATE, CENTER BODY PILLAR, OUTER RH (14 parts) 61217C — PILLAR, NO.4 (30 parts) 61288 — PILLAR, NO.3 CORNER, LH (35 parts) 61547A — GUSSET, SEAT ANCHOR, NO.7 LH (14 parts) 61587 — GUSSET, CENTER DOOR PILLAR, FRONT LH (12 parts) 61158B — RETAINER, SIDE PANEL, NO.1 (2 parts) 63147G — BRACKET, ROOF PANEL REINFORCEMENT (14 parts) 61585A — GUSSET, REAR DOOR PILLAR, FRONT (35 parts) 61342A — RAIL, NO.1 UPPER INNER, REAR LH (30 parts) 61265D — PILLAR, NO.3 INNER, UPPER LH (52 parts) 61471 — RAIL, CENTER DOOR, OUTER (38 parts) 61586A — GUSSET, REAR DOOR PILLAR, REAR (35 parts) 61074A — RAIL SUB-ASSY, CENTER DOOR, RH (11 parts) 61289A — PILLAR, NO.4 CORNER, LH (35 parts) 9165140816 — not listed in this catalogue 61406 — RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER LH (34 parts) 61129C — PANEL, CENTER DOOR OPENING, LOWER INNER REAR (4 parts) 9046705096A1 — not listed in this catalogue 61593 — BRACKET, STIFFENER, NO.3 (12 parts) 61216B — PILLAR, NO.3 (30 parts) 61329 — PLATE, CENTER BODY PILLAR, OUTER LH (14 parts) 61267C — PILLAR, NO.4 INNER, UPPER LH (68 parts) 61532E — GUSSET, SEAT ANCHOR, NO.2 (13 parts) 61588 — GUSSET, CENTER DOOR PILLAR, REAR LH (12 parts) 76587A — PROTECTOR, CENTER PILLAR OUTER (10 parts) 61163A — STIFFENER, SIDE PANEL, UPPER NO.3 (12 parts) 61201B — STIFFENER SUB-ASSY, SIDE PANEL, LH NO.1 (11 parts) 61161B — STIFFENER, SIDE PANEL, UPPER NO.1 (12 parts) 61161B — STIFFENER, SIDE PANEL, UPPER NO.1 (12 parts) 61201B — STIFFENER SUB-ASSY, SIDE PANEL, LH NO.1 (11 parts) 61163A — STIFFENER, SIDE PANEL, UPPER NO.3 (12 parts) 61307C — PILLAR SUB-ASSY, CENTER BODY, INNER FRONT (32 parts) 9033325001 — not listed in this catalogue 61308D — PILLAR SUB-ASSY, CENTER BODY, INNER REAR (33 parts) 61289A — PILLAR, NO.4 CORNER, LH (35 parts) 61586A — GUSSET, REAR DOOR PILLAR, REAR (35 parts) 61399 — PATCH, CENTER BODY PILLAR, OUTER NO.2 (11 parts) 61481A — RAIL, CENTER DOOR, LOWER OUTER (14 parts) 9046705096A1 — not listed in this catalogue 61342A — RAIL, NO.1 UPPER INNER, REAR LH (30 parts) 61471 — RAIL, CENTER DOOR, OUTER (38 parts) 61288 — PILLAR, NO.3 CORNER, LH (35 parts) 63221C — PANEL, REMOVABLE ROOF (6 parts) 61585A — GUSSET, REAR DOOR PILLAR, FRONT (35 parts) 63147G — BRACKET, ROOF PANEL REINFORCEMENT (14 parts) 61389 — PATCH, CENTER BODY PILLAR, OUTER (10 parts) 61216B — PILLAR, NO.3 (30 parts) 61593 — BRACKET, STIFFENER, NO.3 (12 parts) 61532E — GUSSET, SEAT ANCHOR, NO.2 (13 parts) 61305B — REINFORCE SUB-ASSY, CENTER BODY PILLER, LOWER FRONT (10 parts) 61587 — GUSSET, CENTER DOOR PILLAR, FRONT LH (12 parts) 61406 — RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER LH (34 parts) 9033325001 — not listed in this catalogue 61481A — RAIL, CENTER DOOR, LOWER OUTER (14 parts) 61307C — PILLAR SUB-ASSY, CENTER BODY, INNER FRONT (32 parts) 9033325001 — not listed in this catalogue 61217C — PILLAR, NO.4 (30 parts) 61265D — PILLAR, NO.3 INNER, UPPER LH (52 parts) 61306B — REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER REAR (10 parts) 61547A — GUSSET, SEAT ANCHOR, NO.7 LH (14 parts) 61588 — GUSSET, CENTER DOOR PILLAR, REAR LH (12 parts) 61624F — PLATE, CENTER DOOR PILLER DUST PROOF, REAR LH (10 parts) 61593 — BRACKET, STIFFENER, NO.3 (12 parts) 61787B — RETAINER, SLIDE DOOR ARM, UPPER REAR (11 parts) 61267C — PILLAR, NO.4 INNER, UPPER LH (68 parts) 61308D — PILLAR SUB-ASSY, CENTER BODY, INNER REAR (33 parts) 61119A — PANEL, CENTER DOOR ORENING, LOWER INNER FRONT (4 parts) 9046705096B3 — not listed in this catalogue 9046705096B3 — not listed in this catalogue 61158B — RETAINER, SIDE PANEL, NO.1 (2 parts) 63147U — BRACKET, ROOF PANEL REINFORCEMENT (4 parts) 63147U — BRACKET, ROOF PANEL REINFORCEMENT (4 parts) 9015940052 — not listed in this catalogue 61162B — STIFFENER, SIDE PANEL, UPPER NO.2 (12 parts) 61168A — STIFFENER, SIDE PANEL, LOWER LH (12 parts) 61167A — STIFFENER, SIDE PANEL, LOWER RH (12 parts) 61162B — STIFFENER, SIDE PANEL, UPPER NO.2 (12 parts) 61168A — STIFFENER, SIDE PANEL, LOWER LH (12 parts) 61167A — STIFFENER, SIDE PANEL, LOWER RH (12 parts)
610656H · 72 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
780 parts on this figure
Part number Description Fitment Price
61074A — Rail Sub-assy, Center Door, RH
61074-36010 Rail Sub-assy, Center Door, RH
1993-01 → 1999-02 ended
BB42,58,HZB50,RZB40,50 LHD STD CBU —
61074-36011 Rail Sub-assy, Center Door, RH
1999-02 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD STD —
61074-36011 Rail Sub-assy, Center Door, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
61074-36011 Rail Sub-assy, Center Door, RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
61074-36011 Rail Sub-assy, Center Door, RH
1999-07 → 2004-08 ended
BB42 8,HZB50,RZB50 WC LHD +11 —
61074-36011 Rail Sub-assy, Center Door, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61074-36011 Rail Sub-assy, Center Door, RH
2004-08 → 2006-08 ended
BB58 —
61074-36011 Rail Sub-assy, Center Door, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61074-36011 Rail Sub-assy, Center Door, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61074-36011 Rail Sub-assy, Center Door, RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61074-36011 Rail Sub-assy, Center Door, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61119A — Panel, Center Door Orening, Lower Inner Front
61119-36020 Panel, Center Door Orening, Lower Inner Front
1997-05 → 1999-07 ended
BB50 WC CBU —
61119-36020 Panel, Center Door Orening, Lower Inner Front
1999-07 → 2001-08 ended
BB50 CBU 6F —
61119-36020 Panel, Center Door Orening, Lower Inner Front
1999-07 → 2004-08 ended
BB50 GEN 6F TDEFI —
61119-36020 Panel, Center Door Orening, Lower Inner Front
2004-08 → 2006-08 ended
BB50 GEN 6F —
61129C — Panel, Center Door Opening, Lower Inner Rear
61129-36020 Panel, Center Door Opening, Lower Inner Rear
1997-05 → 1999-07 ended
BB50 WC CBU —
61129-36020 Panel, Center Door Opening, Lower Inner Rear
1999-07 → 2001-08 ended
BB50 CBU 6F —
61129-36020 Panel, Center Door Opening, Lower Inner Rear
1999-07 → 2004-08 ended
BB50 GEN 6F TDEFI —
61129-36020 Panel, Center Door Opening, Lower Inner Rear
2004-08 → 2006-08 ended
BB50 GEN 6F —
61158B — Retainer, Side Panel, NO.1
61159-60010 Retainer, Side Panel, NO.1
2011-08 → 2015-01 ended
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# ARL,GCC,GEN,TAIW —
61159-60010 Retainer, Side Panel, NO.1
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61161B — Stiffener, Side Panel, Upper NO.1
61162-36020 Stiffener, Side Panel, Upper NO.1
1993-01 → 1993-09 ended
BB4#;HZB50 LHD DSL —
61162-36020 Stiffener, Side Panel, Upper NO.1
1993-09 → 1997-05 ended
BB4#,RZB40 —
61162-36020 Stiffener, Side Panel, Upper NO.1
1997-05 → 1999-07 ended
BB42,RZB40 LHD —
61162-36902 Stiffener, Side Panel, Upper NO.1
1998-02 → 1999-07 ended
BB43 —
61162-36902 Stiffener, Side Panel, Upper NO.1
1997-05 → 1999-07 ended
BB40,42 RHD;BB5#,HZB50,RZB50 CBU —
61162-36902 Stiffener, Side Panel, Upper NO.1
1993-01 → 1993-09 ended
HZB50 RHD DSL —
61162-36902 Stiffener, Side Panel, Upper NO.1
1993-09 → 1997-05 ended
HZB50,RZB50 CBU —
61162-36902 Stiffener, Side Panel, Upper NO.1
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61162-36902 Stiffener, Side Panel, Upper NO.1
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61162-36902 Stiffener, Side Panel, Upper NO.1
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61162-36902 Stiffener, Side Panel, Upper NO.1
2004-08 → 2015-01 ended
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# ARL,GCC,GEN,TAIW —
61162-36902 Stiffener, Side Panel, Upper NO.1
2015-01 → 2016-12 ended
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61162B — Stiffener, Side Panel, Upper NO.2
61162-36020 Stiffener, Side Panel, Upper NO.2
1997-05 → 1999-07 ended
BB42,RZB40 LHD —
61162-36020 Stiffener, Side Panel, Upper NO.2
1993-09 → 1997-05 ended
BB4#,RZB40 —
61162-36020 Stiffener, Side Panel, Upper NO.2
1993-01 → 1993-09 ended
BB4#;HZB50 LHD DSL —
61162-36902 Stiffener, Side Panel, Upper NO.2
1993-01 → 1993-09 ended
HZB50 RHD DSL —
61162-36902 Stiffener, Side Panel, Upper NO.2
1993-09 → 1997-05 ended
HZB50,RZB50 CBU —
61162-36902 Stiffener, Side Panel, Upper NO.2
1997-05 → 1999-07 ended
BB40,42 RHD;BB5#,HZB50,RZB50 CBU —
61162-36902 Stiffener, Side Panel, Upper NO.2
1998-02 → 1999-07 ended
BB43 —
61162-36902 Stiffener, Side Panel, Upper NO.2
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61162-36902 Stiffener, Side Panel, Upper NO.2
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61162-36902 Stiffener, Side Panel, Upper NO.2
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61162-36902 Stiffener, Side Panel, Upper NO.2
2004-08 → 2015-01 ended
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# ARL,GCC,GEN,TAIW —
61162-36902 Stiffener, Side Panel, Upper NO.2
2015-01 → 2016-12 ended
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61163A — Stiffener, Side Panel, Upper NO.3
61163-36010 Stiffener, Side Panel, Upper NO.3
1993-01 → 1993-09 ended
BB42 LHD —
61163-36902 Stiffener, Side Panel, Upper NO.3
1997-05 → 1999-07 ended
BB5#,HZB50,RZB50 LHD CBU —
61163-36902 Stiffener, Side Panel, Upper NO.3
1993-09 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD CBU —
61163-36902 Stiffener, Side Panel, Upper NO.3
1993-01 → 1993-09 ended
HZB50 LHD DSL —
61163-36902 Stiffener, Side Panel, Upper NO.3
1997-05 → 1999-07 ended
BB42,RZB40 LHD —
61163-36902 Stiffener, Side Panel, Upper NO.3
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61163-36902 Stiffener, Side Panel, Upper NO.3
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61163-36902 Stiffener, Side Panel, Upper NO.3
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61163-36902 Stiffener, Side Panel, Upper NO.3
2004-08 → 2004-10 ended
BB42,50,58,HZB50,RZB40,50 LHD CBU —
61163-36902 Stiffener, Side Panel, Upper NO.3
2004-08 → 2006-09 ended
XZB50 TAIW —
61163-36902 Stiffener, Side Panel, Upper NO.3
2004-08 → 2008-03 ended
TRB40,50 —
61163-36902 Stiffener, Side Panel, Upper NO.3
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61167A — Stiffener, Side Panel, Lower RH
61162-36020 Stiffener, Side Panel, Lower RH
1997-05 → 1999-07 ended
BB42,RZB40 LHD —
61162-36020 Stiffener, Side Panel, Lower RH
1993-09 → 1997-05 ended
BB4#,RZB40 —
61162-36020 Stiffener, Side Panel, Lower RH
1993-01 → 1993-09 ended
BB4#;HZB50 LHD DSL —
61162-36902 Stiffener, Side Panel, Lower RH
1993-01 → 1993-09 ended
HZB50 RHD DSL —
61162-36902 Stiffener, Side Panel, Lower RH
1993-09 → 1997-05 ended
HZB50,RZB50 CBU —
61162-36902 Stiffener, Side Panel, Lower RH
1997-05 → 1999-07 ended
BB40,42 RHD;BB5#,HZB50,RZB50 CBU —
61162-36902 Stiffener, Side Panel, Lower RH
1998-02 → 1999-07 ended
BB43 —
61162-36902 Stiffener, Side Panel, Lower RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61162-36902 Stiffener, Side Panel, Lower RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61162-36902 Stiffener, Side Panel, Lower RH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61162-36902 Stiffener, Side Panel, Lower RH
2004-08 → 2015-01 ended
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# ARL,GCC,GEN,TAIW —
61162-36902 Stiffener, Side Panel, Lower RH
2015-01 → 2016-12 ended
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61168A — Stiffener, Side Panel, Lower LH
61162-36020 Stiffener, Side Panel, Lower LH
1993-01 → 1993-09 ended
BB4#;HZB50 LHD DSL —
61162-36020 Stiffener, Side Panel, Lower LH
1993-09 → 1997-05 ended
BB4#,RZB40 —
61162-36020 Stiffener, Side Panel, Lower LH
1997-05 → 1999-07 ended
BB42,RZB40 LHD —
61162-36902 Stiffener, Side Panel, Lower LH
1993-01 → 1993-09 ended
HZB50 RHD DSL —
61162-36902 Stiffener, Side Panel, Lower LH
1998-02 → 1999-07 ended
BB43 —
61162-36902 Stiffener, Side Panel, Lower LH
1993-09 → 1997-05 ended
HZB50,RZB50 CBU —
61162-36902 Stiffener, Side Panel, Lower LH
1997-05 → 1999-07 ended
BB40,42 RHD;BB5#,HZB50,RZB50 CBU —
61162-36902 Stiffener, Side Panel, Lower LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61162-36902 Stiffener, Side Panel, Lower LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61162-36902 Stiffener, Side Panel, Lower LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61162-36902 Stiffener, Side Panel, Lower LH
2004-08 → 2015-01 ended
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# ARL,GCC,GEN,TAIW —
61162-36902 Stiffener, Side Panel, Lower LH
2015-01 → 2016-12 ended
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61201B — Stiffener Sub-assy, Side Panel, LH NO.1
61201-36010 Stiffener Sub-assy, Side Panel, LH NO.1
1993-01 → 1993-09 ended
BB42,HZB50 LHD DSL —
61201-36902 Stiffener Sub-assy, Side Panel, LH NO.1
1993-09 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61201-36902 Stiffener Sub-assy, Side Panel, LH NO.1
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61201-36902 Stiffener Sub-assy, Side Panel, LH NO.1
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61201-36902 Stiffener Sub-assy, Side Panel, LH NO.1
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61201-36902 Stiffener Sub-assy, Side Panel, LH NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61201-36902 Stiffener Sub-assy, Side Panel, LH NO.1
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61201-36902 Stiffener Sub-assy, Side Panel, LH NO.1
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61201-36902 Stiffener Sub-assy, Side Panel, LH NO.1
2004-08 → 2011-08 ended
BB42 LHD HRF —
61201-36902 Stiffener Sub-assy, Side Panel, LH NO.1
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61201-36902 Stiffener Sub-assy, Side Panel, LH NO.1
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61216B — Pillar, NO.3
61216-36020 note Pillar, NO.3
1993-01 → 1999-07 ended
BB4#,58,HZB50,RZB40,50 STD CBU —
61216-36020 note Pillar, NO.3
1993-01 → 1999-07 ended
BB50 EX;HZB50 SCO —
61216-36040 note Pillar, NO.3
1993-01 → 1999-07 ended
BB50,HZB50,RZB40 DX,EX —
61216-36070 Pillar, NO.3
1997-05 → 1999-07 ended
BB50 WC CBU —
61216-36020 note Pillar, NO.3
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
61216-36020 note Pillar, NO.3
1999-07 → 2001-08 ended
HZB50 40 RHD (17S,22S) +8 —
61216-36020 note Pillar, NO.3
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 STD (ARL,CHI) —
61216-36020 note Pillar, NO.3
1999-07 → 2004-08 ended
BB42 RF 6S) WC +28 —
61216-36020 Pillar, NO.3
2002-11 → 2004-08 ended
BB50,BZB50 RHD STD CBU —
61216-36040 note Pillar, NO.3
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX —
61216-36040 note Pillar, NO.3
1999-07 → 2002-11 ended
HZB50 DX;BB50,RZB40,50 CHI —
61216-36040 note Pillar, NO.3
1999-07 → 2004-08 ended
HZB50 LHD EX;BB50,RZB40 EX +1 —
61216-36040 Pillar, NO.3
2001-08 → 2004-08 ended
BB59;BB50,BZB50 21S (DX,EX) —
61216-36040 note Pillar, NO.3
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61216-36070 Pillar, NO.3
1999-07 → 2004-08 ended
BB50 GEN 6F TDEFI —
61216-36070 Pillar, NO.3
1999-07 → 2001-08 ended
BB50 CBU 6F —
61216-36020 Pillar, NO.3
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61216-36020 Pillar, NO.3
2004-08 → 2015-01 ended
BB42 50,XZB40 RHD;BB42 STD +6 —
61216-36020 Pillar, NO.3
2004-08 → 2011-08 ended
BB42 LHD HRF —
61216-36020 Pillar, NO.3
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61216-36020 Pillar, NO.3
2004-08 → 2008-03 ended
XZB50 STD GEN —
61216-36020 Pillar, NO.3
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61216-36020 Pillar, NO.3
2004-08 → 2006-08 ended
BB50,58 (17S,20S,21S,23S) (EX,STD) —
61216-36040 note Pillar, NO.3
2004-08 → 2006-08 ended
BB50,59,BZB50 DX,EX —
61216-36040 note Pillar, NO.3
2004-08 → 2011-08 ended
BB50 WC TD —
61216-36040 note Pillar, NO.3
2004-08 → 2015-01 ended
XZB5# DX,EX —
61216-36040 note Pillar, NO.3
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61216-36070 Pillar, NO.3
2004-08 → 2006-08 ended
BB50 GEN 6F —
61216-36020 Pillar, NO.3
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F —
61216-36040 note Pillar, NO.3
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61217C — Pillar, NO.4
61217-36020 note Pillar, NO.4
1993-01 → 1999-07 ended
BB50 EX;HZB50 SCO —
61217-36020 note Pillar, NO.4
1993-01 → 1999-07 ended
BB4#,58,HZB50,RZB40,50 STD CBU —
61217-36040 note Pillar, NO.4
1993-01 → 1999-07 ended
BB50,HZB50,RZB40 DX,EX —
61217-36060 Pillar, NO.4
1997-05 → 1999-07 ended
BB50 WC CBU —
61217-36020 note Pillar, NO.4
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
61217-36020 note Pillar, NO.4
1999-07 → 2001-08 ended
HZB50 40 RHD (17S,22S) +8 —
61217-36020 Pillar, NO.4
2002-11 → 2004-08 ended
BB50,BZB50 RHD STD CBU —
61217-36020 note Pillar, NO.4
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 STD (ARL,CHI) —
61217-36020 note Pillar, NO.4
1999-07 → 2004-08 ended
BB42 RF 6S) WC +28 —
61217-36040 note Pillar, NO.4
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX —
61217-36040 note Pillar, NO.4
1999-07 → 2002-11 ended
HZB50 DX;BB50,RZB40,50 CHI —
61217-36040 note Pillar, NO.4
1999-07 → 2004-08 ended
HZB50 LHD EX;BB50,RZB40 EX +1 —
61217-36040 Pillar, NO.4
2001-08 → 2004-08 ended
BB59;BB50,BZB50 21S (DX,EX) —
61217-36040 note Pillar, NO.4
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61217-36060 Pillar, NO.4
1999-07 → 2004-08 ended
BB50 GEN 6F TDEFI —
61217-36060 Pillar, NO.4
1999-07 → 2001-08 ended
BB50 CBU 6F —
61217-36020 Pillar, NO.4
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61217-36020 Pillar, NO.4
2004-08 → 2006-08 ended
BB50,58 (17S,20S,21S,23S) (EX,STD) —
61217-36020 Pillar, NO.4
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61217-36020 Pillar, NO.4
2004-08 → 2008-03 ended
XZB50 STD GEN —
61217-36020 Pillar, NO.4
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61217-36020 Pillar, NO.4
2004-08 → 2011-08 ended
BB42 LHD HRF —
61217-36020 Pillar, NO.4
2004-08 → 2015-01 ended
BB42 50,XZB40 RHD;BB42 STD +6 —
61217-36040 note Pillar, NO.4
2004-08 → 2006-08 ended
BB50,59,BZB50 DX,EX —
61217-36040 note Pillar, NO.4
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61217-36040 note Pillar, NO.4
2004-08 → 2015-01 ended
XZB5# DX,EX —
61217-36040 note Pillar, NO.4
2004-08 → 2011-08 ended
BB50 WC TD —
61217-36060 Pillar, NO.4
2004-08 → 2006-08 ended
BB50 GEN 6F —
61217-36020 Pillar, NO.4
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F —
61217-36040 note Pillar, NO.4
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61265D — Pillar, NO.3 Inner, Upper LH
61265-36010 Pillar, NO.3 Inner, Upper LH
1993-01 → 1999-07 ended
BB50 EX;HZB50 (DX,EX) (ARL,SCO) —
61265-36020 note Pillar, NO.3 Inner, Upper LH
1993-01 → 1997-05 ended
HZB50 SCO —
61265-36020 Pillar, NO.3 Inner, Upper LH
1993-01 → 1999-07 ended
BB4#,HZB50 RHD STD CBU —
61265-36020 note Pillar, NO.3 Inner, Upper LH
1997-05 → 1999-07 ended
BB50 EX —
61265-36030 Pillar, NO.3 Inner, Upper LH
1993-01 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD STD CBU —
61265-36050 note Pillar, NO.3 Inner, Upper LH
1993-01 → 1999-07 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
61265-36110 Pillar, NO.3 Inner, Upper LH
1993-01 → 1999-07 ended
HZB50 RHD EX GEN —
61265-36010 Pillar, NO.3 Inner, Upper LH
2001-08 → 2002-11 ended
HZB50 DX —
61265-36010 Pillar, NO.3 Inner, Upper LH
2001-08 → 2004-08 ended
BB50,59,BZB50 RHD (DX,EX) —
61265-36020 Pillar, NO.3 Inner, Upper LH
1999-07 → 2000-01 ended
BB4#,HZB50 RHD STD —
61265-36021 note Pillar, NO.3 Inner, Upper LH
1999-07 → 2004-08 ended
BB42,HZB50 RHD HRF STD +3 —
61265-36021 note Pillar, NO.3 Inner, Upper LH
2000-01 → 2004-08 ended
BB42 RHD SRF —
61265-36021 note Pillar, NO.3 Inner, Upper LH
2000-01 → 2001-08 ended
HZB50 RHD SRF;BB43,HZB50 (17S,22S) +5 —
61265-36021 Pillar, NO.3 Inner, Upper LH
2001-08 → 2004-08 ended
BB50,BZB40,50 RHD STD CBU —
61265-36021 note Pillar, NO.3 Inner, Upper LH
2001-08 → 2004-08 ended
BB50 EX TDEFI —
61265-36021 note Pillar, NO.3 Inner, Upper LH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
61265-36030 Pillar, NO.3 Inner, Upper LH
1999-07 → 2000-01 ended
BB42,5#,HZB50,RZB40,50 LHD (22S,23S,26S,30S) —
61265-36031 Pillar, NO.3 Inner, Upper LH
2001-08 → 2004-08 ended
BB50 WOC TD —
61265-36031 note Pillar, NO.3 Inner, Upper LH
2000-01 → 2004-08 ended
BB58;BB42,HZB50,RZB40 LHD WOC GEN —
61265-36031 note Pillar, NO.3 Inner, Upper LH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
61265-36031 note Pillar, NO.3 Inner, Upper LH
1999-07 → 2004-08 ended
BB42,50,HZB50,RZB40,50 LHD (26S,30S) WC +1 —
61265-36031 note Pillar, NO.3 Inner, Upper LH
2000-01 → 2001-08 ended
BB42,RZB40 WOC GCC —
61265-36031 note Pillar, NO.3 Inner, Upper LH
1999-07 → 2001-08 ended
BB42,RZB40 22S GEN —
61265-36050 note Pillar, NO.3 Inner, Upper LH
1999-07 → 2004-08 ended
HZB50,RZB40 LHD EX —
61265-36050 note Pillar, NO.3 Inner, Upper LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61265-36050 note Pillar, NO.3 Inner, Upper LH
1999-07 → 2001-08 ended
BB50 CBU 6F —
61265-36050 Pillar, NO.3 Inner, Upper LH
2001-08 → 2004-08 ended
BB50 GEN 6F —
61265-36050 note Pillar, NO.3 Inner, Upper LH
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61265-36110 Pillar, NO.3 Inner, Upper LH
1999-07 → 2001-08 ended
HZB50 RHD EX —
61265-36010 Pillar, NO.3 Inner, Upper LH
2004-08 → 2006-08 ended
BB50,59,BZB50 DX,EX —
61265-36010 note Pillar, NO.3 Inner, Upper LH
2004-08 → 2015-01 ended
XZB5# DX,EX —
61265-36021 Pillar, NO.3 Inner, Upper LH
2004-08 → 2015-01 ended
XZB50 STD WC ARL;BB42,BZB40,50,HZB50,XZB40 +2 —
61265-36021 note Pillar, NO.3 Inner, Upper LH
2004-08 → 2015-01 ended
XZB50 EX —
61265-36021 Pillar, NO.3 Inner, Upper LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61265-36021 Pillar, NO.3 Inner, Upper LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61265-36021 note Pillar, NO.3 Inner, Upper LH
2004-08 → 2006-08 ended
BB50 EX —
61265-36021 Pillar, NO.3 Inner, Upper LH
2004-08 → 2006-08 ended
BB50 RHD STD CBU —
61265-36031 note Pillar, NO.3 Inner, Upper LH
2004-08 → 2006-08 ended
BB58 —
61265-36031 note Pillar, NO.3 Inner, Upper LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61265-36031 note Pillar, NO.3 Inner, Upper LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61265-36031 note Pillar, NO.3 Inner, Upper LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61265-36031 note Pillar, NO.3 Inner, Upper LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61265-36050 note Pillar, NO.3 Inner, Upper LH
2004-08 → 2006-08 ended
BB50 GEN 6F —
61265-36050 note Pillar, NO.3 Inner, Upper LH
2004-08 → 2011-08 ended
BB50 WC TD —
61265-36050 note Pillar, NO.3 Inner, Upper LH
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61265-36010 note Pillar, NO.3 Inner, Upper LH
2015-01 → —
XZB5# DX,EX —
61265-36021 note Pillar, NO.3 Inner, Upper LH
2015-01 → —
BB42 RHD —
61265-36021 Pillar, NO.3 Inner, Upper LH
2015-01 → —
BZB40,50,HZB50,XZB40,50 RHD (EX,STD) 5F —
61265-36031 note Pillar, NO.3 Inner, Upper LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61265-36050 note Pillar, NO.3 Inner, Upper LH
2015-01 → —
TRB50 HRF GCC —
61265-36230 note Pillar, NO.3 Inner, Upper LH
2015-01 → —
HZB50 RHD —
61265-36240 note Pillar, NO.3 Inner, Upper LH
2015-01 → —
BB42,TRB40 GCC;HZB50,TRB50,XZB50 LHD WC +1 —
61267C — Pillar, NO.4 Inner, Upper LH
61267-36010 note Pillar, NO.4 Inner, Upper LH
1993-01 → 1997-05 ended
HZB50,RZB40 DX,EX —
61267-36010 note Pillar, NO.4 Inner, Upper LH
1997-05 → 1999-07 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
61267-36011 note Pillar, NO.4 Inner, Upper LH
1997-05 → 1999-07 ended
BB50,HZB50 RHD (DX,EX) —
61267-36020 Pillar, NO.4 Inner, Upper LH
1993-01 → 1993-08 ended
BB4#,HZB50 RHD STD DSL —
61267-36020 note Pillar, NO.4 Inner, Upper LH
1993-01 → 1999-07 ended
BB50 EX;HZB50 SCO —
61267-36020 Pillar, NO.4 Inner, Upper LH
1993-08 → 1999-07 ended
BB40,42,HZB50 RHD STD (ARL,GEN) —
61267-36030 Pillar, NO.4 Inner, Upper LH
1993-01 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD STD CBU —
61267-36150 Pillar, NO.4 Inner, Upper LH
1994-07 → 1999-07 ended
BB42,43 17S —
61267-36010 note Pillar, NO.4 Inner, Upper LH
1999-07 → 2001-08 ended
BB50 CBU 6F —
61267-36011 Pillar, NO.4 Inner, Upper LH
2001-08 → 2004-08 ended
BB50,59,BZB50 RHD (DX,EX) —
61267-36011 note Pillar, NO.4 Inner, Upper LH
1999-07 → 2001-08 ended
HZB50 RHD EX —
61267-36011 note Pillar, NO.4 Inner, Upper LH
2001-08 → 2002-11 ended
HZB50 DX —
61267-36020 Pillar, NO.4 Inner, Upper LH
1999-07 → 2000-01 ended
BB42,HZB50 RHD STD 5F —
61267-36021 note Pillar, NO.4 Inner, Upper LH
1999-07 → 2001-08 ended
BB42,50 RHD WC CBU;HZB50 +5 —
61267-36021 note Pillar, NO.4 Inner, Upper LH
2000-01 → 2001-08 ended
HZB50 RHD SRF;HZB50 STD +4 —
61267-36030 Pillar, NO.4 Inner, Upper LH
1999-07 → 2000-01 ended
BB42,5#,HZB50,RZB40,50 LHD (22S,23S,26S,30S) —
61267-36031 note Pillar, NO.4 Inner, Upper LH
2000-01 → 2001-08 ended
BB42,RZB40 WOC GCC —
61267-36031 note Pillar, NO.4 Inner, Upper LH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
61267-36031 note Pillar, NO.4 Inner, Upper LH
1999-07 → 2001-08 ended
BB42,RZB40 22S GEN —
61267-36031 note Pillar, NO.4 Inner, Upper LH
1999-07 → 2004-08 ended
BB42,50,HZB50,RZB40,50 LHD (26S,30S) WC +1 —
61267-36031 Pillar, NO.4 Inner, Upper LH
2001-08 → 2004-08 ended
BB50 WOC TD —
61267-36031 note Pillar, NO.4 Inner, Upper LH
2000-01 → 2004-08 ended
BB58;BB42,HZB50,RZB40 LHD WOC GEN —
61267-36090 note Pillar, NO.4 Inner, Upper LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61267-36090 note Pillar, NO.4 Inner, Upper LH
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61267-36090 note Pillar, NO.4 Inner, Upper LH
1999-07 → 2004-08 ended
BB50,HZB50,RZB40 LHD (17S,19S,20S) (DSL,EFI,TDEFI) —
61267-36130 note Pillar, NO.4 Inner, Upper LH
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61267-36130 note Pillar, NO.4 Inner, Upper LH
2001-10 → 2004-08 ended
BB50 GEN 6F —
61267-36130 note Pillar, NO.4 Inner, Upper LH
1999-07 → 2004-08 ended
HZB50,RZB40 LHD EX —
61267-36130 note Pillar, NO.4 Inner, Upper LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61267-36150 Pillar, NO.4 Inner, Upper LH
1999-07 → 2000-01 ended
BB43 —
61267-36151 Pillar, NO.4 Inner, Upper LH
2000-01 → 2001-08 ended
BB43 —
61267-36151 Pillar, NO.4 Inner, Upper LH
2000-01 → 2004-08 ended
BB50,BZB40,50 17S —
61267-36171 Pillar, NO.4 Inner, Upper LH
2001-08 → 2004-08 ended
BB42,50,HZB50 RHD (21S,26S,30S) STD —
61267-36171 note Pillar, NO.4 Inner, Upper LH
2001-08 → 2004-08 ended
BB50 EX TDEFI —
61267-36181 note Pillar, NO.4 Inner, Upper LH
2001-08 → 2004-08 ended
BB42,HZB50 RHD WC GEN —
61267-36181 note Pillar, NO.4 Inner, Upper LH
2001-08 → 2004-08 ended
BB50 EX TDEFI —
61267-36011 note Pillar, NO.4 Inner, Upper LH
2004-08 → 2015-01 ended
XZB5# DX,EX —
61267-36011 note Pillar, NO.4 Inner, Upper LH
2004-08 → 2006-08 ended
BB50,59,BZB50 DX,EX —
61267-36031 note Pillar, NO.4 Inner, Upper LH
2004-08 → 2006-08 ended
BB58 —
61267-36031 note Pillar, NO.4 Inner, Upper LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61267-36031 note Pillar, NO.4 Inner, Upper LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61267-36031 note Pillar, NO.4 Inner, Upper LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61267-36031 note Pillar, NO.4 Inner, Upper LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61267-36090 note Pillar, NO.4 Inner, Upper LH
2004-08 → 2006-08 ended
BB50 GEN 6F —
61267-36090 note Pillar, NO.4 Inner, Upper LH
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61267-36090 note Pillar, NO.4 Inner, Upper LH
2004-08 → 2011-08 ended
BB50 WC TD —
61267-36130 note Pillar, NO.4 Inner, Upper LH
2004-08 → 2006-08 ended
BB50 GEN 6F —
61267-36130 note Pillar, NO.4 Inner, Upper LH
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61267-36130 note Pillar, NO.4 Inner, Upper LH
2004-08 → 2011-08 ended
BB50 WC TD —
61267-36151 Pillar, NO.4 Inner, Upper LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
61267-36151 Pillar, NO.4 Inner, Upper LH
2004-08 → 2008-03 ended
BZB40,50,XZB50 STD GEN —
61267-36152 Pillar, NO.4 Inner, Upper LH
2008-03 → 2015-01 ended
BZB40,50,XZB40 —
61267-36171 Pillar, NO.4 Inner, Upper LH
2004-08 → 2015-01 ended
BB42,HZB50 RHD;XZB50 RHD (20S,21S) +3 —
61267-36171 Pillar, NO.4 Inner, Upper LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61267-36171 Pillar, NO.4 Inner, Upper LH
2004-08 → 2006-08 ended
BB50 STD ARL —
61267-36171 note Pillar, NO.4 Inner, Upper LH
2004-08 → 2006-08 ended
BB50 EX —
61267-36171 note Pillar, NO.4 Inner, Upper LH
2004-08 → 2015-01 ended
XZB50 GEN 4FC —
61267-36181 note Pillar, NO.4 Inner, Upper LH
2004-08 → 2015-01 ended
XZB50 EX 5F —
61267-36181 note Pillar, NO.4 Inner, Upper LH
2004-08 → 2006-08 ended
BB50 EX —
61267-36181 note Pillar, NO.4 Inner, Upper LH
2004-08 → 2015-01 ended
XZB50 GEN 4FC;BB42,HZB50 RHD +1 —
61267-36011 note Pillar, NO.4 Inner, Upper LH
2015-01 → —
XZB5# DX,EX —
61267-36031 note Pillar, NO.4 Inner, Upper LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61267-36090 note Pillar, NO.4 Inner, Upper LH
2015-01 → —
TRB50 HRF GCC —
61267-36152 Pillar, NO.4 Inner, Upper LH
2015-01 → —
BZB40,XZB40 17S —
61267-36171 Pillar, NO.4 Inner, Upper LH
2015-01 → —
BZB50,HZB50,XZB50 RHD (EX,STD) 5F —
61267-36171 note Pillar, NO.4 Inner, Upper LH
2015-01 → —
BB42 RHD —
61267-36181 note Pillar, NO.4 Inner, Upper LH
2015-01 → —
HZB50 RHD —
61267-36340 Pillar, NO.4 Inner, Upper LH
2015-01 → —
TRB50 HRF GCC —
61288 — Pillar, NO.3 Corner, LH
61288-36010 Pillar, NO.3 Corner, LH
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 DX,EX —
61288-36020 note Pillar, NO.3 Corner, LH
1993-01 → 1993-11 ended
HZB50 SCO —
61288-36020 Pillar, NO.3 Corner, LH
1993-01 → 1993-11 ended
BB4#,HZB50,RZB40,50 STD CBU —
61288-36040 note Pillar, NO.3 Corner, LH
1993-11 → 1994-09 ended
HZB50 SCO —
61288-36040 Pillar, NO.3 Corner, LH
1993-11 → 1994-09 ended
BB4#,HZB50,RZB40,50 STD CBU —
61288-36041 note Pillar, NO.3 Corner, LH
1994-09 → 1997-05 ended
HZB50 SCO —
61288-36041 Pillar, NO.3 Corner, LH
1994-09 → 1999-02 ended
BB4#,58,HZB50,RZB40,50 STD CBU —
61288-36041 note Pillar, NO.3 Corner, LH
1997-05 → 1999-02 ended
BB50 EX —
61288-36042 note Pillar, NO.3 Corner, LH
1999-02 → 1999-07 ended
BB50 EX;BB4#,58,HZB50,RZB40,50 STD —
61288-36010 Pillar, NO.3 Corner, LH
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61288-36010 Pillar, NO.3 Corner, LH
1999-07 → 2004-08 ended
BB50 DX;HZB50 LHD EX;BB59,BZB50,RZB40 +3 —
61288-36010 Pillar, NO.3 Corner, LH
2001-08 → 2002-11 ended
HZB50 DX —
61288-36010 Pillar, NO.3 Corner, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61288-36010 Pillar, NO.3 Corner, LH
1999-07 → 2001-08 ended
BB50 CBU 6F;HZB50 RHD +1 —
61288-36042 note Pillar, NO.3 Corner, LH
1999-07 → 2000-01 ended
HZB50 STD;BB42 LHD WC;BB4#,50 +5 —
61288-36042 Pillar, NO.3 Corner, LH
1999-07 → 2000-01 ended
BB42 LHD HRF WOC;BB5#,RZB40,50 +1 —
61288-36080 Pillar, NO.3 Corner, LH
2002-11 → 2004-08 ended
BB50,BZB50 RHD STD CBU —
61288-36080 note Pillar, NO.3 Corner, LH
2000-01 → 2002-11 ended
BB50,RZB40,50 STD CHI —
61288-36080 note Pillar, NO.3 Corner, LH
2001-08 → 2004-08 ended
BZB40;BB50 WOC TD;BB50 EX +1 —
61288-36080 note Pillar, NO.3 Corner, LH
2000-01 → 2001-08 ended
HZB50 N;BB4#,50,RZB40 RHD (17S,20S,22S) +10 —
61288-36080 note Pillar, NO.3 Corner, LH
2000-01 → 2004-08 ended
BB42 LHD (GCC,GEN) WC +16 —
61288-36010 Pillar, NO.3 Corner, LH
2004-08 → 2015-01 ended
XZB5# DX,EX —
61288-36010 Pillar, NO.3 Corner, LH
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61288-36010 Pillar, NO.3 Corner, LH
2004-08 → 2011-08 ended
BB50 WC TD —
61288-36010 Pillar, NO.3 Corner, LH
2004-08 → 2006-08 ended
BB50 DX;BB50 19S,20S;BB59,BZB50 EX —
61288-36080 note Pillar, NO.3 Corner, LH
2004-08 → 2006-10 ended
RZB40 STD SRF (DSL,EFI,LPG,TD) +3 —
61288-36080 note Pillar, NO.3 Corner, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61288-36080 note Pillar, NO.3 Corner, LH
2004-08 → 2006-08 ended
BB50,58 (17S,20S,21S,23S) (EX,STD) —
61288-36081 note Pillar, NO.3 Corner, LH
2006-10 → 2007-08 ended
RZB40,50 —
61288-36081 note Pillar, NO.3 Corner, LH
2006-10 → 2015-01 ended
BB42 50,XZB40 RHD;BB42 LHD +4 —
61288-36081 note Pillar, NO.3 Corner, LH
2006-10 → 2011-08 ended
BB42 LHD HRF —
61288-36081 note Pillar, NO.3 Corner, LH
2006-10 → 2009-08 ended
XZB50 WOC CBU —
61288-36081 note Pillar, NO.3 Corner, LH
2006-10 → 2008-03 ended
XZB50 STD GEN —
61288-36010 Pillar, NO.3 Corner, LH
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61288-36081 note Pillar, NO.3 Corner, LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F —
61289A — Pillar, NO.4 Corner, LH
61289-36010 Pillar, NO.4 Corner, LH
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 DX,EX —
61289-36020 Pillar, NO.4 Corner, LH
1993-01 → 1993-11 ended
BB4#,HZB50,RZB40,50 STD CBU —
61289-36020 note Pillar, NO.4 Corner, LH
1993-01 → 1993-11 ended
HZB50 SCO —
61289-36060 Pillar, NO.4 Corner, LH
1993-11 → 1994-09 ended
BB4#,HZB50,RZB40,50 STD CBU —
61289-36060 note Pillar, NO.4 Corner, LH
1993-11 → 1994-09 ended
HZB50 SCO —
61289-36061 note Pillar, NO.4 Corner, LH
1997-05 → 1999-02 ended
BB50 EX —
61289-36061 Pillar, NO.4 Corner, LH
1994-09 → 1999-02 ended
BB4#,58,HZB50,RZB40,50 STD CBU —
61289-36061 note Pillar, NO.4 Corner, LH
1994-09 → 1997-05 ended
HZB50 SCO —
61289-36062 note Pillar, NO.4 Corner, LH
1999-02 → 1999-07 ended
BB50 EX;BB4#,58,HZB50,RZB40,50 STD —
61289-36010 Pillar, NO.4 Corner, LH
1999-07 → 2001-08 ended
BB50 CBU 6F;HZB50 RHD +1 —
61289-36010 Pillar, NO.4 Corner, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61289-36010 Pillar, NO.4 Corner, LH
2001-08 → 2002-11 ended
HZB50 DX —
61289-36010 Pillar, NO.4 Corner, LH
1999-07 → 2004-08 ended
BB50 DX;HZB50 LHD EX;BB59,BZB50,RZB40 +3 —
61289-36010 Pillar, NO.4 Corner, LH
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61289-36062 Pillar, NO.4 Corner, LH
1999-07 → 2000-01 ended
BB42 LHD HRF WOC;BB5#,RZB40,50 +1 —
61289-36062 note Pillar, NO.4 Corner, LH
1999-07 → 2000-01 ended
HZB50 STD;BB42 LHD WC;BB4#,50 +5 —
61289-36130 note Pillar, NO.4 Corner, LH
2000-01 → 2004-08 ended
BB42 LHD (GCC,GEN) WC +16 —
61289-36130 Pillar, NO.4 Corner, LH
2002-11 → 2004-08 ended
BB50,BZB50 RHD STD CBU —
61289-36130 note Pillar, NO.4 Corner, LH
2001-08 → 2004-08 ended
BZB40;BB50 WOC TD;BB50 EX +1 —
61289-36130 note Pillar, NO.4 Corner, LH
2000-01 → 2002-11 ended
BB50,RZB40,50 STD CHI —
61289-36130 note Pillar, NO.4 Corner, LH
2000-01 → 2001-08 ended
HZB50 N;BB4#,50,RZB40 RHD (17S,20S,22S) +10 —
61289-36010 Pillar, NO.4 Corner, LH
2004-08 → 2006-08 ended
BB50 DX;BB50 19S,20S;BB59,BZB50 EX —
61289-36010 Pillar, NO.4 Corner, LH
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61289-36010 Pillar, NO.4 Corner, LH
2004-08 → 2015-01 ended
XZB5# DX,EX —
61289-36010 Pillar, NO.4 Corner, LH
2004-08 → 2011-08 ended
BB50 WC TD —
61289-36130 note Pillar, NO.4 Corner, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61289-36130 note Pillar, NO.4 Corner, LH
2004-08 → 2006-08 ended
BB50,58 (17S,20S,21S,23S) (EX,STD) —
61289-36130 note Pillar, NO.4 Corner, LH
2004-08 → 2006-10 ended
RZB40 STD SRF (DSL,EFI,LPG,TD) +3 —
61289-36131 note Pillar, NO.4 Corner, LH
2006-10 → 2015-01 ended
BB42 50,XZB40 RHD;BB42 LHD +4 —
61289-36131 note Pillar, NO.4 Corner, LH
2006-10 → 2009-08 ended
XZB50 WOC CBU —
61289-36131 note Pillar, NO.4 Corner, LH
2006-10 → 2011-08 ended
BB42 LHD HRF —
61289-36131 note Pillar, NO.4 Corner, LH
2006-10 → 2007-08 ended
RZB40,50 —
61289-36131 note Pillar, NO.4 Corner, LH
2006-10 → 2008-03 ended
XZB50 STD GEN —
61289-36010 Pillar, NO.4 Corner, LH
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61289-36131 note Pillar, NO.4 Corner, LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F —
61305B — Reinforce Sub-assy, Center Body Piller, Lower Front
61305-36010 Reinforce Sub-assy, Center Body Piller, Lower Front
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 DX,EX —
61305-36010 Reinforce Sub-assy, Center Body Piller, Lower Front
1999-07 → 2001-08 ended
BB50 CBU 6F;BB50,HZB50 RHD +1 —
61305-36010 Reinforce Sub-assy, Center Body Piller, Lower Front
1999-07 → 2002-11 ended
HZB50 DX;BB50,RZB40,50 CHI —
61305-36010 Reinforce Sub-assy, Center Body Piller, Lower Front
1999-07 → 2004-08 ended
BB50 DX;HZB50 LHD EX;BB59,BZB50,RZB40 +3 —
61305-36010 Reinforce Sub-assy, Center Body Piller, Lower Front
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61305-36010 Reinforce Sub-assy, Center Body Piller, Lower Front
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61305-36010 Reinforce Sub-assy, Center Body Piller, Lower Front
2004-08 → 2015-01 ended
XZB5# DX,EX —
61305-36010 Reinforce Sub-assy, Center Body Piller, Lower Front
2004-08 → 2011-08 ended
BB50 WC TD —
61305-36010 Reinforce Sub-assy, Center Body Piller, Lower Front
2004-08 → 2006-08 ended
BB50 DX;BB50 19S,20S;BB59,BZB50 EX —
61305-36010 Reinforce Sub-assy, Center Body Piller, Lower Front
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61306B — Reinforce Sub-assy, Center Body Pillar, Lower Rear
61306-36010 Reinforce Sub-assy, Center Body Pillar, Lower Rear
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 DX,EX —
61306-36010 Reinforce Sub-assy, Center Body Pillar, Lower Rear
1999-07 → 2001-08 ended
BB50 CBU 6F;BB50,HZB50 RHD +1 —
61306-36010 Reinforce Sub-assy, Center Body Pillar, Lower Rear
1999-07 → 2002-11 ended
HZB50 DX;BB50,RZB40,50 CHI —
61306-36010 Reinforce Sub-assy, Center Body Pillar, Lower Rear
1999-07 → 2004-08 ended
BB50 DX;HZB50 LHD EX;BB59,BZB50,RZB40 +3 —
61306-36010 Reinforce Sub-assy, Center Body Pillar, Lower Rear
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61306-36010 Reinforce Sub-assy, Center Body Pillar, Lower Rear
2004-08 → 2006-08 ended
BB50 DX;BB50 19S,20S;BB59,BZB50 EX —
61306-36010 Reinforce Sub-assy, Center Body Pillar, Lower Rear
2004-08 → 2011-08 ended
BB50 WC TD —
61306-36010 Reinforce Sub-assy, Center Body Pillar, Lower Rear
2004-08 → 2015-01 ended
XZB5# DX,EX —
61306-36010 Reinforce Sub-assy, Center Body Pillar, Lower Rear
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61306-36010 Reinforce Sub-assy, Center Body Pillar, Lower Rear
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61307C — Pillar Sub-assy, Center Body, Inner Front
61307-36020 note Pillar Sub-assy, Center Body, Inner Front
1993-01 → 1999-07 ended
BB50,HZB50,RZB40 DX,EX —
61307-36040 note Pillar Sub-assy, Center Body, Inner Front
1993-01 → 1999-07 ended
BB4#,58,HZB50,RZB40,50 STD CBU —
61307-36040 note Pillar Sub-assy, Center Body, Inner Front
1993-01 → 1999-07 ended
BB50 EX;HZB50 SCO —
61307-36080 Pillar Sub-assy, Center Body, Inner Front
1997-05 → 1999-07 ended
BB50 WC CBU —
61307-36020 note Pillar Sub-assy, Center Body, Inner Front
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX CBU —
61307-36020 note Pillar Sub-assy, Center Body, Inner Front
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61307-36020 Pillar Sub-assy, Center Body, Inner Front
2001-04 → 2004-08 ended
BB50,59,BZB50 (DX,EX) (LPG,TDEFI) —
61307-36020 Pillar Sub-assy, Center Body, Inner Front
2001-04 → 2001-08 ended
BB50 EX IV —
61307-36020 note Pillar Sub-assy, Center Body, Inner Front
1999-07 → 2002-11 ended
HZB50 DX;BB50,RZB40,50 CHI —
61307-36020 note Pillar Sub-assy, Center Body, Inner Front
1999-07 → 2004-08 ended
HZB50,RZB40 LHD EX —
61307-36040 note Pillar Sub-assy, Center Body, Inner Front
1999-07 → 2004-08 ended
BB42 RF 6S) WC +28 —
61307-36040 Pillar Sub-assy, Center Body, Inner Front
2002-11 → 2004-08 ended
BB50,BZB50 RHD STD CBU —
61307-36040 note Pillar Sub-assy, Center Body, Inner Front
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 STD (ARL,CHI) —
61307-36040 note Pillar Sub-assy, Center Body, Inner Front
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
61307-36040 note Pillar Sub-assy, Center Body, Inner Front
1999-07 → 2001-08 ended
HZB50 40 RHD (17S,22S) +8 —
61307-36080 Pillar Sub-assy, Center Body, Inner Front
1999-07 → 2004-08 ended
BB50 GEN 6F TDEFI —
61307-36080 Pillar Sub-assy, Center Body, Inner Front
1999-07 → 2001-08 ended
BB50 CBU 6F —
61307-36020 note Pillar Sub-assy, Center Body, Inner Front
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61307-36020 note Pillar Sub-assy, Center Body, Inner Front
2004-08 → 2006-08 ended
BB50,59,BZB50 DX,EX —
61307-36020 note Pillar Sub-assy, Center Body, Inner Front
2004-08 → 2015-01 ended
XZB5# DX,EX —
61307-36020 note Pillar Sub-assy, Center Body, Inner Front
2004-08 → 2011-08 ended
BB50 WC TD —
61307-36040 note Pillar Sub-assy, Center Body, Inner Front
2007-08 → 2015-01 ended
TRB40,50,XZB40;XZB50 GEN 4FC;BB42 RHD +2 —
61307-36040 note Pillar Sub-assy, Center Body, Inner Front
2004-08 → 2015-01 ended
BB42 0,BZB40,50,HZB50 WOC;BB42 STD +10 —
61307-36040 note Pillar Sub-assy, Center Body, Inner Front
2004-08 → 2011-08 ended
BB42 LHD HRF —
61307-36040 note Pillar Sub-assy, Center Body, Inner Front
2004-08 → 2008-03 ended
XZB50 STD GEN —
61307-36040 note Pillar Sub-assy, Center Body, Inner Front
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61307-36040 note Pillar Sub-assy, Center Body, Inner Front
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61307-36040 note Pillar Sub-assy, Center Body, Inner Front
2004-08 → 2006-08 ended
BB50,58 (17S,20S,21S,23S) (EX,STD) —
61307-36040 note Pillar Sub-assy, Center Body, Inner Front
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61307-36080 Pillar Sub-assy, Center Body, Inner Front
2004-08 → 2006-08 ended
BB50 GEN 6F —
61307-36020 note Pillar Sub-assy, Center Body, Inner Front
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61307-36040 note Pillar Sub-assy, Center Body, Inner Front
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F —
61308D — Pillar Sub-assy, Center Body, Inner Rear
61308-36020 note Pillar Sub-assy, Center Body, Inner Rear
1993-01 → 1999-07 ended
BB50,HZB50,RZB40 DX,EX —
61308-36030 note Pillar Sub-assy, Center Body, Inner Rear
1993-01 → 1999-07 ended
BB4#,58,HZB50,RZB40,50 STD CBU —
61308-36030 note Pillar Sub-assy, Center Body, Inner Rear
1993-01 → 1999-07 ended
BB50 EX;HZB50 SCO —
61308-36070 Pillar Sub-assy, Center Body, Inner Rear
1997-05 → 1999-07 ended
BB50 WC CBU —
61308-36020 note Pillar Sub-assy, Center Body, Inner Rear
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX CBU —
61308-36020 note Pillar Sub-assy, Center Body, Inner Rear
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61308-36020 Pillar Sub-assy, Center Body, Inner Rear
2001-04 → 2001-08 ended
BB50 EX IV —
61308-36020 note Pillar Sub-assy, Center Body, Inner Rear
1999-07 → 2002-11 ended
HZB50 DX;BB50,RZB40,50 CHI —
61308-36020 Pillar Sub-assy, Center Body, Inner Rear
2001-04 → 2004-08 ended
BB50,59,BZB50 (DX,EX) (LPG,TDEFI) —
61308-36020 note Pillar Sub-assy, Center Body, Inner Rear
1999-07 → 2004-08 ended
HZB50,RZB40 LHD EX —
61308-36030 note Pillar Sub-assy, Center Body, Inner Rear
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 STD (ARL,CHI) —
61308-36030 Pillar Sub-assy, Center Body, Inner Rear
2002-11 → 2004-08 ended
BB50,BZB50 RHD STD CBU —
61308-36030 note Pillar Sub-assy, Center Body, Inner Rear
1999-07 → 2004-08 ended
BB42 RF 6S) WC +28 —
61308-36030 note Pillar Sub-assy, Center Body, Inner Rear
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
61308-36030 note Pillar Sub-assy, Center Body, Inner Rear
1999-07 → 2001-08 ended
HZB50 40 RHD (17S,22S) +8 —
61308-36070 Pillar Sub-assy, Center Body, Inner Rear
1999-07 → 2004-08 ended
BB50 GEN 6F TDEFI —
61308-36070 Pillar Sub-assy, Center Body, Inner Rear
1999-07 → 2001-08 ended
BB50 CBU 6F —
61308-36020 note Pillar Sub-assy, Center Body, Inner Rear
2004-08 → 2006-08 ended
BB50,59,BZB50 DX,EX —
61308-36020 note Pillar Sub-assy, Center Body, Inner Rear
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61308-36020 note Pillar Sub-assy, Center Body, Inner Rear
2004-08 → 2015-01 ended
XZB5# DX,EX —
61308-36020 note Pillar Sub-assy, Center Body, Inner Rear
2004-08 → 2011-08 ended
BB50 WC TD —
61308-36030 note Pillar Sub-assy, Center Body, Inner Rear
2004-08 → 2006-08 ended
BB50,58 (17S,20S,21S,23S) (EX,STD) —
61308-36030 Pillar Sub-assy, Center Body, Inner Rear
2008-03 → 2015-01 ended
XZB40;BB42 RHD SRF WC —
61308-36030 note Pillar Sub-assy, Center Body, Inner Rear
2007-08 → 2015-01 ended
TRB40,50;XZB50 GEN 4FC —
61308-36030 note Pillar Sub-assy, Center Body, Inner Rear
2004-08 → 2015-01 ended
BB42 0,BZB40,50,HZB50 WOC;BB42 STD +10 —
61308-36030 note Pillar Sub-assy, Center Body, Inner Rear
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61308-36030 note Pillar Sub-assy, Center Body, Inner Rear
2004-08 → 2008-03 ended
XZB50 STD GEN —
61308-36030 note Pillar Sub-assy, Center Body, Inner Rear
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61308-36030 note Pillar Sub-assy, Center Body, Inner Rear
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61308-36030 note Pillar Sub-assy, Center Body, Inner Rear
2004-08 → 2011-08 ended
BB42 LHD HRF —
61308-36070 Pillar Sub-assy, Center Body, Inner Rear
2004-08 → 2006-08 ended
BB50 GEN 6F —
61308-36020 note Pillar Sub-assy, Center Body, Inner Rear
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61308-36030 note Pillar Sub-assy, Center Body, Inner Rear
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F —
61319B — Plate, Center Body Pillar, Outer RH
61319-36020 Plate, Center Body Pillar, Outer RH
1993-01 → 1999-07 ended
BB4#,58,HZB50,RZB40,50 STD CBU —
61319-36020 note Plate, Center Body Pillar, Outer RH
1993-01 → 1999-07 ended
BB50 EX;HZB50 SCO —
61319-36020 Plate, Center Body Pillar, Outer RH
1999-07 → 2001-08 ended
HZB50 40 RHD (17S,22S) +8 —
61319-36020 note Plate, Center Body Pillar, Outer RH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
61319-36020 Plate, Center Body Pillar, Outer RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 STD (ARL,CHI) —
61319-36020 Plate, Center Body Pillar, Outer RH
1999-07 → 2004-08 ended
BB42 RF ) WC +25 —
61319-36020 Plate, Center Body Pillar, Outer RH
2004-08 → 2015-01 ended
BB42 50,XZB40 RHD;BB42 STD +6 —
61319-36020 Plate, Center Body Pillar, Outer RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61319-36020 Plate, Center Body Pillar, Outer RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61319-36020 Plate, Center Body Pillar, Outer RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61319-36020 Plate, Center Body Pillar, Outer RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61319-36020 Plate, Center Body Pillar, Outer RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61319-36020 Plate, Center Body Pillar, Outer RH
2004-08 → 2006-08 ended
BB50,58 (17S,20S,21S,23S) (EX,STD) —
61319-36020 Plate, Center Body Pillar, Outer RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F —
61329 — Plate, Center Body Pillar, Outer LH
61329-36020 Plate, Center Body Pillar, Outer LH
1993-01 → 1999-07 ended
BB4#,58,HZB50,RZB40,50 STD CBU —
61329-36020 note Plate, Center Body Pillar, Outer LH
1993-01 → 1999-07 ended
BB50 EX;HZB50 SCO —
61329-36020 Plate, Center Body Pillar, Outer LH
1999-07 → 2001-08 ended
HZB50 40 RHD (17S,22S) +8 —
61329-36020 note Plate, Center Body Pillar, Outer LH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
61329-36020 Plate, Center Body Pillar, Outer LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 STD (ARL,CHI) —
61329-36020 Plate, Center Body Pillar, Outer LH
1999-07 → 2004-08 ended
BB42 RF ) WC +25 —
61329-36020 Plate, Center Body Pillar, Outer LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61329-36020 Plate, Center Body Pillar, Outer LH
2004-08 → 2015-01 ended
BB42 50,XZB40 RHD;BB42 STD +6 —
61329-36020 Plate, Center Body Pillar, Outer LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61329-36020 Plate, Center Body Pillar, Outer LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61329-36020 Plate, Center Body Pillar, Outer LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61329-36020 Plate, Center Body Pillar, Outer LH
2004-08 → 2006-08 ended
BB50,58 (17S,20S,21S,23S) (EX,STD) —
61329-36020 Plate, Center Body Pillar, Outer LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61329-36020 Plate, Center Body Pillar, Outer LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F —
61342A — Rail, NO.1 Upper Inner, Rear LH
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 DX,EX —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
1993-01 → 1997-05 ended
HZB50 SCO —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
1993-01 → 1999-07 ended
BB50 EX;BB4#,58,HZB50,RZB40,50 STD CBU —
61332-36020 note Rail, NO.1 Upper Inner, Rear LH
2003-11 → 2004-08 ended
BB59 —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61342-36020 Rail, NO.1 Upper Inner, Rear LH
2001-08 → 2004-08 ended
BB59;BB50,BZB50 21S (DX,EX) —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
1999-07 → 2004-08 ended
HZB50,RZB40 LHD EX;BB50 (19S,20S) +1 —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
1999-07 → 2002-11 ended
HZB50 DX;BB50,RZB40,50 CHI —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
1999-07 → 2001-08 ended
BB50 CBU 6F;BB50,HZB50 RHD +1 —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
1999-07 → 2004-08 ended
BB42 RF 6S) WC +28 —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
1999-07 → 2001-08 ended
HZB50 N;BB4#,50,RZB40 RHD (17S,20S,22S) +10 —
61342-36030 Rail, NO.1 Upper Inner, Rear LH
2002-11 → 2004-08 ended
BB50,BZB50 RHD STD CBU —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
61332-36020 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2011-04 ended
XZB59 —
61332-36020 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2006-08 ended
BB59 —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2006-08 ended
BB50 DX;BB50 19S,20S;BB59,BZB50 EX —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2015-01 ended
XZB5# DX,EX —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2011-08 ended
BB50 WC TD —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2015-01 ended
BB42 50,XZB40 RHD;BB42 STD +6 —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2006-08 ended
BB50,58 (17S,20S,21S,23S) (EX,STD) —
61342-36060 note Rail, NO.1 Upper Inner, Rear LH
2011-04 → 2015-01 ended
XZB59 —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F —
61342-36060 note Rail, NO.1 Upper Inner, Rear LH
2015-01 → —
XZB59 —
61389 — Patch, Center Body Pillar, Outer
61389-36010 Patch, Center Body Pillar, Outer
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 DX,EX —
61389-36010 Patch, Center Body Pillar, Outer
1999-07 → 2001-08 ended
BB50 CBU 6F;BB50,HZB50 RHD +1 —
61389-36010 Patch, Center Body Pillar, Outer
2001-08 → 2001-09 ended
BB50 WC GEN TD —
61389-36010 Patch, Center Body Pillar, Outer
1999-07 → 2001-09 ended
HZB50 CC) LHD EX;BB50,RZB40,50 +5 —
61389-36011 Patch, Center Body Pillar, Outer
2001-09 → 2002-11 ended
HZB50 DX;BB50,RZB40,50 CHI —
61389-36011 Patch, Center Body Pillar, Outer
2001-09 → 2004-08 ended
BB50 DX;BB59,BZB50,HZB50,RZB40 EX;BB50 (19S,20S,30S) +2 —
61389-36011 Patch, Center Body Pillar, Outer
2004-08 → 2011-08 ended
BB50 WC TD —
61389-36011 Patch, Center Body Pillar, Outer
2004-08 → 2015-01 ended
BB50 DX;BB50 19S,20S;BB59,BZB50,XZB5# DX,EX —
61389-36011 Patch, Center Body Pillar, Outer
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61389-36011 Patch, Center Body Pillar, Outer
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61399 — Patch, Center Body Pillar, Outer NO.2
61399-36010 Patch, Center Body Pillar, Outer NO.2
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 DX,EX —
61399-36010 Patch, Center Body Pillar, Outer NO.2
1999-07 → 2001-08 ended
BB50 CBU 6F;BB50,HZB50 RHD +1 —
61399-36010 Patch, Center Body Pillar, Outer NO.2
1999-07 → 2001-09 ended
HZB50 CC) LHD EX;BB50,RZB40,50 +5 —
61399-36010 Patch, Center Body Pillar, Outer NO.2
2001-08 → 2001-09 ended
BB50 WC GEN TD —
61399-36011 Patch, Center Body Pillar, Outer NO.2
2001-09 → 2002-11 ended
HZB50 DX;BB50,RZB40,50 CHI —
61399-36011 Patch, Center Body Pillar, Outer NO.2
2001-09 → 2004-08 ended
BB50 DX;BB59,BZB50,HZB50,RZB40 EX;BB50 (19S,20S,30S) +2 —
61399-36011 Patch, Center Body Pillar, Outer NO.2
2004-08 → 2006-08 ended
BB50 DX;BB50 19S,20S;BB59,BZB50 EX —
61399-36011 Patch, Center Body Pillar, Outer NO.2
2004-08 → 2011-08 ended
BB50 WC TD —
61399-36011 Patch, Center Body Pillar, Outer NO.2
2004-08 → 2015-01 ended
XZB5# DX,EX —
61399-36011 Patch, Center Body Pillar, Outer NO.2
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61399-36011 Patch, Center Body Pillar, Outer NO.2
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61406 — Rail Sub-assy, NO.7 Lower Inner, Lower LH
61406-36010 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 DX,EX —
61406-36030 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
1993-01 → 1999-07 ended
BB50 EX;HZB50 SCO —
61406-36030 Rail Sub-assy, NO.7 Lower Inner, Lower LH
1993-01 → 1999-07 ended
BB4#,HZB50 RHD STD CBU —
61406-36040 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
1993-01 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD STD CBU —
61406-36010 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX —
61406-36010 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61406-36010 Rail Sub-assy, NO.7 Lower Inner, Lower LH
2001-08 → 2004-08 ended
BB59;BB50,BZB50 21S (DX,EX) —
61406-36010 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
1999-07 → 2002-11 ended
HZB50 DX;BB50,RZB40,50 CHI —
61406-36010 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
1999-07 → 2004-08 ended
HZB50,RZB40 LHD EX;BB50 (19S,20S) +1 —
61406-36030 Rail Sub-assy, NO.7 Lower Inner, Lower LH
1999-07 → 2004-08 ended
BB42 .WC RHD GEN +9 —
61406-36030 Rail Sub-assy, NO.7 Lower Inner, Lower LH
1999-07 → 2002-11 ended
HZB50 STD ARL —
61406-36030 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
61406-36030 Rail Sub-assy, NO.7 Lower Inner, Lower LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB43,HZB50 (17S,22S) +5 —
61406-36040 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
61406-36040 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
1999-07 → 2004-08 ended
BB42 (23S,26S,30S) WC WC +9 —
61406-36040 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
61406-36040 Rail Sub-assy, NO.7 Lower Inner, Lower LH
2001-08 → 2004-08 ended
BB50 WOC TD —
61406-36010 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61406-36010 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
2004-08 → 2006-08 ended
BB50 DX;BB50 19S,20S;BB59,BZB50 EX —
61406-36010 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
2004-08 → 2015-01 ended
XZB5# DX,EX —
61406-36010 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
2004-08 → 2011-08 ended
BB50 WC TD —
61406-36030 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
2007-08 → 2015-01 ended
XZB50 GEN 4FC —
61406-36030 Rail Sub-assy, NO.7 Lower Inner, Lower LH
2004-08 → 2015-01 ended
BB42,BZB40,50,HZB50,XZB40 RHD STD;XZB50 RHD +4 —
61406-36030 Rail Sub-assy, NO.7 Lower Inner, Lower LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61406-36030 Rail Sub-assy, NO.7 Lower Inner, Lower LH
2004-08 → 2006-08 ended
BB50 RHD (EX,STD) CBU —
61406-36030 Rail Sub-assy, NO.7 Lower Inner, Lower LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61406-36040 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61406-36040 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61406-36040 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
2004-08 → 2006-08 ended
BB58 —
61406-36040 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61406-36040 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61406-36010 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61406-36030 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,50 RHD (EX,STD) 5F —
61406-36040 note Rail Sub-assy, NO.7 Lower Inner, Lower LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61471 — Rail, Center Door, Outer
61471-36010 Rail, Center Door, Outer
1993-01 → 1993-11 ended
BB4#,HZB50 RHD STD DSL —
61471-36010 note Rail, Center Door, Outer
1993-01 → 1993-11 ended
HZB50 SCO —
61471-36020 Rail, Center Door, Outer
1993-01 → 1993-11 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
61471-36030 note Rail, Center Door, Outer
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 DX,EX —
61471-36040 note Rail, Center Door, Outer
1993-11 → 1994-09 ended
HZB50 SCO —
61471-36040 Rail, Center Door, Outer
1993-11 → 1994-09 ended
BB4#,HZB50 RHD STD DSL —
61471-36041 Rail, Center Door, Outer
1994-09 → 1999-07 ended
BB4#,HZB50 RHD STD CBU —
61471-36041 note Rail, Center Door, Outer
1994-09 → 1999-07 ended
BB50 EX;HZB50 SCO —
61471-36050 Rail, Center Door, Outer
1993-11 → 1994-09 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
61471-36051 Rail, Center Door, Outer
1994-09 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD STD CBU —
61471-36030 note Rail, Center Door, Outer
2001-08 → 2001-09 ended
BB50 WC GEN TD —
61471-36030 note Rail, Center Door, Outer
1999-07 → 2001-09 ended
HZB50 CC) LHD EX;BB50,RZB40,50 +5 —
61471-36030 note Rail, Center Door, Outer
1999-07 → 2001-08 ended
BB50 CBU 6F;BB50,HZB50 RHD +1 —
61471-36031 note Rail, Center Door, Outer
2001-09 → 2002-11 ended
HZB50 DX;BB50,RZB40,50 CHI —
61471-36031 Rail, Center Door, Outer
2002-11 → 2004-08 ended
BB50,BZB50 21S (DX,EX) —
61471-36031 note Rail, Center Door, Outer
2001-09 → 2004-08 ended
BB59,HZB50,RZB40 EX;BB50 (19S,20S,30S) WC +1 —
61471-36041 note Rail, Center Door, Outer
1999-07 → 2000-01 ended
BB50 EX —
61471-36041 Rail, Center Door, Outer
1999-07 → 2000-01 ended
BB4#,HZB50 RHD STD —
61471-36051 Rail, Center Door, Outer
1999-07 → 2000-01 ended
BB42,5#,HZB50,RZB40,50 LHD (22S,23S,26S,30S) —
61471-36060 note Rail, Center Door, Outer
2000-01 → 2004-08 ended
BB42 RHD SRF;BB42,HZB50 RHD +5 —
61471-36060 Rail, Center Door, Outer
2001-08 → 2004-08 ended
BZB40,50 STD;BB50 RHD (EX,STD) +1 —
61471-36060 note Rail, Center Door, Outer
2000-01 → 2002-11 ended
HZB50 STD ARL —
61471-36060 note Rail, Center Door, Outer
2000-01 → 2001-08 ended
HZB50 4FC;HZB50 RHD SRF;BB43,50 +6 —
61471-36070 note Rail, Center Door, Outer
2000-01 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
61471-36070 note Rail, Center Door, Outer
2000-01 → 2004-08 ended
BB42 (23S,26S,30S) WC WC +9 —
61471-36070 note Rail, Center Door, Outer
2000-01 → 2002-11 ended
BB50,RZB40,50 STD CHI —
61471-36070 Rail, Center Door, Outer
2001-08 → 2004-08 ended
BB50 WOC TD —
61471-36031 note Rail, Center Door, Outer
2004-08 → 2011-08 ended
BB50 WC TD —
61471-36031 note Rail, Center Door, Outer
2004-08 → 2014-11 ended
BB50 DX;BB50 19S,20S;BB59,BZB50,XZB5# DX,EX —
61471-36031 note Rail, Center Door, Outer
2011-08 → 2014-11 ended
TRB50 HRF GCC —
61471-36060 Rail, Center Door, Outer
2004-08 → 2006-09 ended
BB50 RHD (EX,STD) CBU;BB42,BZB40,50,HZB50,XZB50 +3 —
61471-36061 note Rail, Center Door, Outer
2006-09 → 2015-01 ended
BB42,BZB40,50,HZB50,XZB40,50 RHD (EX,STD) CBU —
61471-36070 Rail, Center Door, Outer
2004-08 → 2006-09 ended
BB42,50,58,HZB50,RZB40,50,XZB50 LHD (21S,23S,26S,30S) —
61471-36071 note Rail, Center Door, Outer
2006-09 → 2015-01 ended
BB42,50,HZB50,RZB40,50,TRB40,50,XZB50 LHD CBU —
61471-36080 Rail, Center Door, Outer
2014-12 → 2015-01 ended
XZB5# DX,EX;TRB50 HRF GCC —
61471-36061 Rail, Center Door, Outer
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,50 RHD (EX,STD) 5F —
61471-36071 Rail, Center Door, Outer
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61471-36080 note Rail, Center Door, Outer
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61481A — Rail, Center Door, Lower Outer
61481-36010 Rail, Center Door, Lower Outer
1993-01 → 1999-07 ended
BB50,HZB50,RZB40 DX,EX —
61481-36020 Rail, Center Door, Lower Outer
1997-05 → 1999-07 ended
BB50 WC CBU —
61481-36010 Rail, Center Door, Lower Outer
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61481-36010 Rail, Center Door, Lower Outer
1999-07 → 2004-08 ended
HZB50 LHD EX;BB50,59,BZB50,RZB40 (DX,EX) +1 —
61481-36010 Rail, Center Door, Lower Outer
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX —
61481-36010 Rail, Center Door, Lower Outer
1999-07 → 2002-11 ended
HZB50 DX;BB50,RZB40,50 CHI —
61481-36020 Rail, Center Door, Lower Outer
1999-07 → 2001-08 ended
BB50 CBU 6F —
61481-36020 Rail, Center Door, Lower Outer
1999-07 → 2004-08 ended
BB50 GEN 6F TDEFI —
61481-36010 Rail, Center Door, Lower Outer
2004-08 → 2006-08 ended
BB50,59,BZB50 DX,EX —
61481-36010 Rail, Center Door, Lower Outer
2004-08 → 2011-08 ended
BB50 WC TD —
61481-36010 Rail, Center Door, Lower Outer
2004-08 → 2015-01 ended
XZB5# DX,EX —
61481-36010 Rail, Center Door, Lower Outer
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61481-36020 Rail, Center Door, Lower Outer
2004-08 → 2006-08 ended
BB50 GEN 6F —
61481-36010 Rail, Center Door, Lower Outer
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61532E — Gusset, Seat Anchor, NO.2
61532-36010 Gusset, Seat Anchor, NO.2
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61532-36010 Gusset, Seat Anchor, NO.2
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61532-36010 Gusset, Seat Anchor, NO.2
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61532-36010 Gusset, Seat Anchor, NO.2
1999-07 → 2001-08 ended
BB50 ,RZB40 EX (17S,22S) +13 —
61532-36010 Gusset, Seat Anchor, NO.2
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61532-36010 Gusset, Seat Anchor, NO.2
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61532-36010 Gusset, Seat Anchor, NO.2
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61532-36010 Gusset, Seat Anchor, NO.2
2004-08 → 2008-03 ended
XZB50 STD GEN —
61532-36010 Gusset, Seat Anchor, NO.2
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61532-36010 Gusset, Seat Anchor, NO.2
2004-08 → 2011-08 ended
BB42 LHD HRF —
61532-36010 Gusset, Seat Anchor, NO.2
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61532-36050 Gusset, Seat Anchor, NO.2
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61532-36060 Gusset, Seat Anchor, NO.2
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61547A — Gusset, Seat Anchor, NO.7 LH
61547-36010 Gusset, Seat Anchor, NO.7 LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61547-36010 Gusset, Seat Anchor, NO.7 LH
1999-07 → 2001-08 ended
BB50 ,RZB40 EX (17S,22S) +13 —
61547-36010 Gusset, Seat Anchor, NO.7 LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61547-36010 Gusset, Seat Anchor, NO.7 LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61547-36010 Gusset, Seat Anchor, NO.7 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61547-36010 Gusset, Seat Anchor, NO.7 LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61547-36010 Gusset, Seat Anchor, NO.7 LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61547-36010 Gusset, Seat Anchor, NO.7 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61547-36010 Gusset, Seat Anchor, NO.7 LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61547-36010 Gusset, Seat Anchor, NO.7 LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61547-36010 Gusset, Seat Anchor, NO.7 LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61547-36020 Gusset, Seat Anchor, NO.7 LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61547-36040 Gusset, Seat Anchor, NO.7 LH
2015-01 → —
XZB50 ARL —
61547-36050 Gusset, Seat Anchor, NO.7 LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD GEN —
61585A — Gusset, Rear Door Pillar, Front
61585-36010 note Gusset, Rear Door Pillar, Front
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 DX,EX —
61585-36020 Gusset, Rear Door Pillar, Front
1993-01 → 1993-11 ended
BB4#,HZB50,RZB40,50 STD CBU —
61585-36020 note Gusset, Rear Door Pillar, Front
1993-01 → 1993-11 ended
HZB50 SCO —
61585-36030 Gusset, Rear Door Pillar, Front
1993-11 → 1994-09 ended
BB4#,HZB50,RZB40,50 STD CBU —
61585-36030 note Gusset, Rear Door Pillar, Front
1993-11 → 1994-09 ended
HZB50 SCO —
61585-36031 note Gusset, Rear Door Pillar, Front
1994-09 → 1997-05 ended
HZB50 SCO —
61585-36031 Gusset, Rear Door Pillar, Front
1994-09 → 1999-07 ended
BB4#,58,HZB50,RZB40,50 STD CBU —
61585-36031 note Gusset, Rear Door Pillar, Front
1997-05 → 1999-07 ended
BB50 EX —
61585-36010 note Gusset, Rear Door Pillar, Front
2001-08 → 2002-11 ended
HZB50 DX —
61585-36010 note Gusset, Rear Door Pillar, Front
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61585-36010 Gusset, Rear Door Pillar, Front
2001-08 → 2004-08 ended
BB50 DX;BB59,BZB50 EX;BB50 (19S,20S) +1 —
61585-36010 note Gusset, Rear Door Pillar, Front
1999-07 → 2004-08 ended
HZB50,RZB40 LHD EX —
61585-36010 note Gusset, Rear Door Pillar, Front
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61585-36010 note Gusset, Rear Door Pillar, Front
1999-07 → 2001-08 ended
BB50 CBU 6F;HZB50 RHD +1 —
61585-36031 Gusset, Rear Door Pillar, Front
1999-07 → 2000-01 ended
BB4#,5#,HZB50,RZB40,50 (17S,22S,23S,26S,30S) STD —
61585-36031 note Gusset, Rear Door Pillar, Front
1999-07 → 2000-01 ended
BB50 EX —
61585-36040 note Gusset, Rear Door Pillar, Front
2000-01 → 2002-11 ended
BB50,RZB40,50 STD CHI —
61585-36040 note Gusset, Rear Door Pillar, Front
2001-08 → 2004-08 ended
BB50 EX TDEFI —
61585-36040 Gusset, Rear Door Pillar, Front
2001-08 → 2004-08 ended
BB50 WOC CBU;BB50,BZB40,50 RHD +2 —
61585-36040 note Gusset, Rear Door Pillar, Front
2000-01 → 2001-08 ended
HZB50 N;BB4#,50,RZB40 RHD (17S,20S,22S) +10 —
61585-36040 note Gusset, Rear Door Pillar, Front
2000-01 → 2004-08 ended
BB42 LHD (GCC,GEN) WC +16 —
61585-36010 note Gusset, Rear Door Pillar, Front
2004-08 → 2006-08 ended
BB50 DX;BB50 19S,20S;BB59,BZB50 EX —
61585-36010 note Gusset, Rear Door Pillar, Front
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61585-36010 note Gusset, Rear Door Pillar, Front
2004-08 → 2015-01 ended
XZB5# DX,EX —
61585-36010 note Gusset, Rear Door Pillar, Front
2004-08 → 2011-08 ended
BB50 WC TD —
61585-36040 note Gusset, Rear Door Pillar, Front
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61585-36040 note Gusset, Rear Door Pillar, Front
2004-08 → 2006-08 ended
BB50,58 (17S,20S,21S,23S) (EX,STD) —
61585-36040 note Gusset, Rear Door Pillar, Front
2004-08 → 2006-10 ended
RZB40 STD SRF (DSL,EFI,LPG,TD) +3 —
61585-36041 note Gusset, Rear Door Pillar, Front
2006-10 → 2011-08 ended
BB42 LHD HRF —
61585-36041 note Gusset, Rear Door Pillar, Front
2006-10 → 2015-01 ended
BB42 50,XZB40 RHD;BB42 LHD +4 —
61585-36041 note Gusset, Rear Door Pillar, Front
2006-10 → 2009-08 ended
XZB50 WOC CBU —
61585-36041 note Gusset, Rear Door Pillar, Front
2006-10 → 2008-03 ended
XZB50 STD GEN —
61585-36041 note Gusset, Rear Door Pillar, Front
2006-10 → 2007-08 ended
RZB40,50 —
61585-36010 note Gusset, Rear Door Pillar, Front
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61585-36041 note Gusset, Rear Door Pillar, Front
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F —
61586A — Gusset, Rear Door Pillar, Rear
61586-36010 note Gusset, Rear Door Pillar, Rear
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 DX,EX —
61586-36020 Gusset, Rear Door Pillar, Rear
1993-01 → 1993-11 ended
BB4#,HZB50,RZB40,50 STD CBU —
61586-36020 note Gusset, Rear Door Pillar, Rear
1993-01 → 1993-11 ended
HZB50 SCO —
61586-36030 note Gusset, Rear Door Pillar, Rear
1993-11 → 1994-09 ended
HZB50 SCO —
61586-36030 Gusset, Rear Door Pillar, Rear
1993-11 → 1994-09 ended
BB4#,HZB50,RZB40,50 STD CBU —
61586-36031 Gusset, Rear Door Pillar, Rear
1994-09 → 1999-07 ended
BB4#,58,HZB50,RZB40,50 STD CBU —
61586-36031 note Gusset, Rear Door Pillar, Rear
1997-05 → 1999-07 ended
BB50 EX —
61586-36031 note Gusset, Rear Door Pillar, Rear
1994-09 → 1997-05 ended
HZB50 SCO —
61586-36010 Gusset, Rear Door Pillar, Rear
2001-08 → 2004-08 ended
BB50 DX;BB59,BZB50 EX;BB50 (19S,20S) +1 —
61586-36010 note Gusset, Rear Door Pillar, Rear
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61586-36010 note Gusset, Rear Door Pillar, Rear
1999-07 → 2004-08 ended
HZB50,RZB40 LHD EX —
61586-36010 note Gusset, Rear Door Pillar, Rear
2001-08 → 2002-11 ended
HZB50 DX —
61586-36010 note Gusset, Rear Door Pillar, Rear
1999-07 → 2001-08 ended
BB50 CBU 6F;HZB50 RHD +1 —
61586-36010 note Gusset, Rear Door Pillar, Rear
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61586-36031 note Gusset, Rear Door Pillar, Rear
1999-07 → 2000-01 ended
BB50 EX —
61586-36031 Gusset, Rear Door Pillar, Rear
1999-07 → 2000-01 ended
BB4#,5#,HZB50,RZB40,50 (17S,22S,23S,26S,30S) STD —
61586-36040 note Gusset, Rear Door Pillar, Rear
2000-01 → 2002-11 ended
BB50,RZB40,50 STD CHI —
61586-36040 note Gusset, Rear Door Pillar, Rear
2000-01 → 2001-08 ended
HZB50 N;BB4#,50,RZB40 RHD (17S,20S,22S) +10 —
61586-36040 note Gusset, Rear Door Pillar, Rear
2000-01 → 2004-08 ended
BB42 LHD (GCC,GEN) WC +16 —
61586-36040 Gusset, Rear Door Pillar, Rear
2001-08 → 2004-08 ended
BB50 WOC CBU;BB50,BZB40,50 RHD +2 —
61586-36040 note Gusset, Rear Door Pillar, Rear
2001-08 → 2004-08 ended
BB50 EX TDEFI —
61586-36010 note Gusset, Rear Door Pillar, Rear
2004-08 → 2015-01 ended
XZB5# DX,EX —
61586-36010 note Gusset, Rear Door Pillar, Rear
2004-08 → 2011-08 ended
BB50 WC TD —
61586-36010 note Gusset, Rear Door Pillar, Rear
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61586-36010 note Gusset, Rear Door Pillar, Rear
2004-08 → 2006-08 ended
BB50 DX;BB50 19S,20S;BB59,BZB50 EX —
61586-36040 note Gusset, Rear Door Pillar, Rear
2004-08 → 2006-10 ended
RZB40 STD SRF (DSL,EFI,LPG,TD) +3 —
61586-36040 note Gusset, Rear Door Pillar, Rear
2004-08 → 2006-08 ended
BB50,58 (17S,20S,21S,23S) (EX,STD) —
61586-36040 note Gusset, Rear Door Pillar, Rear
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61586-36041 note Gusset, Rear Door Pillar, Rear
2006-10 → 2015-01 ended
BB42 50,XZB40 RHD;BB42 LHD +4 —
61586-36041 note Gusset, Rear Door Pillar, Rear
2006-10 → 2009-08 ended
XZB50 WOC CBU —
61586-36041 note Gusset, Rear Door Pillar, Rear
2006-10 → 2008-03 ended
XZB50 STD GEN —
61586-36041 note Gusset, Rear Door Pillar, Rear
2006-10 → 2011-08 ended
BB42 LHD HRF —
61586-36041 note Gusset, Rear Door Pillar, Rear
2006-10 → 2007-08 ended
RZB40,50 —
61586-36010 note Gusset, Rear Door Pillar, Rear
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61586-36041 note Gusset, Rear Door Pillar, Rear
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F —
61587 — Gusset, Center Door Pillar, Front LH
61587-36010 Gusset, Center Door Pillar, Front LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61587-36010 Gusset, Center Door Pillar, Front LH
1999-07 → 2001-08 ended
BB50 ,RZB40 EX (17S,22S) +13 —
61587-36010 Gusset, Center Door Pillar, Front LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61587-36010 Gusset, Center Door Pillar, Front LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61587-36010 Gusset, Center Door Pillar, Front LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61587-36010 Gusset, Center Door Pillar, Front LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61587-36010 Gusset, Center Door Pillar, Front LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61587-36010 Gusset, Center Door Pillar, Front LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61587-36010 Gusset, Center Door Pillar, Front LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61587-36010 Gusset, Center Door Pillar, Front LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61587-36010 Gusset, Center Door Pillar, Front LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61587-36010 Gusset, Center Door Pillar, Front LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61588 — Gusset, Center Door Pillar, Rear LH
61588-36010 Gusset, Center Door Pillar, Rear LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61588-36010 Gusset, Center Door Pillar, Rear LH
1999-07 → 2001-08 ended
BB50 ,RZB40 EX (17S,22S) +13 —
61588-36010 Gusset, Center Door Pillar, Rear LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61588-36010 Gusset, Center Door Pillar, Rear LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61588-36010 Gusset, Center Door Pillar, Rear LH
2004-08 → 2015-01 ended
XZB5# DX,EX;BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 +3 —
61588-36010 Gusset, Center Door Pillar, Rear LH
2004-08 → 2011-08 ended
BB42 LHD HRF;XZB50 STD +4 —
61588-36010 Gusset, Center Door Pillar, Rear LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61588-36010 Gusset, Center Door Pillar, Rear LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61588-36010 Gusset, Center Door Pillar, Rear LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61588-36010 Gusset, Center Door Pillar, Rear LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61588-36010 Gusset, Center Door Pillar, Rear LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61588-36010 Gusset, Center Door Pillar, Rear LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61593 — Bracket, Stiffener, NO.3
61593-36010 Bracket, Stiffener, NO.3
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61593-36010 Bracket, Stiffener, NO.3
1999-07 → 2001-08 ended
BB50 ,RZB40 EX (17S,22S) +13 —
61593-36010 Bracket, Stiffener, NO.3
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61593-36010 Bracket, Stiffener, NO.3
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61593-36010 Bracket, Stiffener, NO.3
2004-08 → 2008-03 ended
XZB50 STD GEN —
61593-36010 Bracket, Stiffener, NO.3
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61593-36010 Bracket, Stiffener, NO.3
2004-08 → 2011-08 ended
BB42 LHD HRF —
61593-36010 Bracket, Stiffener, NO.3
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61593-36010 Bracket, Stiffener, NO.3
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61593-36010 Bracket, Stiffener, NO.3
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61593-36010 Bracket, Stiffener, NO.3
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61593-36010 Bracket, Stiffener, NO.3
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61624F — Plate, Center Door Piller Dust Proof, Rear LH
61624-36010 Plate, Center Door Piller Dust Proof, Rear LH
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 DX,EX —
61624-36010 Plate, Center Door Piller Dust Proof, Rear LH
1999-07 → 2001-08 ended
BB50 CBU 6F;BB50,HZB50 RHD +1 —
61624-36010 Plate, Center Door Piller Dust Proof, Rear LH
1999-07 → 2002-11 ended
HZB50 DX;BB50,RZB40,50 CHI —
61624-36010 Plate, Center Door Piller Dust Proof, Rear LH
1999-07 → 2004-08 ended
BB50 DX;HZB50 LHD EX;BB59,BZB50,RZB40 +3 —
61624-36010 Plate, Center Door Piller Dust Proof, Rear LH
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61624-36010 Plate, Center Door Piller Dust Proof, Rear LH
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61624-36010 Plate, Center Door Piller Dust Proof, Rear LH
2004-08 → 2015-01 ended
XZB5# DX,EX —
61624-36010 Plate, Center Door Piller Dust Proof, Rear LH
2004-08 → 2006-08 ended
BB50 DX;BB50 19S,20S;BB59,BZB50 EX —
61624-36010 Plate, Center Door Piller Dust Proof, Rear LH
2004-08 → 2011-08 ended
BB50 WC TD —
61624-36010 Plate, Center Door Piller Dust Proof, Rear LH
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61787B — Retainer, Slide Door Arm, Upper Rear
61787-36011 Retainer, Slide Door Arm, Upper Rear
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 DX,EX —
61787-36011 Retainer, Slide Door Arm, Upper Rear
1999-07 → 2001-08 ended
BB50 CBU 6F;HZB50 RHD +1 —
61787-36011 Retainer, Slide Door Arm, Upper Rear
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61787-36011 Retainer, Slide Door Arm, Upper Rear
2001-08 → 2002-11 ended
HZB50 DX —
61787-36011 Retainer, Slide Door Arm, Upper Rear
1999-07 → 2004-08 ended
BB50 DX;HZB50 LHD EX;BB59,BZB50,RZB40 +3 —
61787-36011 Retainer, Slide Door Arm, Upper Rear
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61787-36011 Retainer, Slide Door Arm, Upper Rear
2004-08 → 2015-01 ended
XZB5# DX,EX —
61787-36011 Retainer, Slide Door Arm, Upper Rear
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61787-36011 Retainer, Slide Door Arm, Upper Rear
2004-08 → 2011-08 ended
BB50 WC TD —
61787-36011 Retainer, Slide Door Arm, Upper Rear
2004-08 → 2006-08 ended
BB50 DX;BB50 19S,20S;BB59,BZB50 EX —
61787-36011 Retainer, Slide Door Arm, Upper Rear
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
63147G — Bracket, Roof Panel Reinforcement
63147-36010 note Bracket, Roof Panel Reinforcement
1996-09 → 1997-03 ended
BB42 LHD WOC GEN —
63147-36010 Bracket, Roof Panel Reinforcement
1994-08 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 HRF CBU —
63147-36010 Bracket, Roof Panel Reinforcement
1999-07 → 2001-08 ended
BB50 D EX HRF +9 —
63147-36010 Bracket, Roof Panel Reinforcement
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
63147-36010 Bracket, Roof Panel Reinforcement
1999-07 → 2004-08 ended
HZB50 0 7S,21S,26S,30S) LHD +16 —
63147-36010 Bracket, Roof Panel Reinforcement
2004-08 → 2011-08 ended
XZB59;XZB50 DX;BB42 LHD HRF —
63147-36010 Bracket, Roof Panel Reinforcement
2004-08 → 2012-05 ended
BB42 HRF RHD STD +5 —
63147-36010 Bracket, Roof Panel Reinforcement
2004-08 → 2009-08 ended
XZB50 WOC CBU —
63147-36010 Bracket, Roof Panel Reinforcement
2004-08 → 2007-08 ended
RZB50 HRF;RZB40 HRF GEN —
63147-36010 Bracket, Roof Panel Reinforcement
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
63147-36010 Bracket, Roof Panel Reinforcement
2004-08 → 2006-02 ended
RZB40 HRF GCC —
63147-36010 Bracket, Roof Panel Reinforcement
2004-08 → 2008-03 ended
XZB50 STD GEN —
63147-36011 Bracket, Roof Panel Reinforcement
2012-06 → 2015-01 ended
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# HRF (ARL,GCC,GEN,TAIW) —
63147-36011 Bracket, Roof Panel Reinforcement
2015-01 → —
BZB40,50,HZB50,TRB40,50,XZB40,5# HRF —
63147U — Bracket, Roof Panel Reinforcement
63147-36020 Bracket, Roof Panel Reinforcement
1999-07 → 2004-08 ended
BB42,HZB50,RZB40,50 LHD SRF —
63147-36020 Bracket, Roof Panel Reinforcement
2001-08 → 2004-08 ended
BB42 RHD WOC —
63147-36020 Bracket, Roof Panel Reinforcement
2004-08 → 2015-01 ended
BB42,HZB50,RZB40,50,TRB40,50 SRF —
63147-36020 Bracket, Roof Panel Reinforcement
2015-01 → —
BB42,HZB50,TRB40,50,XZB40 SRF —
63221C — Panel, Removable Roof
63221-36010 Panel, Removable Roof
1993-01 → 1999-07 ended
BB42,RZB40 SRF;HZB50,RZB50 LHD SRF +1 —
63221-36010 Panel, Removable Roof
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC —
63221-36010 Panel, Removable Roof
1999-07 → 2004-08 ended
BB42,RZB40 SRF GEN;BB42,RZB40 SRF +2 —
63221-36010 Panel, Removable Roof
2004-08 → 2011-08 ended
BB42,TRB40 GCC —
63221-36010 Panel, Removable Roof
2004-08 → 2015-01 ended
RZB40 SRF;BB42,TRB40 SRF GEN —
63221-36010 Panel, Removable Roof
2015-01 → —
BB42,TRB40,XZB40 SRF GEN —
76587A — Protector, Center Pillar Outer
76587-36010 Protector, Center Pillar Outer
1993-01 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD STD CBU —
76587-36010 Protector, Center Pillar Outer
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
76587-36010 Protector, Center Pillar Outer
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
76587-36010 Protector, Center Pillar Outer
1999-07 → 2004-08 ended
BB42 8,HZB50,RZB50 WC LHD +11 —
76587-36010 Protector, Center Pillar Outer
2004-08 → 2006-02 ended
RZB40 HRF GCC —
76587-36010 Protector, Center Pillar Outer
2004-08 → 2006-08 ended
BB58 —
76587-36010 Protector, Center Pillar Outer
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
76587-36010 Protector, Center Pillar Outer
2004-08 → 2011-08 ended
BB42 LHD HRF —
76587-36010 Protector, Center Pillar Outer
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
76587-36010 Protector, Center Pillar Outer
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
