Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

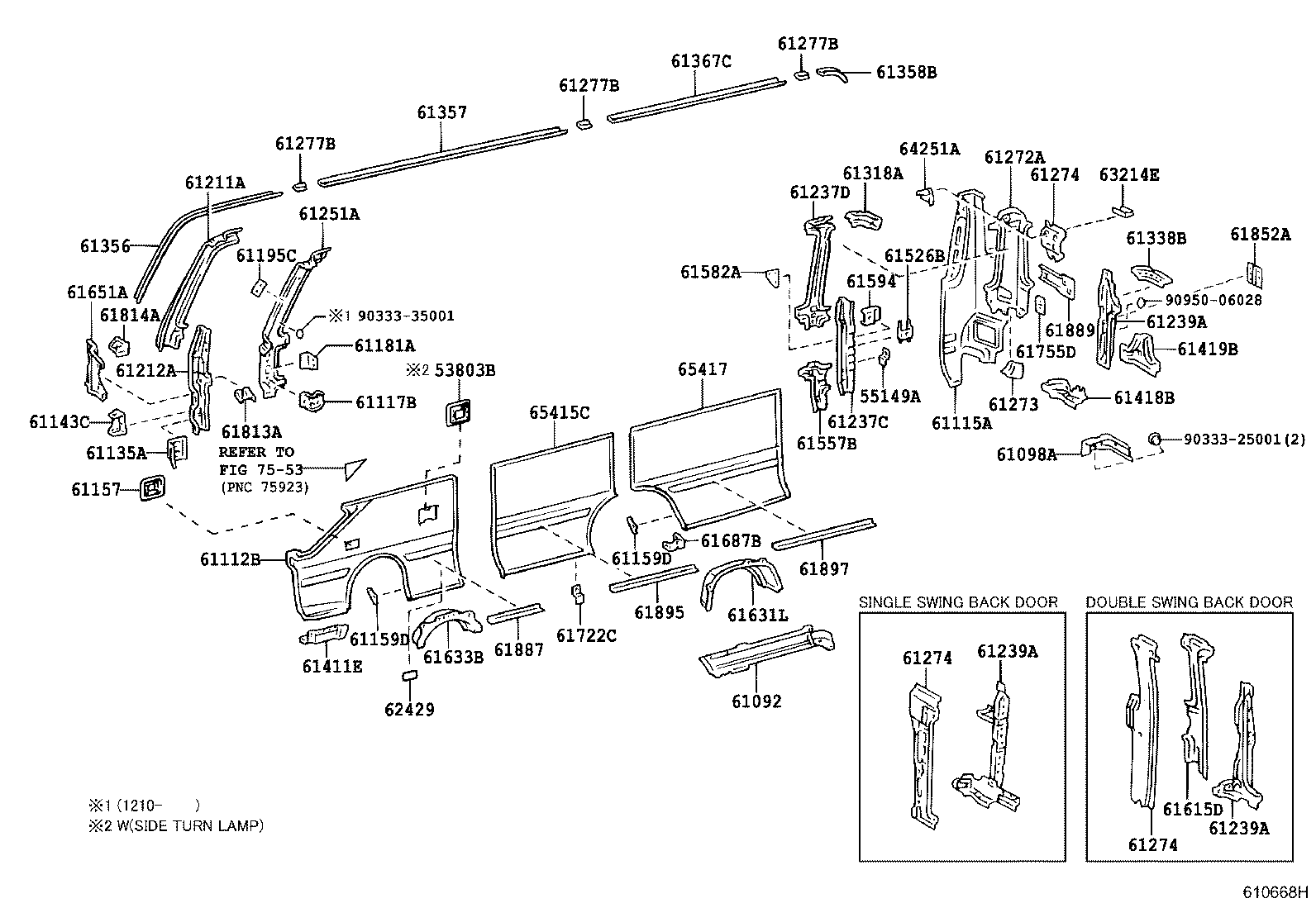

Exploded illustration 610668H 61356 — CHANNEL, ROOF DRIP SIDE, FRONT RH (12 parts) 61651A — GUSSET, PILLAR SHEAR, NO.1 RH (26 parts) 61814A — PLATE, DUST PROOF, NO.2 RH (10 parts) 61211A — PILLAR, NO.1 OUTER, UPPER RH (15 parts) 61195C — RETAINER, OUTER SIDE MIRROR, RH (5 parts) 61277B — JOINT, ROOF DRIP CHANNEL (22 parts) 61251A — PILLAR, NO.1 INNER, RH (21 parts) 61181A — BRACKET, INSTRUMENT SIDE, RH (20 parts) 61357 — CHANNEL, ROOF DRIP SIDE, CENTER NO.1 (12 parts) 61277B — JOINT, ROOF DRIP CHANNEL (22 parts) 61367C — CHANNEL, ROOF DRIP SIDE, CENTER NO.1 (19 parts) 61582A — BRACKET, REAR SEAT, NO.2 (12 parts) 61277B — JOINT, ROOF DRIP CHANNEL (22 parts) 61358B — CHANNEL, ROOF DRIP SIDE, REAR RH (12 parts) 61318A — RAIL, NO.6 UPPER OUTER, RH (16 parts) 61237D — PILLAR, NO.9 OUTER, UPPER RH (12 parts) 61594 — BRACKET, STIFFENER, NO.4 (12 parts) 61526B — BRACKET, SEAT ANCHOR, NO.2 RH (40 parts) 64251A — BRACKET, REAR SEATBACK STOP (9 parts) 61272A — PILLAR, NO.9 INNER, RH (22 parts) 61889 — RETAINER, SIDE PANEL (7 parts) 61274 — PILLAR, NO.10 INNER, RH (35 parts) 61338B — RAIL, REAR SIDE NO.2, RH (25 parts) 61239A — PILLAR, NO.10 RH (36 parts) 63214E — CHANNEL, ROOF DRIP, REAR, RH (12 parts) 61852A — PLATE, NO.5 PILLAR BOARD SET (12 parts) 9095006028 — not listed in this catalogue 61419B — RAIL, NO.9 LOWER OUTER (10 parts) 61418B — RAIL, NO.8 LOWER OUTER, RH (15 parts) 9033325001 — not listed in this catalogue 61098A — STIFFENER SUB-ASSY, PILLAR NO.10, INNER RH (12 parts) 61273 — PILLAR, NO.9 INNER, LOWER RH (13 parts) 61115A — PANEL, NO.4 SIDE, RH (41 parts) 55149A — BRACKET, DASH WIRING HARNESS (12 parts) 61237C — RAIL, ROOF SIDE, INNER NO.4 RH (12 parts) 61557B — GUSSET, PILLAR TO RAIL, NO.2 (12 parts) 61897 — RAIL, SIDE PANEL DUST PROOF, NO.3 RH (12 parts) 61631L — PANEL, REAR WHEEL HOUSE, OUTER RH (12 parts) 61687B — BRACKET, MUDGUARD, REAR RH (12 parts) 65417 — PANEL, REAR BODY, REAR RH (19 parts) 61895 — RAIL, SIDE PANEL DUST PROOF, NO.2 RH (19 parts) 61159D — RETAINER, SIDE PANEL, NO.2 RH (12 parts) 61722C — BRACKET, SWITCH PLATE (1 parts) 65415C — PANEL, REAR BODY, FRONT RH (55 parts) 61112B — PANEL, NO.2 SIDE, RH (43 parts) 61117B — RETAINER, WASHER TANK (19 parts) 61813A — PLATE, DUSTPROOF, NO.1 RH (19 parts) 61212A — PILLAR, NO.1 OUTER, LOWER RH (10 parts) 61143C — SUPPORT, FRONT BUMPER SIDE, RH (19 parts) 61135A — REINFORCEMENT, FRONT BODY PILLAR, OUTER (10 parts) 61411E — RAIL, NO.1 LOWER OUTER, RH (10 parts) 62429 — COVER, CENTER PILLAR SERVICE HOLE (12 parts) 61159D — RETAINER, SIDE PANEL, NO.2 RH (12 parts) 61633B — PANEL, WHEEL HOUSE (15 parts) 61887 — RAIL, SIDE PANEL DUST PROOF, NO.1 RH (20 parts) 61092 — RAIL SUB-ASSY, NO.3 LOWER INNER, RH (12 parts) 61157 — BRACKET, NO.2 SIDE PANEL (7 parts) 53803B — BRACKET SUB-ASSY, FRONT SIDE PANEL, RH (10 parts) 7553 — not listed in this catalogue 9033335001 — not listed in this catalogue 61274 — PILLAR, NO.10 INNER, RH (35 parts) 61239A — PILLAR, NO.10 RH (36 parts) 61239A — PILLAR, NO.10 RH (36 parts) 61274 — PILLAR, NO.10 INNER, RH (35 parts) 61615D — PILLAR, NO.10 OUTER, UPPER RH (12 parts) 61755D — RETAINER, DECK SIDE TRIM, UPPER (1 parts)
610668H · 62 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
912 parts on this figure
Part number Description Fitment Price
53803B — Bracket Sub-assy, Front Side Panel, RH
53803-36020 Bracket Sub-assy, Front Side Panel, RH
2001-08 → 2004-08 ended
BB58 —
53803-36020 Bracket Sub-assy, Front Side Panel, RH
2000-08 → 2002-11 ended
BB50,RZB40,50 CHI —
53803-36020 Bracket Sub-assy, Front Side Panel, RH
2004-08 → 2006-08 ended
BB58 —
53803-36020 Bracket Sub-assy, Front Side Panel, RH
2004-08 → 2015-01 ended
TRB40,50,XZB50 GCC,TAIW —
53803-36020 Bracket Sub-assy, Front Side Panel, RH
2007-08 → 2015-01 ended
BB42,HZB50 GCC —
53804-36010 Bracket Sub-assy, Front Side Panel, RH
2007-08 → 2008-03 ended
XZB50 STD GEN —
53804-36010 Bracket Sub-assy, Front Side Panel, RH
2007-08 → 2015-01 ended
BZB40,50,XZB40,59;XZB50 RHD (20S,21S) WC —
53804-36010 Bracket Sub-assy, Front Side Panel, RH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
53803-36020 Bracket Sub-assy, Front Side Panel, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB50 GCC,TAIW —
53804-36010 Bracket Sub-assy, Front Side Panel, RH
2015-01 → —
BZB40,50,XZB40,5# RHD —
55149A — Bracket, Dash Wiring Harness
55149-36010 Bracket, Dash Wiring Harness
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
55149-36010 Bracket, Dash Wiring Harness
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
55149-36010 Bracket, Dash Wiring Harness
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
55149-36010 Bracket, Dash Wiring Harness
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
55149-36010 Bracket, Dash Wiring Harness
2004-08 → 2009-08 ended
XZB50 WOC CBU —
55149-36010 Bracket, Dash Wiring Harness
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
55149-36010 Bracket, Dash Wiring Harness
2004-08 → 2011-08 ended
BB42 LHD HRF —
55149-36010 Bracket, Dash Wiring Harness
2004-08 → 2008-03 ended
XZB50 STD GEN —
55149-36010 Bracket, Dash Wiring Harness
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
55149-36010 Bracket, Dash Wiring Harness
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
55149-36010 Bracket, Dash Wiring Harness
2004-08 → 2006-02 ended
RZB40 HRF GCC —
55149-36010 Bracket, Dash Wiring Harness
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61092 — Rail Sub-assy, NO.3 Lower Inner, RH
61092-36030 Rail Sub-assy, NO.3 Lower Inner, RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61092-36030 Rail Sub-assy, NO.3 Lower Inner, RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61092-36030 Rail Sub-assy, NO.3 Lower Inner, RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61092-36030 Rail Sub-assy, NO.3 Lower Inner, RH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61092-36030 Rail Sub-assy, NO.3 Lower Inner, RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61092-36030 Rail Sub-assy, NO.3 Lower Inner, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61092-36030 Rail Sub-assy, NO.3 Lower Inner, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61092-36030 Rail Sub-assy, NO.3 Lower Inner, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61092-36030 Rail Sub-assy, NO.3 Lower Inner, RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61092-36030 Rail Sub-assy, NO.3 Lower Inner, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61092-36030 Rail Sub-assy, NO.3 Lower Inner, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61092-36030 Rail Sub-assy, NO.3 Lower Inner, RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61098A — Stiffener Sub-assy, Pillar NO.10, Inner RH
61098-36010 Stiffener Sub-assy, Pillar NO.10, Inner RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61098-36010 Stiffener Sub-assy, Pillar NO.10, Inner RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61098-36010 Stiffener Sub-assy, Pillar NO.10, Inner RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61098-36010 Stiffener Sub-assy, Pillar NO.10, Inner RH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61098-36010 Stiffener Sub-assy, Pillar NO.10, Inner RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61098-36010 Stiffener Sub-assy, Pillar NO.10, Inner RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61098-36010 Stiffener Sub-assy, Pillar NO.10, Inner RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61098-36010 Stiffener Sub-assy, Pillar NO.10, Inner RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61098-36010 Stiffener Sub-assy, Pillar NO.10, Inner RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61098-36010 Stiffener Sub-assy, Pillar NO.10, Inner RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61098-36010 Stiffener Sub-assy, Pillar NO.10, Inner RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61098-36010 Stiffener Sub-assy, Pillar NO.10, Inner RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61112B — Panel, NO.2 Side, RH
61112-36010 Panel, NO.2 Side, RH
1993-01 → 1999-07 ended
HZB50 RHD SRF;BB40,42,HZB50 RHD +1 —
61112-36020 Panel, NO.2 Side, RH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD HRF WC +1 —
61112-36050 Panel, NO.2 Side, RH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61112-36010 Panel, NO.2 Side, RH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB42,HZB50 RHD +3 —
61112-36010 Panel, NO.2 Side, RH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB50 WOC +2 —
61112-36010 Panel, NO.2 Side, RH
1999-07 → 2002-11 ended
HZB50 WOC ARL —
61112-36020 Panel, NO.2 Side, RH
1999-07 → 2002-11 ended
HZB50 WC ARL —
61112-36020 Panel, NO.2 Side, RH
1999-07 → 2001-08 ended
BB43,50 RHD 5F;HZB50 RHD +2 —
61112-36020 Panel, NO.2 Side, RH
1999-07 → 2004-08 ended
BB42,50,59 RHD WC (DSL,TDEFI);HZB50 +6 —
61112-36050 Panel, NO.2 Side, RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,5#,RZB40 (19S,22S,23S) +1 —
61112-36050 Panel, NO.2 Side, RH
1999-07 → 2004-08 ended
BB42 6S) WC GEN +13 —
61112-36080 Panel, NO.2 Side, RH
2001-08 → 2004-08 ended
BB58 —
61112-36080 Panel, NO.2 Side, RH
2000-08 → 2002-11 ended
BB50,RZB40,50 CHI —
61112-36090 Panel, NO.2 Side, RH
2001-08 → 2004-08 ended
BZB40,50 —
61112-36010 Panel, NO.2 Side, RH
2004-08 → 2006-08 ended
BB50 WOC CBU TDEFI —
61112-36010 Panel, NO.2 Side, RH
2004-08 → 2007-08 ended
BB42,XZB50 RHD WOC —
61112-36020 Panel, NO.2 Side, RH
2004-08 → 2006-08 ended
BB50,59 RHD WC —
61112-36020 Panel, NO.2 Side, RH
2007-08 → 2015-01 ended
BB42 RHD WOC —
61112-36020 Panel, NO.2 Side, RH
2004-08 → 2015-01 ended
BB42,HZB50 RHD WC —
61112-36020 Panel, NO.2 Side, RH
2004-08 → 2007-08 ended
XZB5# WC (ARL,GEN) —
61112-36050 Panel, NO.2 Side, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61112-36050 Panel, NO.2 Side, RH
2004-08 → 2015-01 ended
BB42 LHD SRF GEN;BB50,HZB50,TRB40,50 +3 —
61112-36050 Panel, NO.2 Side, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61112-36050 Panel, NO.2 Side, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;BB42,HZB50 GCC;RZB40 SRF +1 —
61112-36050 Panel, NO.2 Side, RH
2004-08 → 2006-08 ended
BB50 GEN 6F —
61112-36080 Panel, NO.2 Side, RH
2004-08 → 2006-08 ended
BB58 —
61112-36080 Panel, NO.2 Side, RH
2004-08 → 2015-01 ended
XZB50 TAIW —
61112-36090 Panel, NO.2 Side, RH
2004-08 → 2007-08 ended
BZB40,50 STD —
61112-36090 Panel, NO.2 Side, RH
2004-08 → 2006-08 ended
BZB50 EX —
61112-36120 Panel, NO.2 Side, RH
2007-08 → 2008-03 ended
XZB50 STD GEN —
61112-36120 Panel, NO.2 Side, RH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
61112-36120 Panel, NO.2 Side, RH
2007-08 → 2015-01 ended
XZB40,59;XZB50 RHD (20S,21S) WC —
61112-36130 Panel, NO.2 Side, RH
2007-08 → 2015-01 ended
BZB40,50 —
61112-36140 Panel, NO.2 Side, RH
2007-08 → 2015-01 ended
BB42,HZB50,TRB40,50 GCC —
61112-36150 note Panel, NO.2 Side, RH
2012-09 → 2015-01 ended
XZB59 —
61112-36020 Panel, NO.2 Side, RH
2015-01 → —
BB42,HZB50 RHD —
61112-36050 Panel, NO.2 Side, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD GEN —
61112-36080 Panel, NO.2 Side, RH
2015-01 → —
XZB50 TAIW —
61112-36120 Panel, NO.2 Side, RH
2015-01 → —
XZB40,50 RHD —
61112-36120 note Panel, NO.2 Side, RH
2015-01 → —
XZB59 —
61112-36130 Panel, NO.2 Side, RH
2015-01 → —
BZB40,50 —
61112-36140 Panel, NO.2 Side, RH
2015-01 → —
BB42,HZB50,TRB40,50 GCC —
61112-36150 Panel, NO.2 Side, RH
2015-01 → —
XZB59 —
61115A — Panel, NO.4 Side, RH
61115-36010 note Panel, NO.4 Side, RH
1993-01 → 1999-07 ended
HZB50 (20S,30S) (GCC,GEN);BB42,50,RZB40,50 (17S,22S,26S,30S) +1 —
61115-36020 note Panel, NO.4 Side, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 GCC,GEN —
61115-36020 note Panel, NO.4 Side, RH
1995-05 → 1998-08 ended
HZB50 30S;BB42,50,RZB40,50 STD (GCC,GEN) +1 —
61115-36020 Panel, NO.4 Side, RH
1997-05 → 1998-08 ended
BB58 —
61115-36020 note Panel, NO.4 Side, RH
1998-08 → 1999-07 ended
BB42,43,5#,RZB50 CBU;HZB50,RZB40 STD (GCC,GEN) +1 —
61115-36030 Panel, NO.4 Side, RH
1993-01 → 1999-07 ended
HZB50 SCO;BB4#,50 RHD CBU;HZB50 +2 —
61115-36040 note Panel, NO.4 Side, RH
1993-01 → 1999-07 ended
BB42,HZB50,RZB40,50 SRF —
61115-36010 note Panel, NO.4 Side, RH
1999-07 → 2001-08 ended
HZB50 BB42,HZB50 RHD RHD +10 —
61115-36010 Panel, NO.4 Side, RH
2000-08 → 2004-08 ended
BB50 WOC CBU TD;BB50 +3 —
61115-36010 note Panel, NO.4 Side, RH
1999-07 → 2004-08 ended
BB42 C;HZB50,RZB40 7S,26S,30S) WC +21 —
61115-36010 Panel, NO.4 Side, RH
2000-08 → 2002-11 ended
BB50,RZB40,50 CHI —
61115-36020 note Panel, NO.4 Side, RH
1999-07 → 2001-08 ended
HZB50 .(17S,19S,20S,22S) RHD GEN +7 —
61115-36020 note Panel, NO.4 Side, RH
1999-07 → 2004-08 ended
BB42 RF S) WC +24 —
61115-36030 Panel, NO.4 Side, RH
1999-07 → 2002-11 ended
HZB50 ARL —
61115-36030 Panel, NO.4 Side, RH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61115-36030 Panel, NO.4 Side, RH
1999-07 → 2001-08 ended
HZB50 4FC;HZB50 RHD SRF;BB43,50 +6 —
61115-36040 note Panel, NO.4 Side, RH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB42,RZB40 WOC +1 —
61115-36040 note Panel, NO.4 Side, RH
1999-07 → 2004-08 ended
HZB50 LHD SRF;BB42,RZB40 SRF +4 —
61115-36010 note Panel, NO.4 Side, RH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
61115-36010 note Panel, NO.4 Side, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61115-36010 note Panel, NO.4 Side, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61115-36010 note Panel, NO.4 Side, RH
2004-08 → 2006-08 ended
BB50 GEN 6F —
61115-36010 note Panel, NO.4 Side, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61115-36020 note Panel, NO.4 Side, RH
2004-08 → 2006-08 ended
BB50,58 19S,20S,23S —
61115-36020 note Panel, NO.4 Side, RH
2004-08 → 2008-08 ended
XZB50 EX —
61115-36020 note Panel, NO.4 Side, RH
2004-08 → 2015-01 ended
HZB50,XZB50 LHD HRF WC +1 —
61115-36020 note Panel, NO.4 Side, RH
2004-08 → 2006-02 ended
BB42,RZB40 GCC —
61115-36020 note Panel, NO.4 Side, RH
2004-08 → 2011-08 ended
BB50 WC TD;BB42 RHD +1 —
61115-36020 note Panel, NO.4 Side, RH
2007-01 → 2011-08 ended
HZB50 HRF GCC —
61115-36030 note Panel, NO.4 Side, RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61115-36030 note Panel, NO.4 Side, RH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
61115-36030 note Panel, NO.4 Side, RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BZB40,50,HZB50,XZB40 +2 —
61115-36030 note Panel, NO.4 Side, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61115-36030 note Panel, NO.4 Side, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61115-36040 note Panel, NO.4 Side, RH
2004-08 → 2011-08 ended
BB42,HZB50,TRB40,50 SRF GCC —
61115-36040 note Panel, NO.4 Side, RH
2004-08 → 2015-01 ended
BB42,HZB50,TRB40 SRF GEN —
61115-36040 note Panel, NO.4 Side, RH
2004-08 → 2007-08 ended
RZB40,50 SRF —
61115-36010 note Panel, NO.4 Side, RH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
61115-36020 note Panel, NO.4 Side, RH
2015-01 → —
HZB50,TRB50 26S;HZB50 LHD HRF +6 —
61115-36030 note Panel, NO.4 Side, RH
2015-01 → —
BZB40,HZB50,XZB40,5# RHD —
61115-36040 note Panel, NO.4 Side, RH
2015-01 → —
BB42,HZB50,TRB40,XZB40 SRF GEN —
61117B — Retainer, Washer Tank
61117-36010 Retainer, Washer Tank
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61117-36020 Retainer, Washer Tank
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61117-36010 Retainer, Washer Tank
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61117-36010 Retainer, Washer Tank
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61117-36010 Retainer, Washer Tank
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61117-36020 Retainer, Washer Tank
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61117-36020 Retainer, Washer Tank
1999-07 → 2002-11 ended
HZB50 ARL —
61117-36020 Retainer, Washer Tank
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61117-36010 Retainer, Washer Tank
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61117-36010 Retainer, Washer Tank
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61117-36010 Retainer, Washer Tank
2004-08 → 2011-08 ended
BB42 LHD HRF —
61117-36010 Retainer, Washer Tank
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61117-36010 Retainer, Washer Tank
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61117-36020 Retainer, Washer Tank
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61117-36020 Retainer, Washer Tank
2004-08 → 2008-03 ended
XZB50 STD GEN —
61117-36020 Retainer, Washer Tank
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61117-36020 Retainer, Washer Tank
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
61117-36010 Retainer, Washer Tank
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61117-36020 Retainer, Washer Tank
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61135A — Reinforcement, Front Body Pillar, Outer
61135-36020 Reinforcement, Front Body Pillar, Outer
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61135-36020 Reinforcement, Front Body Pillar, Outer
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61135-36020 Reinforcement, Front Body Pillar, Outer
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61135-36020 Reinforcement, Front Body Pillar, Outer
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61135-36020 Reinforcement, Front Body Pillar, Outer
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61135-36020 Reinforcement, Front Body Pillar, Outer
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61135-36020 Reinforcement, Front Body Pillar, Outer
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61135-36020 Reinforcement, Front Body Pillar, Outer
2004-08 → 2011-08 ended
BB42 LHD HRF —
61135-36020 Reinforcement, Front Body Pillar, Outer
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61135-36020 Reinforcement, Front Body Pillar, Outer
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61143C — Support, Front Bumper Side, RH
61143-36010 Support, Front Bumper Side, RH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61143-36020 Support, Front Bumper Side, RH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61143-36010 Support, Front Bumper Side, RH
1999-07 → 2002-11 ended
HZB50 ARL —
61143-36010 Support, Front Bumper Side, RH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61143-36010 Support, Front Bumper Side, RH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61143-36020 Support, Front Bumper Side, RH
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61143-36020 Support, Front Bumper Side, RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61143-36020 Support, Front Bumper Side, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61143-36010 Support, Front Bumper Side, RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61143-36010 Support, Front Bumper Side, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61143-36010 Support, Front Bumper Side, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61143-36010 Support, Front Bumper Side, RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
61143-36020 Support, Front Bumper Side, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61143-36020 Support, Front Bumper Side, RH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61143-36020 Support, Front Bumper Side, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61143-36020 Support, Front Bumper Side, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61143-36020 Support, Front Bumper Side, RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61143-36010 Support, Front Bumper Side, RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61143-36020 Support, Front Bumper Side, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61157 — Bracket, NO.2 Side Panel
61157-36020 Bracket, NO.2 Side Panel
2000-08 → 2002-11 ended
BB50,RZB40,50 CHI —
61157-36020 Bracket, NO.2 Side Panel
2001-08 → 2004-08 ended
BB58 —
61157-36020 Bracket, NO.2 Side Panel
2004-08 → 2007-08 ended
XZB50 TAIW —
61157-36020 Bracket, NO.2 Side Panel
2009-08 → 2011-08 ended
HZB50 HRF GCC —
61157-36020 Bracket, NO.2 Side Panel
2004-08 → 2015-01 ended
BB58 —
61157-36020 Bracket, NO.2 Side Panel
2009-08 → 2015-01 ended
XZB50 TAIW —
61157-36020 Bracket, NO.2 Side Panel
2015-01 → —
BB42,HZB50,TRB40,50,XZB50 GCC,TAIW —
61159D — Retainer, Side Panel, NO.2 RH
61159-36010 Retainer, Side Panel, NO.2 RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61159-36010 Retainer, Side Panel, NO.2 RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61159-36010 Retainer, Side Panel, NO.2 RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61159-36010 Retainer, Side Panel, NO.2 RH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61159-36010 Retainer, Side Panel, NO.2 RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61159-36010 Retainer, Side Panel, NO.2 RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61159-36010 Retainer, Side Panel, NO.2 RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61159-36010 Retainer, Side Panel, NO.2 RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61159-36010 Retainer, Side Panel, NO.2 RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61159-36010 Retainer, Side Panel, NO.2 RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61159-36010 Retainer, Side Panel, NO.2 RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61159-36010 Retainer, Side Panel, NO.2 RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61181A — Bracket, Instrument Side, RH
61181-36010 Bracket, Instrument Side, RH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61183-36010 Bracket, Instrument Side, RH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
53803-36010 Bracket, Instrument Side, RH
1999-07 → 2002-11 ended
HZB50 ARL —
53803-36010 Bracket, Instrument Side, RH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
53803-36010 Bracket, Instrument Side, RH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61183-36010 Bracket, Instrument Side, RH
2000-08 → 2002-11 ended
BB50,RZB40,50 CHI —
61183-36010 note Bracket, Instrument Side, RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61183-36010 note Bracket, Instrument Side, RH
1999-07 → 2004-08 ended
BB42 ;BB50,RZB40 WC LHD +11 —
61183-36010 Bracket, Instrument Side, RH
2000-08 → 2004-08 ended
BB50 WOC CBU TD;BB50 +3 —
53803-36010 Bracket, Instrument Side, RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
53803-36010 Bracket, Instrument Side, RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
53803-36010 Bracket, Instrument Side, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
53803-36010 Bracket, Instrument Side, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61183-36010 note Bracket, Instrument Side, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61183-36010 note Bracket, Instrument Side, RH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61183-36010 note Bracket, Instrument Side, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61183-36010 note Bracket, Instrument Side, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61183-36010 note Bracket, Instrument Side, RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
53803-36010 Bracket, Instrument Side, RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61183-36010 Bracket, Instrument Side, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61195C — Retainer, Outer Side Mirror, RH
61195-36010 Retainer, Outer Side Mirror, RH
1995-07 → 1995-12 ended
BB42,HZB50,RZB40,50 GCC —
61195-36010 Retainer, Outer Side Mirror, RH
1995-12 → 1996-07 ended
RZB50 WC GCC;BB42,RZB40 WOC +5 —
61195-36010 note Retainer, Outer Side Mirror, RH
1995-12 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD HRF WC +2 —
61195-36010 Retainer, Outer Side Mirror, RH
1996-07 → 1999-07 ended
BB42,HZB50,RZB40,50 GCC —
61195-36010 note Retainer, Outer Side Mirror, RH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD HRF WC +1 —
61211A — Pillar, NO.1 Outer, Upper RH
61211-36010 Pillar, NO.1 Outer, Upper RH
1995-07 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD GEN CBU —
61211-36010 Pillar, NO.1 Outer, Upper RH
1993-01 → 1995-07 ended
BB42,HZB50,RZB40,50 LHD CBU —
61211-36020 note Pillar, NO.1 Outer, Upper RH
1995-12 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD HRF WC +2 —
61211-36020 note Pillar, NO.1 Outer, Upper RH
1995-12 → 1996-07 ended
BB42,HZB50,RZB40 LHD SRF WC +1 —
61211-36020 note Pillar, NO.1 Outer, Upper RH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD HRF WC +1 —
61211-36020 Pillar, NO.1 Outer, Upper RH
1995-07 → 1999-07 ended
BB42,HZB50,RZB40,50 GCC —
61211-36010 Pillar, NO.1 Outer, Upper RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61211-36010 Pillar, NO.1 Outer, Upper RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61211-36010 Pillar, NO.1 Outer, Upper RH
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61211-36010 Pillar, NO.1 Outer, Upper RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61211-36010 Pillar, NO.1 Outer, Upper RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61211-36010 Pillar, NO.1 Outer, Upper RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61211-36010 Pillar, NO.1 Outer, Upper RH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61211-36010 Pillar, NO.1 Outer, Upper RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61211-36010 Pillar, NO.1 Outer, Upper RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61212A — Pillar, NO.1 Outer, Lower RH
61212-36010 Pillar, NO.1 Outer, Lower RH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61212-36010 Pillar, NO.1 Outer, Lower RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61212-36010 Pillar, NO.1 Outer, Lower RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61212-36010 Pillar, NO.1 Outer, Lower RH
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61212-36010 Pillar, NO.1 Outer, Lower RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61212-36010 Pillar, NO.1 Outer, Lower RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61212-36010 Pillar, NO.1 Outer, Lower RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61212-36010 Pillar, NO.1 Outer, Lower RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61212-36010 Pillar, NO.1 Outer, Lower RH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61212-36010 Pillar, NO.1 Outer, Lower RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61237C — Rail, Roof Side, Inner NO.4 RH
61238-36010 Rail, Roof Side, Inner NO.4 RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61238-36010 Rail, Roof Side, Inner NO.4 RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61238-36010 Rail, Roof Side, Inner NO.4 RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61238-36010 Rail, Roof Side, Inner NO.4 RH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61238-36010 Rail, Roof Side, Inner NO.4 RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61238-36010 Rail, Roof Side, Inner NO.4 RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61238-36010 Rail, Roof Side, Inner NO.4 RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61238-36010 Rail, Roof Side, Inner NO.4 RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61238-36010 Rail, Roof Side, Inner NO.4 RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61238-36010 Rail, Roof Side, Inner NO.4 RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61238-36010 Rail, Roof Side, Inner NO.4 RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61238-36010 Rail, Roof Side, Inner NO.4 RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61237D — Pillar, NO.9 Outer, Upper RH
61237-36010 Pillar, NO.9 Outer, Upper RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61237-36010 Pillar, NO.9 Outer, Upper RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61237-36010 Pillar, NO.9 Outer, Upper RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61237-36010 Pillar, NO.9 Outer, Upper RH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61237-36010 Pillar, NO.9 Outer, Upper RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61237-36010 Pillar, NO.9 Outer, Upper RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61237-36010 Pillar, NO.9 Outer, Upper RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61237-36010 Pillar, NO.9 Outer, Upper RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61237-36010 Pillar, NO.9 Outer, Upper RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61237-36010 Pillar, NO.9 Outer, Upper RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61237-36010 Pillar, NO.9 Outer, Upper RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61237-36010 Pillar, NO.9 Outer, Upper RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61239A — Pillar, NO.10 RH
61031-36020 note Pillar, NO.10 RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 GCC,GEN —
61031-36020 note Pillar, NO.10 RH
1995-05 → 1998-08 ended
HZB50 30S;BB42,50,RZB40,50 STD (GCC,GEN) +1 —
61031-36020 Pillar, NO.10 RH
1997-05 → 1998-08 ended
BB58 —
61031-36020 note Pillar, NO.10 RH
1998-08 → 1999-07 ended
BB42,43,5#,RZB50 CBU;HZB50,RZB40 STD (GCC,GEN) +1 —
61031-36030 note Pillar, NO.10 RH
1993-01 → 1999-07 ended
HZB50 SCO;BB4#,50 RHD CBU;HZB50 +2 —
61239-36010 Pillar, NO.10 RH
1993-01 → 1999-07 ended
HZB50 (20S,30S) (GCC,GEN);BB42,50,RZB40,50 (17S,22S,26S,30S) +1 —
61031-36020 note Pillar, NO.10 RH
1999-07 → 2004-08 ended
BB42 RF S) WC +24 —
61031-36020 note Pillar, NO.10 RH
1999-07 → 2001-08 ended
HZB50 .(17S,19S,20S,22S) RHD GEN +7 —
61031-36030 note Pillar, NO.10 RH
1999-07 → 2002-11 ended
HZB50 ARL —
61031-36030 note Pillar, NO.10 RH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB50 EX +7 —
61031-36030 Pillar, NO.10 RH
2001-08 → 2004-08 ended
BB59,BZB50;BB50 RHD (DX,STD) CBU —
61031-36030 note Pillar, NO.10 RH
1999-07 → 2001-08 ended
HZB50 4FC;HZB50 RHD SRF;BB43,50 +6 —
61031-36050 note Pillar, NO.10 RH
2002-11 → 2004-08 ended
BB50 ARL —
61239-36010 Pillar, NO.10 RH
1999-07 → 2001-08 ended
HZB50 BB42,HZB50 RHD RHD +10 —
61239-36010 Pillar, NO.10 RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61239-36010 Pillar, NO.10 RH
1999-07 → 2004-08 ended
BB42 LHD ,GEN);BB42,50,HZB50 WC +21 —
61031-36020 note Pillar, NO.10 RH
2004-08 → 2008-08 ended
XZB50 EX —
61031-36020 note Pillar, NO.10 RH
2004-08 → 2011-08 ended
BB50 WC TD;BB42 RHD +1 —
61031-36020 note Pillar, NO.10 RH
2007-01 → 2011-08 ended
HZB50 HRF GCC —
61031-36020 note Pillar, NO.10 RH
2004-08 → 2015-01 ended
HZB50,XZB50 LHD HRF WC +1 —
61031-36020 note Pillar, NO.10 RH
2004-08 → 2006-08 ended
BB50,58 19S,20S,23S —
61031-36020 note Pillar, NO.10 RH
2004-08 → 2006-02 ended
BB42,RZB40 GCC —
61031-36030 note Pillar, NO.10 RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BZB40,50,HZB50,XZB40 +2 —
61031-36030 note Pillar, NO.10 RH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
61031-36030 note Pillar, NO.10 RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61031-36030 note Pillar, NO.10 RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61031-36030 note Pillar, NO.10 RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61031-36050 note Pillar, NO.10 RH
2004-08 → 2006-08 ended
BB50 ARL —
61239-36010 note Pillar, NO.10 RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61239-36010 note Pillar, NO.10 RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61239-36010 note Pillar, NO.10 RH
2004-08 → 2006-08 ended
BB50 GEN 6F —
61239-36010 note Pillar, NO.10 RH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
61239-36010 note Pillar, NO.10 RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61031-36020 note Pillar, NO.10 RH
2015-01 → —
HZB50,TRB50 26S;HZB50 LHD HRF +6 —
61031-36030 note Pillar, NO.10 RH
2015-01 → —
BZB40,HZB50,XZB40,5# RHD —
61239-36010 note Pillar, NO.10 RH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
61251A — Pillar, NO.1 Inner, RH
61251-36010 Pillar, NO.1 Inner, RH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61251-36020 Pillar, NO.1 Inner, RH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61251-36010 Pillar, NO.1 Inner, RH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61251-36010 Pillar, NO.1 Inner, RH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61251-36010 Pillar, NO.1 Inner, RH
1999-07 → 2002-11 ended
HZB50 ARL —
61251-36020 Pillar, NO.1 Inner, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61251-36020 Pillar, NO.1 Inner, RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61251-36020 Pillar, NO.1 Inner, RH
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61251-36010 Pillar, NO.1 Inner, RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61251-36010 Pillar, NO.1 Inner, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61251-36010 Pillar, NO.1 Inner, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61251-36010 Pillar, NO.1 Inner, RH
2004-08 → 2012-08 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
61251-36011 Pillar, NO.1 Inner, RH
2012-09 → 2015-01 ended
BB42,BZB40,50,HZB50,XZB40,5# RHD (ARL,GEN) —
61251-36020 Pillar, NO.1 Inner, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61251-36020 Pillar, NO.1 Inner, RH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61251-36020 Pillar, NO.1 Inner, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61251-36020 Pillar, NO.1 Inner, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61251-36020 Pillar, NO.1 Inner, RH
2004-08 → 2012-09 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61251-36021 Pillar, NO.1 Inner, RH
2012-09 → 2015-01 ended
BB42,50,HZB50,TRB40,50,XZB50 LHD CBU —
61034-36030 Pillar, NO.1 Inner, RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61251-36021 Pillar, NO.1 Inner, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61272A — Pillar, NO.9 Inner, RH
61272-36030 Pillar, NO.9 Inner, RH
1993-01 → 1997-05 ended
BB4#,HZB50,RZB40,50 CBU —
61272-36030 Pillar, NO.9 Inner, RH
1997-05 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU 5F —
61272-36120 Pillar, NO.9 Inner, RH
1997-05 → 1999-07 ended
HZB50 4FC —
61272-36030 Pillar, NO.9 Inner, RH
1999-07 → 2000-01 ended
BB4#,5#,HZB50,RZB40,50 MTM (GCC,GEN) CBU —
61272-36031 Pillar, NO.9 Inner, RH
2000-01 → 2001-08 ended
HZB50 GEN;BB4#,50,RZB40 RHD (17S,19S,22S) +9 —
61272-36031 Pillar, NO.9 Inner, RH
2000-01 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61272-36031 Pillar, NO.9 Inner, RH
2000-01 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61272-36120 Pillar, NO.9 Inner, RH
1999-07 → 2000-01 ended
HZB50 4FC —
61272-36121 Pillar, NO.9 Inner, RH
2000-01 → 2001-08 ended
HZB50 4FC —
61272-36031 Pillar, NO.9 Inner, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61272-36031 Pillar, NO.9 Inner, RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61272-36031 Pillar, NO.9 Inner, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61272-36031 Pillar, NO.9 Inner, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61272-36031 Pillar, NO.9 Inner, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61272-36031 Pillar, NO.9 Inner, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61272-36031 Pillar, NO.9 Inner, RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61272-36130 Pillar, NO.9 Inner, RH
2015-01 → —
BB42,BZB40,50,TRB40,XZB40,59;HZB50,TRB50,XZB50 20S,21S,30S —
61272-36170 note Pillar, NO.9 Inner, RH
2015-01 → —
BB42,TRB40 GCC;HZB50,TRB50,XZB50 30S WC —
61272-36180 note Pillar, NO.9 Inner, RH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
61272-36190 note Pillar, NO.9 Inner, RH
2015-01 → —
BB42,TRB40 GCC;HZB50,TRB50,XZB50 30S WC —
61272-36200 Pillar, NO.9 Inner, RH
2015-01 → —
HZB50,TRB50,XZB50 26S —
61272-36210 note Pillar, NO.9 Inner, RH
2015-01 → —
HZB50,TRB50,XZB50 26S —
61273 — Pillar, NO.9 Inner, Lower RH
61273-36010 Pillar, NO.9 Inner, Lower RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61273-36010 Pillar, NO.9 Inner, Lower RH
1999-07 → 2000-01 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61273-36030 Pillar, NO.9 Inner, Lower RH
2000-01 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61273-36030 Pillar, NO.9 Inner, Lower RH
2000-01 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61273-36030 Pillar, NO.9 Inner, Lower RH
2000-01 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61273-36030 Pillar, NO.9 Inner, Lower RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61273-36030 Pillar, NO.9 Inner, Lower RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61273-36030 Pillar, NO.9 Inner, Lower RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61273-36030 Pillar, NO.9 Inner, Lower RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61273-36030 Pillar, NO.9 Inner, Lower RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61273-36030 Pillar, NO.9 Inner, Lower RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61273-36030 Pillar, NO.9 Inner, Lower RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61273-36030 Pillar, NO.9 Inner, Lower RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61274 — Pillar, NO.10 Inner, RH
61274-36010 Pillar, NO.10 Inner, RH
1993-01 → 1999-07 ended
HZB50 (20S,30S) (GCC,GEN);BB42,50,RZB40,50 (17S,22S,26S,30S) +1 —
61274-36020 note Pillar, NO.10 Inner, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 GCC,GEN —
61274-36020 note Pillar, NO.10 Inner, RH
1995-05 → 1998-08 ended
HZB50 30S;BB42,50,RZB40,50 STD (GCC,GEN) +1 —
61274-36020 Pillar, NO.10 Inner, RH
1997-05 → 1998-08 ended
BB58 —
61274-36020 note Pillar, NO.10 Inner, RH
1998-08 → 1999-07 ended
BB42,43,5#,RZB50 CBU;HZB50,RZB40 STD (GCC,GEN) +1 —
61274-36030 note Pillar, NO.10 Inner, RH
1993-01 → 1999-07 ended
HZB50 SCO;BB4#,50 RHD CBU;HZB50 +2 —
61274-36010 Pillar, NO.10 Inner, RH
1999-07 → 2001-08 ended
HZB50 BB42,HZB50 RHD RHD +10 —
61274-36010 Pillar, NO.10 Inner, RH
1999-07 → 2004-08 ended
BB42 LHD ,GEN);BB42,50,HZB50 WC +21 —
61274-36010 Pillar, NO.10 Inner, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61274-36020 note Pillar, NO.10 Inner, RH
1999-07 → 2001-08 ended
HZB50 .(17S,19S,20S,22S) RHD GEN +7 —
61274-36020 note Pillar, NO.10 Inner, RH
1999-07 → 2004-08 ended
BB42 RF S) WC +24 —
61274-36030 Pillar, NO.10 Inner, RH
2001-04 → 2001-08 ended
BB50 EX IV —
61274-36030 note Pillar, NO.10 Inner, RH
1999-07 → 2001-08 ended
HZB50 4FC;HZB50 RHD SRF;BB43,50 +6 —
61274-36030 note Pillar, NO.10 Inner, RH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB42,HZB50 RHD +5 —
61274-36030 Pillar, NO.10 Inner, RH
2001-04 → 2004-08 ended
BB50,59,BZB40,50 RHD (ARL,GEN) (LPG,TDEFI) —
61274-36030 note Pillar, NO.10 Inner, RH
1999-07 → 2002-11 ended
HZB50 ARL —
61274-36010 Pillar, NO.10 Inner, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61274-36010 Pillar, NO.10 Inner, RH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
61274-36010 Pillar, NO.10 Inner, RH
2004-08 → 2006-08 ended
BB50 GEN 6F —
61274-36010 Pillar, NO.10 Inner, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61274-36010 Pillar, NO.10 Inner, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61274-36020 note Pillar, NO.10 Inner, RH
2004-08 → 2015-01 ended
HZB50,XZB50 LHD HRF WC +1 —
61274-36020 note Pillar, NO.10 Inner, RH
2007-01 → 2011-08 ended
HZB50 HRF GCC —
61274-36020 note Pillar, NO.10 Inner, RH
2004-08 → 2011-08 ended
BB50 WC TD;BB42 RHD +1 —
61274-36020 note Pillar, NO.10 Inner, RH
2004-08 → 2008-08 ended
XZB50 EX —
61274-36020 note Pillar, NO.10 Inner, RH
2004-08 → 2006-08 ended
BB50,58 19S,20S,23S —
61274-36020 note Pillar, NO.10 Inner, RH
2004-08 → 2006-02 ended
BB42,RZB40 GCC —
61274-36030 note Pillar, NO.10 Inner, RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BZB40,50,HZB50,XZB40 +2 —
61274-36030 note Pillar, NO.10 Inner, RH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
61274-36030 note Pillar, NO.10 Inner, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61274-36030 note Pillar, NO.10 Inner, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61274-36030 note Pillar, NO.10 Inner, RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61274-36010 Pillar, NO.10 Inner, RH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
61274-36020 note Pillar, NO.10 Inner, RH
2015-01 → —
HZB50,TRB50 26S;HZB50 LHD HRF +6 —
61274-36030 note Pillar, NO.10 Inner, RH
2015-01 → —
BZB40,HZB50,XZB40,5# RHD —
61277B — Joint, Roof Drip Channel
61277-36010 Joint, Roof Drip Channel
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61277-36010 Joint, Roof Drip Channel
2001-04 → 2001-08 ended
BB50 EX IV —
61277-36010 Joint, Roof Drip Channel
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61277-36010 Joint, Roof Drip Channel
1999-07 → 2004-08 ended
BB42 RF 50,RZB40 0S) +26 —
61277-36010 Joint, Roof Drip Channel
2001-04 → 2004-08 ended
BB59 —
61277-36010 Joint, Roof Drip Channel
1999-07 → 2001-08 ended
HZB50 RF RHD WOC +11 —
61298-36010 note Joint, Roof Drip Channel
2001-04 → 2001-08 ended
BB50 EX IV —
61298-36010 note Joint, Roof Drip Channel
2001-04 → 2004-08 ended
BB59 —
61277-36010 Joint, Roof Drip Channel
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61277-36010 Joint, Roof Drip Channel
2004-08 → 2015-01 ended
BB42 STD RHD;BB42 (DCR,DSL,EFI,LPG,TD) +4 —
61277-36010 note Joint, Roof Drip Channel
2004-08 → 2015-01 ended
XZB59 —
61277-36010 Joint, Roof Drip Channel
2004-08 → 2011-08 ended
BB42 LHD HRF —
61277-36010 Joint, Roof Drip Channel
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61277-36010 Joint, Roof Drip Channel
2004-08 → 2008-03 ended
XZB50 STD GEN —
61277-36010 Joint, Roof Drip Channel
2004-08 → 2006-08 ended
BB50 CBU TDEFI;BB58,BZB50 21S,23S —
61277-36010 note Joint, Roof Drip Channel
2004-08 → 2006-08 ended
BB59 —
61277-36010 Joint, Roof Drip Channel
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61298-36010 note Joint, Roof Drip Channel
2004-08 → 2006-08 ended
BB59 —
61298-36010 note Joint, Roof Drip Channel
2004-08 → 2015-01 ended
XZB59 —
61277-36010 note Joint, Roof Drip Channel
2015-01 → —
XZB59 —
61277-36010 Joint, Roof Drip Channel
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 —
61298-36010 note Joint, Roof Drip Channel
2015-01 → —
XZB59 —
61318A — Rail, NO.6 Upper Outer, RH
61318-36010 Rail, NO.6 Upper Outer, RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61317-36010 note Rail, NO.6 Upper Outer, RH
2003-11 → 2004-08 ended
BB59 —
61318-36010 Rail, NO.6 Upper Outer, RH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61318-36010 Rail, NO.6 Upper Outer, RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61318-36010 Rail, NO.6 Upper Outer, RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61317-36010 note Rail, NO.6 Upper Outer, RH
2004-08 → 2006-08 ended
BB59 —
61317-36010 note Rail, NO.6 Upper Outer, RH
2004-08 → 2015-01 ended
XZB59 —
61318-36010 Rail, NO.6 Upper Outer, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61318-36010 Rail, NO.6 Upper Outer, RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61318-36010 Rail, NO.6 Upper Outer, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61318-36010 Rail, NO.6 Upper Outer, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61318-36010 Rail, NO.6 Upper Outer, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61318-36010 Rail, NO.6 Upper Outer, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61318-36010 Rail, NO.6 Upper Outer, RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61317-36010 note Rail, NO.6 Upper Outer, RH
2015-01 → —
XZB59 —
61318-36010 Rail, NO.6 Upper Outer, RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61338B — Rail, Rear Side NO.2, RH
61338-36010 Rail, Rear Side NO.2, RH
1993-01 → 1998-08 ended
HZB50 (20S,30S) (GCC,GEN);BB42,5#,RZB40,50 (17S,22S,26S,30S) +1 —
61338-36010 Rail, Rear Side NO.2, RH
1998-08 → 1999-07 ended
BB42,43,5#,HZB50,RZB40,50 (GCC,GEN) CBU 5F —
61338-36020 note Rail, Rear Side NO.2, RH
1993-12 → 1999-07 ended
HZB50 SCO;BB4#,50 RHD CBU;HZB50 +2 —
61338-36010 Rail, Rear Side NO.2, RH
1999-07 → 2001-08 ended
HZB50 ;BB4#,50,RZB40 RHD (17S,19S,20S,22S) +10 —
61338-36010 Rail, Rear Side NO.2, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61338-36010 Rail, Rear Side NO.2, RH
1999-07 → 2004-08 ended
BB42 RF (19S,20S,26S) WC +24 —
61338-36020 note Rail, Rear Side NO.2, RH
1999-07 → 2001-08 ended
HZB50 4FC;HZB50 RHD SRF;BB43,50 +6 —
61338-36020 note Rail, Rear Side NO.2, RH
2001-04 → 2001-08 ended
BB50 EX IV —
61338-36020 note Rail, Rear Side NO.2, RH
1999-07 → 2002-11 ended
HZB50 ARL —
61338-36020 note Rail, Rear Side NO.2, RH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB42,HZB50 RHD +5 —
61338-36020 note Rail, Rear Side NO.2, RH
2001-04 → 2004-08 ended
BZB40;BB50 EX TDEFI —
61338-36020 Rail, Rear Side NO.2, RH
2001-08 → 2004-08 ended
BB59,BZB50;BB50 RHD (DX,STD) CBU —
61338-36010 Rail, Rear Side NO.2, RH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 +2 —
61338-36010 Rail, Rear Side NO.2, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61338-36010 Rail, Rear Side NO.2, RH
2004-08 → 2008-08 ended
XZB50 EX —
61338-36010 Rail, Rear Side NO.2, RH
2004-08 → 2006-08 ended
BB50,58 19S,20S,23S —
61338-36010 Rail, Rear Side NO.2, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61338-36010 Rail, Rear Side NO.2, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61338-36020 note Rail, Rear Side NO.2, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61338-36020 note Rail, Rear Side NO.2, RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61338-36020 note Rail, Rear Side NO.2, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61338-36020 note Rail, Rear Side NO.2, RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BZB40,50,HZB50,XZB40 +2 —
61338-36020 note Rail, Rear Side NO.2, RH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
61338-36010 Rail, Rear Side NO.2, RH
2015-01 → —
XZB40 26S;BB42,BZB40,50,HZB50,TRB40,50,XZB50 STD (GCC,GEN,TAIW) —
61338-36020 note Rail, Rear Side NO.2, RH
2015-01 → —
BZB40,HZB50,XZB40,5# RHD —
61356 — Channel, Roof Drip Side, Front RH
61356-36010 Channel, Roof Drip Side, Front RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61356-36010 Channel, Roof Drip Side, Front RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61356-36010 Channel, Roof Drip Side, Front RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61356-36010 Channel, Roof Drip Side, Front RH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61356-36010 Channel, Roof Drip Side, Front RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61356-36010 Channel, Roof Drip Side, Front RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61356-36010 Channel, Roof Drip Side, Front RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61356-36010 Channel, Roof Drip Side, Front RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61356-36010 Channel, Roof Drip Side, Front RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61356-36010 Channel, Roof Drip Side, Front RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61356-36010 Channel, Roof Drip Side, Front RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61356-36010 Channel, Roof Drip Side, Front RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61357 — Channel, Roof Drip Side, Center NO.1
61357-36010 Channel, Roof Drip Side, Center NO.1
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61357-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61357-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61357-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2011-08 ended
BB42 LHD HRF —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2008-03 ended
XZB50 STD GEN —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61357-36010 Channel, Roof Drip Side, Center NO.1
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61358B — Channel, Roof Drip Side, Rear RH
61358-36010 Channel, Roof Drip Side, Rear RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61358-36010 Channel, Roof Drip Side, Rear RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61358-36010 Channel, Roof Drip Side, Rear RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61358-36010 Channel, Roof Drip Side, Rear RH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61358-36010 Channel, Roof Drip Side, Rear RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61358-36010 Channel, Roof Drip Side, Rear RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61358-36010 Channel, Roof Drip Side, Rear RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61358-36010 Channel, Roof Drip Side, Rear RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61358-36010 Channel, Roof Drip Side, Rear RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61358-36010 Channel, Roof Drip Side, Rear RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61358-36010 Channel, Roof Drip Side, Rear RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61358-36010 Channel, Roof Drip Side, Rear RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61367C — Channel, Roof Drip Side, Center NO.1
61357-36010 Channel, Roof Drip Side, Center NO.1
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 CBU —
61367-36010 Channel, Roof Drip Side, Center NO.1
1993-01 → 1999-07 ended
BB4#,RZB40 —
61357-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2001-08 ended
HZB50 EN RHD SRF;BB50 +8 —
61357-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
61357-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2004-08 ended
HZB50 20S) LHD TDEFI;BB50,58,BZB50,RZB50 +12 —
61367-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
61367-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2002-11 ended
RZB40 CHI —
61367-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2015-01 ended
XZB50 (20S,21S) WC;BB50,BZB50,HZB50,TRB50 STD +1 —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2008-03 ended
XZB50 STD GEN —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2007-08 ended
RZB50 —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2006-08 ended
BB50 CBU TDEFI;BB58,BZB50 21S,23S —
61367-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
61367-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
61367-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2011-08 ended
BB42 LHD HRF —
61367-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61357-36010 Channel, Roof Drip Side, Center NO.1
2015-01 → —
BZB50,HZB50,TRB50,XZB50 —
61367-36010 Channel, Roof Drip Side, Center NO.1
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
61411E — Rail, NO.1 Lower Outer, RH
61411-36010 Rail, NO.1 Lower Outer, RH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61411-36010 Rail, NO.1 Lower Outer, RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61411-36010 Rail, NO.1 Lower Outer, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61411-36010 Rail, NO.1 Lower Outer, RH
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61411-36010 Rail, NO.1 Lower Outer, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61411-36010 Rail, NO.1 Lower Outer, RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61411-36010 Rail, NO.1 Lower Outer, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61411-36010 Rail, NO.1 Lower Outer, RH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61411-36010 Rail, NO.1 Lower Outer, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61411-36010 Rail, NO.1 Lower Outer, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61418B — Rail, NO.8 Lower Outer, RH
61418-36010 Rail, NO.8 Lower Outer, RH
1993-01 → 1999-07 ended
HZB50 (20S,30S) (GCC,GEN);BB42,50,RZB40,50 (17S,22S,26S,30S) +1 —
61418-36010 Rail, NO.8 Lower Outer, RH
1999-07 → 2001-08 ended
HZB50 BB42,HZB50 RHD RHD +10 —
61418-36010 Rail, NO.8 Lower Outer, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61418-36010 Rail, NO.8 Lower Outer, RH
1999-07 → 2004-08 ended
BB42 LHD ,GEN);BB42,50,HZB50 WC +21 —
61418-36040 Rail, NO.8 Lower Outer, RH
2003-11 → 2004-08 ended
BB59 —
61418-36010 Rail, NO.8 Lower Outer, RH
2004-08 → 2012-06 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
61418-36010 Rail, NO.8 Lower Outer, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61418-36010 Rail, NO.8 Lower Outer, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61418-36010 Rail, NO.8 Lower Outer, RH
2004-08 → 2006-08 ended
BB50 GEN 6F —
61418-36010 Rail, NO.8 Lower Outer, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61418-36040 Rail, NO.8 Lower Outer, RH
2004-08 → 2015-01 ended
XZB59 —
61418-36040 Rail, NO.8 Lower Outer, RH
2004-08 → 2006-08 ended
BB59 —
61418-36050 Rail, NO.8 Lower Outer, RH
2012-06 → 2015-01 ended
BB42,50,HZB50,TRB40,50 —
61418-36040 Rail, NO.8 Lower Outer, RH
2015-01 → —
XZB59 —
61418-36050 Rail, NO.8 Lower Outer, RH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
61419B — Rail, NO.9 Lower Outer
61419-36010 Rail, NO.9 Lower Outer
1993-01 → 1999-07 ended
HZB50 (20S,30S) (GCC,GEN);BB42,50,RZB40,50 (17S,22S,26S,30S) +1 —
61419-36010 Rail, NO.9 Lower Outer
1999-07 → 2001-08 ended
HZB50 BB42,HZB50 RHD RHD +10 —
61419-36010 Rail, NO.9 Lower Outer
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61419-36010 Rail, NO.9 Lower Outer
1999-07 → 2004-08 ended
BB42 LHD ,GEN);BB42,50,HZB50 WC +21 —
61419-36010 Rail, NO.9 Lower Outer
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61419-36010 Rail, NO.9 Lower Outer
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
61419-36010 Rail, NO.9 Lower Outer
2004-08 → 2011-08 ended
BB42 LHD HRF —
61419-36010 Rail, NO.9 Lower Outer
2004-08 → 2006-08 ended
BB50 GEN 6F —
61419-36010 Rail, NO.9 Lower Outer
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61419-36010 Rail, NO.9 Lower Outer
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
61526B — Bracket, Seat Anchor, NO.2 RH
61509-36010 Bracket, Seat Anchor, NO.2 RH
1993-01 → 1997-05 ended
HZB50 SCO;BB4# ARL,SCO;HZB50 19S,22S —
61509-36010 note Bracket, Seat Anchor, NO.2 RH
1993-01 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
61509-36011 note Bracket, Seat Anchor, NO.2 RH
1997-05 → 1999-07 ended
BB42 CBU GCC,SCO;BB42 LHD +4 —
61509-36011 note Bracket, Seat Anchor, NO.2 RH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
61526-36010 Bracket, Seat Anchor, NO.2 RH
1993-01 → 1998-08 ended
HZB50 (20S,30S) (GCC,GEN);BB42,50,RZB40,50 (17S,22S,26S,30S) +1 —
61526-36010 Bracket, Seat Anchor, NO.2 RH
1998-08 → 1999-07 ended
BB42,43,50,HZB50,RZB40,50 (GCC,GEN) CBU 5F —
61509-36011 note Bracket, Seat Anchor, NO.2 RH
2000-03 → 2004-08 ended
HZB50 RHD HRF STD +3 —
61509-36011 Bracket, Seat Anchor, NO.2 RH
1999-07 → 2004-08 ended
BB58,59,BZB40,50;BB50 RHD CBU TDEFI —
61509-36011 note Bracket, Seat Anchor, NO.2 RH
1999-07 → 2002-11 ended
HZB50 ARL —
61509-36011 note Bracket, Seat Anchor, NO.2 RH
2001-08 → 2004-08 ended
BB42 RHD —
61509-36011 note Bracket, Seat Anchor, NO.2 RH
1999-07 → 2001-08 ended
BB50 EX GEN CBU;BB43,HZB50 +2 —
61509-36011 Bracket, Seat Anchor, NO.2 RH
1999-07 → 2001-08 ended
BB50 EX IV —
61509-36011 note Bracket, Seat Anchor, NO.2 RH
1999-07 → 1999-10 ended
BB42,HZB50 RHD STD GEN +1 —
61526-36010 Bracket, Seat Anchor, NO.2 RH
1999-07 → 2004-08 ended
BB42 C;HZB50,RZB40 7S,26S,30S) WC +21 —
61526-36010 note Bracket, Seat Anchor, NO.2 RH
2001-08 → 2004-08 ended
BB50 WOC TD;BB50 GEN +1 —
61526-36010 Bracket, Seat Anchor, NO.2 RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61526-36010 note Bracket, Seat Anchor, NO.2 RH
2001-08 → 2002-11 ended
BB50,HZB50 RHD (20S,22S) (EX,STD) +1 —
61526-36010 Bracket, Seat Anchor, NO.2 RH
1999-07 → 1999-10 ended
BB43,50 RHD 5F —
61526-36010 Bracket, Seat Anchor, NO.2 RH
1999-07 → 2001-08 ended
HZB50 BB42,HZB50 RHD RHD +10 —
61509-36011 note Bracket, Seat Anchor, NO.2 RH
2004-08 → 2006-08 ended
BB58,59;BZB50 EX;BB50 RHD CBU —
61509-36011 note Bracket, Seat Anchor, NO.2 RH
2004-08 → 2007-08 ended
XZB50 ARL —
61509-36011 note Bracket, Seat Anchor, NO.2 RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61509-36011 Bracket, Seat Anchor, NO.2 RH
2007-08 → 2015-01 ended
XZB40;XZB50 GEN 4FC —
61509-36011 note Bracket, Seat Anchor, NO.2 RH
2004-08 → 2011-08 ended
XZB50 TAIW —
61509-36011 note Bracket, Seat Anchor, NO.2 RH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
61509-36011 note Bracket, Seat Anchor, NO.2 RH
2004-08 → 2015-01 ended
XZB5# EX 5F;BZB40,50,HZB50 RHD +1 —
61525-36060 note Bracket, Seat Anchor, NO.2 RH
2007-08 → 2015-01 ended
XZB50 WC ARL 5F —
61525-36060 note Bracket, Seat Anchor, NO.2 RH
2011-08 → 2015-01 ended
XZB50 TAIW —
61525-36060 Bracket, Seat Anchor, NO.2 RH
2007-08 → 2015-01 ended
XZB50 ARL 4FC —
61525-36060 note Bracket, Seat Anchor, NO.2 RH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
61526-36010 note Bracket, Seat Anchor, NO.2 RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61526-36010 note Bracket, Seat Anchor, NO.2 RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61526-36010 note Bracket, Seat Anchor, NO.2 RH
2004-08 → 2006-08 ended
BB50 GEN 6F —
61526-36010 Bracket, Seat Anchor, NO.2 RH
2007-08 → 2015-01 ended
TRB40,50;BB42 RHD SRF WC —
61526-36010 note Bracket, Seat Anchor, NO.2 RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61526-36010 note Bracket, Seat Anchor, NO.2 RH
2004-08 → 2015-01 ended
BB42 WOC;BB42 RHD HRF;BB50,HZB50 +4 —
61525-36080 Bracket, Seat Anchor, NO.2 RH
2015-01 → —
BZB40,50,XZB40,59 HRF;HZB50,TRB50,XZB50 20S,21S,26S —
61525-36080 note Bracket, Seat Anchor, NO.2 RH
2015-01 → —
HZB50 RHD —
61525-36080 note Bracket, Seat Anchor, NO.2 RH
2015-01 → —
TRB40 GCC —
61525-36080 Bracket, Seat Anchor, NO.2 RH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
61557B — Gusset, Pillar TO Rail, NO.2
61557-36020 Gusset, Pillar TO Rail, NO.2
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61557-36020 Gusset, Pillar TO Rail, NO.2
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61557-36020 Gusset, Pillar TO Rail, NO.2
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61557-36020 Gusset, Pillar TO Rail, NO.2
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61557-36020 Gusset, Pillar TO Rail, NO.2
2004-08 → 2008-03 ended
XZB50 STD GEN —
61557-36020 Gusset, Pillar TO Rail, NO.2
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61557-36020 Gusset, Pillar TO Rail, NO.2
2004-08 → 2011-08 ended
BB42 LHD HRF —
61557-36020 Gusset, Pillar TO Rail, NO.2
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61557-36020 Gusset, Pillar TO Rail, NO.2
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61557-36020 Gusset, Pillar TO Rail, NO.2
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61557-36020 Gusset, Pillar TO Rail, NO.2
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61557-36020 Gusset, Pillar TO Rail, NO.2
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61582A — Bracket, Rear Seat, NO.2
61582-36010 Bracket, Rear Seat, NO.2
1993-12 → 1999-07 ended
BB4#,50,HZB50,RZB40,50 CBU —
61582-36010 Bracket, Rear Seat, NO.2
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61582-36010 Bracket, Rear Seat, NO.2
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61582-36010 Bracket, Rear Seat, NO.2
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61582-36010 Bracket, Rear Seat, NO.2
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61582-36010 Bracket, Rear Seat, NO.2
2004-08 → 2011-08 ended
BB42 LHD HRF —
61582-36010 Bracket, Rear Seat, NO.2
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61582-36010 Bracket, Rear Seat, NO.2
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61582-36010 Bracket, Rear Seat, NO.2
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61582-36010 Bracket, Rear Seat, NO.2
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61582-36010 Bracket, Rear Seat, NO.2
2004-08 → 2008-03 ended
XZB50 STD GEN —
61582-36020 Bracket, Rear Seat, NO.2
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61594 — Bracket, Stiffener, NO.4
61594-36010 Bracket, Stiffener, NO.4
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61594-36010 Bracket, Stiffener, NO.4
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61594-36010 Bracket, Stiffener, NO.4
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61594-36010 Bracket, Stiffener, NO.4
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61594-36010 Bracket, Stiffener, NO.4
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61594-36010 Bracket, Stiffener, NO.4
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61594-36010 Bracket, Stiffener, NO.4
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61594-36010 Bracket, Stiffener, NO.4
2004-08 → 2008-03 ended
XZB50 STD GEN —
61594-36010 Bracket, Stiffener, NO.4
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61594-36010 Bracket, Stiffener, NO.4
2004-08 → 2011-08 ended
BB42 LHD HRF —
61594-36010 Bracket, Stiffener, NO.4
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61594-36010 Bracket, Stiffener, NO.4
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61615D — Pillar, NO.10 Outer, Upper RH
61615-36010 Pillar, NO.10 Outer, Upper RH
1995-05 → 1998-08 ended
HZB50 30S;BB42,5#,RZB40,50 STD (GCC,GEN) +1 —
61615-36010 Pillar, NO.10 Outer, Upper RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 GCC,GEN —
61615-36010 Pillar, NO.10 Outer, Upper RH
1998-08 → 1999-07 ended
BB42,43,5#,RZB50 CBU;HZB50,RZB40 STD (GCC,GEN) +1 —
61615-36010 Pillar, NO.10 Outer, Upper RH
1999-07 → 2001-08 ended
HZB50 .(17S,19S,20S,22S) RHD GEN +7 —
61615-36010 Pillar, NO.10 Outer, Upper RH
1999-07 → 2004-08 ended
BB42 RF S) WC +24 —
61615-36010 Pillar, NO.10 Outer, Upper RH
2004-08 → 2006-02 ended
BB42,RZB40 GCC —
61615-36010 Pillar, NO.10 Outer, Upper RH
2004-08 → 2006-08 ended
BB50,58 19S,20S,23S —
61615-36010 Pillar, NO.10 Outer, Upper RH
2004-08 → 2008-08 ended
XZB50 EX —
61615-36010 Pillar, NO.10 Outer, Upper RH
2004-08 → 2011-08 ended
BB50 WC TD;BB42 RHD +1 —
61615-36010 Pillar, NO.10 Outer, Upper RH
2007-01 → 2011-08 ended
HZB50 HRF GCC —
61615-36010 Pillar, NO.10 Outer, Upper RH
2004-08 → 2015-01 ended
HZB50,XZB50 LHD HRF WC +1 —
61615-36010 Pillar, NO.10 Outer, Upper RH
2015-01 → —
HZB50,TRB50 26S;HZB50 LHD HRF +6 —
61631L — Panel, Rear Wheel House, Outer RH
61631-36010 Panel, Rear Wheel House, Outer RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61631-36010 Panel, Rear Wheel House, Outer RH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61631-36010 Panel, Rear Wheel House, Outer RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61631-36010 Panel, Rear Wheel House, Outer RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61631-36010 Panel, Rear Wheel House, Outer RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61631-36010 Panel, Rear Wheel House, Outer RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61631-36010 Panel, Rear Wheel House, Outer RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61631-36010 Panel, Rear Wheel House, Outer RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61631-36010 Panel, Rear Wheel House, Outer RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61631-36010 Panel, Rear Wheel House, Outer RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61631-36010 Panel, Rear Wheel House, Outer RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61631-36010 Panel, Rear Wheel House, Outer RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61633B — Panel, Wheel House
61633-36010 Panel, Wheel House
1993-01 → 1997-05 ended
BB4#,HZB50,RZB40,50 CBU —
61633-36011 Panel, Wheel House
1997-05 → 1999-01 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61633-36011 Panel, Wheel House
1999-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61633-36020 Panel, Wheel House
1999-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61633-36011 Panel, Wheel House
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61633-36011 Panel, Wheel House
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61633-36011 Panel, Wheel House
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61633-36011 Panel, Wheel House
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61633-36011 Panel, Wheel House
2004-08 → 2011-08 ended
BB42 LHD HRF —
61633-36011 Panel, Wheel House
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61633-36011 Panel, Wheel House
2004-08 → 2008-03 ended
XZB50 STD GEN —
61633-36011 Panel, Wheel House
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61633-36011 Panel, Wheel House
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61633-36011 Panel, Wheel House
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61633-36011 Panel, Wheel House
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61651A — Gusset, Pillar Shear, NO.1 RH
61651-36010 Gusset, Pillar Shear, NO.1 RH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61651-36020 Gusset, Pillar Shear, NO.1 RH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61651-36010 Gusset, Pillar Shear, NO.1 RH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61651-36010 Gusset, Pillar Shear, NO.1 RH
1999-07 → 2002-11 ended
HZB50 ARL —
61651-36010 Gusset, Pillar Shear, NO.1 RH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61651-36020 Gusset, Pillar Shear, NO.1 RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61651-36020 Gusset, Pillar Shear, NO.1 RH
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61651-36020 Gusset, Pillar Shear, NO.1 RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
51031-36021 Gusset, Pillar Shear, NO.1 RH
2007-08 → 2015-01 ended
BB42,HZB50,TRB40,50,XZB50 GCC,TAIW —
51031-36030 Gusset, Pillar Shear, NO.1 RH
2007-08 → 2008-03 ended
XZB50 STD GEN —
51031-36030 Gusset, Pillar Shear, NO.1 RH
2007-08 → 2009-07 ended
BZB40,50,XZB40,59;XZB50 RHD (20S,21S) —
51031-36030 Gusset, Pillar Shear, NO.1 RH
2009-08 → 2015-01 ended
BZB40,50,XZB40,5# ARL,GEN —
61651-36010 Gusset, Pillar Shear, NO.1 RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61651-36010 Gusset, Pillar Shear, NO.1 RH
2004-08 → 2007-08 ended
XZB5# ARL,GEN;BB42,BZB40,50,HZB50 RHD STD —
61651-36020 Gusset, Pillar Shear, NO.1 RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61651-36020 Gusset, Pillar Shear, NO.1 RH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61651-36020 Gusset, Pillar Shear, NO.1 RH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,HZB50,RZB50,XZB50 +3 —
61651-36041 Gusset, Pillar Shear, NO.1 RH
2007-08 → 2011-08 ended
BB42 LHD HRF —
61651-36041 Gusset, Pillar Shear, NO.1 RH
2007-08 → 2015-01 ended
BB42 LHD SRF GEN;BB50,HZB50,TRB40,50 +2 —
61651-36050 Gusset, Pillar Shear, NO.1 RH
2007-08 → 2009-07 ended
BB42,HZB50 RHD —
61651-36050 Gusset, Pillar Shear, NO.1 RH
2009-08 → 2015-01 ended
BB42 RHD WOC;BB42,HZB50 RHD +1 —
61651-36050 Gusset, Pillar Shear, NO.1 RH
2007-08 → 2015-01 ended
BB42 RHD SRF WC —
51031-36021 Gusset, Pillar Shear, NO.1 RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB50 GCC,TAIW —
51031-36030 Gusset, Pillar Shear, NO.1 RH
2015-01 → —
BZB40,50,XZB40,5# RHD —
61651-36041 Gusset, Pillar Shear, NO.1 RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD GEN —
61651-36050 Gusset, Pillar Shear, NO.1 RH
2015-01 → —
BB42,HZB50 RHD —
61687B — Bracket, Mudguard, Rear RH
61687-36010 Bracket, Mudguard, Rear RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61687-36010 Bracket, Mudguard, Rear RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61687-36010 Bracket, Mudguard, Rear RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61687-36010 Bracket, Mudguard, Rear RH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61687-36010 Bracket, Mudguard, Rear RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61687-36010 Bracket, Mudguard, Rear RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61687-36010 Bracket, Mudguard, Rear RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61687-36010 Bracket, Mudguard, Rear RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61687-36010 Bracket, Mudguard, Rear RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61687-36010 Bracket, Mudguard, Rear RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61687-36010 Bracket, Mudguard, Rear RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61687-36010 Bracket, Mudguard, Rear RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61722C — Bracket, Switch Plate
61723-36010 Bracket, Switch Plate
1993-01 → 1996-10 ended
BB42,HZB50,RZB40,50 LHD CBU —
61755D — Retainer, Deck Side Trim, Upper
61755-36010 Retainer, Deck Side Trim, Upper
2015-01 → —
HZB50,TRB50,XZB50 26S —
61813A — Plate, Dustproof, NO.1 RH
61813-36010 Plate, Dustproof, NO.1 RH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61813-36020 Plate, Dustproof, NO.1 RH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61813-36010 Plate, Dustproof, NO.1 RH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61813-36010 Plate, Dustproof, NO.1 RH
1999-07 → 2002-11 ended
HZB50 ARL —
61813-36010 Plate, Dustproof, NO.1 RH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61813-36020 Plate, Dustproof, NO.1 RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61813-36020 Plate, Dustproof, NO.1 RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61813-36020 Plate, Dustproof, NO.1 RH
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61813-36010 Plate, Dustproof, NO.1 RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61813-36010 Plate, Dustproof, NO.1 RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
61813-36010 Plate, Dustproof, NO.1 RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61813-36010 Plate, Dustproof, NO.1 RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61813-36020 Plate, Dustproof, NO.1 RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61813-36020 Plate, Dustproof, NO.1 RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61813-36020 Plate, Dustproof, NO.1 RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61813-36020 Plate, Dustproof, NO.1 RH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61813-36020 Plate, Dustproof, NO.1 RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61813-36010 Plate, Dustproof, NO.1 RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61813-36020 Plate, Dustproof, NO.1 RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61814A — Plate, Dust Proof, NO.2 RH
61814-36020 Plate, Dust Proof, NO.2 RH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61814-36020 Plate, Dust Proof, NO.2 RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61814-36020 Plate, Dust Proof, NO.2 RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61814-36020 Plate, Dust Proof, NO.2 RH
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61814-36020 Plate, Dust Proof, NO.2 RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61814-36020 Plate, Dust Proof, NO.2 RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61814-36020 Plate, Dust Proof, NO.2 RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61814-36020 Plate, Dust Proof, NO.2 RH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61814-36020 Plate, Dust Proof, NO.2 RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61814-36020 Plate, Dust Proof, NO.2 RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61852A — Plate, NO.5 Pillar Board Set
61852-36010 Plate, NO.5 Pillar Board Set
1993-01 → 1994-04 ended
BB42,HZB50,RZB40,50 GCC,GEN —
61852-36011 Plate, NO.5 Pillar Board Set
1994-04 → 1999-07 ended
HZB50 (20S,30S) (GCC,GEN);BB42,50,RZB40,50 (17S,22S,26S,30S) +1 —
61852-36011 Plate, NO.5 Pillar Board Set
1999-07 → 2001-08 ended
HZB50 BB42,HZB50 RHD RHD +10 —
61852-36011 Plate, NO.5 Pillar Board Set
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61852-36011 Plate, NO.5 Pillar Board Set
1999-07 → 2004-08 ended
BB42 LHD ,GEN);BB42,50,HZB50 WC +21 —
61852-36011 Plate, NO.5 Pillar Board Set
2004-08 → 2012-06 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
61852-36011 Plate, NO.5 Pillar Board Set
2004-08 → 2011-08 ended
BB42 LHD HRF —
61852-36011 Plate, NO.5 Pillar Board Set
2004-08 → 2006-08 ended
BB50 GEN 6F —
61852-36011 Plate, NO.5 Pillar Board Set
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61852-36011 Plate, NO.5 Pillar Board Set
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61852-36020 Plate, NO.5 Pillar Board Set
2012-06 → 2015-01 ended
BB42,50,HZB50,TRB40,50 —
61852-36020 Plate, NO.5 Pillar Board Set
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
61887 — Rail, Side Panel Dust Proof, NO.1 RH
61887-36010 Rail, Side Panel Dust Proof, NO.1 RH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61888-36010 Rail, Side Panel Dust Proof, NO.1 RH
1993-01 → 1994-06 ended
BB42,HZB50,RZB40,50 LHD CBU —
61888-36030 Rail, Side Panel Dust Proof, NO.1 RH
1994-06 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61887-36010 Rail, Side Panel Dust Proof, NO.1 RH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61887-36010 Rail, Side Panel Dust Proof, NO.1 RH
1999-07 → 2002-11 ended
HZB50 ARL —
61887-36010 Rail, Side Panel Dust Proof, NO.1 RH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61888-36030 Rail, Side Panel Dust Proof, NO.1 RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61888-36030 Rail, Side Panel Dust Proof, NO.1 RH
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61888-36030 Rail, Side Panel Dust Proof, NO.1 RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61887-36010 Rail, Side Panel Dust Proof, NO.1 RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61887-36010 Rail, Side Panel Dust Proof, NO.1 RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
61887-36010 Rail, Side Panel Dust Proof, NO.1 RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61887-36010 Rail, Side Panel Dust Proof, NO.1 RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61888-36030 Rail, Side Panel Dust Proof, NO.1 RH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61888-36030 Rail, Side Panel Dust Proof, NO.1 RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61888-36030 Rail, Side Panel Dust Proof, NO.1 RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61888-36030 Rail, Side Panel Dust Proof, NO.1 RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61888-36030 Rail, Side Panel Dust Proof, NO.1 RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61887-36010 Rail, Side Panel Dust Proof, NO.1 RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61888-36030 Rail, Side Panel Dust Proof, NO.1 RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61889 — Retainer, Side Panel
61889-36010 Retainer, Side Panel
1993-01 → 1999-07 ended
BB42,HZB50,RZB40,50 SRF —
61889-36010 Retainer, Side Panel
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB42,RZB40 WOC +1 —
61889-36010 Retainer, Side Panel
1999-07 → 2004-08 ended
HZB50 LHD SRF;BB42,RZB40 SRF +4 —
61889-36010 Retainer, Side Panel
2004-08 → 2015-01 ended
BB42,HZB50,TRB40 SRF GEN —
61889-36010 Retainer, Side Panel
2004-08 → 2011-08 ended
BB42,HZB50,TRB40,50 SRF GCC —
61889-36010 Retainer, Side Panel
2004-08 → 2007-08 ended
RZB40,50 SRF —
61889-36010 Retainer, Side Panel
2015-01 → —
BB42,HZB50,TRB40,XZB40 SRF GEN —
61895 — Rail, Side Panel Dust Proof, NO.2 RH
61895-36010 Rail, Side Panel Dust Proof, NO.2 RH
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 CBU —
61895-36020 Rail, Side Panel Dust Proof, NO.2 RH
1993-01 → 1999-07 ended
BB4#,RZB40 —
61895-36010 Rail, Side Panel Dust Proof, NO.2 RH
1999-07 → 2001-08 ended
BB50 22S) EX GEN +10 —
61895-36010 Rail, Side Panel Dust Proof, NO.2 RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
61895-36010 Rail, Side Panel Dust Proof, NO.2 RH
1999-07 → 2004-08 ended
HZB50 20S) LHD TDEFI;BB58,59,BZB50,RZB50 +13 —
61895-36020 Rail, Side Panel Dust Proof, NO.2 RH
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
61895-36020 Rail, Side Panel Dust Proof, NO.2 RH
1999-07 → 2002-11 ended
RZB40 CHI —
61895-36020 Rail, Side Panel Dust Proof, NO.2 RH
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
61895-36010 Rail, Side Panel Dust Proof, NO.2 RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61895-36010 Rail, Side Panel Dust Proof, NO.2 RH
2004-08 → 2015-01 ended
XZB59;XZB50 (20S,21S) WC;BB50,BZB50,HZB50,TRB50 STD +1 —
61895-36010 Rail, Side Panel Dust Proof, NO.2 RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61895-36010 Rail, Side Panel Dust Proof, NO.2 RH
2004-08 → 2007-08 ended
RZB50 —
61895-36010 Rail, Side Panel Dust Proof, NO.2 RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61895-36020 Rail, Side Panel Dust Proof, NO.2 RH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
61895-36020 Rail, Side Panel Dust Proof, NO.2 RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61895-36020 Rail, Side Panel Dust Proof, NO.2 RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61895-36020 Rail, Side Panel Dust Proof, NO.2 RH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
61895-36010 Rail, Side Panel Dust Proof, NO.2 RH
2015-01 → —
BZB50,HZB50,TRB50,XZB5# —
61895-36020 Rail, Side Panel Dust Proof, NO.2 RH
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
61897 — Rail, Side Panel Dust Proof, NO.3 RH
61897-36010 Rail, Side Panel Dust Proof, NO.3 RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61897-36010 Rail, Side Panel Dust Proof, NO.3 RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61897-36010 Rail, Side Panel Dust Proof, NO.3 RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61897-36010 Rail, Side Panel Dust Proof, NO.3 RH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61897-36010 Rail, Side Panel Dust Proof, NO.3 RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61897-36010 Rail, Side Panel Dust Proof, NO.3 RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61897-36010 Rail, Side Panel Dust Proof, NO.3 RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61897-36010 Rail, Side Panel Dust Proof, NO.3 RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61897-36010 Rail, Side Panel Dust Proof, NO.3 RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61897-36010 Rail, Side Panel Dust Proof, NO.3 RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61897-36010 Rail, Side Panel Dust Proof, NO.3 RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61897-36010 Rail, Side Panel Dust Proof, NO.3 RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
62429 — Cover, Center Pillar Service Hole
62429-36010 Cover, Center Pillar Service Hole
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
62429-36010 Cover, Center Pillar Service Hole
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
62429-36010 Cover, Center Pillar Service Hole
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62429-36010 Cover, Center Pillar Service Hole
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
62429-36010 Cover, Center Pillar Service Hole
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
62429-36010 Cover, Center Pillar Service Hole
2004-08 → 2011-08 ended
BB42 LHD HRF —
62429-36010 Cover, Center Pillar Service Hole
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62429-36010 Cover, Center Pillar Service Hole
2004-08 → 2008-03 ended
XZB50 STD GEN —
62429-36010 Cover, Center Pillar Service Hole
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62429-36010 Cover, Center Pillar Service Hole
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
62429-36010 Cover, Center Pillar Service Hole
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62429-36010 Cover, Center Pillar Service Hole
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
63214E — Channel, Roof Drip, Rear, RH
63214-36010 Channel, Roof Drip, Rear, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 GCC,GEN —
63214-36010 Channel, Roof Drip, Rear, RH
1995-05 → 1998-08 ended
HZB50 30S;BB42,5#,RZB40,50 STD (GCC,GEN) +1 —
63214-36010 Channel, Roof Drip, Rear, RH
1998-08 → 1999-07 ended
BB42,43,5#,RZB50 CBU;HZB50,RZB40 STD (GCC,GEN) +1 —
63214-36010 Channel, Roof Drip, Rear, RH
1999-07 → 2001-08 ended
HZB50 .(17S,19S,20S,22S) RHD GEN +7 —
63214-36010 Channel, Roof Drip, Rear, RH
1999-07 → 2004-08 ended
BB42 RF S) WC +24 —
63214-36010 Channel, Roof Drip, Rear, RH
2004-08 → 2015-01 ended
HZB50,XZB50 LHD HRF WC +1 —
63214-36010 Channel, Roof Drip, Rear, RH
2007-01 → 2011-08 ended
HZB50 HRF GCC —
63214-36010 Channel, Roof Drip, Rear, RH
2004-08 → 2008-08 ended
XZB50 EX —
63214-36010 Channel, Roof Drip, Rear, RH
2004-08 → 2006-08 ended
BB50,58 19S,20S,23S —
63214-36010 Channel, Roof Drip, Rear, RH
2004-08 → 2006-02 ended
BB42,RZB40 GCC —
63214-36010 Channel, Roof Drip, Rear, RH
2004-08 → 2011-08 ended
BB50 WC TD;BB42 RHD +1 —
63214-36010 Channel, Roof Drip, Rear, RH
2015-01 → —
HZB50,TRB50 26S;HZB50 LHD HRF +6 —
64251A — Bracket, Rear Seatback Stop
64251-36010 Bracket, Rear Seatback Stop
1993-01 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
64251-36010 Bracket, Rear Seatback Stop
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
64251-36010 Bracket, Rear Seatback Stop
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
64251-36010 Bracket, Rear Seatback Stop
1999-07 → 2004-08 ended
BB42 C (26S,30S) WC +19 —
64251-36010 Bracket, Rear Seatback Stop
2004-08 → 2011-08 ended
BB42 LHD HRF —
64251-36010 Bracket, Rear Seatback Stop
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
64251-36010 Bracket, Rear Seatback Stop
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
64251-36010 Bracket, Rear Seatback Stop
2004-08 → 2006-02 ended
RZB40 HRF GCC —
64251-36020 Bracket, Rear Seatback Stop
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
65415C — Panel, Rear Body, Front RH
65415-36010 Panel, Rear Body, Front RH
1993-01 → 1999-07 ended
BB42,43 RHD —
65415-36020 Panel, Rear Body, Front RH
1993-01 → 1999-07 ended
BB50,HZB50 RHD (GEN,SCO) —
65415-36040 Panel, Rear Body, Front RH
1993-01 → 1995-05 ended
HZB50 ARL —
65415-36050 Panel, Rear Body, Front RH
1993-01 → 1999-07 ended
BB42,RZB40 LHD —
65415-36060 Panel, Rear Body, Front RH
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 LHD CBU —
65415-36070 Panel, Rear Body, Front RH
1995-05 → 1999-07 ended
BB40 —
65415-36080 Panel, Rear Body, Front RH
1995-05 → 1999-07 ended
HZB50 ARL —
65415-36010 Panel, Rear Body, Front RH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB42,BZB40 RHD +1 —
65415-36010 Panel, Rear Body, Front RH
1999-07 → 2001-08 ended
BB43;BB42 RHD HRF WOC —
65415-36020 Panel, Rear Body, Front RH
1999-07 → 2001-08 ended
BB50 EX GEN;HZB50 RHD +7 —
65415-36020 Panel, Rear Body, Front RH
1999-07 → 2004-04 ended
BB50,59,BZB50 5F (LPG,TDEFI);HZB50 RHD +5 —
65415-36021 Panel, Rear Body, Front RH
2004-04 → 2004-08 ended
BB50,59,BZB50,HZB50 RHD 5F —
65415-36050 Panel, Rear Body, Front RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
65415-36050 Panel, Rear Body, Front RH
1999-07 → 2004-08 ended
BB42 WC GCC;RZB40 WOC +7 —
65415-36060 Panel, Rear Body, Front RH
1999-07 → 2004-04 ended
BB50 GEN 6F TDEFI;BB50,HZB50,RZB50 +4 —
65415-36060 Panel, Rear Body, Front RH
1999-07 → 2001-08 ended
BB5# CBU 6F —
65415-36061 Panel, Rear Body, Front RH
2004-04 → 2004-08 ended
BB50,HZB50,RZB50 LHD CBU —
65415-36080 Panel, Rear Body, Front RH
1999-07 → 2004-04 ended
BB50 ARL —
65415-36080 Panel, Rear Body, Front RH
1999-07 → 2002-11 ended
HZB50 ARL —
65415-36081 Panel, Rear Body, Front RH
2004-04 → 2004-08 ended
BB50 ARL —
65415-36100 Panel, Rear Body, Front RH
2000-12 → 2002-11 ended
RZB40 CHI —
65415-36110 Panel, Rear Body, Front RH
2001-08 → 2004-04 ended
BB58 —
65415-36110 Panel, Rear Body, Front RH
2000-08 → 2002-11 ended
BB50,RZB50 CHI —
65415-36111 Panel, Rear Body, Front RH
2004-04 → 2004-08 ended
BB58 —
65415-36010 Panel, Rear Body, Front RH
2004-08 → 2015-01 ended
BB42 RHD —
65415-36010 Panel, Rear Body, Front RH
2004-08 → 2012-09 ended
BZB40,XZB40 —
65415-36021 Panel, Rear Body, Front RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 5F TDEFI —
65415-36021 Panel, Rear Body, Front RH
2004-08 → 2015-01 ended
XZB59;HZB50,XZB50 RHD (20S,30S) —
65415-36021 Panel, Rear Body, Front RH
2004-08 → 2012-09 ended
BZB50 STD —
65415-36021 Panel, Rear Body, Front RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
65415-36050 Panel, Rear Body, Front RH
2004-08 → 2015-01 ended
TRB40;BB42 LHD SRF —
65415-36050 Panel, Rear Body, Front RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
65415-36050 Panel, Rear Body, Front RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
65415-36050 Panel, Rear Body, Front RH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
65415-36061 Panel, Rear Body, Front RH
2004-08 → 2007-08 ended
RZB50 —
65415-36061 Panel, Rear Body, Front RH
2004-08 → 2006-08 ended
BB50 GEN 6F —
65415-36061 Panel, Rear Body, Front RH
2004-08 → 2015-01 ended
BB50,HZB50,TRB50 LHD 5F —
65415-36081 Panel, Rear Body, Front RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
65415-36081 Panel, Rear Body, Front RH
2004-08 → 2006-08 ended
BB50 ARL —
65415-36081 Panel, Rear Body, Front RH
2004-08 → 2015-01 ended
XZB50 WC ARL —
65415-36111 Panel, Rear Body, Front RH
2004-08 → 2015-01 ended
XZB50 TAIW —
65415-36111 Panel, Rear Body, Front RH
2004-08 → 2006-08 ended
BB58 —
65415-36120 Panel, Rear Body, Front RH
2012-09 → 2015-01 ended
BZB40,XZB40 —
65415-36130 note Panel, Rear Body, Front RH
2012-09 → 2015-01 ended
BZB50,XZB50 GEN —
65415-36140 note Panel, Rear Body, Front RH
2012-09 → 2015-01 ended
XZB59 —
65415-36010 Panel, Rear Body, Front RH
2015-01 → —
BB42 RHD —
65415-36021 Panel, Rear Body, Front RH
2015-01 → —
HZB50 RHD —
65415-36021 note Panel, Rear Body, Front RH
2015-01 → —
XZB5# EX 5F —
65415-36050 Panel, Rear Body, Front RH
2015-01 → —
BB42,TRB40,XZB40 LHD —
65415-36061 Panel, Rear Body, Front RH
2015-01 → —
HZB50,TRB50,XZB50 LHD (GCC,GEN) —
65415-36081 Panel, Rear Body, Front RH
2015-01 → —
XZB50 ARL —
65415-36111 Panel, Rear Body, Front RH
2015-01 → —
XZB50 TAIW —
65415-36120 Panel, Rear Body, Front RH
2015-01 → —
BZB40,XZB40 17S —
65415-36130 Panel, Rear Body, Front RH
2015-01 → —
BZB50,XZB50 RHD GEN —
65415-36140 Panel, Rear Body, Front RH
2015-01 → —
XZB59 —
65417 — Panel, Rear Body, Rear RH
65417-36010 Panel, Rear Body, Rear RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
65417-36010 Panel, Rear Body, Rear RH
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB42,50 S,26S) +26 —
65417-36010 Panel, Rear Body, Rear RH
1999-07 → 2002-11 ended
HZB50 ARL —
65417-36010 Panel, Rear Body, Rear RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
65417-36050 Panel, Rear Body, Rear RH
2000-08 → 2002-11 ended
BB50,RZB40,50 CHI —
65417-36050 Panel, Rear Body, Rear RH
2001-08 → 2004-08 ended
BB58 —
65417-36010 Panel, Rear Body, Rear RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
65417-36010 Panel, Rear Body, Rear RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 GEN TDEFI —
65417-36010 Panel, Rear Body, Rear RH
2005-08 → 2006-08 ended
BB50 ARL —
65417-36010 Panel, Rear Body, Rear RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
65417-36010 Panel, Rear Body, Rear RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
65417-36010 Panel, Rear Body, Rear RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
65417-36010 Panel, Rear Body, Rear RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
65417-36010 Panel, Rear Body, Rear RH
2004-08 → 2015-01 ended
BB42 ,50,XZB40 LHD STD +6 —
65417-36030 Panel, Rear Body, Rear RH
2004-08 → 2005-08 ended
BB50 ARL —
65417-36050 Panel, Rear Body, Rear RH
2004-08 → 2006-08 ended
BB58 —
65417-36050 Panel, Rear Body, Rear RH
2004-08 → 2015-01 ended
XZB50 TAIW —
65417-36010 Panel, Rear Body, Rear RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# ARL,GCC,GEN —
65417-36050 Panel, Rear Body, Rear RH
2015-01 → —
XZB50 TAIW —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
