Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

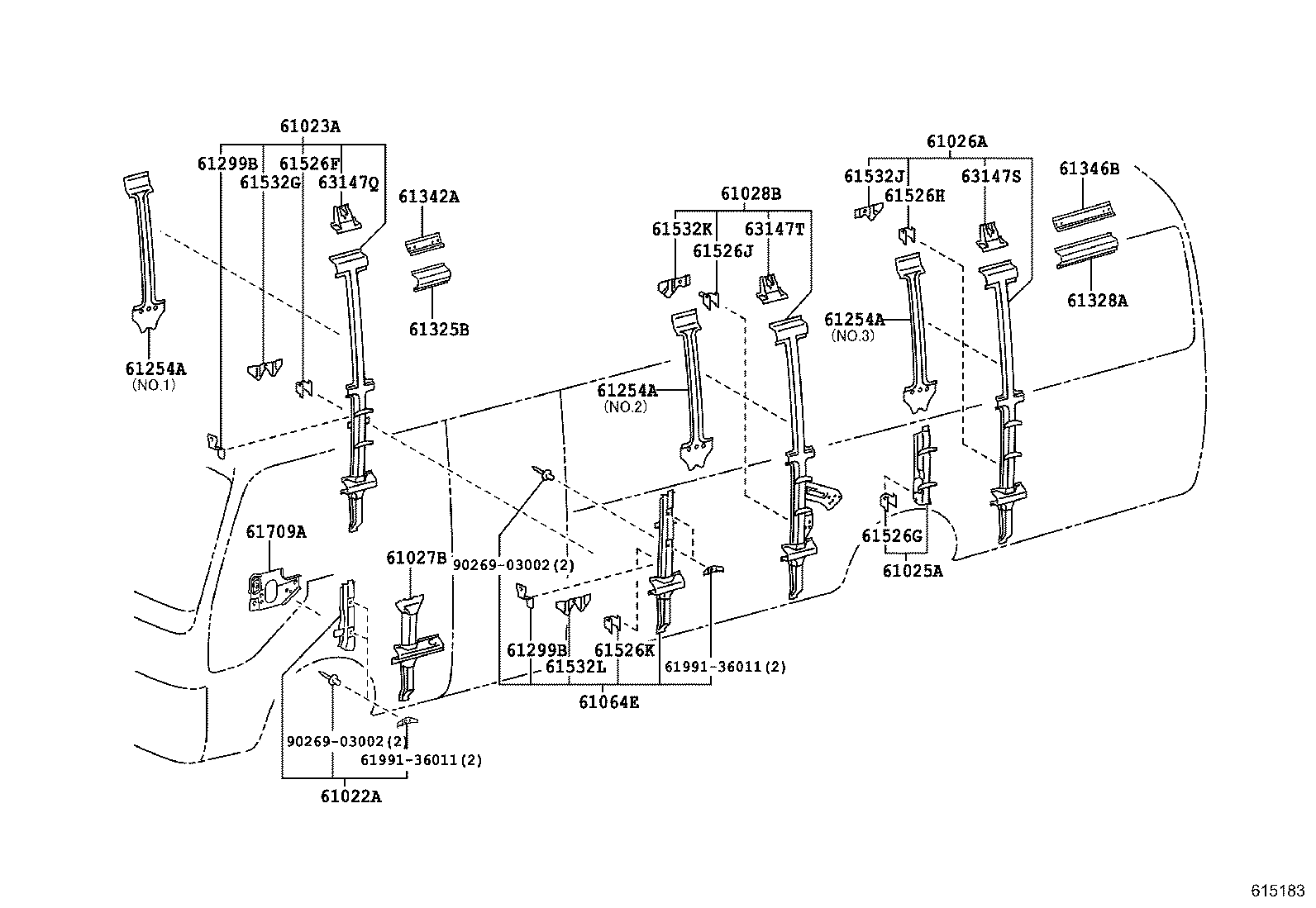

Exploded illustration 615183 61027B — PILLAR SUB-ASSY, NO.7, LH (30 parts) 61026A — PILLAR SUB-ASSY, NO.6 LH (45 parts) 61025A — PILLAR SUB-ASSY, NO.5 LH (54 parts) 61526K — BRACKET, SEAT ANCHOR, LH (4 parts) 61299B — BRACKET, INNER PILLAR BLOWER, LH (1 parts) 61299B — BRACKET, INNER PILLAR BLOWER, LH (1 parts) 61532G — GUSSET, SEAT ANCHOR, LH (2 parts) 63147Q — BRACKET, ROOF PANEL REINFORCEMENT (1 parts) 61532L — GUSSET, SEAT ANCHOR, LH (1 parts) 61064E — PILLAR SUB-ASSY, NO.12 LH (18 parts) 61028B — PILLAR SUB-ASSY, NO.8 LH (43 parts) 61023A — PILLAR SUB-ASSY, NO.3 LH (43 parts) 61254A — PILLAR, NO.3 INNER, LH (49 parts) 61254A — PILLAR, NO.3 INNER, LH (49 parts) 61342A — RAIL, NO.1 UPPER INNER, REAR LH (30 parts) 61254A — PILLAR, NO.3 INNER, LH (49 parts) 6199136011 — not listed in this catalogue 9026903002 — not listed in this catalogue 61526H — BRACKET, SEAT ANCHOR, LH (4 parts) 61526J — BRACKET, SEAT ANCHOR, LH (4 parts) 61532J — GUSSET, SEAT ANCHOR, LH (1 parts) 61532K — GUSSET, SEAT ANCHOR, LH (1 parts) 63147T — BRACKET, ROOF PANEL REINFORCEMENT (1 parts) 63147S — BRACKET, ROOF PANEL REINFORCEMENT (1 parts) 61325B — RAIL, NO.3 UPPER OUTER, LH (4 parts) 61328A — RAIL, NO.6 UPPER OUTER, LH (16 parts) 61346B — PILLAR, CENTER BODY, INNER LOWER LH (5 parts) 61022A — PILLAR SUB-ASSY, NO.2 LH (20 parts) 61709A — REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, LH (8 parts) 9026903002 — not listed in this catalogue 6199136011 — not listed in this catalogue 61526G — BRACKET, SEAT ANCHOR, LH (5 parts) 61526F — BRACKET, SEAT ANCHOR, LH (3 parts)
615183 · 29 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
394 parts on this figure
Part number Description Fitment Price
61022A — Pillar Sub-assy, NO.2 LH
61022-36010 Pillar Sub-assy, NO.2 LH
1993-01 → 1997-05 ended
HZB50 SCO;BB42,HZB50 RHD STD +1 —
61022-36011 Pillar Sub-assy, NO.2 LH
1997-05 → 1999-07 ended
BB42,43,50 RHD CBU;HZB50 RHD +2 —
61022-36020 Pillar Sub-assy, NO.2 LH
1993-01 → 1999-07 ended
BB40,HZB50 RHD (19S,20S,22S) (ARL,GEN) +1 —
61022-36020 note Pillar Sub-assy, NO.2 LH
1993-01 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
61022-36011 Pillar Sub-assy, NO.2 LH
1999-07 → 2001-08 ended
HZB50 4FC;HZB50 RHD SRF;BB43,50 +6 —
61022-36011 Pillar Sub-assy, NO.2 LH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61022-36020 Pillar Sub-assy, NO.2 LH
1999-07 → 2001-08 ended
HZB50 RHD EX —
61022-36020 note Pillar Sub-assy, NO.2 LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB42,HZB50 RHD +3 —
61022-36020 Pillar Sub-assy, NO.2 LH
1999-07 → 2002-11 ended
HZB50 ARL —
61022-36020 note Pillar Sub-assy, NO.2 LH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB42,HZB50 RHD +5 —
61022-36011 Pillar Sub-assy, NO.2 LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61022-36011 Pillar Sub-assy, NO.2 LH
2004-08 → 2007-08 ended
BB42 RHD —
61022-36011 Pillar Sub-assy, NO.2 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61022-36011 Pillar Sub-assy, NO.2 LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61022-36011 Pillar Sub-assy, NO.2 LH
2004-08 → 2011-08 ended
HZB50 RHD —
61022-36011 Pillar Sub-assy, NO.2 LH
2004-08 → 2015-01 ended
XZB59;BZB40,50,XZB40 STD;XZB50 RHD (20S,21S) +1 —
61022-36020 note Pillar Sub-assy, NO.2 LH
2004-08 → 2015-01 ended
BB42 RHD —
61022-36020 note Pillar Sub-assy, NO.2 LH
2011-08 → 2015-01 ended
HZB50 RHD —
61022-36020 note Pillar Sub-assy, NO.2 LH
2004-08 → 2007-08 ended
HZB50 RHD —
61022-36030 Pillar Sub-assy, NO.2 LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61023A — Pillar Sub-assy, NO.3 LH
61023-36010 Pillar Sub-assy, NO.3 LH
1993-01 → 1993-12 ended
BB42,HZB50,RZB40,50 LHD HRF CBU —
61023-36010 Pillar Sub-assy, NO.3 LH
1993-12 → 1999-07 ended
BB5#,HZB50,RZB50 LHD HRF CBU —
61023-36020 Pillar Sub-assy, NO.3 LH
1993-01 → 1993-12 ended
BB42,HZB50,RZB40,50 LHD SRF —
61023-36020 Pillar Sub-assy, NO.3 LH
1993-12 → 1999-07 ended
HZB50,RZB50 LHD SRF —
61023-36030 note Pillar Sub-assy, NO.3 LH
1993-01 → 1999-07 ended
BB42,RZB40 LHD SRF —
61023-36040 note Pillar Sub-assy, NO.3 LH
1996-09 → 1997-03 ended
BB42 LHD WOC GEN —
61023-36040 Pillar Sub-assy, NO.3 LH
1993-12 → 1999-07 ended
BB42,RZB40 LHD HRF —
61023-36050 Pillar Sub-assy, NO.3 LH
1993-12 → 1999-07 ended
BB42,RZB40 LHD SRF —
61023-36010 Pillar Sub-assy, NO.3 LH
1999-07 → 2001-08 ended
BB50 CBU 6F —
61023-36010 Pillar Sub-assy, NO.3 LH
1999-07 → 2004-08 ended
BB50 GEN 6F TDEFI;BB50,58,HZB50,RZB50 +4 —
61023-36010 Pillar Sub-assy, NO.3 LH
1999-07 → 2002-11 ended
BB50,RZB50 CHI —
61023-36020 Pillar Sub-assy, NO.3 LH
1999-07 → 2004-08 ended
HZB50,RZB50 LHD SRF —
61023-36030 note Pillar Sub-assy, NO.3 LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC —
61023-36030 note Pillar Sub-assy, NO.3 LH
1999-07 → 2004-08 ended
BB42,RZB40 SRF WC GCC;BB42,RZB40 +3 —
61023-36040 Pillar Sub-assy, NO.3 LH
1999-07 → 2001-08 ended
BB42,RZB40 22S GEN —
61023-36040 Pillar Sub-assy, NO.3 LH
1999-07 → 2002-11 ended
RZB40 CHI —
61023-36040 Pillar Sub-assy, NO.3 LH
1999-07 → 2004-08 ended
BB42,RZB40 LHD HRF (17S,26S) +1 —
61023-36050 Pillar Sub-assy, NO.3 LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC —
61023-36050 Pillar Sub-assy, NO.3 LH
1999-07 → 2004-08 ended
BB42,RZB40 SRF WC GCC;BB42,RZB40 +3 —
61023-36070 Pillar Sub-assy, NO.3 LH
2003-11 → 2004-08 ended
BB59 —
61023-36010 Pillar Sub-assy, NO.3 LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61023-36010 Pillar Sub-assy, NO.3 LH
2004-08 → 2007-08 ended
RZB50 HRF —
61023-36010 Pillar Sub-assy, NO.3 LH
2004-08 → 2015-01 ended
BB50,HZB50,TRB50,XZB50 LHD HRF CBU +1 —
61023-36020 Pillar Sub-assy, NO.3 LH
2004-08 → 2007-08 ended
RZB50 SRF —
61023-36020 Pillar Sub-assy, NO.3 LH
2004-08 → 2015-01 ended
HZB50,TRB50 SRF —
61023-36030 note Pillar Sub-assy, NO.3 LH
2004-08 → 2015-01 ended
BB42,TRB40 LHD SRF GEN —
61023-36030 note Pillar Sub-assy, NO.3 LH
2004-08 → 2007-08 ended
RZB40 SRF —
61023-36030 note Pillar Sub-assy, NO.3 LH
2004-08 → 2011-08 ended
BB42,TRB40 GCC —
61023-36040 Pillar Sub-assy, NO.3 LH
2004-08 → 2015-01 ended
TRB40 HRF —
61023-36040 Pillar Sub-assy, NO.3 LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61023-36040 Pillar Sub-assy, NO.3 LH
2004-08 → 2007-08 ended
RZB40 HRF GEN —
61023-36040 Pillar Sub-assy, NO.3 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61023-36050 Pillar Sub-assy, NO.3 LH
2004-08 → 2015-01 ended
BB42,TRB40 LHD SRF —
61023-36050 Pillar Sub-assy, NO.3 LH
2004-08 → 2007-08 ended
RZB40 SRF —
61023-36070 Pillar Sub-assy, NO.3 LH
2004-08 → 2015-01 ended
XZB59 —
61023-36070 Pillar Sub-assy, NO.3 LH
2004-08 → 2006-08 ended
BB59 —
61023-36081 Pillar Sub-assy, NO.3 LH
2015-01 → —
HZB50,TRB50,XZB50 LHD HRF (21S,30S) —
61023-36091 Pillar Sub-assy, NO.3 LH
2015-01 → —
HZB50,TRB50 SRF —
61023-36101 Pillar Sub-assy, NO.3 LH
2015-01 → —
HZB50,TRB50,XZB50 26S —
61023-36111 note Pillar Sub-assy, NO.3 LH
2015-01 → —
BB42,TRB40,XZB40 LHD SRF GEN —
61023-36121 Pillar Sub-assy, NO.3 LH
2015-01 → —
TRB40 HRF —
61023-36131 Pillar Sub-assy, NO.3 LH
2015-01 → —
BB42,TRB40,XZB40 LHD SRF —
61023-36140 Pillar Sub-assy, NO.3 LH
2015-01 → —
XZB59 —
61025A — Pillar Sub-assy, NO.5 LH
61025-36010 note Pillar Sub-assy, NO.5 LH
1996-09 → 1997-03 ended
BB42 LHD WOC GEN —
61025-36010 Pillar Sub-assy, NO.5 LH
1993-01 → 1999-07 ended
BB42,43,RZB40 HRF —
61025-36020 Pillar Sub-assy, NO.5 LH
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 (GCC,GEN,SCO) CBU —
61025-36030 Pillar Sub-assy, NO.5 LH
1993-01 → 1999-07 ended
HZB50 ARL —
61025-36040 Pillar Sub-assy, NO.5 LH
1993-01 → 1999-07 ended
BB42,RZB40 SRF —
61025-36050 Pillar Sub-assy, NO.5 LH
1993-01 → 1999-07 ended
BB40 —
61025-36070 note Pillar Sub-assy, NO.5 LH
1993-01 → 1999-07 ended
BB42,RZB40 SRF —
61025-36011 Pillar Sub-assy, NO.5 LH
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB4#,RZB40 +2 —
61025-36011 Pillar Sub-assy, NO.5 LH
1999-07 → 2004-08 ended
BB42 LHD HRF WOC;BB42,RZB40 +4 —
61025-36011 Pillar Sub-assy, NO.5 LH
1999-07 → 2002-11 ended
RZB40 CHI —
61025-36021 Pillar Sub-assy, NO.5 LH
1999-07 → 2001-08 ended
BB50 EX;BB50 STD CBU;BB58,HZB50,RZB50 +1 —
61025-36022 Pillar Sub-assy, NO.5 LH
2001-08 → 2004-08 ended
BB58,59,HZB50,RZB50 GCC,GEN;BB50,BZB50 (19S,20S,21S,30S) GEN —
61025-36022 Pillar Sub-assy, NO.5 LH
2001-08 → 2002-11 ended
BB50,RZB50 CHI —
61025-36031 Pillar Sub-assy, NO.5 LH
1999-07 → 2001-08 ended
HZB50 ARL —
61025-36032 Pillar Sub-assy, NO.5 LH
2001-08 → 2002-11 ended
HZB50 ARL —
61025-36032 Pillar Sub-assy, NO.5 LH
2001-08 → 2004-08 ended
BB50 ARL —
61025-36041 Pillar Sub-assy, NO.5 LH
1999-07 → 2004-08 ended
BB42,RZB40 SRF GEN;BB42,RZB40 SRF +2 —
61025-36041 Pillar Sub-assy, NO.5 LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC —
61025-36071 note Pillar Sub-assy, NO.5 LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC —
61025-36071 note Pillar Sub-assy, NO.5 LH
1999-07 → 2004-08 ended
BB42,RZB40 SRF GEN;BB42,RZB40 SRF +2 —
61025-36090 Pillar Sub-assy, NO.5 LH
2001-08 → 2004-08 ended
BZB40 —
61025-36110 Pillar Sub-assy, NO.5 LH
2003-02 → 2004-08 ended
BB50,BZB50 17S —
61025-36011 Pillar Sub-assy, NO.5 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61025-36011 Pillar Sub-assy, NO.5 LH
2004-08 → 2015-01 ended
TRB40 HRF;BB42 RHD HRF —
61025-36011 Pillar Sub-assy, NO.5 LH
2004-08 → 2007-08 ended
RZB40 HRF GEN —
61025-36011 Pillar Sub-assy, NO.5 LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61025-36022 Pillar Sub-assy, NO.5 LH
2004-08 → 2015-01 ended
XZB59;BB50,HZB50,TRB50,XZB50 (20S,30S) (DCR,DSL,EFI,TD) —
61025-36022 Pillar Sub-assy, NO.5 LH
2004-08 → 2011-08 ended
XZB50 TAIW —
61025-36022 Pillar Sub-assy, NO.5 LH
2004-08 → 2006-08 ended
BB58,59;BB50,BZB50 (19S,20S,21S) GEN —
61025-36022 Pillar Sub-assy, NO.5 LH
2004-08 → 2007-08 ended
RZB50 —
61025-36032 Pillar Sub-assy, NO.5 LH
2004-08 → 2007-08 ended
XZB50 ARL —
61025-36032 Pillar Sub-assy, NO.5 LH
2004-08 → 2006-08 ended
BB50 ARL —
61025-36041 Pillar Sub-assy, NO.5 LH
2004-08 → 2007-08 ended
RZB40 SRF —
61025-36041 Pillar Sub-assy, NO.5 LH
2004-08 → 2015-01 ended
BB42,TRB40 SRF —
61025-36071 note Pillar Sub-assy, NO.5 LH
2004-08 → 2011-08 ended
BB42,TRB40 GCC —
61025-36071 note Pillar Sub-assy, NO.5 LH
2004-08 → 2007-08 ended
RZB40 SRF —
61025-36071 note Pillar Sub-assy, NO.5 LH
2004-08 → 2015-01 ended
BB42,TRB40 SRF GEN —
61025-36090 Pillar Sub-assy, NO.5 LH
2004-08 → 2015-01 ended
BZB40,XZB40 —
61025-36100 Pillar Sub-assy, NO.5 LH
2011-08 → 2015-01 ended
XZB50 TAIW —
61025-36110 Pillar Sub-assy, NO.5 LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
61025-36110 Pillar Sub-assy, NO.5 LH
2004-08 → 2007-08 ended
BZB50,XZB50 STD GEN —
61025-36111 Pillar Sub-assy, NO.5 LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
61025-36111 Pillar Sub-assy, NO.5 LH
2007-08 → 2015-01 ended
BZB50 —
61025-36120 Pillar Sub-assy, NO.5 LH
2007-08 → 2015-01 ended
XZB50 WC ARL —
61025-36120 Pillar Sub-assy, NO.5 LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
61025-36161 Pillar Sub-assy, NO.5 LH
2015-01 → —
HZB50,TRB50,XZB50 (20S,21S,30S) (GCC,GEN,TAIW) —
61025-36170 Pillar Sub-assy, NO.5 LH
2015-01 → —
BZB50,XZB59 —
61025-36170 note Pillar Sub-assy, NO.5 LH
2015-01 → —
XZB50 EX —
61025-36181 Pillar Sub-assy, NO.5 LH
2015-01 → —
HZB50,TRB50,XZB50 26S —
61025-36191 Pillar Sub-assy, NO.5 LH
2015-01 → —
BZB40,TRB40,XZB40 HRF —
61025-36201 Pillar Sub-assy, NO.5 LH
2015-01 → —
BB42,TRB40,XZB40 SRF —
61025-36211 note Pillar Sub-assy, NO.5 LH
2015-01 → —
BB42,TRB40,XZB40 SRF GEN —
61025-36220 note Pillar Sub-assy, NO.5 LH
2015-01 → —
BZB40 —
61025-36250 Pillar Sub-assy, NO.5 LH
2015-01 → —
XZB50 ARL —
61026A — Pillar Sub-assy, NO.6 LH
61026-36010 Pillar Sub-assy, NO.6 LH
1993-01 → 1999-07 ended
BB42,43,RZB40 —
61026-36020 Pillar Sub-assy, NO.6 LH
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 HRF (GCC,GEN,SCO) CBU —
61026-36040 Pillar Sub-assy, NO.6 LH
1993-01 → 1999-07 ended
HZB50 ARL —
61026-36050 Pillar Sub-assy, NO.6 LH
1993-01 → 1999-07 ended
HZB50,RZB50 SRF —
61026-36060 Pillar Sub-assy, NO.6 LH
1993-01 → 1999-07 ended
BB40 —
61026-36090 note Pillar Sub-assy, NO.6 LH
1993-01 → 1999-07 ended
HZB50,RZB50 SRF —
61026-36011 Pillar Sub-assy, NO.6 LH
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
61026-36011 Pillar Sub-assy, NO.6 LH
1999-07 → 2004-08 ended
BB42 C;RZB40 WC (17S,26S) +13 —
61026-36011 Pillar Sub-assy, NO.6 LH
1999-07 → 2002-11 ended
RZB40 CHI —
61026-36021 Pillar Sub-assy, NO.6 LH
1999-07 → 2002-11 ended
BB50,RZB50 CHI —
61026-36021 Pillar Sub-assy, NO.6 LH
1999-07 → 2001-08 ended
BB50 EX GEN;BB50 CBU +7 —
61026-36021 Pillar Sub-assy, NO.6 LH
1999-07 → 2004-08 ended
HZB50 0,BZB50 LHD (21S,30S) +12 —
61026-36040 Pillar Sub-assy, NO.6 LH
1999-07 → 2002-11 ended
HZB50 ARL —
61026-36040 Pillar Sub-assy, NO.6 LH
1999-07 → 2004-08 ended
BB50,BZB50 RHD (DX,STD) CBU —
61026-36051 Pillar Sub-assy, NO.6 LH
1999-07 → 2001-08 ended
HZB50 RHD SRF —
61026-36051 Pillar Sub-assy, NO.6 LH
1999-07 → 2004-08 ended
HZB50,RZB50 LHD SRF —
61026-36060 Pillar Sub-assy, NO.6 LH
2001-08 → 2004-08 ended
BZB40 —
61026-36091 note Pillar Sub-assy, NO.6 LH
1999-07 → 2001-08 ended
HZB50 RHD SRF —
61026-36091 note Pillar Sub-assy, NO.6 LH
1999-07 → 2004-08 ended
HZB50,RZB50 LHD SRF —
61026-36011 Pillar Sub-assy, NO.6 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61026-36011 Pillar Sub-assy, NO.6 LH
2004-08 → 2015-01 ended
TRB40;BB42 RHD;BB42 LHD SRF —
61026-36011 Pillar Sub-assy, NO.6 LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61026-36011 Pillar Sub-assy, NO.6 LH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
61026-36021 Pillar Sub-assy, NO.6 LH
2004-08 → 2007-08 ended
RZB50 HRF —
61026-36021 Pillar Sub-assy, NO.6 LH
2004-08 → 2011-08 ended
XZB50 TAIW —
61026-36021 Pillar Sub-assy, NO.6 LH
2004-08 → 2006-08 ended
BB58,59;BB50,BZB50 (19S,20S,21S) GEN —
61026-36021 Pillar Sub-assy, NO.6 LH
2004-08 → 2015-01 ended
XZB59;BB50,HZB50,TRB50,XZB50 HRF (20S,30S) (DCR,DSL,EFI,TD) —
61026-36040 Pillar Sub-assy, NO.6 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61026-36040 Pillar Sub-assy, NO.6 LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61026-36040 Pillar Sub-assy, NO.6 LH
2004-08 → 2006-08 ended
BB50 RHD (DX,STD) CBU —
61026-36040 Pillar Sub-assy, NO.6 LH
2004-08 → 2015-01 ended
BZB50 STD;XZB50 WC ARL —
61026-36051 Pillar Sub-assy, NO.6 LH
2004-08 → 2007-08 ended
RZB50 SRF —
61026-36051 Pillar Sub-assy, NO.6 LH
2004-08 → 2015-01 ended
HZB50,TRB50 SRF —
61026-36060 Pillar Sub-assy, NO.6 LH
2004-08 → 2007-08 ended
BZB40 —
61026-36091 note Pillar Sub-assy, NO.6 LH
2004-08 → 2007-08 ended
RZB50 SRF —
61026-36091 note Pillar Sub-assy, NO.6 LH
2004-08 → 2015-01 ended
HZB50 SRF GEN —
61026-36091 note Pillar Sub-assy, NO.6 LH
2004-08 → 2011-08 ended
HZB50,TRB50 SRF GCC —
61026-36100 Pillar Sub-assy, NO.6 LH
2007-08 → 2015-01 ended
BZB40,XZB40 —
61026-36110 Pillar Sub-assy, NO.6 LH
2011-08 → 2015-01 ended
XZB50 TAIW —
61026-36160 Pillar Sub-assy, NO.6 LH
2015-01 → —
BZB50,HZB50,TRB50,XZB5# HRF —
61026-36180 Pillar Sub-assy, NO.6 LH
2015-01 → —
HZB50,TRB50 SRF —
61026-36190 note Pillar Sub-assy, NO.6 LH
2015-01 → —
HZB50 SRF GEN —
61026-36200 Pillar Sub-assy, NO.6 LH
2015-01 → —
BB42,TRB40,XZB40 26S —
61026-36200 note Pillar Sub-assy, NO.6 LH
2015-01 → —
BZB40 —
61026-36211 Pillar Sub-assy, NO.6 LH
2015-01 → —
BZB40,XZB40 17S —
61027B — Pillar Sub-assy, NO.7, LH
61027-36010 Pillar Sub-assy, NO.7, LH
1993-01 → 1995-01 ended
BB4#,HZB50 RHD DSL —
61027-36010 note Pillar Sub-assy, NO.7, LH
1995-05 → 1999-07 ended
BB40,HZB50 ARL —
61027-36010 Pillar Sub-assy, NO.7, LH
1995-01 → 1995-05 ended
BB40,HZB50 ARL —
61027-36011 Pillar Sub-assy, NO.7, LH
1995-01 → 1995-05 ended
BB42,HZB50 RHD (GEN,SCO) —
61027-36011 Pillar Sub-assy, NO.7, LH
1995-05 → 1997-05 ended
BB4#,HZB50 RHD DSL —
61027-36020 Pillar Sub-assy, NO.7, LH
1993-01 → 1995-01 ended
BB42,RZB40 LHD HRF —
61027-36021 Pillar Sub-assy, NO.7, LH
1995-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61027-36050 Pillar Sub-assy, NO.7, LH
1997-05 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61027-36021 Pillar Sub-assy, NO.7, LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,5#,RZB40 (19S,22S,23S) +1 —
61027-36021 Pillar Sub-assy, NO.7, LH
1999-07 → 2004-08 ended
BB42 BB50,HZB50,RZB50 WC LHD +12 —
61027-36050 Pillar Sub-assy, NO.7, LH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61027-36050 Pillar Sub-assy, NO.7, LH
1999-07 → 2002-11 ended
HZB50 ARL —
61027-36050 Pillar Sub-assy, NO.7, LH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61027-36070 Pillar Sub-assy, NO.7, LH
2000-08 → 2004-08 ended
BB50 GEN 6F TDEFI —
61027-36070 Pillar Sub-assy, NO.7, LH
2001-08 → 2004-08 ended
BB58 —
61027-36070 Pillar Sub-assy, NO.7, LH
2000-08 → 2002-11 ended
BB50,RZB40,50 CHI —
61027-36021 Pillar Sub-assy, NO.7, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61027-36021 Pillar Sub-assy, NO.7, LH
2004-08 → 2015-01 ended
BB42 LHD SRF GEN;BB50,HZB50,TRB40,50 +3 —
61027-36021 Pillar Sub-assy, NO.7, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;BB42,HZB50 GCC;RZB40 SRF +1 —
61027-36021 Pillar Sub-assy, NO.7, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61027-36050 Pillar Sub-assy, NO.7, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61027-36050 Pillar Sub-assy, NO.7, LH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
61027-36050 Pillar Sub-assy, NO.7, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61027-36050 Pillar Sub-assy, NO.7, LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61027-36070 Pillar Sub-assy, NO.7, LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61027-36070 Pillar Sub-assy, NO.7, LH
2004-08 → 2015-01 ended
TRB40,50,XZB50 GCC,TAIW —
61027-36070 Pillar Sub-assy, NO.7, LH
2007-08 → 2015-01 ended
BB42,HZB50 GCC —
61027-36080 Pillar Sub-assy, NO.7, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD GEN —
61027-36110 Pillar Sub-assy, NO.7, LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61027-36120 Pillar Sub-assy, NO.7, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB50 GCC,TAIW —
61028B — Pillar Sub-assy, NO.8 LH
61028-36010 Pillar Sub-assy, NO.8 LH
1995-05 → 1999-07 ended
BB4#,RZB40 —
61028-36010 Pillar Sub-assy, NO.8 LH
1993-01 → 1995-05 ended
BB42,RZB40 —
61028-36020 Pillar Sub-assy, NO.8 LH
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 HRF CBU —
61028-36030 Pillar Sub-assy, NO.8 LH
1993-01 → 1999-07 ended
HZB50,RZB50 SRF —
61028-36060 note Pillar Sub-assy, NO.8 LH
1993-01 → 1999-07 ended
HZB50,RZB50 SRF —
61028-36070 Pillar Sub-assy, NO.8 LH
1993-01 → 1995-05 ended
BB40 —
61028-36011 Pillar Sub-assy, NO.8 LH
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
61028-36011 Pillar Sub-assy, NO.8 LH
1999-07 → 2002-11 ended
RZB40 CHI —
61028-36011 Pillar Sub-assy, NO.8 LH
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
61028-36021 Pillar Sub-assy, NO.8 LH
1999-07 → 2001-08 ended
BB50 EX GEN;BB50 CBU +7 —
61028-36021 Pillar Sub-assy, NO.8 LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
61028-36021 Pillar Sub-assy, NO.8 LH
1999-07 → 2004-08 ended
HZB50 0 LHD (17S,21S,30S) +12 —
61028-36031 Pillar Sub-assy, NO.8 LH
1999-07 → 2001-08 ended
HZB50 RHD SRF —
61028-36031 Pillar Sub-assy, NO.8 LH
1999-07 → 2004-08 ended
HZB50,RZB50 LHD SRF —
61028-36061 note Pillar Sub-assy, NO.8 LH
1999-07 → 2001-08 ended
HZB50 RHD SRF —
61028-36061 note Pillar Sub-assy, NO.8 LH
1999-07 → 2004-08 ended
HZB50,RZB50 LHD SRF —
61028-36011 Pillar Sub-assy, NO.8 LH
2004-08 → 2011-08 ended
BB42,BZB40,XZB40 RHD —
61028-36011 note Pillar Sub-assy, NO.8 LH
2004-08 → 2011-08 ended
BB42,TRB40 GCC —
61028-36011 Pillar Sub-assy, NO.8 LH
2004-08 → 2007-08 ended
RZB40 SRF GCC;BB42,RZB40 LHD +1 —
61028-36011 Pillar Sub-assy, NO.8 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61028-36021 Pillar Sub-assy, NO.8 LH
2004-08 → 2007-08 ended
RZB50,XZB50 HRF (21S,30S) (ARL,GCC,GEN) —
61028-36021 Pillar Sub-assy, NO.8 LH
2004-08 → 2015-01 ended
XZB5# EX;BB50,BZB50,HZB50,TRB50 HRF STD +1 —
61028-36021 Pillar Sub-assy, NO.8 LH
2004-08 → 2011-08 ended
XZB50 TAIW —
61028-36021 Pillar Sub-assy, NO.8 LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61028-36021 Pillar Sub-assy, NO.8 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61028-36031 Pillar Sub-assy, NO.8 LH
2004-08 → 2007-08 ended
RZB50 SRF —
61028-36031 Pillar Sub-assy, NO.8 LH
2004-08 → 2015-01 ended
HZB50,TRB50 SRF —
61028-36061 note Pillar Sub-assy, NO.8 LH
2004-08 → 2007-08 ended
RZB50 SRF —
61028-36061 note Pillar Sub-assy, NO.8 LH
2004-08 → 2011-08 ended
HZB50,TRB50 SRF GCC —
61028-36061 note Pillar Sub-assy, NO.8 LH
2004-08 → 2015-01 ended
HZB50 SRF GEN —
61028-36100 Pillar Sub-assy, NO.8 LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
61028-36100 Pillar Sub-assy, NO.8 LH
2007-08 → 2015-01 ended
XZB50 WC ARL —
61028-36110 Pillar Sub-assy, NO.8 LH
2011-08 → 2015-01 ended
XZB50 TAIW —
61028-36140 Pillar Sub-assy, NO.8 LH
2011-08 → 2015-01 ended
BB42 RHD WOC;BB42,BZB40,XZB40 HRF —
61028-36140 Pillar Sub-assy, NO.8 LH
2007-08 → 2015-01 ended
TRB40;BB42 SRF WC;BB42 LHD +1 —
61028-36140 Pillar Sub-assy, NO.8 LH
2007-08 → 2011-08 ended
BB42 LHD HRF —
61028-36151 Pillar Sub-assy, NO.8 LH
2015-01 → —
HZB50,TRB50,XZB50 HRF (GCC,GEN,TAIW) —
61028-36161 Pillar Sub-assy, NO.8 LH
2015-01 → —
HZB50,TRB50 SRF —
61028-36171 note Pillar Sub-assy, NO.8 LH
2015-01 → —
HZB50 SRF GEN —
61028-36180 Pillar Sub-assy, NO.8 LH
2015-01 → —
XZB59;BZB50,XZB50 RHD (DX,STD) —
61028-36180 note Pillar Sub-assy, NO.8 LH
2015-01 → —
XZB50 EX —
61028-36201 Pillar Sub-assy, NO.8 LH
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
61028-36210 note Pillar Sub-assy, NO.8 LH
2015-01 → —
BZB40 —
61064E — Pillar Sub-assy, NO.12 LH
61014-36040 note Pillar Sub-assy, NO.12 LH
1993-01 → 1993-12 ended
HZB50,RZB50 20S,30S —
61051-36020 note Pillar Sub-assy, NO.12 LH
1993-01 → 1993-12 ended
HZB50 ARL —
61064-36010 note Pillar Sub-assy, NO.12 LH
1993-12 → 1995-05 ended
HZB50,RZB50 20S,30S —
61064-36010 note Pillar Sub-assy, NO.12 LH
1995-05 → 1999-07 ended
BB5#,HZB50,RZB50 CBU —
61064-36020 note Pillar Sub-assy, NO.12 LH
1993-12 → 1995-05 ended
HZB50 ARL —
61064-36010 note Pillar Sub-assy, NO.12 LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
61064-36010 note Pillar Sub-assy, NO.12 LH
1999-07 → 2004-08 ended
HZB50 20S) LHD TDEFI;BB58,59,BZB50,RZB50 +13 —
61064-36010 note Pillar Sub-assy, NO.12 LH
1999-07 → 2001-08 ended
BB50 22S) EX GEN +10 —
61064-36010 note Pillar Sub-assy, NO.12 LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61064-36010 note Pillar Sub-assy, NO.12 LH
2004-08 → 2007-08 ended
RZB50 —
61064-36010 note Pillar Sub-assy, NO.12 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61064-36010 note Pillar Sub-assy, NO.12 LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61064-36010 note Pillar Sub-assy, NO.12 LH
2004-08 → 2011-08 ended
XZB59;BZB50,HZB50 RHD STD;XZB50 RHD +2 —
61064-36010 note Pillar Sub-assy, NO.12 LH
2004-08 → 2015-01 ended
BB50,HZB50,TRB50,XZB50 LHD CBU 5F —
61064-36060 Pillar Sub-assy, NO.12 LH
2011-08 → 2015-01 ended
BZB50,HZB50,XZB5# RHD (ARL,GEN) —
61064-36071 Pillar Sub-assy, NO.12 LH
2015-01 → —
HZB50,TRB50,XZB50 GCC,GEN,TAIW —
61064-36080 Pillar Sub-assy, NO.12 LH
2015-01 → —
XZB59;BZB50,XZB50 RHD (DX,STD) —
61064-36080 note Pillar Sub-assy, NO.12 LH
2015-01 → —
XZB50 EX —
61254A — Pillar, NO.3 Inner, LH
61036-36010 Pillar, NO.3 Inner, LH
1993-01 → 1999-07 ended
BB42 RHD SRF —
61036-36010 Pillar, NO.3 Inner, LH
1993-01 → 1999-07 ended
HZB50 RHD SRF;BB42,RZB40 LHD +1 —
61036-36010 Pillar, NO.3 Inner, LH
1993-01 → 1999-07 ended
HZB50,RZB50 LHD SRF —
61036-36030 Pillar, NO.3 Inner, LH
1997-05 → 1999-07 ended
HZB50 4FC —
61254-36030 Pillar, NO.3 Inner, LH
1997-05 → 1999-07 ended
BB42,RZB40 LHD HRF;BB50,HZB50 RHD +3 —
61254-36030 Pillar, NO.3 Inner, LH
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 LHD HRF CBU —
61254-36030 Pillar, NO.3 Inner, LH
1993-01 → 1997-05 ended
BB42,RZB40 LHD HRF;HZB50 RHD +2 —
61254-36030 note Pillar, NO.3 Inner, LH
1996-09 → 1997-03 ended
BB42 LHD WOC GEN —
61254-36030 Pillar, NO.3 Inner, LH
1993-01 → 1999-07 ended
BB4# RHD HRF —
61036-36010 Pillar, NO.3 Inner, LH
1999-07 → 2004-08 ended
HZB50,RZB50 LHD SRF —
61036-36010 Pillar, NO.3 Inner, LH
1999-07 → 2004-08 ended
BB42,RZB40 SRF WC GCC;BB42,RZB40 +3 —
61036-36010 Pillar, NO.3 Inner, LH
1999-07 → 2004-08 ended
BB42 RHD SRF —
61036-36010 Pillar, NO.3 Inner, LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB42,RZB40 WOC +1 —
61036-36030 Pillar, NO.3 Inner, LH
1999-07 → 2001-08 ended
HZB50 4FC —
61036-36050 note Pillar, NO.3 Inner, LH
2001-08 → 2004-08 ended
BB42 RHD WOC —
61254-36030 Pillar, NO.3 Inner, LH
1999-07 → 2001-08 ended
BB50 CBU 6F —
61254-36030 Pillar, NO.3 Inner, LH
1999-07 → 2004-08 ended
BB50 GEN 6F TDEFI;BB50,58,HZB50,RZB50 +4 —
61254-36030 Pillar, NO.3 Inner, LH
1999-07 → 2004-08 ended
HZB50 59,BZB50 RHD RHD +11 —
61254-36030 Pillar, NO.3 Inner, LH
1999-07 → 2004-08 ended
BB42,BZB40 RHD WC —
61254-36030 Pillar, NO.3 Inner, LH
1999-07 → 2001-08 ended
BB43;BB42 RHD HRF WOC —
61254-36030 Pillar, NO.3 Inner, LH
1999-07 → 2002-11 ended
BB50,RZB50 CHI —
61254-36030 Pillar, NO.3 Inner, LH
1999-07 → 2002-11 ended
HZB50,RZB40 ARL,CHI —
61254-36030 Pillar, NO.3 Inner, LH
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX;BB42,RZB40 22S +4 —
61036-36010 Pillar, NO.3 Inner, LH
2004-08 → 2015-01 ended
HZB50,TRB50 SRF —
61036-36010 Pillar, NO.3 Inner, LH
2004-08 → 2007-08 ended
RZB40 SRF —
61036-36010 Pillar, NO.3 Inner, LH
2004-08 → 2007-08 ended
RZB50 SRF —
61036-36010 Pillar, NO.3 Inner, LH
2004-08 → 2015-01 ended
BB42,TRB40 LHD SRF —
61036-36010 Pillar, NO.3 Inner, LH
2004-08 → 2015-01 ended
BB42 RHD SRF —
61036-36050 note Pillar, NO.3 Inner, LH
2011-08 → 2015-01 ended
BB42 RHD SRF WC —
61036-36050 note Pillar, NO.3 Inner, LH
2004-08 → 2015-01 ended
BB42 RHD WOC —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2015-01 ended
BB50,HZB50,TRB50,XZB50 LHD HRF CBU +1 —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2015-01 ended
TRB40,XZB59 HRF;BZB50,HZB50 RHD STD;XZB50 +3 —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2015-01 ended
BB42,BZB40,XZB40 RHD HRF —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2007-08 ended
RZB40 HRF GEN —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2007-08 ended
RZB50 HRF —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61036-36010 Pillar, NO.3 Inner, LH
2015-01 → —
BB42 RHD —
61036-36010 note Pillar, NO.3 Inner, LH
2015-01 → —
BB42,TRB40,XZB40 LHD SRF —
61036-36010 note Pillar, NO.3 Inner, LH
2015-01 → —
HZB50,TRB50 SRF —
61036-36050 note Pillar, NO.3 Inner, LH
2015-01 → —
BB42 RHD —
61254-36030 note Pillar, NO.3 Inner, LH
2015-01 → —
TRB40 HRF;BZB50,HZB50,XZB5# RHD —
61254-36030 note Pillar, NO.3 Inner, LH
2015-01 → —
HZB50,TRB50,XZB50 LHD HRF —
61254-36030 Pillar, NO.3 Inner, LH
2015-01 → —
BZB40,XZB40 17S —
61254-36030 note Pillar, NO.3 Inner, LH
2015-01 → —
XZB59 —
61299B — Bracket, Inner Pillar Blower, LH
61299-36010 Bracket, Inner Pillar Blower, LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61325B — Rail, NO.3 Upper Outer, LH
61316-36010 Rail, NO.3 Upper Outer, LH
2003-11 → 2004-08 ended
BB59 —
61316-36010 Rail, NO.3 Upper Outer, LH
2004-08 → 2006-08 ended
BB59 —
61316-36010 Rail, NO.3 Upper Outer, LH
2004-08 → 2015-01 ended
XZB59 —
61316-36010 Rail, NO.3 Upper Outer, LH
2015-01 → —
XZB59 —
61328A — Rail, NO.6 Upper Outer, LH
61328-36010 Rail, NO.6 Upper Outer, LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61317-36010 note Rail, NO.6 Upper Outer, LH
2003-11 → 2004-08 ended
BB59 —
61328-36010 Rail, NO.6 Upper Outer, LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61328-36010 Rail, NO.6 Upper Outer, LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61328-36010 Rail, NO.6 Upper Outer, LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61317-36010 note Rail, NO.6 Upper Outer, LH
2004-08 → 2006-08 ended
BB59 —
61317-36010 note Rail, NO.6 Upper Outer, LH
2004-08 → 2015-01 ended
XZB59 —
61328-36010 Rail, NO.6 Upper Outer, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61328-36010 Rail, NO.6 Upper Outer, LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61328-36010 Rail, NO.6 Upper Outer, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61328-36010 Rail, NO.6 Upper Outer, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61328-36010 Rail, NO.6 Upper Outer, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61328-36010 Rail, NO.6 Upper Outer, LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61328-36010 Rail, NO.6 Upper Outer, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61317-36010 note Rail, NO.6 Upper Outer, LH
2015-01 → —
XZB59 —
61328-36010 Rail, NO.6 Upper Outer, LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61342A — Rail, NO.1 Upper Inner, Rear LH
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 DX,EX —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
1993-01 → 1999-07 ended
BB50 EX;BB4#,58,HZB50,RZB40,50 STD CBU —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
1993-01 → 1997-05 ended
HZB50 SCO —
61332-36020 note Rail, NO.1 Upper Inner, Rear LH
2003-11 → 2004-08 ended
BB59 —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
1999-07 → 2001-08 ended
BB50 CBU 6F;BB50,HZB50 RHD +1 —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
1999-07 → 2002-11 ended
HZB50 DX;BB50,RZB40,50 CHI —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
1999-07 → 2004-08 ended
HZB50,RZB40 LHD EX;BB50 (19S,20S) +1 —
61342-36020 Rail, NO.1 Upper Inner, Rear LH
2001-08 → 2004-08 ended
BB59;BB50,BZB50 21S (DX,EX) —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
2001-08 → 2004-08 ended
BB50 WC GEN TD —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
61342-36030 Rail, NO.1 Upper Inner, Rear LH
2002-11 → 2004-08 ended
BB50,BZB50 RHD STD CBU —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
1999-07 → 2004-08 ended
BB42 RF 6S) WC +28 —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
1999-07 → 2001-08 ended
HZB50 N;BB4#,50,RZB40 RHD (17S,20S,22S) +10 —
61332-36020 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2006-08 ended
BB59 —
61332-36020 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2011-04 ended
XZB59 —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
2011-08 → 2015-01 ended
TRB50 HRF GCC —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2006-08 ended
BB50 DX;BB50 19S,20S;BB59,BZB50 EX —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2015-01 ended
XZB5# DX,EX —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2011-08 ended
BB50 WC TD —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2015-01 ended
BB42 50,XZB40 RHD;BB42 STD +6 —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
2004-08 → 2006-08 ended
BB50,58 (17S,20S,21S,23S) (EX,STD) —
61342-36060 note Rail, NO.1 Upper Inner, Rear LH
2011-04 → 2015-01 ended
XZB59 —
61342-36020 note Rail, NO.1 Upper Inner, Rear LH
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
61342-36030 note Rail, NO.1 Upper Inner, Rear LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F —
61342-36060 note Rail, NO.1 Upper Inner, Rear LH
2015-01 → —
XZB59 —
61346B — Pillar, Center Body, Inner Lower LH
61346-36010 Pillar, Center Body, Inner Lower LH
2003-11 → 2004-08 ended
BB59 —
61346-36010 Pillar, Center Body, Inner Lower LH
2004-08 → 2006-08 ended
BB59 —
61346-36010 Pillar, Center Body, Inner Lower LH
2004-08 → 2011-03 ended
XZB59 —
61346-36011 Pillar, Center Body, Inner Lower LH
2011-04 → 2015-01 ended
XZB59 —
61346-36011 Pillar, Center Body, Inner Lower LH
2015-01 → —
XZB59 —
61526F — Bracket, Seat Anchor, LH
61525-36140 Bracket, Seat Anchor, LH
2015-01 → —
HZB50,TRB50,XZB50 26S —
61525-36350 Bracket, Seat Anchor, LH
2015-01 → —
BB42,TRB40,XZB40 LHD;HZB50,TRB50,XZB50 LHD (21S,30S) —
61525-36360 Bracket, Seat Anchor, LH
2015-01 → —
XZB59 —
61526G — Bracket, Seat Anchor, LH
61526-36190 note Bracket, Seat Anchor, LH
2015-01 → —
BB42,BZB40,HZB50,XZB40,50 RHD GEN —
61526-36190 Bracket, Seat Anchor, LH
2015-01 → —
BB42,TRB40,XZB40 LHD;HZB50,TRB50,XZB50 LHD (21S,30S) —
61526-36200 Bracket, Seat Anchor, LH
2015-01 → —
XZB59 —
61526-36200 note Bracket, Seat Anchor, LH
2015-01 → —
BZB50,XZB50 RHD (DX,STD) —
61526-36200 note Bracket, Seat Anchor, LH
2015-01 → —
XZB50 EX —
61526H — Bracket, Seat Anchor, LH
61525-36070 note Bracket, Seat Anchor, LH
2015-01 → —
BZB40,XZB40 17S —
61525-36150 note Bracket, Seat Anchor, LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB50 RHD —
61525-36150 Bracket, Seat Anchor, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61525-36150 Bracket, Seat Anchor, LH
2015-01 → —
XZB59 —
61526J — Bracket, Seat Anchor, LH
61525-36140 Bracket, Seat Anchor, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61525-36140 note Bracket, Seat Anchor, LH
2015-01 → —
BB42,BZB40,HZB50,XZB40,50 RHD GEN —
61525-36150 Bracket, Seat Anchor, LH
2015-01 → —
XZB59 —
61525-36150 note Bracket, Seat Anchor, LH
2015-01 → —
BZB50,XZB50 RHD —
61526K — Bracket, Seat Anchor, LH
61525-36140 note Bracket, Seat Anchor, LH
2015-01 → —
HZB50,XZB50 RHD GEN —
61525-36140 Bracket, Seat Anchor, LH
2015-01 → —
HZB50,TRB50,XZB50 LHD —
61525-36150 Bracket, Seat Anchor, LH
2015-01 → —
XZB59 —
61525-36150 note Bracket, Seat Anchor, LH
2015-01 → —
BZB50,XZB50 RHD —
61532G — Gusset, Seat Anchor, LH
61531-36060 Gusset, Seat Anchor, LH
2015-01 → —
HZB50,TRB50,XZB50 26S —
61532-36100 Gusset, Seat Anchor, LH
2015-01 → —
XZB59;BB42,TRB40,XZB40 LHD GEN;HZB50,TRB50,XZB50 LHD +1 —
61532J — Gusset, Seat Anchor, LH
61531-36090 Gusset, Seat Anchor, LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61532K — Gusset, Seat Anchor, LH
61532-36080 Gusset, Seat Anchor, LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61532L — Gusset, Seat Anchor, LH
61531-36060 Gusset, Seat Anchor, LH
2015-01 → —
BZB50,HZB50,TRB50,XZB5# —
61709A — Reinforcement Sub-assy, Seat Belt Anchor, LH
61709-36010 Reinforcement Sub-assy, Seat Belt Anchor, LH
1993-01 → 1999-07 ended
BB40,42,HZB50 RHD (ARL,GEN) 5F —
61709-36010 Reinforcement Sub-assy, Seat Belt Anchor, LH
1999-07 → 2001-08 ended
HZB50 RHD EX;HZB50 RHD +5 —
61709-36010 Reinforcement Sub-assy, Seat Belt Anchor, LH
1999-07 → 2002-11 ended
HZB50 ARL —
61709-36010 Reinforcement Sub-assy, Seat Belt Anchor, LH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB42,HZB50 RHD +5 —
61709-36010 Reinforcement Sub-assy, Seat Belt Anchor, LH
2004-08 → 2007-08 ended
HZB50 RHD —
61709-36010 Reinforcement Sub-assy, Seat Belt Anchor, LH
2004-08 → 2015-01 ended
BB42 RHD —
61709-36010 Reinforcement Sub-assy, Seat Belt Anchor, LH
2011-08 → 2015-01 ended
HZB50 RHD —
61709-36020 Reinforcement Sub-assy, Seat Belt Anchor, LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
63147Q — Bracket, Roof Panel Reinforcement
63147-36011 Bracket, Roof Panel Reinforcement
2015-01 → —
XZB59;HZB50,TRB40,50,XZB50 LHD HRF —
63147S — Bracket, Roof Panel Reinforcement
63147-36011 Bracket, Roof Panel Reinforcement
2015-01 → —
BZB50,HZB50,TRB50,XZB5# HRF —
63147T — Bracket, Roof Panel Reinforcement
63147-36011 Bracket, Roof Panel Reinforcement
2015-01 → —
BZB50,HZB50,TRB50,XZB5# HRF —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
